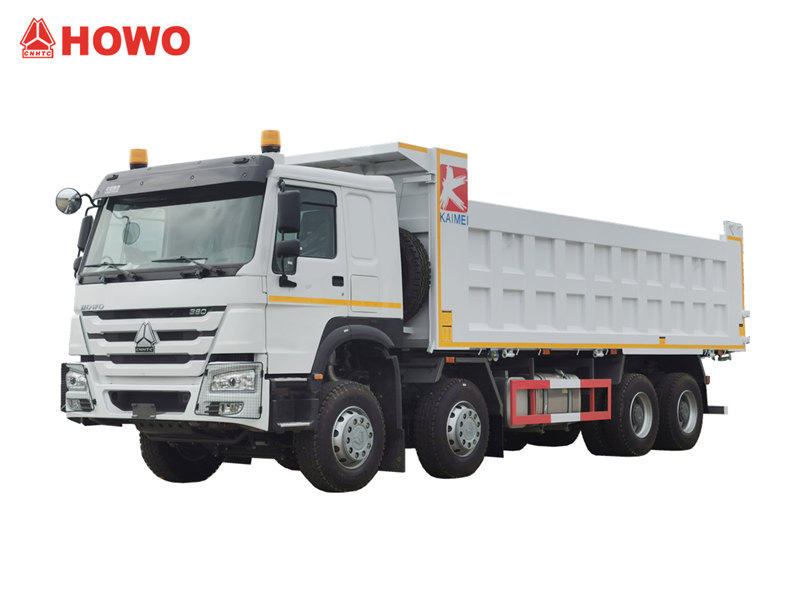

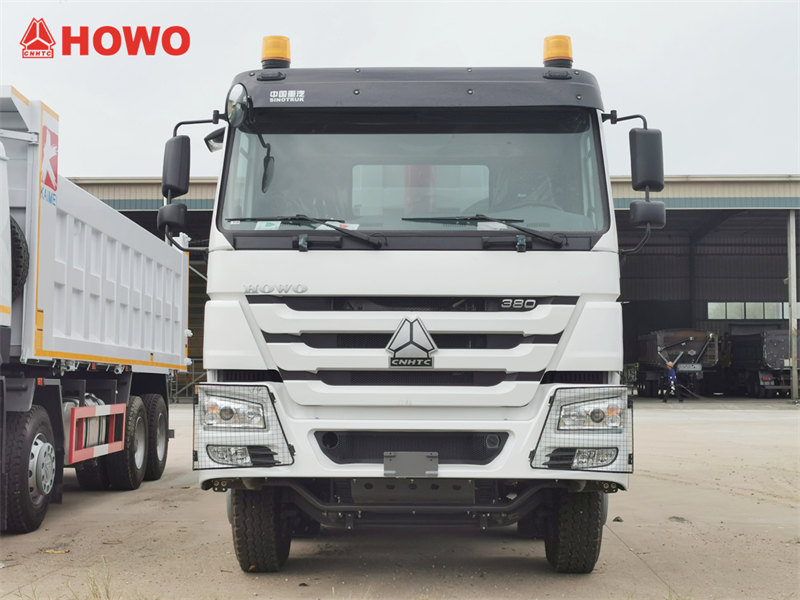

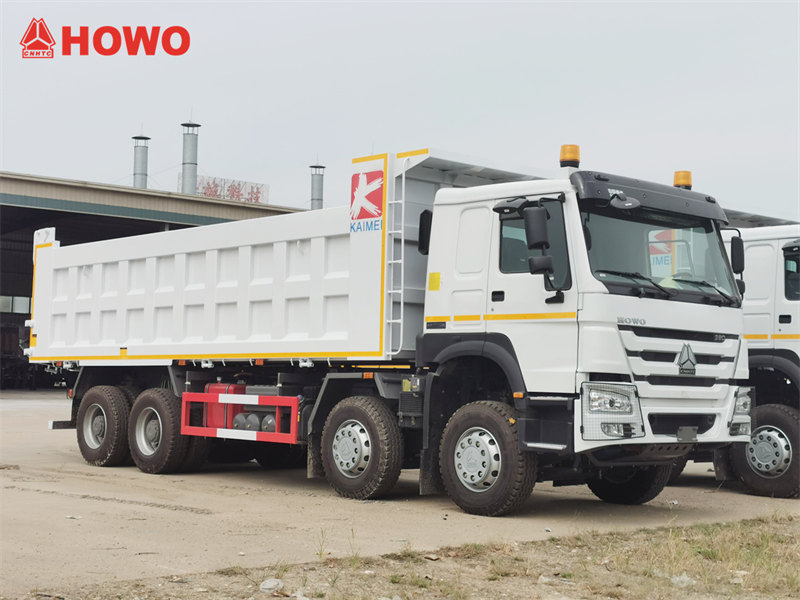

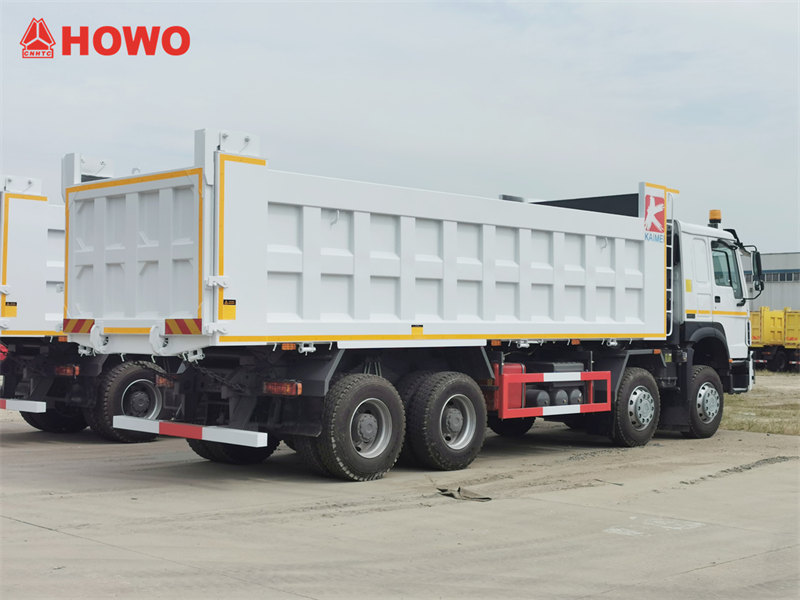

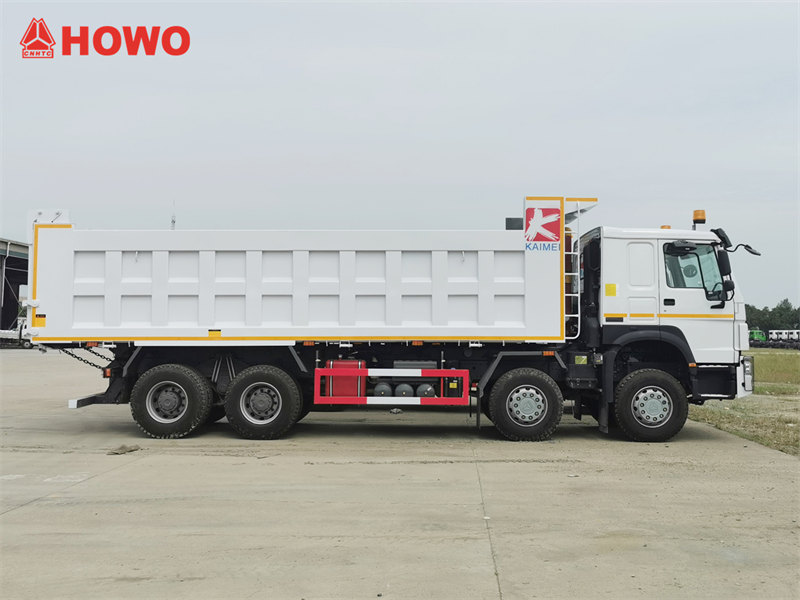

HOWO 8×4 dump truck is a robust construction vehicle designed for heavy-duty engineering and mining transportation. Equipped with a Weichai 380 horsepower engine, a sturdy 10mm carbon steel floor cargo box, and an 8×4 drive configuration, it demonstrates exceptional load-bearing capacity and off-road performance. Its front-mounted hydraulic lifting system ensures efficient and reliable unloading operations, making it an indispensable workhorse in global infrastructure projects. Particularly in the African market, it is highly regarded for its durability, reliability, and adaptability.
Working capacity :
40 tonsCabin type :
HOWO HW76Drive system :
4 axlesWheelbase ( mm) :
1800+4225 + 1350Engine specific :
380HP/WP10.380E32Gear box :
HW19710, 10 forward and 2 reverseFront axle ( Kg ) :
7 ton×2Rear axle ( Kg ) :
18 tonThe HOWO 8×4 tipper truck is a heavy-duty engineering vehicle, modified based on the HOWO 8×4 heavy-duty chassis. It is powered by a Weichai WP10.380 six-cylinder engine with a maximum output of 380 horsepower. The body is constructed with a high-strength carbon steel dump cargo box, featuring 8mm thick side plates and a 10mm thick floor plate, delivering outstanding impact resistance and wear durability. The front-mounted hydraulic lifting mechanism serves as the core unloading system, utilizing hydraulic cylinders to smoothly lift the cargo box from the front. This simple yet reliable structure is ideal for transporting bulk materials such as sand, gravel, and minerals. With a gross vehicle weight of 31 tons, the vehicle offers strong load-bearing capacity and high reliability.
This HOWO 8×4 heavy-duty dump truck is customized for African customers. In the African market, HOWO dump trucks are highly favored for their adaptability to harsh road conditions, ease of maintenance, and powerful performance. Its high ground clearance, large-capacity fuel tank, and reinforced durable cargo box design make it perfectly suited for local engineering construction and mineral transportation needs, solidifying its role as an essential transportation tool in infrastructure development.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
※ Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Advantages of HOWO 8×4 sand dumper truck
★ Reinforced structures
★ Greater loading capacity
★ Durable suspension and frame
★ Powerful diesel engine with 380HP
★ Comfortable cabin with wide and long sleeping bed
※ Ⅱ. Product Parameters for HOWO 8×4 dump truck:
|
Vehicle |
HOWO Dump Truck |
|
Cab Type |
Cab with sleeper |
|
Wheel Base |
1800+4225 + 1350 |
|
Drive System |
LHD, 8×4 |
|
Engine |
WEICHAI |
Dimensions (mm)
|
Overall |
Length |
11050 |
|
Width |
2580 |
|
|
Height |
3500 |
|
|
Wheel Tread |
Front |
2022/2022 |
|
Rear |
1860/1860 |
|
|
Overhang |
Front |
1495 |
|
Rear |
1550 |
|
|
Ground Clearance |
314 |
|
Weight (kg)
|
Empty Vehicle Weight |
15500 |
|
Gross Vehicle Weight |
31000 |
|
Front axle |
7000 |
|
Rear axle |
18000 |
Specifications
|
Engine |
Model |
WECHAI WP10.380 |
|
Number of Cylinder |
6 |
|
|
Max. Power |
380 HP |
|
|
Battery |
12V×2, 165AH |
|
|
Transmission |
Model |
HW19710 |
|
Type |
Manual, 10 forward and 2 reverse speed |
|
|
Rear Axle Ratio |
5.45 |
|
|
Tire (Front/Rear) |
12.00R20 |
|
|
Brake |
Service Brake |
Dual circuit compressed air brake |
|
Parking Brake |
Spring energy, compressed air operating on rear wheels |
|
|
Exhaust Brake |
Air operated, butterfly valve type |
|
|
Fuel Tank |
400L |
|
|
Dumper Body |
Cargo Size (mm) |
7800×2500×1500 |
|
Material |
Carbon steel, side plate 8mm, bottom plate 10mm |
|
|
Lift type |
Front lifting |
|
※ Ⅲ. Product Features

★ HOWO HW76 cabin:
HOWO HW76 classic cabin with sleeper bed, A/C, Liquid crystal display, multi-function steering wheel, power windows, and driver's air suspension seat.

★ Durable Chassis
Equipped with a Weichai series engine, the net power output ranges from 245 to 277 kW, paired with a 10F/12F/16F transmission to ensure stable power delivery and adaptability to complex working conditions. The front axle has a load capacity of 7-9.5 tons, while the rear axle supports 13-16 tons, allowing the vehicle to reach a gross vehicle weight of up to 31 tons, making it suitable for heavy-duty transportation needs.

★ Cargo box
It is equipped with a larger cargo box, made of high quality carbon steel with reinforced structure. The thickness of side walls is 8mm and floor is 10mm.

★ Strong Carrying Capacity
SINOTRUK HOWO dump trucks have excellent carrying capacity and can easily cope with Africa's harsh road conditions and heavy-duty transportation needs.

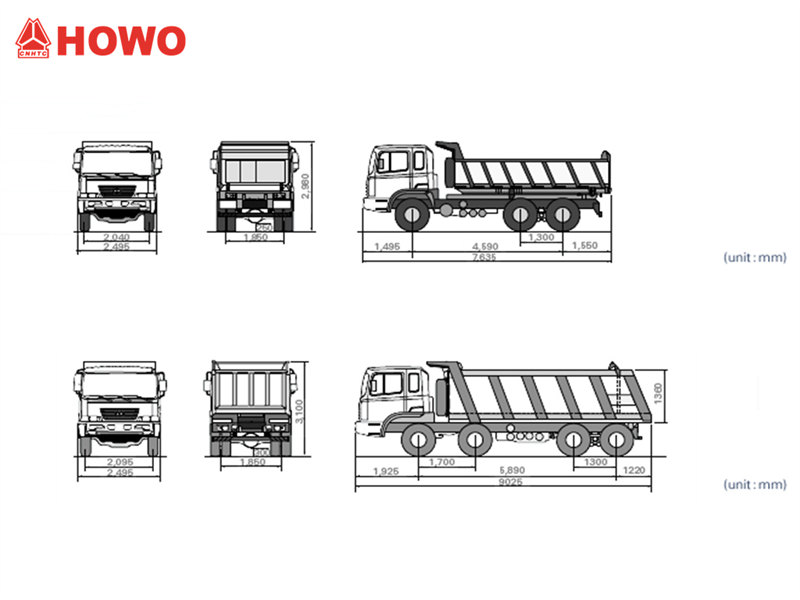

※ Ⅳ. Product Drawing

1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

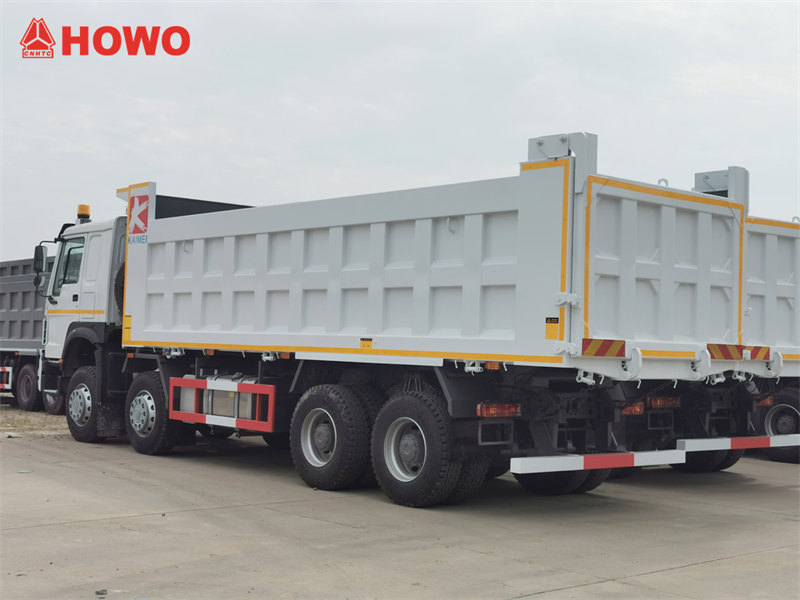

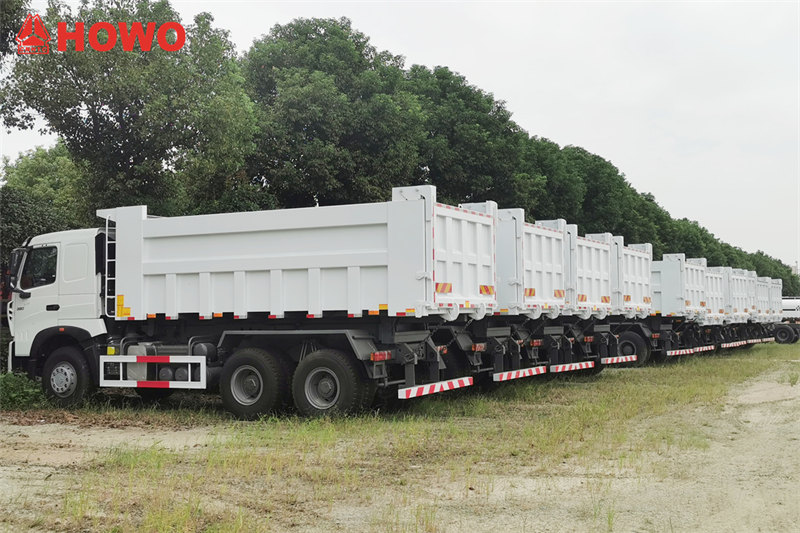

HOWO heavy duty tip-trucks ready for shipment
