The Kenya Howo 30-ton construction dump truck is a specialized transport vehicle equipped with an automatic unloading mechanism. Its core function is to tilt the cargo compartment via a hydraulic lift system, allowing for rapid dumping of bulk materials such as sand, coal, and ore. A key feature of the Howo construction dump truck is its hydraulically adjustable rear cargo compartment, enabling rapid and automatic unloading, significantly improving operational efficiency. The cab features a dual-joystick control module with integrated lift/lower and emergency stop functions. Its powerful operation allows it to handle complex road conditions and heavy loads. It is particularly well-suited for complex road conditions such as construction sites and mines, significantly improving bulk material handling efficiency.

● China best construction dump truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service

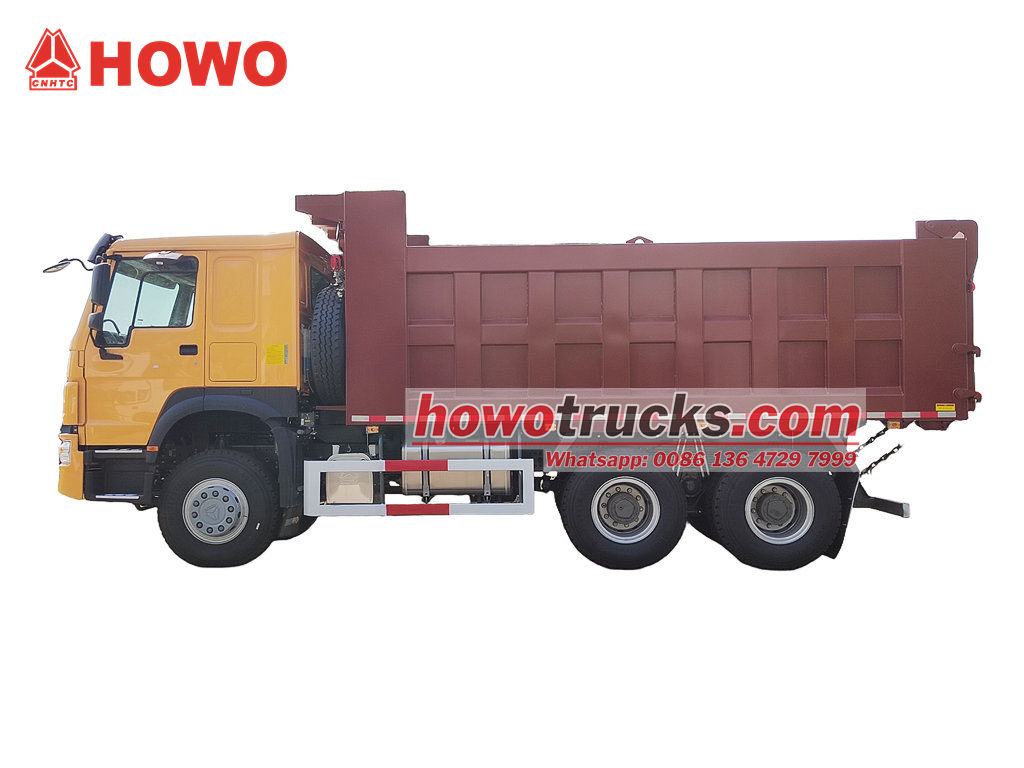

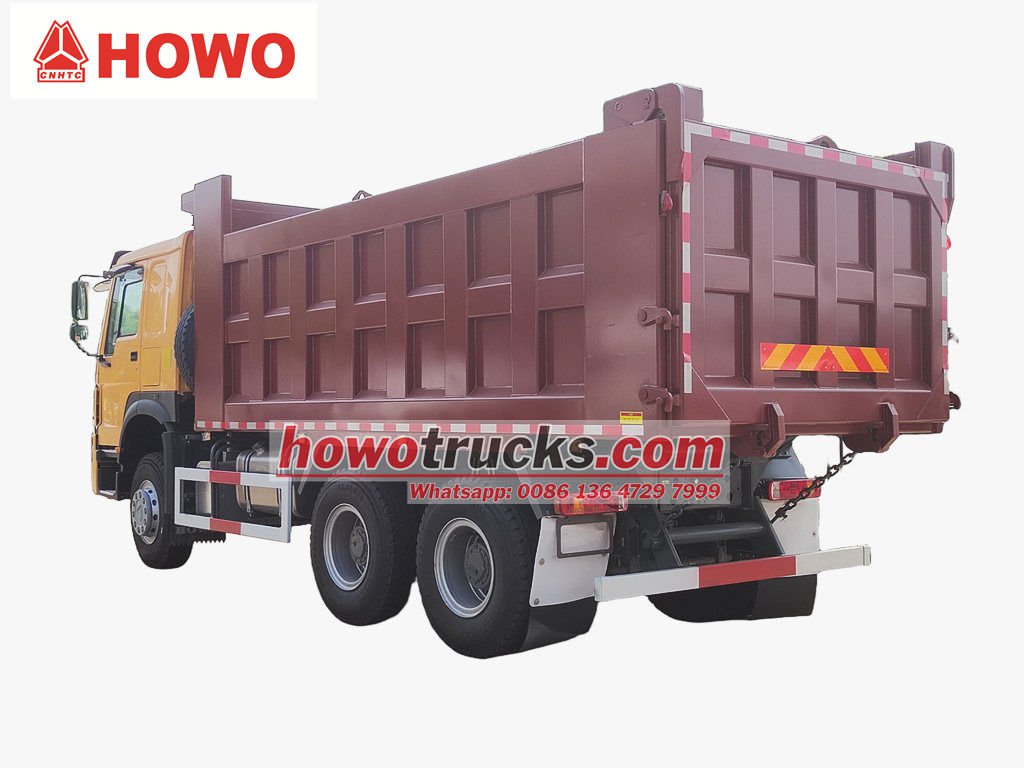

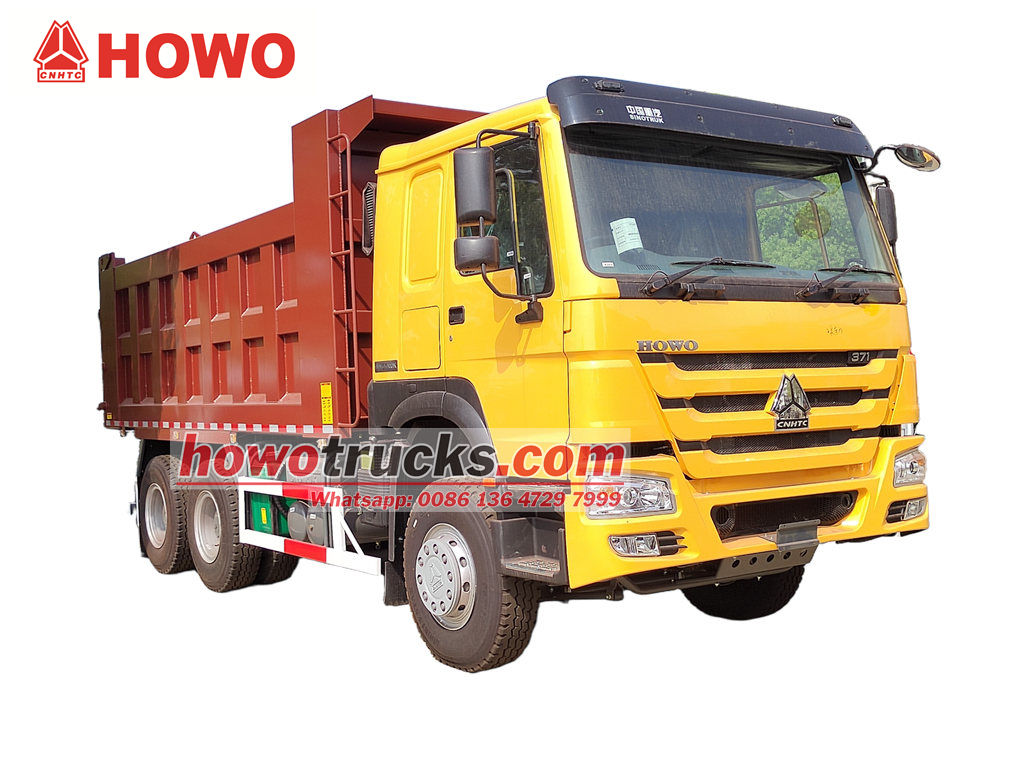

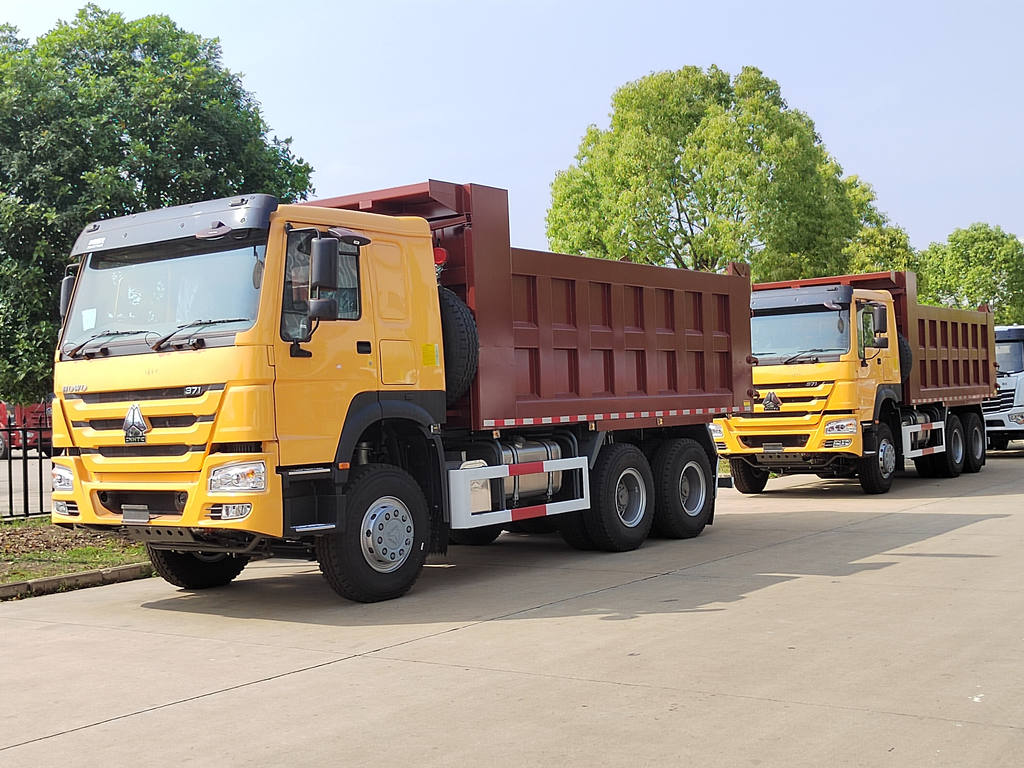

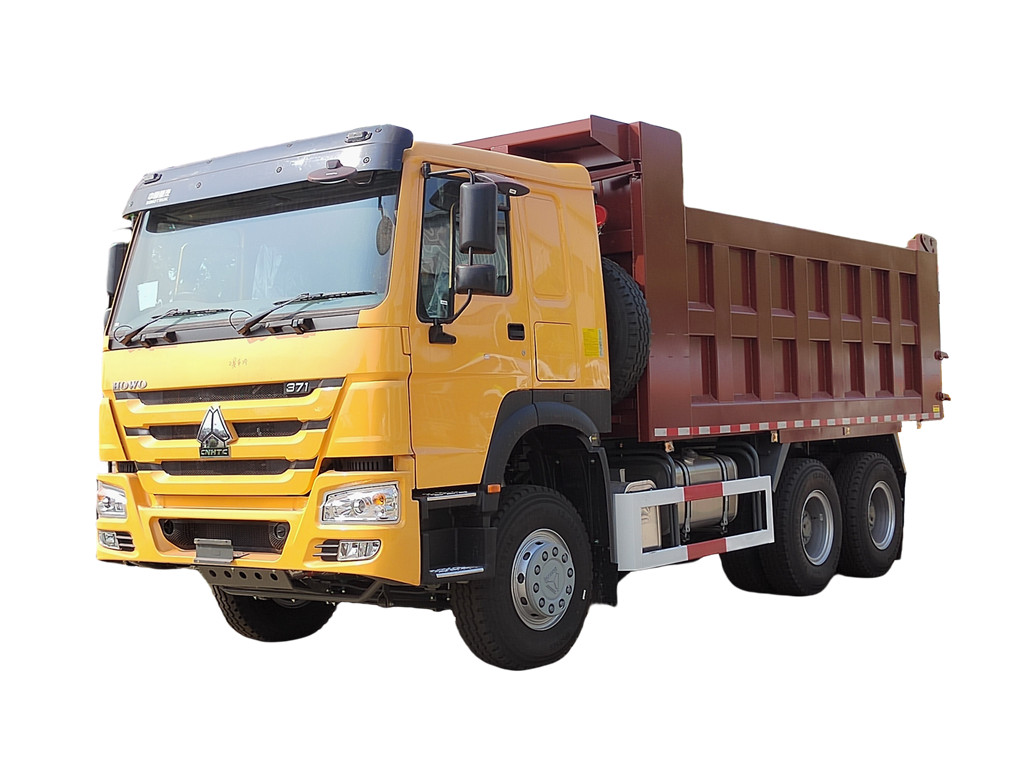

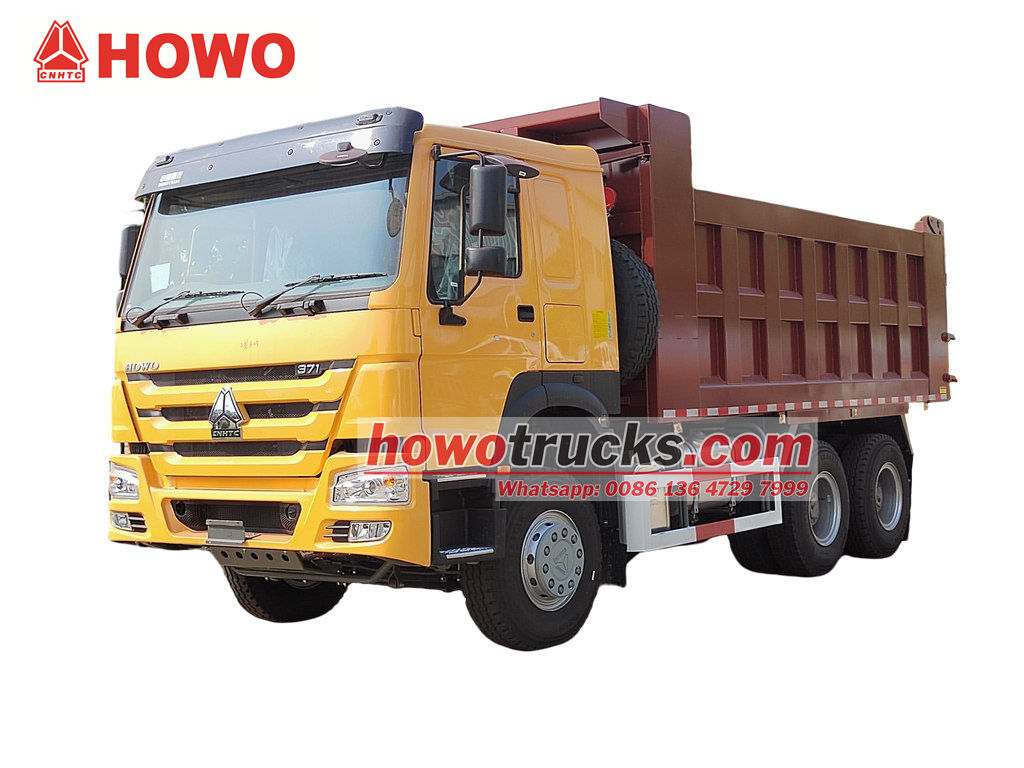

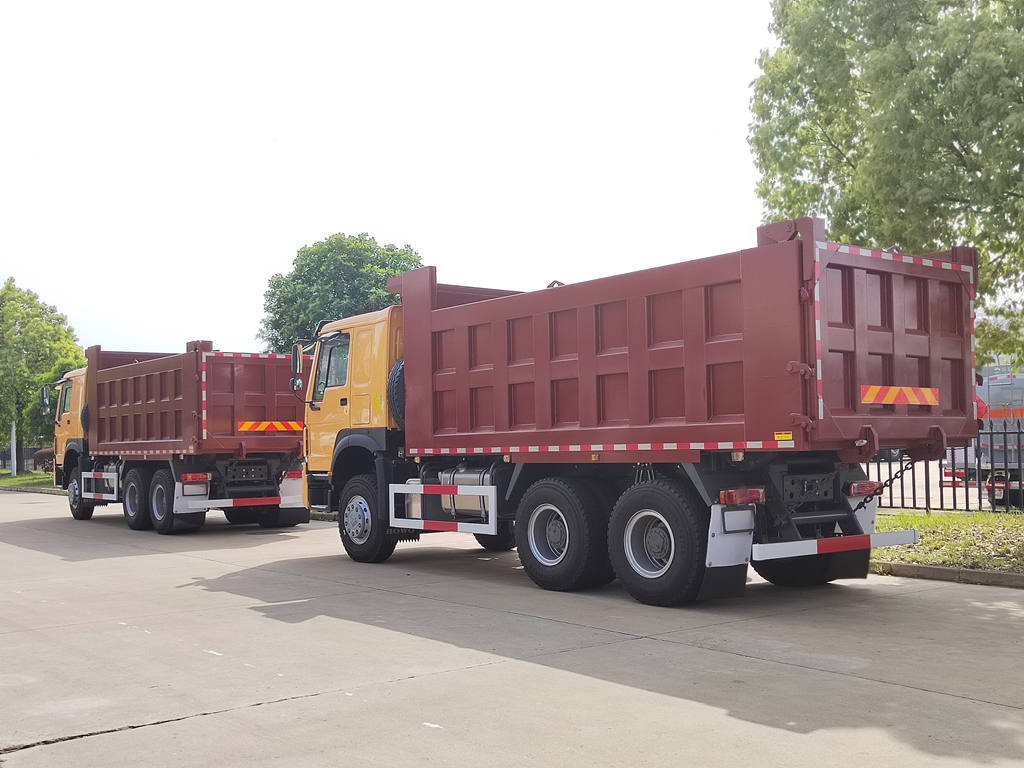

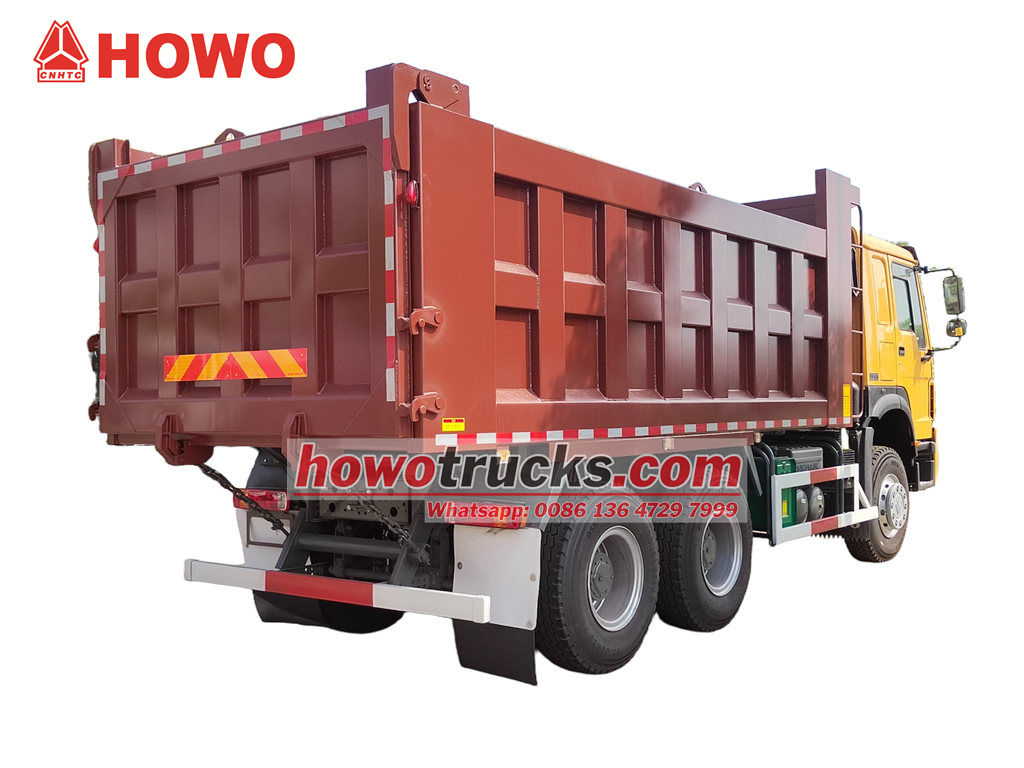

*Howo 30 ton construction dump truck

HOWO sand delivery dump truck*

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS GROUP LIMITED

Product Features

●Payload Capacity: Up to 30 tons, ideal for mining and construction.

●Engine: 380 HP diesel engine for high performance and fuel efficiency.

●Chassis: Reinforced steel frame for durability in harsh conditions.

●Cabin: Ergonomic design with air conditioning and safety features.

Howo 30 ton construction dump truck also called HOWO 6x4 commercial mining dumper, HOWO 30 ton sand delivery dump truck, HOWO 380hp mining dump truck, HOWO 6x4 tipper truck, HOWO dump lorry truck.etc.

It is equipped with an WP10.380E22 380HP diesel engine and an HW19710 gearbox,with a wheelbase of 4325+1350mm.is a robust and versatile dump truck,the carriage is ingeniously designed,  Through the hydraulic lifting device, it can realize fast and automatic dumping of goods, whether it is sand, coal or earth, it can be unloaded efficiently, greatly saving manpower and time.

The cargo compartment features a high-strength steel "田" (T-shaped) structure, measuring 5.4m in length, 2.3m in width, and 1.2m in height. With a rated load capacity of 30 tons, it meets the needs of large-scale material transportation. The hydraulic lifting system supports rearward-tilting unloading for rapid unloading. Combined with a 6×4 drive system, it ensures stability and maneuverability in complex road conditions, making it a core piece of equipment for modern engineering transportation.

» Ⅱ. Product Parameter for Howo 30 ton construction dump truck:

» Ⅲ. Product Detailed introduction：

1. Structural Design and Operating Principle

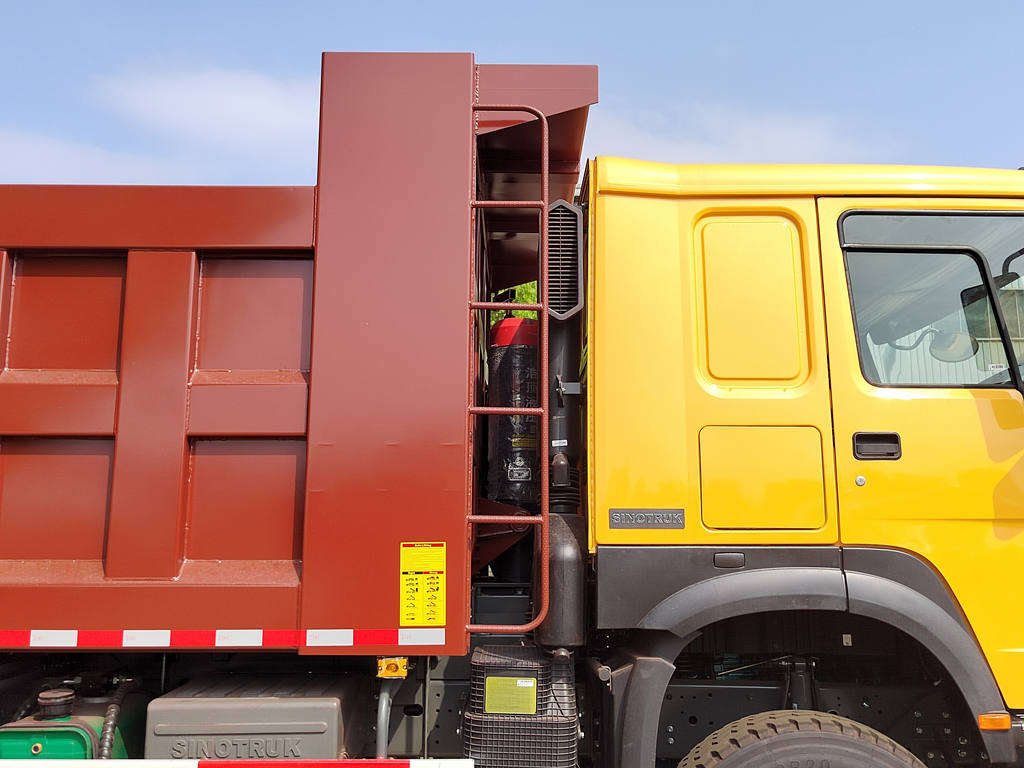

The Howo construction dump truck primarily consists of a chassis, hydraulic lifting system, cargo box, and control system. The cargo box is welded from high-strength steel plates, articulated at the front to the frame, and the rear can be hydraulically opened or features an automatic locking hook mechanism to ensure a tight seal during transport. The hydraulic system comprises an oil pump, multi-stage hydraulic cylinder, control valve, and fuel tank. Lifting and lowering of the cargo box are controlled via a joystick inside the cab.

2. Powerful Power and Efficient Transmission

The Howo construction dump truck is equipped with a WP10.380E22 diesel engine with a displacement of 9.726L and a maximum power of 280kW. Its low-speed, high-torque characteristics make it suitable for complex road conditions and heavy loads. It is paired with an HW19710 manual transmission, offering smooth shifting and high transmission efficiency, ensuring stable power output even when climbing slopes and fully loaded.

3. Sturdy Chassis and Professional Dump System

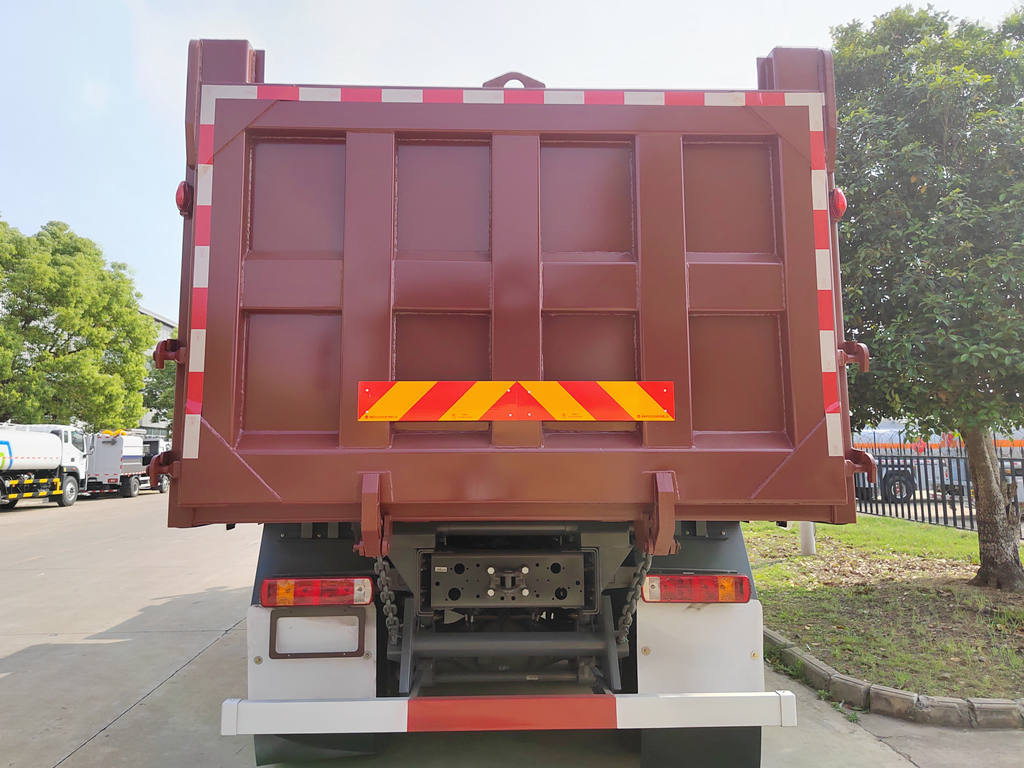

This Howo construction dump truck features a high-strength steel ladder frame, offering strong torsion resistance and excellent load-bearing capacity, making it suitable for handling bumpy construction sites. Its powerful lifting capacity and cargo bed tilt angle of 45-60° ensure quick and thorough unloading. The cargo bed can hold up to 30 tons and can be equipped with optional thickened steel plates or anti-corrosion coatings for extended service life. The rear door features an automatic locking design to prevent accidental opening during transport, enhancing safety.



» Ⅳ. Working Principle

1. Hydraulic Lifting Power Core

●The Howo construction dump truck uses a hydraulic system to raise and lower the cargo box.

●The engine drives the hydraulic pump, converting mechanical energy into hydraulic oil pressure. This high-pressure oil enters the hydraulic cylinder through a control valve, pushing the piston rod to extend, causing the cargo box to tilt upward around the hinge point, completing the unloading operation.

●During descent, the hydraulic oil returns to the tank through the return line, and the cargo box returns to its original position under its own weight. The hydraulic system features pressure regulation and self-locking functions, ensuring smooth lifting and reliable stopping.

2. Cargo Box Structure Adapted for Unloading

●The cargo box features a tilting design, with the front hinged to the vehicle frame and the rear supported by hydraulic cylinders. The bottom of the box is sloped. During unloading, the hydraulic cylinders lift the front of the box, creating a tilt angle of approximately 50°. The cargo slides quickly down the slope under the influence of gravity.
