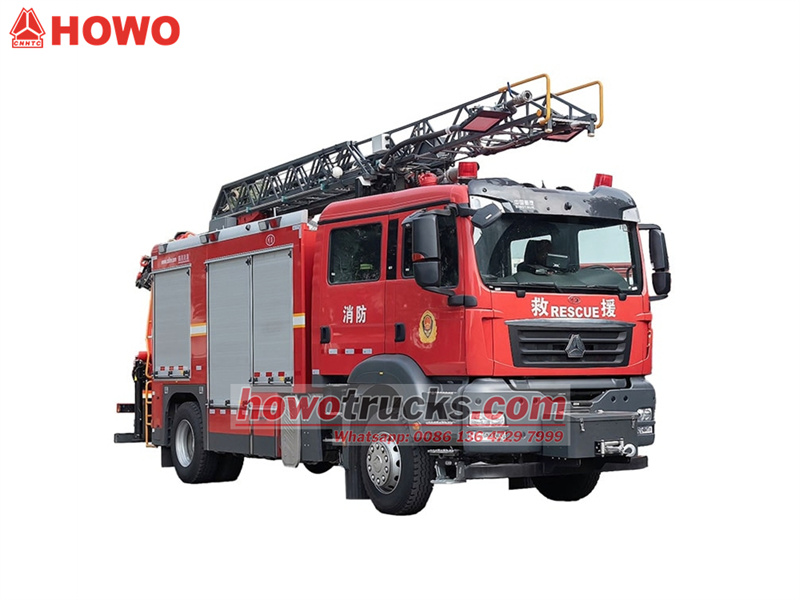

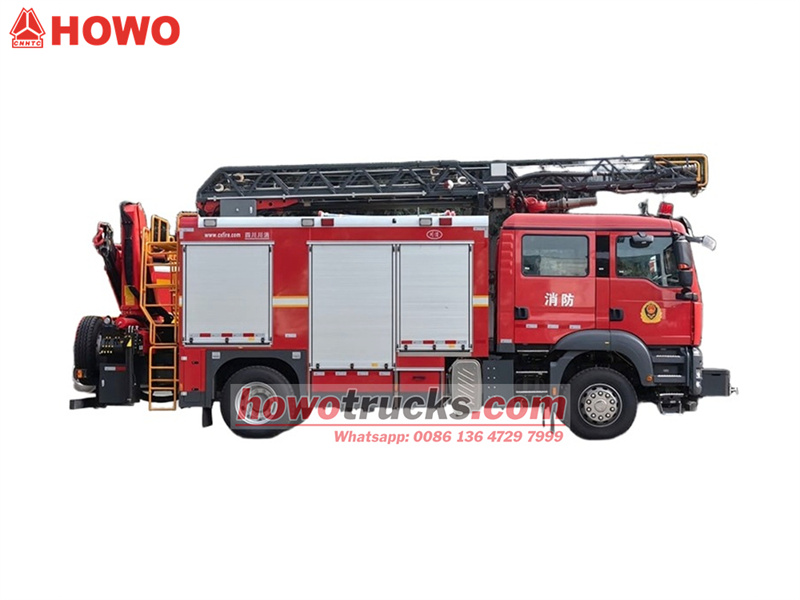

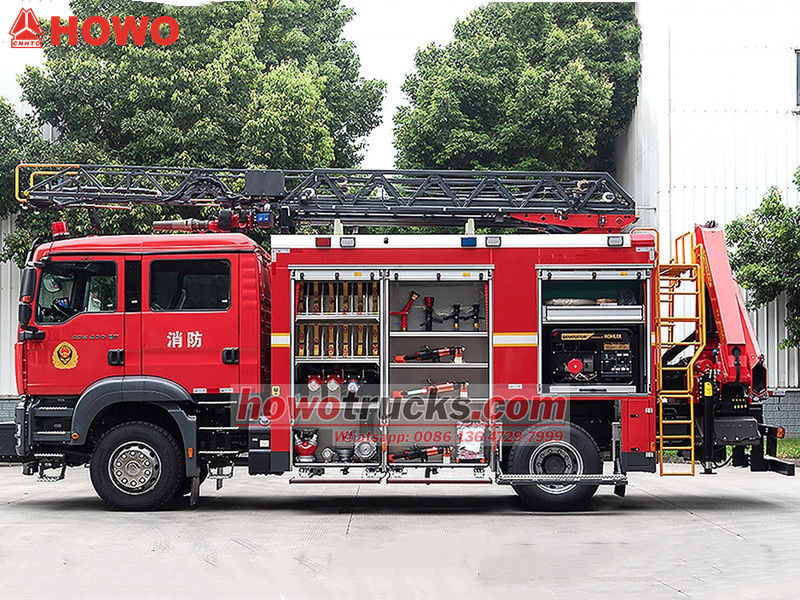

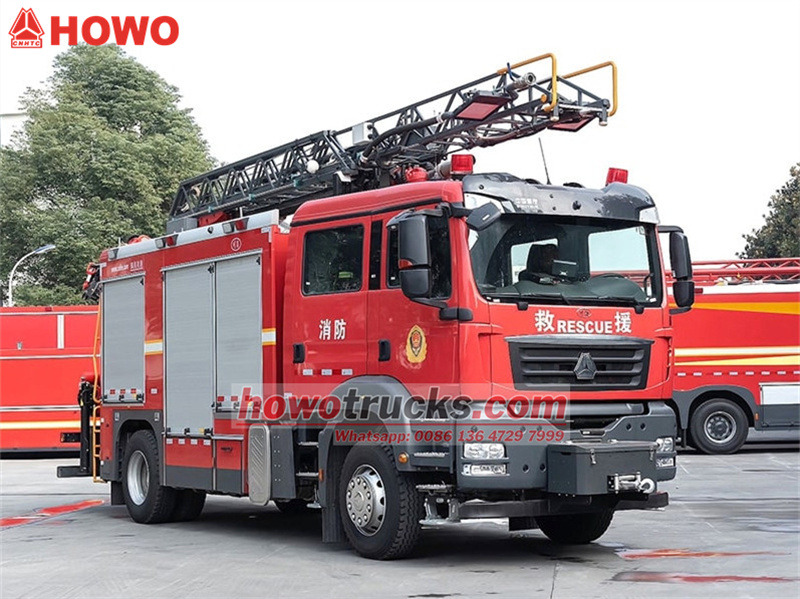

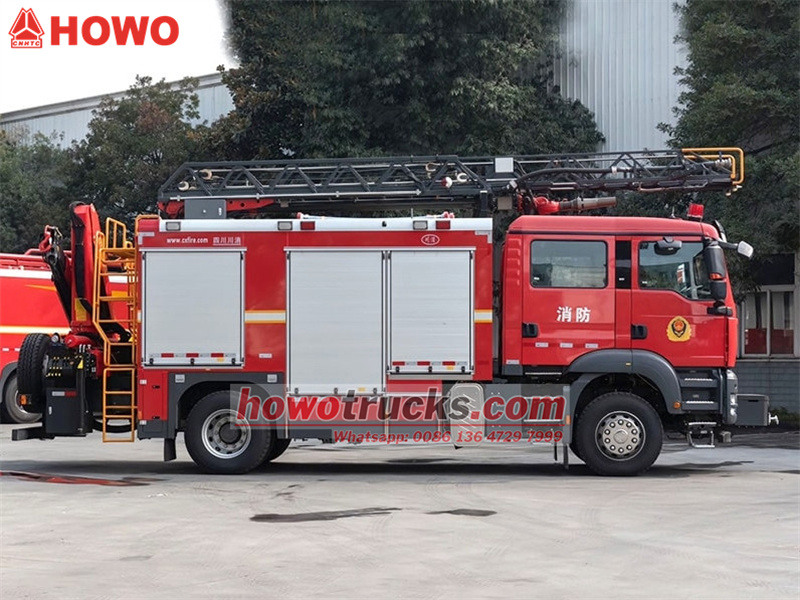

The Howo arial ladder fire rescue truck is a specialized vehicle designed specifically for firefighting and rescue operations. It utilizes the Howo TX series chassis, boasting a powerful 400HP engine and excellent maneuverability. The truck features a bright red fire truck paint job and is equipped with multiple storage compartments for various rescue equipment.
Working capacity :
3000L + 1000 LCabin type :
TX double cabin, with one sleeperDrive system :
4x2Wheelbase ( mm) :
4,600Engine specific :
MC11.40-50Gear box :
HW15710C,10 forwards & 2 reversesFront axle ( Kg ) :
7500Rear axle ( Kg ) :
13000The Howo arial ladder fire rescue truck is a specialized vehicle designed specifically for firefighting and rescue operations. It utilizes the Howo TX series chassis platform, boasting a powerful 400HP engine and excellent maneuverability. The truck features a bright red fire truck paint job and is equipped with multiple storage compartments for various rescue equipment.

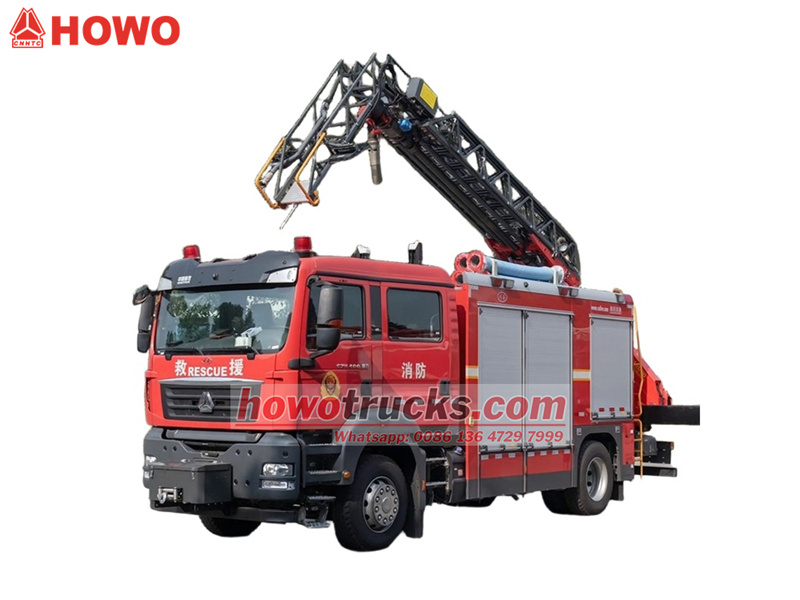

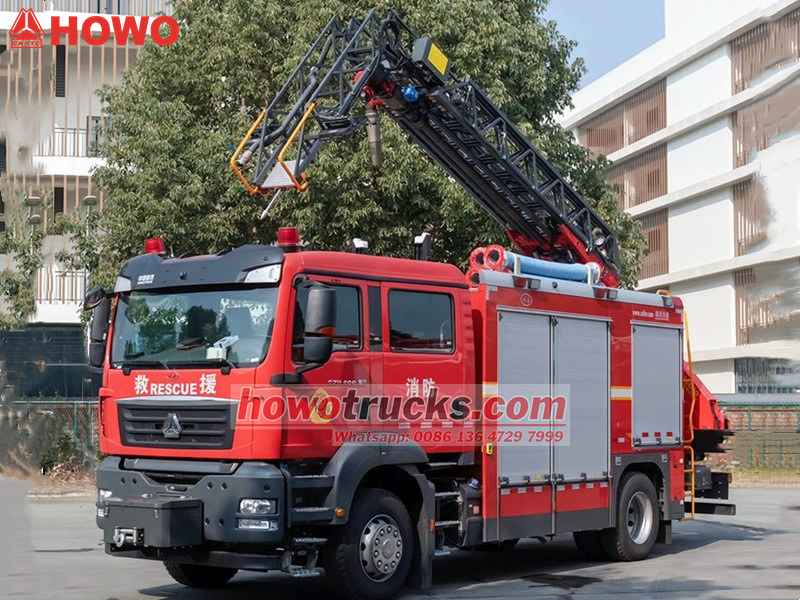

The 18-meter aerial ladder mounted on the roof rotates 360 degrees and can be raised and lowered for height and angle adjustment, making it easily adaptable to rescue operations on mid- to high-rise floors. The aerial ladder is also equipped with a PS fire water cannon for fire control during rescue operations. A 6-ton folding boom crane is also installed at the rear of the truck for lifting heavy objects.

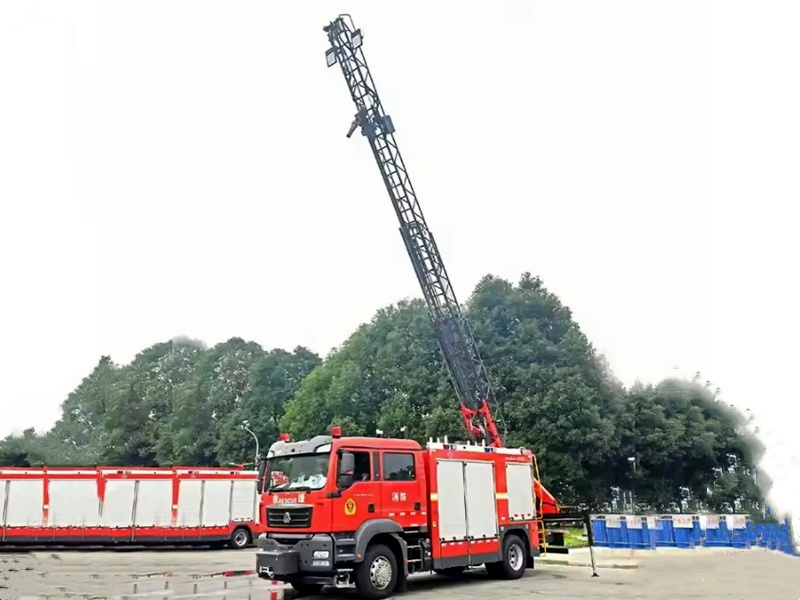

*Howo 18m Aerial Ladder Fire Fighting Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
1. Truck Chassis: Sinotruk Howo truck chassis, 4X2,4x4 model
HC model with 400HP and Euro 2,3
2. Tank material: 4-10 mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy or PP material can be choose
3. Tanker body: Customized for Water + Foam
4. Fire Pump: CB10/60 centrifugal fire pump, flow rate 60L/s, working distance over 75m
Optional also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 80m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue
Product Parameter For Howo 18m Aerial Ladder Fire Rescue Truck « « «
Best Choice,Howo Trucks
|
Howo 4x2 Fire Fighting truck |
|
|
Model |
CEEC52203QXFS |
|
Dimension |
7300 mm*2430 mm*3360 mm |
|
Full Load Weight |
11580 KG |
|
Number of the Crew |
2+3 (include driver) |
|
Max. Speed |
95km/h |
|
Capacity |
3000L Water & 500L Foam. PP composite material liquid tank |
|
Flow rate |
60L/s @ 10bar |
|
Fire monitor |
50L/s flow rate with 65m shoot range |
|
Painting |
Red color of U.S. PPG |
|
Howo 4x2 Chassis |
|
|
Manufacturer |
Howo |
|
Drive type |
4*2 |
|
Wheelbase |
4600 mm |
|
Engine model |
MC11.40-50 |
|
Engine type |
Inline 6-cylinder, turbocharged, inter-cooled diesel engine |
|
Rated power |
400 hp |
|
Gearbox form |
Manual gearbox, 12 forward gears + 2 reverse gear |
|
PTO |
Full power sandwich type |
|
Fuel tank capacity |
400L |
|
Superstructure |
|
|
Standardized Sub-frame |
|
|
Material |
High-strength rectangular tube made of special steel |
|
Performance |
The liquid tank and the sub-frame are connected by elastic connecting seats |
|
Compartment |
|
|
Material |
High-strength aluminum alloy profiles (Never Rust) |
|
Structure |
Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
|
Roller Shutter Door |
|
|
Material |
Aluminum alloy profiles with anodized surface |
|
Structure |
With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors. |
|
Foot Pedals |
|
|
Material |
High quality aluminum alloy |
|
Structure |
50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment. |
|
Superstructure Electric Appliance |
|
|
Warning Light and Siren |
Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
|
Strobe Light |
Mounted on the both sides of the compartment |
|
External Lighting |
LED lights are mounted on the both sides of the compartment |
|
Roof Lighting |
LED lights are mounted on the inside of the roof |
|
Side Indicator Light |
Inline yellow warning light is mounted on the side of the compartment and pedals |
|
Fire Pump |
|
|
Brand |
China TOP brand |
|
Model |
CB10/60G |
|
Rated Flow Rate |
60L/s @ 10bar |
|
Vacuum Pump |
Water ring vacuum pump |
|
Priming Manner |
Automatic |
|
Suction Height |
9m |
|
Priming Time |
≤35s |
|
Location |
Rear-mounted |
|
Fire Monitor |
|
|
Brand |
China TOP brand |
|
Model |
PL45 |
|
Flow Rate |
45L/s @ 10bar |
|
Shoot Range |
Water ≥ 55 m, Foam ≥ 45 m |
|
Location |
On the top of the tank |
|
Control Manner |
Manual |
|
Horizontal Rotation Angle |
0°~360° |
|
Pitch Rotation Angle |
-15°~60° |
|
Liquid Tank |
|
|
Capacity |
Water 8000L, Foam 1500L |
|
Material |
PP composite material and Never Rust |
|
Structure |
Two Tank Manhole; One Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves. |
|
Aerial Ladder |
|
|
Ladder structure |
Straight telescopic ladder （18m) |
|
Ladder elevating angle |
-12°-- 75° |
|
Turntable rotation range |
360°infinite rotation |
|
Outrigger extending time |
≤40s |
|
Ladder elevating and rotate 90°time |
≤90s |
|

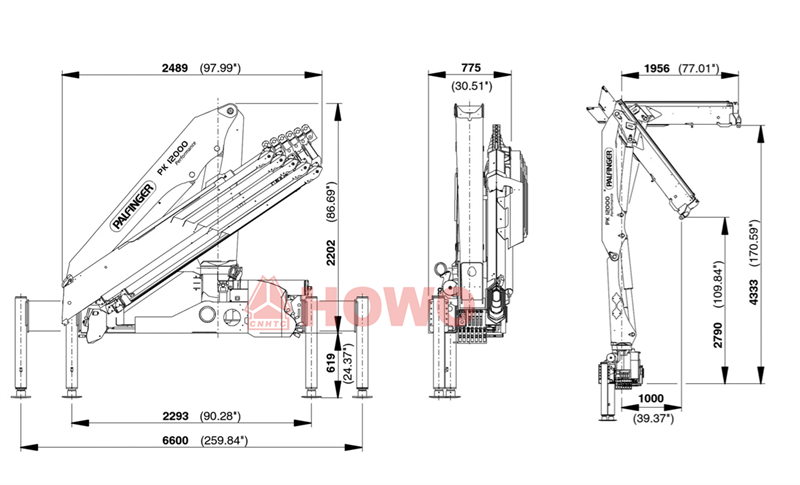

Kuncle Crane |
|
|
Crane brand |
CS Trucks Group |
|
Crane weight |
1796 kg |
|
Max. lifting weight |
6790 kg |
|
Max. working height |
6.1 m |
|
Max oil flow of hydraulic system |
25 L/min |
|
Rotation angle |
520°, all rotation |
|
Installation position |
Rear of the truck |
|
Electric Winch |
|
|
control type |
Electric control box |
|
Distance |
35m |
|
Fire Fighting Control System |
|
|
Structure |
Each fire extinguishing system is controlled by PLC, and different standardized control modules can be selected. IP56 protection level |
|
Location |
Rear pump room |
Main Advantage Of The Howo 18m Aerial Ladder Fire Water Truck « « «
1. Doubled Utilization of Prime Time
♦ Complex missions can be performed in parallel:
---The Howo Fire Rescue can simultaneously perform high-altitude rescue, heavy object handling, and fire control;
---Consolidating these three functions into a single vehicle, reducing the number of vehicles and improving rescue efficiency.
♦ Shortened response window: From alarm receipt to rescue deployment, the time is only 4 minutes and 30 seconds, 8 minutes faster than traditional formations.
♦ Continuous Operational Support: The chassis features an integrated 300L fuel tank and dual circuit system, supporting 72-hour uninterrupted operations.
2. Advantages in Special Scenarios
♦ Narrow Alley Operations: The Howo fire rescue truck is ≤10m long (compared to conventional aerial ladder trucks ≥12m) and has a turning radius of <9m, making it suitable for use in lanes in older urban areas.
♦ High-Altitude Efficiency: The turbocharged engine experiences less than 8% power degradation at an altitude of 3,000m, while the crane's hydraulic system maintains 95% output.
♦ Extreme Environments: The hydraulic system features a -40°C preheating function, and the air-conditioned cab ensures optimal operator performance at 55°C.
3. Ergonomics and safety
♦ Intelligent Error Prevention System:
---Ladder/boom interlock mechanism: Prevents collisions caused by simultaneous extension.
---Real-time load calculation: Automatically stops operation when the risk of tipping exceeds 85%.
---Water tank foam ratio adjustment: Automatically adjusts the mixing ratio based on the fire source.
♦ Emergency Survival Design:
---The cab meets EN 1846 rollover protection standards.
---Water cannon remote control (150m safety distance).
---The vehicle's explosion-proof material can withstand a 2kg TNT equivalent shock wave.
