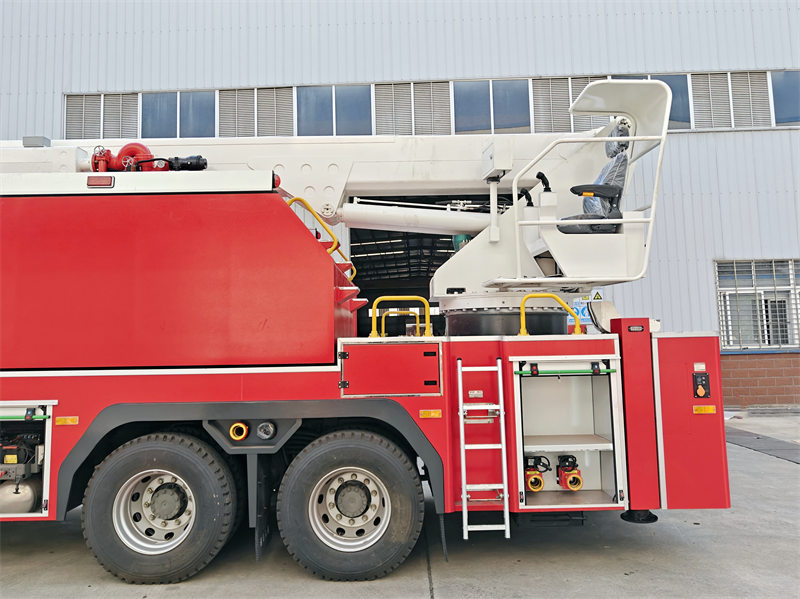

Howo 6x4 high reach fire water truck has compact structure, small size, large operational adjustability, flexible operation, and high and low altitude rescue and fire extinguishing functions. It adopts Howo heavy-duty 6x4 chassis with strong power and advanced configuration. The PTO is the original power take-off of the chassis, which has the best power matching. The subframe adopts a large-section box-shaped structure with good torsion resistance, the outrigger adopts a short-span H-shaped structure, and the arm adopts a folding arm combination, which moves quickly and smoothly.
Working capacity :
8000L + 2000 LCabin type :
TX extended cabin, with one sleeperDrive system :
6x4Wheelbase ( mm) :
4,600+1,370Engine specific :
340 Hp / WP.10.340E32Gear box :
HW15710C,10 forwards & 2 reversesFront axle ( Kg ) :
7500Rear axle ( Kg ) :
13000*2Howo 6x4 high reach fire water truck has compact structure, small size, large operational adjustability, flexible operation, and high and low altitude rescue and fire extinguishing functions. It adopts Howo heavy-duty 6x4 chassis with strong power and advanced configuration. The PTO is the original power take-off of the chassis, which has the best power matching. The subframe adopts a large-section box-shaped structure with good torsion resistance, the outrigger adopts a short-span H-shaped structure, and the arm adopts a folding arm combination, which moves quickly and smoothly.

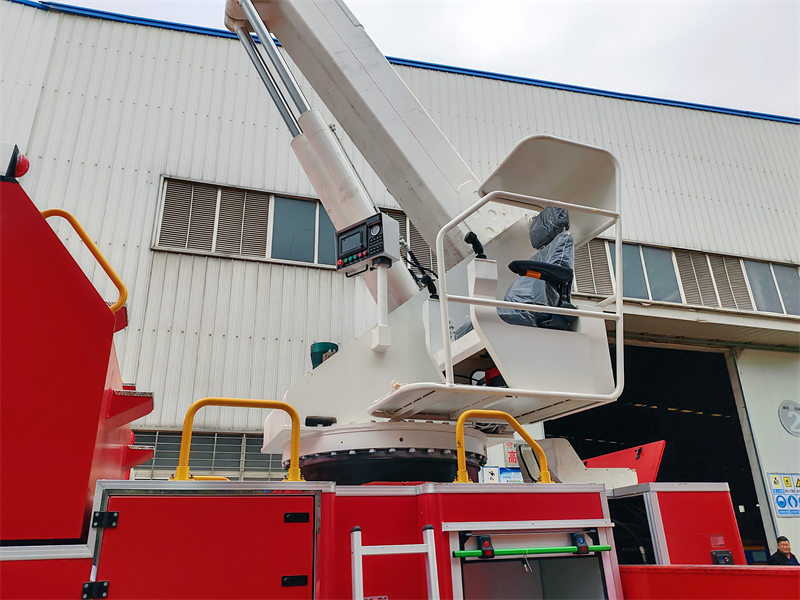

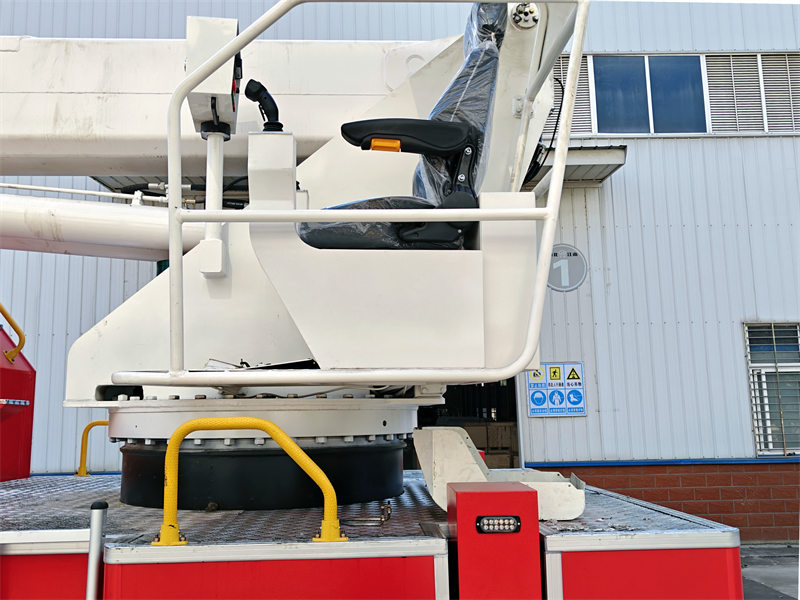

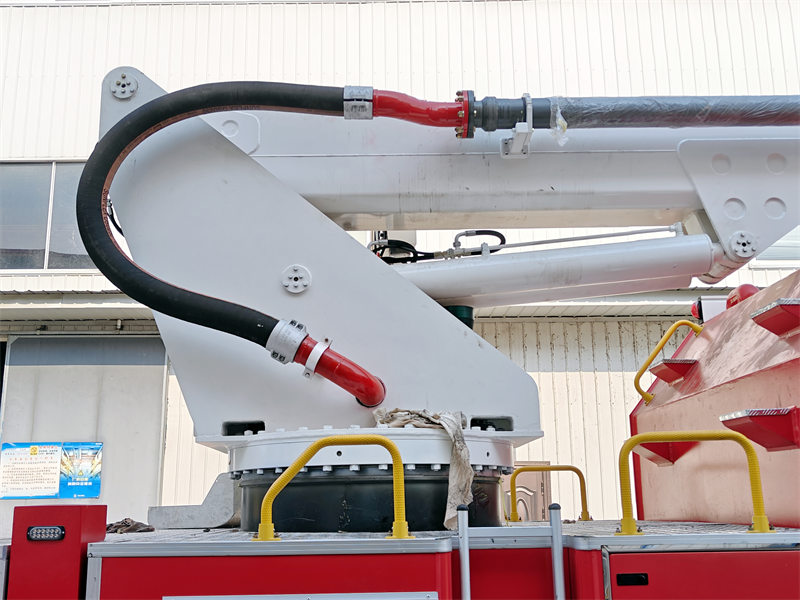

The slewing part is equipped with a central slewing joint that can achieve an infinite 360-degree slewing angle. The Howo fire truck with high reach extendable turret has the large-flow fire pump and fire cannon. The water tank and waterway are all made of high-quality stainless steel and high-strength aluminum alloy pipes. The hydraulic system adopts a high-performance pump and an electric-liquid proportional control mode. The electrical system adopts a mature and reliable controller CAN bus communication technology, and multi-point centralized operation.

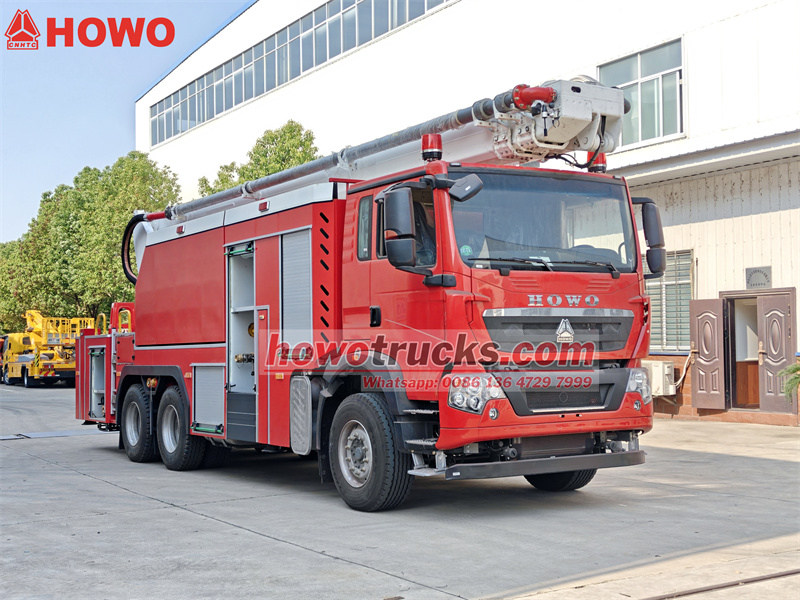

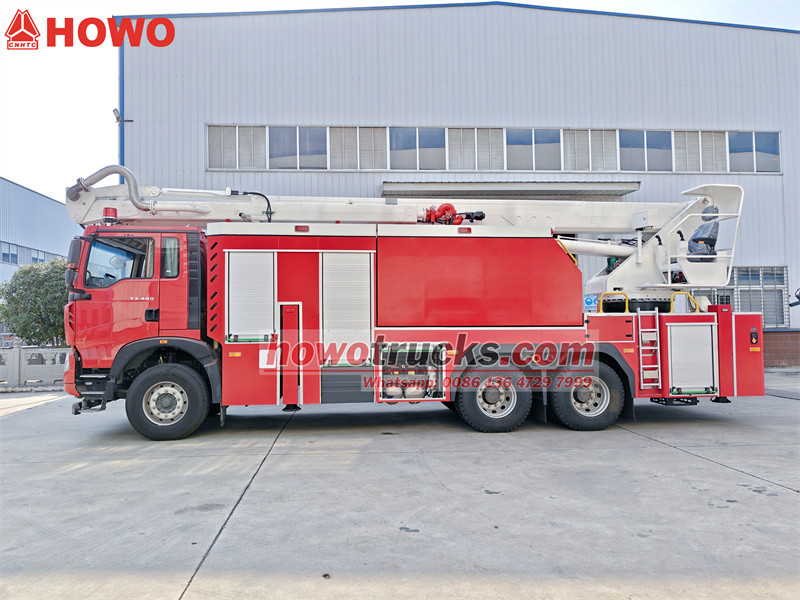

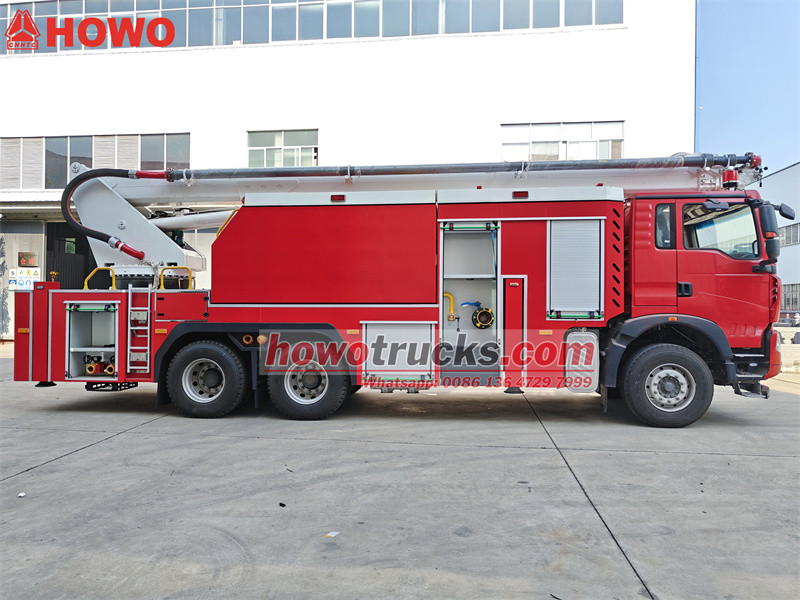

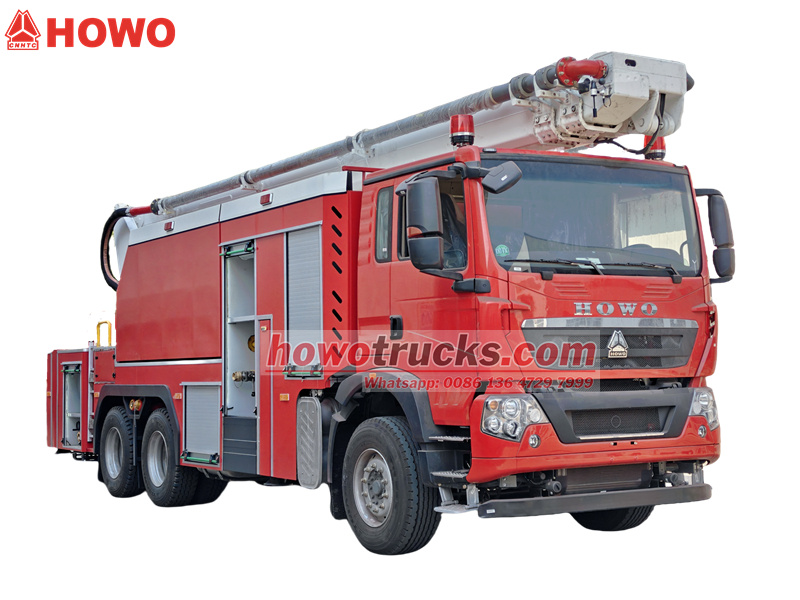

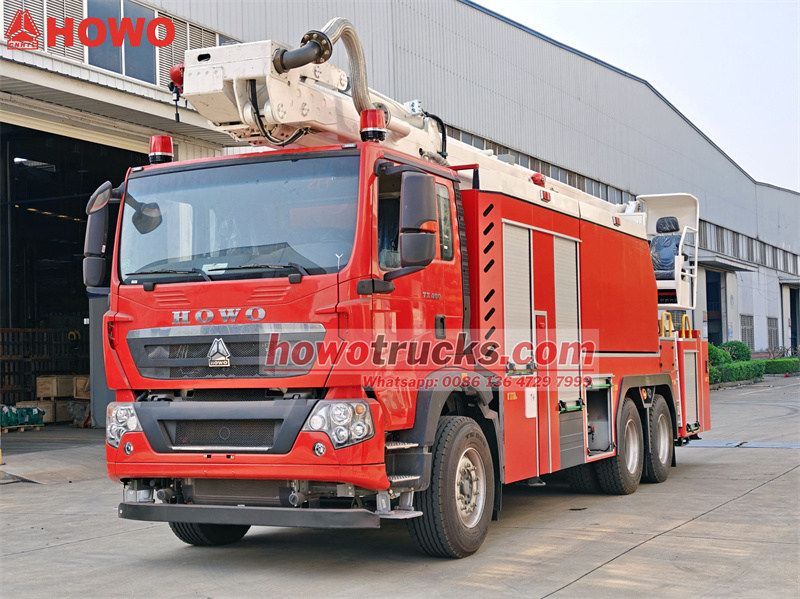

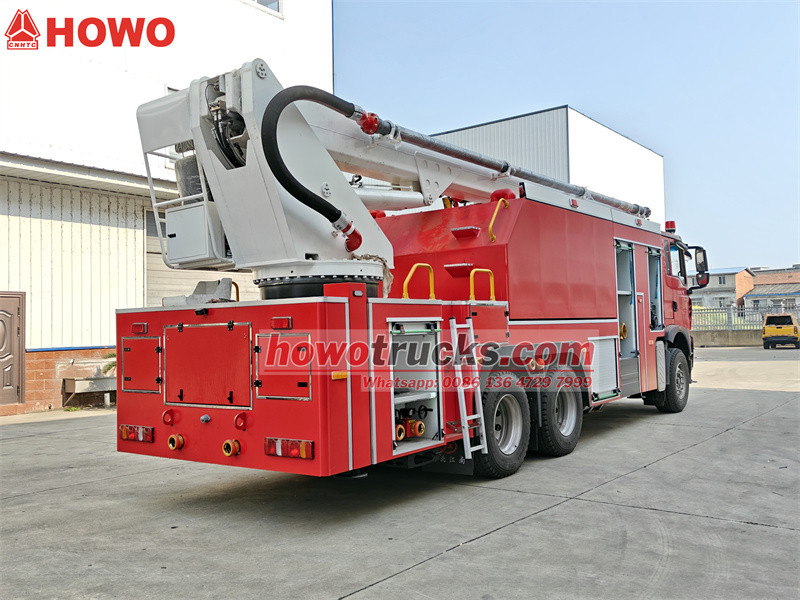

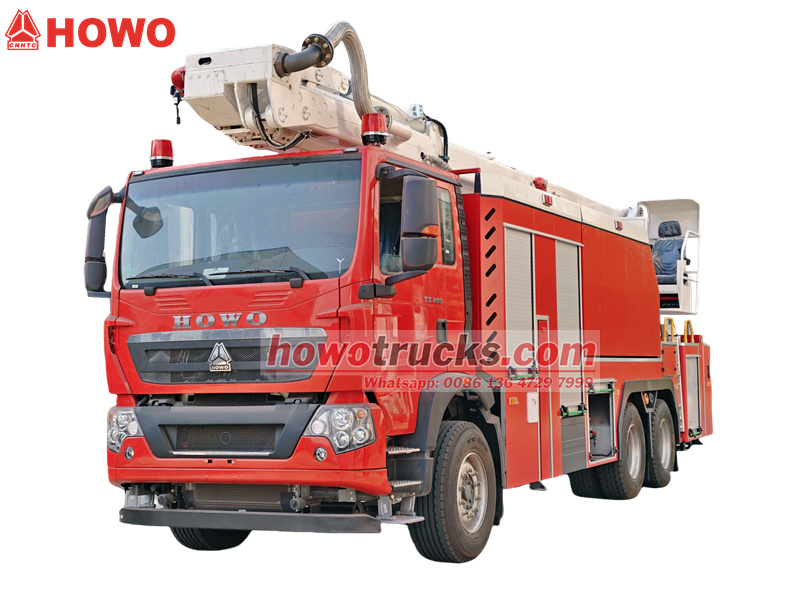

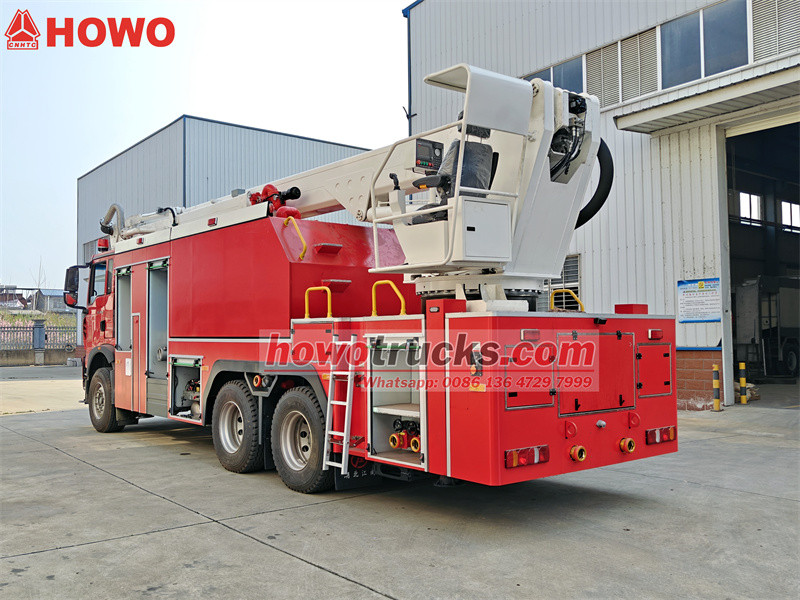

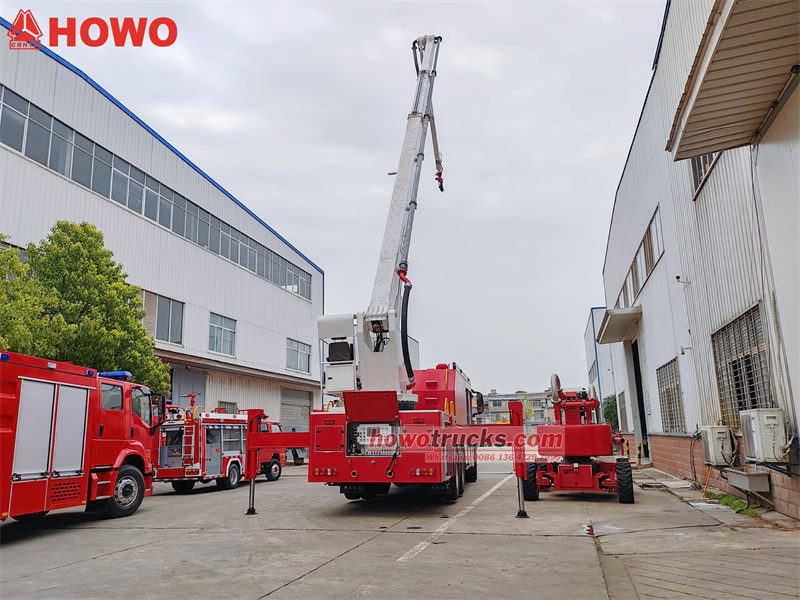

*Howo 340HP 32m High Lift Fire Fighting Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
1. Truck Chassis: Sinotruk Howo truck chassis, 6X4,6x6 model
WP model with 340HP and Euro 2,3
2. Tank material: 4-10 mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy or PP material can be choose
3. Tanker body: Customized for Water + Foam
4. Fire Pump: CB10/100 centrifugal fire pump, flow rate 100L/s, working distance over 85m
Optional also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 80m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue

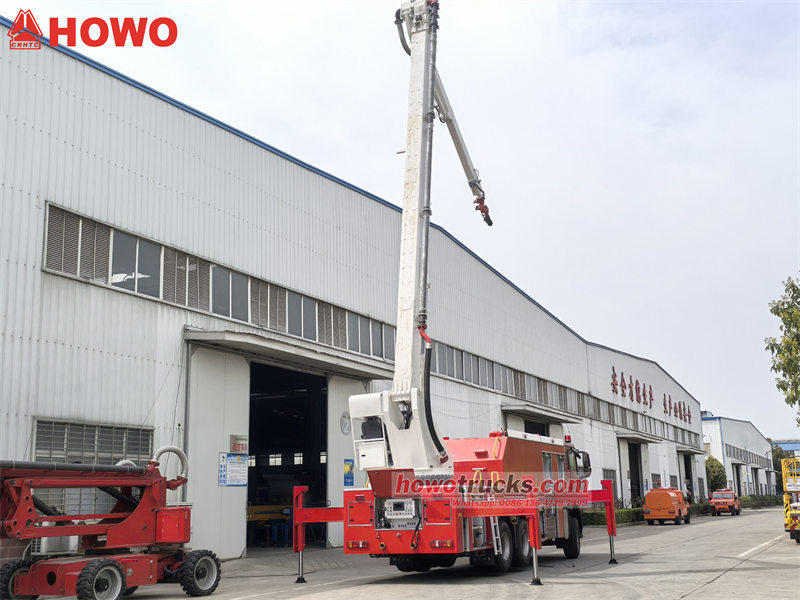

Product Parameter For Howo 32m High Reach Fire Water Truck « « «
Best Choice,Howo Trucks
|
Item |
Unit |
Parameters |
||||
|
Driving performance parameters |
Overall dimensions (length x width x height) |
mm |
10500×2540×3820 |
|||
|
Maximum speed |
km/h |
90 |
||||
|
Minimum turning diameter |
m |
22 |
||||
|
Maximum climbing ability |
％ |
40 |
||||
|
Braking distance (full load, initial braking speed 30km/h) |
m |
9 |
||||
|
Approach / departure angle |
° |
19/ 10 |
||||
|
wheelbase |
mm |
4,600+1,370 |
||||
|
Number of leaf springs |
|
4/5/5 |
||||
|
Tire specifications |
|
Front wheel385/65R22.5 Rear wheel 315/80R22.5 |
||||
|
Number of tires |
|
10+1 |
||||
|
Number of passengers allowed in the cab |
|
2+4 |
||||
|
Quality Parameters |
Fire extinguishing agent rating Loading mass |
water |
kg |
8000 |
||
|
Foam |
kg |
1000 |
||||
|
Curb Weight |
Vehicle |
kg |
22000 |
|||
|
First Axle |
kg |
9000 |
||||
|
Second Axle |
kg |
15000 |
||||
|
Third Axle |
kg |
15000 |
||||
|
Chassis |
Brand |
|
Howo |
|||
|
Drive System |
|
6x4 |
||||
|
Engine |
Model |
|
WP.10.340 |
|||
|
Displacement |
mL |
9839 |
||||
|
Emission Standards |
|
Euro 6 |
||||
|
Brand |
|
Weichai |
||||
|
Working performance |
Rated working height |
m |
20 |
|||
|
Maximum working range |
m |
8.3 |
||||
|
Fire Pump |
Brand |
|
China top brand |
|||
|
Model |
|
CB10/100-TB |
||||
|
Limited Data |
L/s |
100 |
||||
|
Preset Pressure |
MPa |
1.0 |
||||
|
Water Absorption Depth |
m |
7 |
||||
|
Water diversion time |
s |
≤85 |
||||
|
Fire cannon |
Water-foam dual-purpose cannon
|
Brand |
|
China Top Brand |
||
|
Model |
|
PLKD8/80 |
||||
|
Limited Data |
L/s |
80 |
||||
|
preset pressure |
MPa |
0.8 |
||||
|
Range |
m |
Water≥75，Foam≥70 |
||||
|
Gun head swing range (relative to the gun body in driving state) |
UP & Down |
|
-30°～+70° |
|||
|
Right & Left |
|
≥340° |
||||
|
Arm |
range |
Lower arm (relative to horizontal plane) |
|
0～+80° |
||
|
Lower arm relative to upper arm |
|
0～150° |
||||
|
Boom action time (boom fully extended, amplitude changed to maximum angle, rotation to 90°) |
s |
＜150 |
||||
|
Outrigger deployment time |
s |
＜40 |
||||
|
Boom rotation speed |
r/min |
1～2 |
||||
|
Outrigger span (vertical × horizontal) |
mm |
5890×2150 |
||||
Main Advantage Of The Howo 32m High Reach Fire Water Truck « « «

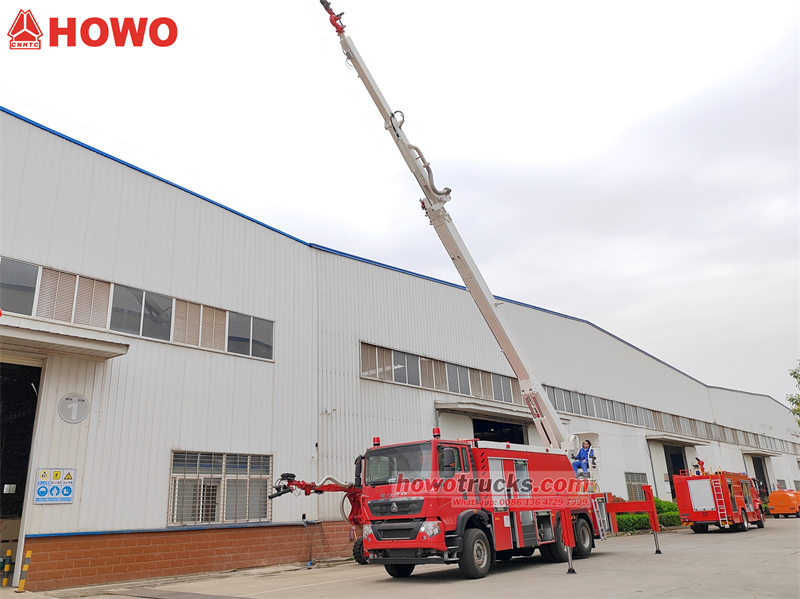

1. Howo fire truck with high reach extendable turret has the function of high spray fire extinguishing, the outrigger and boom move smoothly and quickly, and can reach the working state faster.
2. The Howo high-lift fire water truck adopts high-performance electro-hydraulic proportional control technology and hydraulic transmission, which is stable, reliable and easy to operate.

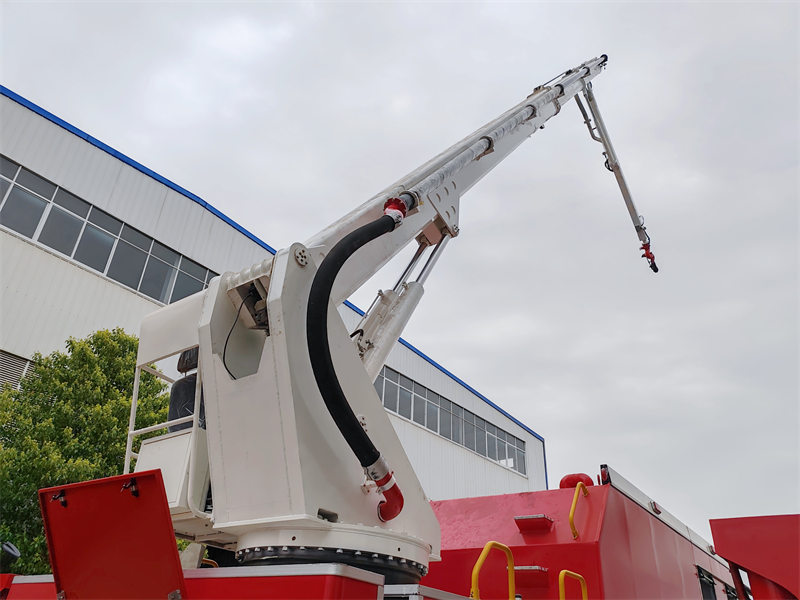

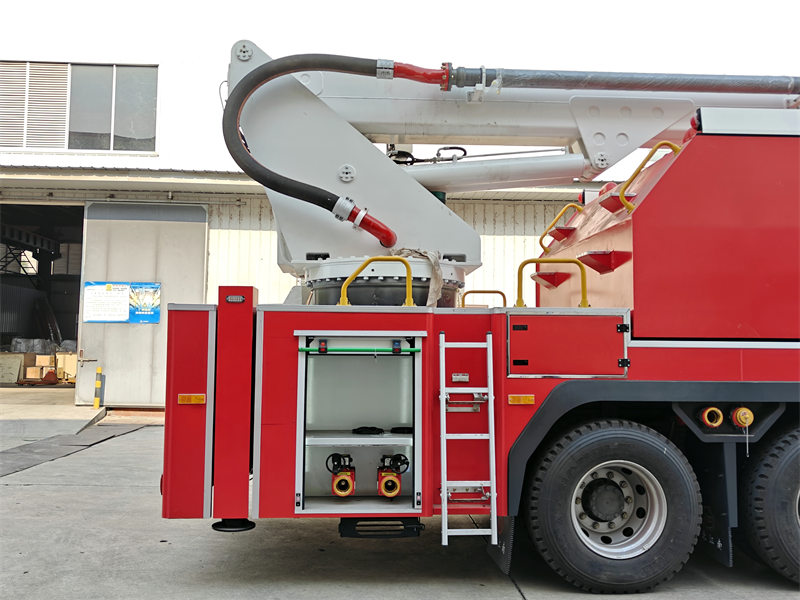

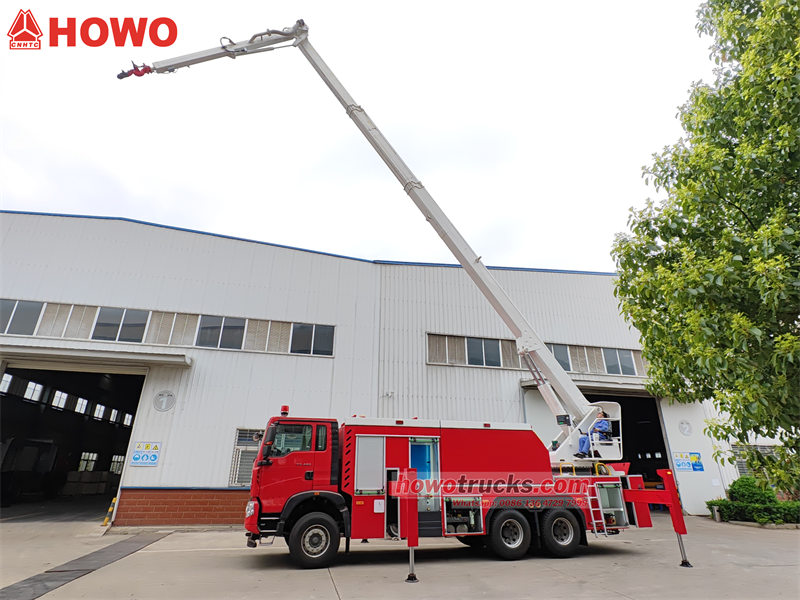

3. The Howo fire truck adopts a folding arm structure. The lower arm can be lifted within 80°, and the lower arm and upper arm can be lifted within 150°. The cross-section of the boom adopts a quadrilateral box-type structure, which is welded with high-strength steel.
4. The boom rotation has a buffer function, the boom rotation mechanism adopts a worm gear structure, and the hydraulic system is equipped with a buffer valve, which can achieve smooth and reliable starting and braking, and has good micro-motion performance.
Safety Device For Howo High Lifter Fire Truck « « «
1. It is controlled by electrical system and hydraulic system. When the electrical system fails, the hydraulic control system can ensure the normal use of the boom in a safe area.

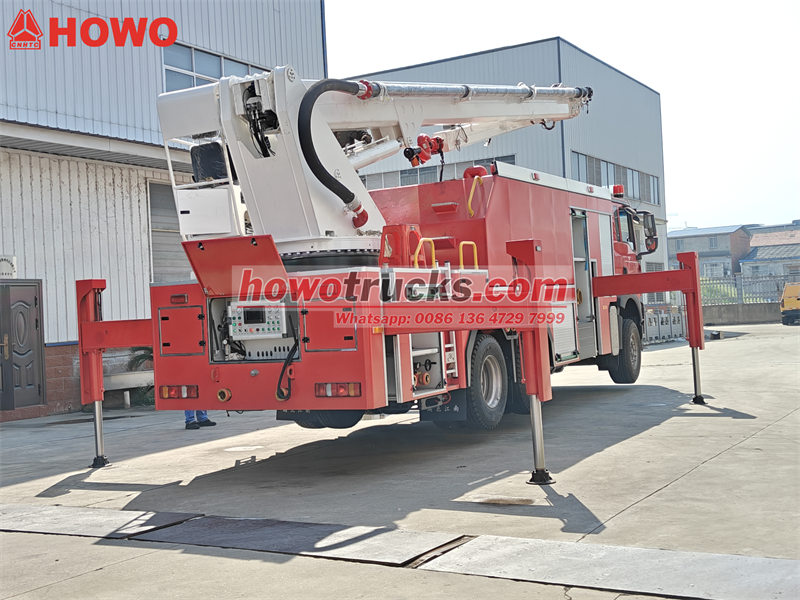

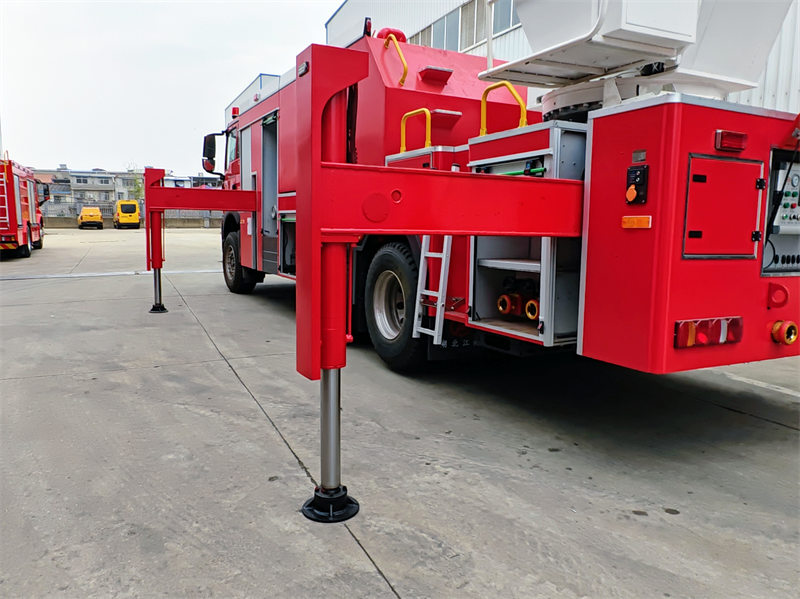

2. It has the function of getting on and off the vehicle interlocking. The outriggers are not unfolded and the boom cannot move. The outriggers cannot move when the boom leaves the bracket.
3. It has the function of emergency vehicle retraction. All hydraulic valves are equipped with emergency mechanical operation. The system is equipped with an emergency power unit. When the engine or oil pump fails, it is used to retract the boom and outriggers.
4. It has an auxiliary power device. In the case of normal power loss, the boom can be retracted to the driving state.
5. The upper body is anti-collision. When the boom rotates at a small amplitude angle, in order to prevent the boom from colliding with the vehicle body, it automatically stops rotating in the dangerous direction when it rotates to a certain position.
6. Equipment box door is not closed reminder. If the equipment box door is not closed, the sound and light will automatically alarm to prevent accidents during driving.
7. Automatic charging device is installed for the self-discharge of the battery system of the howo high-lift fire truck that has been parked for a long time, so that it can still perform tasks in an emergency.
Electronic And Hydraulic Operating System « « «

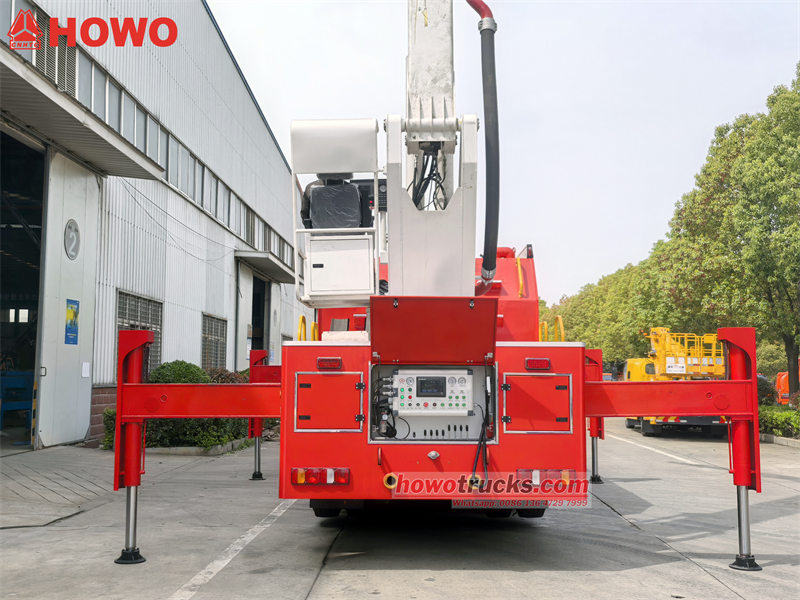

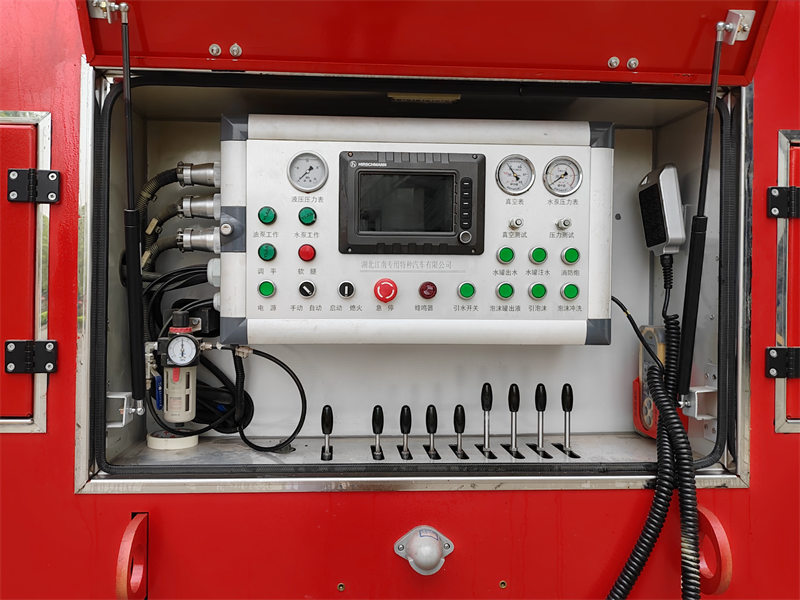

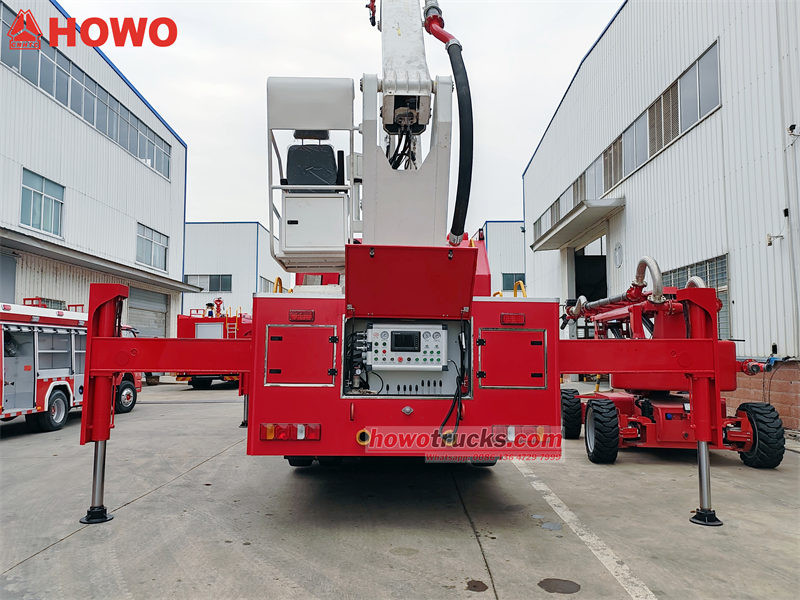

Howo 32m high-lifter fire water truck has two operating points: one at the rear control panel of the fire truck , the other for plugging in wired remote control.

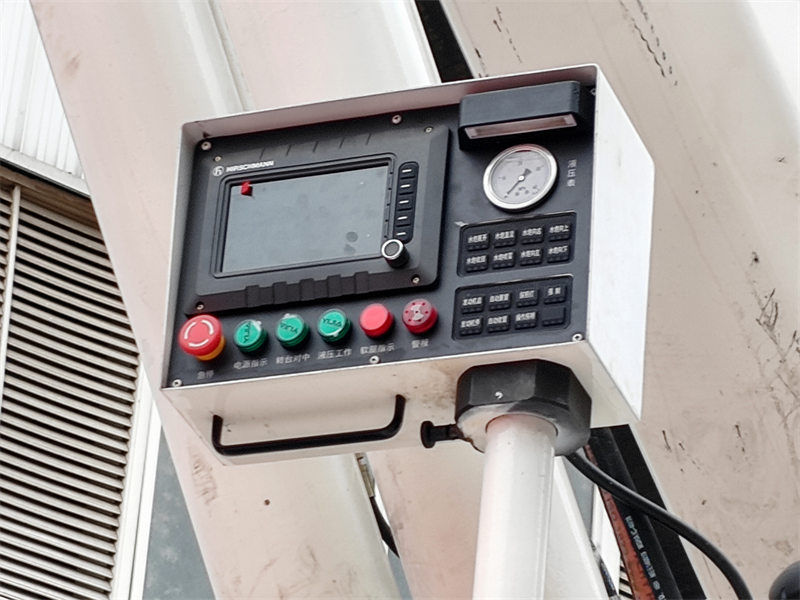

1. The main functions of the fire truck's rear control panel include:
--- Leg deployment and retraction
--- Engine start/stop, throttle adjustment
--- Water pump start/stop, foam system, water pump speed
--- Water line pressure, hydraulic pressure, water tank level
--- Foam tank level, water flow, foam mix ratio, water consumption, foam usage, etc.

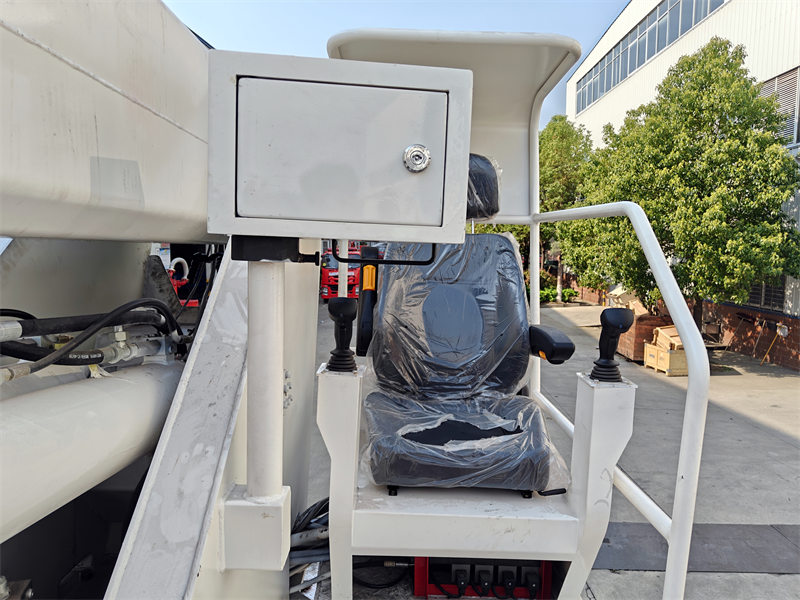

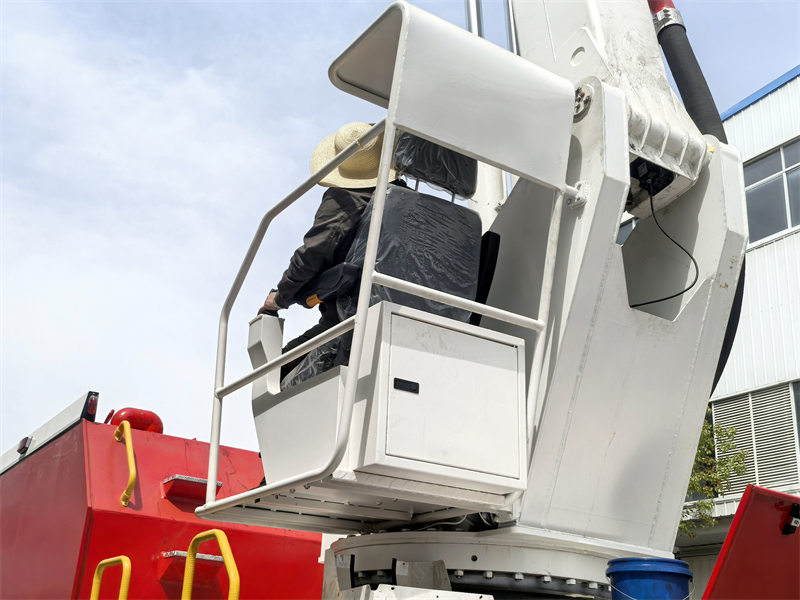

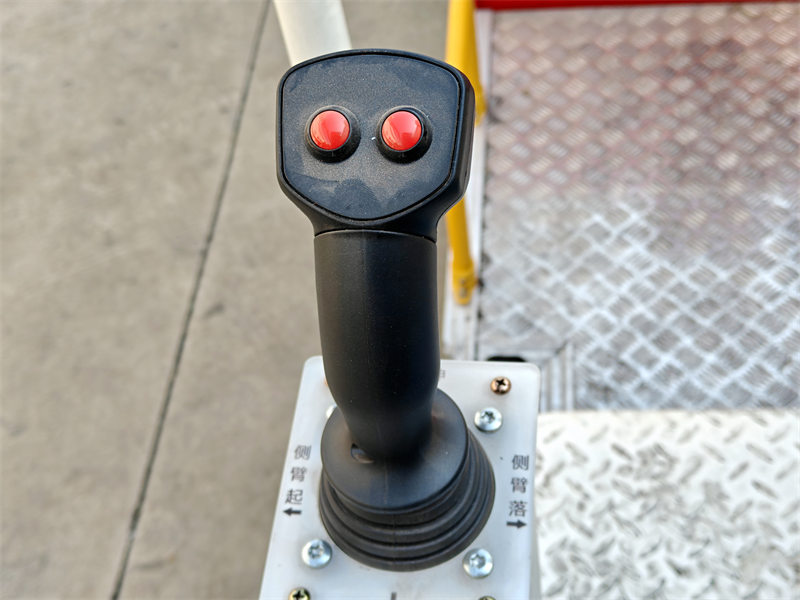

2. Wired remote control operation is mainly used for the control of the truck boom, the 3 operating modes of the Howo fire fighting truck:
♦ Electronic control operation: Under normal circumstances, all actions of the Howo high-lift fire water truck are realized by operating the electronic control handle to ensure the safety and reliability of the boom operation.
♦ Hydraulic control operation: When the electronic control system of the Howo high reach fire water truck fails, the hydraulic handle can be directly operated to ensure the normal function of the fire truck in the safe area.
♦ Emergency standby power unit operation: The gasoline engine drives the gear pump structure to ensure the reliability of the Howo 32m high-lift fire water truck under various fault conditions.
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
Howo 6x4 high reach fire water truck has compact structure, small size, large operational adjustability, flexible operation, and high and low altitude rescue and fire extinguishing functions. It adopts Howo heavy-duty 6x4 chassis with strong power and advanced configuration. The PTO is the original power take-off of the chassis, which has the best power matching. The subframe adopts a large-section box-shaped structure with good torsion resistance, the outrigger adopts a short-span H-shaped structure, and the arm adopts a folding arm combination, which moves quickly and smoothly.
Read More

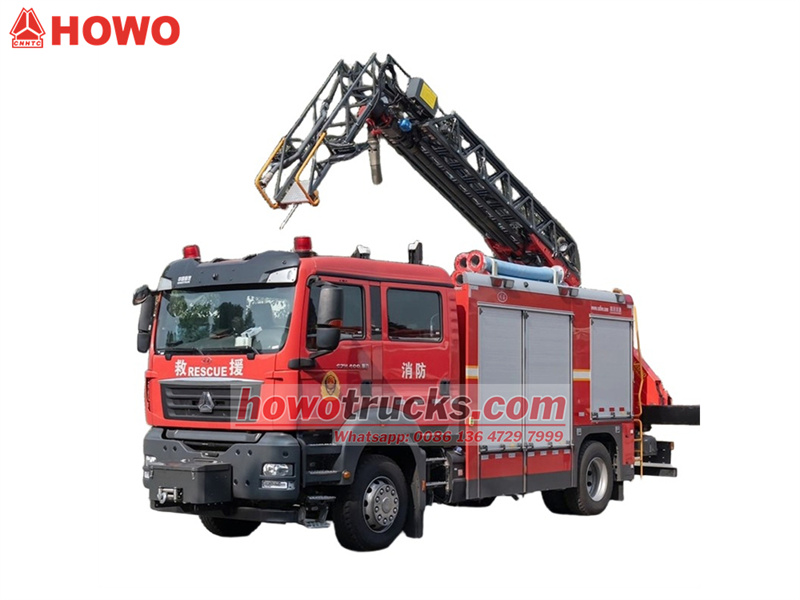

The Howo arial ladder fire rescue truck is a specialized vehicle designed specifically for firefighting and rescue operations. It utilizes the Howo TX series chassis, boasting a powerful 400HP engine and excellent maneuverability. The truck features a bright red fire truck paint job and is equipped with multiple storage compartments for various rescue equipment.
