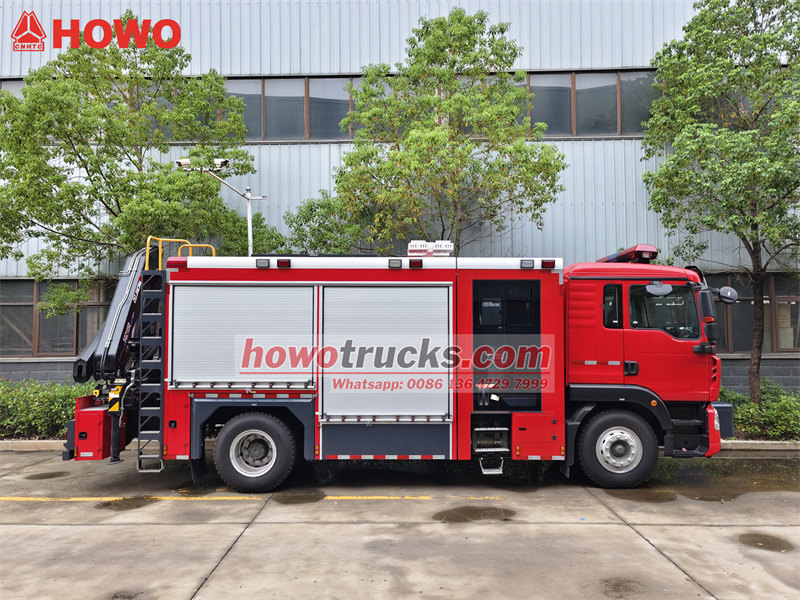

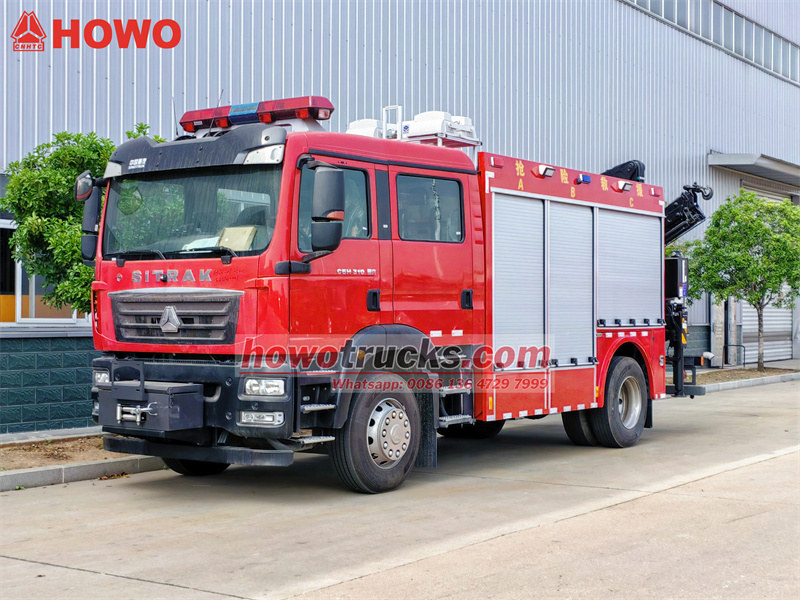

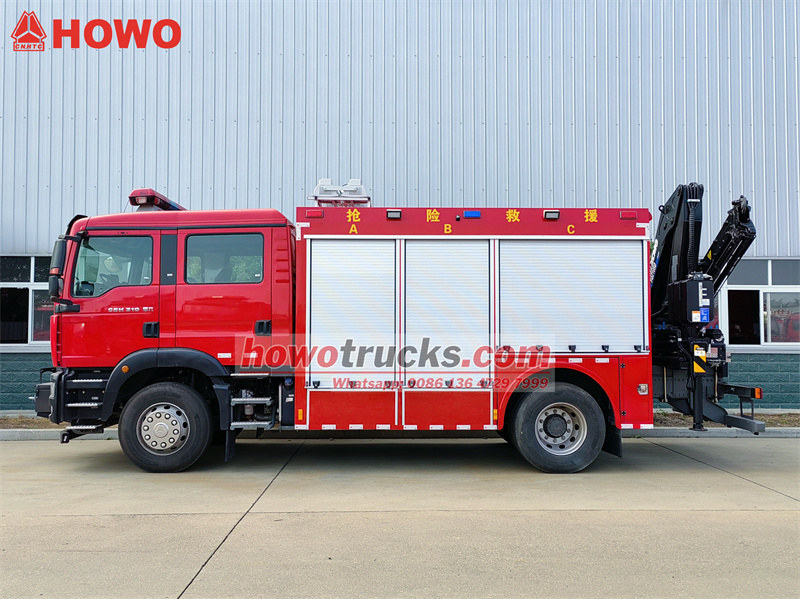

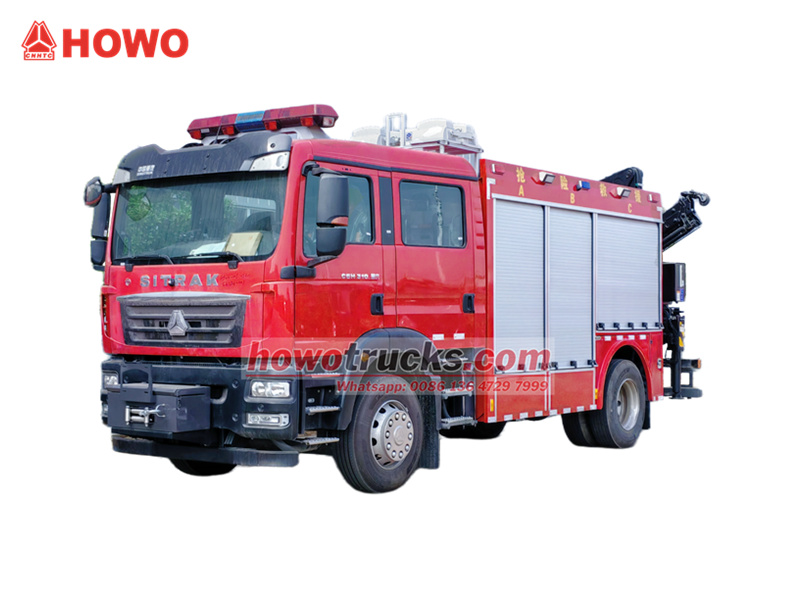

HOWO enmergency lighting fire rescue truck

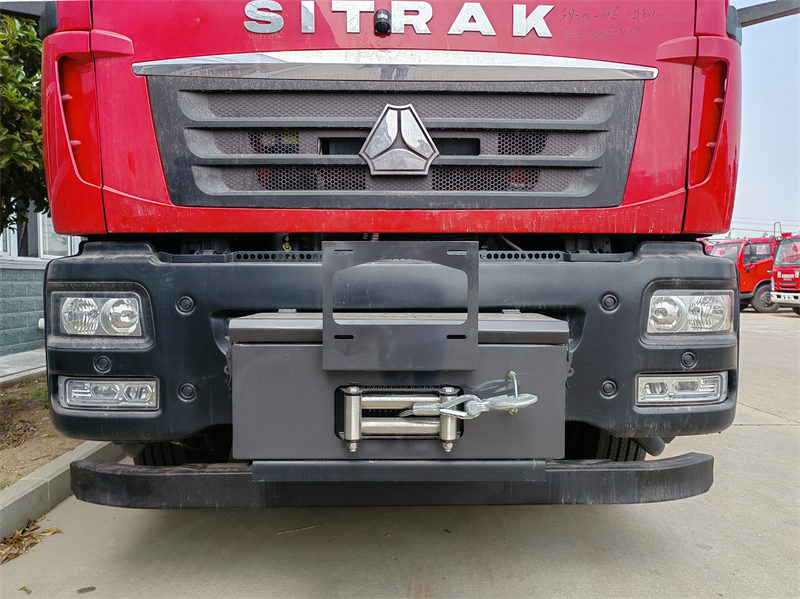

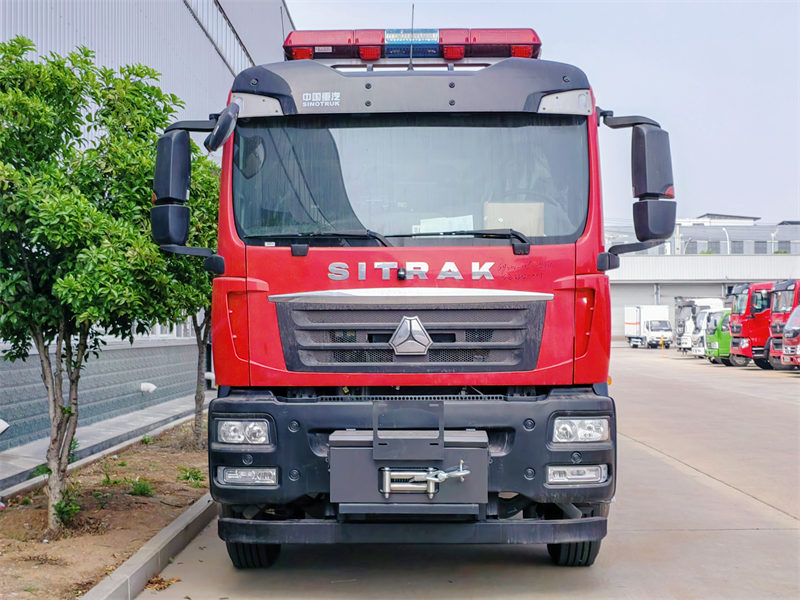

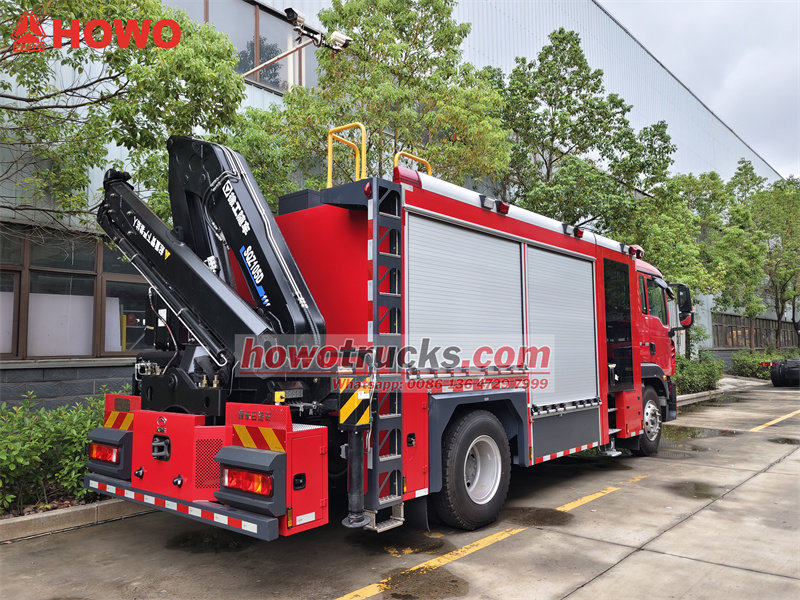

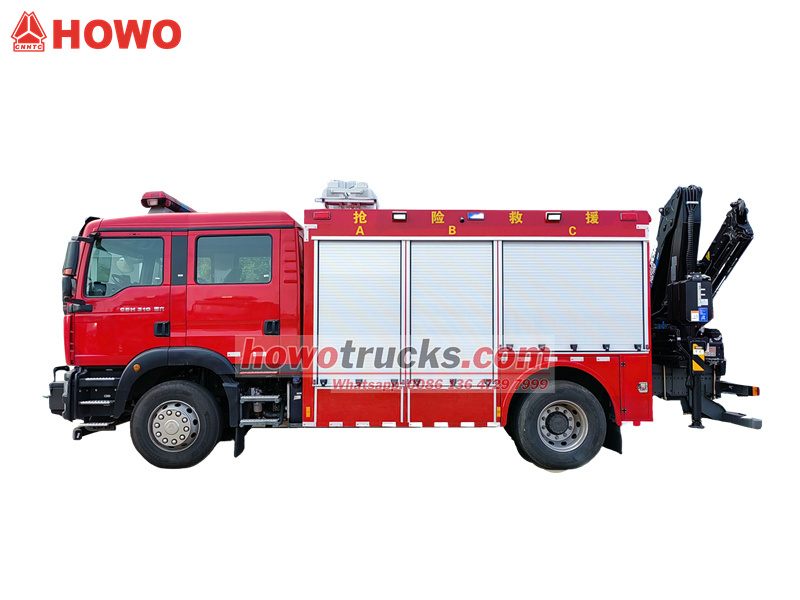

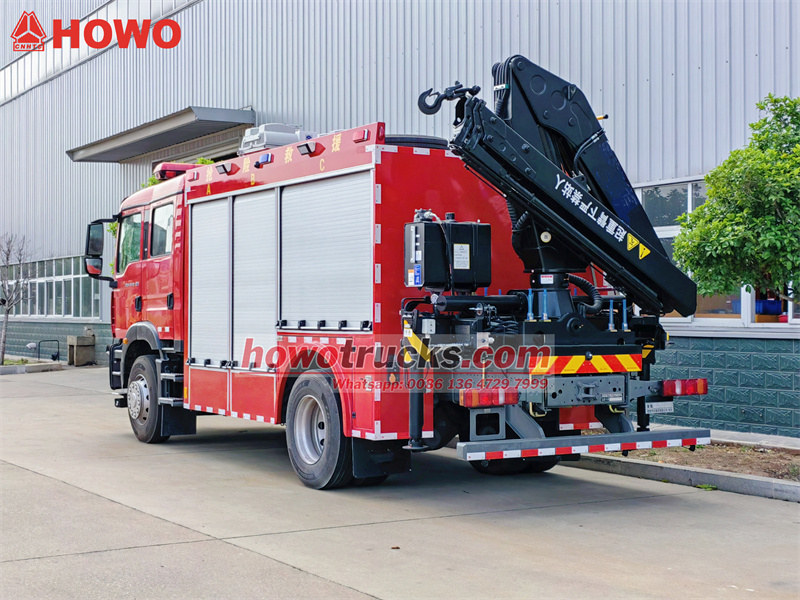

The Howo emergency lighting fire truck, built on the premium Howo C5H chassis, combines superior power with environmentally friendly emissions. With all-wheel drive, it can handle any challenging road conditions. Equipped with an independent power generation system and emergency lighting system, it provides multi-angle, all-round illumination for quickly illuminating rescue routes in the event of a fire. The control panel offers selectable languages and a variety of optional configurations to meet diverse needs. The Howo fire rescue truck is also equipped with a 6 ton folding boom crane at the rear for heavy lifting. A 3 ton, 35m electric tow rope is located in front of the cab.

*SINOTRUK HOWO fire rescue truck

 Fire emergency lighting Truck*
-----------------------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

Product Definition and Introduction

Manufacturer: CS TRUCKS
Features:
1. Truck Chassis: SINOTRUK HOWO C5H chassis, 4x2, 4x4 and 6x6 model
                              MC model with 310HP, 350HP, 380HP or 400HP
                              Optional EURO 4/5/6 emission for different market

2. Tank material: 4-6mm thick stainless steel for prolonged service life
                            carbon steel, aluminum alloy or PP material can be choose

3. Lighting system: 30kW generator set,mast height ≥ 7 m,360° pan-tilt rotation

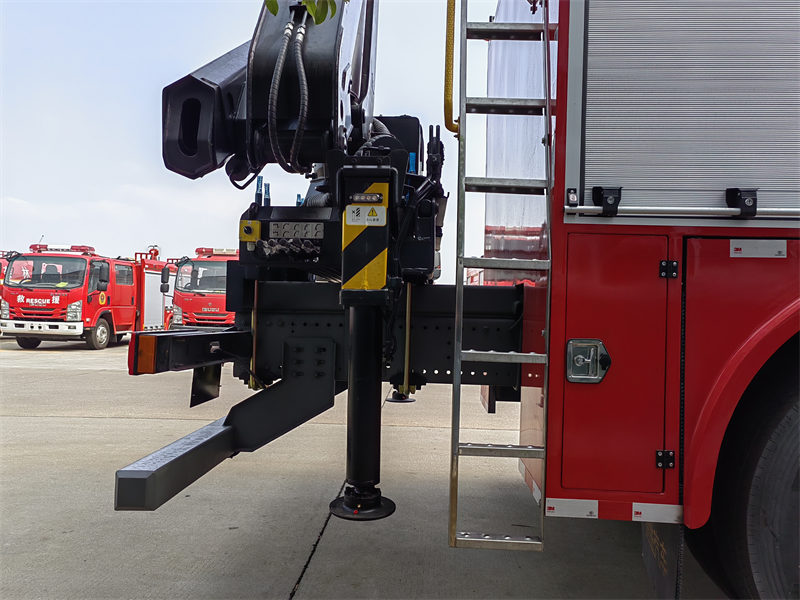

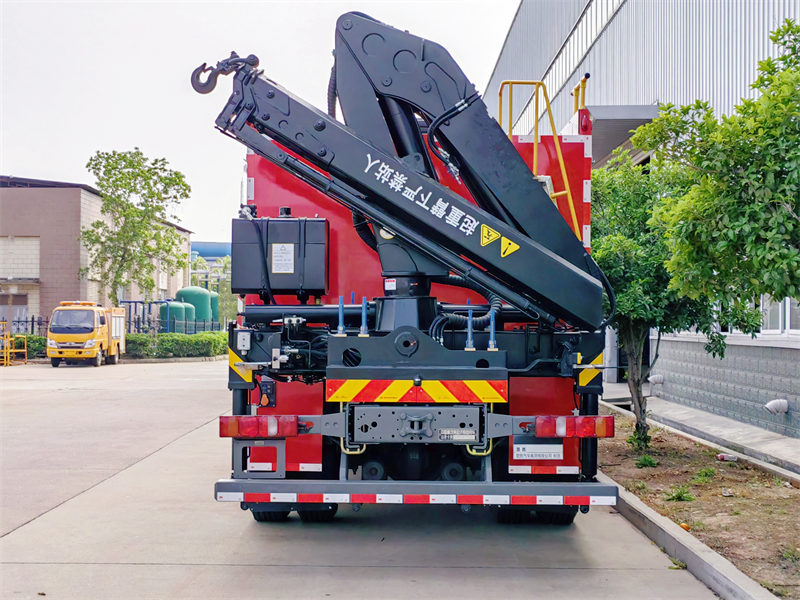

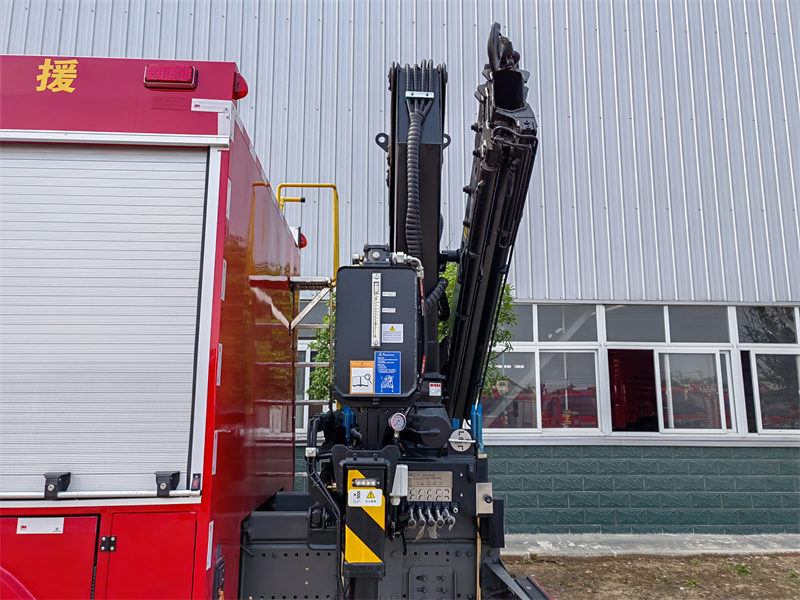

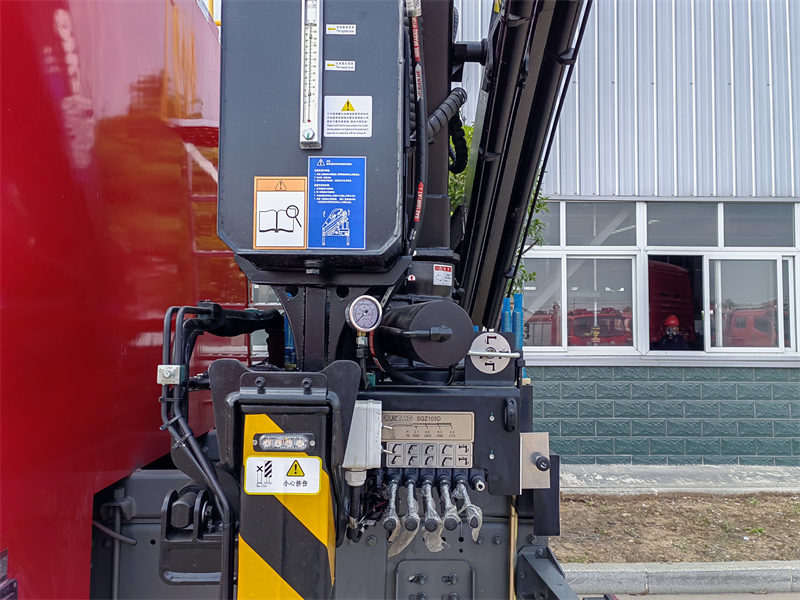

4. Knuckle crane: 7.5m length, 6 ton lift capacity

5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
                                Optional equipped CAFS foam system and Dry Powder system
                                Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue

Product Parameter for HOWO Fire Rescue Truck:

Product Details & Advantages:

1. Doubled Utilization of Prime Time

♦ Complex missions can be performed in parallel:

The Howo Fire Rescue can simultaneously emergency lighting, heavy object handling, and Firefighting tool storage.

Consolidating these three functions into a single vehicle, reducing the number of vehicles and improving rescue efficiency.

♦ Shortened response window:

From alarm receipt to rescue deployment, the time is only 4 minutes and 30 seconds, 8 minutes faster than traditional formations.

♦ Continuous Operational Support:

The chassis features an integrated 300L fuel tank and dual circuit system, supporting 72 hour uninterrupted operations.

2. Chassis Performance

♦ The Howo C5H is equipped with an MC07.31-50 diesel engine, delivering a maximum power of 228 kW (approximately 310 HP) and a torque of 1230 N·m.

♦ Its stable power output and excellent fuel economy make it suitable for long, intensive operations.

♦ The dual-battery design ensures stable operation of electrical equipment under extreme conditions.

♦ Equipped with heavy-duty 295/80R22.5 tires, it offers a minimum turning radius of ≤12 meters and a wading depth of ≥800 mm, making it suitable for complex terrain and adverse weather conditions.

3.Modular and Multifunctional Integration

♦ Structural design：

The chassis adopts a high-strength carbon steel frame, anti-twisting box structure, and the external rolling door design facilitates quick access to rescue tools.

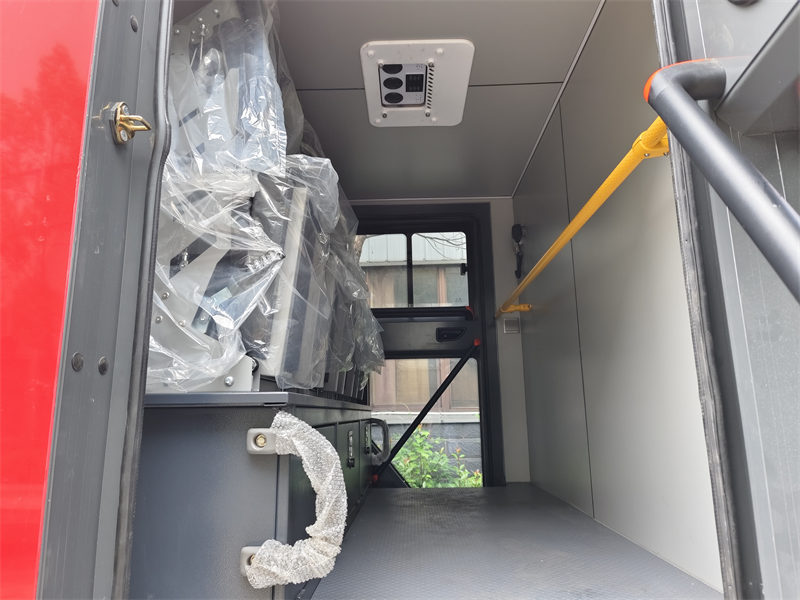

The interior is equipped with adjustable aluminum alloy storage racks and rotating trailers to optimize space utilization.

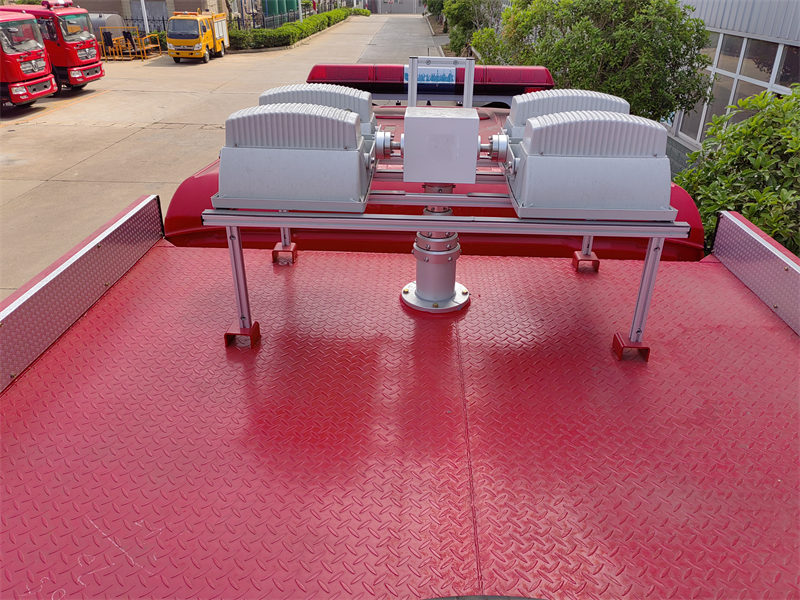

♦ Emergency lighting system：

Integrated with 30kW generator set and lifting lighting, mast height ≥ 7 meters, support 360° pan-tilt rotation and wireless remote control, coverage radius over 100 meters.

The lamp protection level reaches IP67, suitable for high humidity and dusty environments such as tunnels and chemical areas.

♦ Multi-task expansion capability：

It can carry rescue equipment such as hydraulic demolition tool sets and life detectors.

Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!

1.we can do the designs according to the your requirement

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome


We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
