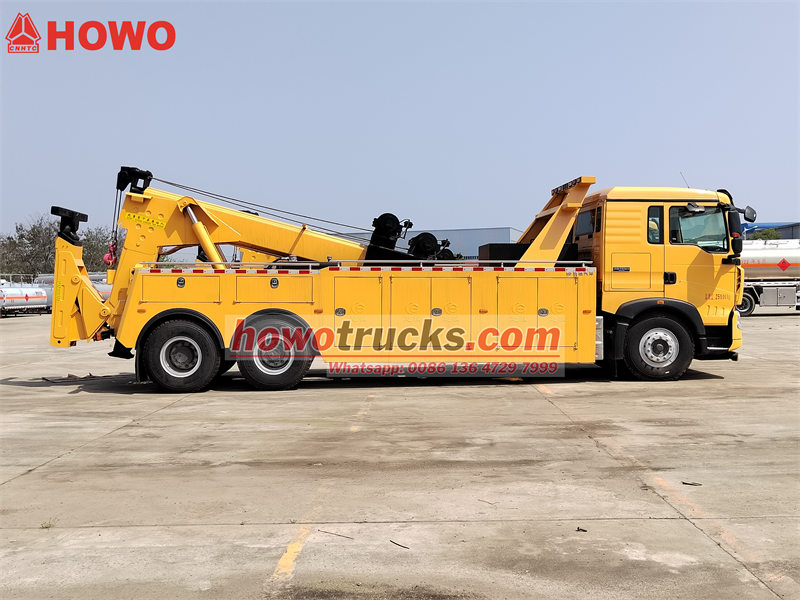

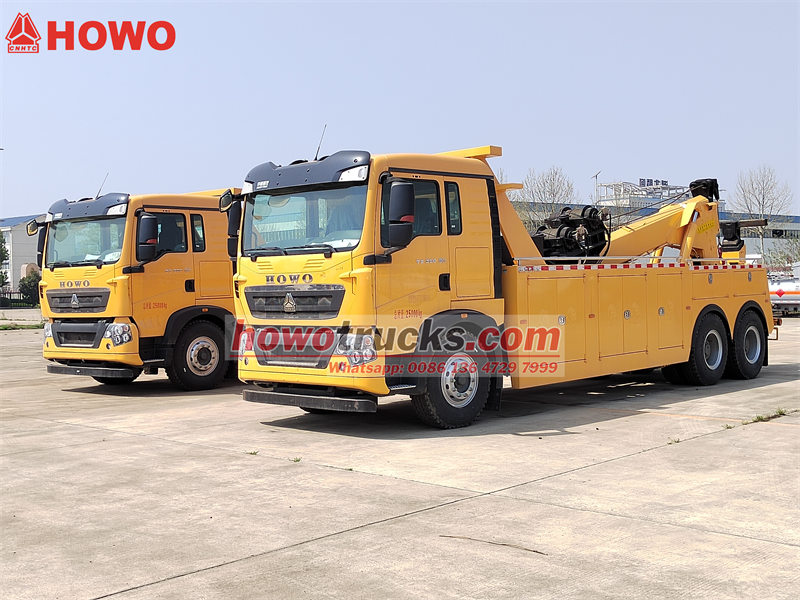

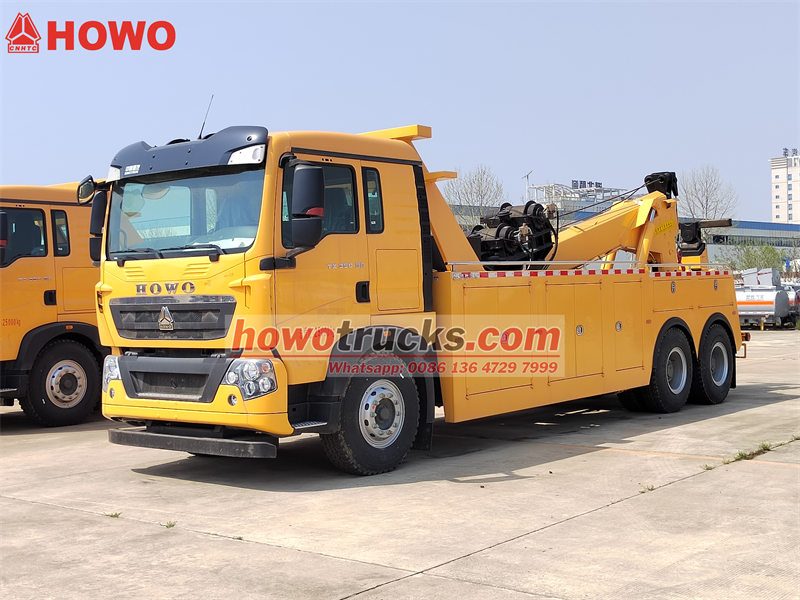

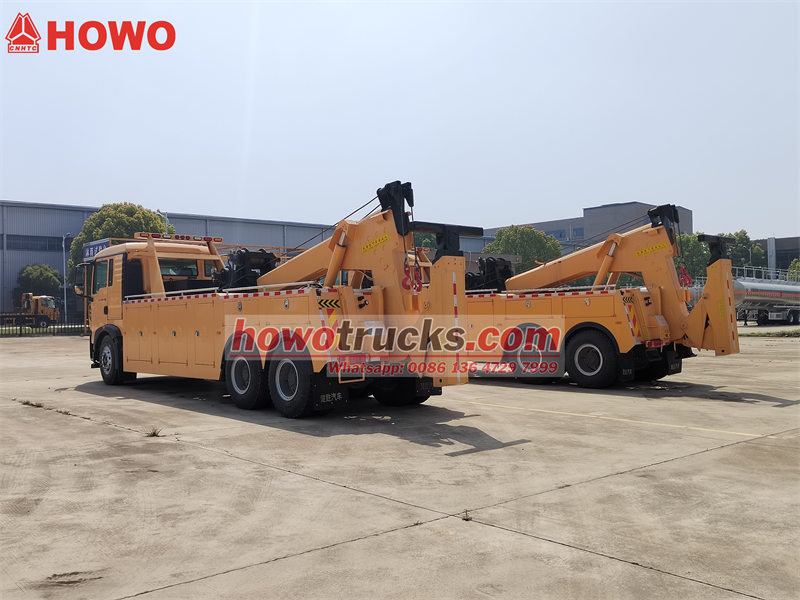

This heavy-duty wrecker, built by Chusheng Trucks Group, utilizes the Howo Sinotruk 6x4 drive chassis and is equipped with a powerful Weichai MC07H.35-60 diesel engine (350 HP/1400 Nm of torque) and an HW19710 ten-speed transmission. Combined with an HF9-ton front axle and HC16-ton rear axle, it ensures exceptional power, load-bearing capacity, and reliability. The Howo wrecker's core obstacle-clearing capabilities are exceptional: equipped with a three-stage telescopic main boom, it boasts a maximum lifting height of 12.3 meters, a maximum lifting capacity of 30 tons (within the operating radius), and 360° slewing capability. It also incorporates two 15-ton hydraulic winches, resulting in an impressive rated towing capacity of 50 tons, making it ideal for handling accidents involving large trucks, buses, and construction machinery.
Working capacity :
18 tonsCabin type :
Howo TX cabin, with one sleeperDrive system :
6x4Wheelbase ( mm) :
4600+1350Engine specific :
MC07H.35-60Gear box :
HW19710C,10 forwards & 2 reversesFront axle ( Kg ) :
7500Rear axle ( Kg ) :
13000*2This heavy-duty wrecker, built by Chusheng Trucks Group, utilizes the Howo Sinotruk 6x4 drive chassis and is equipped with a powerful Weichai MC07H.35-60 diesel engine (350 horsepower/1400 Nm of torque) and an HW19710 ten-speed transmission. Combined with an HF9-ton front axle and HC16-ton rear axle, it ensures exceptional power, load-bearing capacity, and reliability. The Howo wrecker's core obstacle-clearing capabilities are exceptional: equipped with a three-stage telescopic main boom, it boasts a maximum lifting height of 12.3 meters, a maximum lifting capacity of 30 tons (within the operating radius), and 360° slewing capability. It also incorporates two 15-ton hydraulic winches, resulting in an impressive rated towing capacity of 50 tons, making it ideal for handling accidents involving large trucks, buses, and construction machinery.
The Howo 6x4 tow truck is equipped with a robust hydraulic outrigger system (rated to lift 12.5 tons per outrigger), providing a wide support span and ensuring safety and stability in heavy-duty rescue operations. The yellow luxury one-row and a half sleeper cab (other colors available), 400L large-capacity fuel tank, 24V electrical system, complete warning lighting (warning lights, strobe lights) and tool box and other accessories make it a large-scale professional towing and rescue equipment with comprehensive functions and powerful performance.

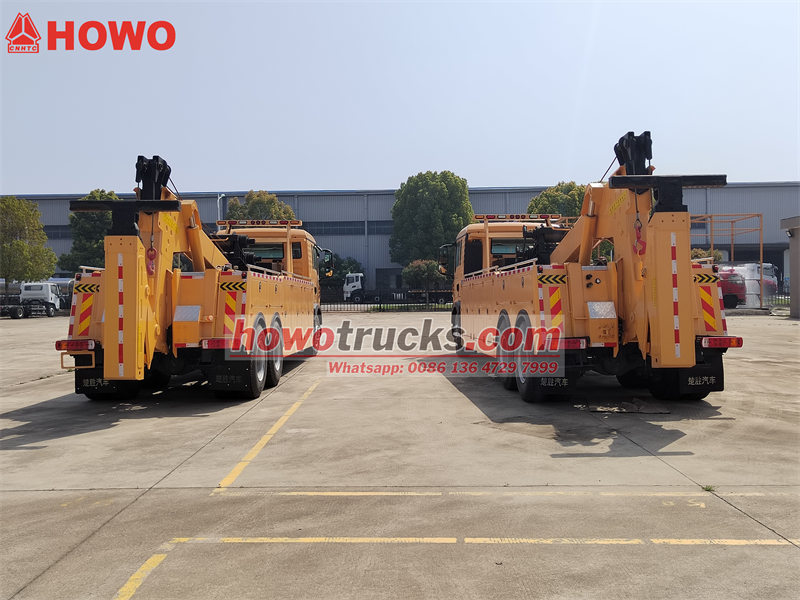

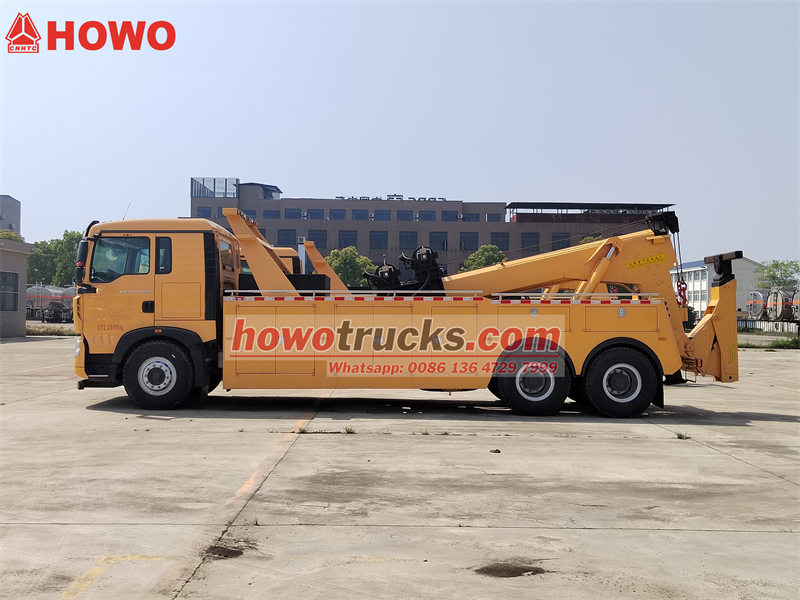

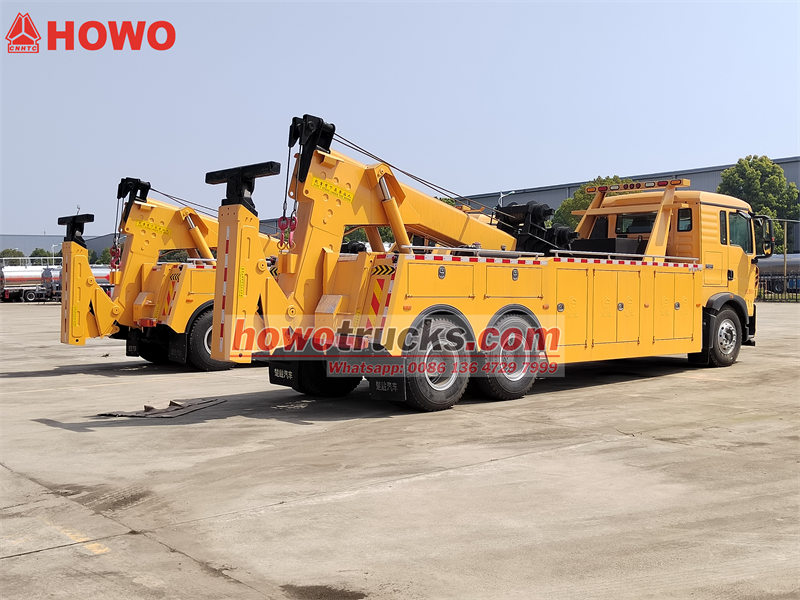

*Howo 6x4 350HP Road Rescuer Truck *
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
1. Truck Chassis: Sinotruk Howo truck chassis, 6X4,6x6 model
MC model with 340HP and Euro 2,3
2. Upper Body material: 6mm thick high-quality steel for prolonged service lier
carbon steel or stainless steel can be choose.
3. Capacity: maximum lifting height of 12.3 meters,
maximum lifting capacity of 30 tons (within the operating radius)
360° slewing capability
4. Standard Equipment: High quality hydraulic part, single-level telescopic lifting arm, two units of hydraulic winch 15ton , tool case, two outriggers, manual operation device, two floodlight, one alarm lamp and basic accessories


Product Parameter For Howo 6x4 18T Road Tow Truck « « «

Best Choice,Howo Trucks
|
Chassis parameters |
|||||
|
Chassis brand |
SINOTRUK |
Vehicle brand |
CS Group |
||
|
Overall dimensions |
10300X2580X3325mm |
Wheel base |
4600+1350mm |
||
|
Approach/departure angle |
16/19° |
Maximum speed |
90km/h |
||
|
Cab |
Configuration |
TX a row and a half deluxe cab(with sleeping berth), allowable 3 passengers |
|||
|
Color |
Yellow, other color is optional |
||||
|
Engine |
Model |
MC07H.35-60 |
|||
|
Emission |
Euro 3 |
||||
|
Type |
6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine |
||||
|
Rated power |
350hp, rated power speed 2000rpm |
||||
|
Displacement |
11596ml |
||||
|
Max.torque |
1400N.m |
||||
|
Bore x stroke |
126x155mm |
||||
|
Manufacturer |
Weichai |
||||
|
Tire |
Size |
11.00R20 |
|||
|
Number |
10+1 nos |
||||
|
Clutch |
φ430 diaphragm clutch |
||||
|
Fuel tank |
400L iron oil tank |
||||
|
Front axle |
HF 9 tons |
||||
|
Rear axle |
HC 16 tons |
||||
|
Drive form |
6X4 |
||||
|
Suspension |
Multi leaf springs |
||||
|
Rated voltage |
24V, DC |
||||
|
Transmissions |
gearbox HW19710 , 10 speed forward 2 reverse. |
||||
|
Steering device |
Power assisted steering |
||||
|
Steering wheel |
Left hand drive |
||||
|
Wrecker structure parameters |
|||||
|
Boom |
Max Lifting Weight |
30000 kg |
|||
|
Boom extended length |
4500 mm |
||||
|
Max. Lifting Height |
12300 mm |
||||
|
Inclination Angle |
5°- 60° |
||||
|
Rotating Angle |
360° |
||||
|
Number of Stages |
3 Stages |
||||
|
Outriggers |
Rated Lifting Weight |
12500 kg |
|||
|
Rated Lifting Fully Extended Weight |
4500 kg |
||||
|
Longitudinal Span between Front Outrigger and Rear Outrigger |
7350 mm |
||||
|
Transverse Span of Front Outriggers |
5490 mm |
||||
|
Transverse Span of Rear Outriggers |
4387 mm |
||||
|
Rated Towing Weight |
50000 kg |
||||
|
Length of Cable Wire |
25 m |
||||
|
Equipment |
High quality hydraulic part, single-level telescopic lifting arm, two units of hydraulic winch 15ton , tool case, two outriggers, manual operation device, two floodlight, one alarm lamp and basic accessories |
||||

Main Advantage Of The Howo 6x4 Road Wrecker Truck « « «

1.Extreme load-carrying and power performance
♦ 50 tons towing and 30-ton lifting capabilities: This industry-leading load design can handle heavy trucks, construction machinery, and other large vehicles involved in accidents, covering 99% of highway rescue scenarios.
♦ Weichai's 350-horsepower engine: Low-speed, high-torque (1400 Nm @ 1200-1800 rpm) adapts to complex road conditions like mountainous terrain and long slopes, while offering superior fuel economy in its class.
♦ SINOTRUK's 6x4 chassis and 16-ton rear axle: Multi-leaf spring suspension and a highly rigid frame ensure structural stability under heavy loads.

2.Efficient Operational Adaptability
♦ Three-stage telescopic boom (12.3m lift + 360° rotation): Covers multiple angles of the accident scene without frequent maneuvering, making it particularly suitable for rescue operations in confined spaces such as overpasses and tunnel entrances.
♦ Dual 15-ton hydraulic winches + 25m steel cable: Collaboratively enable complex operations such as righting overturned vehicles and towing in deep trenches, improving efficiency by over 40%.
♦ Long-span outrigger system (5.49m front / 4.38m rear): Maintains stability even on soft surfaces, reducing the risk of rollover.

3.Optimized operational economy
♦ 400L fuel tank and low-drag chassis design enable a range of over 800 kilometers on a single refueling, making it suitable for long-distance, interprovincial rescue missions.
♦ One-and-a-half-row luxury cab (with sleeper berth) accommodates three-person crews with rotating rest breaks, reducing labor costs and enabling continuous operation.
♦ Standardized hydraulic components: 80% commonality in repair parts reduces ongoing maintenance costs.
