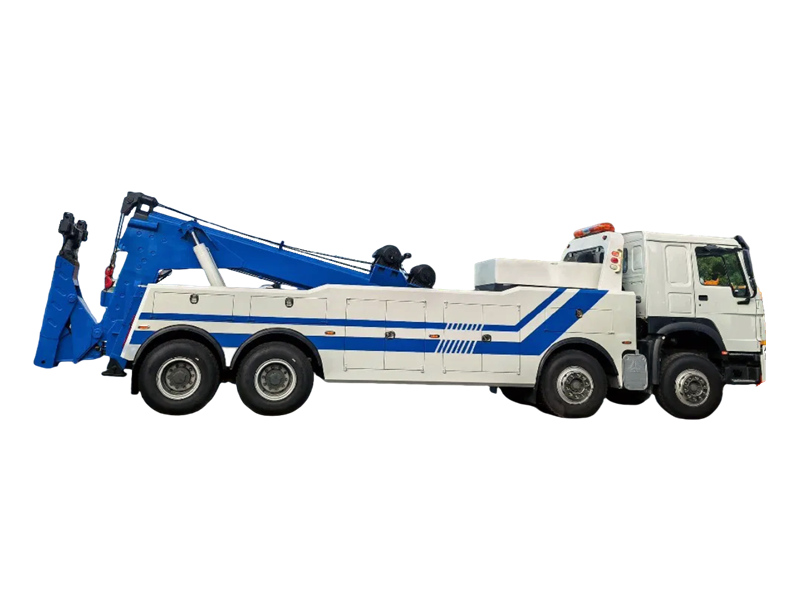

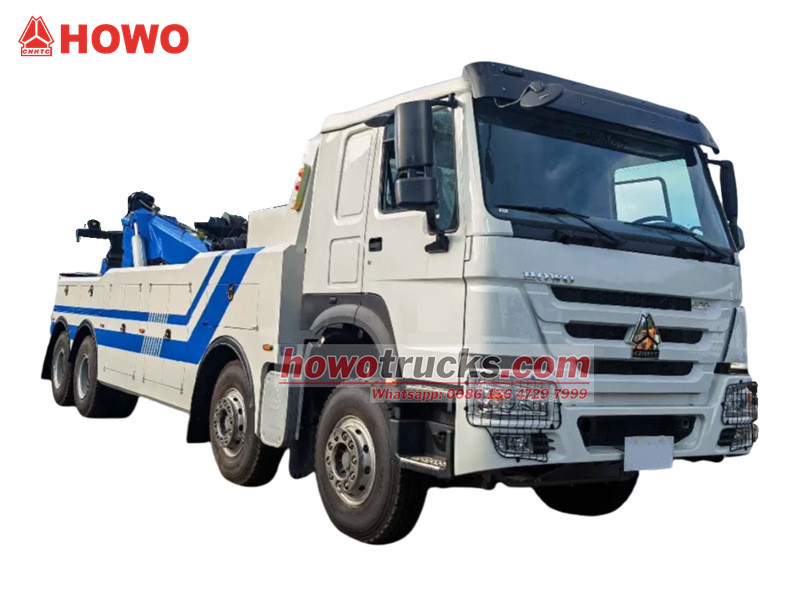

HOWO 8x4 heavy duty tow truck

HOWO 8x4 heavy duty tow truck

The HOWO 8×4 heavy-duty tow truck is a professional rescue vehicle integrated with towing and lifting capabilities. Built on the robust HOWO 8×4 heavy-duty chassis and powered by a Weichai 400-horsepower engine, it boasts a lifting capacity of 16,000 kg and dual 80 kN winches. This enables simultaneous lifting, supporting, and towing operations, making it highly effective in handling heavy-duty accident vehicles on highways and urban roads for rapid clearance.

  • Working capacity :

    25 tons
  • Cabin type :

    HOWO HW76
  • Dimension (mm ) :

    11400×2500×3300
  • Drive system :

    8×4
  • Wheelbase ( mm) :

    1800+4600+1350
  • Engine specific :

    400HP/WP12S400E201
  • Gear box :

    HW19710
  • Front axle ( Kg ) :

    6500/7500
  • Rear axle ( Kg ) :

    17500
  • Remark :

    HOWO NX, rotator boom, RHD is optional
New Products

The HOWO 8×4 heavy-duty tow truck is a professional integrated towing and lifting rescue vehicle built on the SINOTRUK HOWO 8×4 chassis. As a heavy-duty tow truck, its core function lies in the ability to perform lifting, supporting, and towing operations simultaneously. It is specifically designed for rapid emergency response and clearance tasks involving accident-damaged or broken-down heavy vehicles on highways and urban roads. Featuring an 8×4 drive configuration, the vehicle is equipped with a powerful Weichai WP12S400E201 high-horsepower engine and a 10-gear transmission. With a gross vehicle mass of 31,000 kg and a sturdy chassis, it provides a stable mobile platform for high-intensity towing operations.

The superstructure is the core of its functionality, integrating a boom system with a capacity of up to 20,000 kg and a under-lift device capable of handling up to 25,000 kg. It is also fitted with two high-capacity winches that can operate independently or in coordination with the lifting arm to upright overturned vehicles or perform dragging tasks. Through the telescopic and luffing movements of the boom and the flexible adjustment of the under lift, the HOWO 8×4 wrecker tow truck can adapt to various complex rescue scenarios, efficiently extracting stranded vehicles and safely towing them away from the scene.

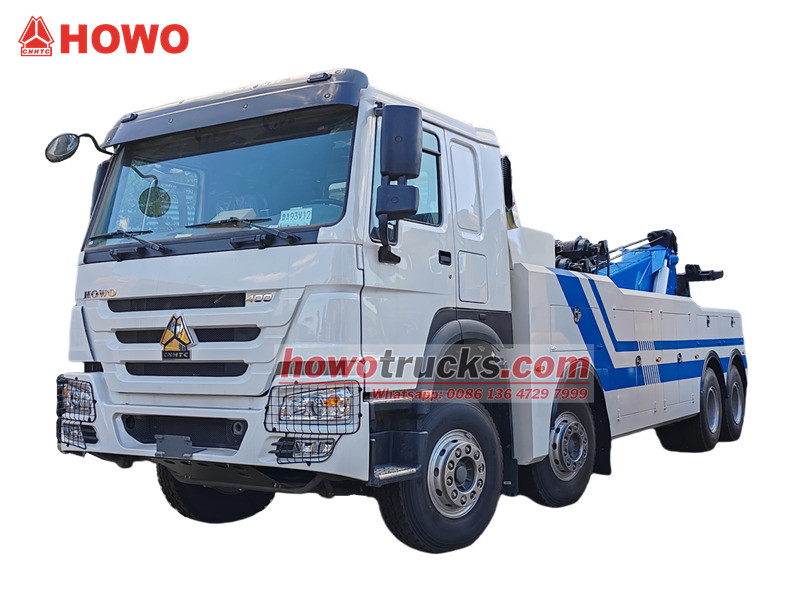

HOWO 8×4 tow truck



*HOWO 8×4 Heavy-duty Tow Truck

HOWO 12 Wheeler 25 Ton Wrecker Recovery Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



 Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS



Product Features

1. Powerful & Reliable: Built on the HOWO 8x4 heavy-duty chassis and equipped with a high-horsepower Weichai engine and 10-gear transmission, it ensures stable operation and reliable performance even under full-load conditions.

2. Integrated & Versatile: Its integrated towing-lifting design combines lifting, supporting, and towing functions, enabling it to independently handle various complex rescue missions and significantly improve operational efficiency.

3. Efficient & Capable: Equipped with boom and a dual-winch system that supports coordinated operation, it can swiftly execute rescue tasks such as uprighting overturned vehicles and retrieving ones from deep ditches.

4. Flexible & Adaptive: Featuring a telescopic and luffing boom alongside a multi-directionally adjustable under-lift, it effectively handles stranded vehicles in various positions and postures, adapting to complex on-site environments.

5. Safe & Secure: With scientific axle load distribution and high-capacity hydraulic outriggers, it provides a solid and reliable foundation for heavy-duty towing operations, ensuring overall worksite safety.



Ⅱ. Product Parameter for HOWO 12 wheeler tow truck:



Vehicle Parameters

Vehicle Model

CS5310GQZ

Overall Dimension (L x W x H)

11400x2500x3300mm

Curb Weight

23500 Kg

GVW

31000 Kg

Wheelbase

1800+4600+1350 mm

Drive Type

8×4

Engine

Engine Model

WEICHAI WP12S400E201

Cylinder No.

6

Engine Power

294KW

Delivery Capacity

11596 (ml)

Horsepower

420 PS

Max. Torque

1780N.M

Emission standard

Euro 2

Transmission

Transmission

HW19710

Forward Gear

10 Speed Gear

Reverse Gear

2 Speed Gear

Seats

Front Seat

2

Front wheel track

2022/2022 mm

Rear wheel track

1830/1830 mm

Front/rear overhang

1500/2180

Approach/departure angle (°)

14/18

Max. speed(km/h)

102

Chassis

Axles

Four axles

Front/Rear Axle Load

6500/7000/17500 kg

Tires:

13(Including Spare Tire)

Tire Model:

12.00R20

Max Towing(kg)

31000kg

Under lifting

Lifting Capability (kg)

25000 kg

Max capacity of lifting @all extend (kg)

11000

Lifting Rate at a standstill (kg)

12000

Length of working arm (mm)

1330~2580

Arm reach (mm)

1250

Min angle (up )(°)

6

Min angle (down ) (°)

-5

Move angle (°)

-5~85

Ground clearance of upper surface of cross arm when fully retracted (mm)

≤900

Boom system

Lifting Capability (kg)

16000

Max capacity of lifting @all extend (kg)

7000

Lifting height (mm)

5210

Cylinder stroke

3300

Winch

QTY

2

Rate of pull(Kn)

100x2

Rope diameter(mm)

φ18

Rope length(m)

30x2

Mini Speed of rope(M/min)

5

Outrigger

QTY

2

Support force (Kn)

80x2







HOWO 8×4 recovery tow truck





Ⅲ. Product Details & Fucntions:

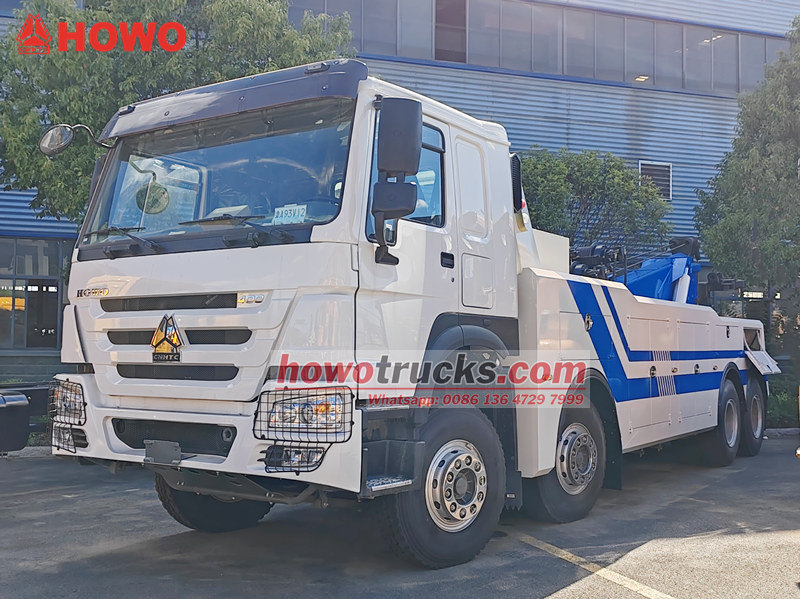

HOWO 12 wheeler heavy tow truck

HOWO 8×4 Chassis

HOWO HW76 Cab: The interior and exterior are simple and elegant, and the airbag seats are equipped with ergonomic seat belts to comprehensively enhance driving comfort and safety.

Powerful Engine: Weichai 400HP diesel engine, which has high reliability, strong power, low power consumption

Gear box: HW19710 gear box, 10 forward speed and 2 reverses.

Reliable Chassis: The chassis is designed to be sturdy, and key parts such as the frame and axles are made of high-strength steel, with strong load-bearing capacity.

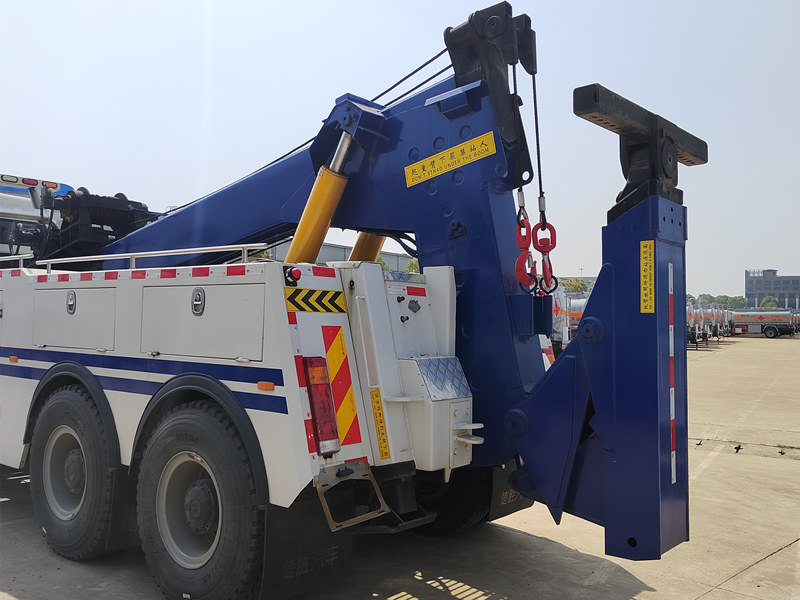

HOWO 25 ton heavy tow truck

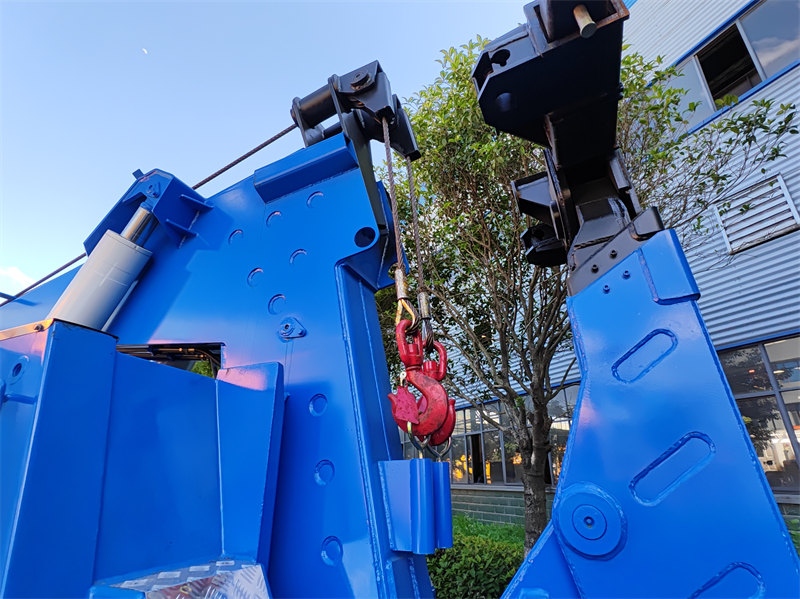

Boom and under-lift

The boom and under-lift system are both designed and manufactured using high-strength steel plate GH70, resulting in a lighter structural weight and greater lifting capacity.

The structural adopts an integrated towing-lifting type, incorporating an advanced double-hinge mechanism that allows the under-lift device to be folded when under load. The boom features a hexagonal cross-section, providing significantly enhanced strength and stability compared to quadrilateral structures.



HOWO 8×4 recovery truck for sale

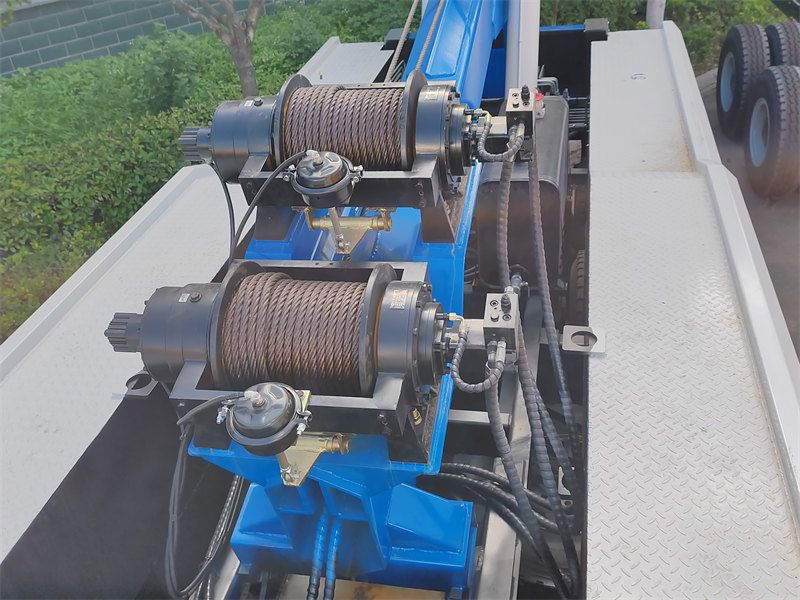

Winch

Equipped with 2 pieces 10 ton hydraulic winches and a 45-meter steel wire rope with a diameter of 18 mm. The winch is one of the core components of the HOWO 8×4 tow truck. It is primarily used for hoisting disabled vehicles onto the tow arm and works in coordination with hydraulic cylinders to achieve functions such as vehicle towing, lifting, and securing the wheels.









Ⅳ. Product Applications:



1. Lifting Capacity: The lifting function is a fundamental feature of heavy-duty tow trucks. It involves the extension, retraction, raising, and load-bearing folding of the tow arm to lift a disabled vehicle from the front or rear and then tow the entire vehicle away from the scene. The truck's lift assembly comes in various structural forms, generally capable of lifting the axles, wheels, leaf springs, or frame of the incident vehicle, ensuring easy installation and removal.

2. Hoisting Function: The boom is essential equipment for heavy-duty tow trucks. It is typically equipped with a luffing jib to hoist a damaged vehicle from one end (or side) or lift the entire vehicle, repositioning it for proper lifting. Furthermore, heavy-duty tow trucks can use the extension and luffing of the boom to pull or hoist vehicles from the roadside or nearby areas back onto the road and into an upright position.

3. Winching Function: Heavy-duty tow trucks are equipped with two winches. These work in conjunction with the main boom and on-site anchor points (fixed pulleys) to perform various operations, such as righting overturned vehicles and winching vehicles that have rolled into deep ditches.

4. Towing Function: Heavy-duty tow trucks can transport damaged vehicles by lifting one end. Additionally, they can tow incident vehicles using a tow bar if the vehicle's axles are undamaged.

5. Warning and Lighting Functions: Heavy-duty tow trucks are outfitted with large warning lights and sirens, providing clear identification during recovery operations. They also feature auxiliary rescue lighting to assist with nighttime operations.


HOWO 12 wheeler heavy recovery truck



Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

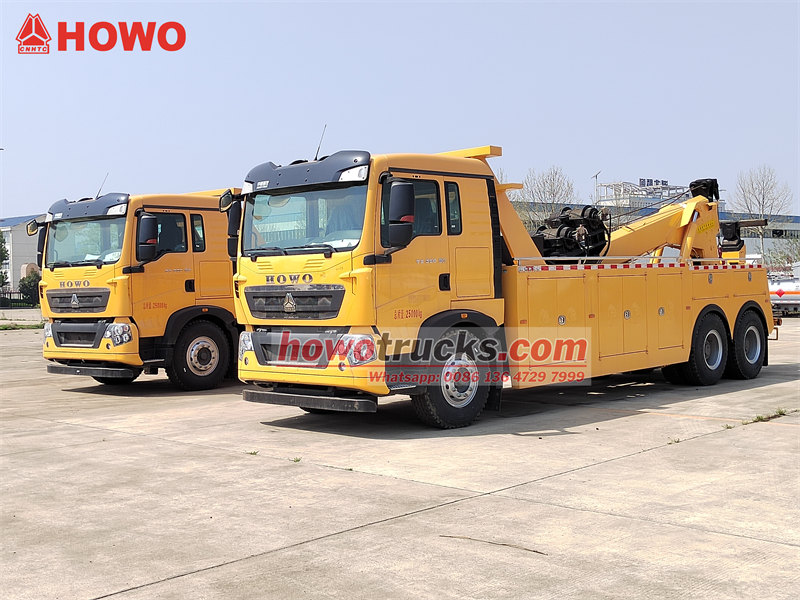

HOWO heavy tow trucks for export

SINOTRUK HOWO 20 ton tow trucks for export

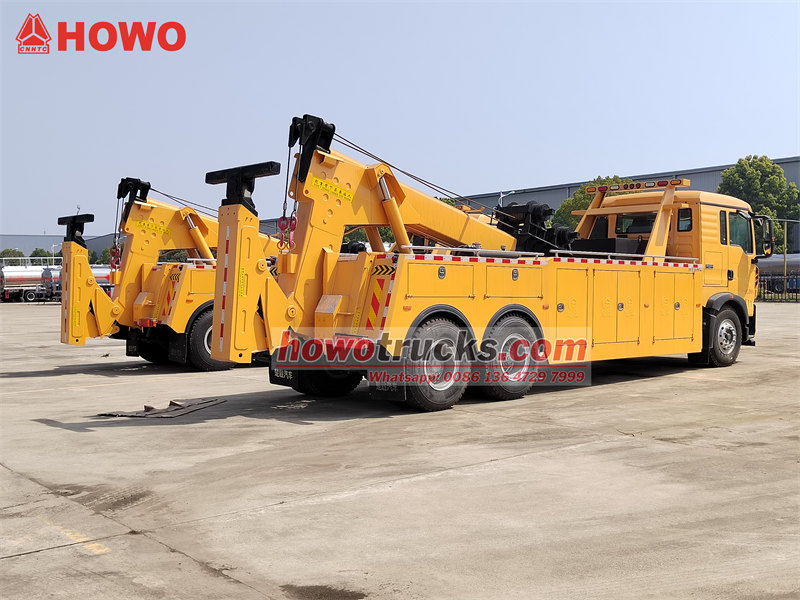

SINOTRUK HOWO 6×4 recovery trucks for export

SINOTRUK HOWO recovery trucks ready for delivery
