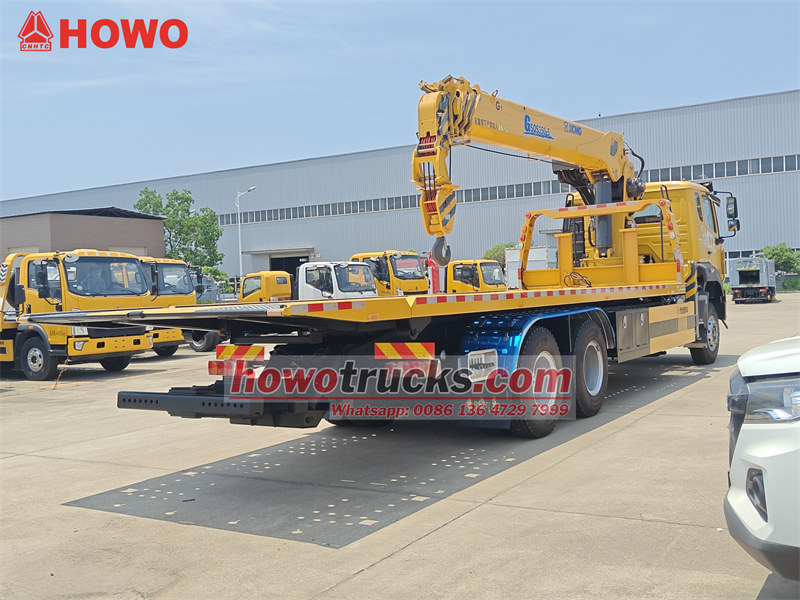

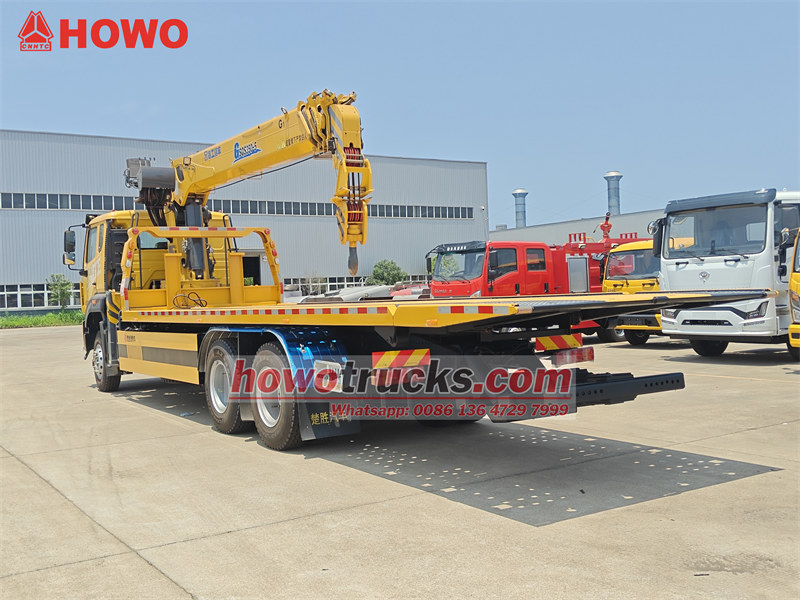

Sinotruk HOWO towing truck mounted boom crane is special customized for multiple purpose, also can be called as Howo wrecker truck with crane, Howo tow truck loader crane, etc. The front mounted telescopic boom crane is designed for heavy duty lifting and construction tasks, and can be customized with remote control box for convenient and safety working. Rear wrecker platform are mounted one HOWO 6x4 truck chassis, with whole hydraulic working model, also matched with rear foldable platform for cars climbing up and down. The rear lifting device are used for cars lifting, meanwhile can be used for bus and trucks towing when have an accident. There for the HOWO tow truck crane are an ideal vehicle for road rescue project.
Working capacity :
14tonsCabin type :
HOWO MATE flat roof cabin, with half sleeperDrive system :
6x4Wheelbase ( mm) :
5825+1350 mmEngine specific :
WP7H320E62Gear box :
FAST 9 shift manual modelFront axle ( Kg ) :
9000Rear axle ( Kg ) :

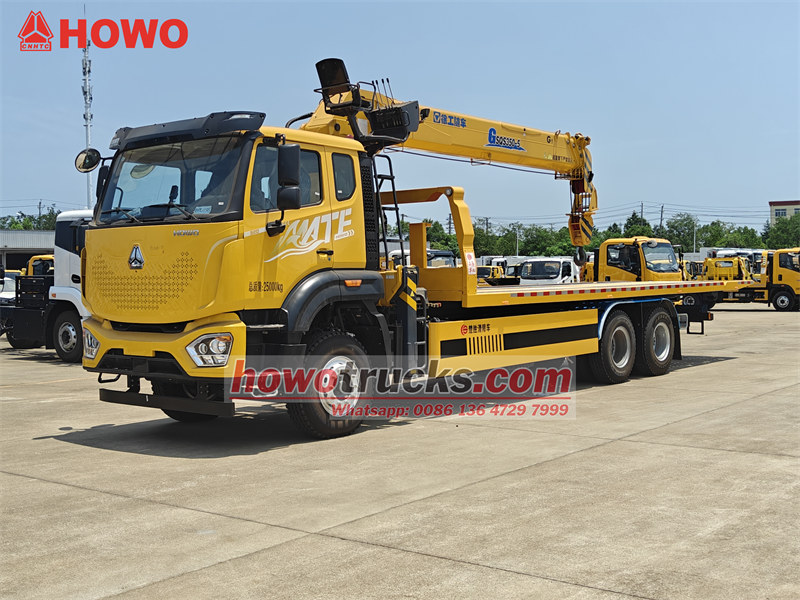

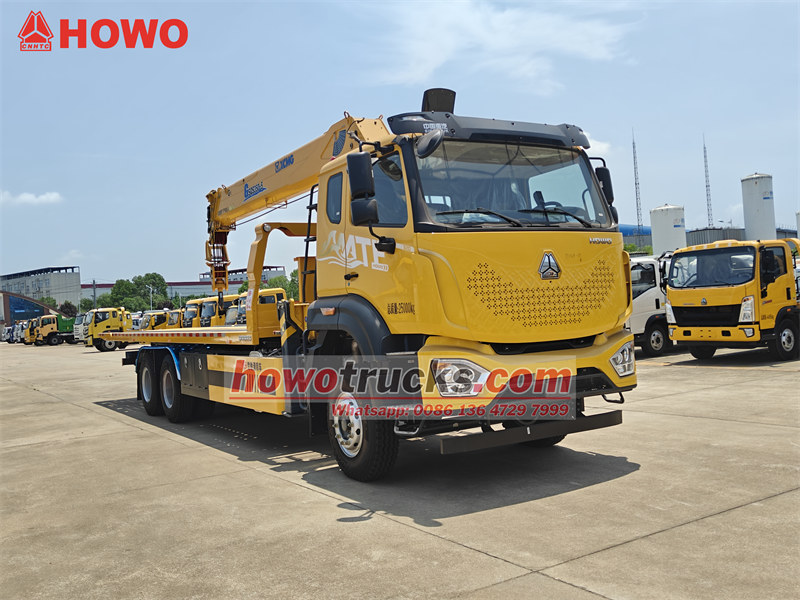

16000+16000CS TRUCKS produced HOWO MATE heavy duty 6x4 truck mounted road wrecker is designed and used for car carrier and road rescue. The newly designed Howo 6x4 car carrier with crane is a versatile, powerful and reliable solution to trackle heavy duty lifting and transportation. Rear mounted with 8m flatbed towing wrecker, matched with 8tons towing winch and rear lifter device, which mainly used for road failure vehicles, urban illegal vehicles and emergency rescue. Front mounted with 14tons straight arm boom crane, model SQS350 with lifting height 17.3m and working radius 16.1m, 360° continuous rotation working, high altitude working seat for safety and convenient operating. Full customized engineering yellow painting and logos.


*SINOTRUK HOWO Road Wrecker Truck Crane
14tons Crane Mounted Truck
HOWO Towing Truck with Loader Crane*
-----------------------------------------------------------------------------
Product Introduction
Manufacturer: CS TRUCKS
Features:
1. Truck Chassis: SINOTRUK HOWO heavy truck chassis, 6x4 and 6x6 model
WEICHAI model with 300HP, 340HP, 380HP or 400HP
Optional EURO 2/3/4/5/6 emission for different market
2. Crane Brand: Both Telescopic Boom Crane and Knuckle Boom Crane available
Optional brand: Palfinger, XCMG, UNIC, HIAB, CEEC TRUCKS
Optional capacity: 5tons, 6.3tons, 8tons, 10tons, 12tons, 16tons
3. Flatbed Wrecker: Customized for 8m in length, matched with rear lifting device, towing winch capacity 8tons
4. Control Box: Hydraulic control valve on two sides, linked operation, safety and convenient
Also can be customized with wireless control box
5. Working Environment: Super designed working temperature -22℃ to +48℃ day and night, with efficiently working height over 4000m

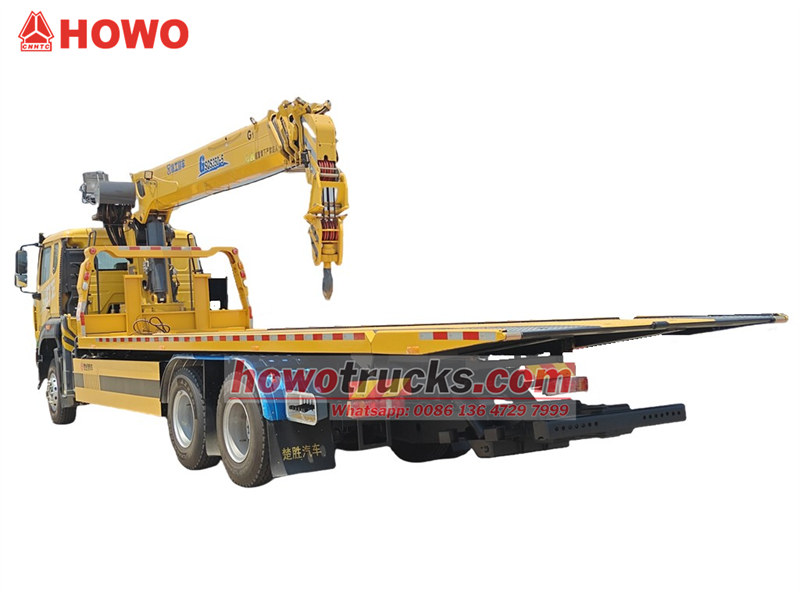

HOWO Wrecker Truck Mounted Loader Crane
Heavy duty WEICHAI diesel engine matched with XCMG SQS350 boom crane, also flatbed for reliable performance
Product Parameter for HOWO Towing Truck Mounted Crane
| Description | HOWO Car Carrier Truck with XCMG 14tons crane | ||
| Drive Model | 6x4 | ||
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 12000×2550×3950 | |
| Wheel base (mm) | 5825+1350 | ||
| Frame (mm) | 8+5+5/300 | ||
| Axle load (kg) | 9000/16000+16000 | ||
| Approach/Departure angle(°) | 19/11 | ||
| Weight in KGS | Curb Weight | 15500 | |
| GVW. | 25000 | ||
| Max. driving speed(km/h) | 90 | ||
| Engine | Model | WP7H320E62 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 320HP | ||
| Emission standard | Euro 6 | ||
| Gearbox | FAST 9 forwards & 2 reverse, matched with HW70 flange PTO | ||
| Clutch | Reinforced diaphragm clutch | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | 12.00R20, 10 pcs + 1 spare tire | ||
| Brakes | Exhaust brake | ||
| UPPER | |||
| Platform Body Kit | LXW(mm) | 8000x2450 | |
| Min angle(°) | 80 | ||
| Max loading capacity(kg) | 16000 | ||
| Winch rating pulling capacity(kg) | 8000 | ||
| Length of steel(m) | 21 | ||

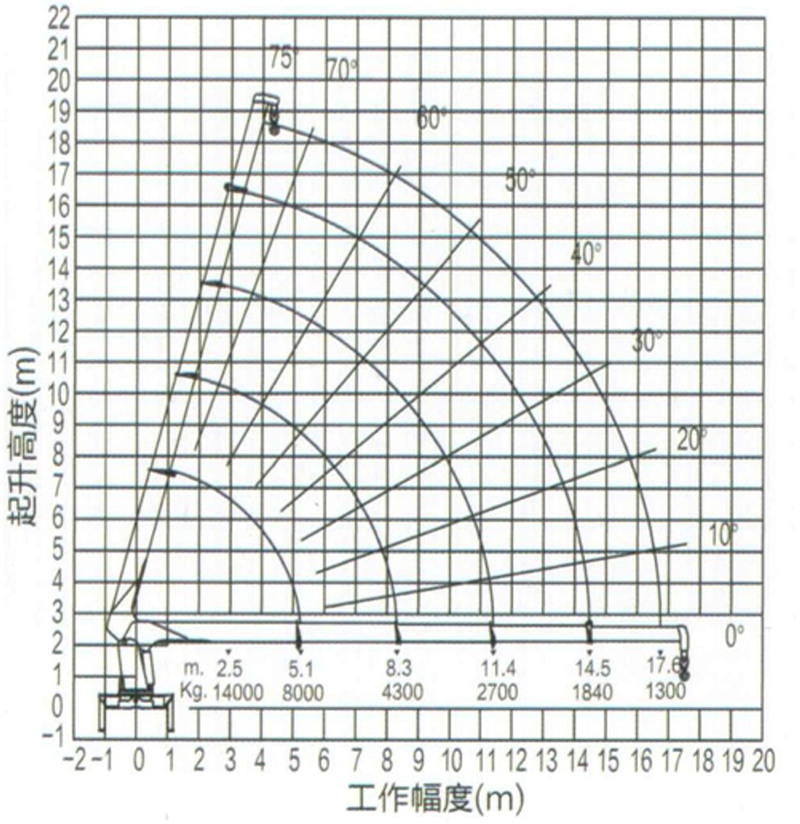

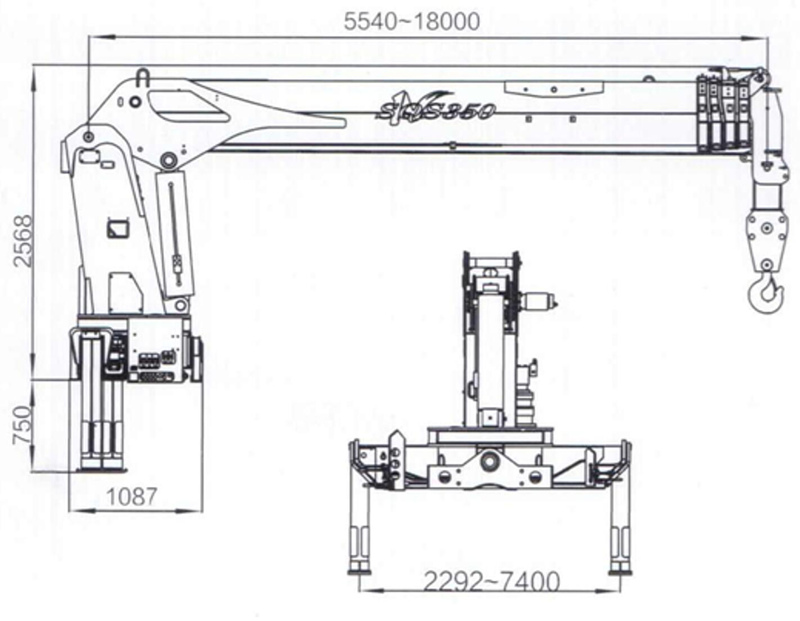

| Boom Crane Kit | Model | SQS350 | |
| Loading Capacity | 14tons / 14000kg | ||
| Working radius | 16.1 m | ||
| Lifting height | 17.3 m | ||
| Maximum lifting moment | 35 T.M | ||
| Power | 55 kw | ||
| Rated pressure | 26 Mpa | ||
| Hydraulic oil tanker | 260 L | ||
| Crane Weight | 5433 kg | ||
| Installation space | 1200 mm | ||


Product Advantages

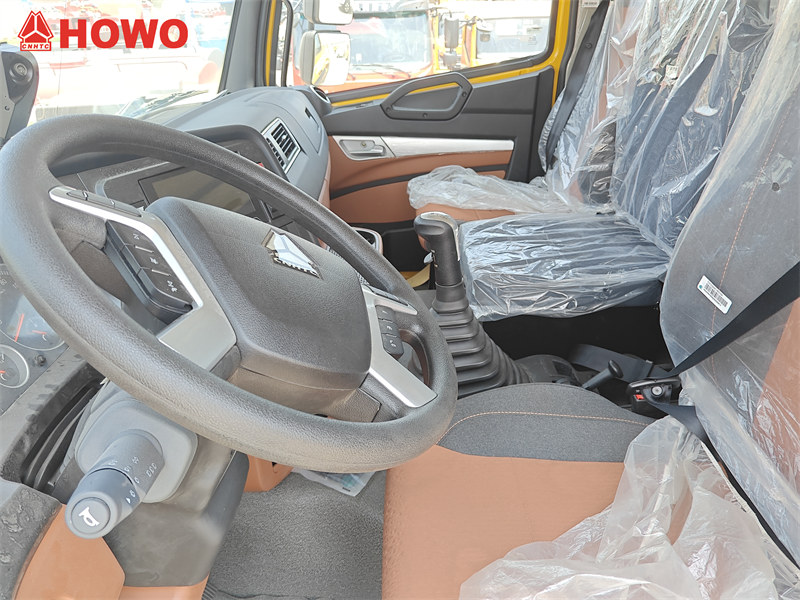

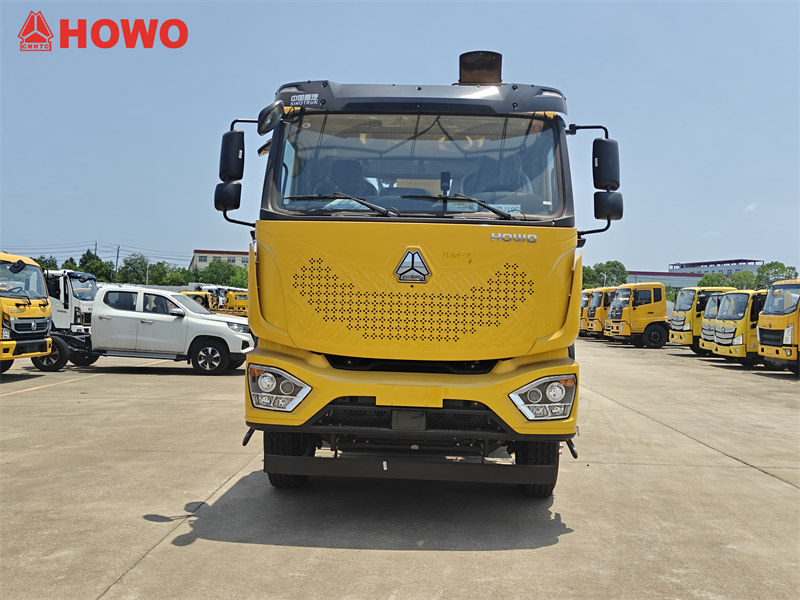

1. SINOTRUK HOWO MATE Truck Cabin
Heavy duty HOWO MATE 6x4 truck chassis, equipped air suspension seat, standard Air Conditional, AM/FM radio, MP3 player, very comfortable

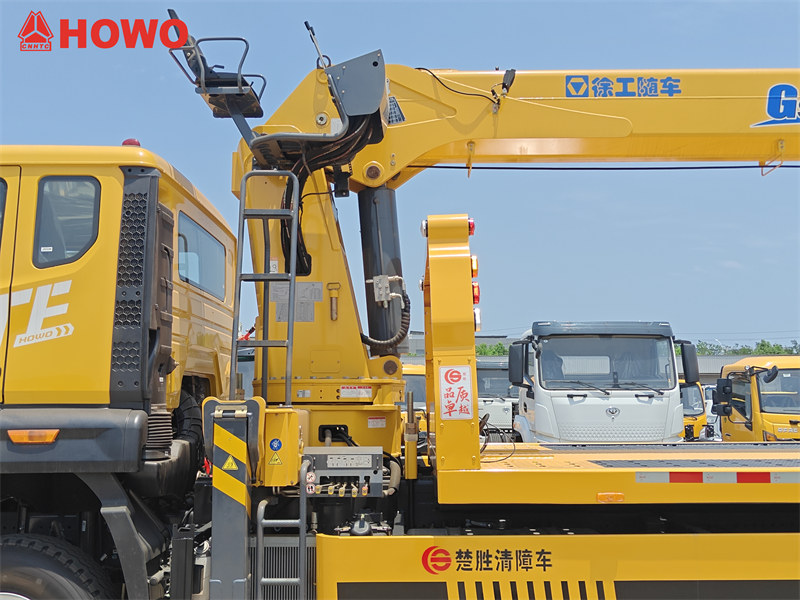

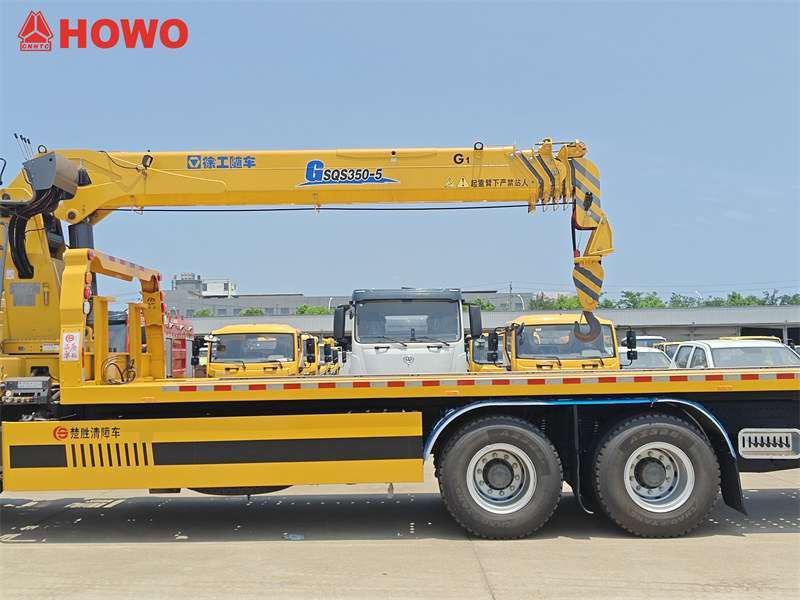

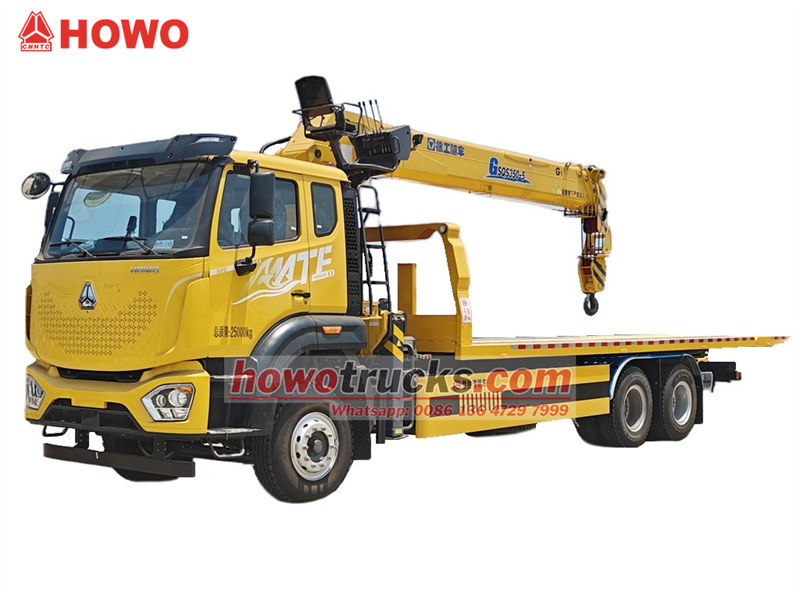

2. HOWO truck mounted XCMG SQS350 crane
HOWO towing truck mounted loader crane, XCMG brand, SQS350 telescopic model, 14000kg loading capacity, working radius 16.1m, lifting height 17.3m, high altitude operating seat, convenient and safety for working


3. CE certify control valve
HOWO towing truck mounted SQS350 boom crane, matched CE certify hydraulic control valve, English guidance, durable and reliable working

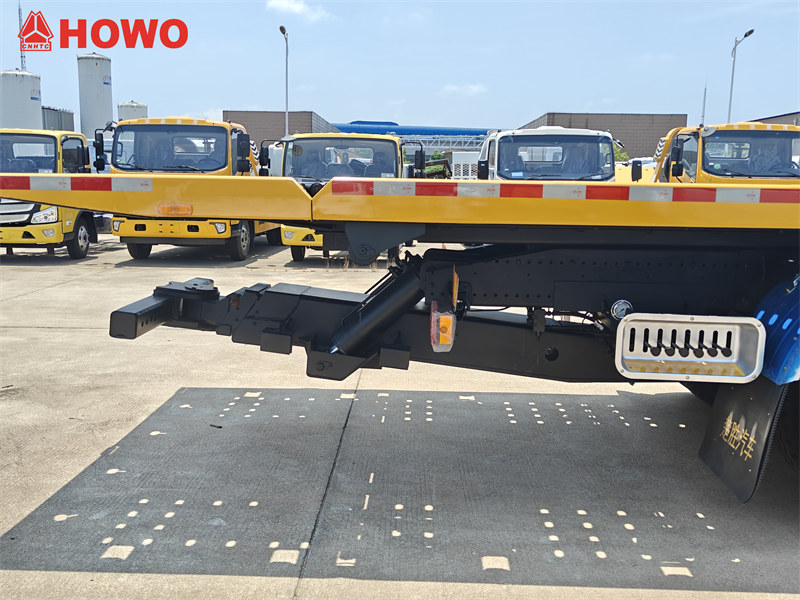

4. HOWO tow truck rear lifter device
HOWO tow truck mounted with rear lifting device, full hydraulic working model, lifting capacity can be up to 4000kg, suitable for car rescue

5. Howo wrecker truck mounted platform
Rear mounted platform, full checked steel plate with thickness 8mm, durable and safety for car carrier and rescue, reliable performance.

Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

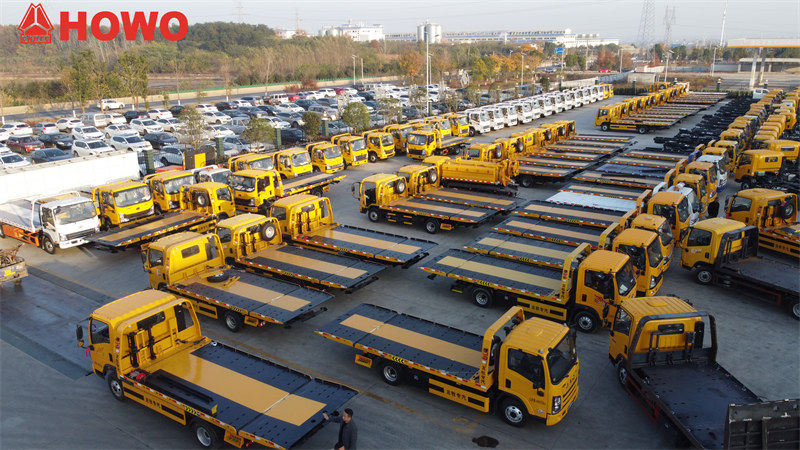

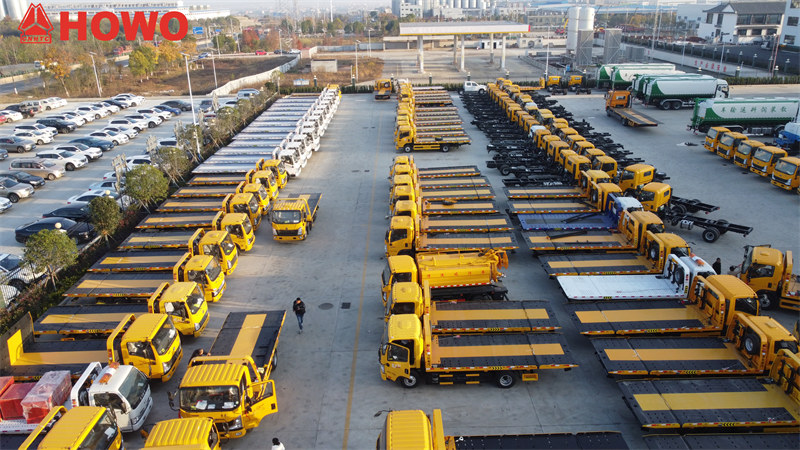

HOWO towing truck manufacturer CS TRUCKS over view
