HOWO dry powder fire truck for chemical plant

HOWO dry powder fire truck for chemical plant

Built on the reliable HOWO M7 chassis, this dry powder nitrogen fire truck delivers robust performance and versatile firefighting capabilities for diverse emergency scenarios. It is powered by a high-efficiency YC6J220-33 6.5L engine that generates 220 HP of output power, paired with an 8JS85TE 8-speed transmission and a 4x2 drive configuration. With a maximum travel speed of 90km/h, the vehicle ensures rapid response and stable navigation across all kinds of complex road conditions.



  • Working capacity :

    300L+1000L+500KG
  • Cabin type :

    HOWO M7 double cabin (2+4)
  • Drive system :

    4x2
  • Wheelbase ( mm) :

    4600
  • Engine specific :

    220 HP / YC6J220-33
  • Gear box :

    8JS85TE,8 forwards & 2 reverses
  • Front axle ( Kg ) :

    7500
  • Rear axle ( Kg ) :

    13000
New Products

Built on the reliable HOWO M7 chassis, this dry powder nitrogen fire truck delivers robust performance and versatile firefighting capabilities for diverse emergency scenarios. It is powered by a high-efficiency YC6J220-33 6.5L engine that generates 220 HP of output power, paired with an 8JS85TE 8-speed transmission and a 4x2 drive configuration. With a maximum travel speed of 90km/h, the vehicle ensures rapid response and stable navigation across all kinds of complex road conditions.

Equipped with a professional-grade firefighting system, the truck features a 500kg carbon steel dry powder storage tank and four 80L nitrogen cylinders rated at a 15MPa design pressure. Its PTO-driven fire pump operates at a working pressure of 1.6–2.5 MPa and delivers a powder flow rate of 80–120 kg/s. The matched fire monitor achieves a spray rate of 60–100 kg/s and an effective firing range of 40–60 meters, enabling efficient suppression of multiple types of fires.For comprehensive on-site rescue support, the truck comes fully fitted with standard firefighting and rescue tools, including shovels, crowbars, axes and cutting devices.

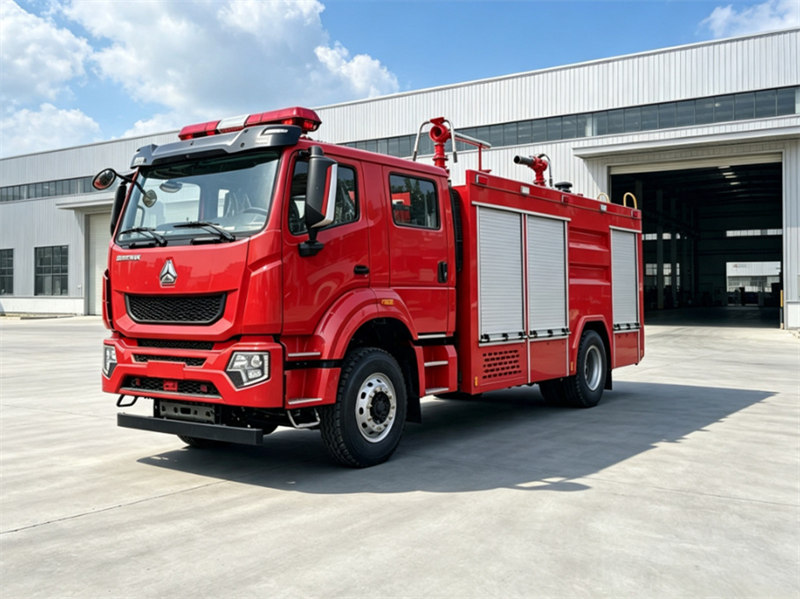

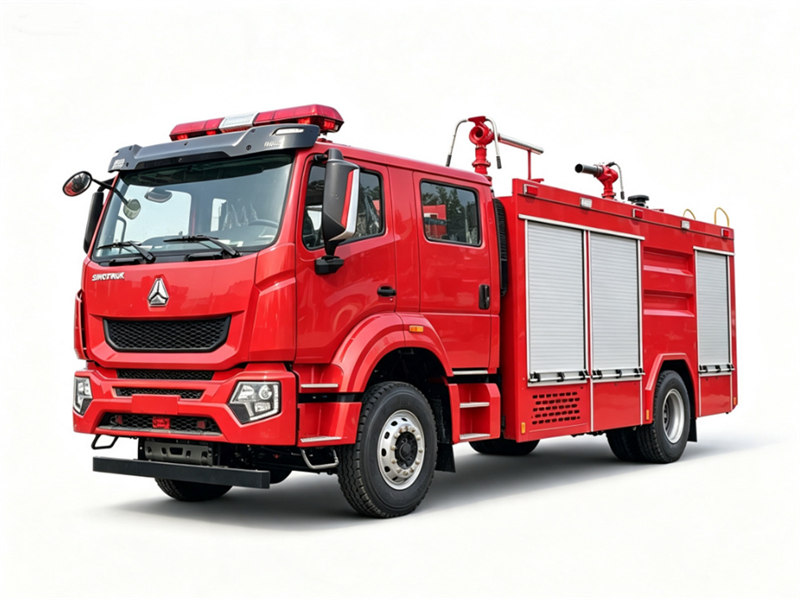

HOWO fire fighting truck



*HOWO M7 4x2 Fire Fighting Truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.

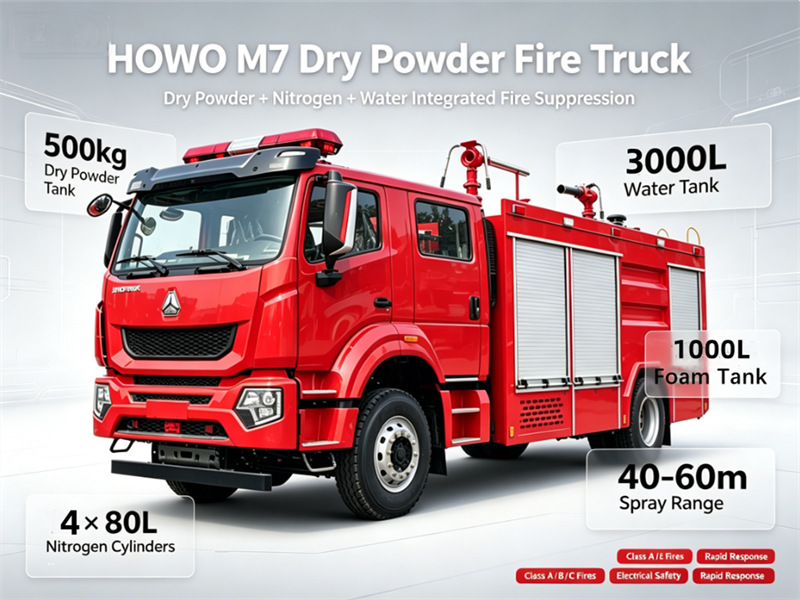

Ⅰ.Key Specifications & Highlights «««



Manufacturer: CS Trucks Group

Features:

Built on reliable HOWO M7 4×2 chassis with 220 HP Yuchai diesel engine

Equipped with a 500kg carbon steel dry powder storage tank

Fitted with 4 sets of 80L high-pressure nitrogen cylinders (15MPa)

Comes with a 3000L water tank to realize dual powder & water fire fighting

Dry powder jet range: 40–60 meters, stable high-efficiency fire suppression

Handles Class A/B/C fires, partial metal fires and live electrical equipment fires

Complete rescue tools & multiple optional configurations for customization

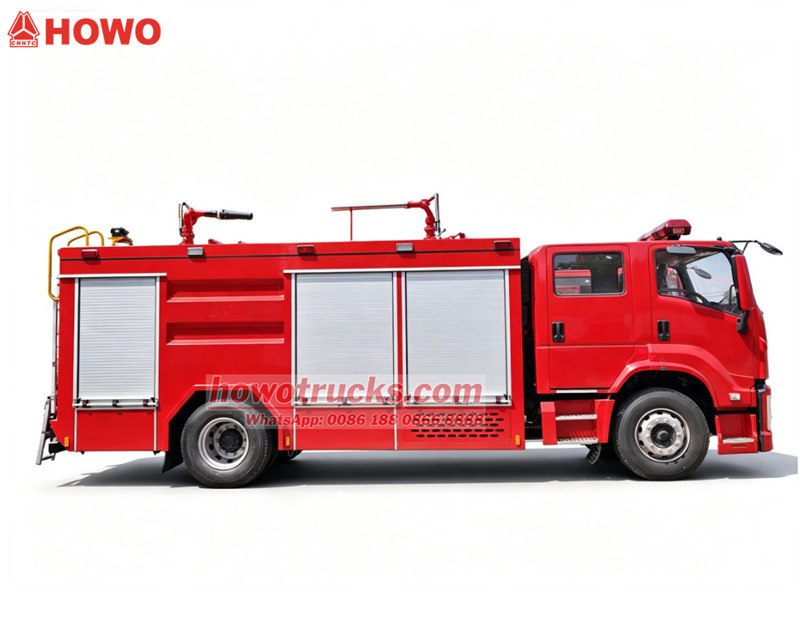

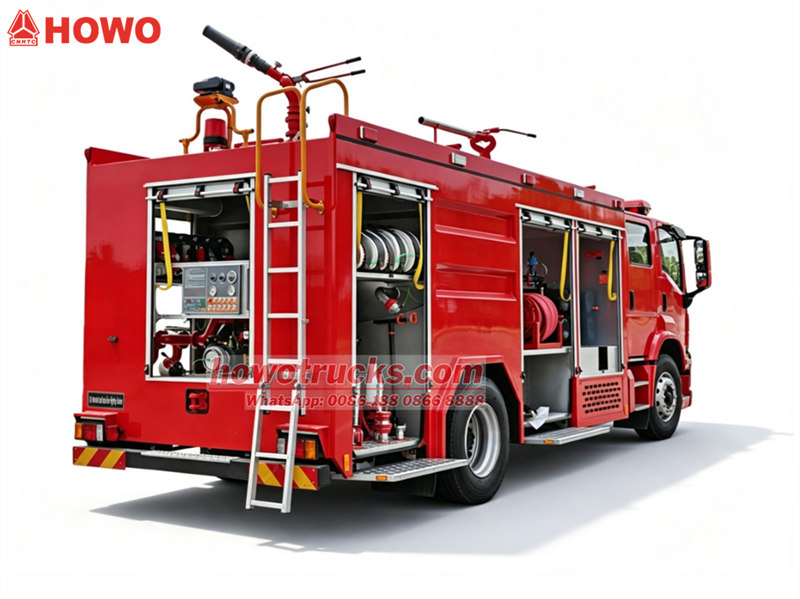

HOWO M7 fire fighting truck



Ⅱ.Product Parameter For HOWO Fire Dry Powder Truck «««

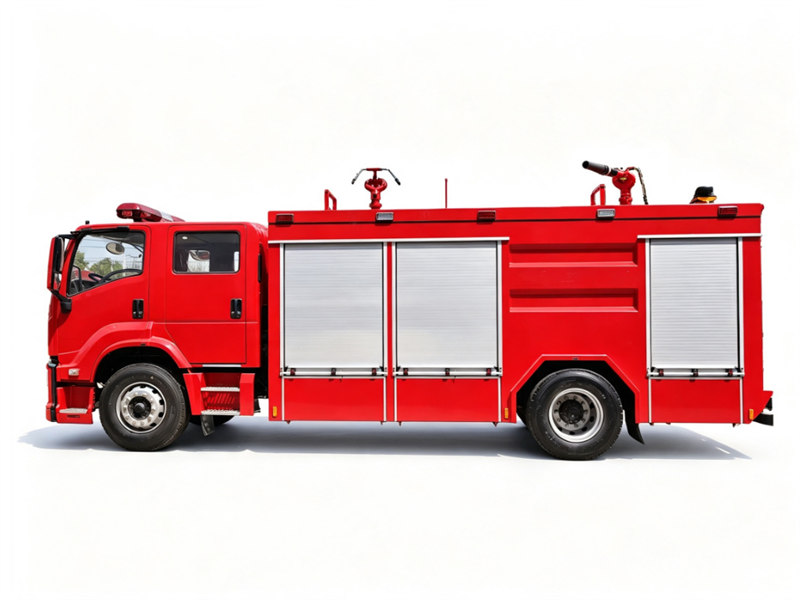

HOWO fire fighting tank truck

Best Choice,Howo Fire Trucks

⇓ ⇓ ⇓

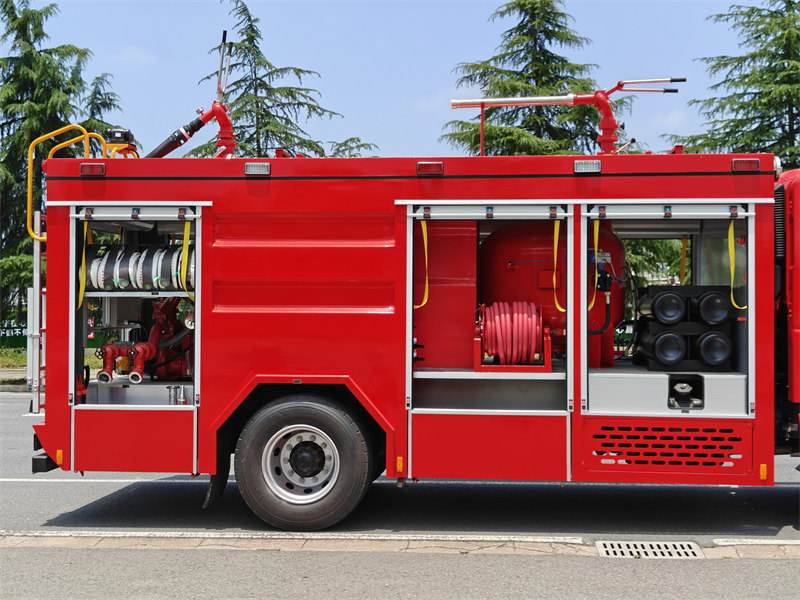

HOWO M7 dry powder fire truck

General

Vehicle Brand

CS Trucks Group

Chassis Brand

HOWO

Overall Dimension

8300*2670*3350mm

GWW/ Kerb Weight

18,000kg/9,820kg

Cab

Cab Capacity

2+4 persons allowed

Air Conditioner

 air conditioner

Engine

Fuel Type

Diesel

Engine Brand

Yuchai

Engine Model

YC6J220-33

Power

220HP

Displacement

6.5 L

Emission Standard

Euro 3

Chassis

DriveType

4X2,left hand drive

Transmission

8 speed forward, 2 reverse

Wheelbase/No.of axle

4600mm

Tyre Specification

11.00R20

Tyre Number

6 tyres and 1 spare tyre

Max Speed

90km/h

Paint

Metallicpaint























Superstructure

Dry Powder
Tank Capacity

500 kg

1 pcs

TankMaterial

Carbon steel

Nitrogen Gas Bottle

Material

37Mn

Capacity

 80Litres

Quantity

4

Design pressure

15MPa

Fire Pump

Drive mode

 PTO

Pressure range

1.6-2.5 MPa

Flow rate

80-120 kg/s

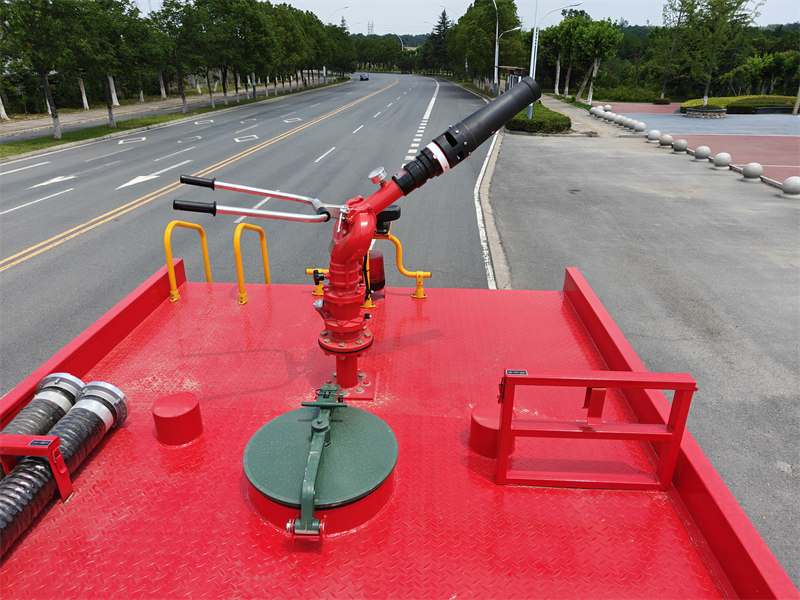

Fire Cannon

Flow speed

60-100 kg/s

Range

40-60 m

Water Tank Capacity

3,000 Liters

Foam Tank

Capacity

1,000 Liters

Tank Material

carbon steel

Fire Pump

Brand

China TOP brand

Drive mode

 PTO

Priming Manner

Automatic

Pressure range

1.6-2.5 MPa

Flow rate

45L / s

Suction Height

9m

Fire Cannon

Flow speed

45L /s

Range

65 m

Superstructure Electric Appliance

Warning Light and Siren

Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.

Strobe Light

Mounted on the both sides of the compartment

External Lighting

LED lights are mounted on the both sides of the compartment

Roof Lighting

LED lights are mounted on the inside of the roof

Side Indicator Light

Inline yellow warning light is mounted on the side of the compartment and pedals

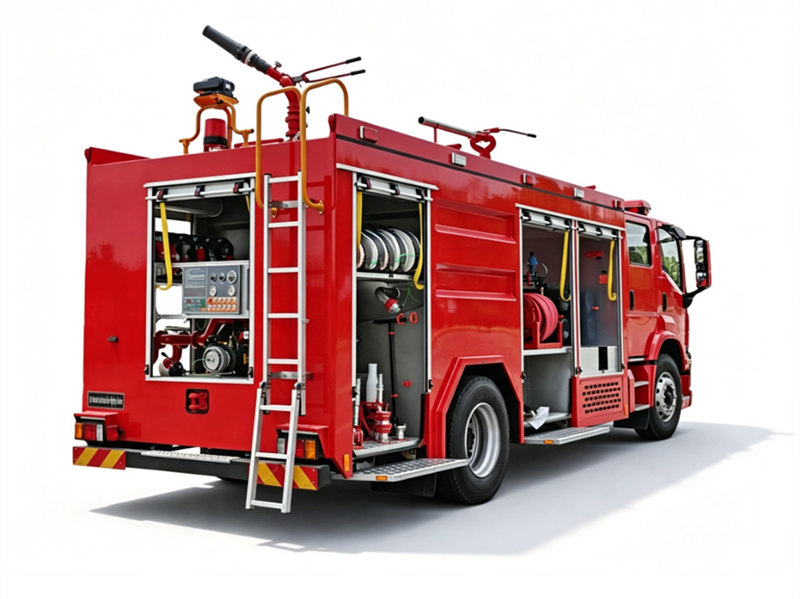

All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars...

Optional

** Back alarm and Camera can be equipped

** Standard carbon steel, stainless steel optional

** USA or Germany fire pump can be optional

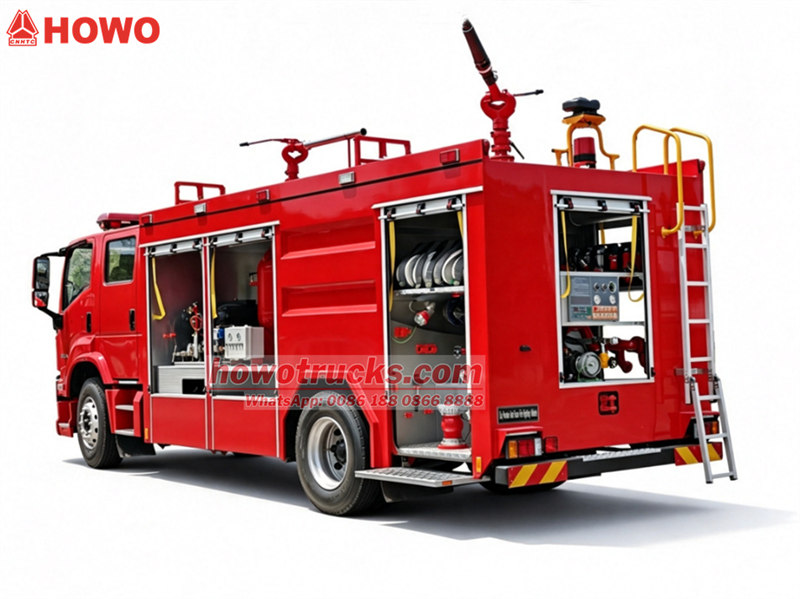

HOWO fire dry powder truck



Ⅲ.Advantage Of HOWO Fire Foam Truck «««

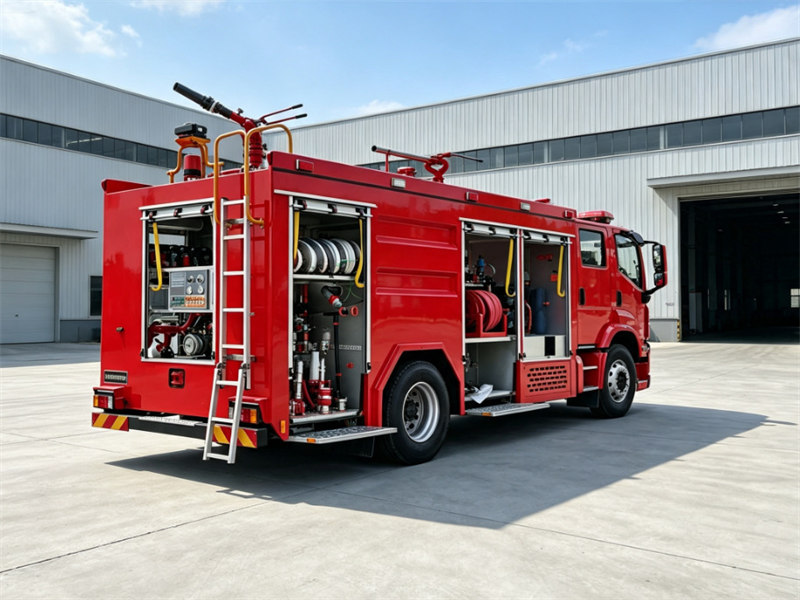

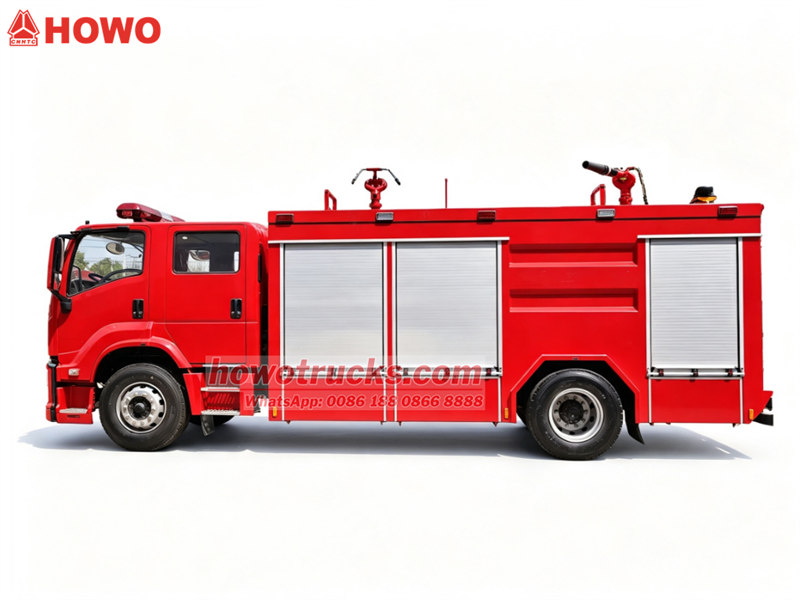

HOWO M7 fire truck

1. Reliable Chassis Superior Driving Performance:

Yuchai diesel engine with 220HP power output

Matched with an 8-speed manual transmission

Maximum speed of 100km/h, delivering fast on-site response.

The 2+4 passenger spacious cab with air conditioning ensures comfortable and long-duration rescue operations.



HOWO M7 fire truck

2. High-Efficiency Integrated Fire Suppression System:

This vehicle integrates dual dry powder and water fire-extinguishing functions to handle diverse fire hazards.

It is fitted with a 500kg carbon steel dry powder tank and 12 sets of 80L 15MPa high-pressure nitrogen cylinders, delivering stable and powerful fire suppression.

The PTO-driven professional fire pump supports a working pressure of 1.6–2.5MPa, with a dry powder flow of 80–120kg/s and a spraying range of 40–60 meters.

The independent water tank (4000L) features a 45L/s flow rate and 65-meter jet range, plus a 9m suction height.

Realizing rapid cooling, oxygen isolation and flame smothering for A/B/C class and partial metal fires.



HOWO M7 fire truck

3. Complete Standard Configuration & Flexible Customization:

The truck comes fully equipped with professional firefighting and rescue tools, including axes, cutting equipment, halligan bars and pike poles to support all-round rescue tasks.

It features a full set of LED lighting systems, strobe lights and cabin-mounted warning sirens for safe operation in dark and emergency scenarios.

For personalized demands, it supports multiple optional upgrades: backup alarm and rear camera, stainless steel tank replacement, and premium USA/Germany imported fire pumps.

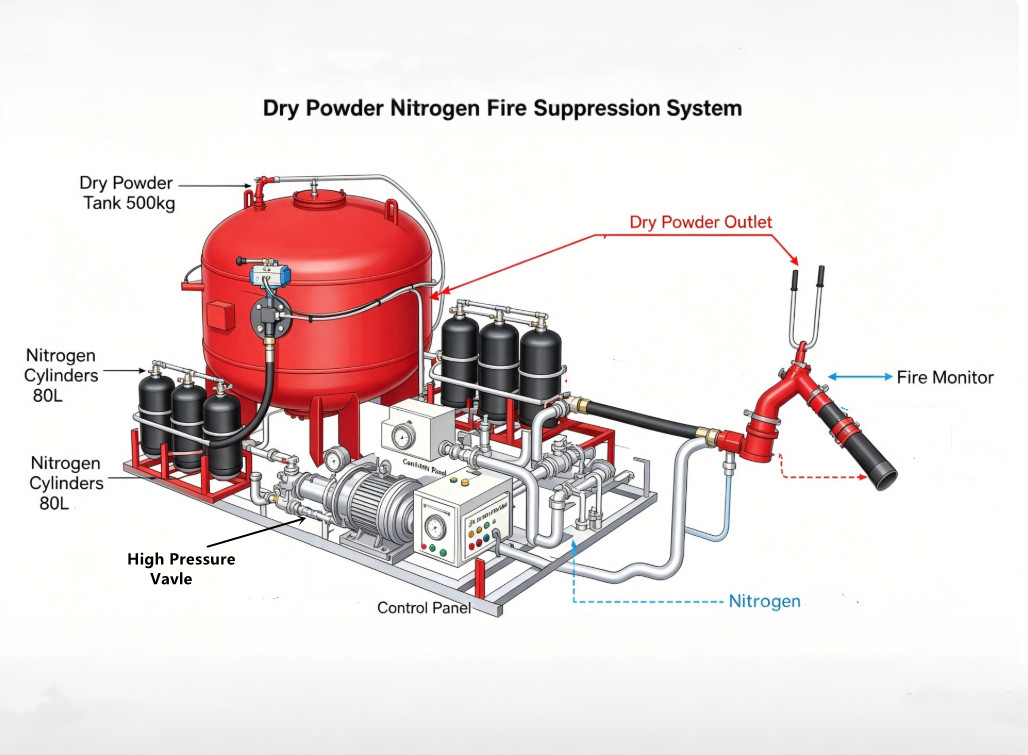

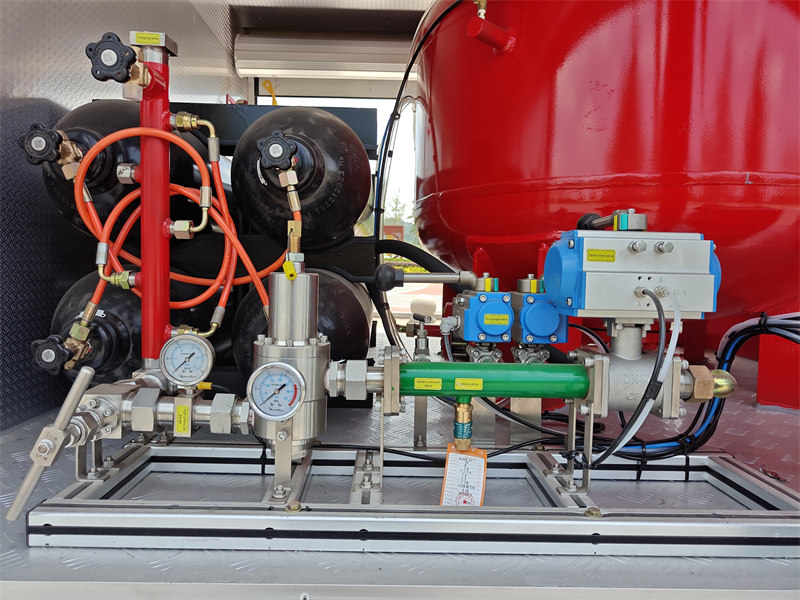

Ⅳ.Dry Powder System Of HOWO Fire Truck «««

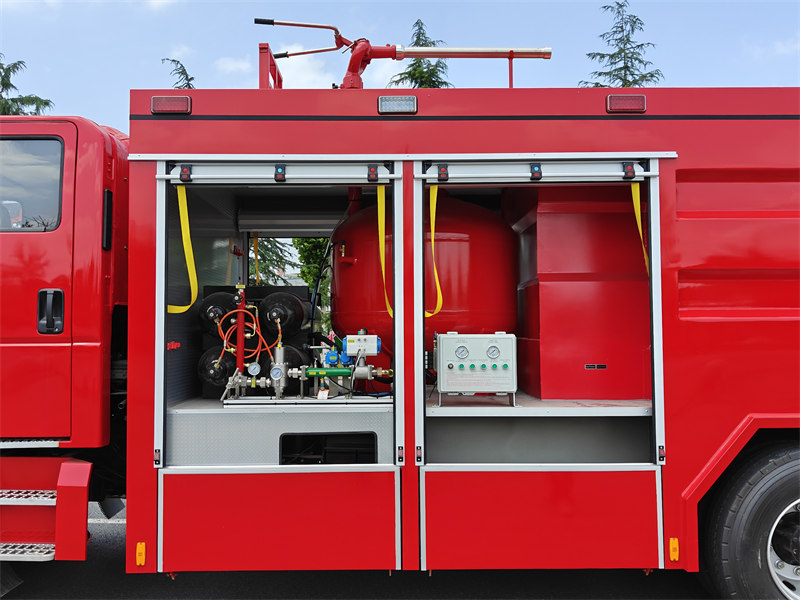

The HOWO M7 dry powder fire truck stands out as a highly efficient, multi-functional fire suppression asset, delivering critical emergency protection for vital facilities once fire incidents break out.Dry powder extinguishes fires through multiple mechanisms. Under high temperatures, dry powder melts and forms a sealing film over combustible surfaces to block oxygen supply and halt combustion. Varieties such as sodium bicarbonate further disrupt combustion chain reactions: they thermally decompose and release free radicals to interrupt ongoing burning.

As an inert gas, nitrogen dilutes oxygen levels in the surrounding air to smother flames. Meanwhile, the ejected nitrogen and dry powder absorb massive heat, cooling burning materials and curbing fire spread.This fire truck boasts extensive application capability. It efficiently tackles Class A, B and C fires, alongside certain types of metal fires. Both dry powder and nitrogen create minimal environmental pollution, making this an eco-friendly fire suppression solution.



HOWO fire dry powder truck



Operating Instruction:

1.Firstly open the power switch.



2.Powder tank N₂ charging.

a. Open the N₂ cylinder valve, then the “N₂ Cylinder Pressure Gauge” which on the control panel begin to show the pressure.

b. Open the high-pressure valve slowly to charge pressure reducing valve.

c. Push the button of “Powder Tank N₂ Charging Switch”, then N₂ gas begin to fill into the powder tank.



3.The operation of powder discharge:When the “Pressure Gauge of Powder Tank” which on the control panel indicate the standard pressure data at 1.4MPa, then push the button of “Discharge Powder Switch”, Swing the hose reel to a suitable place and let the discharge nozzle aim at the fire .Open the valve of discharge nozzle then it can be used to extinguish the fire.



4.Clean(Utilize the surplus gas):When the “Pressure Gauge of Powder Tank” indicate the pressure data less than 0.5MPa, push the button of “Switch of Cleaning the Discharge Nozzle” to begin to clean the nozzle.



5.Notice:

a. When the “Pressure Gauge of Powder Tank” indicates the pressure data less than 0.5MPa, it means that the powder will be out of use.

b. Please discharge the surplus gas(utilize the surplus gas discharge)before refilling the powder . Discharge all the surplus gas before open the cover of powder tank.

c. When open the high pressure valve to fill the gas into pressure reducing valve please note that if the pressure date of the “Pressure Gauge of Powder Tank” (Low pressure gauge)more than 1.4MPa and raise continuously, close the high pressure valve immediately and repair the pressure reducing valve.

d. Should inspect the safety of the pressure reducing valve, safety valve, the connection and hose of the high pressure part in the system periodically.

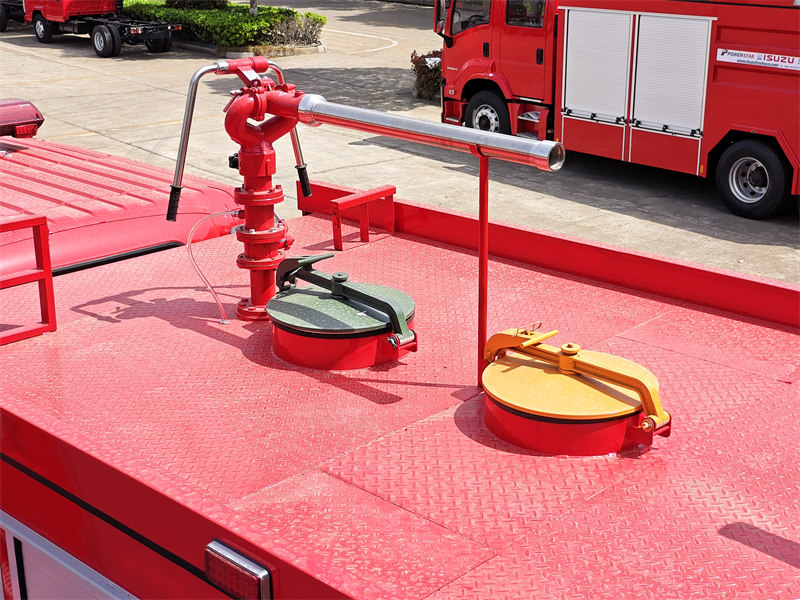

  • HOWO fire dry powder truck
  • HOWO Fire dry powder truck
  • HOWO Fire dry powder truck

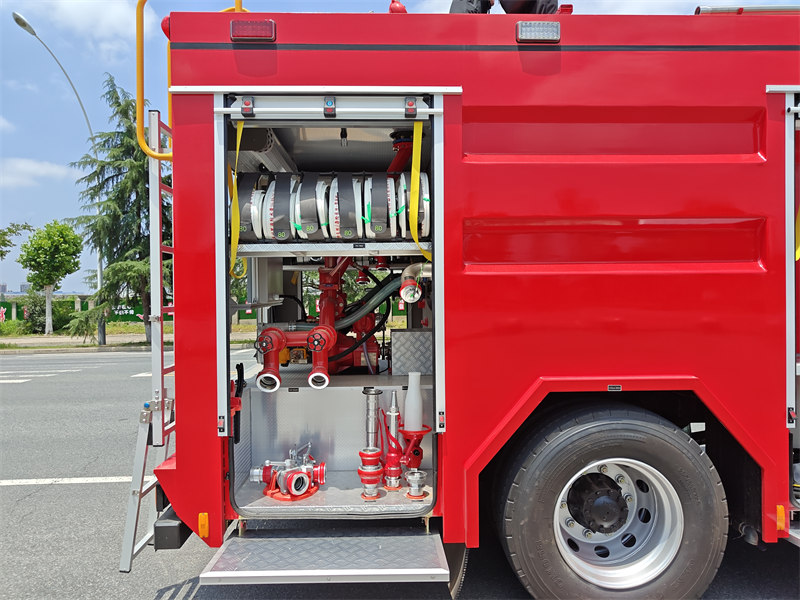

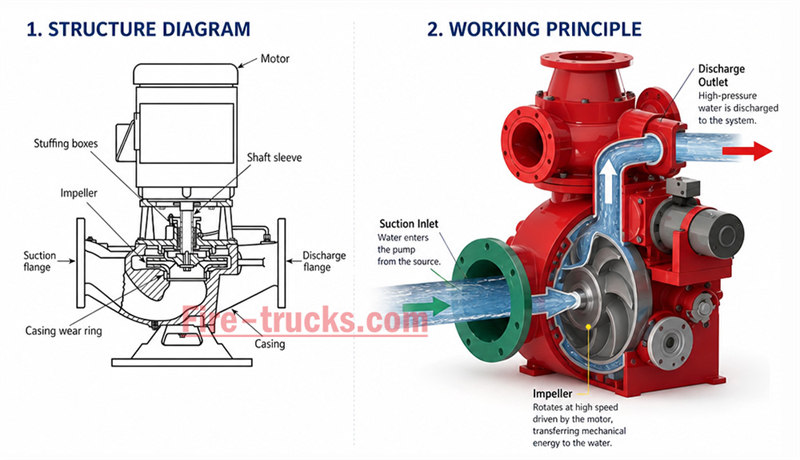

Ⅴ.Fire Pump System Of HOWO Fire Fighting Truck «««

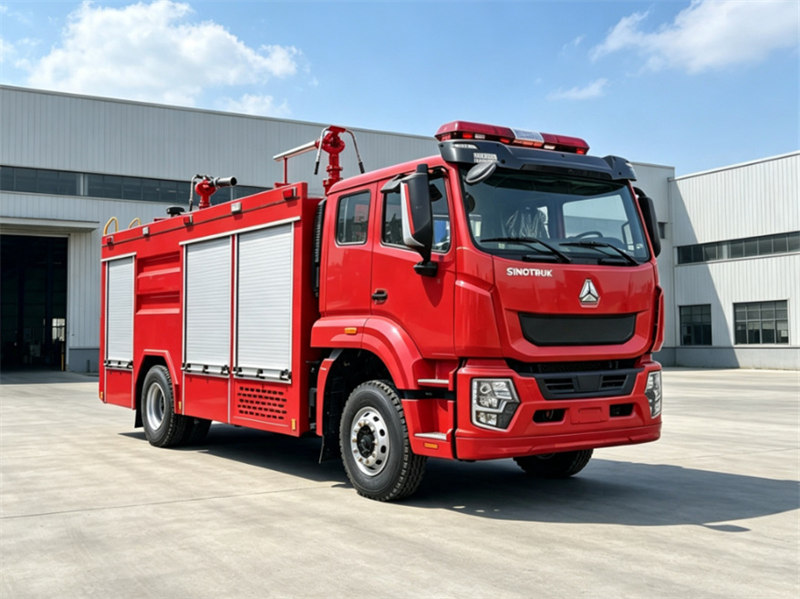

HOWO fire pump truck



HOWO fire pump truck



HOWO fire pump truck



Fire pump Model

 FluxL/s

PressureMPa

Pump shaft speedrpm

Power(kw)

 Suction depth(m)

Max working pressure

CB10/40-XZ

40

1.0

3135±50r/min

60

  3

1.082MPa

28

1.3

3390±50r/min

61

-

20

1.0

3010±50r/min

39

7

-

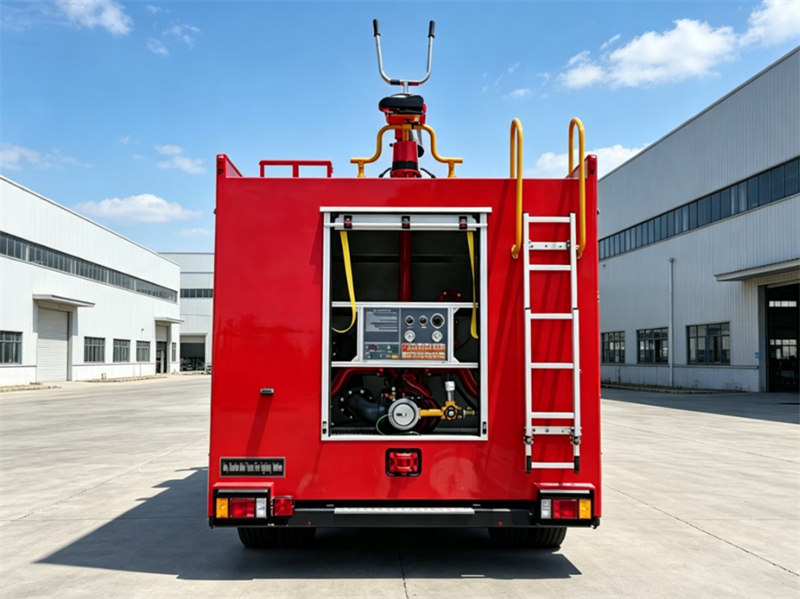

  • HOWO fire foam truck
  • HOWO fire foam truck
  • HOWO fire foam truck

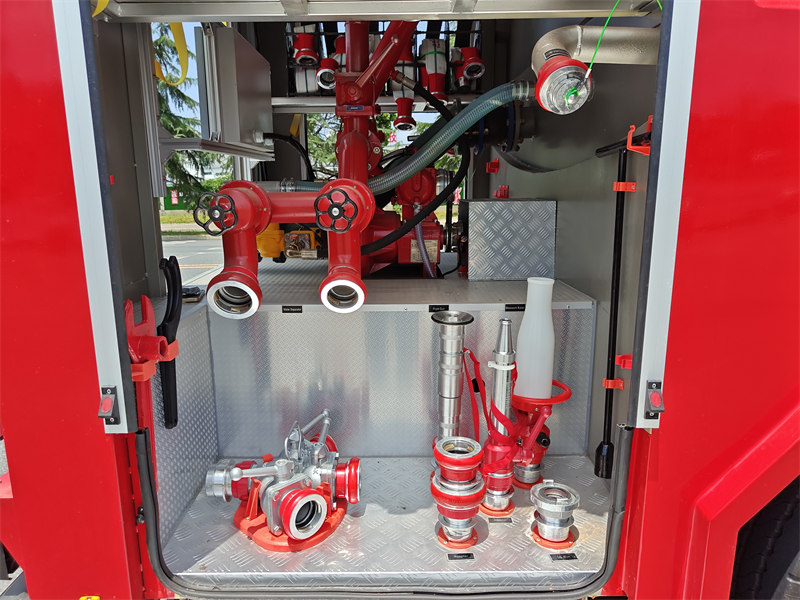

HOWO fire fighting truck

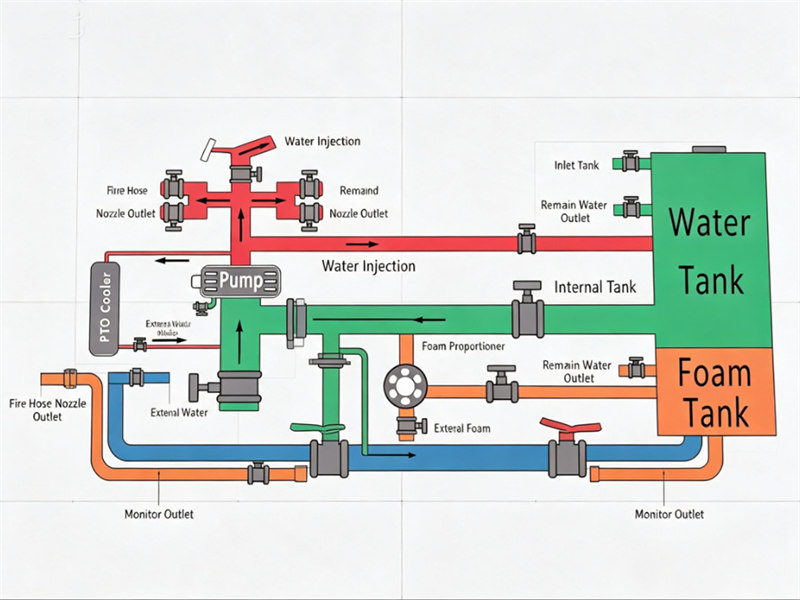

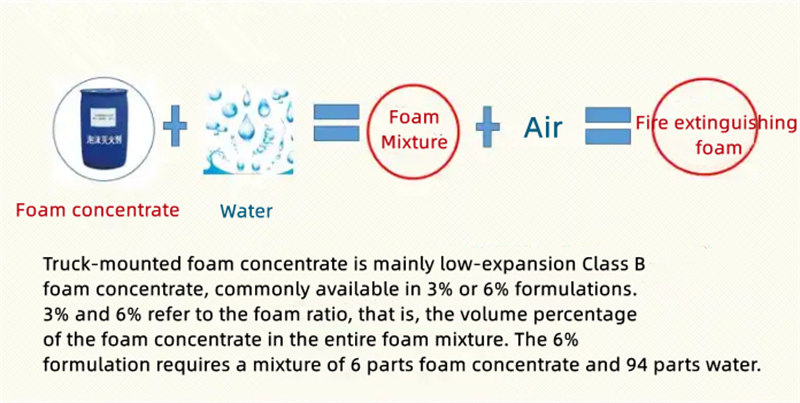

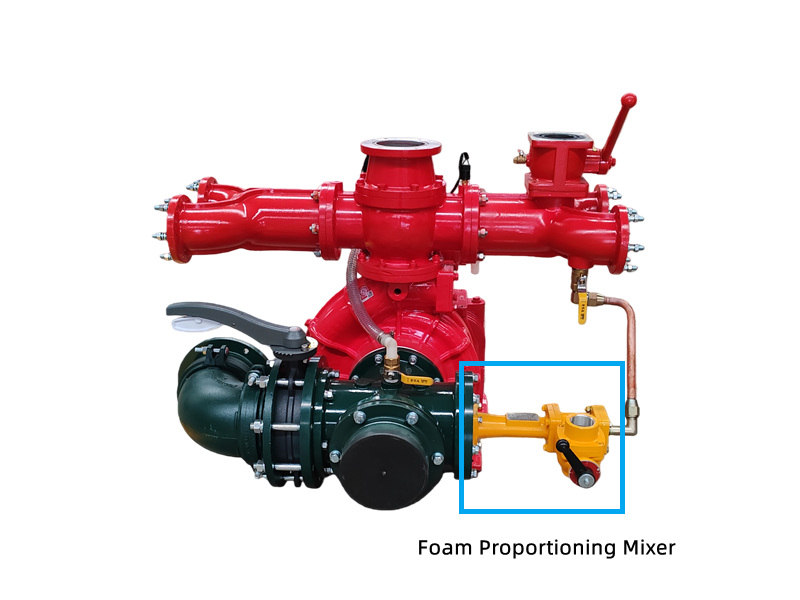

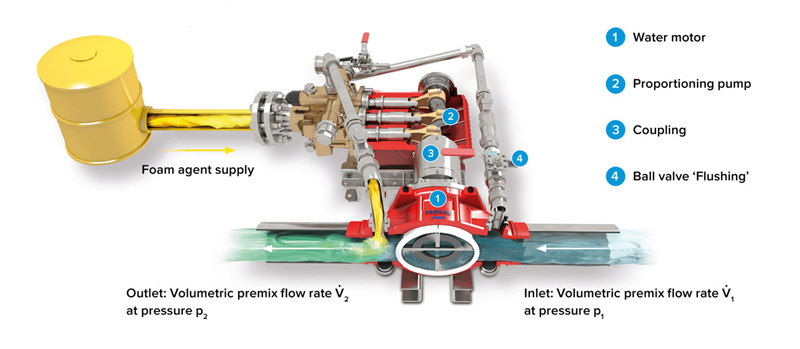

✦Ⅵ.Fire Foam System Of HOWO Fire Fighting Truck «««


HOWO fire fighting truck

HOWO fire fighting truck


Comparison Dimensions

Fixed Proportioning

(Circulating Pump Type, Negative-Pressure)

Variable- Proportioning

(Circulating Pump Type, Negative-Pressure)

Mixing ratio

6%examplePH64-RS

1%10%step 0.5%

Work pressure range

0.61.4MPa

0.62.5MPa

Flow range

1664L/s

TAF-PH120120L/sTAF-PH240240L/s

Proportioning accuracy

Highly affected by water pressure and pipeline resistance, resulting in significant errors.

Real-time dynamic correction ensures high proportioning accuracy and minimal error.

Applicable Scenarios

Suitable for large and medium-sized fire trucks with constant flow rate and stable pressure

Suitable for scenarios with large flow rate variations and multiple operating condition changes

Maintenance complexity

Low, simple structure

Medium, requires calibration due to sensing elements

Cost

Low

High

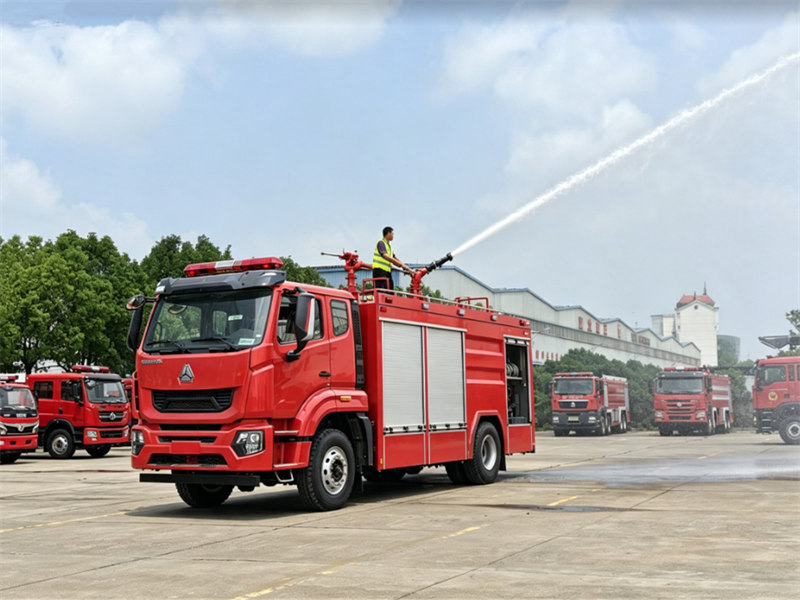

HOWO fire fighting truck



  • HOWO fire fighting truck
  • HOWO fire fighting truck
  • HOWO fire fighting truck





⇒ Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!


»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



China professional HOWO special truck supplier and exporter, we supply high quality HOWO special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely



HOWO fire pump truck



Howo fire trucks
