Howo NX 290HP water wagon fire truck 12000Liters

Howo NX 290HP water wagon fire truck 12000Liters

The HOWO NX Fire water tanker is a professional firefighting vehicle designed to respond to emergency fire situations. It is equipped with the HOWO NX heavy chassis and can accommodate 3 passengers. Equipped with a WP10.290E32 engine, the output power reaches 290HP, meeting the power needs of the HOWO NX fire water sprinkler truck. The Howo water wagon fire truck adopts EURO Level 3 emission standards, and the emissions are clean and environmentally friendly. Equipped with 12.00R20 tires to ensure stable driving in emergency situations. In terms of fire protection performance, the Howo NX Fire fighting truck has a water tank capacity of  12000 L. It is equipped with CB10/60 fire pump and PL32 fire cannon, and can provide 36L/S@1.0MPa with a rated flow rate of 32L/S@2.0MPa and a range of more than 55 meters, it ensures effective fire extinguishing operations.

  • Working capacity :

    12000L
  • Cabin type :

    Howo NX single cabin
  • Drive system :

    4x2
  • Wheelbase ( mm) :

    4600
  • Engine specific :

    290 Hp / WP10.290E32
  • Gear box :

    HW19710,10 forwards & 2 reverses
  • Front axle ( Kg ) :

    7500
  • Rear axle ( Kg ) :

    13000
New Products

The HOWO NX Fire water tanker is a professional firefighting vehicle designed to respond to emergency fire situations. It is equipped with the HOWO NX heavy chassis and can accommodate 3 passengers. Equipped with a WP10.290E32 engine, the output power reaches 290HP, meeting the power needs of the HOWO NX fire water sprinkler truck. The Howo water wagon fire truck adopts EURO Level 3 emission standards, and the emissions are clean and environmentally friendly. Equipped with 12.00R20 tires to ensure stable driving in emergency situations. In terms of fire protection performance, the Howo NX Fire fighting truck has a water tank capacity of  12000 L. It is equipped with CB10/60 fire pump and PL32 fire cannon, and can provide 36L/S@1.0MPa with a rated flow rate of 32L/S@2.0MPa and a range of more than 55 meters, it ensures effective fire extinguishing operations.

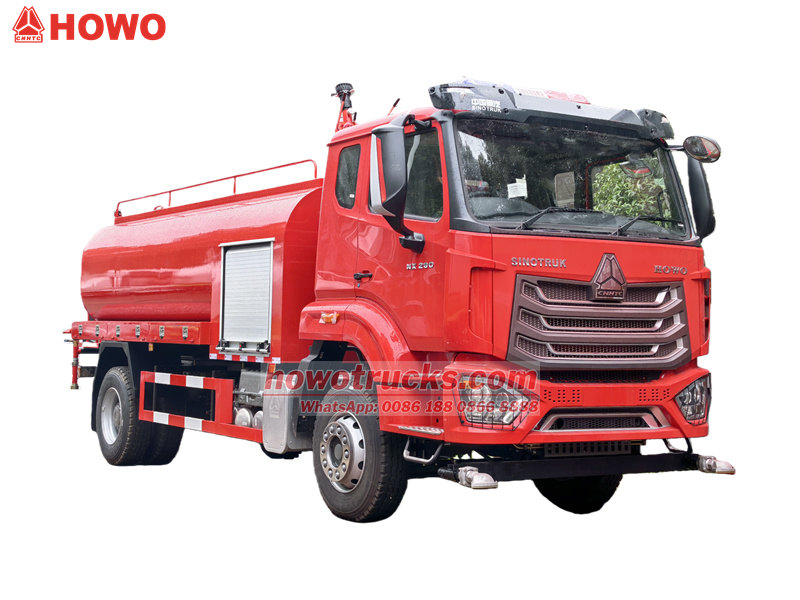

Howo NX fire foam tank truck



*Howo NX heavy fire water truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.



Ⅰ.Product Defination and Introduction «««

Manufacturer: CS Trucks Group

Features:

1. Truck Chassis: Sinotruk Howo truck chassis, 4X2,4x4 model

                              WP model with 290HP and Euro 2,3



2. Tank material: 4-6mm thick stainless steel for prolonged service lier
                            carbon steel, aluminum alloy or PP material can be choose



3. Tanker body: Customized for Water + Foam + Dry Powder fire agent


4. Fire Pump: CB10/40-XZ centrifugal fire pump, flow rate 40L/s, working distance over 55m
                        Optional CB10/40,
CB10/60 also available Darley fire pump


5. Special design: Super designed working temperature -41℃ to +48
℃ day and night, with efficiently working height over 5000m

                                Optional equipped CAFS foam system and Dry Powder system

                                Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue



Ⅱ.Product Parameter For Howo NX 12000L Fire Truck «««



Howo fire foam tank truck

Best Choice,Howo Fire Trucks

⇓ ⇓ ⇓



Howo NX 8000L Fire Water Bowser

General

Vehicle Brand

CS Trucks

Chassis Brand

Howo

Overall Dimension

8400 * 2530 * 3350 mm

GVW / Kerb Weight

18,000kg / 9,600kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

Weichai

Model

WP10.290E32

Power

290 HP

Displacement

10 L

Emission Standard

Euro 3

Chassis

Drive Type

4X2 (left or right hand drive)

Transmission

10 speed levers with 1 reverse

Wheelbase/No. of axle

4600 mm / 2

Tire Specification

12.00R20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Tank Capacity

12,000 L Water tank

Tanker Material

Carbon Steel

Fire pump

PL8/48, 48L/S

Fire pump location

Center or rear

Fire monitor

Water Jet Distance: ≥45m

Control panel

English or Your language

All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual……

Optional

** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.





Howo fire fighting truck

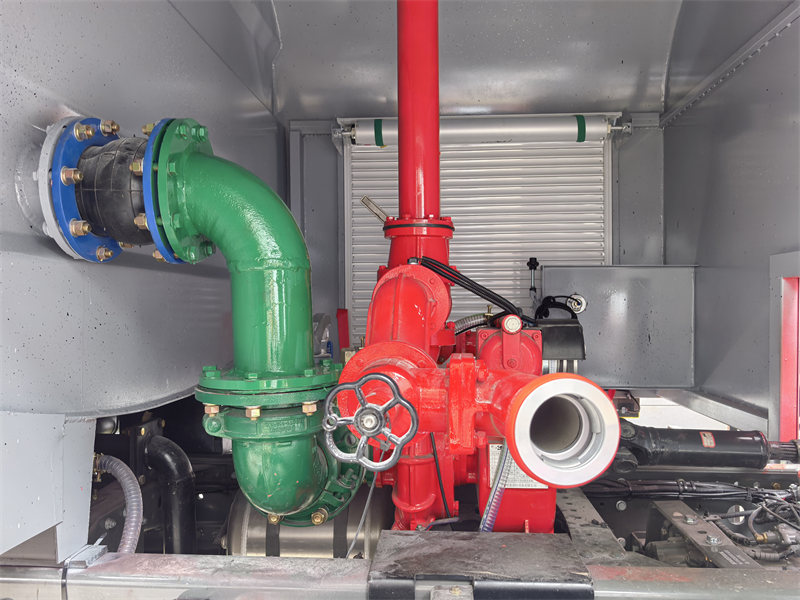

Ⅲ.Fire Pump System For Howo NX 12000L Fire Truck «««



Howo fire pump truck



Fire Pump Model

Pressure

 Max Working Pressure

 Flux

Rated Speed

 Speed Ratio

 Max Pressure

Priming Time

Head

CB10/40-XZ

1.0MPa

1.380MPa

40L/s

 3390±50r/min

  1:1.54

  ≥0.40MPa

≤10s

40m



  • Howo fire truck
  • Howo fire truck
  • Howo fire truck

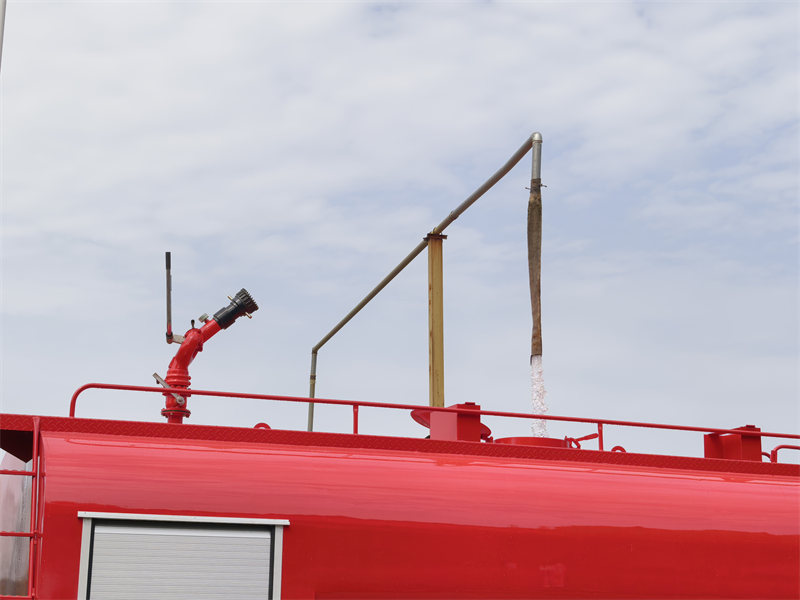

Ⅳ.Fire Moniter System For Howo NX Fire Bowser Truck «««



Howo fire water tanker

Fire Monitor Model

Flow

Range

Rated Pressure

Pitch Rotation

Horizontal rotation

Weight

PL8/48

48L/s

water ≥70m,

foam ≥60m

0.80MPa

-45°+70°

0360°

27kg

  • Howo fire truck
  • Howo fire truck
  • Howo fire truck



✦Ⅴ.Advantage For Howo NX Fire Bowser Truck «««

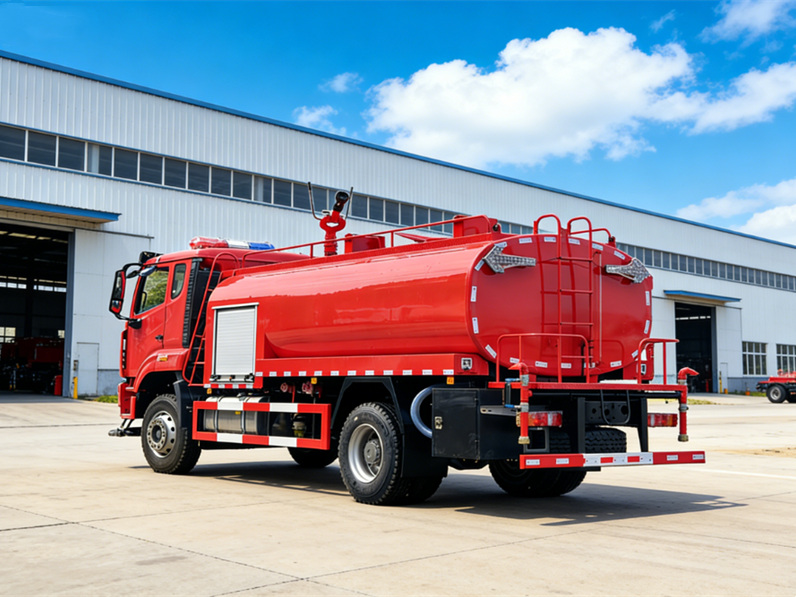

Howo fire truck

1. Powerful and Efficient Powertrain:

Equipped with a Weichai WP10.290E32 diesel engine, delivering 290HP, a 10L displacement, and a 10-speed transmission, the vehicle can reach a maximum speed of 95km/h.

This ensures that even when fully loaded with 8000L of water, the vehicle still possesses rapid acceleration and hill-climbing capabilities, especially in complex road conditions such as industrial parks and mountainous areas, enabling rapid response to fire alarms.

The flexible adjustment of the 10-speed transmission adapts to different road surface speed requirements, allowing for agile maneuvering in urban roads and rapid transfers on highways.



Howo fire truck

2. Ample and Efficient Water Supply and Firefighting System:

The 12000L large-capacity water tank provides ample water for firefighting, enabling independent, extended-duration firefighting operations even in towns and remote areas without external water sources.

The high-quality carbon steel water tank is corrosion-resistant and pressure-resistant, extending equipment lifespan and meeting the needs of long-term outdoor operations.

The combination of a high-efficiency fire pump and fire monitor, with the PL8/48 fire pump boasting a high flow rate of 48L/S, combined with the fire monitor's long range and omnidirectional rotation, allows for rapid coverage of large fire areas.

A complete set of standard firefighting accessories (fire hoses, filters, wrenches, etc.) meets the needs of various firefighting scenarios, eliminating the need for additional equipment and enhancing the convenience of emergency response.



Howo fire truck

3.The chassis and handling are stable and reliable:

The HOWO heavy-duty chassis boasts strong load-bearing capacity, stably supporting the weight of 8000L of water, preventing vehicle swaying due to uneven weight distribution during operation.

Large 12.00R20 tires provide excellent grip, enabling stable driving on muddy, rugged, and other complex road surfaces, suitable for rural areas, mountainous regions, and other scenarios with poor road conditions.

The inclusion of heating and cooling air conditioning enhances operator comfort in extreme weather conditions, ensuring efficiency during extended work periods.



✦Ⅵ.Aplication For Howo NX Fire Bowser Truck «««



1.Municipal and Community Fire Emergency Response

The Howo fire water truck can also perform daily municipal watering and road dust suppression functions, achieving "one vehicle for multiple uses" and reducing municipal maintenance costs. Its multi-functional vehicle-like scenario adaptation logic meets both emergency needs and enhances its daily usability.

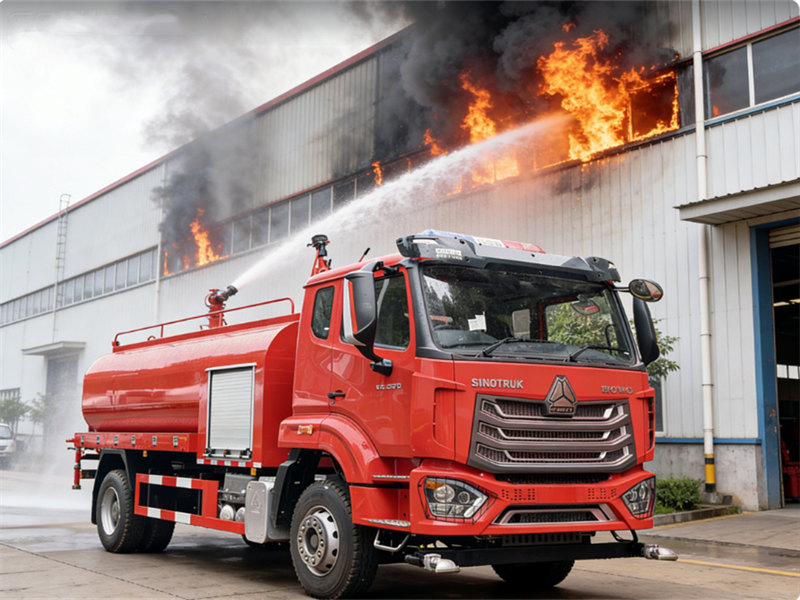

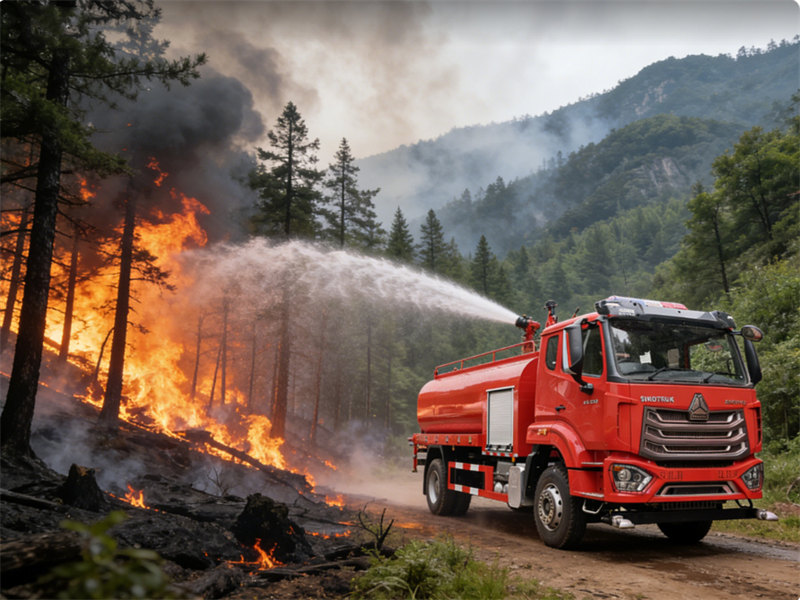

Howo NX 12000L fire water truck



2.Industrial Park and Factory Protection

The Howo fire water sprinkler can serve as dedicated firefighting equipment for factories, enabling daily fire prevention inspections and initial fire suppression. It can also cooperate with professional fire brigades for large-scale firefighting operations. Its large-capacity water tank and efficient fire suppression system effectively control the spread of industrial fires, meeting the high-intensity rescue needs of industrial scenarios.



Howo NX 12000L fire water truck



3.Emergency Rescue in Townships and Remote Areas

Townships, rural areas, and remote mountainous regions often have weak fire infrastructure, lack a complete fire water supply network, and have relatively complex road conditions, requiring high levels of mobility and independent water supply capabilities from fire trucks. The Howo fire water bowser, with its robust chassis and 8000L large-capacity water tank, can independently complete firefighting operations without an external water source.



Howo fire truck





China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely



Howo fire trucks



Howo fire trucks
