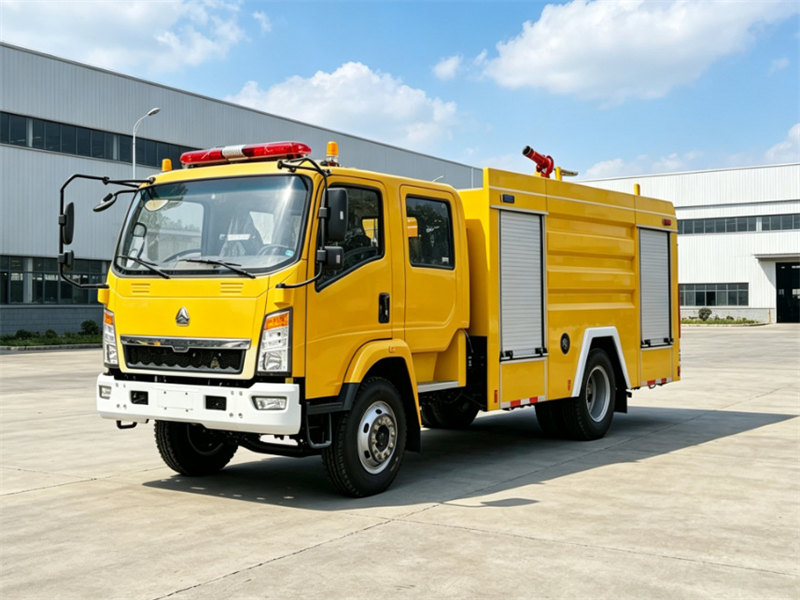

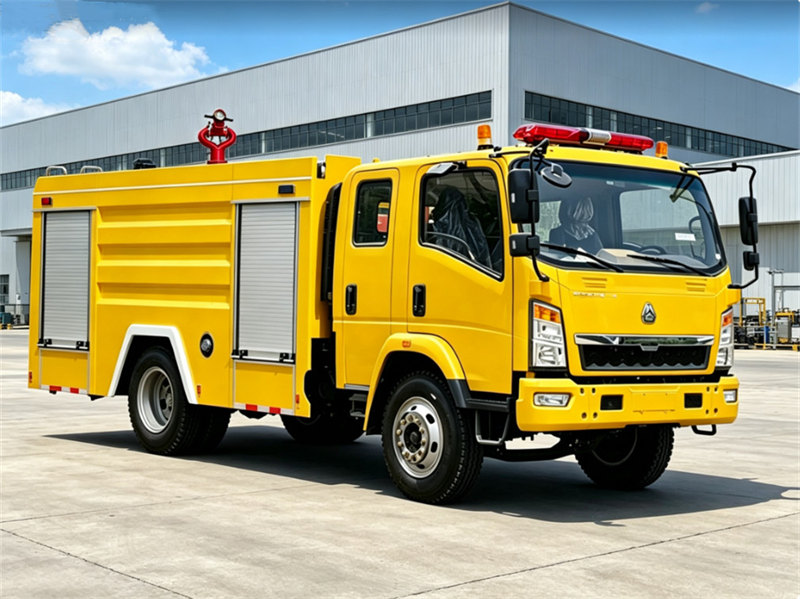

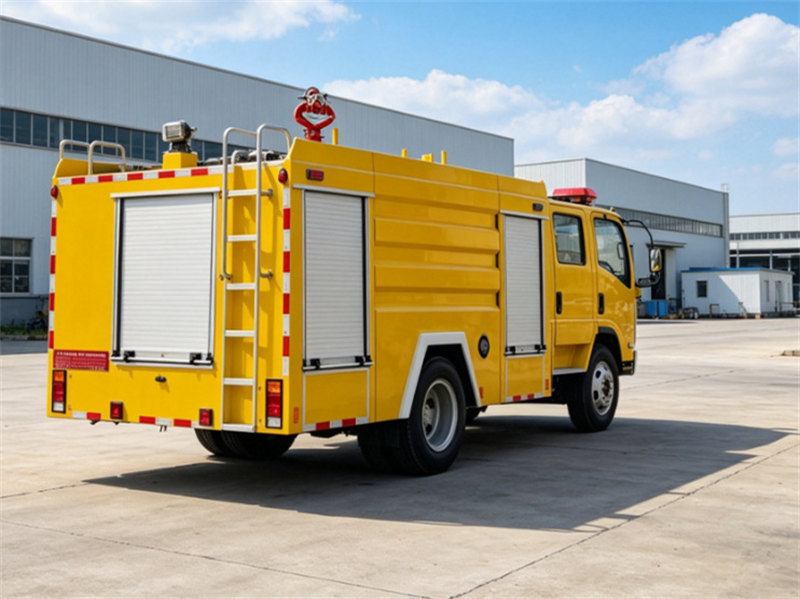

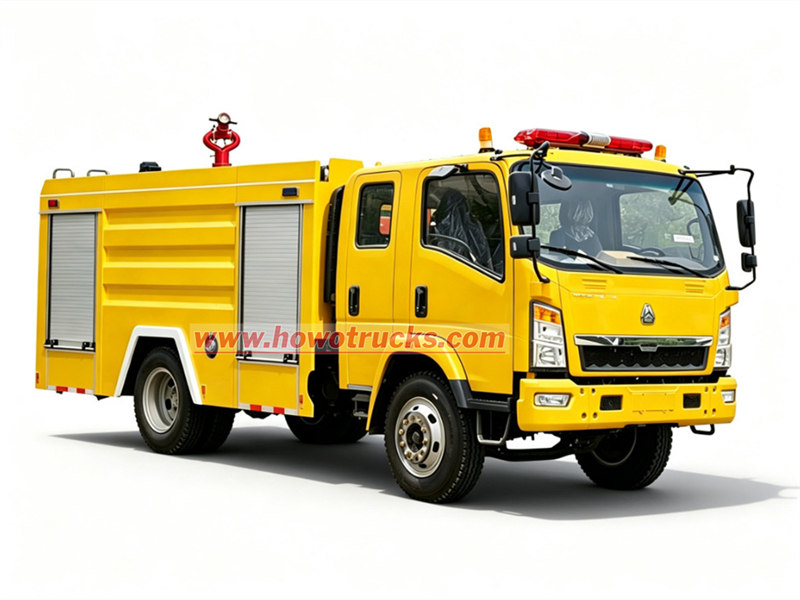

The HOWO Mini Quick Attack Fire Truck is a highly agile, fully functional emergency rescue vehicle engineered for urban fire response. Powered by a 160HP Yuchai engine, paired with a 4x2 light duty drive system and 6-speed transmission, it delivers outstanding flexibility to traverse narrow, congested urban roads and respond rapidly to small-scale fire incidents.It features a 2500L water tank and 1000L foam tank to cover diverse firefighting scenarios. Fitted with a premium Chinese-brand fire pump, it achieves a working pressure of 1.3–2.5 MPa and a maximum flow rate of 40 L/s, capable of tackling most common fire types efficiently. The 360° rotatable fire monitor boasts a 55m shooting range, greatly boosting on-site firefighting effectiveness.
Working capacity :
2500L+1000LCabin type :
HOWO light double cabin (2+4)Drive system :
4x2Wheelbase ( mm) :
4200Engine specific :
160 HP / YC4E160-30Gear box :
HW90510C2,10 forwards & 2 reversesFront axle ( Kg ) :
4500Rear axle ( Kg ) :
7500The HOWO Mini Quick Attack Fire Truck is a highly agile, fully functional emergency rescue vehicle engineered for urban fire response. Powered by a 160HP Yuchai engine, paired with a 4x2 light duty drive system and 6-speed transmission, it delivers outstanding flexibility to traverse narrow, congested urban roads and respond rapidly to small-scale fire incidents.
It features a 2500L water tank and 1000L foam tank to cover diverse firefighting scenarios. Fitted with a premium Chinese-brand fire pump, it achieves a working pressure of 1.3–2.5 MPa and a maximum flow rate of 40 L/s, capable of tackling most common fire types efficiently. The 360° rotatable fire monitor boasts a 55m shooting range, greatly boosting on-site firefighting effectiveness.
Built with a high-strength steel chassis and aluminum alloy superstructure, this 160HP HOWO fire truck balances lightweight design with long-lasting durability. Full LED warning and lighting systems guarantee safe nighttime driving and operation. Its 2+4 seating cabin supports smooth team collaboration during missions.

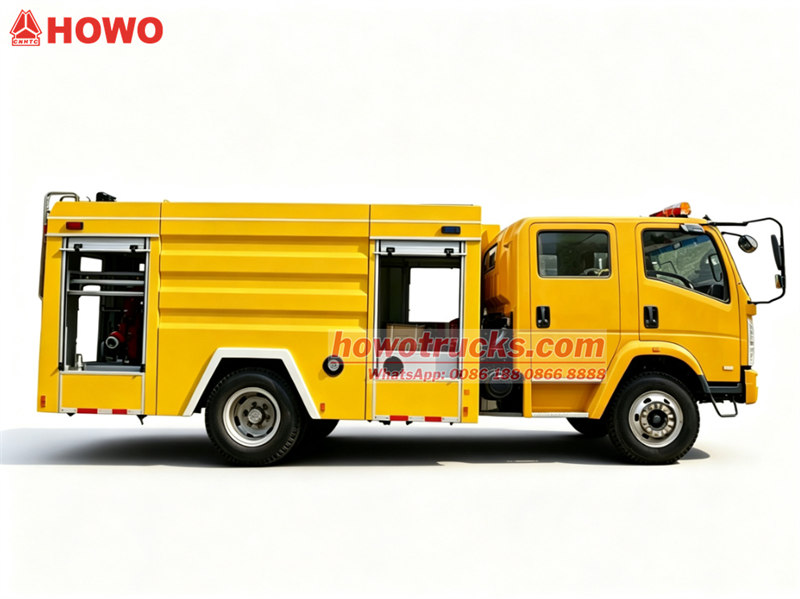

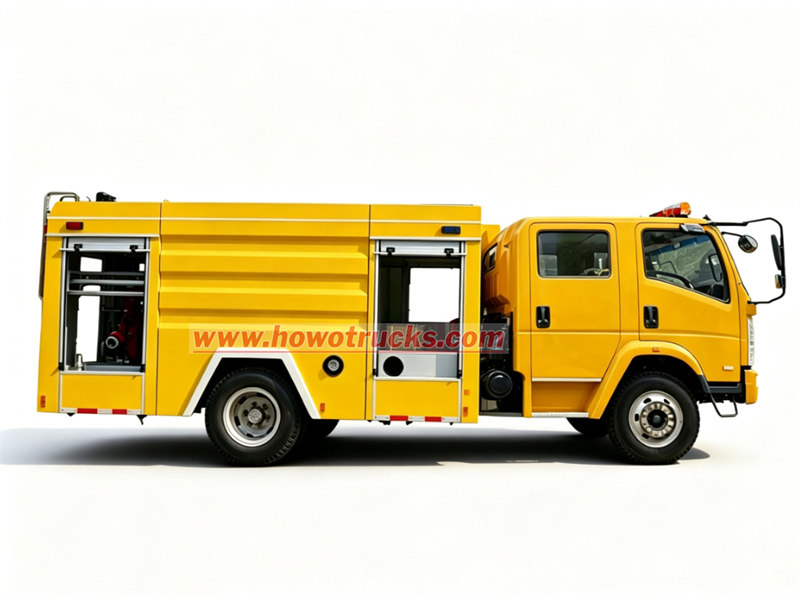

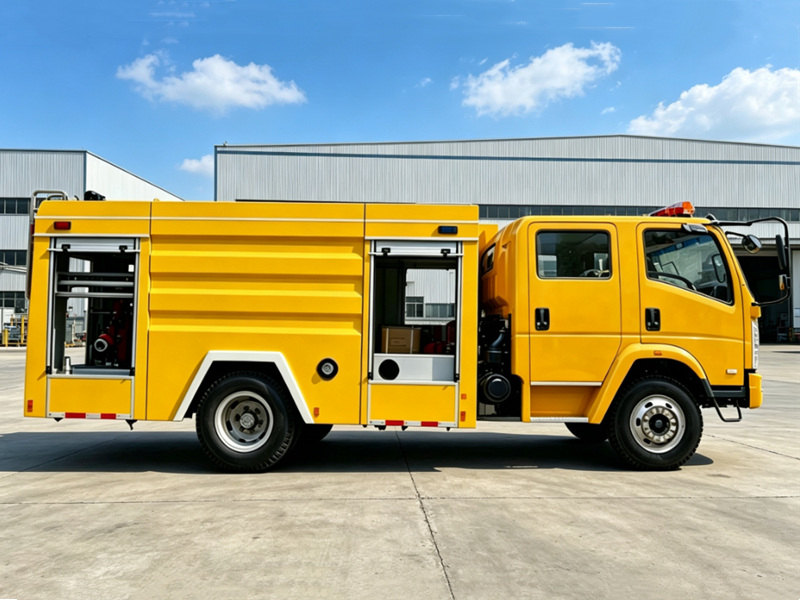

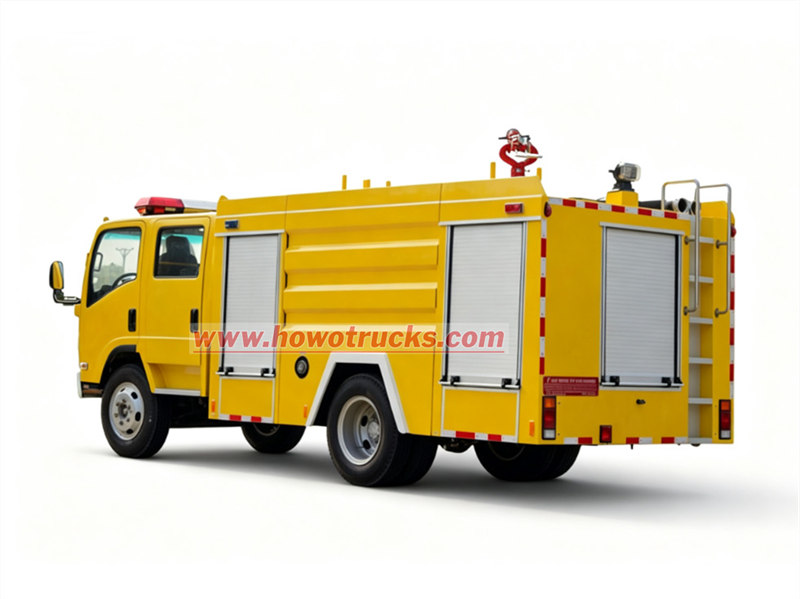

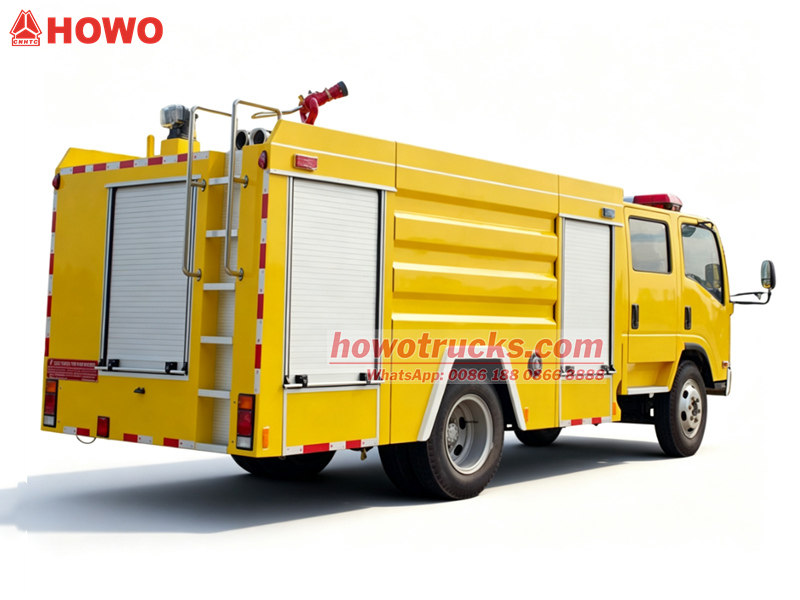

*HOWO Light 4x2 Fire Foam Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS Trucks Group
Features:
✅ Compact HOWO light chassis, outstanding urban passability
✅ 160HP Euro 6 Yuchai power, rapid emergency response
✅ Lightweight aluminum upper body, long service life
✅ 2500L water + 1000L foam dual tank design
✅ High-flow auto-priming fire pump + 55m 360° rotating fire monitor
✅ 6-person air-conditioned double cab for full fire crew
✅ Full LED warning & working lighting system
✅ Complete rescue tools included, ladders & floodlights optional


Best Choice,Howo Fire Trucks
|
HOWO light duty fire fighting truck |
|||
|
General |
Vehicle Brand |
CS Trucks Group |
|
|
Chassis Brand |
HOWO |
||
|
Overall Dimension |
6500*2450*2850mm |
||
|
GWW/ Kerb Weight |
10,500kg/4,080kg |
||
|
Painting |
Yellow |
||
|
Cab |
Cab Capacity |
2+4 persons allowed |
|
|
Air Conditioner |
air conditioner |
||
|
Engine |
Fuel Type |
Diesel |
|
|
Engine Model |
YC4E160-30 |
||
|
Engine type |
Inline 4-cylinder, turbocharged, inter-cooled diesel engine |
||
|
Power |
160HP |
||
|
Displacement |
4.26L |
||
|
Emission Standard |
Euro 6 |
||
|
Chassis |
Drive Type |
4X2,left hand drive |
|
|
Transmission |
Manual 6-speed forward, 1 reverse |
||
|
Wheelbase/No.of axle |
4200 mm / 2 |
||
|
Tyre Specification |
8.25R20 |
||
|
Tyre Number |
6 tyres and 1 spare tyre |
||
|
Max Speed |
95km/h |
||
|
Fuel tank capacity |
100L |
||
|
PTO |
Full power sandwich type |
||
|
Superstructure |
Liquid Tank |
Capacity |
Water 2500L, Foam1000L |
|
Tank Material |
Carbon steel (optional stainless steel) |
||
|
Standardized Sub-frame |
Material |
High-strength rectangular tube made of special steel |
|
|
Structure |
Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
||
|
Fire Pump |
Brand |
China TOP brand |
|
|
Drive mode |
PTO |
||
|
Priming Manner |
Automatic |
||
|
Pressure range |
1.3-2.5 MPa |
||
|
Flow rate |
40 L/s |
||
|
Suction Height |
7m |
||
|
Fire Cannon |
Horizontal rotation angle |
360 º |
|
|
Range |
55 m |
||
|
Superstructure Electric Appliance |
Warning Light and Siren |
Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
|
|
Strobe Light |
Mounted on the both sides of the compartment |
||
|
External Lighting |
LED lights are mounted on the both sides of the compartment |
||
|
Roof Lighting |
LED lights are mounted on the inside of the roof |
||
|
Side Indicator Light |
Inline yellow warning light is mounted on the side of the compartment and pedals |
||
|
All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars... |
|||
|
Optional |
Ladders,floodlight |
||


1. Agile & Reliable HOWO Light Chassis

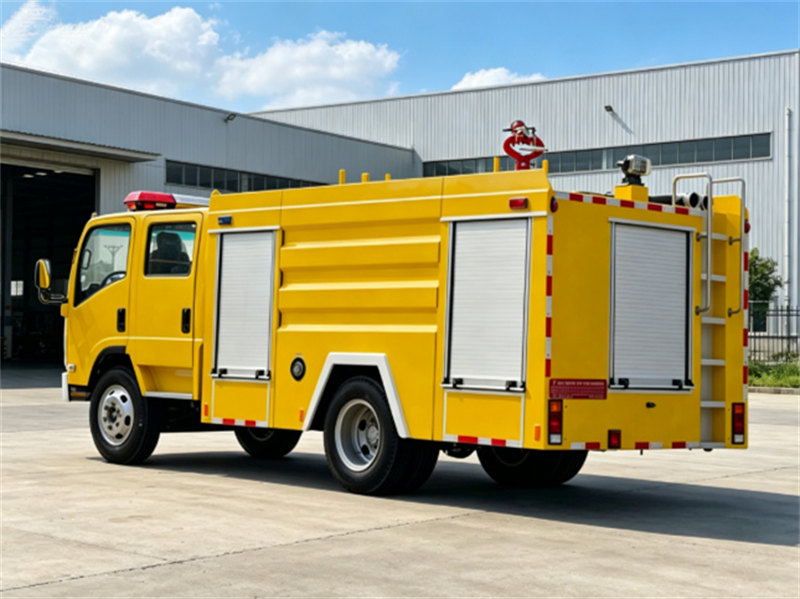

♦ Original HOWO 4×2 LHD chassis with compact 6500×2450×2850mm overall size, easily navigating narrow streets and tight job sites
♦ 160HP Yuchai Euro 6 diesel engine + 6-speed manual transmission, max speed 95km/h for fast emergency dispatch
♦ 2+4 double-row air-conditioned cab, seats 6 firefighters for full team operation; cab-mounted control panel for warning lights & siren
♦ Light curb weight (4,080kg) with 10,500kg GVW, stable load capacity; 8.25R20 tires + full power sandwich PTO for steady pump power output

2. Lightweight, Durable Aluminum Alloy Superstructure
♦ High-strength steel subframe + full aluminum welded compartment, lighter weight, less chassis wear and better fuel efficiency
♦ Standard 2500L water tank + 1000L foam tank (stainless steel tank optional) to tackle solid & liquid fuel fires
♦ Multi-side rolling shutter tool cabinets for organized storage of standard rescue gear: axes, pike poles, halligan bars, cutting tools and shovels
♦ Full LED lighting package: cab warning light & siren, compartment strobe lights, work lights, roof interior lights and side marker lights for safe night missions
♦ Bright yellow high-visibility paint + rear aluminum access ladder for fire monitor maintenance

3. High-Performance Fire Suppression System

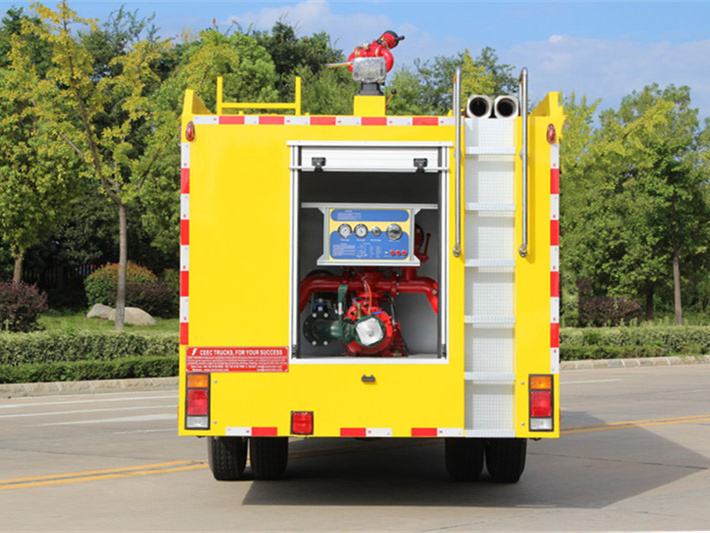

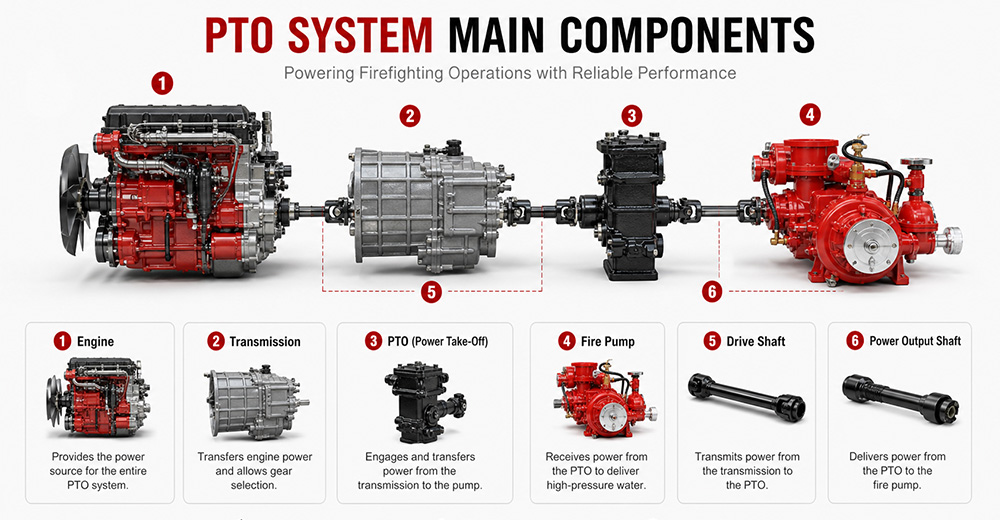

♦ Top-brand automatic priming fire pump driven by chassis PTO, 7m suction height, 1.3–2.5 MPa pressure, 40 L/s steady flow
♦ 360° full rotation roof fire monitor with 55m maximum jet range, zero blind angle for efficient fire knockdown without repositioning the truck
♦ Highly Effective at Extinguishing Class B Fires:
--- Foam fire trucks generate and spray air foam specifically designed to extinguish Class B fires caused by flammable liquids (such as gasoline, diesel, grease, and organic solvents).
---The foam layer effectively covers the liquid surface, isolating oxygen and inhibiting the volatilization of flammable vapors—a crucial capability that ordinary water cannot replace.

♦ Strong Preventing and Resistance to Reignition:
--- The foam forms a durable and stable covering layer on the surface of the burning material.
--- It not only extinguishes the fire quickly but also adheres for a long time, effectively preventing reignition caused by temperature rise or lingering embers, greatly improving the thoroughness of fire suppression.
♦ Rapid Extinguishing and Effective Cooling:
The foam mixture has higher adhesiveness and covering power than water, rapidly spreading across the burning surface to form an insulating layer.

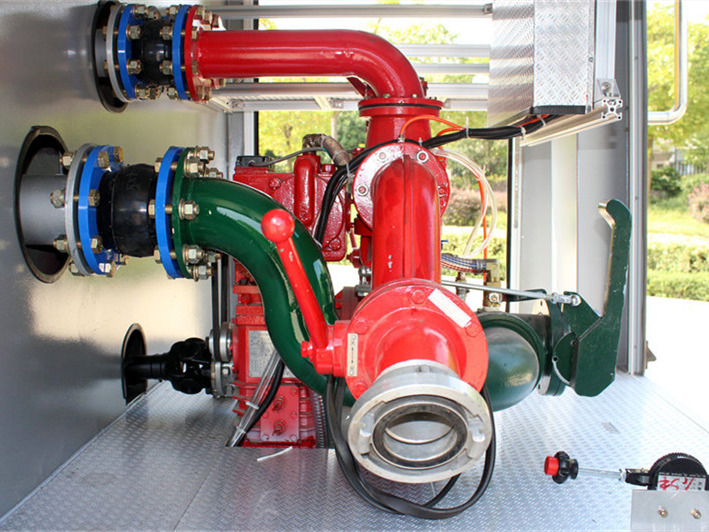

This dual-purpose water-foam fire system is the core firefighting unit of the HOWO mini quick attack fire truck. It integrates liquid storage tank assembly, full-power PTO fire pump, automatic foam proportioning pipeline, and 360°long-range fire monitor. The whole system is tailor-made for urban small fire emergency response, capable of putting out Class A solid fires and Class B flammable liquid oil fires simultaneously, delivering stable, high-efficiency fire suppression in narrow streets, residential compounds, factories and campuses.


|

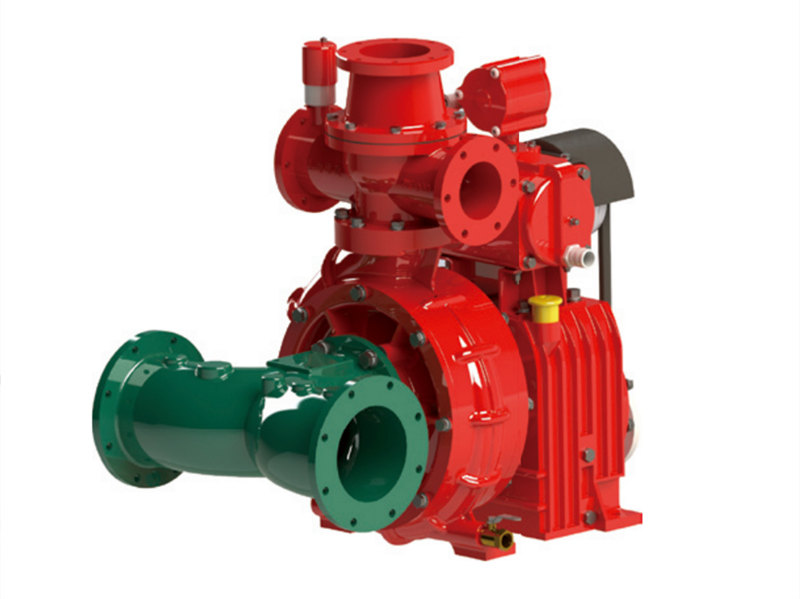

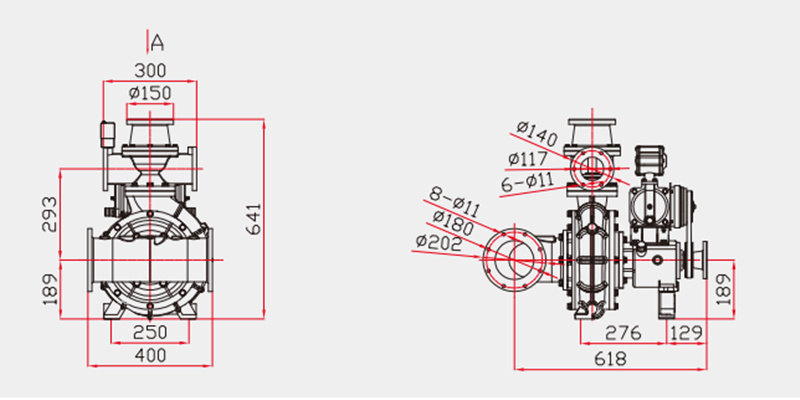

Fire pump Model |
Flux(L/s) |
Pressure(MPa) |
Pump shaft speed(rpm) |
Power(kw) |
Suction depth(m) |
Max working pressure |
|
CB10/40-XZ |
40 |
1.0 |
3135±50r/min |
60 |
3 |
1.082MPa |
|
28 |
1.3 |
3390±50r/min |
61 |
- |
||
|
20 |
1.0 |
3010±50r/min |
39 |
7 |
- |
