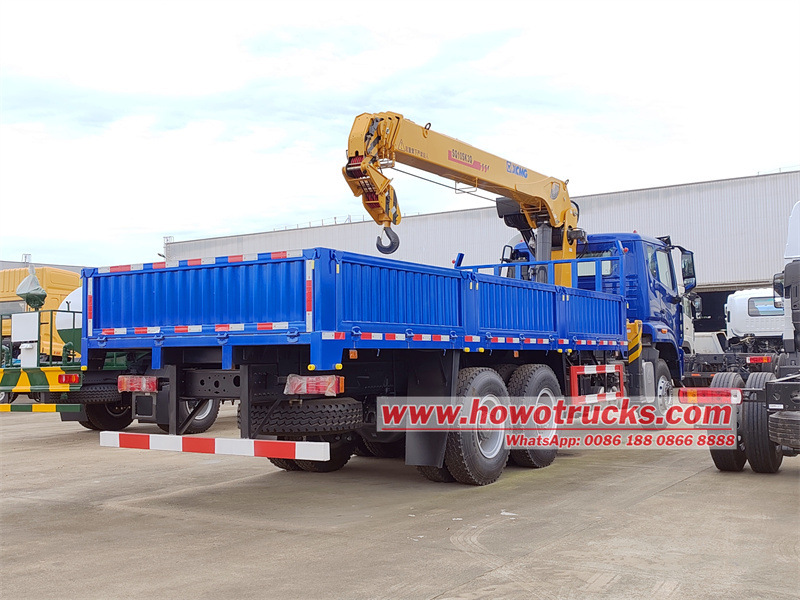

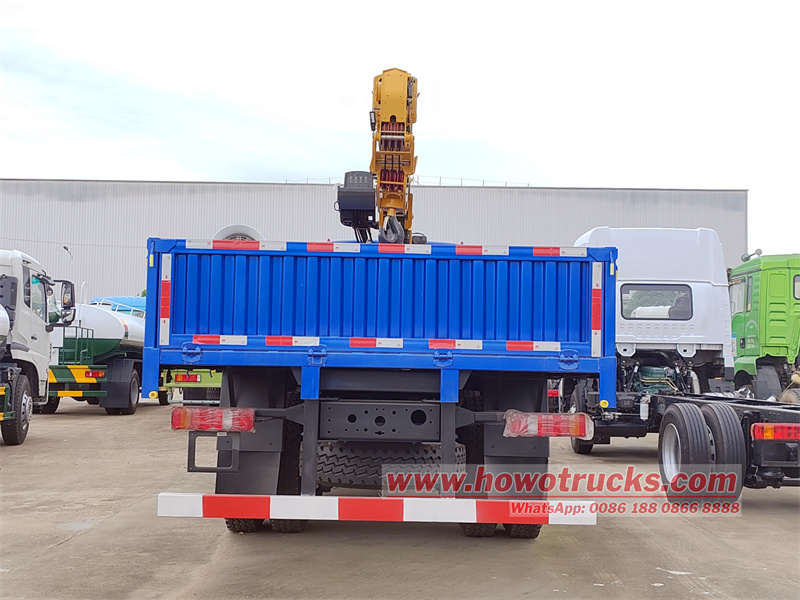

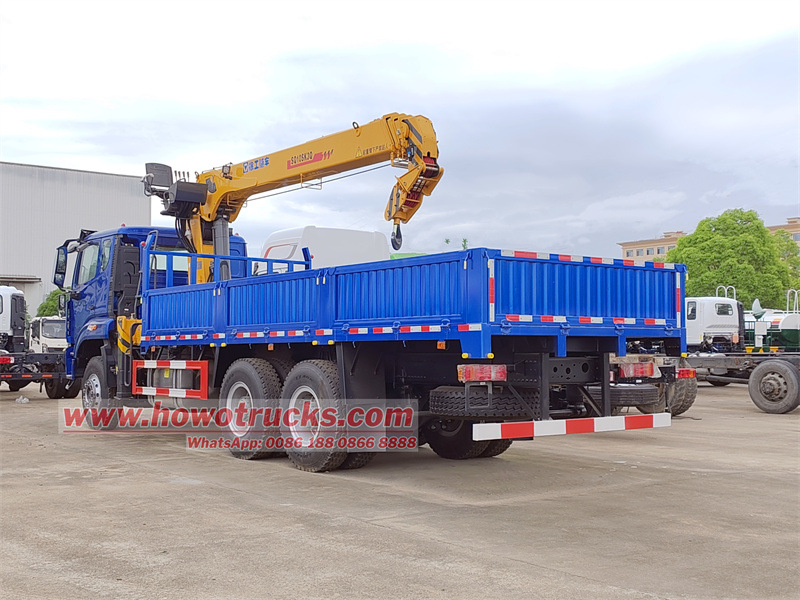

The Sinotruk Howo NX 6x4 truck-mounted crane has a 10-ton capacity and a wheelbase of 4600+1350mm. It is equipped with a Sinotruk WD615.47 371hp engine, an HW19710 10-speed transmission, and a XCMG SQ10SK3Q crane. The maximum lifting capacity is 10 tons, with a lifting torque of 25T·m. The cargo box dimensions are 6200x2450x550mm. The crane features hydraulic outriggers and ground control lever on both sides, left side upper control and a remote control box.
Working capacity :
5000LCabin type :
HOWO NX371Drive system :
4X2Wheelbase ( mm) :
4600+1350Engine specific :
371 HP / Sinotruk WD615.47Gear box :
HW19710 , manual, 10 forwards & 2 reversesFront axle ( Kg ) :
9500Rear axle ( Kg ) :

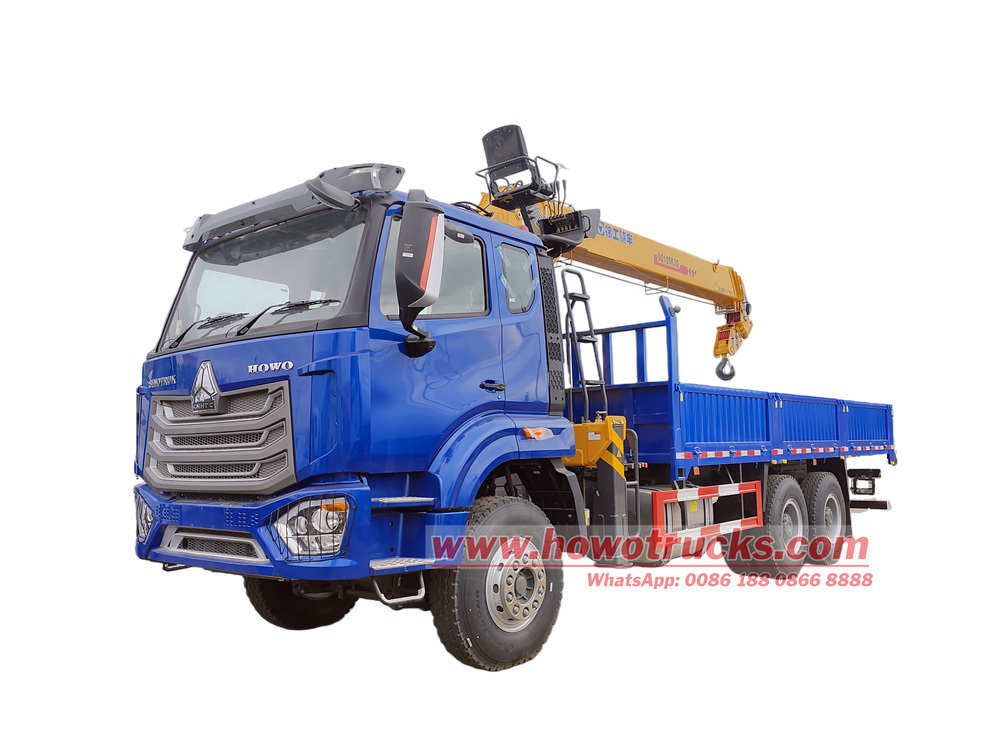

16000 x 2The HOWO lorry truck with 10 T hydraulic crane is a powerful medium-sized engineering tool that combines transportation and lifting capabilities. The chassis is driven by a 371-horsepower engine paired with a 10-speed transmission, providing robust load-bearing capacity. The superstructure features a XCMG 10tons 4-section straight boom crane with a maximum lifting height exceeding 12.35 m and a working radius of 12 m, easily handling site transport and equipment installation. The 6.2-meter carbon steel cargo box is sturdy and durable. With multiple operating modes including top-down and bottom-up controls, plus a remote control box, it allows for flexible and safe single-person operation, making it a practical choice for construction sites and logistics scenarios.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Main Configuration:
Manufacturer: CS TRUCKS GROUP LIMITED
|
Working Capacity |
Engine Model |
Wheelbase |
Application |
|
XCMG 10tons crane |
WD615.47 / 371HP |
4600+1350mm |
• Construction sites: • Logistics and transportation: • Municipal engineering: • Emergency rescue: |
» Ⅱ. Product Parameter for HOWO NX 6x4 boom crane truck:
|

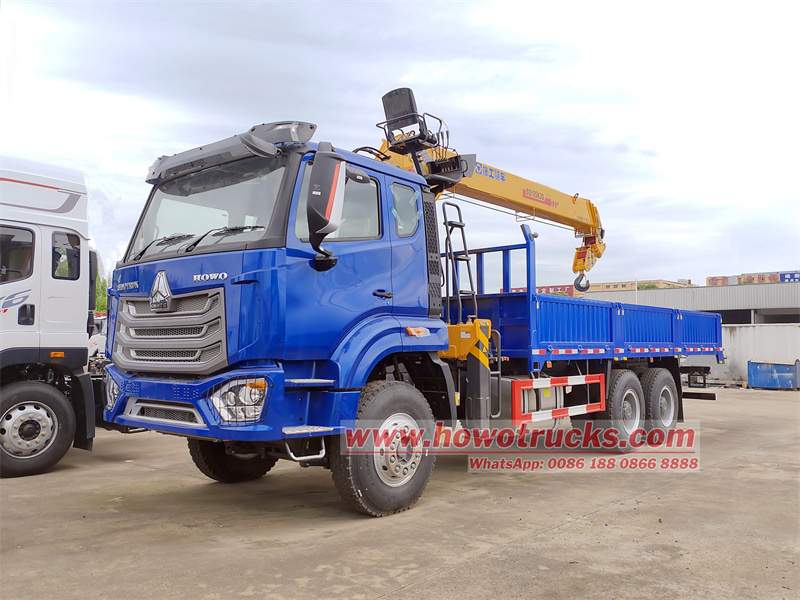

HOWO NX 6X4 mobile truck with crane |
||
|
General Technical Parameters |
||
|
Overall Dimension |
9650 × 2550 × 3830 mm |
|
|
Gross Vehicle Weight |
25000 Kg |
|
|
Curb Weight |
15840 Kg |
|
|
Chassis Specification |
||
|
Chassis Brand |
SINOTRUK HOWO NX |
|
|
Drive model |
6x4,LHD |
|
|
Cabin |
HOWO H77L cabin, Left Hand Driving, with one bed, A/C |
|
|
Number of Passengers |
3 |
|
|
Engine |
Style |
Inline 6 cylinders, water-cooled, four-stroke, with exhaust valve brake, direct injection, turbocharged and intercooled, diesel |
|
Model |
SINOTRUK WD615.47 |
|
|
Power |
371HP / 273kW |
|
|
Rated speed |
2200rpm |
|
|
Max torque |
1500N.m |
|
|
Max torque speed |
1100-1600rpm |
|
|
Emission standard |
EURO 2 |
|
|
Displacement |
9.726L |
|
|
Gearbox |
HW19710, 10F & 2R,manual |
|
|
Brake System |
Air brake |
|
|
Wheel Base |
4600+1350 mm |
|
|
Front/Rear Axle Loading |
7000/18000(two axles) kg |
|
|
Tire |
315/80R22.5,10+1 tires |
|
|
Max Driving Speed |
90km/h |
|
|
Upper structure Specification |
||
|
Cargo Body |
Dimension |
6200 x 2450 x 550 mm |
|
Material |
Q235 carbon steel |
|
|
Cargo Thickness |
Side 3mm,Bottom 4mm |
|
|
Boom crane |
Model |
XCMG SQ10SK3Q 4-sections boom crane |
|
Max. Lifting Moment |
25T·m |
|
|
Max. Lifting Capacity |
10000kg |
|
|
Max.lifting height |
12.35m |
|
|
Max. Hydraulic Boom Length |
12m |
|
|
Rotation angle |
360° ALL Rotation |
|
|
Amplitude range |
0~75° |
|
|
Maximum working pressure |
26 Mpa |
|
|
Recommend power |
30Kw |
|
|
Max Oil Flow of Hydraulic system |
63 L/min |
|
|
Oil tank capacity |
160 L |
|
|
Crane weight |
3765 kg |
|
|
Installation space |
1150mm |
|
|
Optional function |
1. knuckle boom crane. |
|
|
2. Hydraulic tipper box. |
||
|
3. Grab bucket |
||
|
4. Aerial work basket |
||
|
Other Configuration |
Manually hydraulic joystick, Remote control operation, etc. |
|

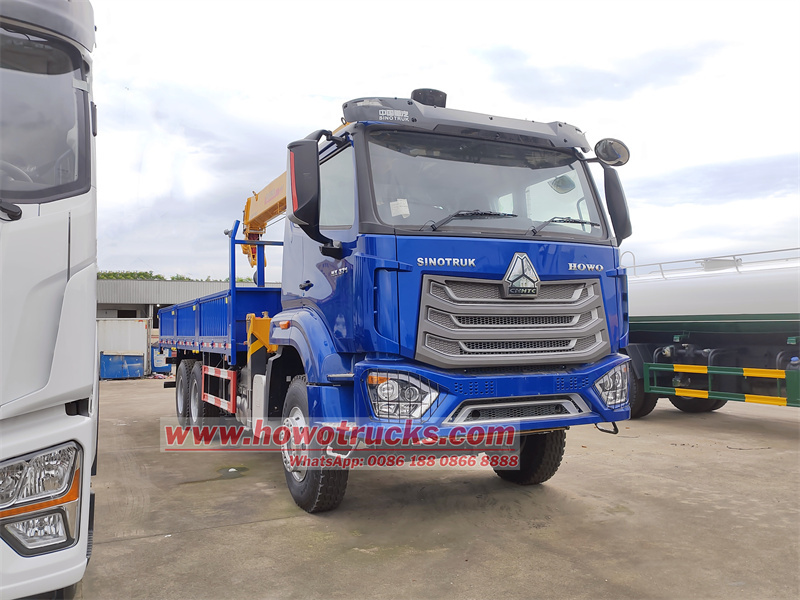

» Ⅲ. Chassis Configuration

• Chassis Model: Sinotruk Howo NX371 chassis.
• Drive Type: 6x4 drive, high load-bearing capacity.
• Wheelbase: 4600+1350mm
• Powertrain: Sinotruk WD615.47 371hp inline six-cylinder diesel engine, 9.726L displacement, 1500 Nm torque, Euro III emission standard.
• Transmission System: Sinotruk HW19710 10-speed gearbox.
• Axles: VGD95 front axle (drum), MCX16ZG dual rear axles (drum) with a gear ratio of 4.803.
• Tires: 12.00R20 tires.
• Fuel Tank: 400L fuel tank.

• Cargo box dimensions: 6200x2450x550mm, ample loading space.
• Material and construction: Q235B carbon steel, sturdy and wear-resistant.
• Plate thickness: Side plates 3mm thick, bottom plates 4mm thick.

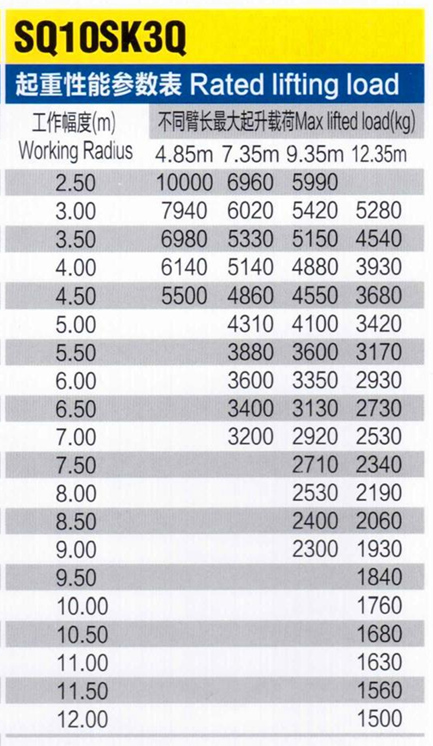

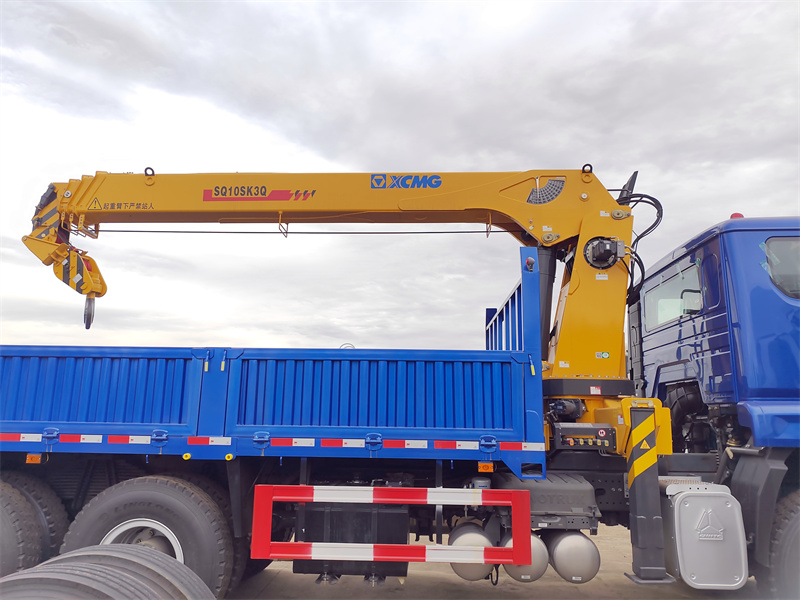

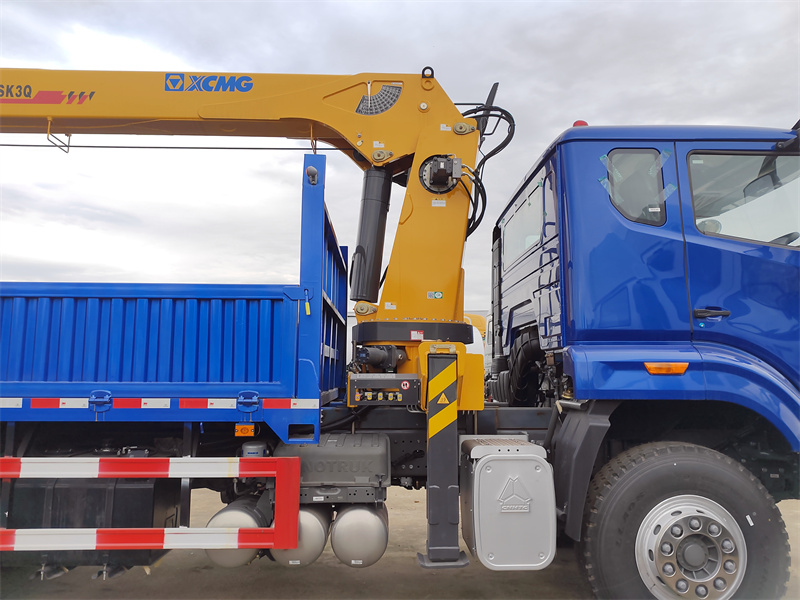

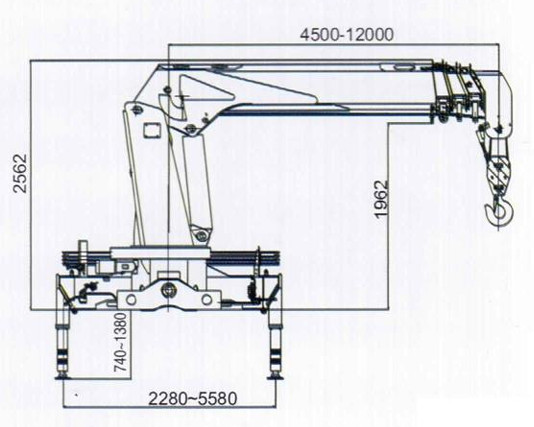

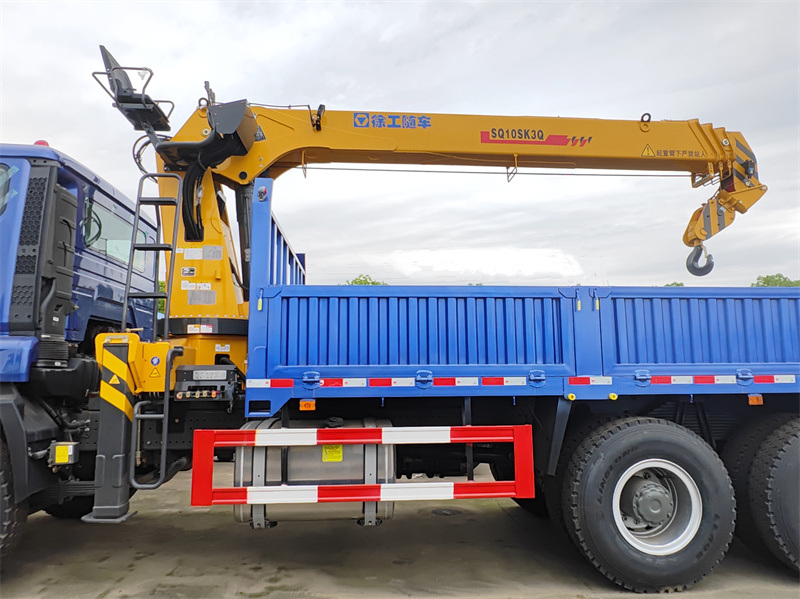

» Ⅴ. XCMG SQ10SK3Q Crane:

• Rated lifting capacity: 10 tons, maximum lifting torque up to 25 T·m, boasting powerful lifting performance.
• Boom technology: Utilizes 4-section synchronous telescopic straight boom technology for efficient and rapid operation.

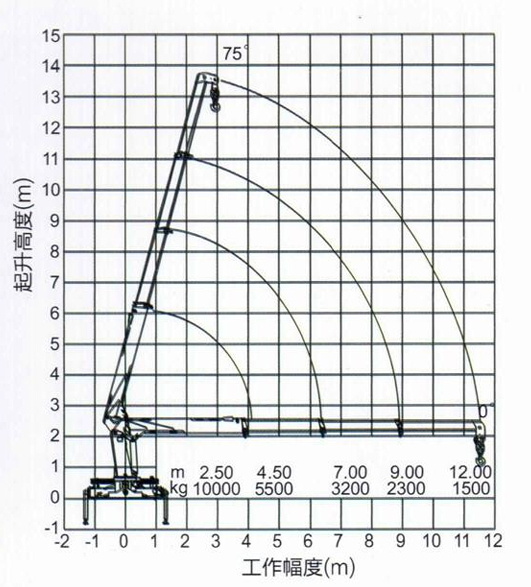

• Working range: Maximum extended boom length 12 meters, maximum lifting height up to 12.35 meters, providing a wide working coverage.
• Weight: The crane weighs approximately 3765 kg, achieving a reasonable lightweight design while ensuring strength.
• Hydraulic system: Maximum working pressure 26 MPa, flow rate 63 L/min
• Working angle: 360° full rotation; amplitude range 0~75°

» Ⅵ. Operation Control System:

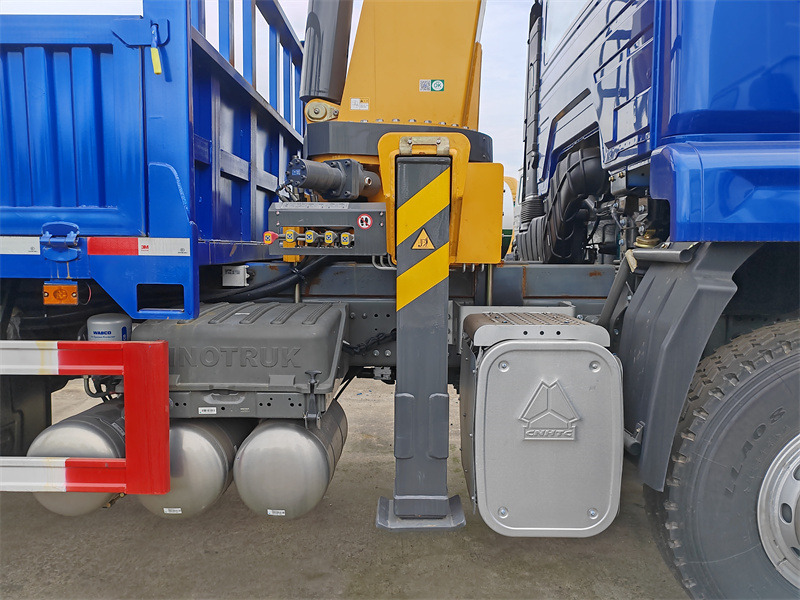

• Outrigger System: One hydraulic outrigger is installed on each side of the crane, forming a stable support structure.
• Control System:

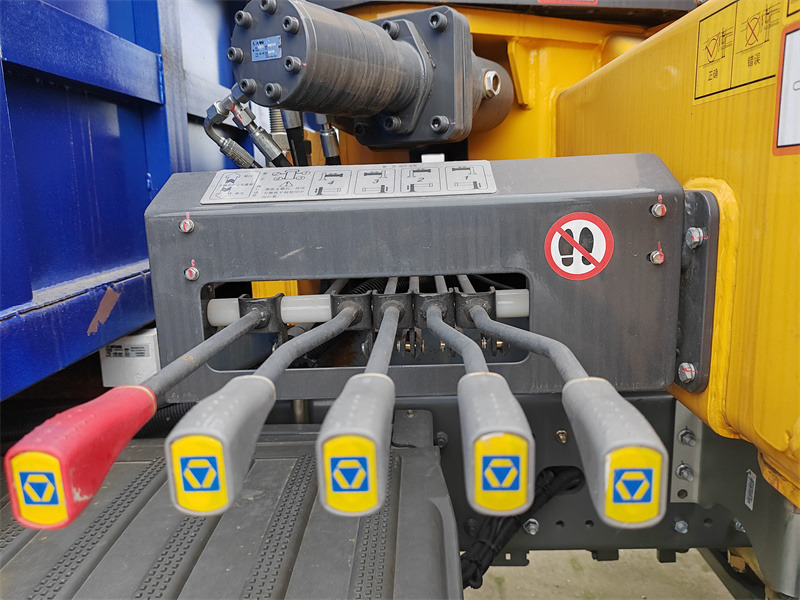

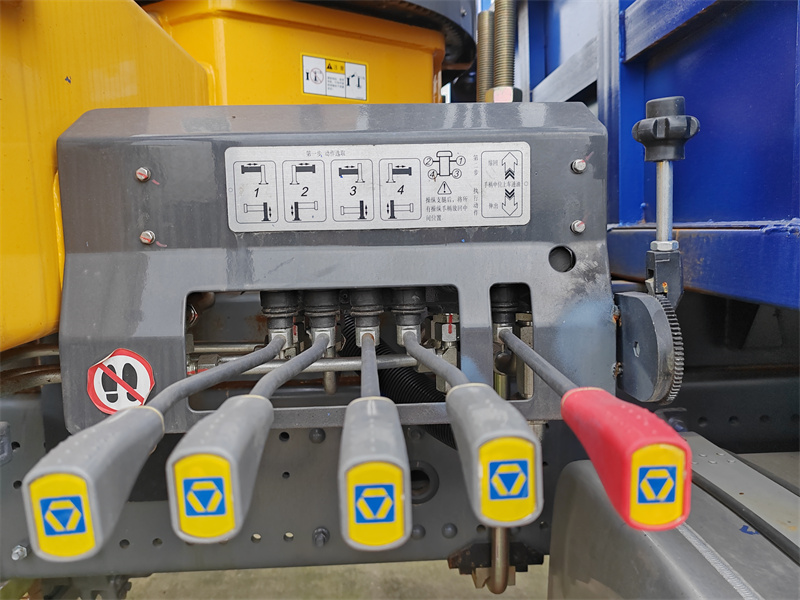

1. Side Operation: Manual hydraulic control levers is provided on each side, allowing the operator to control the crane from the optimal viewing angle.

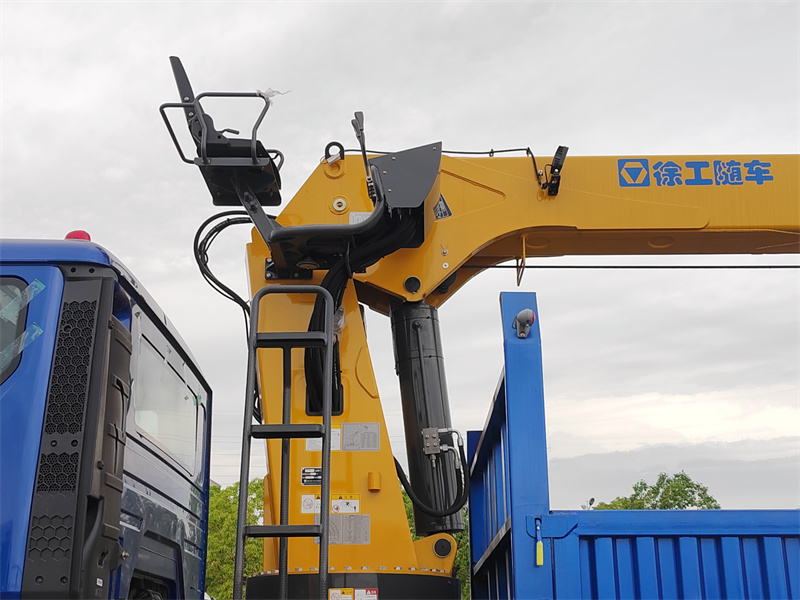

2. Upper Control Panel: An upper control panel with a seat is provided on the left side, integrating one set of manual hydraulic control levers, providing a high-altitude working view and precise control of lifting actions.

3. Remote Control Box: Equipped for more intuitive and convenient operation.
• Control Functions: All control levers work together to control all actions, including the horizontal and vertical extension and retraction of the outriggers, the extension, retraction, lifting and rotation of the boom, and the lifting and lowering of the hook, ensuring precision and flexibility.
• Safety Functions:
o Overload Protection: The hydraulic system has a built-in pressure sensor that automatically limits the load in case of overload.
o Emergency Braking: An emergency stop button is provided on the control panel for rapid response to emergencies.
» Ⅶ. Application Scenarios:
• Construction Sites: Lifting rebar, concrete components, and scaffolding.
• Logistics and Transportation: Loading and unloading large equipment and containers.
• Municipal Engineering: Streetlight installation and billboard replacement.
• Emergency Rescue: Lifting supplies at disaster sites.
