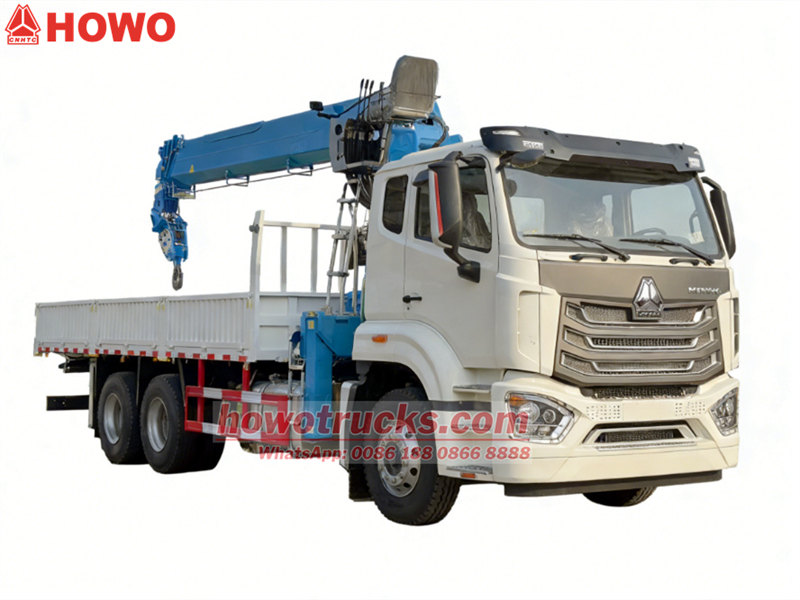

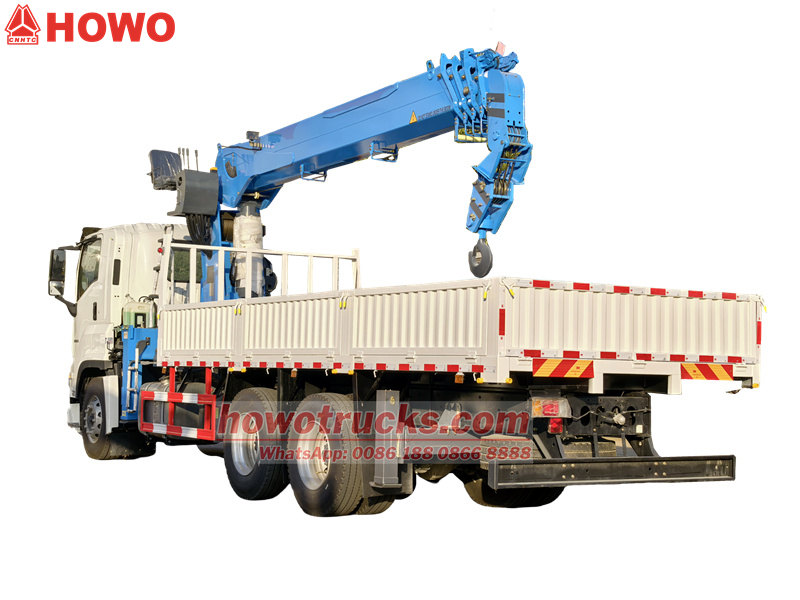

The Howo NX cabin heavy boom truck is equipped with weichai brand diesel engine with a strong power of 340HP, which can meet various work needs. The cab have 3 people seat and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper body of the Howo heavy boom truck is equipped with a telescopic boom crane with a maximum lifting capacity of 14000kg and a full 360° rotation.
Working capacity :
14 tonsCabin type :
Howo NX single cabin, with one sleeperDrive system :
6x4Wheelbase ( mm) :
4600+1350Engine specific :
WD615.34Gear box :
HW19710C, 10 forwards & 2 reversesFront axle ( Kg ) :
7500Rear axle ( Kg ) :
13000*2The Howo NX heavy crane lorry truck is equipped with weichai brand diesel engine with a strong power of 340HP, which can meet various work needs. The cab have 3 people seat and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper body of the Howo heavy boom truck is equipped with a telescopic boom crane with a maximum lifting capacity of 14000kg and a full 360° rotation.

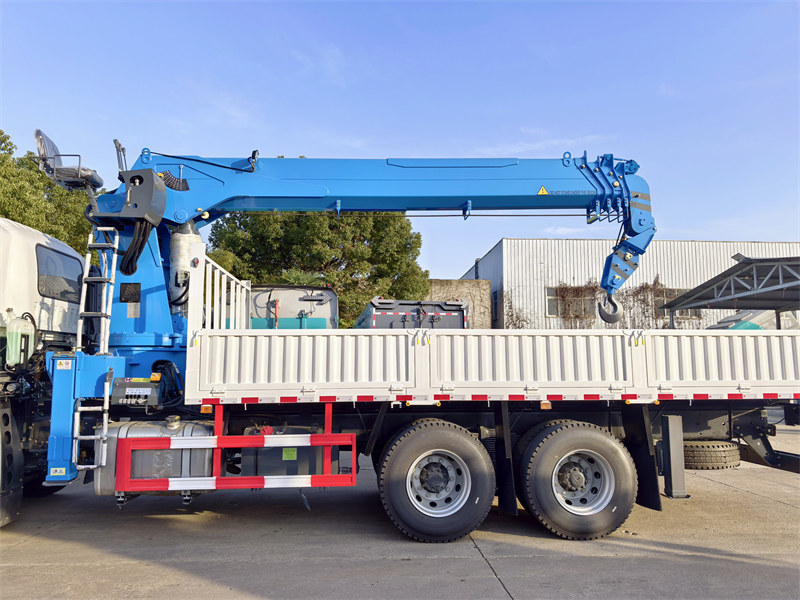

The crane weight is 3570kg and the installation space is 1350mm. The control panel can be selected in English or other languages to facilitate users with different needs. Howo cargo truck mounted 14tons crane also provides a variety of optional configurations, such as telescopic boom cranes, hydraulic dump boxes, box thickness and height customized according to needs, and optional remote control boxes.

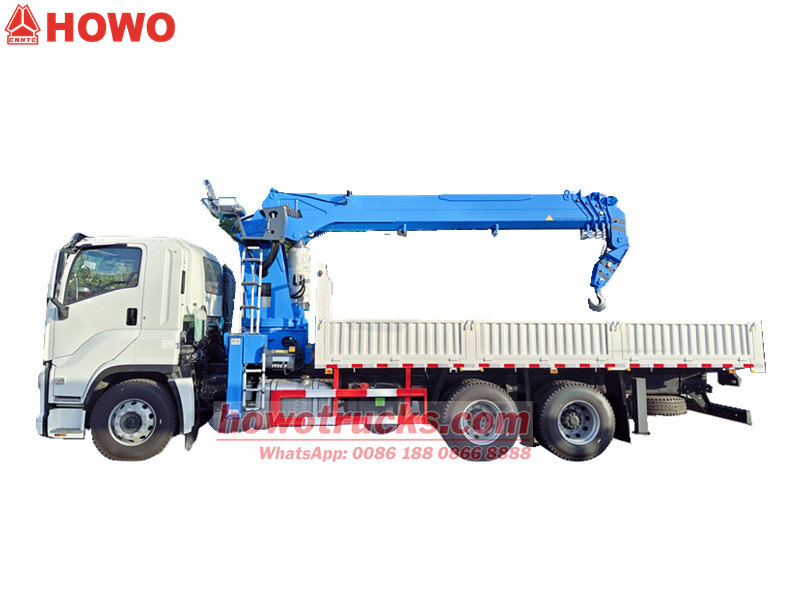

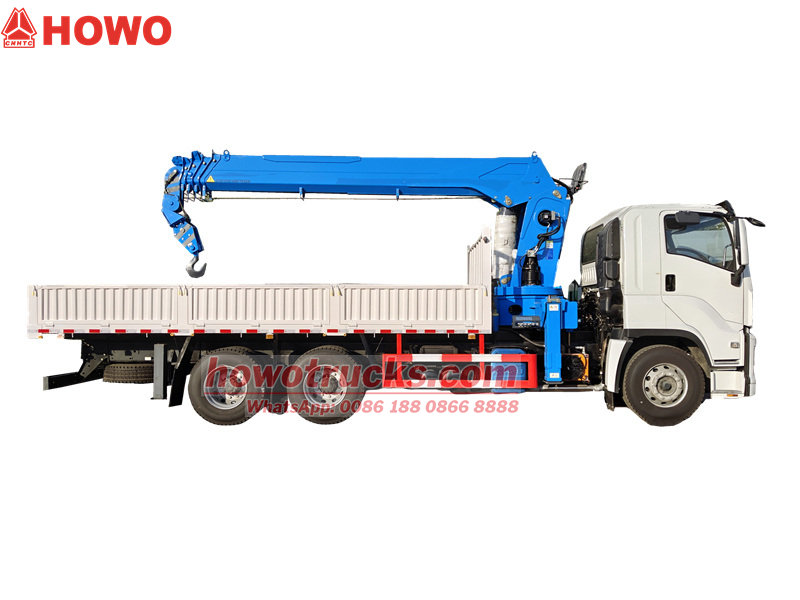

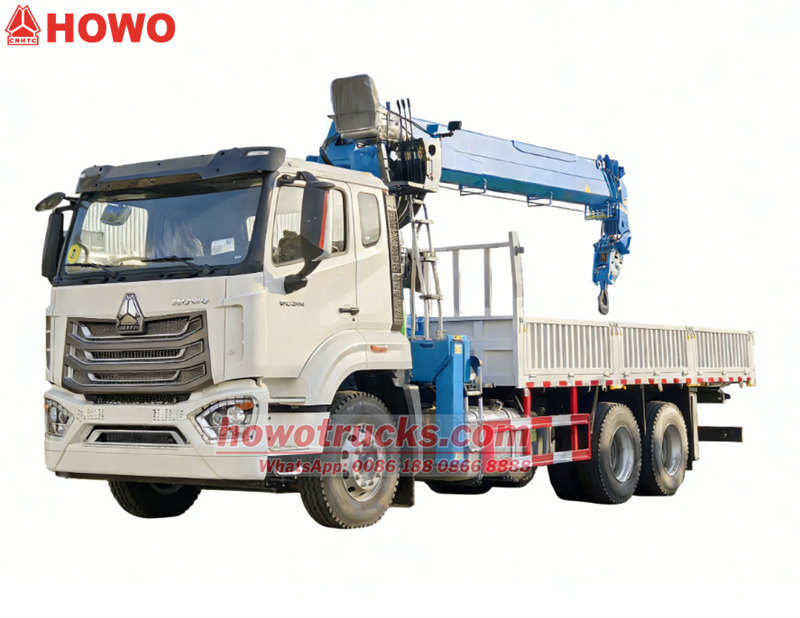

*Howo Heavy 6x4 Cargo Truck Mounted 14T Crane*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
▶ Truck Chassis: Howo NX truck chassis, 6x4,6X6 model，WD model with 340HP and emission 9.8L.
▶ Cargo material: 4mm thick high-quality steel for prolonged service lier carbon steel, aluminum alloy or stainless steel can be choose.
▶ Crane Brand: XCMG, Palfinger, HIAB, CEEC, etc.
▶ Optional design: such as kunckle boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.
✦ Ⅱ.Product Parameter For Howo NX 6x4 Crane Boom Truck « « «
|

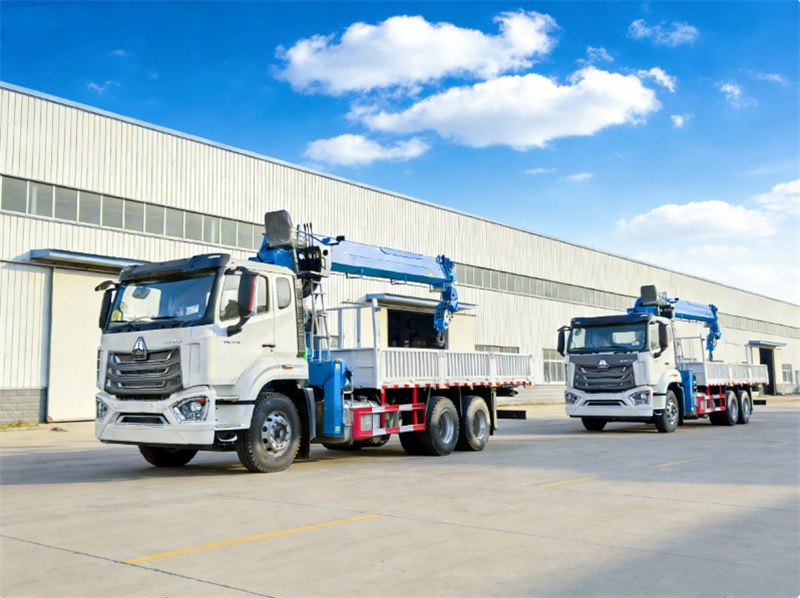

Howo 6×4 Telescopic Boom Crane Truck |
|||||
|
Vehicle model |
CS52503GDC |
Overall dimensions (mm) |
11300×2580×3350 |
||
|
GVW (kg) |
25000 |
Operational height (m) |
18.5m |
||
|
Curb weight(kg) |
11300 |
Max. Speed (km/h) |
95 |
||
|
Chassis Description |
|||||
|
Chassis Brand |
Howo NX chassis |
||||
|
Cab |
Single cab with A/C |
||||
|
Allowable person in cab |
3 |
||||
|
Wheel base (mm) |
4600+1370 |
||||
|
Number of axles |
3 |
||||
|
Axle |
Front axle (kg) |
7500 |
|||
|
Rear axle (kg) |
13000*2 |
||||
|
Traction system |
6*4 |
||||
|
Braking system |
Air brake |
||||
|
Transmission |
Fast 12-speed |
||||
|
Tire specification |
295/80R22.5 |
||||
|
Tire quantity |
10+1 |
||||
|
Engine Description |
|||||
|
Engine manufacture |
Weichai |
||||
|
Engine model |
WD615.34 |
||||
|
Emission standard |
Euro 2 |
||||
|
Exhaust |
9.726L |
||||
|
Horse power |
340 HP |
||||
|
Upper Body Description |
|||||
|
Max. working height (m) |
18.5 |
||||
|
Max. working radius (m) |
20.5 |
||||
|
Crane Type |
Telescopic boom crane |
||||
|
Max Lifting Capacity |
14000 kg |
||||
|
Slewing Angle |
360° All rotation |
||||
|
Rotation Angle |
360° Hydraulic |
||||
|

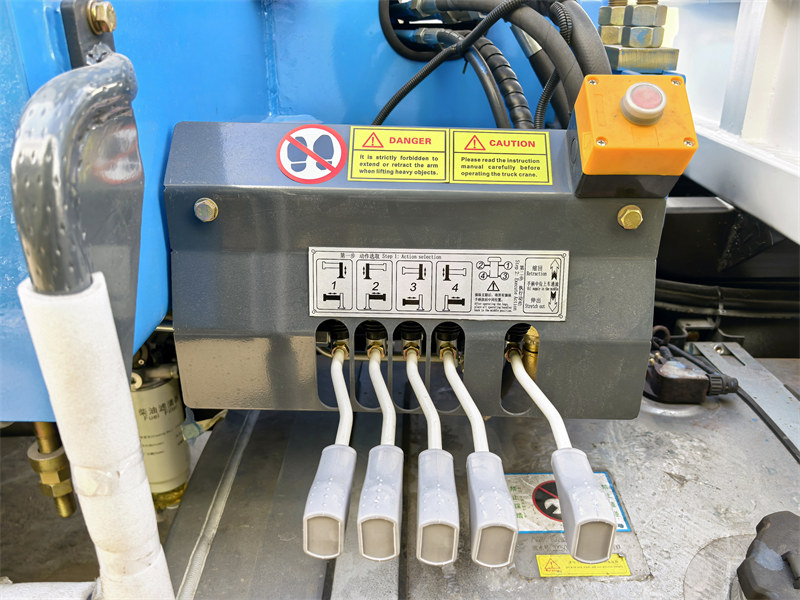

Control panel |
English or Your language |
||||
|
Cargo Box Dimension |
6300*2500*500 mm |
||||
|
Cargo Box Material |
Q235 High-level Steel |
||||
|
Optional |
|||||
|
Knuckle boom crane |
|||||
|
Hydraulic tipper box |
|||||
|
Box thickness according to requirement |
|||||
|
Box height could be nominated |
|||||
|
Remote Control Box optional |
|||||

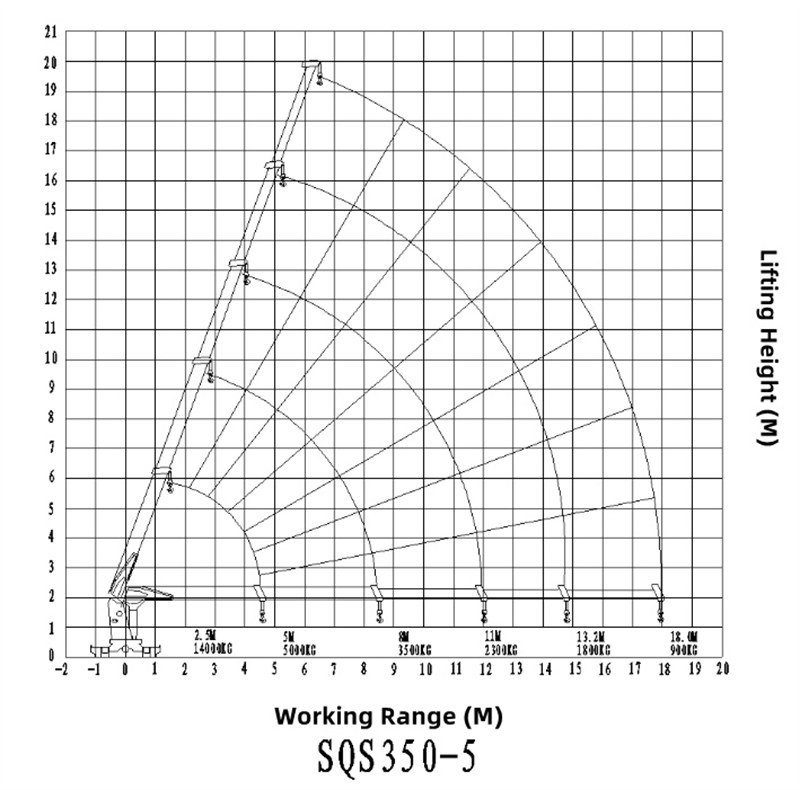

✦ Ⅲ.Design Draw of Howo NX 6x4 Crane Boom Truck « « «
|
Crane Rated Lifting Capacity (Kg) |
14000 |
|
Rated Lifting Capacity (T.m) |
35 |
|
Max Lifting Height (mm) |
18.2 |
|
Number of Crane Boom Sections |
5 |
|
Basic Arm Cross-Section |
Hexagon |
|
Rotation Angle |
360° |
|
Leg Span (fully retracted/fully extended) (m) |
2.5/5.8 |
|
Recommendation System Traffic (L/min) |
63/40 |
|
System Rated Pressure (MPa) |
22 |
|
Operation Method |
Upper Seat Operation |
|
Hydraulic Oil Tank |
200L |
✦ Ⅳ.High load capacity and passability « « «

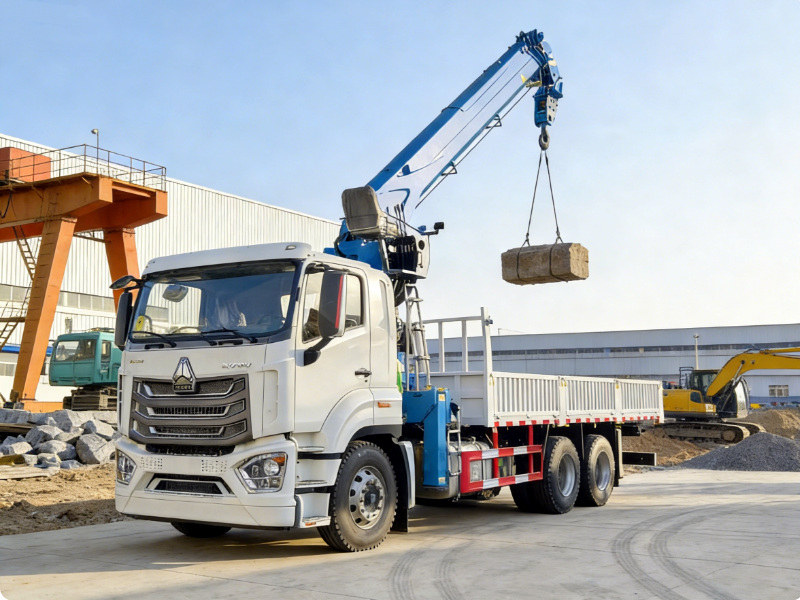

♦ The Howo heavy 14tons crane truck has a 6x4 drive system, rear double-axle drive + front axle steering.
♦ Reasonable axle load distribution, strong load capacity, usually 28 tons, suitable for heavy load transportation.
♦ Excellent ability to escape from complex road conditions such as mud and ramps.
♦ It adopts high-strength steel beams with strong torsion resistance, and is equipped with multi-leaf spring suspension, with high load-bearing stability.

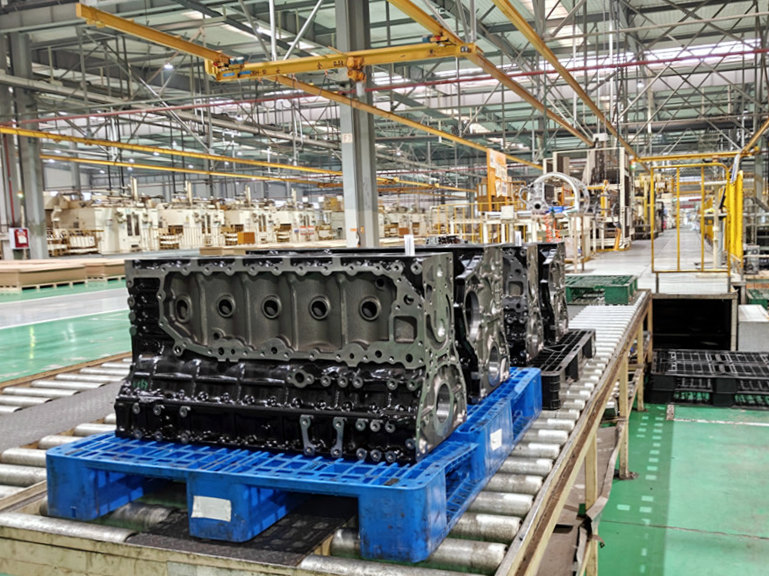

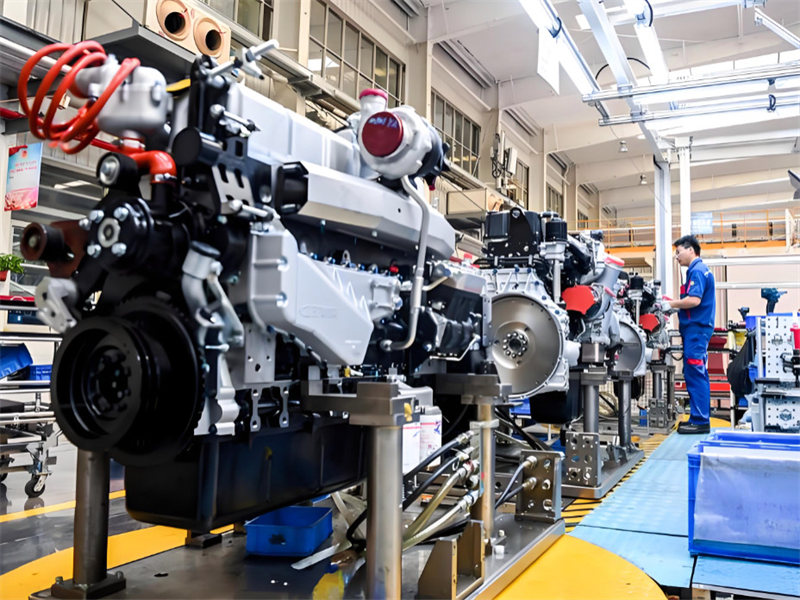

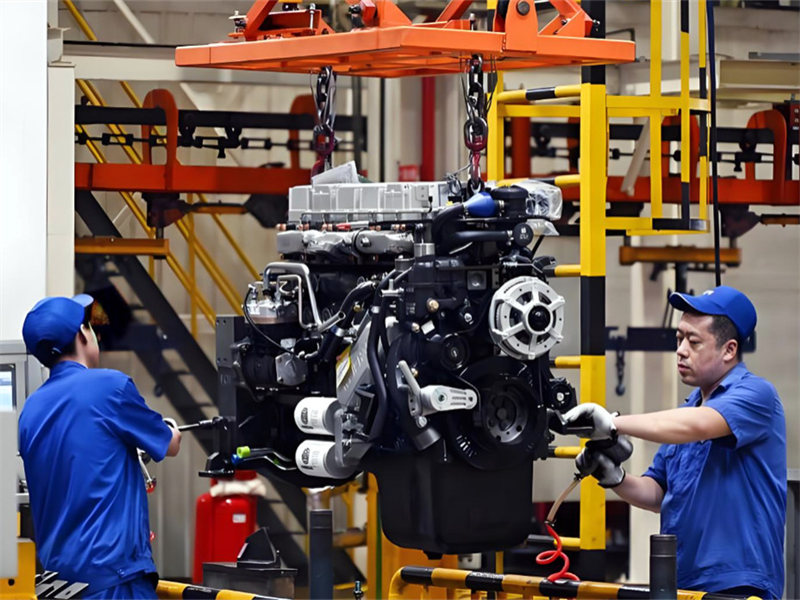

♦ Equipped with Weichai technology engine + Sinotruk HW series gearbox + wheel reduction bridge.
♦ Low speed and high torque characteristics are outstanding, suitable for heavy load climbing and continuous operation.
♦ The Weichai engine has a life of more than 800,000 kilometers.
♦ Key parts (such as hydraulic pumps and crane slewing mechanisms) are top brands, with a low failure rate.
✦ Ⅴ.Structural strength and stability « « «

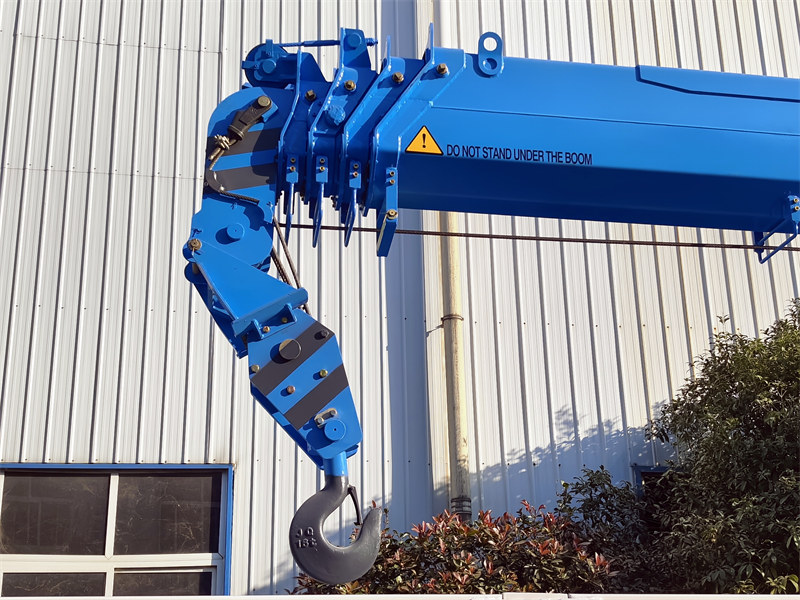

♦ The boom is made of high-strength steel with excellent bending and torsion resistance.

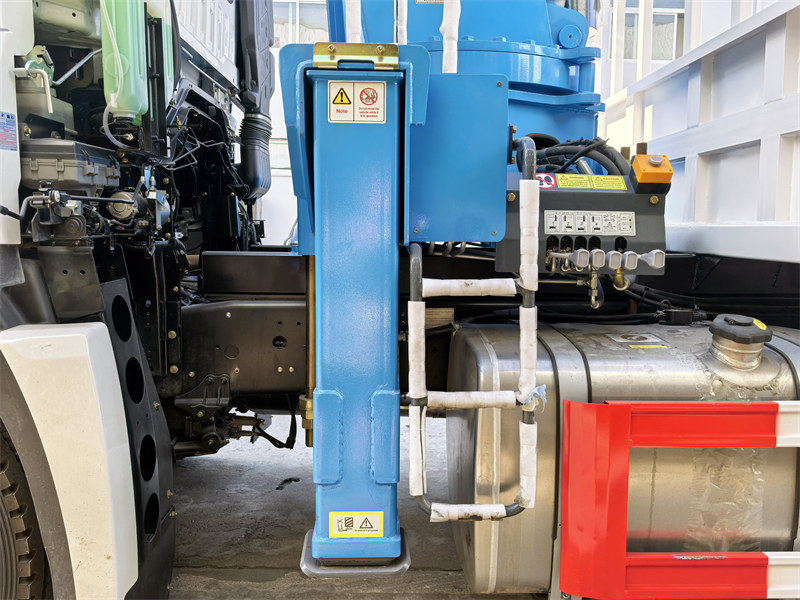

♦ The H-shaped outriggers are horizontally unfolded and the width is adjustable.
♦ The larger the support area, the stronger the anti-overturning ability.
♦ The multi-pump confluence technology enables the boom to move synchronously and smoothly, without jamming or shaking, in telescopic, slewing and amplitude adjustment.
♦ Key valve (such as balancing valves and overflow valves) use high-quality domestic and foreign brands to reduce the risk of internal leakage.
♦ The surface of the boom is sandblasted + epoxy zinc-rich primer + polyurethane topcoat to adapt to salt spray and humid environments.
✦ Ⅵ.Expand Lifting Capacity and Scope Enable « « «

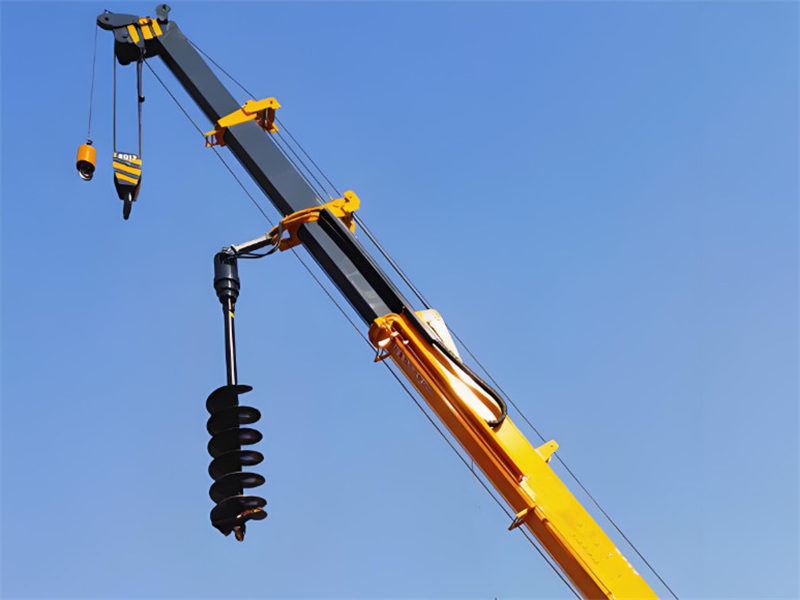

♦ Dual-Point Lifting:
For long and irregularly shaped cargo (such as utility poles, long steel pipes, and large trusses), single-point lifting can cause the cargo to sway, deform, or even be damaged.
Using a secondary hook for two-point lifting perfectly balances the cargo, ensuring smooth and safe transfer and placement.
♦ On narrow or complex roads:
The main hook may not be able to reach the designated location precisely due to arm length or angle limitations. The more flexible secondary hook can easily achieve precise lifting even in the "last meter."
♦ Building Material Transport:

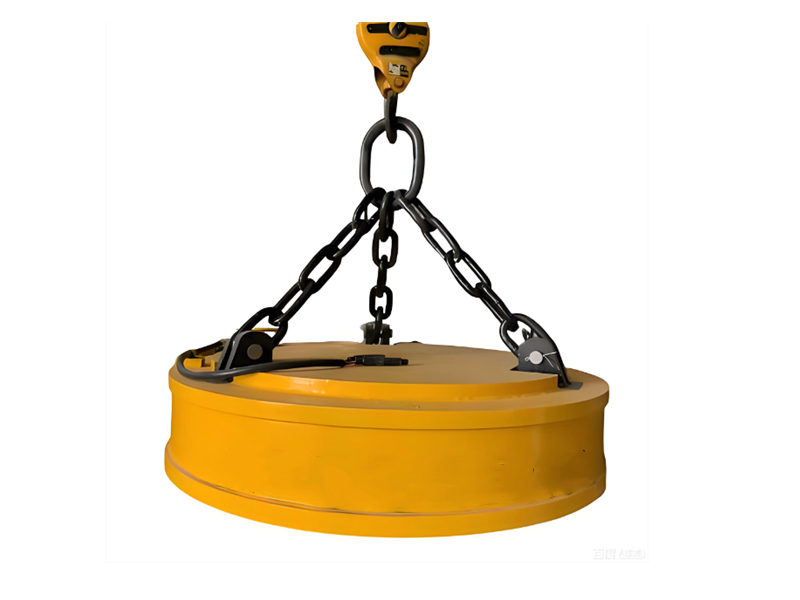

The Howo boom truck may carry both rebar, requiring an electromagnetic chuck for the main hook, and precast concrete slabs, requiring slings for the secondary hook.
♦ Logistics Transfer:
Alternate lifting of containers (main hook) and loose palletized cargo (secondary hook) may be required.ne truck factory
