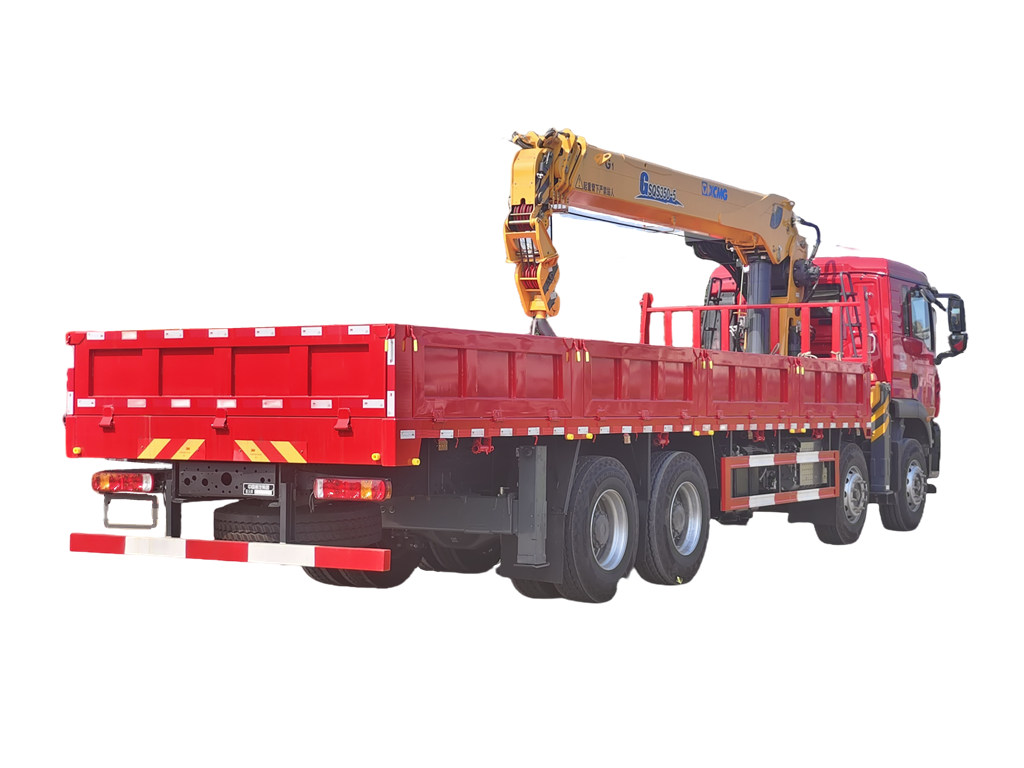

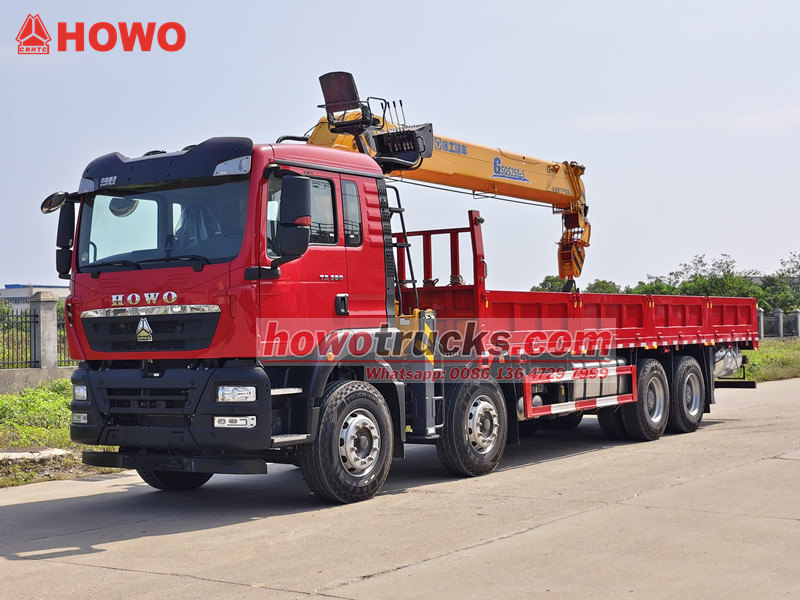

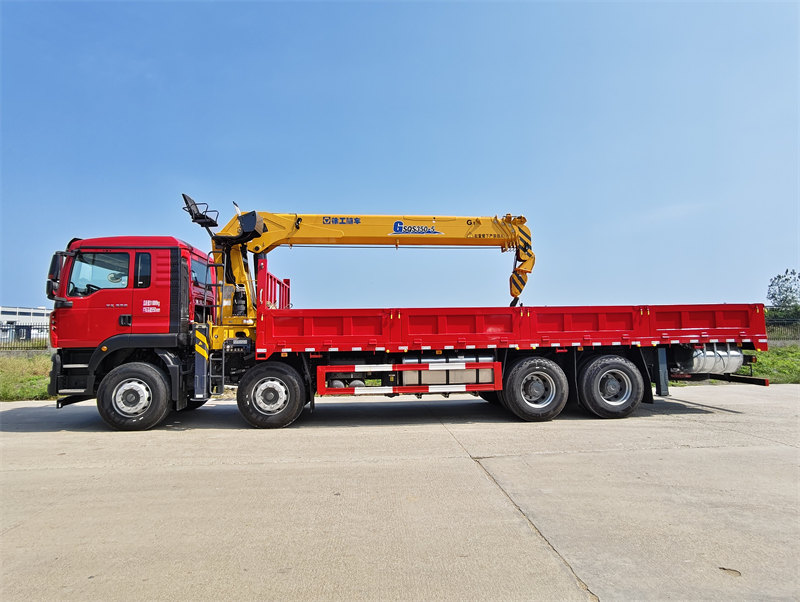

The HOWO TX 8×4 truck-mounted crane boasts powerful performance, equipped with a Weichai 350-horsepower engine and a HOWO 10-speed transmission. Its upper structure features an XCMG 14-ton five-section boom crane, which has a lifting height of up to 21.5 meters and delivers excellent operating performance. The vehicle adopts a robust three-layer frame chassis and is fitted with an engineering-grade fully folded steel cargo box with 3mm side plates and 5mm bottom plates. It perfectly combines the dual functions of heavy-duty lifting and efficient transportation, making it a capable assistant in various engineering operations.
Working capacity :
14 tonsCabin type :
HOWO TXDrive system :
8×4Wheelbase ( mm) :
2100+4300+1350Engine specific :
350HP/WP8.350E61Gear box :
HW19710Front axle ( Kg ) :
6500/7000Rear axle ( Kg ) :
17500The HOWO TX 8×4 truck-mounted crane is equipped with a Weichai WP8.350E61 diesel engine, which provides a powerful 350 horsepower and a peak torque of 1400 N·m. Matched with a HOWO 10-speed transmission, it can easily handle complex road conditions. The vehicle adopts a reliable combination of a 7.5-ton front axle and a 16-ton wheel-side reduction rear axle. Combined with 12.00R20 radial tires and a three-layer frame structure, it ensures load-bearing capacity under a total mass of 31,000 kg. The cab is equipped with four-point suspension, airbag seats and multiple electrified configurations, effectively enhancing driving comfort.

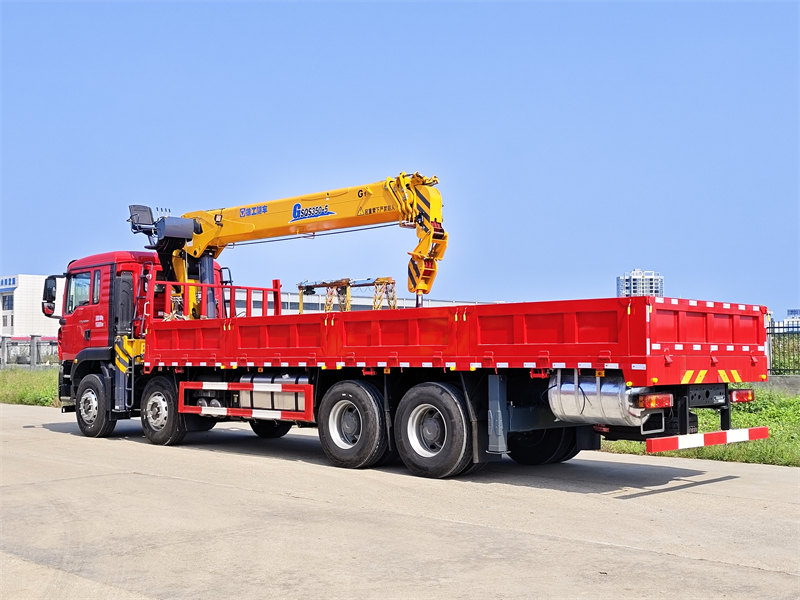

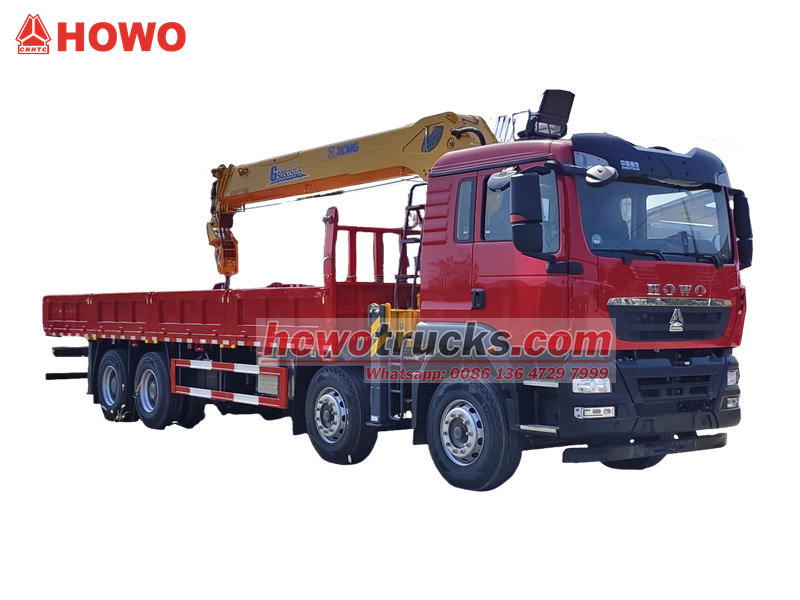

The HOWO 8×4 boom crane truck is equipped with a XCMG SQS350-5 five-section boom crane, with a maximum lifting capacity of 14 tons and a maximum lifting height of 21.5 meters. This crane supports 360-degree full-swing operation, comes standard with a high-altitude seat and a remote control system, and is matched with double-stage compound front outriggers, significantly improving operational stability. The cargo box is made of engineering-grade fully folded steel with 3mm side plates and 5mm bottom plates, and has an internal size of 7800×2450×550 mm. It not only ensures structural strength but also balances lightweight requirements. This equipment perfectly integrates transportation and lifting functions, making it an ideal choice for engineering construction.

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
※ Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Product Features
★ Built on HOWO 8×4 heavy duty chassis with long wheel base, special designed for boom crane truck
★ Weichai 350HP diesel engine, powerful and reliable
★ China top brand XCMG crane, reliable, durable and safe
★ High quality cargo box with large volume
※ Ⅱ. Product Parameter for HOWO TX telescopic boom crane truck:
|
Vehicle Technical Parameters |
|
|
Product Name |
HOWO TX Truck Mounted Crane |
|
Gross vehicle weight (Kg) |
31000 |
|
Curb weight (kg) |
19250 |
|
Overall dimensions (mm) |
12000×2550×3950 |
|
Wheelbase (mm) |
2100+4300+1350 |
|
Max Passengers Allowed |
3 |
|
Approach/departure angle (°) |
19/10 |
|
Max. driving speed (km/h) |
89 |
|
Chassis Technical Parameters |
|
|
Chassis model |
HOWO TX |
|
Engine model |
WEICHAI WP8.350E61 |
|
Fuel Type |
Diesel |
|
Number of cylinders |
6 |
|
Displacement |
7.8 L |
|
Max. power |
350HP (257kW) |
|
Max. torque |
1400N.m |
|
Speed at max. torque |
1200-1600rpm |
|
Transmission |
HW19710, 10-speed |
|
Front/Rear Axle load |
6500/7000/17500 kg |
|
Number of Axles |
4 |
|
Number of leaf springs |
11/11/12 pcs |
|
Brakes |
Air brakes |
|
Tire Size |
12.00R20 |
|
Number of Tires |
12 |
|
Crane Parameters |
|
|
Crane model |
XCMG SQS350-5 |
|
Max lifting weight |
14,000 kg |
|
Max lifting Moment |
360 kN.m |
|
Max lifting height |
21.5 m |
|
Max boom extension length |
19.6 m |
|
Number of sections |
5 |
|
Max. working pressure |
28 Mpa |
|
Rotation angle |
360 degree full rotation |
|
Outrigger span |
2454~7562 mm |
|
Cargo box Parameters |
|
|
Box inner dimension(mm) |
7800×2450×550 mm |
|
Material |
Carbon steel |
|
Thickness |
Floor: 4mm; Walls: 3mm |

※ Ⅲ. Product Details & Fucntions:

HOWO Chassis
● Comfortable Cab: With HOWO TX four-point suspended cab and airbag seats, it effectively enhances driving and riding comfort.
● Powerful Engine: Fitted with a Weichai 350-horsepower engine, it features high torque and sufficient power reserve.
● Reliable Axles: Adopts a 7.5-ton front axle and a 16-ton wheel-side reduction rear axle, boasting strong load-bearing capacity and excellent passability.
● Reinforced Frame: The three-layer frame with flange structure ensures high load-bearing capacity and torsional rigidity of the chassis.

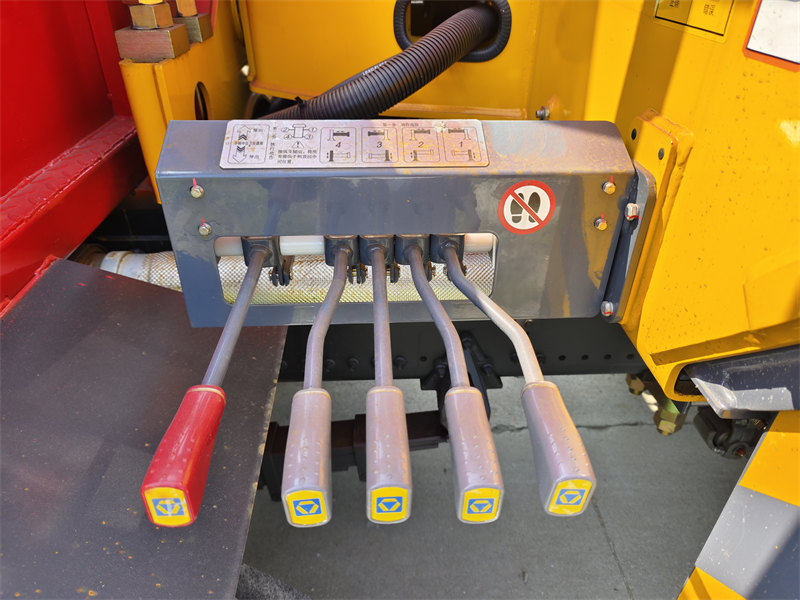

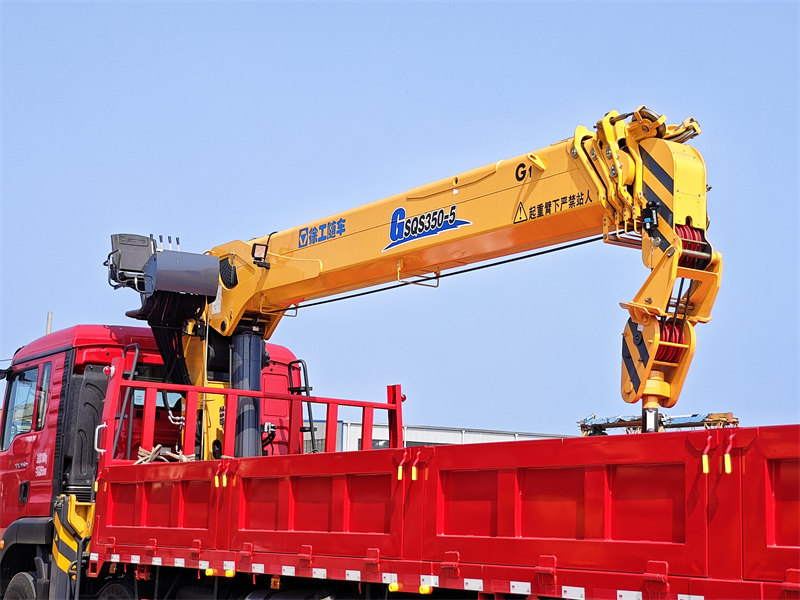

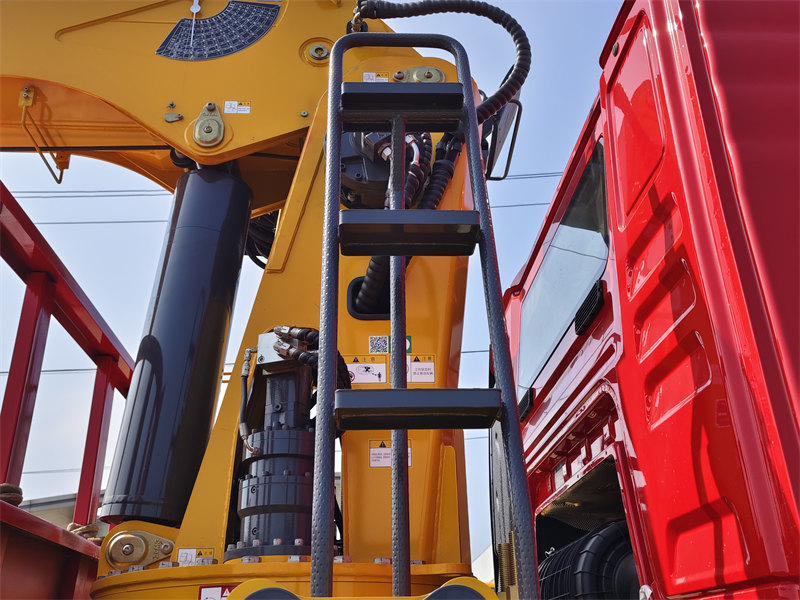

XCMG crane
● Model: SQS350-5
● Type: telescopic boom, 5 sections
● Max. lifting weight: 14000kg
● Boom length: 19.6 m
● Outriggers: 2 front and 2 rear
● Aerial work seat: standard

Cargo box
● Fully cold-riveted cargo box, with the advantages of high strength, light weight and good sealing.
● The cargo box size can be customized as requirements.

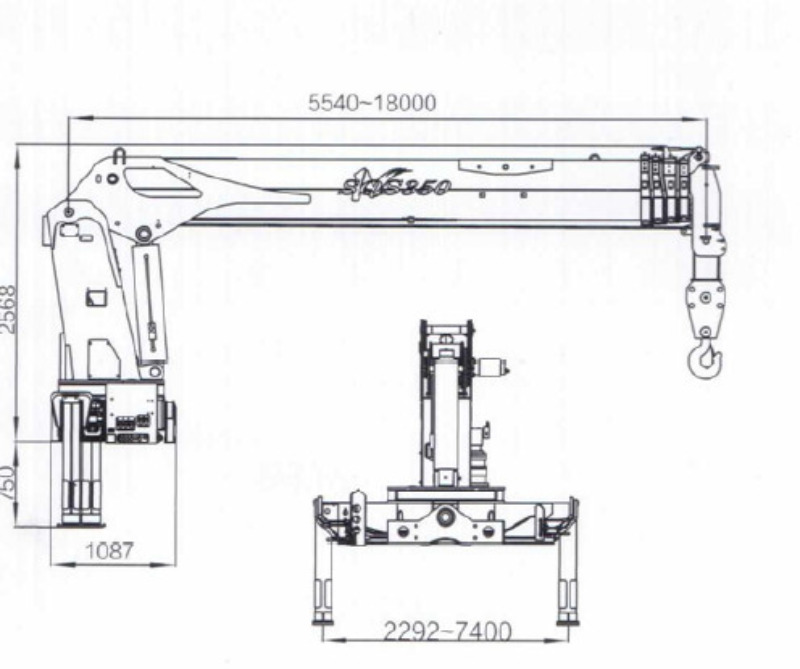

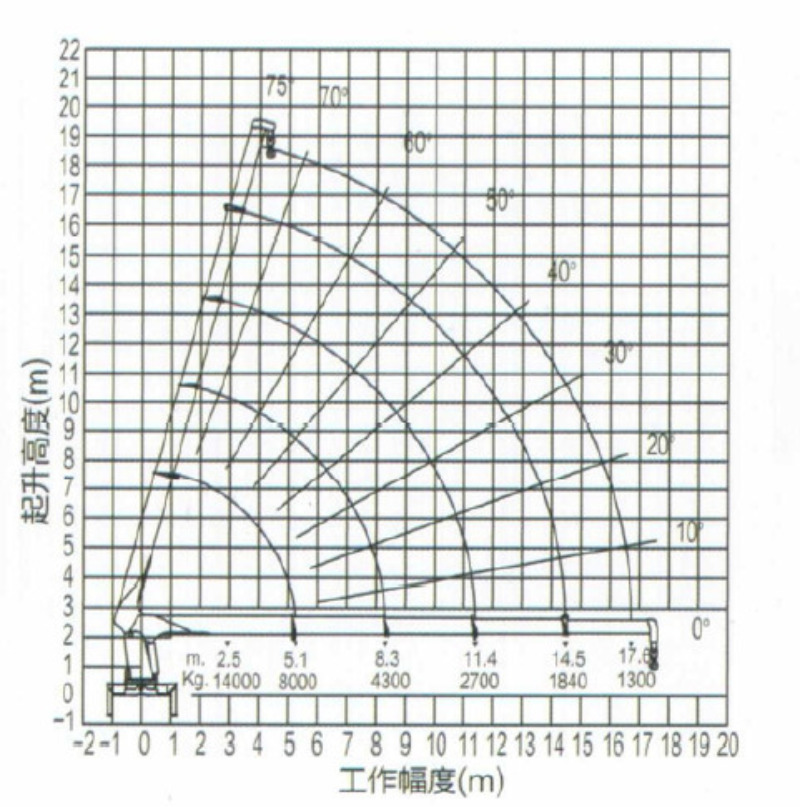

※ Ⅳ. XCMG SQS350-5 crane drawing:

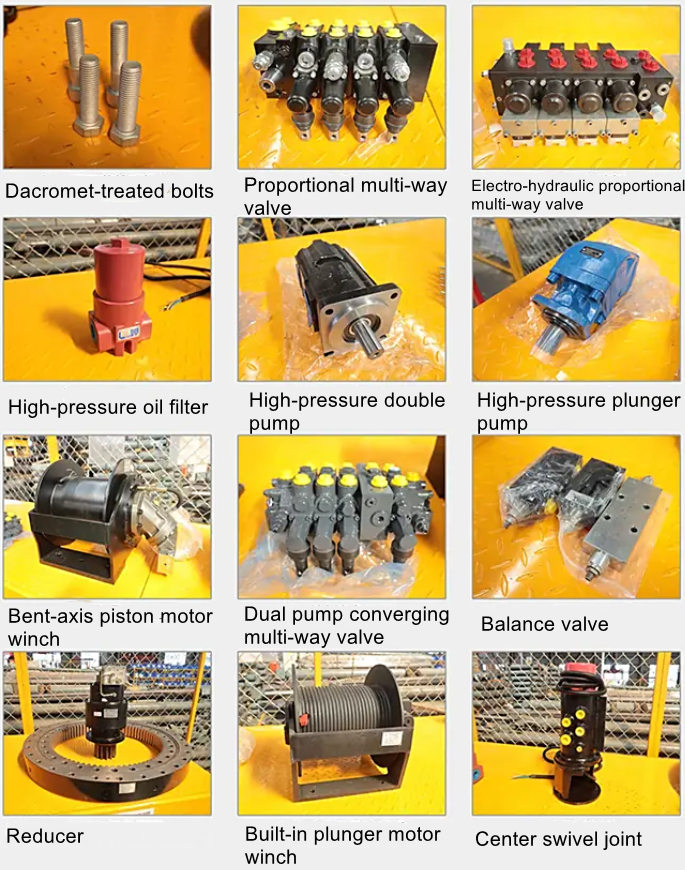

※Ⅴ. Recommended spare parts for HOWO boom crane truck:

1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

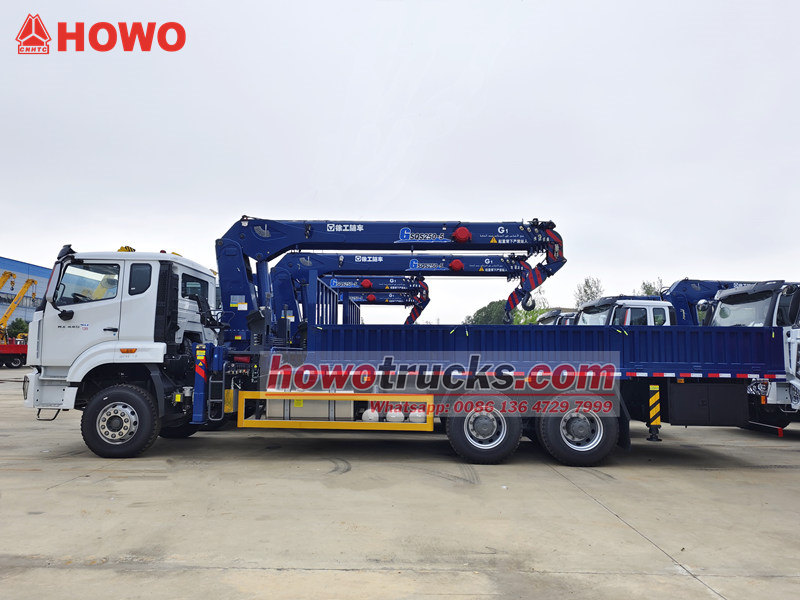

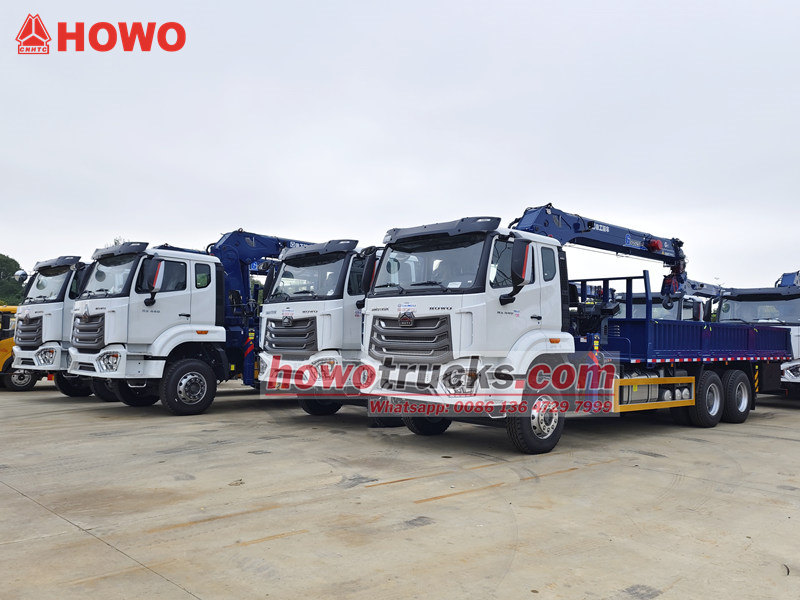

SINOTRUK HOWO crane trucks for export

SINOTRUK HOWO telescopic boom crane trucks ready for delivery
