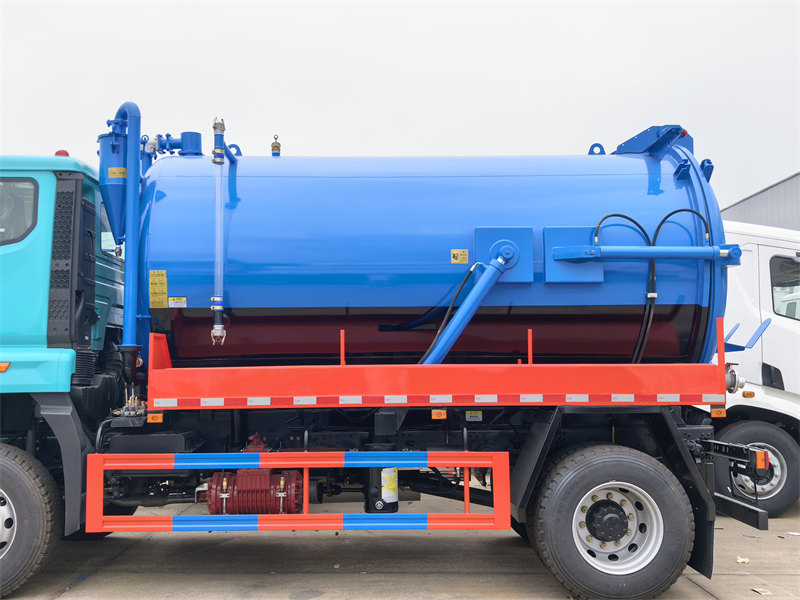

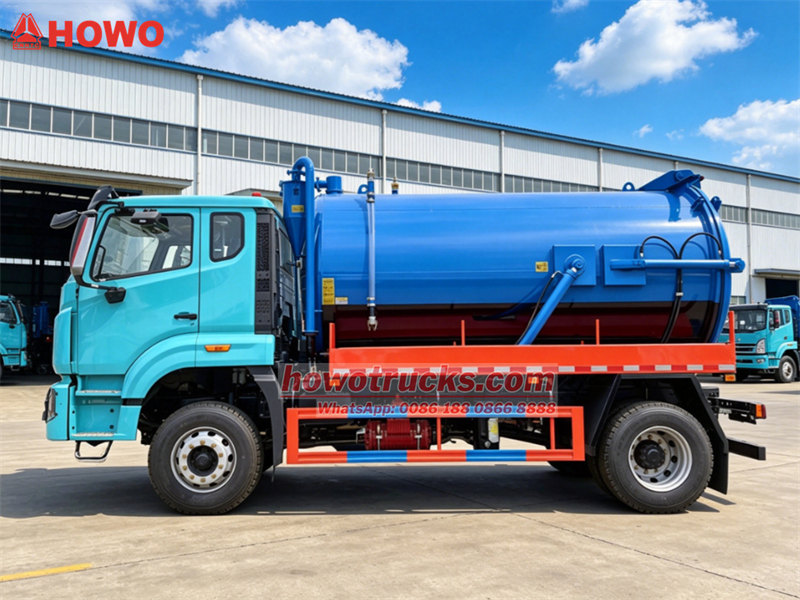

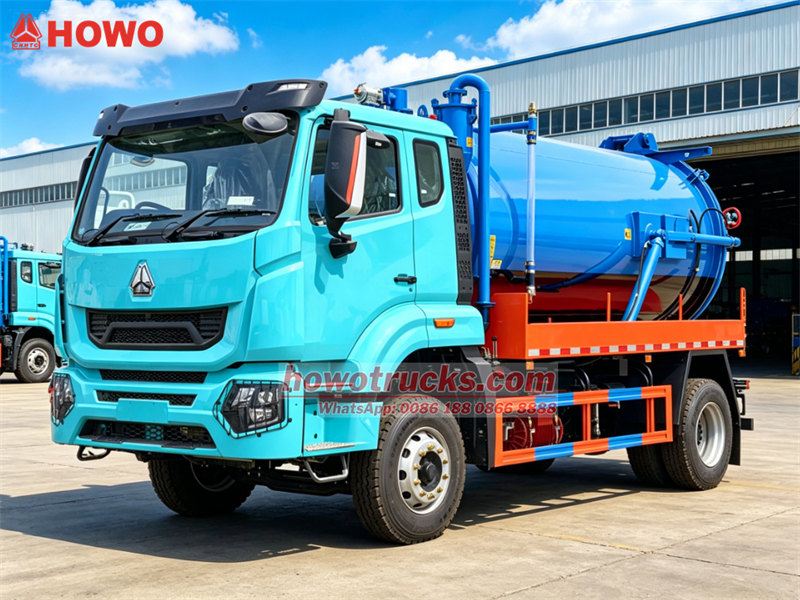

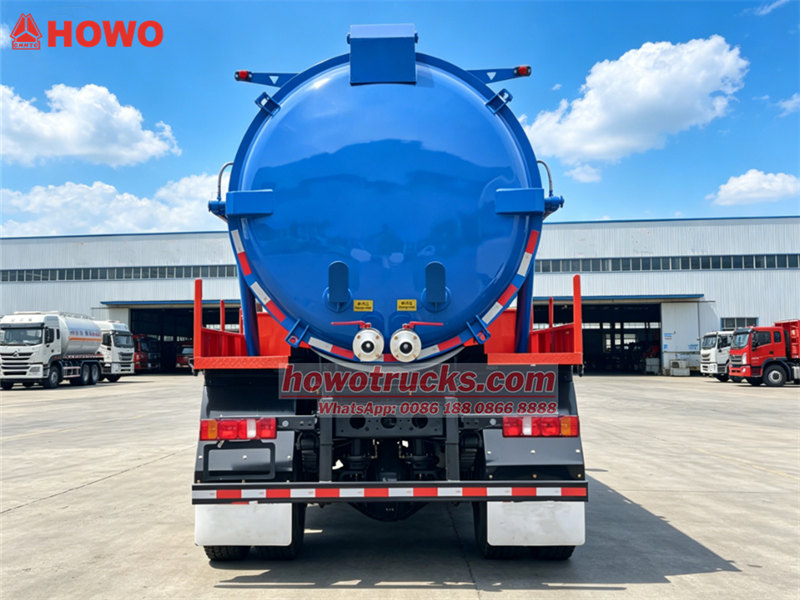

The HOWO 10 CBM drainage sewer cleaning truck is a heavy duty equipment designed for high-volume, high-load sewage cleaning scenarios. It integrates efficient suction, stable transportation, and intelligent unloading, and can cover diverse scenarios such as urban pipe network dredging, port cargo yard sludge removal, and industrial waste liquid treatment. With its high load-bearing capacity, powerful suction system, and refined manufacturing process, it has become a core sewage cleaning equipment in the sanitation, municipal, and industrial fields.
Working capacity :
10000 litersCabin type :
HOWO single cabin with sleeper and A/CDrive system :
4×2Wheelbase ( mm) :
8300*2580*3250 mmEngine specific :
220HP/YC6J220-33Gear box :
HW19710, 10 Forward & 2ReverseFront axle ( Kg ) :
7.5TRear axle ( Kg ) :
13 TThe HOWO 10 CBM drainage sewer cleaning truck is a heavy duty equipment designed for high-volume, high-load sewage cleaning scenarios. It integrates efficient suction, stable transportation, and intelligent unloading, and can cover diverse scenarios such as urban pipe network dredging, port cargo yard sludge removal, and industrial waste liquid treatment. With its high load-bearing capacity, powerful suction system, and refined manufacturing process, it has become a core sewage cleaning equipment in the sanitation, municipal, and industrial fields.

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS TRUCKS Group
Features:
1. Truck Chassis: HOWO heavy truck chassis, 4X2 or 4x4 model
YC model with 220HP and Euro 2,3
2. Tank material: 6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy can be choose
3. Vacuum Pump: China TOP water pump, flow rate 40L/s, working distance over 40m
Optional famous Imported pump


|

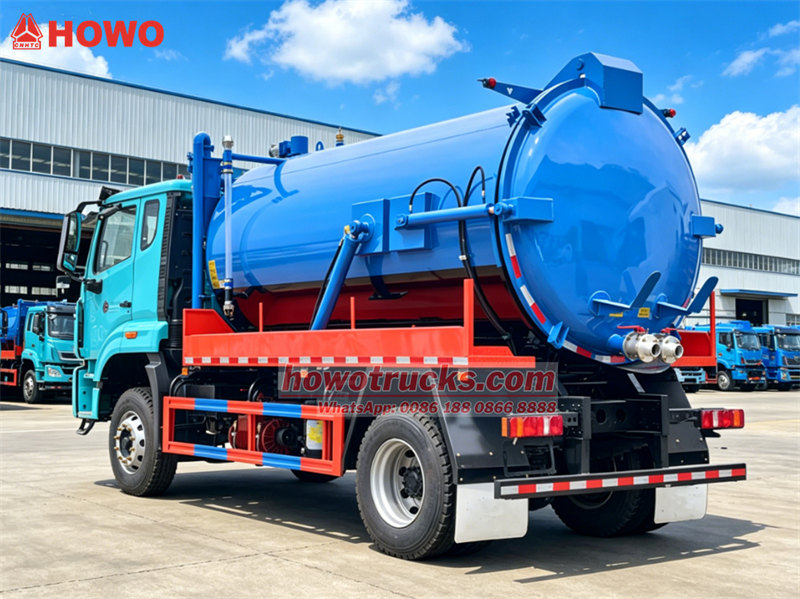

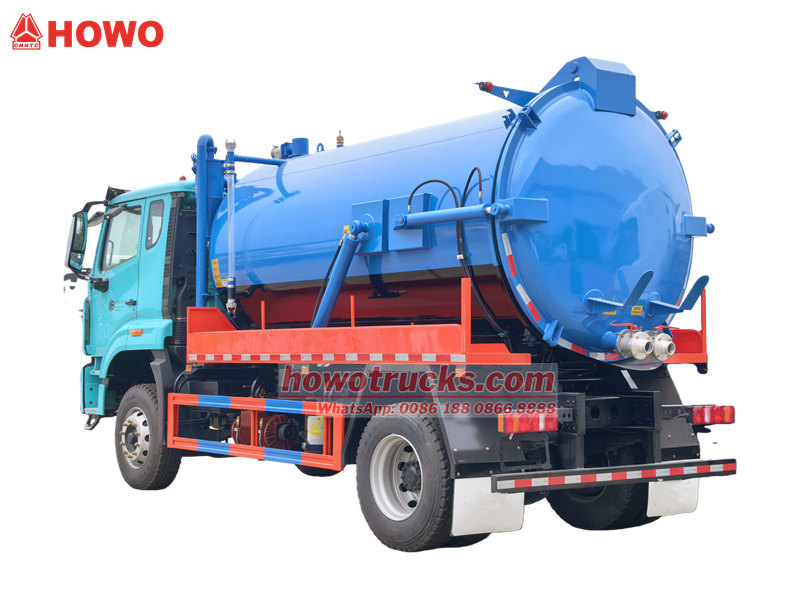

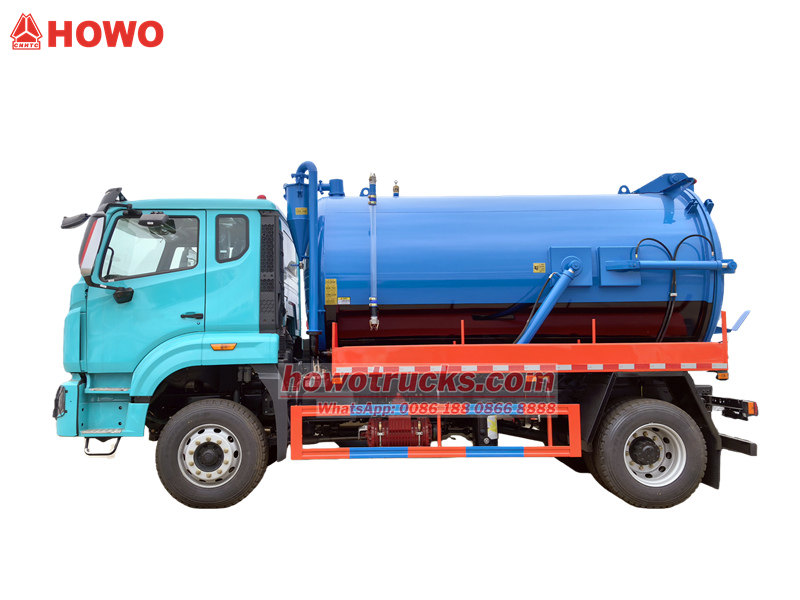

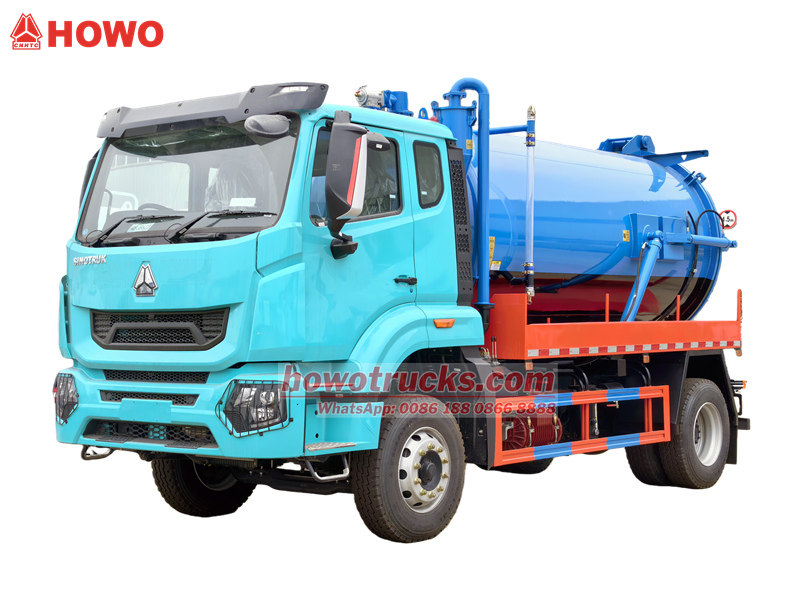

Howo M7 10000L Sewage Tanker Truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
10600*2550*3360mm |
|
|
GVW |
18000kg |
|
|
Curb weight |
7850kg |
|
|
Sewage tank (m3) |
10 |
|
|
Drive system |
4*2 |
|
|
Chassis Description |
||
|
Chassis brand |
HOWO |
|
|
Steering |
LHD |
|
|
Cab |
HOWO,single row, 2 seats,with A/C |
|
|
Wheelbase |
4600 mm |
|
|
Tire specification |
10.00 R20 |
|
|
Tire quantity |
6 tires and 1 spare tire |
|
|
Engine |
Engine model |
YC6J220-33 |
|
Emission level |
EURO 2 |
|
|
Displacement |
6.5 L |
|
|
Horse power |
220 HP |
|
|
Weight |
1065 Kg |
|
|
Fuel |
Diesel |
|
|
Gear box |
Model |
HW19710 |
|
Number of gears |
10 speed |
|
|
Brake system |
Air break |
|
|
Axle |
Front |
7.5T |
|
Rear |
13T |
|
|
Fuel tanker |
Type |
Stainless steel |
|
Capacity |
200L |
|
|
Tanker Description |
||
|
Tanker
|
Capacity |
10000 Liters |
|
Material |
6mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|
Pump
|
Type |
Water circulation pump |
|
Flux |
40 (L/S) |
|
|
Rating speed |
800~1200(r/min) |
|
|
Shaft power |
7(kw) |
|
|
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
|
|
Pipe |
Suction and discharge pipe |
|
|
Special function |
Suction time ≤ 3min, effective suction range ≥ 9, Max vacuum degree ≤ 18 KPa, dump angle ≥ 45° |
|
|
Standard configuration |

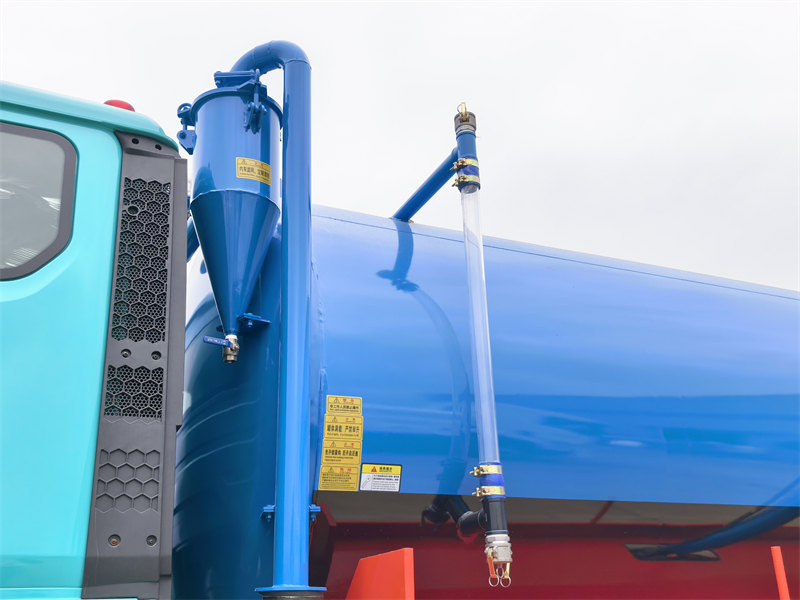

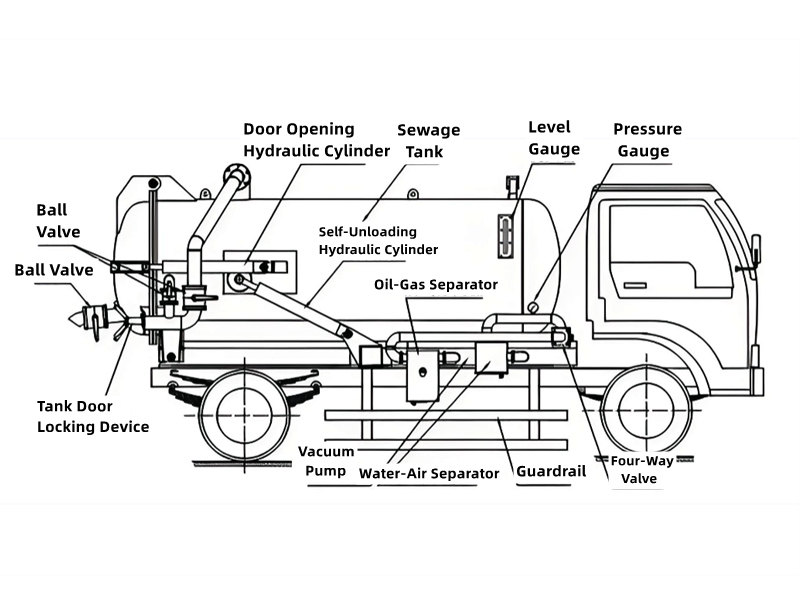

Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. |
|
|
Optional configuration |
Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank |
|

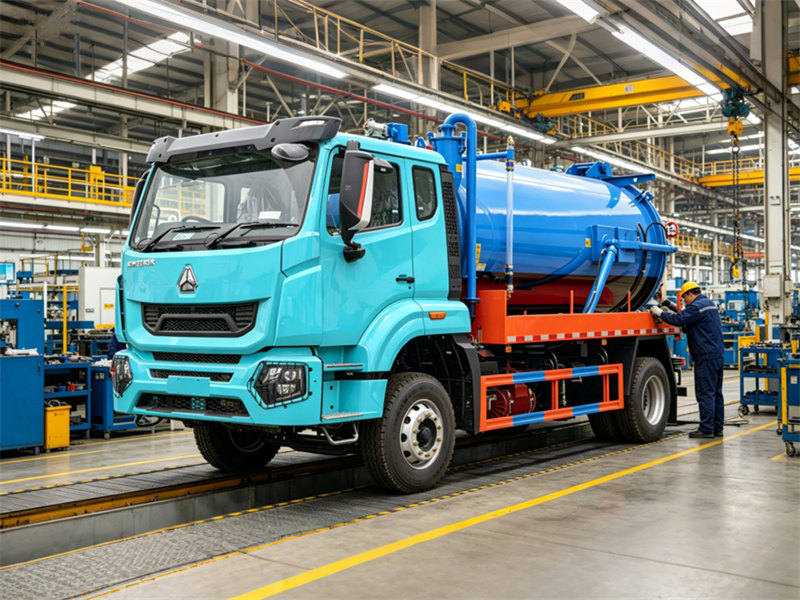

♦ Tank Manufacturing Process:
1. High-Precision Cutting: Computer-controlled plasma cutting, accuracy ±0.1mm, eliminating plate deformation.
2. High-Quality End Cap Process: Spin-forming integral molding, no splicing, uniform stress distribution.
3. Precision Welding: Robotic automatic welding + manual precision repair, two-person symmetrical synchronous welding, strict control of welding deformation.
4. Rigorous Flaw Detection: 100% non-destructive testing of welds, no welding defects, strength matching the base material.
5. Strong Corrosion Protection: Overall sandblasting treatment, internal and external anti-corrosion coating thickness meets standards, resistant to salt spray and corrosion.

♦ System Assembly Process:
1. Piping Pre-treatment: Cleaning and pressure testing before assembly, clean and free of impurities, leak-free throughout.
2. Organized Layout: Scientific and stable pipeline layout, does not interfere with moving parts.
3. Precise Electrical Control: Accurate instrument sensor positioning, standardized wiring, stable signal transmission, eliminating false faults.

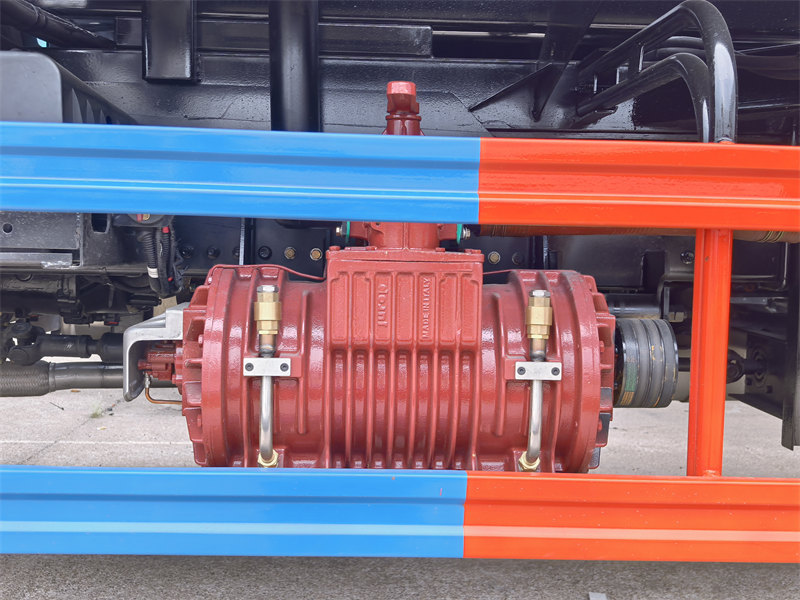

1. JUROP pumps utilize optimized flow path design and precision rotor machining technology to establish extremely high vacuum levels.
2. Key components of JUROP pumps, are made of high-strength, wear-resistant alloys or treated with special coatings, providing exceptional resistance to wear and corrosion.
3. JUROP pumps are designed with thermal management in mind. An optimized structure promotes heat dissipation, preventing performance degradation or damage due to excessive temperatures.

|

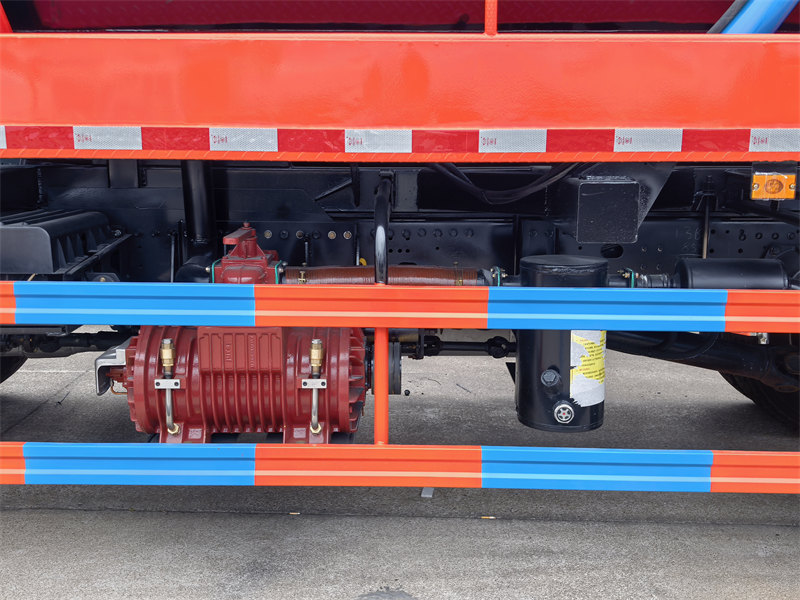

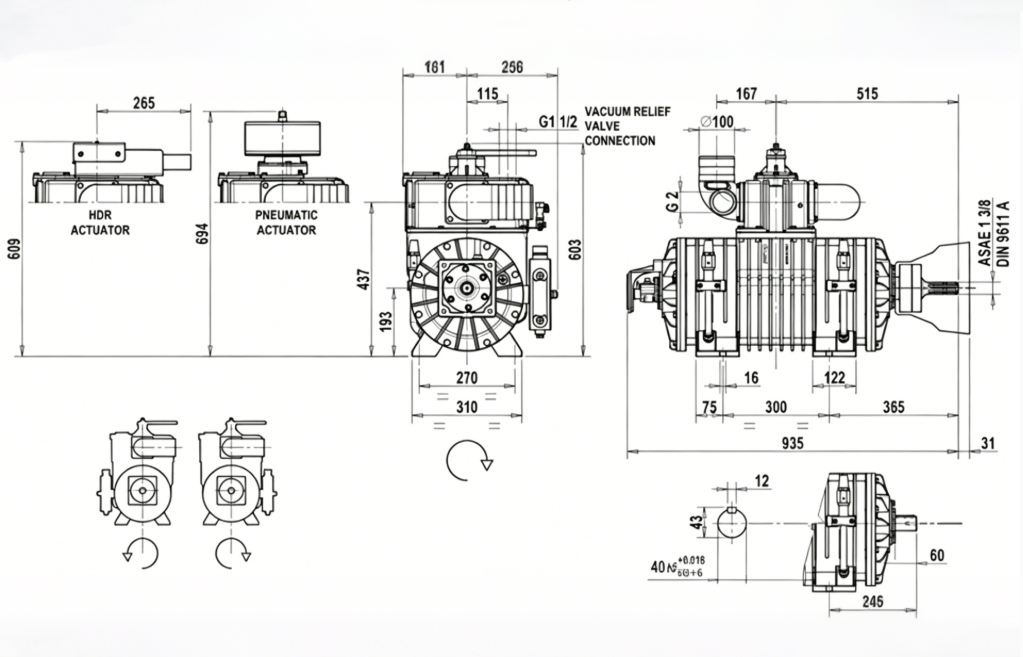

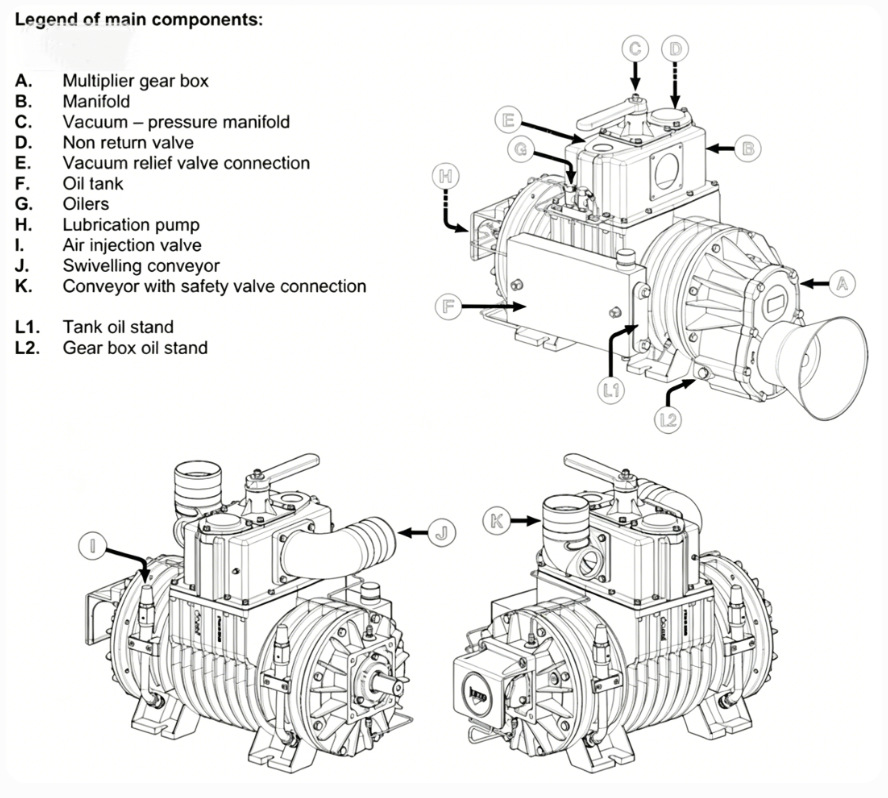

JUROP (PNR 155D) rotary vacuum pump |
||
|
Specification |
Unit |
Value |
|
Free air capacity |
cfm |
424 |
|
Air capacity at 15" Hg/50% vacuum |
cfm |
312 |
|
Max. Vacuum |
Hg (in.) |
28 |
|
Continuous Duty Vacuum |
Hg (in.) |
18 |
|
Max. Pressure |
psig |
29 |
|
Power required at 15" of vacuum |
hp |
15.5 |
|
Power required at max. pressure |
hp |
41 |
|
Rotation speed |
rpm |
1150 |
|
Oil tank capacity |
quart(us) |
4 |
|
Suggested Tank Size |
Gallons |
1000-4000 |
|
Oil consumption |
gal (US)/Hr |
0.05 |
|
Sound pressure at 7 meters (23 ft) 60% vacuum |
dB |
79 |
|
Hose |
in |
3 |
|
Flange |
in |
- |
|
Weight |
lbs |
357 |

♦ Appearance Inspection: Check tank flatness, coating integrity, and weld quality; no wrinkles, paint peeling, or incomplete welds are allowed.

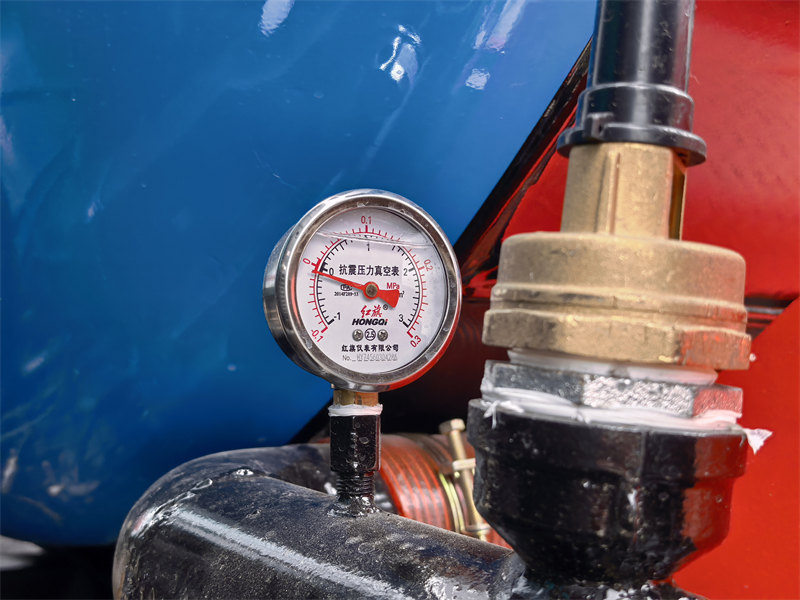

♦ Performance Testing: Vacuum system test (vacuum degree ≥ -0.09MPa, pressure holding for 20 minutes with no significant drop), hydraulic system test (smooth lifting without jamming, no leakage), unloading test (smooth unloading at 45°, no leakage).
♦ Sealing Test: Tank body pressure stabilized at 80kPa for 5 minutes with no leakage; suction and discharge system pressure held at 15kPa absolute pressure for 20 minutes, leakage rate <0.1%.

⇒ The production capacity of over 4,000 trucks every year.
⇒ Over 100 countries worldwide.
⇒ Complete after-sales service system.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.
China professional Howo special truck supplier and exporter, we supply high quality HOWO special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
