HOWO NX 12000L septic tank pump truck

HOWO NX 12000L septic tank pump truck

The HOWO 12,000-liter vacuum tank pump truck is a special-purpose sanitation vehicle designed for the collection and transport of sewage, sludge, and fecal matter. It is built on a Sinotruk HOWO chassis, powered by a Weichai 300 HP engine, and equipped with a Jurop high-flow vacuum pump. The tank has an effective volume of 12 cubic meters. The truck supports both vacuum suction and pressure discharge functions, with a tilting tank and openable rear cover for thorough waste removal. It is widely used for urban pipeline unclogging and septic tank cleaning.

  • Working capacity :

    12000 liters
  • Cabin type :

    HOWO NX cabin with sleeper and A/C
  • Dimension (mm ) :

    8200*2550*3550 mm
  • Drive system :

    4×2
  • Wheelbase ( mm) :

    4600
  • Engine specific :

    300HP/WP10.300E22
  • Gear box :

    HW19710, 10 Forward & 2Reverse
  • Front axle ( Kg ) :

    7T
  • Rear axle ( Kg ) :

    16 T
  • Remark :

    Italy Jurop PN106D vacuum pump
New Products

The HOWO 12,000-liter vacuum septic truck is a specialized sanitation vehicle for the collection, transport, and discharge of liquid or semi-solid waste such as sewage, sludge, and fecal matter. Built on the HOWO NX chassis, it is powered by a Weichai 300 HP engine and equipped with a Jurop high-flow vacuum pump, with a tank effective volume of 12 cubic meters. Its main components include a 12,000L vacuum tank, Jurop vacuum pump, hydraulic system, and suction pipes. The rear cover can be hydraulically opened, and the tank can tilt up to nearly 45 degrees, facilitating complete discharge of solid waste.

This HOWO septic tank pump truck features multi-functionality: it can use the vacuum pump to create negative pressure for sucking waste into the tank, as well as use pressure to quickly empty the tank, ensuring high operational efficiency. The 6-mm thick tank is robust and durable, and the 12000-liter large capacity significantly reduces the number of round trips. It is widely used in urban pipeline dredging, septic tank cleaning, industrial liquid waste transport, and farm waste treatment, making it a reliable helper for municipal sanitation and industrial site cleaning.

HOWO NX 12000L sewage tank truck



*HOWO NX 12000L Septic Tank Truck

 SINOTRUK HOWO NX Sewer Vacuum Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in special truck area,
guarantee all products Brand-New and High-Quality.





Ⅰ.Product Defination and Introduction «««

Manufacturer: CS TRUCKS Group

Features:

1. Truck Chassis: HOWO heavy-duty chassis, 4X2 or 4x4 drive, NX new model cabin

                              WEICHAI 300HP diesel engine, Euro 2, 3



2. Tank material: 6mm thick carbon steel for prolonged service lief
                             stainless steel is optional

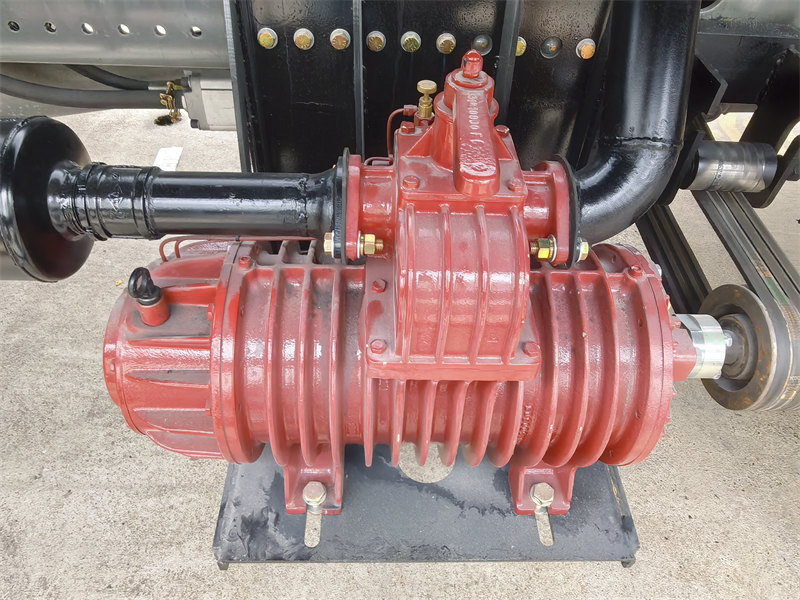

3. Vacuum Pump: Italy imported Jurop vacuum pump, flow rate 10000L/min, max. vacuum up to 92%
                              MORO pump, BP pump for option

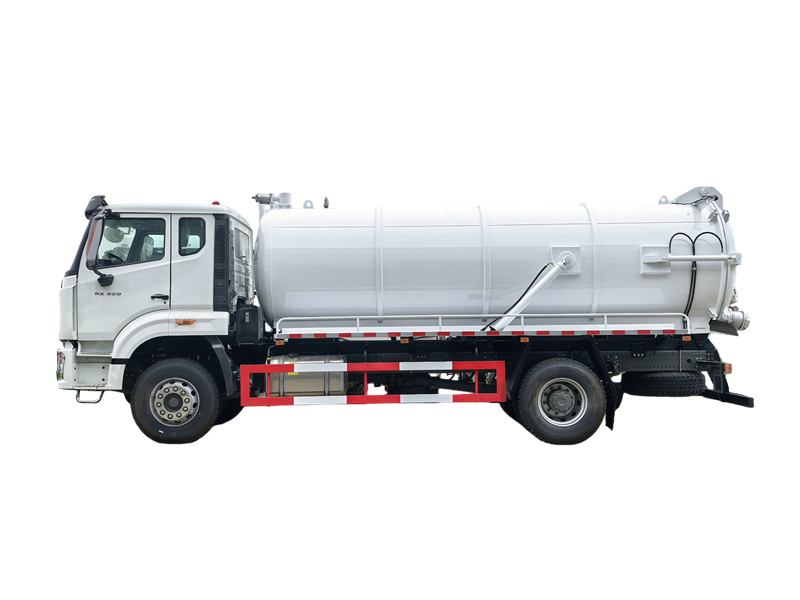

HOWO NX 12CBM sewage tank truck



Ⅱ. Howo Vacuum Pump Truck Specifications«««





SINOTRUK HOWO 12000 liters septic tank pump truck

Vehicle Description

Overall Dimensions

8200x2550x3550mm

GVW

18000kg

Payload

12 tons

Chassis Brand

SINOTRUK HOWO

Steering

Left hand drive

Chassis Description

Chassis Model

ZZ1187

Cab

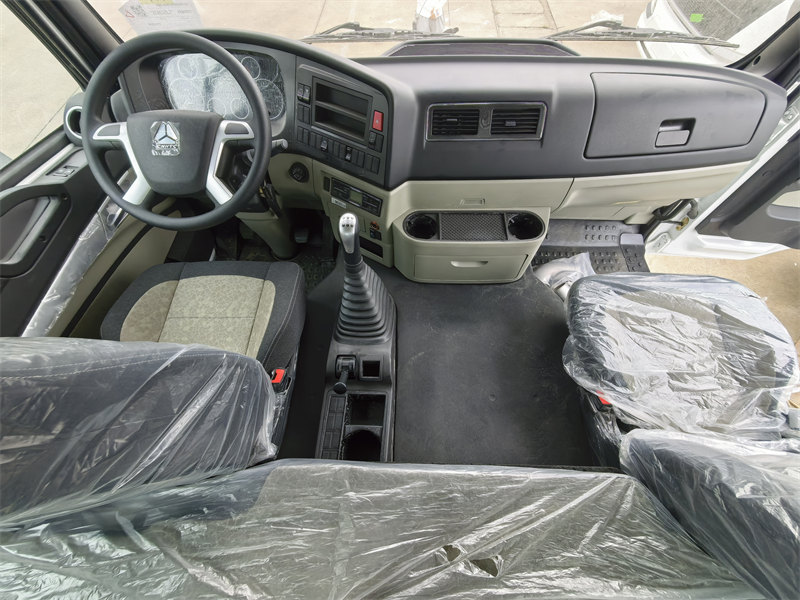

HOWO NX cabin, with A/C, 2 seats and one sleeper

Drive Type

4×2

Wheelbase

4600mm

Tire Specification

12.00R20 with one spare tyre

Tire Quantity

6+1 units

Engine

Model

WEICHAI, WP10.300E22

Type

6-cylinder inline, 4-stroke, turbocharged and intercooling, directly injection

Max. output

300HP (221kW)

Displacement

9.726L

Emission standard

Euro 2

Rated speed

1900 rpm

Max. torque

1390 N.m

Gear Box

Model

HW19710

Number of gears

10 forward gears& 2 reverse

Brake System

Full air brake, drum brake

Axle

Front

7T

Rear

16T

Suspension

Front

Leaf springs

Rear

Leaf springs

Tank

Vacuum Tank Capacity

12000 liters

Material & Thickness

Q345 carbon steel, 6mm thickness

Vacuum Pump

Vacuum Pump

JUROP PN106D

Max Vacuum

92%

Air flow

10000L/min

Suction Head

7m

Others

Tank body can be hydraulic liftted nearly 45 degree

Rear door can be hydraulic opened for complete discharge of solid stuff.

All Standard Accessories

All standard accessories: manhole, tool kit, English manual.

Optional Choice

1.Tank material could be stainless steel.

2.Control panel for vacuum pump is optional









Ⅲ. HOWO Vacuum Tank Truck Features «««



HOWO 12000L sewage tank truck
1. Large capacity: With an effective tank volume of 12 cubic meters, it can carry more waste per trip, reducing the number of round trips to disposal sites and significantly improving operational efficiency.
2. Strong suction capability: Equipped with a Jurop high-flow vacuum pump, it achieves a maximum vacuum degree of 92%, and a flow rate of 10,000 liters per minute, enabling rapid suction of sewage, sludge, and even thick fecal matter.
3. Thorough discharge: The tank can be hydraulically tilted up to nearly 45 degrees, and with the hydraulically opening rear cover, both liquid waste and solid residues can be easily discharged, reducing tank residue and the trouble of manual cleaning.
4. Sturdy chassis: Built on the HOWO chassis and powered by a Weichai 300 HP engine, it offers strong load-bearing capacity and is suitable for continuous operation under complex road conditions.
5. Good durability: The tank is made of 6mm thick Q345 carbon steel, which is strong and wear-resistant.



✦Ⅳ. HOWO Vacuum Tank Truck Details «««









The production capacity of over 4,000 trucks every year.



Over 100 countries worldwide.



Complete after-sales service system.



We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.





China professional Howo special truck supplier and exporter, we supply high quality HOWO special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

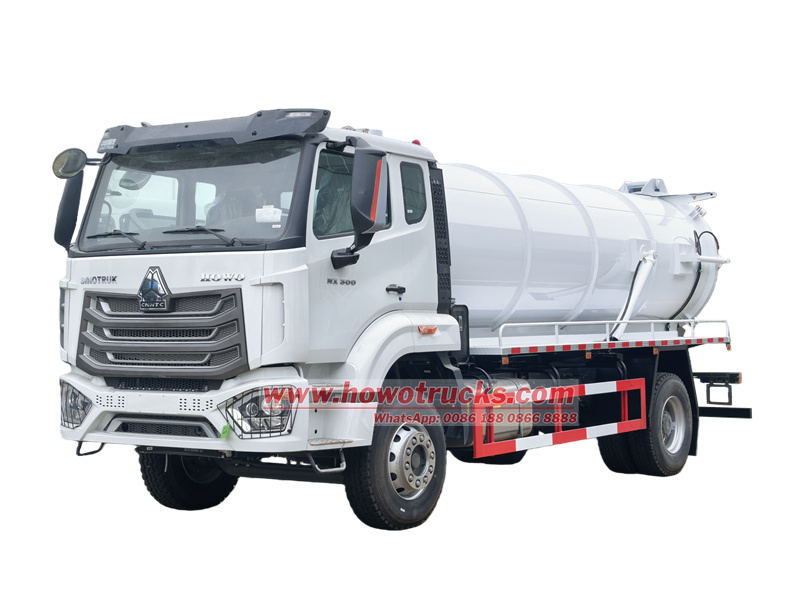

HOWO 12000L sewage vacuum tank truck



Howo NX vacuum tank pump truck
