The Howo light-duty sewage tank truck is a specialized sanitation vehicle developed for municipal sanitation, small-scale engineering projects, and residential cleaning needs. It features a 4x2 drive configuration and comes in various tank capacities, including 4000L and 6000L. This multi-functional light-duty special-purpose vehicle integrates sewage suction, dredging, transportation, and discharge. Utilizing Sinotruk's mature light-duty truck chassis technology, combined with a high-efficiency vacuum sewage suction system and a corrosion-resistant tank design, the truck balances flexibility and practicality. It can adapt to complex operating environments such as narrow urban roads and old residential areas, as well as meet the cleaning needs of small industrial scenarios, boasting stable performance and diverse adaptability.
Working capacity :
8000 litersCabin type :
HOWO 1880Drive system :
4×2Wheelbase ( mm) :
3800Engine specific :
160HP/YC4E160-33Gear box :
WLY6TS55Front axle ( Kg ) :
3200Rear axle ( Kg ) :
8000The Howo light-duty sewage tank truck is a specialized sanitation vehicle developed for municipal sanitation, small-scale engineering projects, and residential cleaning needs. It features a 4x2 drive configuration and comes in various tank capacities, including 4000L and 6000L. This multi-functional light-duty special-purpose vehicle integrates sewage suction, dredging, transportation, and discharge. Utilizing Sinotruk's mature light-duty truck chassis technology, combined with a high-efficiency vacuum sewage suction system and a corrosion-resistant tank design, the truck balances flexibility and practicality. It can adapt to complex operating environments such as narrow urban roads and old residential areas, as well as meet the cleaning needs of small industrial scenarios, boasting stable performance and diverse adaptability.
The core configuration of this vehicle is tailored to the characteristics of light-duty truck operations. It is powered by a high-quality diesel engine, such as the YC4E160-33 (160HP), offering strong power output and excellent fuel economy. The chassis uses a Sinotruk-specific light-duty truck chassis with a flexible wheelbase (2800mm-4600mm), a robust structure, and excellent passability, optimized for complex urban road conditions. It is also equipped with a high-performance water circulation pump or SK vacuum pump, which has high suction and discharge efficiency and low noise, taking into account both operating efficiency and environmental friendliness, and fully adapting to the core positioning of light trucks as "flexible operation and high efficiency".

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS TRUCKS
Product Features:
☛ Howo middle duty 4x2 chassis with stronger power YuChai 160HP engine.
☛ Suctioning,displacing(option),transporting and discharging dry,wet and hazardous substances, such as sluge sand,(roof) gravel, fly ash, powders and various types of liquids.
☛ The powerful tri-lobe blower gives the vacuum tanker with cyclone separator a very high suction and displacement capacity.

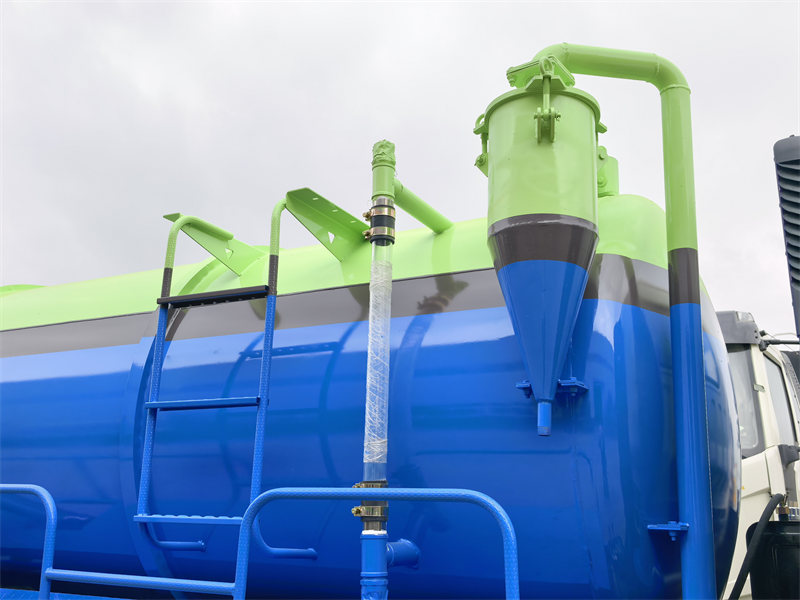

☛ Self-cleaning cyclone separation keeps the cyclones dust free at all times.


|

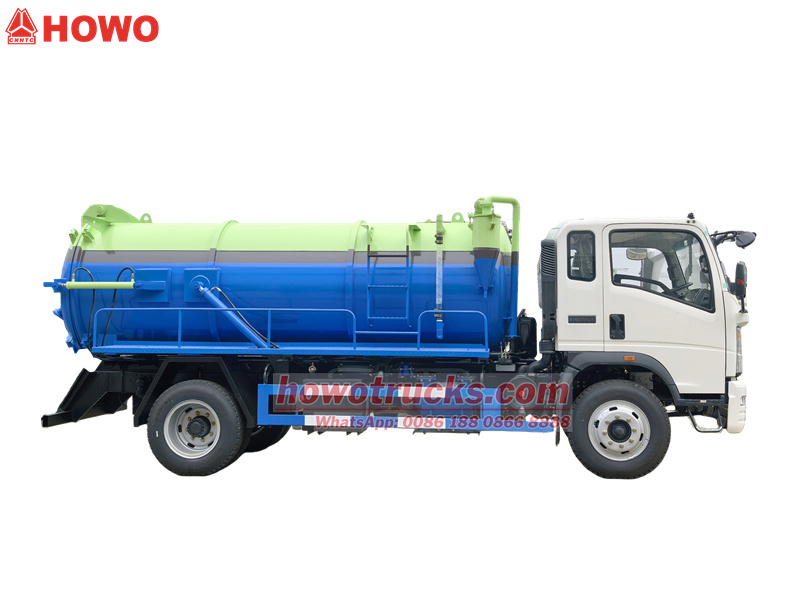

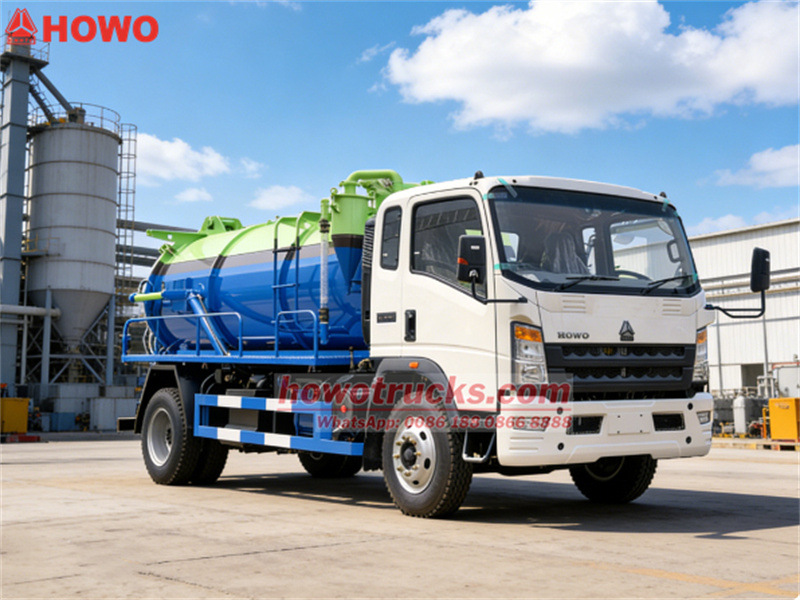

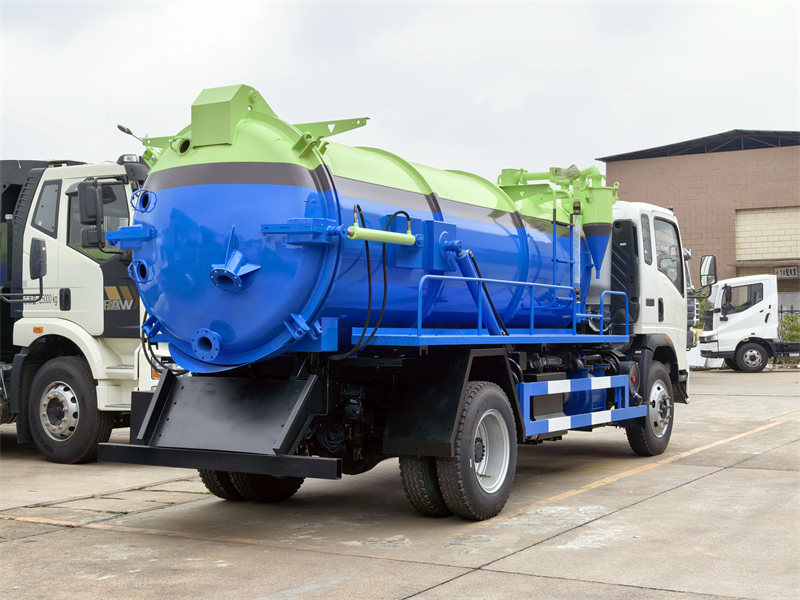

Howo light 6000L septic tanker truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
6500*2350*2560mm |
|
|
GVW |
11000kg |
|
|
Curb weight |
4850kg |
|
|
Sewage tank (m3) |
6 |
|
|
Drive system |
4*2 |
|
|
Chassis Description |
||
|
Chassis brand |
Howo |
|
|
Steering |
LHD |
|
|
Cab |
Howo,single row, 2 seats,with A/C |
|
|
Wheelbase |
4600 mm |
|
|
Tire specification |
8.25R16 |
|
|
Tire quantity |
6 tires and 1 spare tire |
|
|
Engine |
Engine model |
YC4E160-33 |
|
Emission level |
EURO 3 |
|
|
Displacement |
4.16L |
|
|
Horse power |
160HP |
|
|
Weight |
765Kg |
|
|
Fuel |
Diesel |
|
|
Gear box |
Model |
HW90510C2 |
|
Number of gears |
6 speed |
|
|
Brake system |
Air break |
|
|
Axle |
Front |
4T |
|
Rear |
7T |
|
|
Fuel tanker |
Type |
Stainless steel |
|
Capacity |
400L |
|
|
Tanker Description |
||
|
Tanker
|
Capacity |
6000 Liters |
|
Material |
5mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|
Pump
|
Type |
Water circulation pump |
|
Flux |
36 (L/S) |
|
|
Rating speed |
600~800(r/min) |
|
|
Shaft power |
5(kw) |
|
|
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
|
|
Pipe |
Suction and discharge pipe |
|
|
Special function |
Suction time ≤ 3min, effective suction range ≥ 7, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45° |
|
|
Standard configuration |

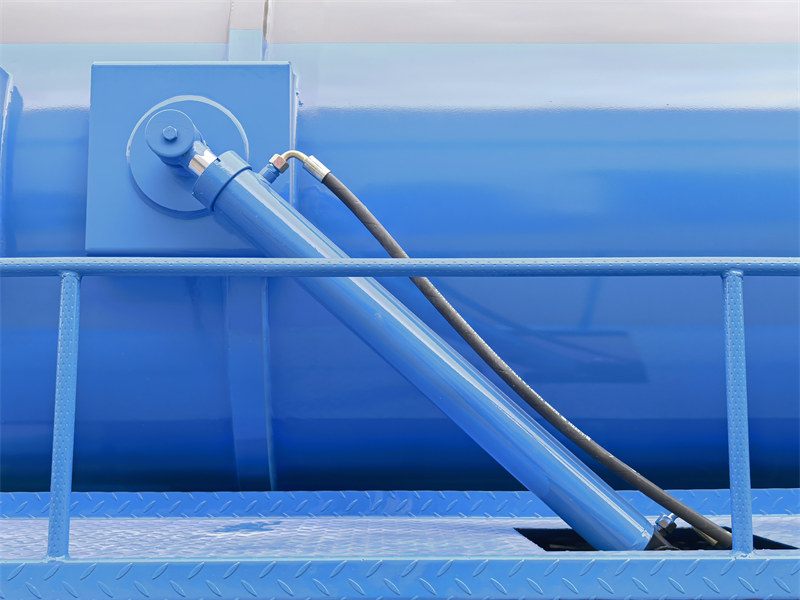

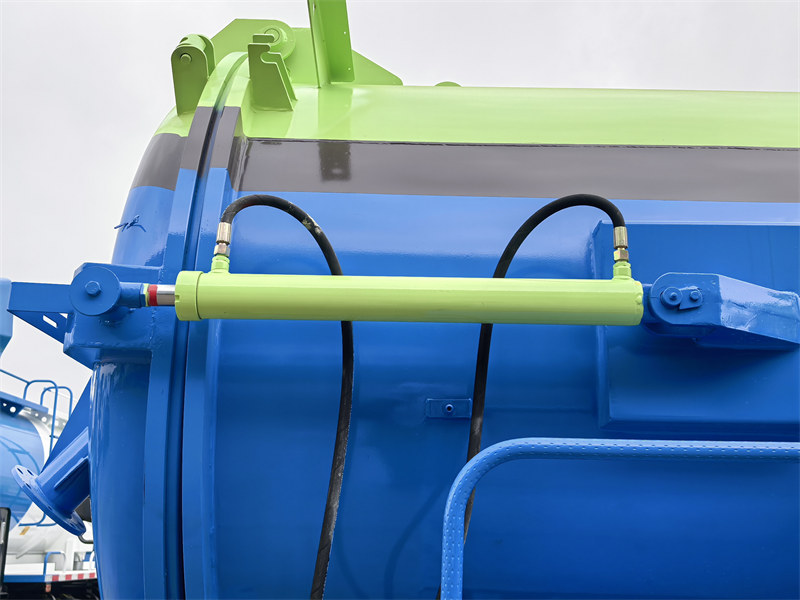

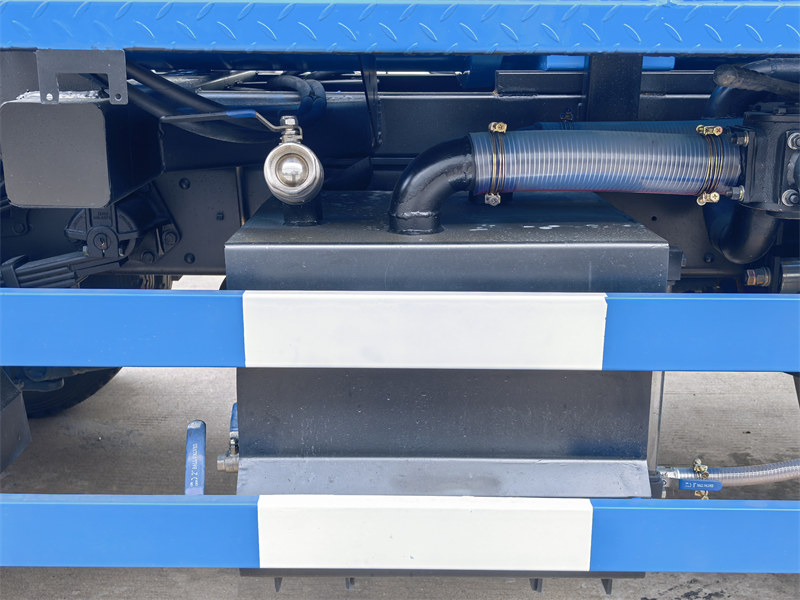

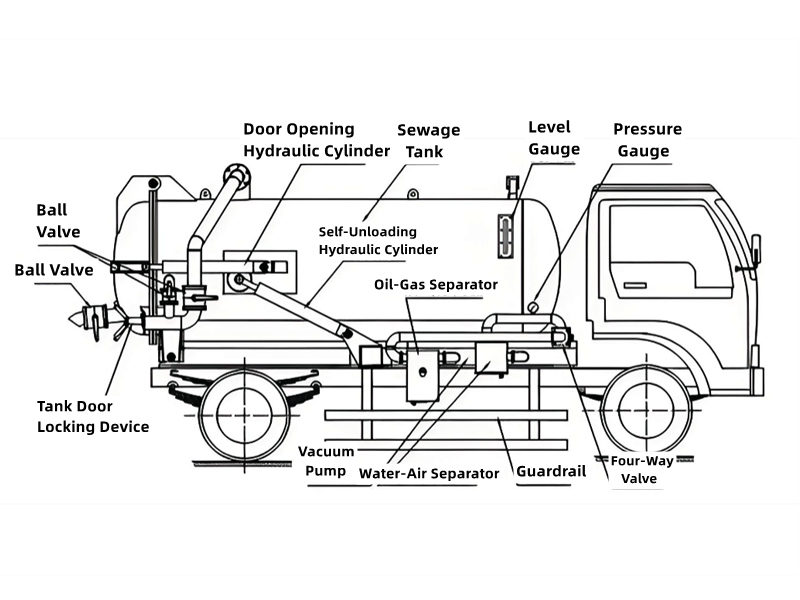

Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. |
|
|
Optional configuration |
Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank |
|

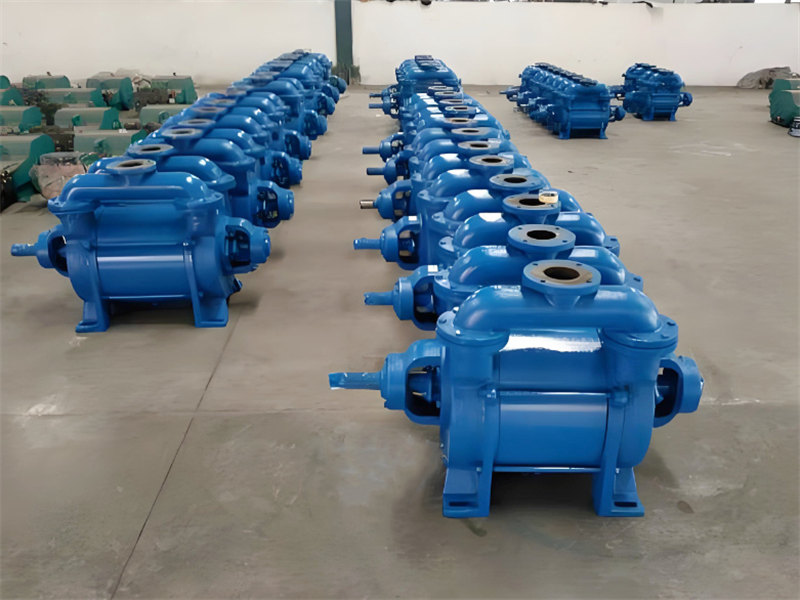

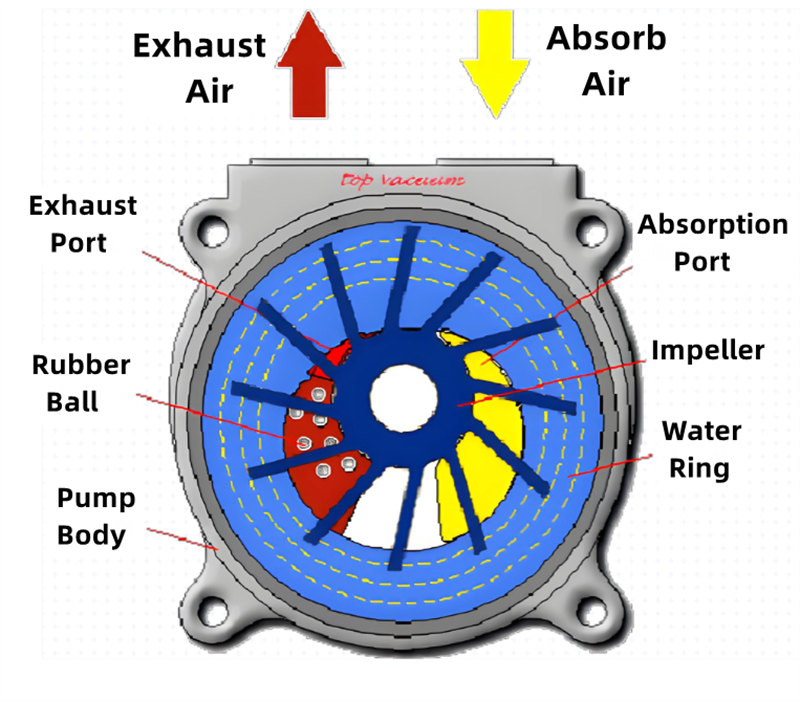

1.High-performance water circulation pumps or SK vacuum pumps are selected, with a vacuum level ≥0.08MPa, suction lift ≥5 meters, flow rate adapted to tank specifications, stable operation, low noise, and low energy consumption.
2.Key components of the SK pump must be made of high-strength wear-resistant alloys or treated with special coatings, possessing excellent wear and corrosion resistance, and optimized thermal management design to prevent performance degradation or damage due to excessive temperature during prolonged operation.
3.The vacuum pump must undergo rigorous performance testing to ensure continuous trouble-free operation and meet service life standards.

|
Specification |
Unit |
Value |
|
Free air capacity |
cfm |
435 |
|
Air capacity at 15" Hg/50% vacuum |
cfm |
489 |
|
Max. Vacuum |
Hg (in.) |
24 |
|
Max. Pressure |
psig |
23 |
|
Power required at 15" of vacuum |
hp |
15 |
|
Power required at max. pressure |
hpa |
25 |
|
Max. speed |
rpm |
900 |
|
Working speed |
rpm |
700 |
|
Oil tank capacity |
lt |
4.8 |
|
Oil consumption |
Gr/h |
190 |
|
Sound pressure at 7 meters (23 ft) 60% vacuum |
dB |
70 |
|
Hose |
in |
3/4 |
|
Flange |
in |
- |
|
Weight |
lbs |
486 |

1. Chassis Material and Manufacturing Process:
♦ The chassis utilizes a Sinotruk-specific light truck chassis. The frame is constructed of high-strength steel, undergoing precision welding and anti-corrosion treatment to ensure a robust structure and high load-bearing capacity.
♦ It also possesses excellent resistance to deformation and corrosion, adapting to harsh outdoor operating environments.
♦ Chassis welding must conform to industry welding standards, with welds free of cracks and porosity to ensure stability during driving and operation.

2. Powertrain and Transmission System:
♦ Core components such as the engine, transmission, and axles must be high-quality products that meet relevant national standards.
♦ Engine emissions must meet EURO 3 or higher standards (to comply with environmental requirements), with stable power output and reasonable fuel consumption.
♦ The transmission system must be precisely matched, with smooth shifting. The braking system (air brakes) must be sensitive and reliable, with braking distances meeting industry standards. Pneumatic parking assist enhances driving safety.
♦ The chassis must undergo rigorous road testing to ensure adequate passability, stability, and handling, adapting to complex urban road conditions.

3. Tank Material Standards:
♦ The tank body must be made of high-quality corrosion-resistant materials. The default material is 5mm thick high-quality carbon steel, with stainless steel as an option.
♦ The carbon steel tank body can be fitted with a comprehensive anti-corrosion coating. The inner wall coating thickness is ≥200μm (epoxy resin or polyurethane material), which is acid and alkali resistant, corrosion resistant, and can withstand long-term contact with corrosive media such as sewage and sludge.
♦ The tank material undergoes material testing to ensure that its strength and toughness meet standards, preventing tank deformation and damage.
1. Urban Underground Pipeline Maintenance:
Used for daily dredging and cleaning of small urban sewers, rainwater pipe networks, and sewage pipe networks. It removes silt, debris, and grease from pipes to prevent blockages and ensure unobstructed flow. It is particularly suitable for maintaining narrow pipe networks in older urban areas, compensating for the blind spots of large vacuum trucks.
2. Public Area Cleaning:
Used for sewage cleaning and ground washing (optional sprinkler system) in public areas such as parks, squares, streets, bus stops, and garbage transfer stations. It also includes the regular cleaning of public toilets and septic tanks, improving the quality of the public environment and reducing odors and environmental pollution.

3. Small Construction Projects:
Used for mud removal and construction wastewater cleaning at construction sites, as well as the cleaning of temporary toilets and septic tanks. This prevents construction wastewater from polluting the surrounding environment and ensures smooth construction progress. It can also be used for post-construction site cleaning, removing silt and debris left over from construction, meeting environmental protection construction requirements.
4. Small-scale industrial scenarios:
Used for sewage transportation and wastewater treatment in small factories, processing plants, and farms, as well as dredging of sewage pipes within the factory area. By upgrading the tank material, it can be suitable for treating industrial wastewater and aquaculture wastewater with low corrosivity, helping enterprises to achieve standardized sewage treatment.
