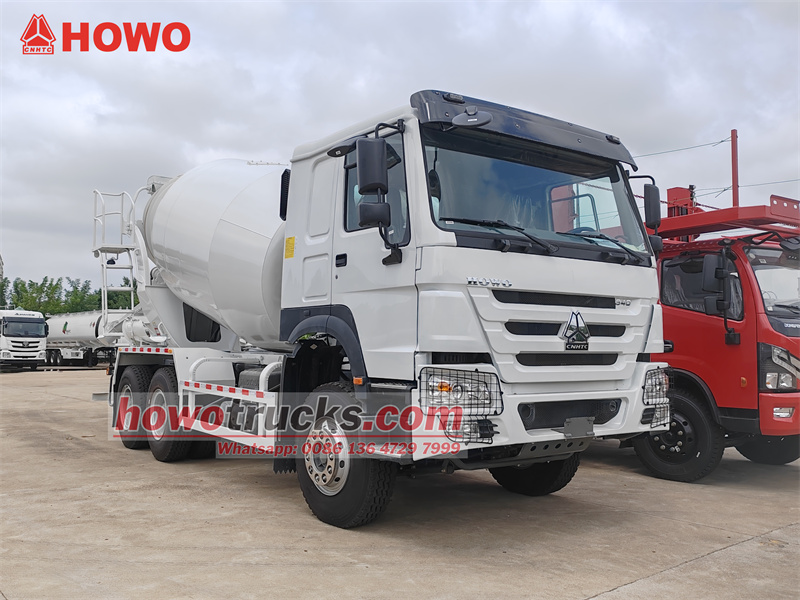

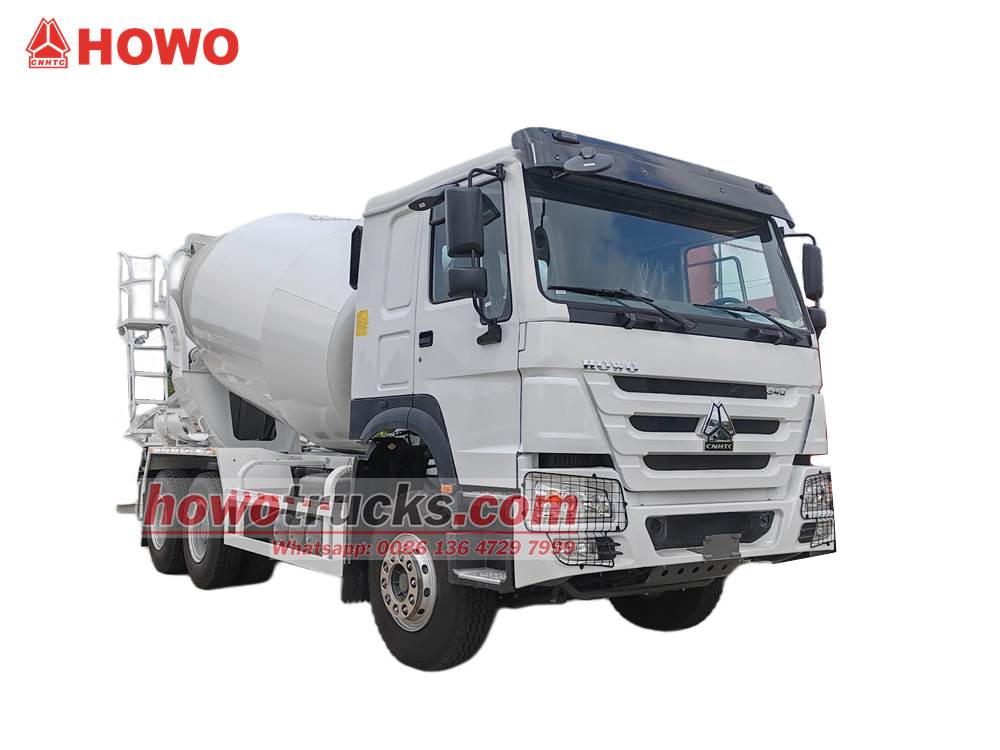

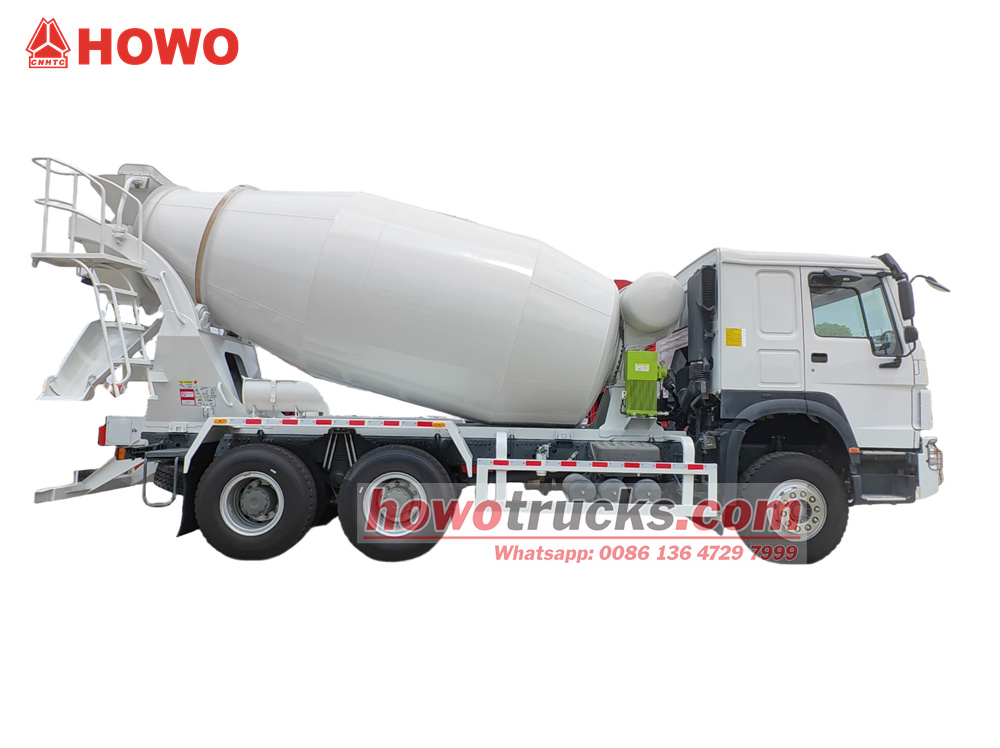

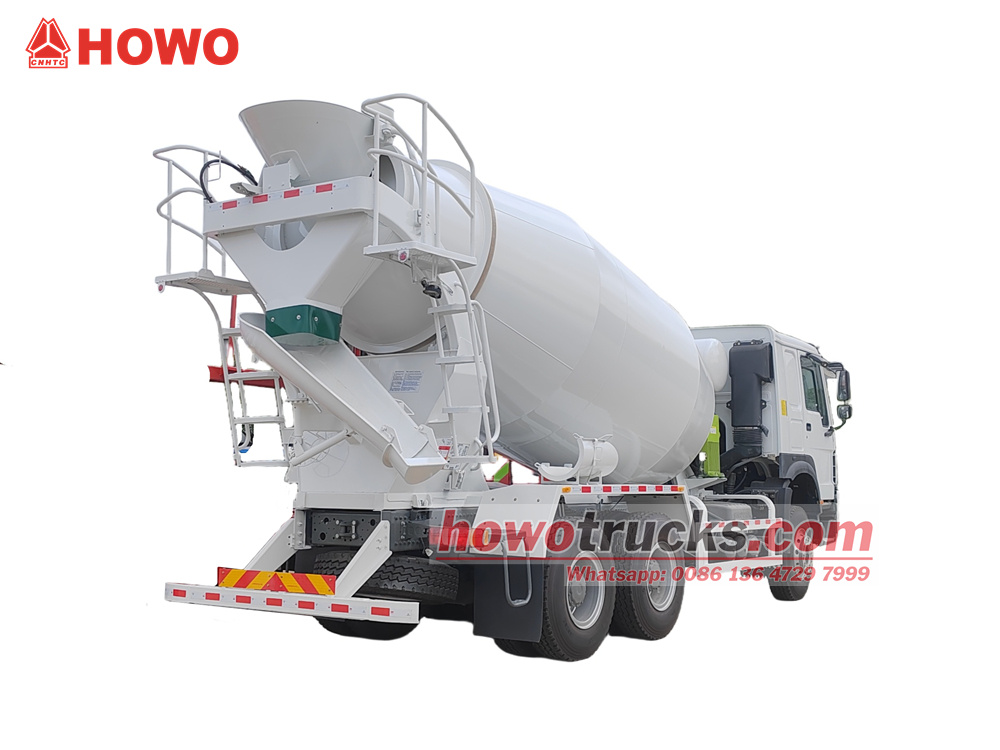

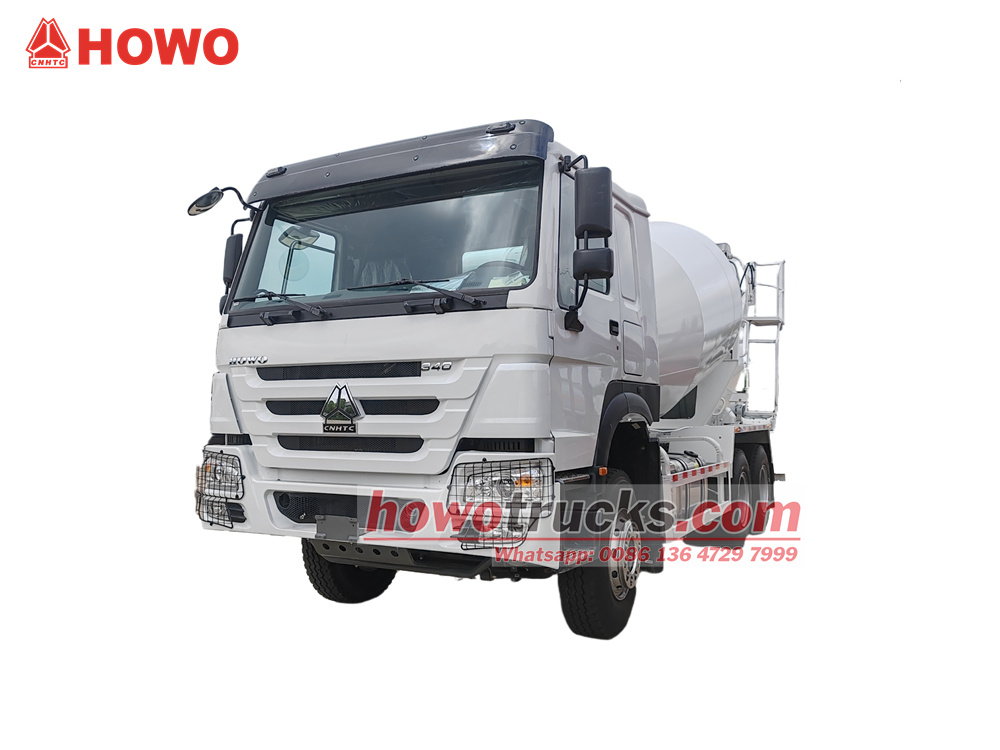

The HOWO 6x4 10 cubic meter concrete mixer truck adopts the HOWO HW76 half-row cab, with a total mass of 25 tons, a 4325+1350mm wheelbase, and is equipped with a Weichai WP10.340E22 engine and a Sinotruk HW19710 10-speed gearbox. The upper mixing tank has a capacity of 10 cubic meters and is made of Q355 manganese steel. The tank body is 5mm, the head is 6mm, and the blade is 4mm thick. It is equipped with an Italian PMP reducer, an American Eaton brand hydraulic pump and motor, a Chinese brand radiator, an air control box assembly, a water tank capacity of 400L, air pressure water supply, double-sided control handles at the rear, linkage operation, and a low residue rate.
Working capacity :
10cbmCabin type :
Howo HW76 one and half row cabinDrive system :
6x4,LHDWheelbase ( mm) :
4325+1350 mmEngine specific :
340HP / WEICHAI WP10.340E22Gear box :
HW19710, 10-speed, manualFront axle ( Kg ) :
7000Rear axle ( Kg ) :
18000(2 axles)The 10cbm Howo Trucks Transit Mixers is an efficient and reliable modern concrete transport vehicle designed specifically for urban construction and medium-sized engineering projects. It is equipped with a Weichai 340-horsepower engine and a Sinotruk 10-speed transmission, forming a golden powertrain that delivers powerful and reliable power. The superstructure is constructed of Q355 manganese steel, with reinforced key areas for exceptional wear resistance. The core transmission system comprises an Eaton hydraulic pump and motor from the United States and a PMP reducer from Italy, delivering stable performance and excellent efficiency. The vehicle features a dual-side linkage control system at the rear, enabling convenient and precise operation while ensuring low concrete residue. Furthermore, a 400L pneumatic water supply and cleaning system and a high-efficiency radiator ensure continuous operation. The vehicle's sophisticated design makes it a reliable and loyal partner.
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Key Features
1. Powerful, adaptable to complex working conditions: Equipped with a Weichai 340-horsepower engine and a Sinotruk 10-speed transmission.
2. High-strength superstructure, durable and low-energy consumption: The 10-cubic-meter tank is thick and wear-resistant, while the large-diameter feed port and optimized discharge port ensure fast charge and cleaning discharge.
3. Internationally branded core components, stable and reliable: Italian PMP reducer, American Eaton hydraulic pump and motor, and domestically produced high-quality radiator.
4. Intelligent control, convenient and safe: Dual rear-mounted control handles allow single-handed steering with minimal operating force.
5. Efficient cleaning system, water-saving and environmentally friendly: The 400L pneumatic water supply tank eliminates the need for a pump and can be drained in winter to prevent freezing. The rotating spray head and high-pressure water gun further conserve water.
» Ⅱ. Product Parameters for HOWO 10cbm concrete mixer truck:
|
HOWO 6x4 Mix Concrete Mixer Truck |
||
|
Vehicle model |
CS5250GZR |
|
|
Overall dimension |
9850x2500x3950mm |
|
|
GVW |
25000kg |
|
|
Curb weight |
13850kg |
|
|
Chassis parameter |
||
|
Chassis Brand |
SINOTRUK HOWO |
|
|
Wheelbase |
4325+1350mm |
|
|
Driving type |
6x4,Left hand drive |
|
|
Cab |
HOWO HW76 one and half row,with A/C |
|
|
Engine |
Type |
Inline 6-cylinder, 4-stroke, supercharged, intercooled, water-cooled, |
|
Model |
WEICHAI WP10.340E22 |
|
|
Rated power (HP) |
340HP/ 250kW |
|
|
Rated speed |
2200rpm |
|
|
Max torque |
1400N.m |
|
|
Max torque speed |
1300-1500rpm |
|
|
Displacement |
9.726L |
|
|
Emission standard |
Euro 2 |
|
|
Fuel type |
Diesel |
|
|
Fuel tank |
400L |
|
|
Transmission(Gear box) |
HW19710 10-speed,manual |
|
|
Front axle loading |
7000kg |
|
|
Rear axle loading |
18000kg(2 axles) |
|
|
Tyre |
12.00R20 (10+1) |
|
|
Mixing Drum parameter |
||
|
Mixing drum material |
High-quality, high-strength, wear-resistant steel |
|
|
Model: Manganese steel Q355 |
||
|
Drum body thickness: 5mm, End cover thickness:6mm, leaves thickness:4mm |
||
|
Hydraulic system |
Reducer |
Italian PMP brand |
|
Hydraulic pump and motor |
American Eaton brand |
|
|
Radiator |
Chinese brand |
|
|
Hydraulic circuit type |
Closed |
|
|
Geometric Volume |
16.2 m³ |
|
|
Effective volume |
10m³ |
|
|
Mixing drum inclination |
12° |
|
|
Charging rate |
≥3 m³/min |
|
|
Top feed hopper dimension |
≥650 mm |
|
|
Discharging rate |
≥2 m³/min |
|
|
Residual rate |
≤1% |
|
|
Water supply |
Baric water supply system |
|
|
Water tank capacity |
400L |
|
|
Mixer drum rotation speed |
0~12rpm |
|
|
Operating system Model |
Rear two side operate joystick, linkage operation |
|
|
Accessory |
Tool box, view pipe |
|
» Ⅲ. Product Details
Chassis Configuration
• Utilizes Sinotruk's proven HW76 6x4 heavy-duty chassis
• Large wheelbase of 4325mm + 1350mm
• Equipped with a Weichai WP10.340E22 engine, 340HP/250kW, peak torque of 1400Nm, 9.726L displacement, and Euro 2 emissions
• Equipped with a Sinotruk HW19710 10-speed manual transmission, featuring a wide first gear ratio, easy starting under heavy loads, and a well-balanced gear range.
Upper System

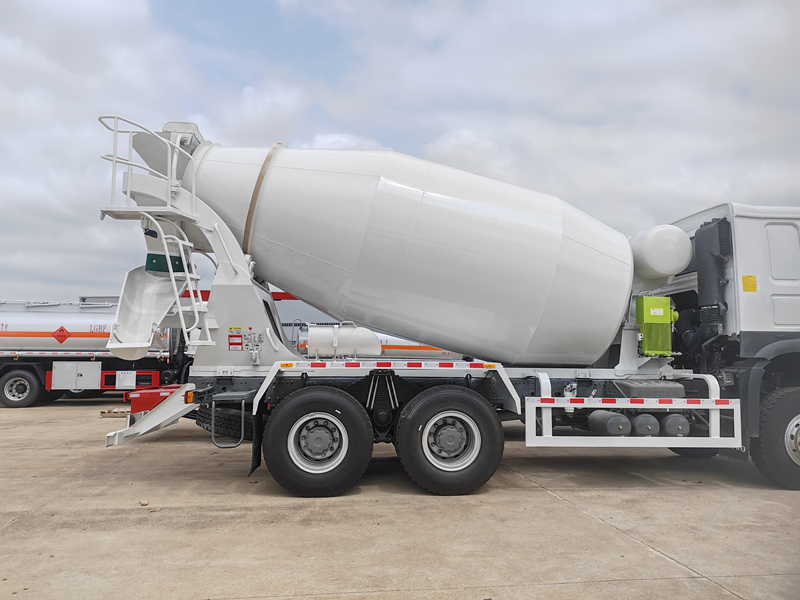

1. Mixing Tank:
• Geometric volume 16.2 m³, effective volume 10 m³, constructed of high-strength Q355 manganese steel, offering excellent wear and impact resistance. Tank wall thickness is 5 mm, with the head (front and rear ends) thickened to 6 mm. The mixing blades are 4 mm thick.

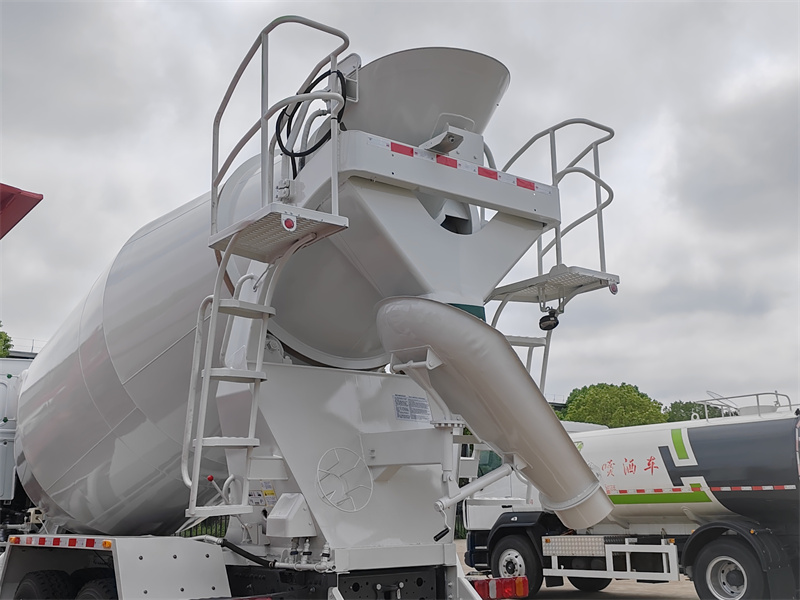

• The mixing drum has a 12° inclination, a feed rate ≥ 3 m³/min, a discharge rate ≥ 2 m³/min, and a discharge residual rate ≤ 1%.
• During rotation, the concrete moves along the spiral direction of the blades, mixing and stirring the concrete through continuous lifting and stirring.
• During charge and transport, the mixing drum rotates forward, moving the concrete inward along the blades.

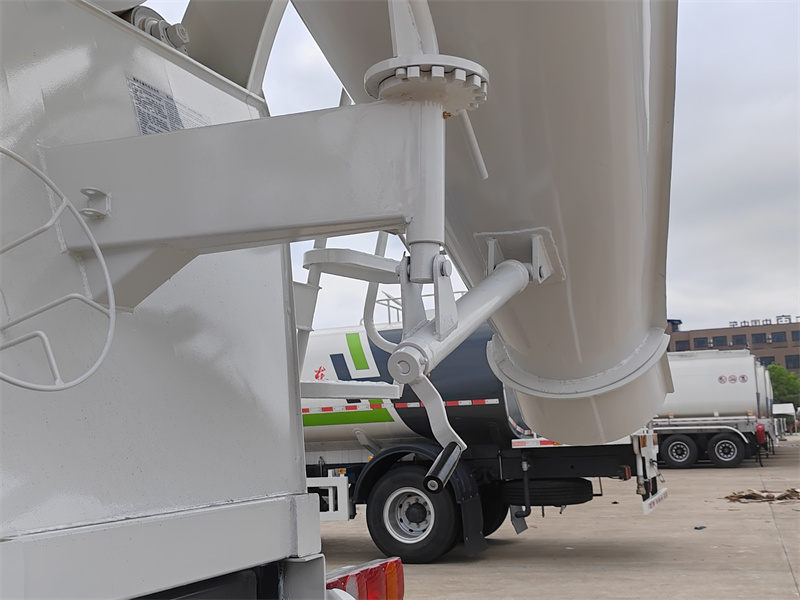

• During discharge, the drum rotates reversely, discharging the concrete outward along the blades.
2. Hydraulic System:
• Reducer: Utilizing a technologically proven Italian PMP reducer, the hydraulic system reduces the motor's output speed before transmitting it to the mixer drum.
• Hydraulic System: The core pump and motor utilize Eaton brand technology from the United States, offering stable performance, high efficiency, precise control, and a very low failure rate. Engine power extracted through the power take-off is converted into hydraulic energy (displacement and pressure), which is then output through the motor as mechanical energy (speed and torque), powering the mixer drum.
• Closed Hydraulic Circuit
3.Cooling System:

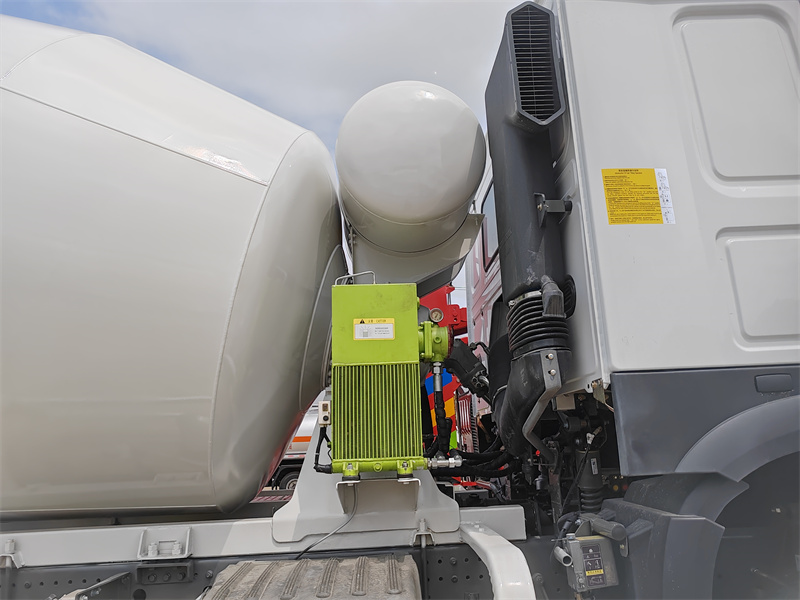

The hydraulic system is equipped with a Chinese-brand radiator, which effectively controls the hydraulic oil's operating temperature. This prevents excessive oil temperature from causing system efficiency loss or failure due to prolonged, high-load operation, ensuring the equipment's continuous operational reliability.

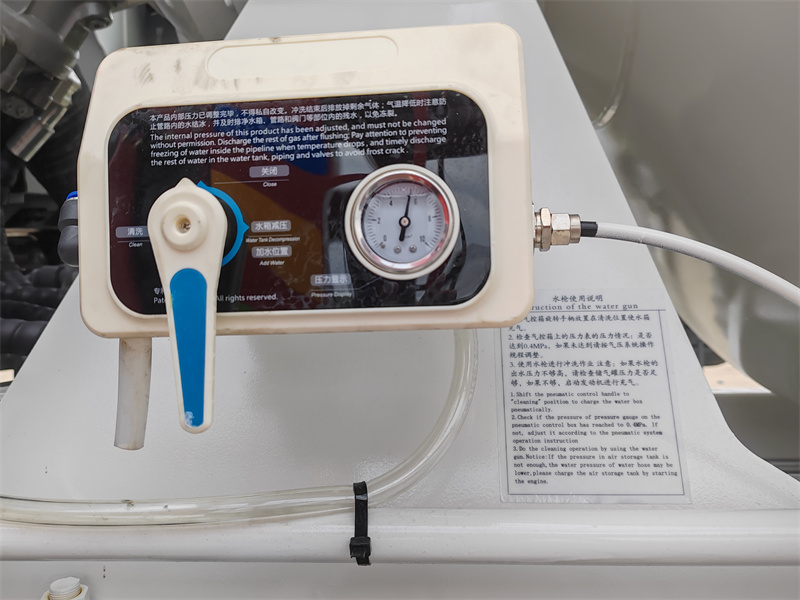

4 Water Supply System:
The 400-liter water tank features pneumatic water supply. This is primarily used for cleaning the mixing drum and also cools the hydraulic system.

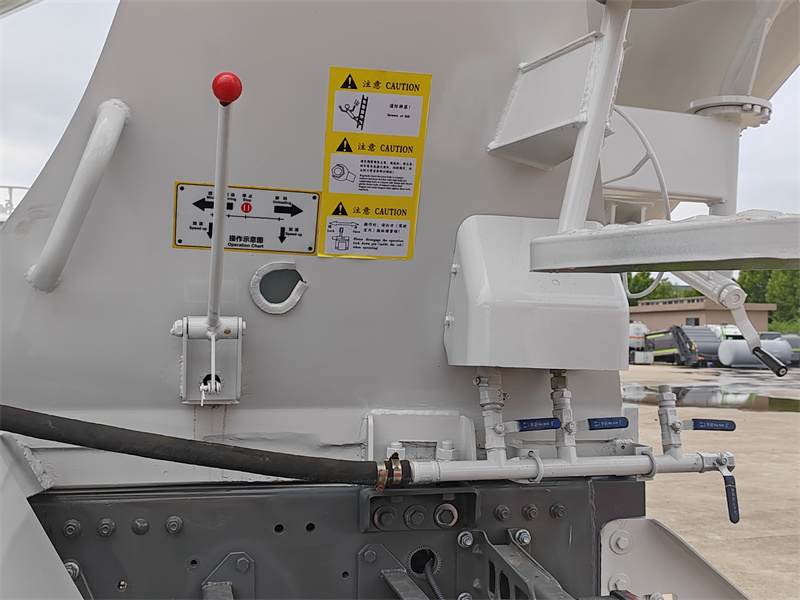

5.Control System:

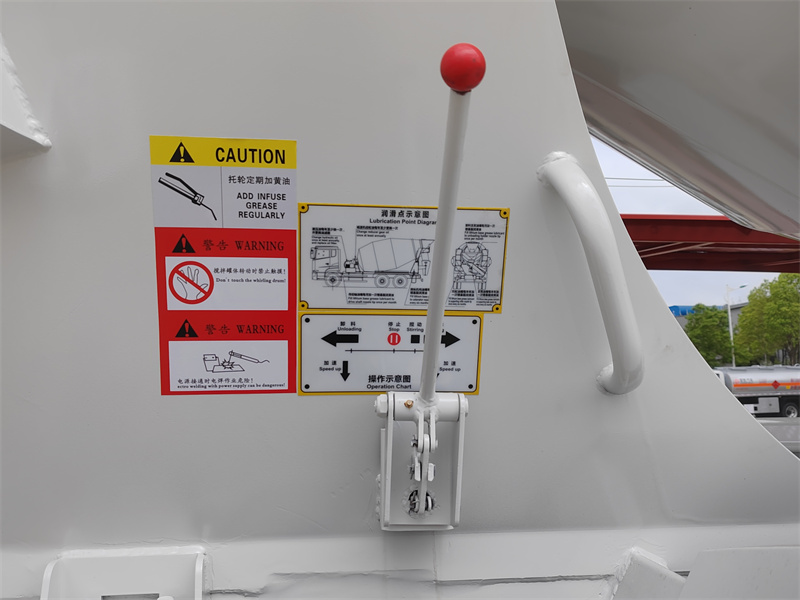

• Dual joysticks at the rear allow for coordinated operation, allowing the operator to clearly observe the unloading process from both sides of the vehicle and easily control the speed and direction of loading and unloading, ensuring simple and effortless operation.
• Controls the mixing drum's rotation direction, ensuring forward rotation during feeding and transport, and reverse rotation during discharge.
• Controls the mixing drum's speed.

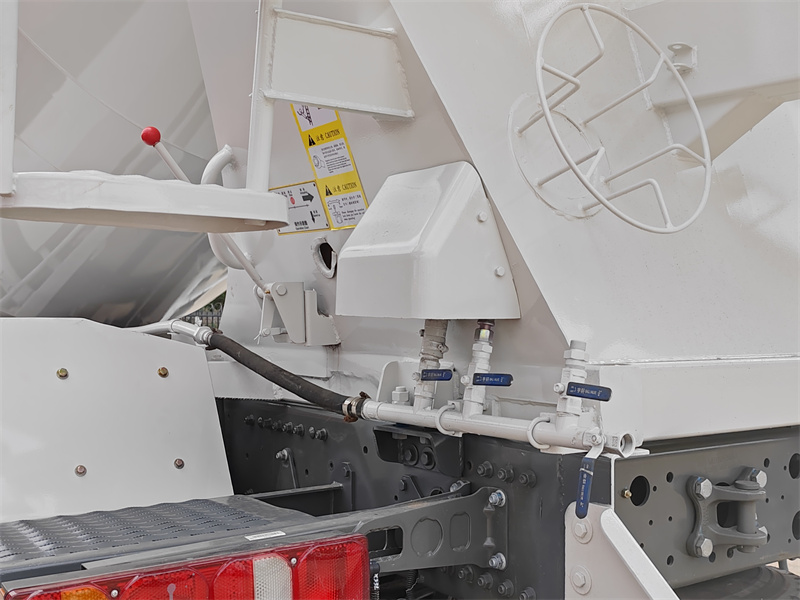

6.Air control box assembly
Integrates functions for tank forward and reverse rotation, water pump start and stop, and air intake and drainage.

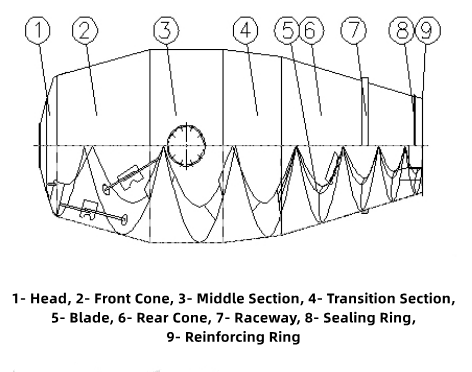

10cbm Howo Trucks Transit Mixers tank structure drawing
» Ⅳ. Applicable Scenarios:
• Urban Construction: Concrete transportation within 30 kilometers for high-rise residential buildings and commercial complexes.
• Rural Infrastructure: Road hardening, irrigation, and other narrow road operations.
• Specialty Engineering: Transporting high-grade concrete (C60+), self-leveling concrete, fiber-reinforced concrete, and other demanding applications.
HOWO NX400 concrete truck mixer 12 cbm are based on the HOWO 6x4 NX400 chassis, equipped with a 400hp WP12.400E201 diesel engine and an HW19710 gearbox,equipped with 315/80R22.5 tire, dual circuit compressed air brake, which is powerful and easy to operate. HOWO NX400 concrete truck mixer during transportation, the mixing tank keeps rotating to fully mix cement, sand and water to prevent solidification and agglomeration. With its strong power, it can flexibly shuttle between mixing stations and various construction sites.
Read More

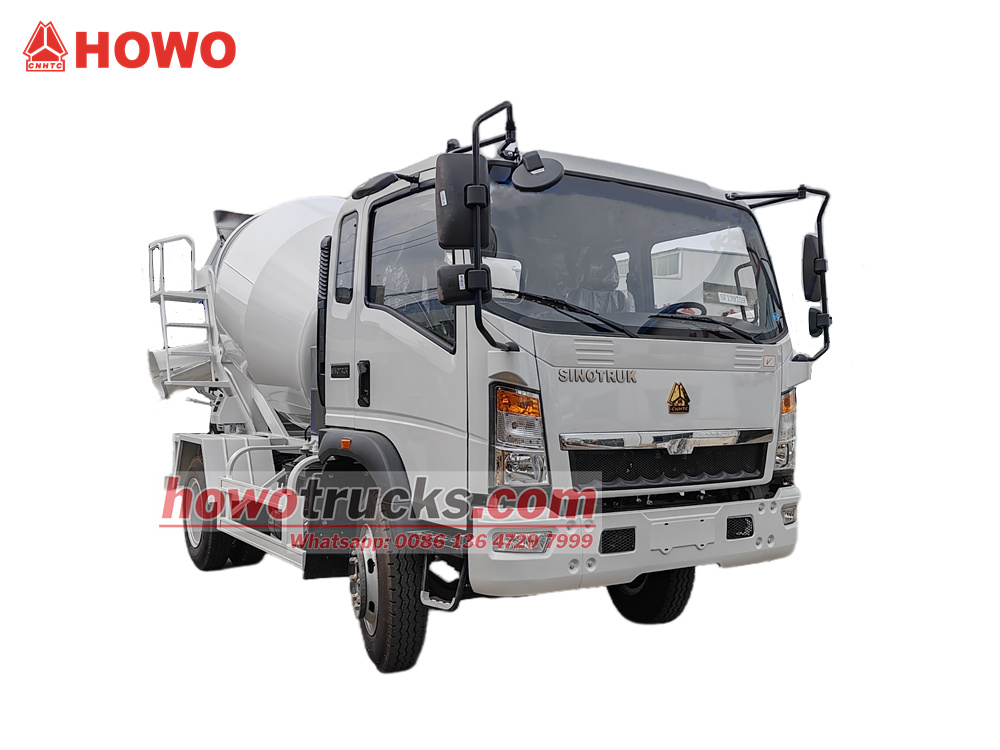

HOWO 5 cubic meter concrete mixer truck adopts HOWO 2080 row and half cab, with a total mass of 16 tons and a wheelbase of 3800mm. It is equipped with a SINOTRUK MC05.18-40 180 horsepower engine and a HW90510C 10-speed gearbox. The upper mixing tank has a capacity of 5 cubic meters and is made of Q355 manganese steel. The tank body is 4mm and the head is 6mm. It is equipped with a reducer, hydraulic pump and motor, radiator,air control box assembly, water tank capacity of 400L, air pressure water supply, double-sided control handles at the tail, linkage operation, and low residue rate.
Read More
The HOWO 6x4 10 cubic meter concrete mixer truck adopts the HOWO HW76 half-row cab, with a total mass of 25 tons, a 4325+1350mm wheelbase, and is equipped with a Weichai WP10.340E22 engine and a Sinotruk HW19710 10-speed gearbox. The upper mixing tank has a capacity of 10 cubic meters and is made of Q355 manganese steel. The tank body is 5mm, the head is 6mm, and the blade is 4mm thick. It is equipped with an Italian PMP reducer, an American Eaton brand hydraulic pump and motor, a Chinese brand radiator, an air control box assembly, a water tank capacity of 400L, air pressure water supply, double-sided control handles at the rear, linkage operation, and a low residue rate.
Read More

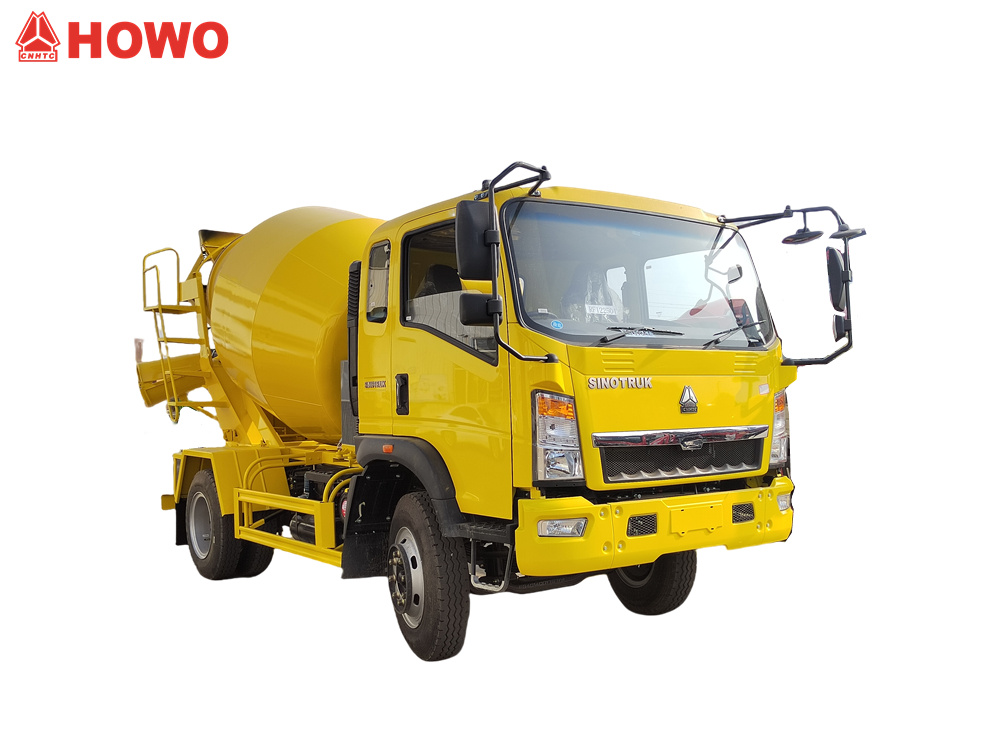

The HOWO 5-cubic-meter concrete mixer truck adopts the HOWO 2080-row semi-cab, with a total mass of 16 tons and a wheelbase of 3800mm. It is equipped with a Sinotruk MC05.18-40 180-horsepower engine and an HW90510C 10-speed gearbox. The upper mixing tank has a capacity of 5 cubic meters and is made of Q355 manganese steel. The tank body is 4mm and the head is 6mm. It is equipped with a Keyi reducer, an Italian Interpap hydraulic pump and motor, a Chinese-made radiator, an air control box assembly, a water tank capacity of 400L, air pressure water supply, double-sided control handles at the tail, linkage operation, and a low residue rate.
Read More

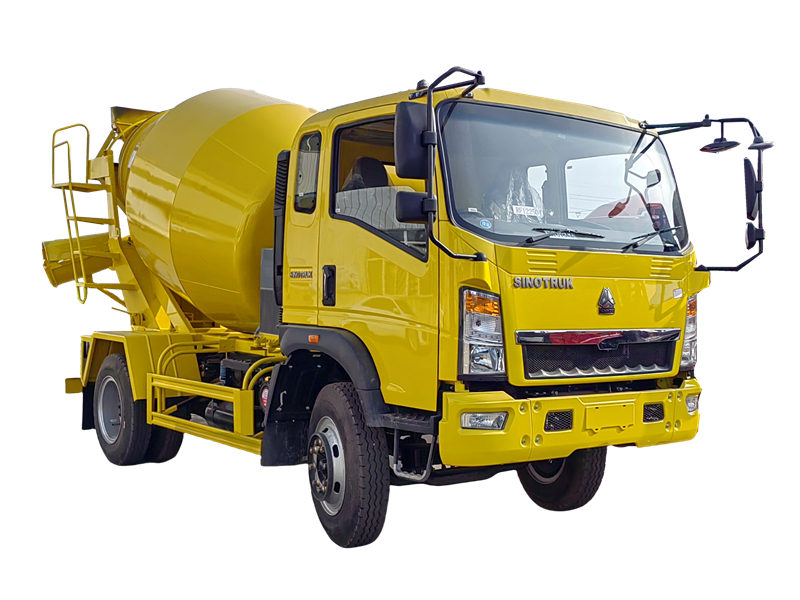

The HOWO light concrete mixer truck is that integrates advanced technology and practical performance, fully demonstrating the excellence of CS trucks group in the field of light-duty commercial vehicles. From the perspective of the power system, the vehicle is equipped with an engine model YCD4D4S-140, which is a 4.15L inline four cylinder diesel engine. It adopts advanced technologies such as high pressure common rail, turbocharged intercooler and EGR, but also outputs a maximum power of 105kW, fully guaranteeing the power performance of the HOWO light-duty concrete mixer truck.
