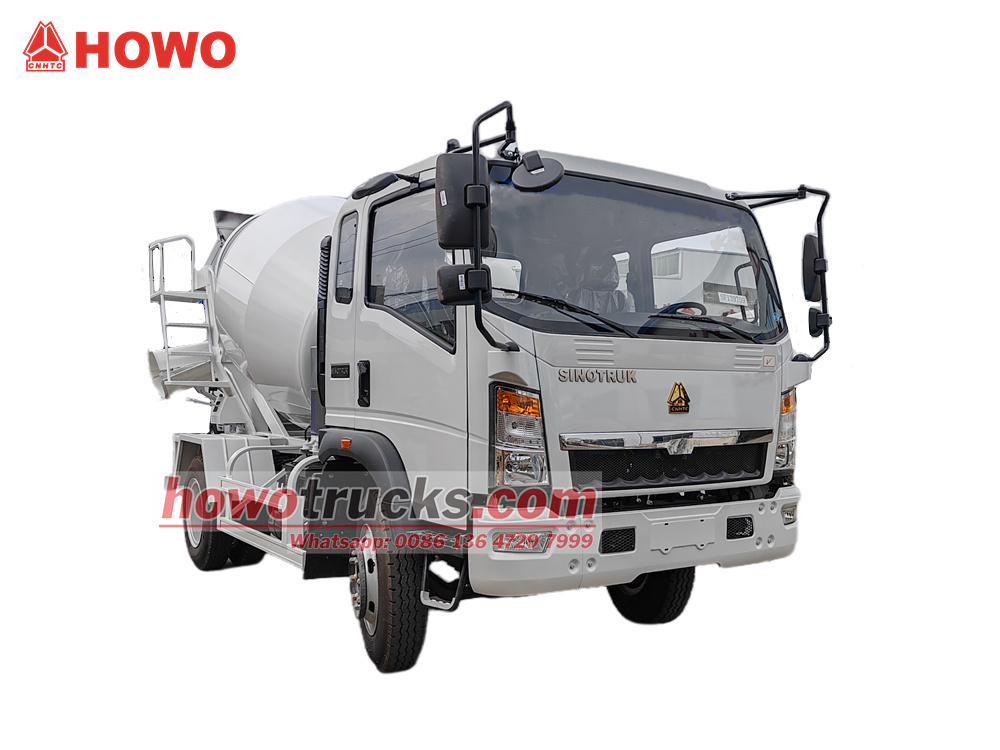

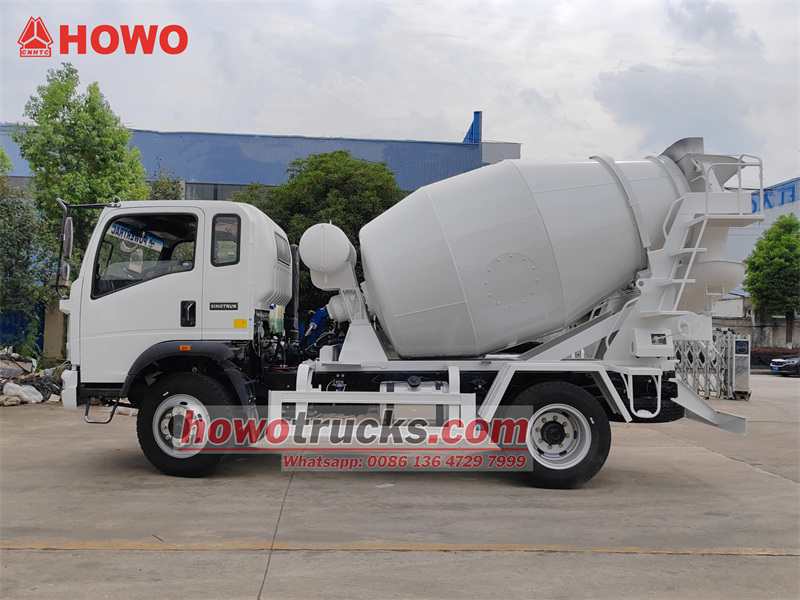

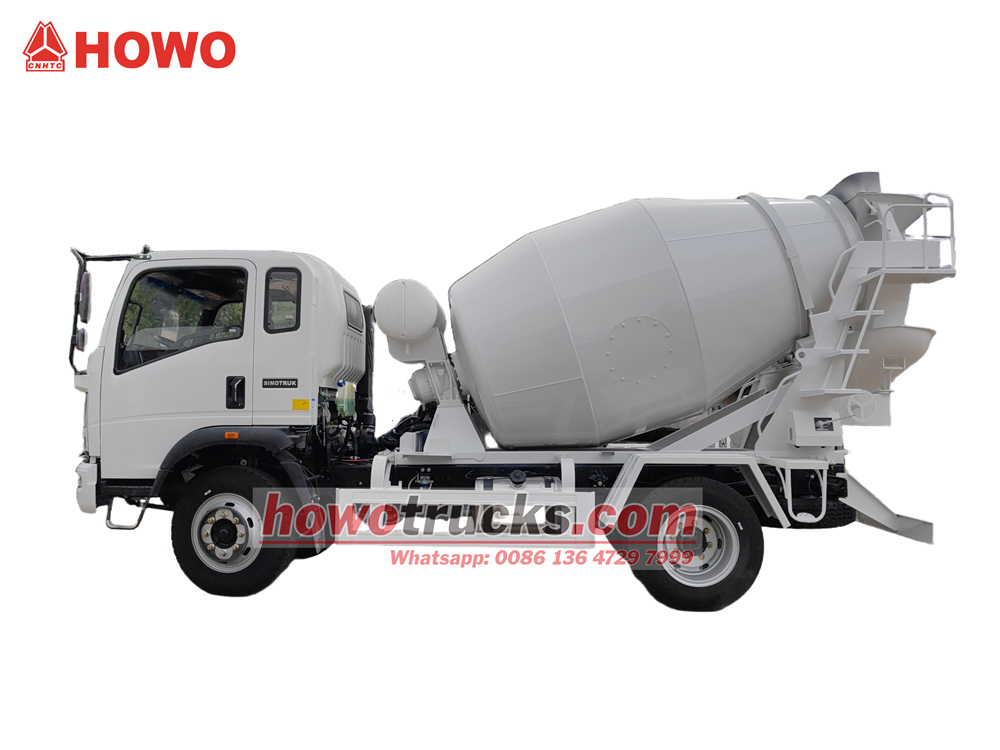

The HOWO 5-cubic-meter concrete mixer truck adopts the HOWO 2080-row semi-cab, with a total mass of 16 tons and a wheelbase of 3800mm. It is equipped with a Sinotruk MC05.18-40 180-horsepower engine and an HW90510C 10-speed gearbox. The upper mixing tank has a capacity of 5 cubic meters and is made of Q355 manganese steel. The tank body is 4mm and the head is 6mm. It is equipped with a Keyi reducer, an Italian Interpap hydraulic pump and motor, a Chinese-made radiator, an air control box assembly, a water tank capacity of 400L, air pressure water supply, double-sided control handles at the tail, linkage operation, and a low residue rate.
Working capacity :
5cbmCabin type :
Howo 2080 one and half row cabinDrive system :
4x2,LHDWheelbase ( mm) :
3800 mmEngine specific :
180HP / SINOTRUK MC05.18-40Gear box :
HW90510C, 10-speed, manualFront axle ( Kg ) :
6000Rear axle ( Kg ) :

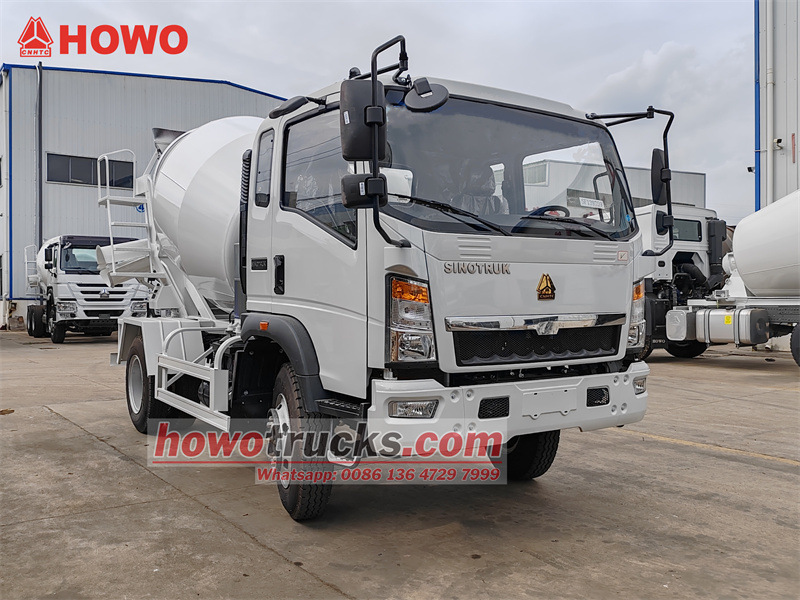

10000The 5cbm Drum Howo Concrete Mixer Truck is designed for small and medium-sized projects. It utilizes a Sinotruk 180-horsepower engine and a 10-speed transmission, resulting in a powerful and fuel-efficient powertrain. The core hydraulic system is sourced from Italy's Interpap, ensuring smooth and efficient mixing and unloading with minimal residue. The scientifically designed mixing drum utilizes advanced mixing technology for more uniform concrete mixing, effectively preventing segregation and ensuring high concrete quality. Dual joysticks facilitate operation and observation, making it ideal for urban construction, road maintenance, and other applications.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Performance Advantages
1. Efficient Power and Transmission Matching: A Sinotruk 180-horsepower engine paired with a 10-speed transmission delivers high compatibility and efficient power transmission.
2. Scientific Tank Design: Q355 manganese steel with a double-logarithmic spiral curve ensures concrete homogeneity, minimizes residue, and reduces material waste.
3. Convenient and Safe Operation: Linked operation reduces operator workload; pneumatic water supply and a large-capacity water tank ensure efficient cleaning.
4. Manageable Maintenance Costs: A modular hydraulic system and domestically produced radiator reduce the difficulty and expense of subsequent repairs.
» Ⅱ. Product Parameters for HOWO 5cbm concrete mixer truck:
|
HOWO light Mix Concrete Mixer Truck |
||
|
Vehicle model |
CS5160GZR |
|
|
Overall dimension |
7250x2350x3360mm |
|
|
GVW |
16000kg |
|
|
Curb weight |
6720kg |
|
|
Chassis parameter |
||
|
Chassis Brand |
SINOTRUK HOWO |
|
|
Wheelbase |
3800mm |
|
|
Driving type |
4x2,Left hand drive |
|
|
Cab |
HOWO 2080 one and half row,with A/C |
|
|
Engine |
Type |
Inline 4-cylinder, 4-stroke, supercharged, intercooled, water-cooled, |
|
Model |
SINOTRUK MC05.18-40 |
|
|
Rated power (HP) |
180HP / 132kW |
|
|
Rated speed |
2400rpm |
|
|
Max torque |
700N.m |
|
|
Max torque speed |
1300-1700rpm |
|
|
Displacement |
4.58L |
|
|
Emission standard |
Euro 4 |
|
|
Fuel type |
Diesel |
|
|
Transmission(Gear box) |
HW90510C 10-speed,manual |
|
|
Front axle loading |
6000kg |
|
|
Rear axle loading |
10000kg |
|
|
Tyre |
9.00R20 (6+1) |
|
|
Mixing Drum parameter |
||
|
Mixing drum material |
High quality wear-resistance steel |
|
|
Model: Manganese steel Q355 |
||
|
Drum body thickness: 4mm, End cover thickness:6mm |
||
|
Agitating capacity |
5m³ |
|
|
Charging rate |
≥3.2 m³/min |
|
|
Top feed hopper dimension |
≥650 mm |
|
|
Discharging rate |
≥1.25 m³/min |
|
|
Residual rate |
≤0.5% |
|
|
Water supply |
Baric water supply system |
|
|
Water tank capacity |
400L |
|
|
Mixer drum rotation speed |
0~12rpm |
|
|
Operating system Model |
Rear two side operate joystick, linkage operation |
|
|
Accessory |
Tool box, reducer, hydraulic pump and motor, radiator, |
|

» Ⅲ. Product Details

Chassis Configuration

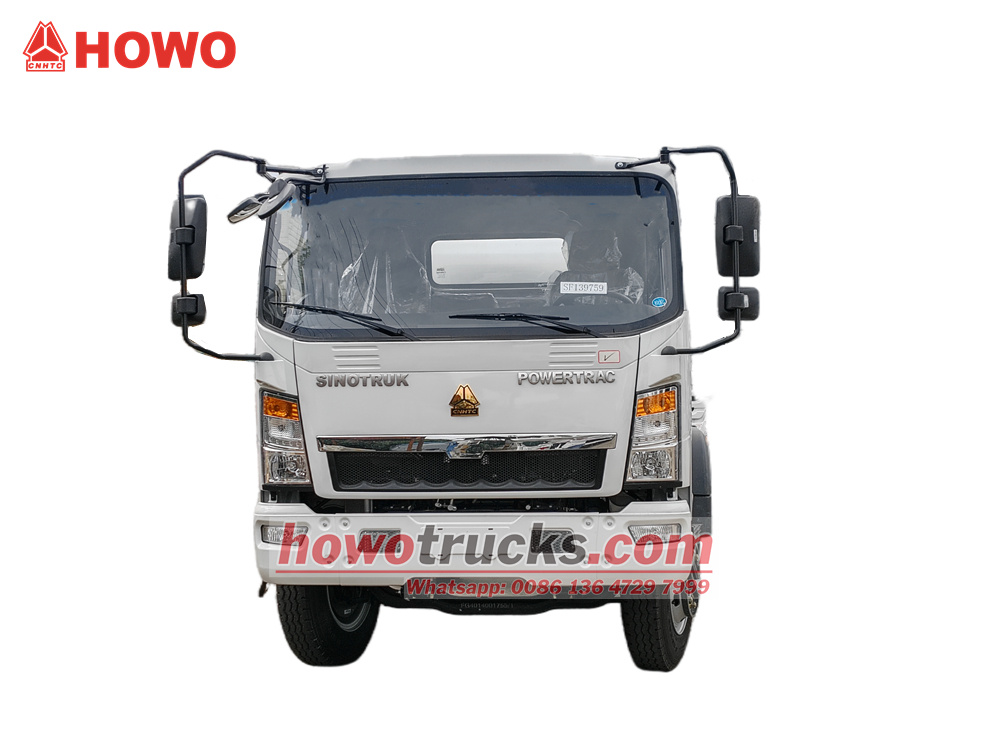

Cab: HOWO 2080 semi-cab, gross weight 16 tons, wheelbase 3800mm
Engine:
• SINOTRUK MC05.18-40 / 180 horsepower, 4.58L displacement, maximum torque 700N·m (1300-1700rpm), meeting China IV emission standards.
• Inline four-cylinder, turbocharged and intercooled design balances power output and fuel economy, making it suitable for medium- and short-distance concrete transport.
Transmission: SINOTRUK's proprietary 10-speed transmission features a large first gear ratio for strong starting capability under heavy loads. Numerous gears and narrow ratio steps ensure smooth shifting and fuel efficiency.

Upper Mixing System

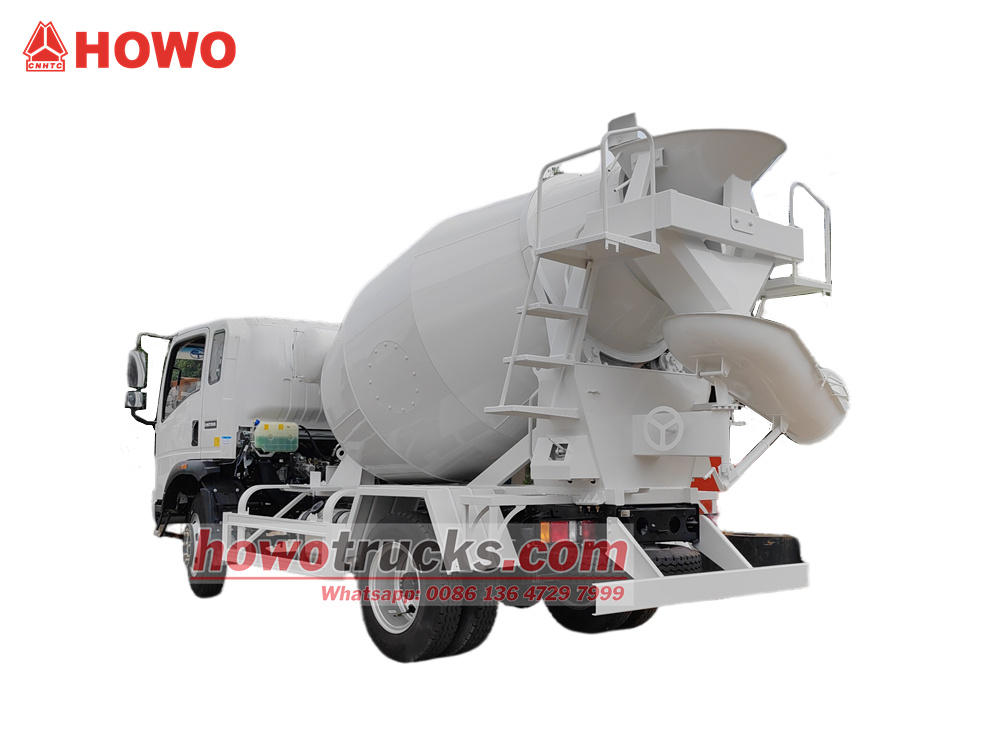

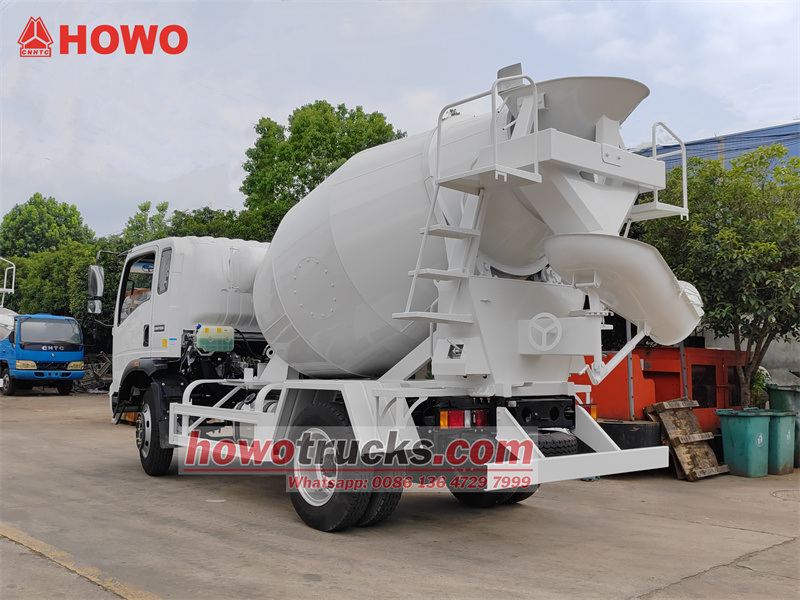

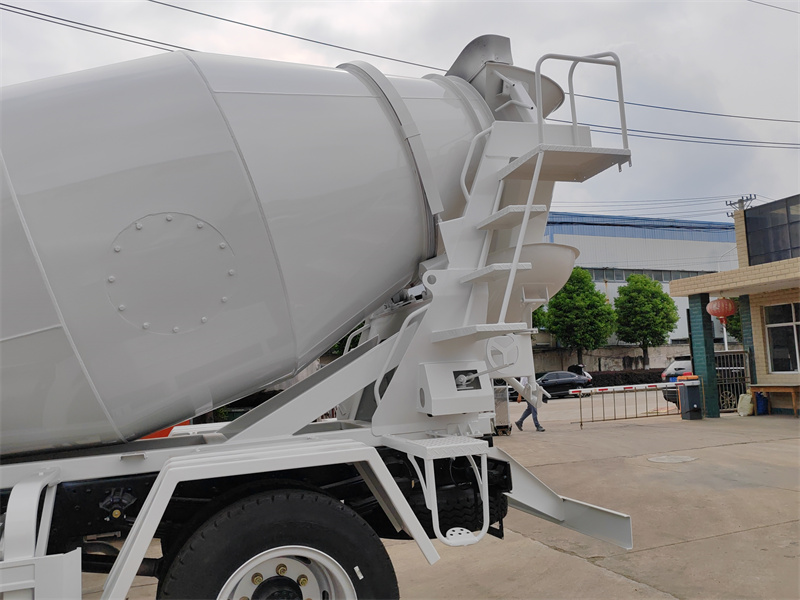

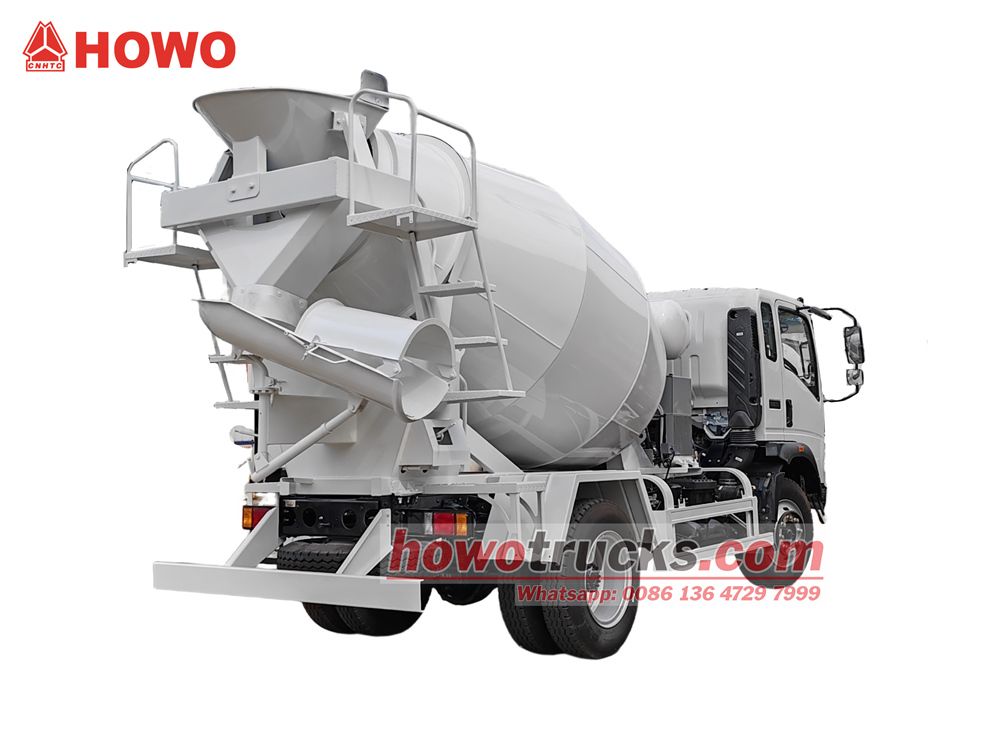

5-cubic-meter Q355 manganese steel tank:
• Tank thickness: 4mm, head thickness: 6mm, high strength and wear resistance, suitable for high-intensity mixing operations.
• Double-logarithmic spiral curve design optimizes the concrete flow path, reduces segregation, and reduces residue.

Core Components
• Reducer: Keyi

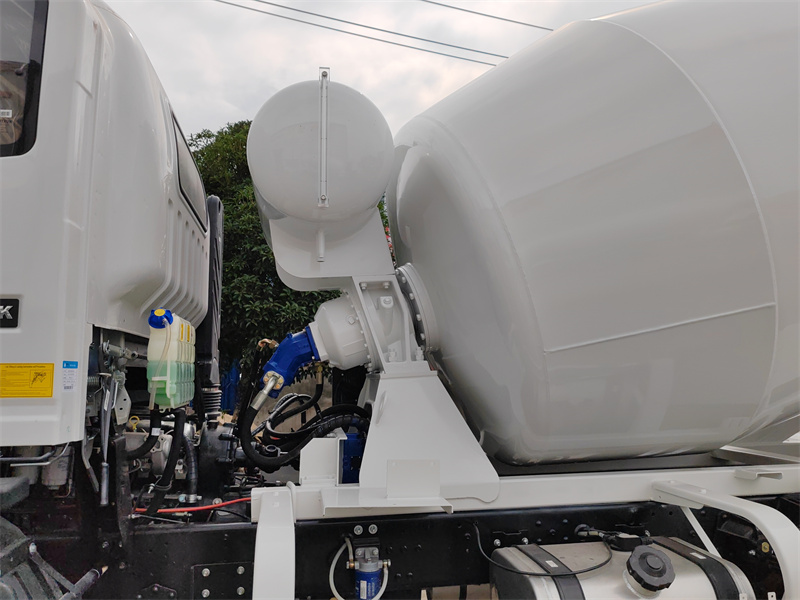

• Hydraulic Pump and Motor: Italy Interpap brand. Highly efficient and reliable, with stable power transmission, ensuring continuous tank rotation.

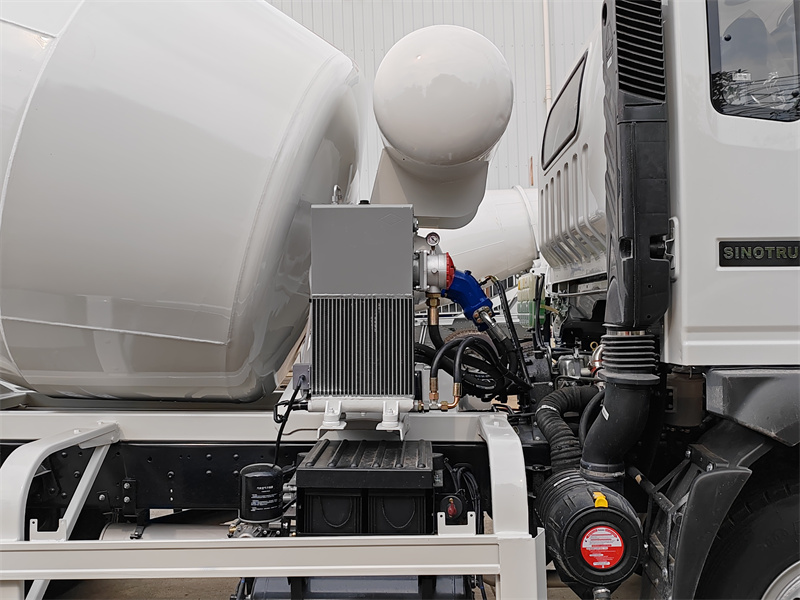

• Radiator: Optimizes heat dissipation, prevents hydraulic system overheating, and extends equipment life.
• Water Supply System: 400L water tank, pneumatic water supply.
• Air Control Box: Integrated with manual valves, solenoid valves, and pressure switches, it achieves automated control and enhances system stability.

Control System

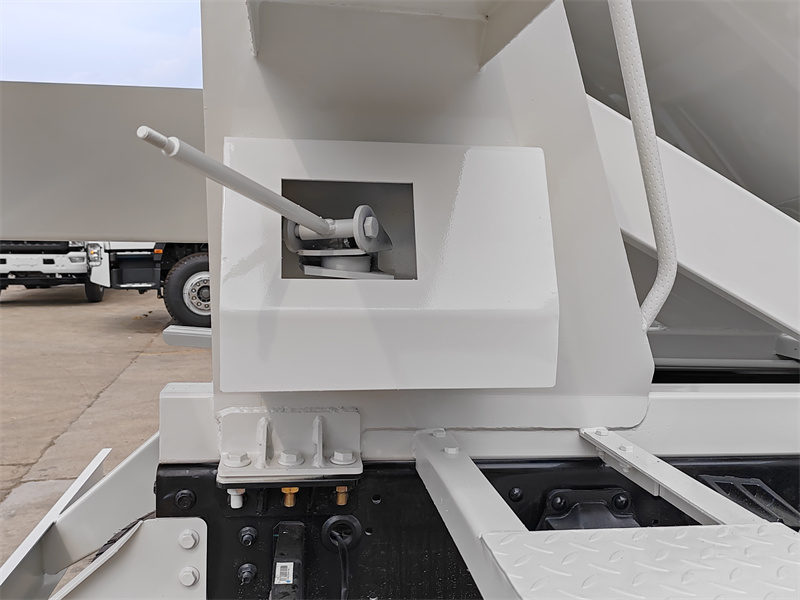

• Dual rear joysticks: Support left and right side and cab operation, allowing the operator to easily control tank rotation, discharging, and other actions from different positions.
• Linked control design: Streamlines the operating process, improves efficiency, and reduces the risk of misoperation.
» Ⅳ. Work Principle:
The Howo 5 cbm transit mixer drum truck is powered by the chassis engine, which drives a hydraulic pump through the transfer case. Pressurized hydraulic oil is then pumped to the hydraulic motor, driving the reducer, which in turn drives the mixing tank to continuously rotate. The tank's internal double-logarithmic spiral blades generate centripetal force and thrust during rotation, forcing the concrete along a spiral trajectory, preventing segregation and achieving uniform mixing. During the loading phase, the tank rotates rapidly to accelerate loading. During transport, it maintains a low forward rotation speed to prevent the concrete from solidifying. During discharge, the tank tilts and reverses at high speed, using the spiral blades to push the concrete to the discharge port. A pneumatic water supply system is then used to clean the tank interior. The entire process is controlled by a coordinated hydraulic system and mechanical structure, ensuring continuous and uniform concrete mixing from mixing to discharge.
