The HOWO light concrete mixer truck is that integrates advanced technology and practical performance, fully demonstrating the excellence of CS trucks group in the field of light-duty commercial vehicles. From the perspective of the power system, the vehicle is equipped with an engine model YCD4D4S-140, which is a 4.15L inline four cylinder diesel engine. It adopts advanced technologies such as high pressure common rail, turbocharged intercooler and EGR, but also outputs a maximum power of 105kW, fully guaranteeing the power performance of the HOWO light-duty concrete mixer truck.
Working capacity :
3cbmCabin type :
Howo 2080 one and single rowDimension (mm ) :
6850x2350x3380mmDrive system :
4x2Wheelbase ( mm) :
3800Engine specific :
YUCHAI YCD4D4S-140,140HPGear box :
WLY6TS55 6-speed,manualFront axle ( Kg ) :
3200kgRear axle ( Kg ) :
9000kgRemark :
Tank capacity can be customizedThe HOWO light concrete mixer truck is that integrates advanced technology and practical performance, fully demonstrating the excellence of CS trucks group in the field of light-duty commercial vehicles. From the perspective of the power system, the vehicle is equipped with an engine model YCD4D4S-140, which is a 4.15L inline four cylinder diesel engine. It adopts advanced technologies such as high pressure common rail, turbocharged intercooler and EGR, but also outputs a maximum power of 105kW, fully guaranteeing the power performance of the HOWO light-duty concrete mixer truck.
The rated speed of 2800rpm ensures the stable operation of the engine during mixing operations. The mixing dynamic volume of 3CBM meets the needs of most small and medium-sized projects, while the water tank volume of 1 cubic meter provides sufficient water source guarantee for concrete mixing.The cab configuration is also quite rich, including electric door and window central lock, air conditioning, cab electric lift, multi-function steering wheel, driver airbag seat, which greatly improves driving comfort and safety.

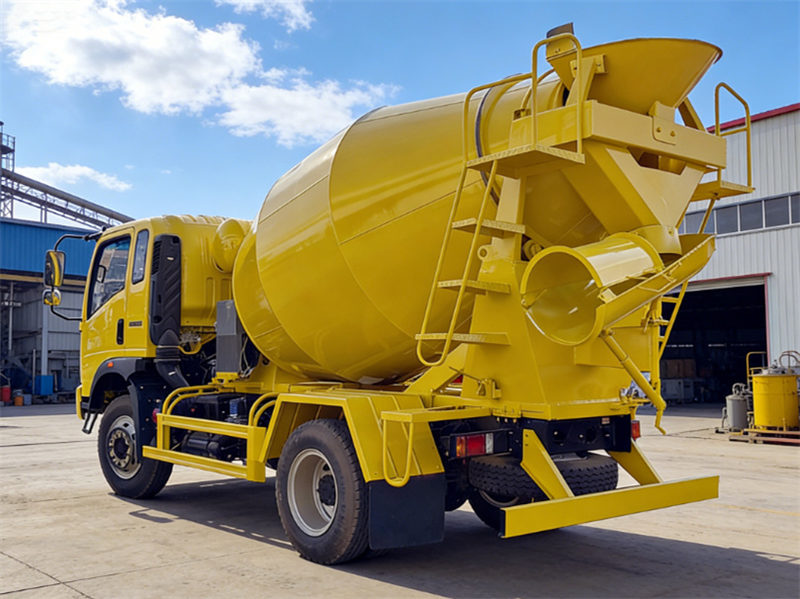

*Howo 3 cbm transit drum mixer truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Product Introduction of Howo Mixer Tanker « « «
Manufacturer: CS TRUCKS Group
Performance Advantages
1. Efficient Power and Transmission Matching: A Sinotruk 180-horsepower engine paired with a 10-speed transmission delivers high compatibility and efficient power transmission.
2. Scientific Tank Design: Q355 manganese steel with a double-logarithmic spiral curve ensures concrete homogeneity, minimizes residue, and reduces material waste.
3. Convenient and Safe Operation: Linked operation reduces operator workload; pneumatic water supply and a large-capacity water tank ensure efficient cleaning.
4. Manageable Maintenance Costs: A modular hydraulic system and domestically produced radiator reduce the difficulty and expense of subsequent repairs.
Product Parameter For Howo 4x2 concrete mixer truck« « «
|
HOWO 3CBM concrete mixer truck Basic information |
|||
|
Driving form |
4X2 |
Body size |
6.7×2.32×2.53 meters |
|
Front suspension/rear suspension |
1.13/1.93 m |
Wheelbase |
3300mm |
|
Rated load |
5.8 tons |
Vehicle weight |
7.8 tons |
|
Maximum speed |
95 km/h |
||
|
Remarks |
Imported brand speed reducer, imported brand hydraulic system, tank body adopts Q235 high-strength tank steel plate, electric door and window central locking, air conditioning, cab electric lifting, multi-function steering wheel, driver's airbag seat, four-way image, B version smart pass, |
||
|
Engine parameters |
|||
|
Engine model |
Fuel type |
diesel |
|
|
Number of cylinders |
4 cylinders |
Maximum output power |
105kW |
|
Maximum horsepower |
140 horsepower |
Displacement |
4.15L |
|
Emission standard |
Euro 3 |
Engine form |
In-line four-cylinder, water-cooled, four-stroke, high-pressure common rail, supercharged intercooling, EGR |
|
Upper loading parameter |
|||
|
Vehicle NO. |
CSC5073JBC |
Vehicle type |
transit mixing truck |
|
Dynamic volume of stirring |
3.15m³ |
Water tank volume |
1 CBM |
|
Cab parameters |
|||
|
Cab |
One row cab, forward control type, all welded steel cab of tilt type, rear mechanical cab suspension, adjustable driver seat |
||
|
Gearbox parameters |
|||
|
Gearbox model |
HW13710 |
Number of gears: |
Manual 6 forward & 1 Reverse |
|
Chassis parameters |
|||
|
Chassis brand |
Howo |
Chassis model: |
light-duty |
|
Number of tires |
6 |
Tyre size: |
7.50R16 |

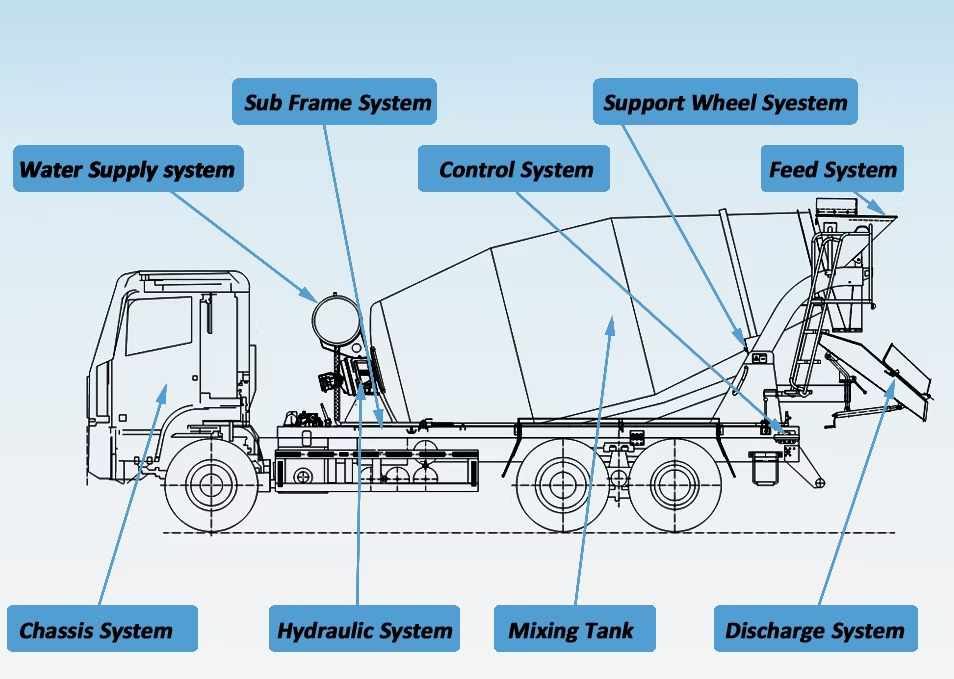

Main Advantage Of Upper Mixing System « « «
 |
 |
1. 5CBM Q355 manganese steel tank:
▶ Tank thickness: 4mm, head thickness: 6mm, high strength and wear resistance, suitable for high-intensity mixing operations.

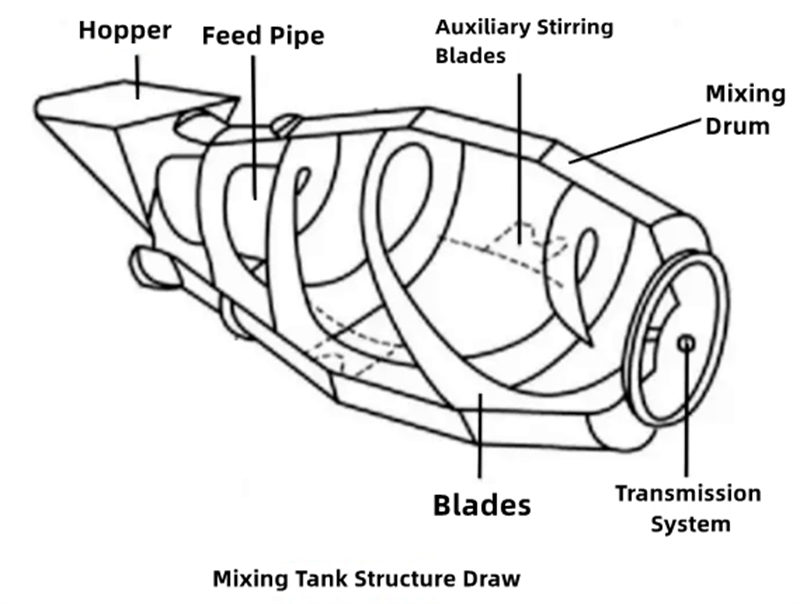

▶ Double logarithmic spiral curve design optimizes the concrete flow path, reduces segregation, and reduces residue.
2. Core Components
▶ Reducer: Keyi

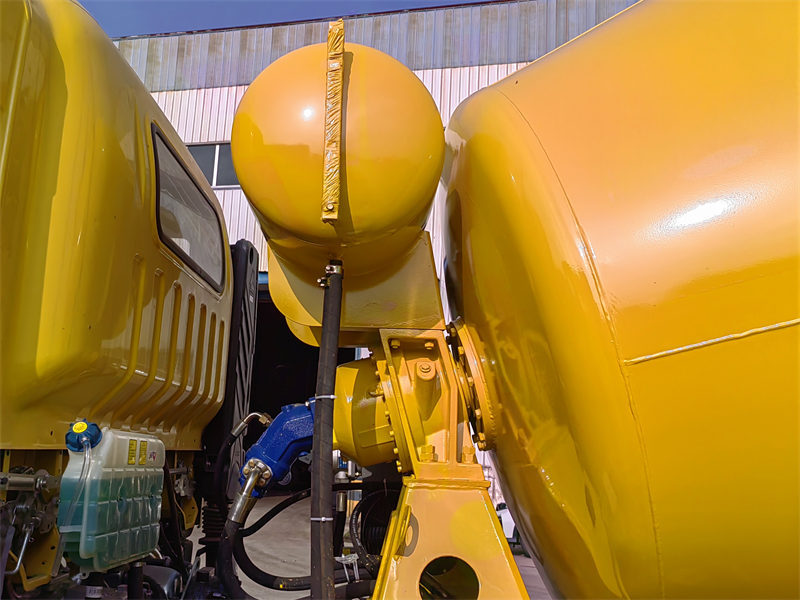

▶ Hydraulic Pump and Motor: Italy Interpap brand. Highly efficient and reliable, with stable power transmission, ensuring continuous tank rotation.

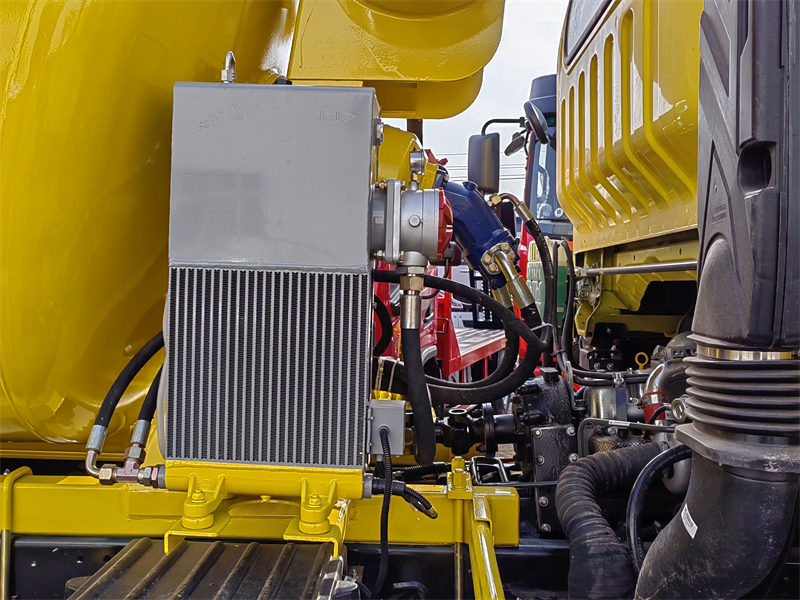

▶ Radiator: Optimizes heat dissipation, prevents hydraulic system overheating, and extends equipment life.
▶ Water Supply System: 400L water tank, pneumatic water supply.
▶ Air Control Box: Integrated with manual valves, solenoid valves, and pressure switches, it achieves automated control and enhances system stability.
3. Control System
▶ Dual rear joysticks: Support left and right side and cab operation, allowing the operator to easily control tank rotation, discharging, and other actions from different positions.
▶ Linked control design: Streamlines the operating process, improves efficiency, and reduces the risk of misoperation.

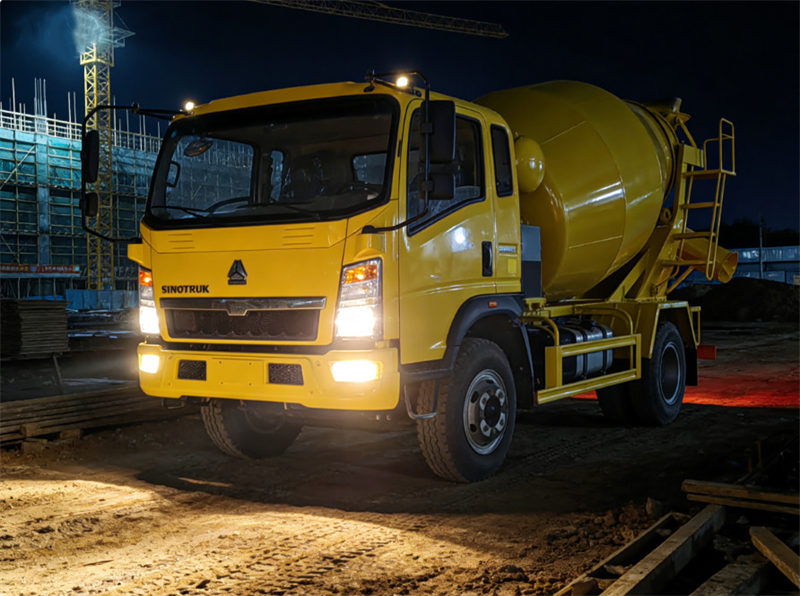

Application of Howo light mixer tank truck « « «
 |
 |
 |
 |

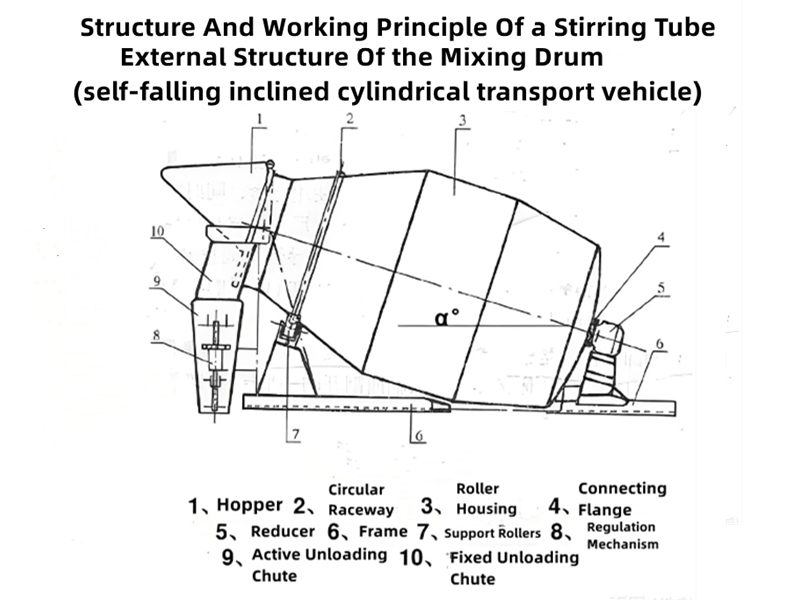

Working Principle « « «
The core operating principle of a truck mixer is power transmission and drum mixing.
▶ Loading: The truck is loaded with the necessary materials, including cement,water, and aggregates such as sand or gravel. The materials are loaded into the drum through a hatch located on the top of the drum.
▶ Mixing: The drum of the truck is rotated continuously during transportation, which ensures that the concrete remains in a liquid state and is uniformly mixed. The rotation of the drum is powered by a hydraulic system that is typically located on the front of the truck.
▶ Transporting: Once the concrete is mixed, the truck transports it to the construction site. The drum continues to rotate during transportation to prevent the concrete from setting.

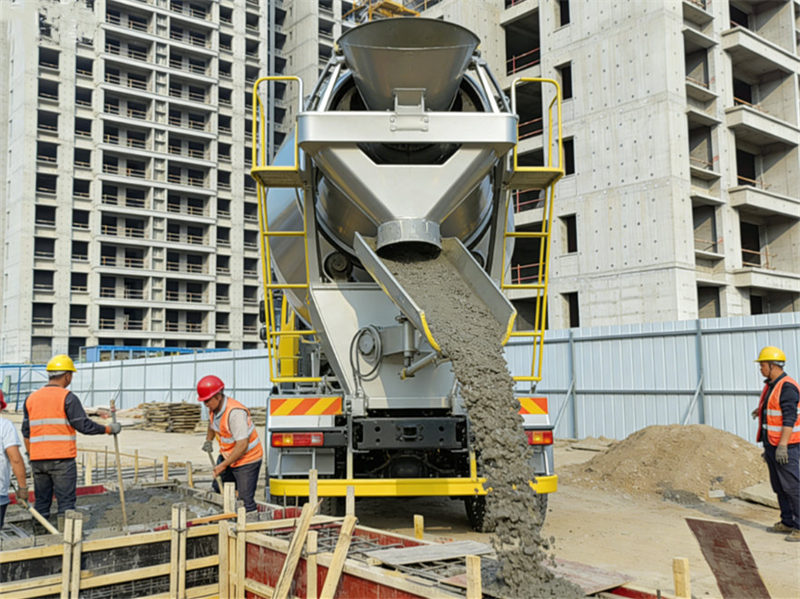

▶ Discharging: When the truck arrives at the construction site, the concrete is discharged from the drum by rotating the drum in the opposite direction.The concrete is discharged through a chute located at the rear of the truck and can be directed to the desired location.
