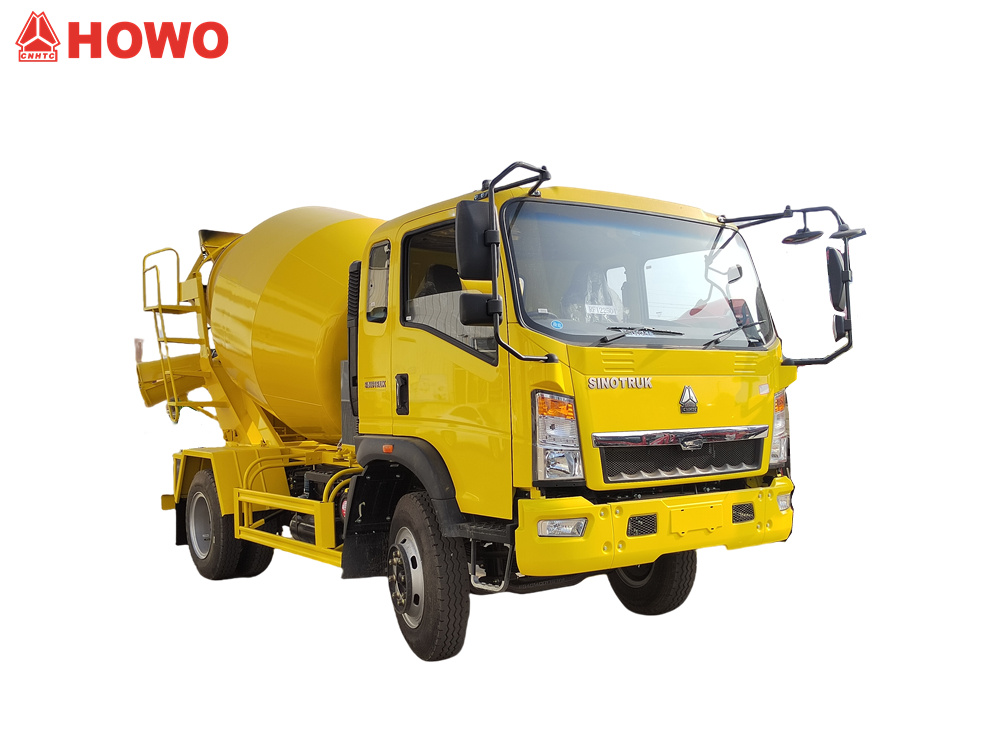

HOWO 5 cbm transit mixer drum truck

HOWO 5 cbm transit mixer drum truck

HOWO 5 cubic meter concrete mixer truck adopts HOWO 2080 row and half cab, with a total mass of 16 tons and a wheelbase of 3800mm. It is equipped with a SINOTRUK MC05.18-40 180 horsepower engine and a HW90510C 10-speed gearbox. The upper mixing tank has a capacity of 5 cubic meters and is made of Q355 manganese steel. The tank body is 4mm and the head is 6mm. It is equipped with a reducer, hydraulic pump and motor, radiator,air control box assembly, water tank capacity of 400L, air pressure water supply, double-sided control handles at the tail, linkage operation, and low residue rate.

  • Working capacity :

    5cbm
  • Cabin type :

    Howo 2080 one and half row cabin
  • Drive system :

    4x2,LHD
  • Wheelbase ( mm) :

    3800 mm
  • Engine specific :

    180HP / Sinotruk MC05.18-40
  • Gear box :

    HW90510C, 10-speed, manual
  • Front axle ( Kg ) :

    6000
  • Rear axle ( Kg ) :

    10000
New Products

The HOWO 5 cbm transit mixer drum truck is an efficient and reliable medium-sized construction vehicle. Equipped with the proven  Sinotruk MC05.18-40 engine and HW90510C, 10-speed transmission, it offers powerful power and excellent fuel efficiency. The 5-cubic-meter mixing tank, constructed from Q355 manganese steel, boasts excellent operational performance, with a loading rate of 3 m³/min, a discharge rate of 1.2 m³/min, and a low residual rate of 0.5%. The dual-side linkage control system at the rear ensures safe and convenient operation, allowing the operator to complete the entire process from either side of the vehicle.





  HOWO 5 cbm transit mixer drum truck

*HOWO 5 cbm Transit Mixer Drum Truck

5 Cubic Light Cement Mixer Truck*

-----------------------------------------------------------------



Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



» Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS GROUP LIMITED



Key Features



1. Utilizes a proven Sinotruk chassis assembly for high reliability





2. Manganese steel tank body is wear-resistant and corrosion-resistant, ensuring a long service life





3. Large-capacity tank body meets the needs of long-term operation





4. Dual-side linkage control system for convenient and efficient operation





5. Low residual rate design ensures maximum concrete utilization



» Ⅱ. Product Parameters for HOWO 5cbm concrete mixer truck:



HOWO light Mix Concrete Mixer Truck

Vehicle model

CS5100GZR

Overall dimension

7250x2300x3150mm

GVW

16000kg

Curb weight

6720kg

Chassis parameter

Chassis Brand

SINOTRUK HOWO

Wheelbase

3800mm

Driving type

4x2,Left hand drive

Cab

HOWO 2080 one and half row,with A/C

Engine

Type

Inline 4-cylinder, 4-stroke, supercharged, intercooled, water-cooled,

Model

 Sinotruk MC05.18-40

Rated power (HP)

180HP / 132kW

Rated speed

2400rpm

Max torque

700N.m

Max torque speed

1300-1700rpm

Displacement

4.58L

Emission standard

Euro 4

Fuel type

Diesel

Transmission(Gear box)

HW90510C, 10-speed,manual

Front axle loading

6T

Rear axle loading

10T

Tyre

9.00R20 (6+1)

Mixing Drum parameter

Mixing drum material

High quality wear-resistance steel

Model: Manganese steel Q355

Drum body thickness: 4mm, End cover thickness:6mm

Agitating capacity

5m³

Charging rate

≥3.2 m³/min

Top feed hopper dimension

≥650 mm

Discharging rate

≥1.25 m³/min

Residual rate

≤0.5%

Water supply

Baric water supply system

Water tank capacity

400L

Mixer drum rotation speed

0~12rpm

Operating system Model

Rear two side operate joystick, linkage operation

Accessory

Tool box, reducer, hydraulic pump and motor, radiator,

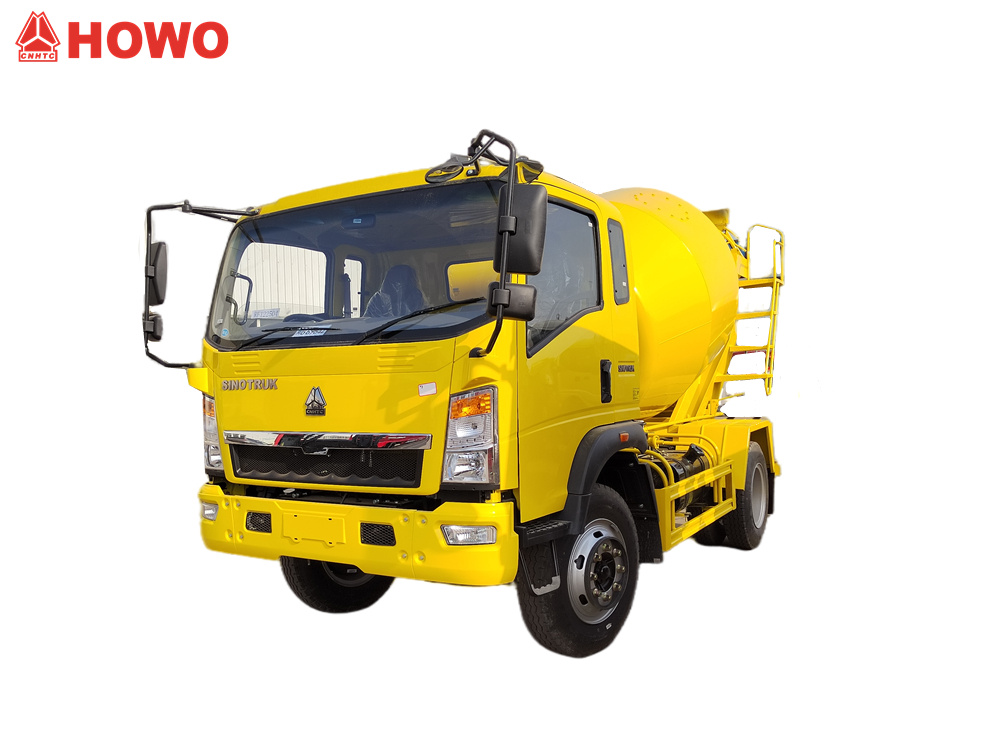

HOWO light Mix Concrete Mixer Truck

» Ⅲ. Product Details

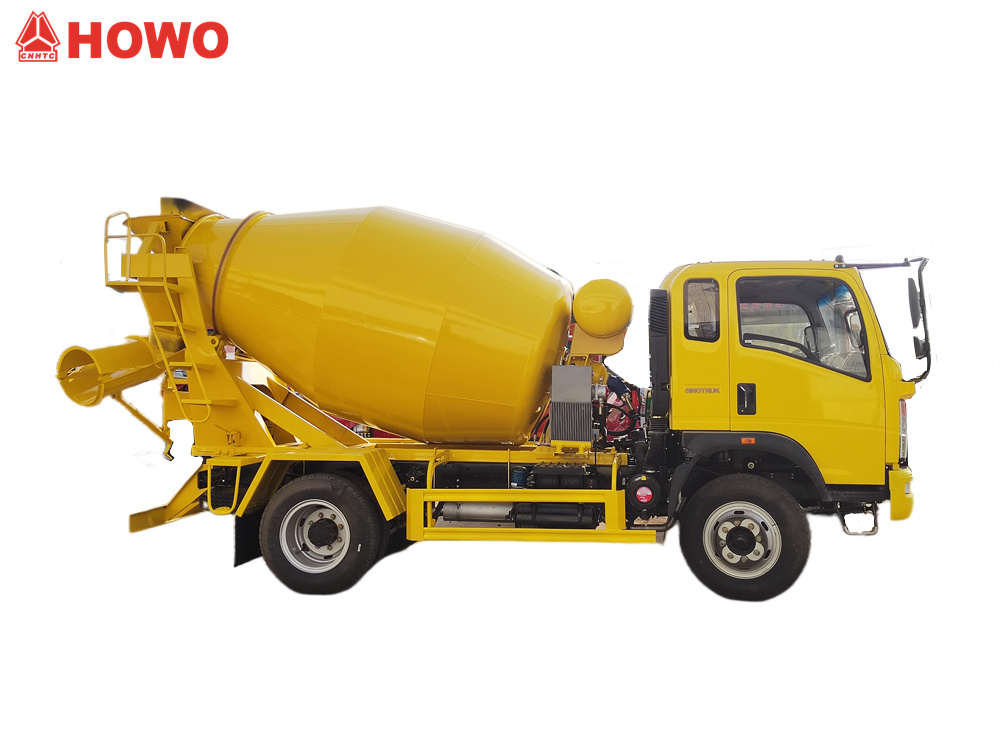

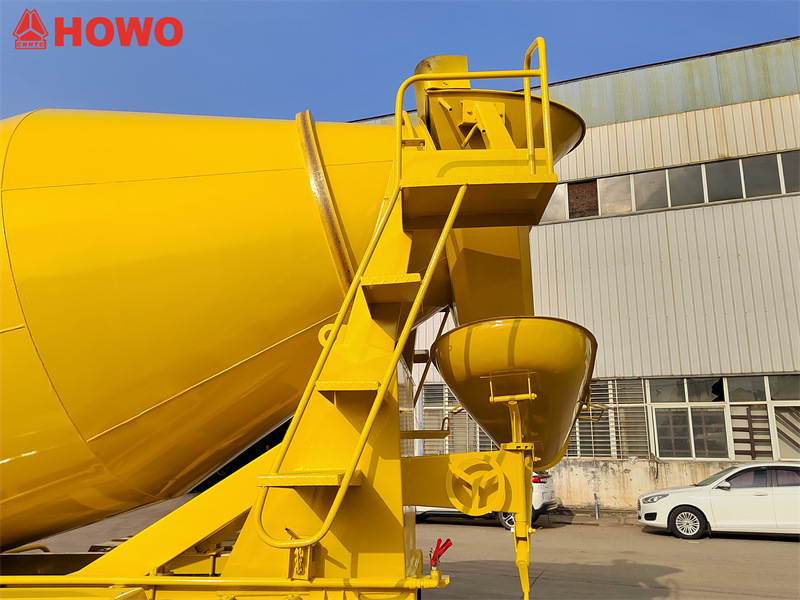

Sinotruk HOWO Light Duty 5cbm Concrete Mixer Truck

Chassis Configuration

1. Cab: HOWO 2080-row semi-cab (ergonomically designed, with electric window lift and central locking)



2. Gross Mass: 10 tons



3. Wheelbase: 3800mm (dual-axle design, 6-ton front axle/10-ton rear axle)



4. Powertrain:

◇ Engine:  Sinotruk MC05.18-40 inline-four diesel engine

◇ Power: 132kW (180 horsepower) at 2600rpm

◇ Emission Standard: National 4, 4.58L

◇ Maximum Torque: 700Nm (1300-1700rpm)



5. Transmission: HW90510C, 10-speed manual transmission (first gear ratio 10.61, top gear ratio 0.78)

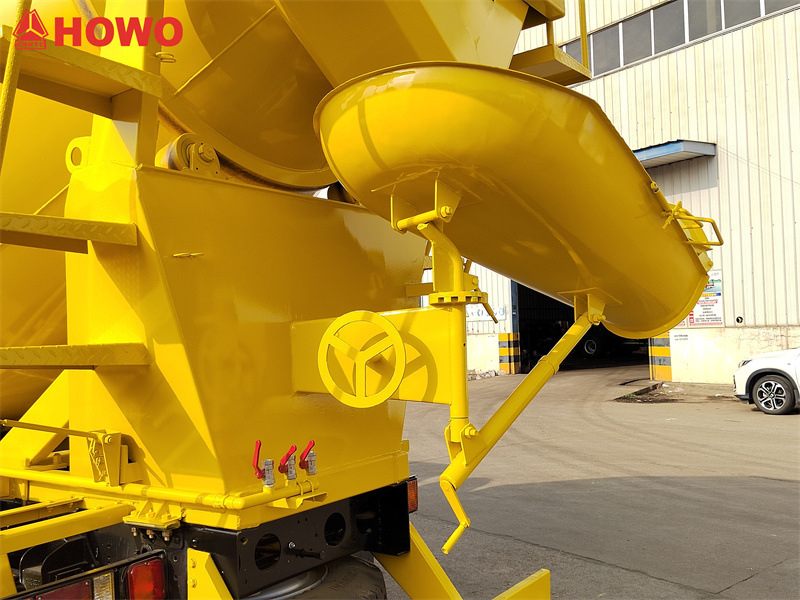

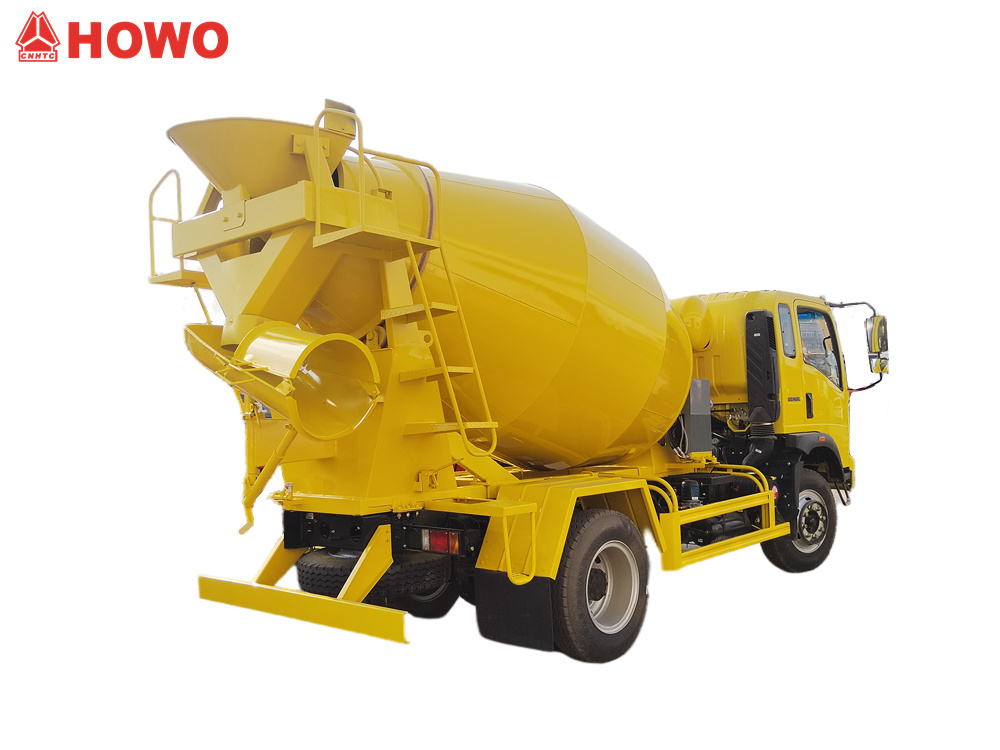

5 Cubic Light Cement Mixer HOWO truck

Upper System

1. Tank Parameters:

◇ Geometric Volume: 5.2 m³ (Actual Effective Volume: 5 m³)

◇ Material: Q355 High-Strength Manganese Steel (Tensile Strength 490 MPa)

◇ Tank Thickness: 4 mm (Main Cylinder) / 6 mm (Front and Rear Ends)

◇ Blade Design: Double Helical Blades (Pitch 1200 mm, Angle 18°)

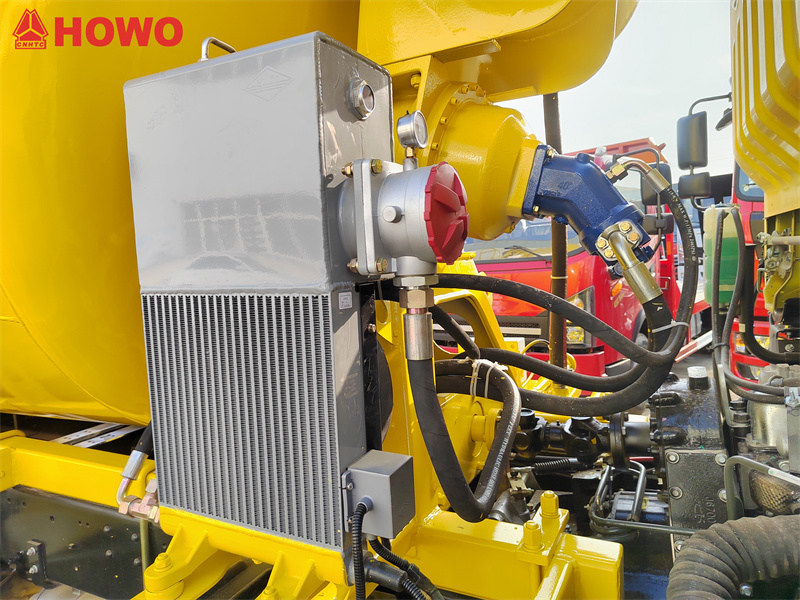

2. Hydraulic System:

◇ Reducer: Keyi Reducer

◇ Hydraulic Pump: Weifu

◇ Hydraulic Motor: Weifu

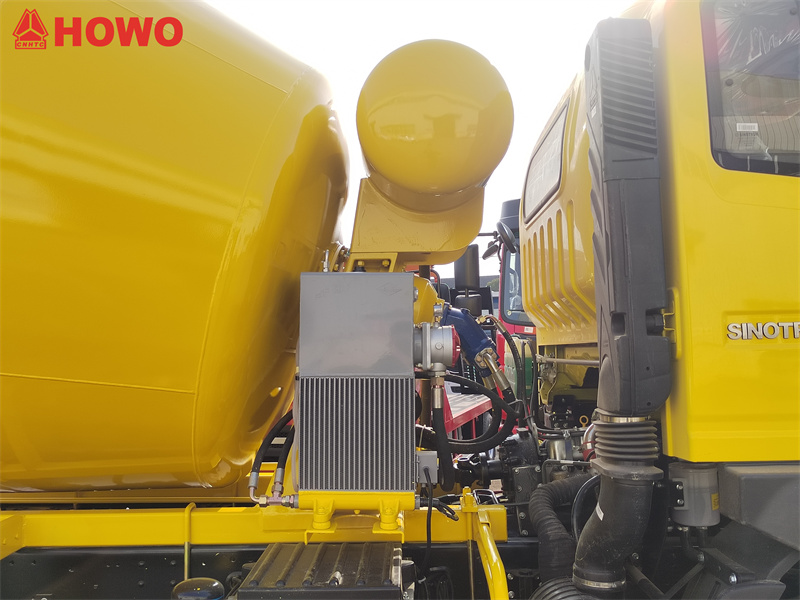

◇ Radiator: Kaipeng (Cooling Area 4 m²)

Sinotruk Howo 180HP 4X2 5m3 Concrete Mixer Truck

3. Auxiliary Systems:

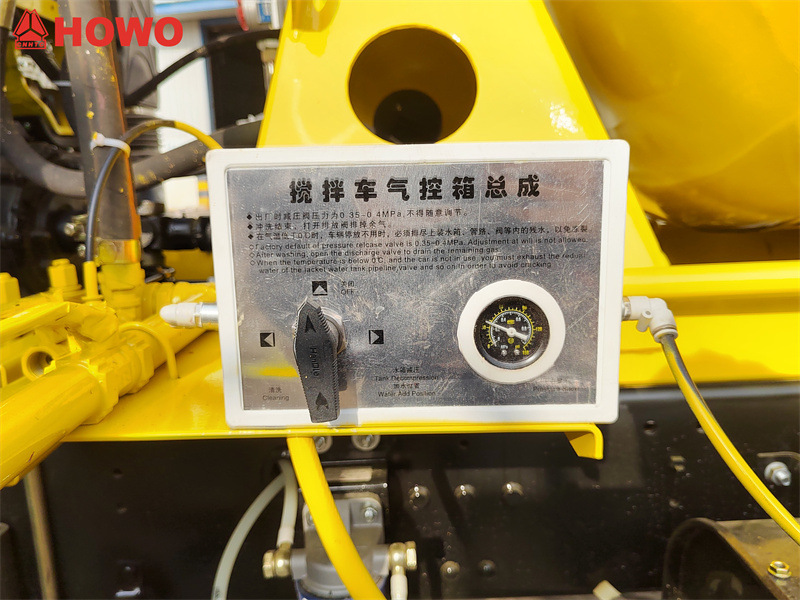

◇ Air Control Box: Integrated Three-Position Four-Way Directional Valve (Working Pressure 0.8 MPa)

◇ Water Tank: 400L Stainless Steel Tank (With Level Gauge and Automatic Refill System)





HOWO 5 cubic meter concrete mixer truck

Performance Parameters

1. Feed and Discharge Performance:

Feed Rate: 3.2 m³/min (at a vertical height of 4 m)

◇ Discharge Rate: 1.25 m³/min (at a chute length of 4.5 m)

◇ Residue Rate: 0.5%



2. Mixing Performance:

Speed ​​Range: 0-12 rpm (Stepless Speed ​​Adjustment)

Drum Inclination: 12° (Ensures Complete Discharge)

◇ Concrete Slump Range: 80-220 mm





3. Water Supply System:

◇ Air Supply Pressure: 0.3-0.6 MPa (Adjustable)



◇ Water Spray Flow Rate: 50 L/min (Dual Nozzle Design), for Tank Cleaning



Control system:

 Dual control consoles at the rear (1 set each on the left and right)



 Linkage control mechanism (feeding/mixing/discharging three-linkage)

(1) Control the rotation direction of the mixing drum, so that it rotates forward during feeding and transportation, and rotates in the reverse direction during discharging.



(2) Control the speed of the mixing drum



 Emergency brake device



» Ⅳ. Work Principle:



The core of the system lies in the coordinated power transmission and fluid control. A Cummins 141-horsepower engine, after being regulated by a 6-speed transmission, drives a hydraulic pump through a power take-off (PTO). This mechanical energy is converted into high-pressure oil, which drives the hydraulic motor. A speed reducer then reduces speed and increases torque, driving the tank with stepless speed regulation from 0 to 12 rpm to mix the concrete.



The tank utilizes a Q355 manganese steel double-helical blade design. During transport, the tank rotates at a low speed (2-4 rpm) to ensure uniform concrete distribution. During discharge, it rotates at a high speed (8-12 rpm), coordinated with the tail control handle to adjust the angle of the discharge chute for efficient emptying. The pneumatic water supply system pressurize the water tank, sprays water at a flow rate of 50 L/min to prevent solidification. Combined with a 6mm-thick head and double-layer sealing strips, the residual rate is controlled to 0.5%.
