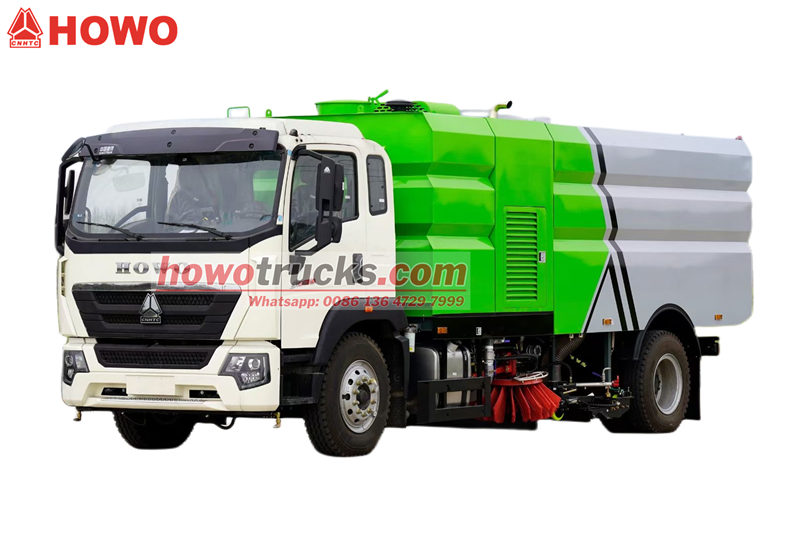

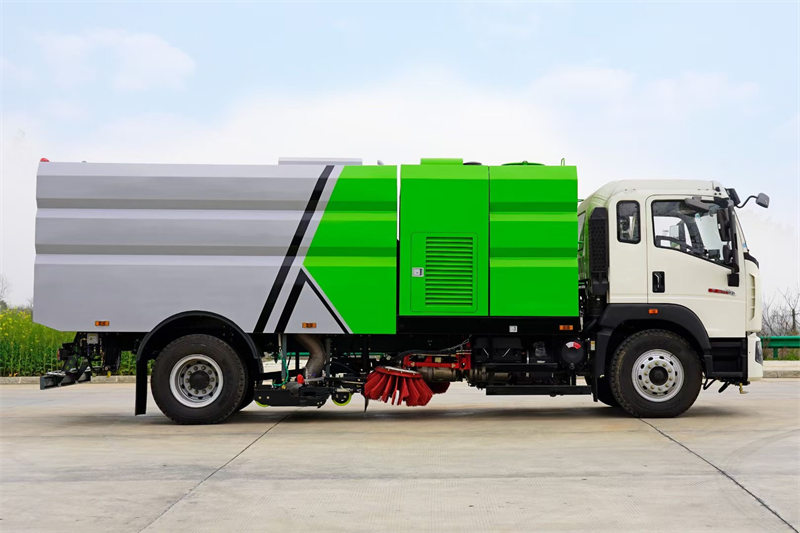

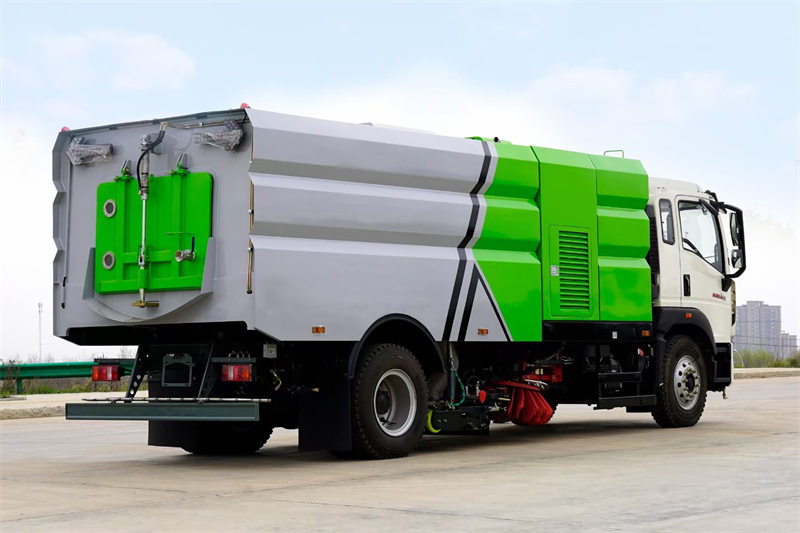

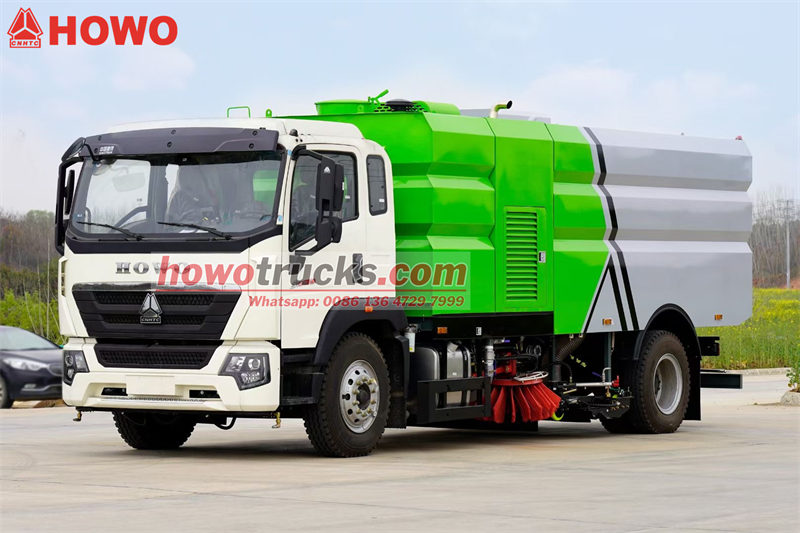

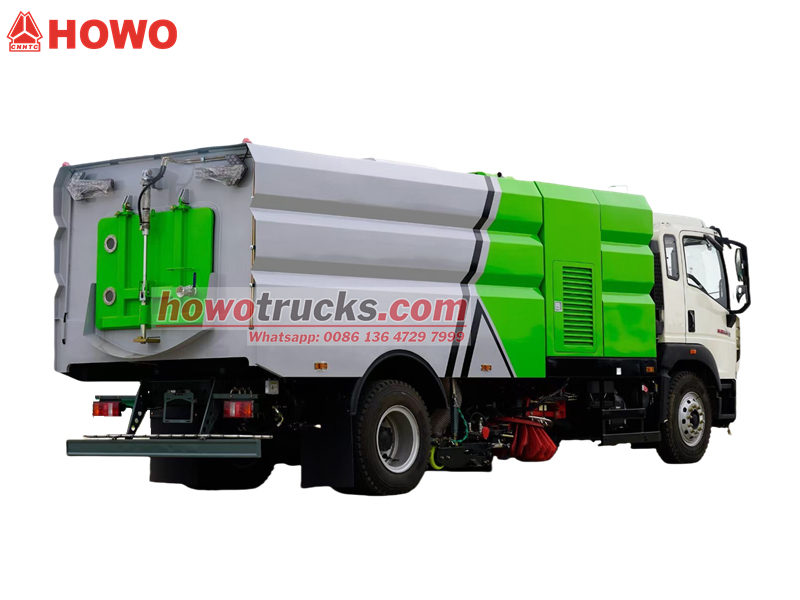

The Howo 4x2 Sweeper Cleaning Truck is a machine with powerful sweeping performance and efficient operation, suitable for cleaning urban streets, industrial parks, and administrative buildings. Its 6CBM dust collection tank and 4CBM water tank, combined with a 4mm stainless steel sweeper body, ensure durability and efficient cleaning. Equipped with a 300HP diesel engine and HW 10-speed transmission, it delivers a powerful and smooth ride.
Working capacity :
4+5CBMCabin type :
HOWO single cabin, with half sleeperDrive system :
4x2Wheelbase ( mm) :
4600 mmEngine specific :
WP10.300E22Gear box :
Fast 8 forward and 2 reverse speedsFront axle ( Kg ) :
7300Rear axle ( Kg ) :
13000The Howo 4x2 Sweeper Cleaning Truck is a machine with powerful sweeping performance and efficient operation, suitable for cleaning urban streets, industrial parks, and administrative buildings. Its 6CBM dust collection tank and 4CBM water tank, combined with a 4mm stainless steel sweeper body, ensure durability and efficient cleaning. Equipped with a 300HP diesel engine and HW 10-speed transmission, it delivers a powerful and smooth ride.
The Howo sweeper's optional rear alert and camera, Italian/American hydraulic motor, and front snowplow further enhance its safety and versatility. Furthermore, the factory-installed hydraulic system, safety guards, rotating lights, and working lights ensure convenient and safe operation. The Howo Sweeper Cleaning Truck also comes with an English operator's manual, spare parts list, and all necessary export documentation, providing comprehensive customer support and assurance.The Howo sweeper's optional rear alert and camera, Italian/American hydraulic motor, and front snowplow further enhance its safety and versatility. Furthermore, the factory-installed hydraulic system, safety guards, rotating lights, and working lights ensure convenient and safe operation. The Howo Sweeper Cleaning Truck also comes with an English operator's manual, spare parts list, and all necessary export documentation, providing comprehensive customer support and assurance.

*HOWO heavy 4x2 Cleaning Sweeper Truck
4+5CBM Street Sweeper Jetting Truck
HOWO garbage truck mounted cleaning sweeper*
-----------------------------------------------------------------------------
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Product Definition and Introduction
Features:
1. Truck Chassis: SINOTRUK HOWO heavy truck chassis, 4x2 and 4x4 model
WEICHAI model with 260HP, 280HP, 300HP or 340HP
Optional EURO 2/3/4/5 emission for different market
2. Tank material: Both Water tanker and Dust tanker stainless Steel material, 3mm thickness for durable service
3. Tanker body: Customized for 4CBM water tanker and 5CBM dust tanker
4. Control Box: SIMENS PLC electric control box with in cabin and rear hopper, convenient operation
Also matched hydraulic pump for tanker lifting for emergency usage
5. Working Environment: Super designed working temperature -22℃ to +48℃ day and night, with efficiently working height over 4000m
HOWO Cleaning Sweeper, Your Best Choose
ISUZU technology auxiliary engine matched with 2 brushes and middle suction plate, convenient and reliable
Product Parameter for HOWO garbage sweeper truck:

|
Howo Middle Duty Street Sweeping Tuck |
||
|
Main Specification |
||
|
Vehicle Brand |
CS Trucks Group |
|
|
Chassis Brand |
Howo heavy-duty |
|
|

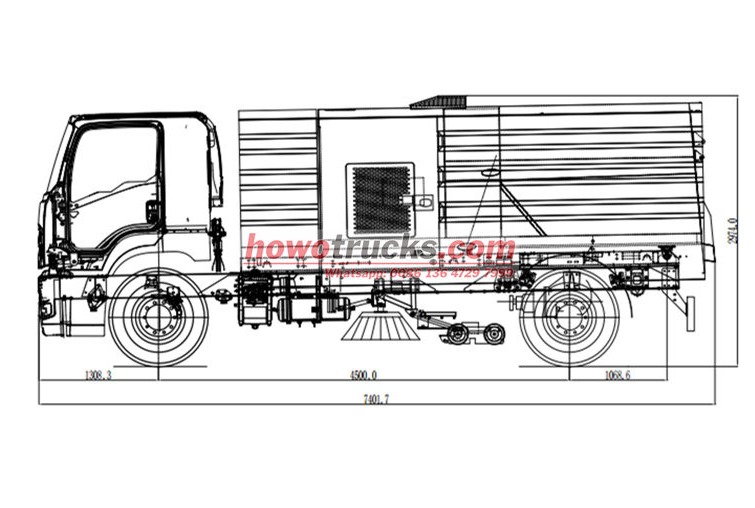

Overall dimensions (L x W x H) |
8360x2380x2850 mm |
|
|
Drive Type |
4x2 Left/Right hand drive |
|
|
Wheelbase |
4600 mm |
|
|
Cabin |
Howo luxury cab, with A/C and 2 seats, Forward control, all steel welded construction. Manual tilt,Mechanical suspension |
|
|
Weight |
GVW |
16300kg |
|
Kerb weight |
9630kg |
|
|
Engine |
Model |
WP10.300E22 |
|
Type |
Inline 6-cylinder diesel engine |
|
|
Power |
300HP/221KW |
|
|
Displacement |
9.726L |
|
|
Emission standard |
Euro 3 |
|
|
Transmission |
Manual |
Fast 8 forward and 2 reverse speeds |
|
Tyre |
8.25R20 |
6+1 spare tyre |
|
Upper Structure Parameter |
||
|
Volume of water tank |
4000L |
|
|
Volume of Dustbin |
5000L |
|
|
Material |
water tank |
Carbon steel |
|
garbage tank |
Inner stainless steel, outer carbon steel |
|
|
Hydraulic valve |
China famous brand |
|
|
Hydraulic motor |
China top brand |
|
|
Switch |
Schneider control switch |
|
|
Auxiliary Motor |
Brand |
Cummins |
|
Horsepower |
141 HP |
|
|
Sweeping Technical |
Max sweeping width (mm) |
3.5m |
|
Max. sweeping capacity |
70000m3/h |
|
|
Sweeping speed |
3-20km/h |
|
|
Cleaning efficiency |
≥95% |
|
|
Max. particle inhalation |
110mm |
|
|
Disc plate brush extension size |
>400mm |
|
|
Garbage tank door max.discharge angle |
>50° |
|
|

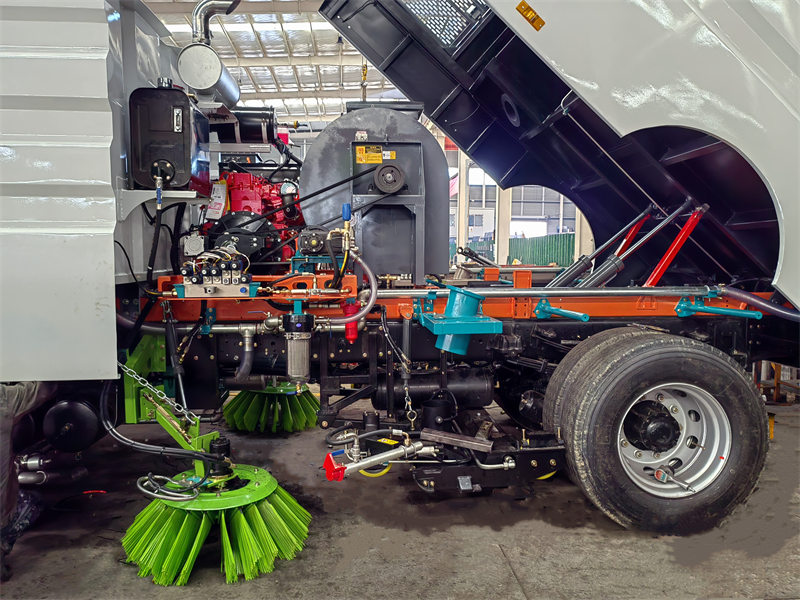

Sweeping system |
Type |
Total 2 pcs mechanical brushes with 2pcs high pressure water spray boom and 1 sucking discmounted in the middle, it is driven by the hyraulic motoispeed is adjustable, can be independently controlled,has automatic avoidance function |
|
Sweeping brush diameter |
ф 850mm |
|
|
Sweeping disk speed |
1 10r/min high-speed,80r/min medium speed50r/min low-speed |
|
|
Sweeping disk dip angle adjust |
forward 4 ° ~ 6 ° extroversion 4 °~ 7 ° |
|
|
Sucking disc |
Type |
Double suction hole, hydraulic control, spring suspension |
|
Suction hole diameter |
180mm |
|
|
Suction performance |
Delivers air blast and suction |
|
|

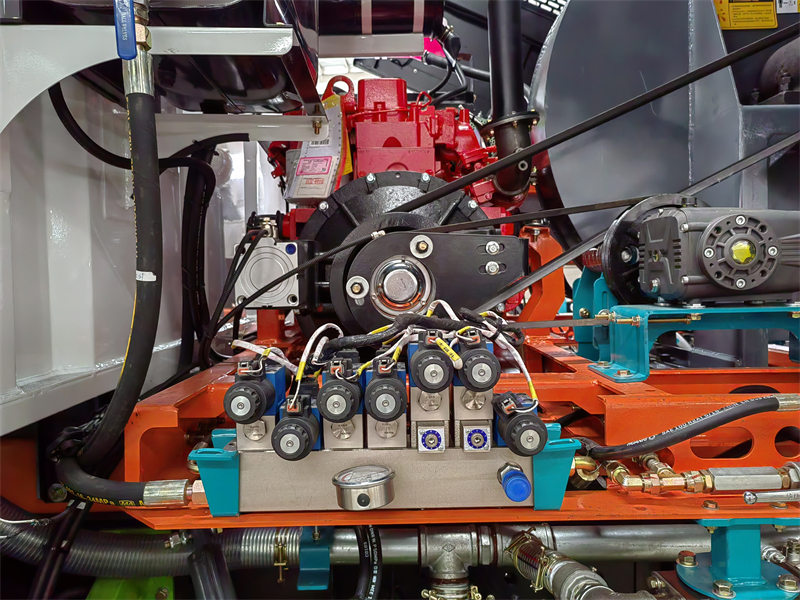

Hydraulic system |
Type |
Open type, electrical |
|
Main components |
Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve |
|
|
Pressure |
16Mpa |
|
|
Hydraulic oil volume |
60L |
|
|
Oil temperature |
60°C |
|
|
Water spraying system |
Components |
Pump, nozzle, water filter, etc. |
|
Low pressure water system |
Model |
Hangzhou Weilong 60/90 |
|
Flow rate |
60m3/h |
|
|
Water delivery distance |
90m |
|
|
Washing width |
24m |
|
|
Washing road |
Type |
Front washing bar |
|
Electrical system |
Type |
DC24V, PLC control |
|
Volts |
24V |
|
|
Battery |
2x12V |
|
|
Tools |
2 pcs fire hose,1 pcs fire wrench,1pcs water filter wrench,1 set chassis tools,1 pcs manual hydraulic pump rocker |
|
|
Spare parts |
88 pcs sweep brush,1 pcs fan seal,1 pcs rear door seal,2 pcs suction tube seal |
|


Advantage for HOWO heavy garbage sweeper truck:

1. Power system
♦ The Howo sweeper is equipped with an advanced WP10.300E22 diesel engine, which is powerful, ensure the stability and reliability under various working conditions.
♦ Intelligent transmission system and an advanced suspension system to further improve the stability and comfort of driving.

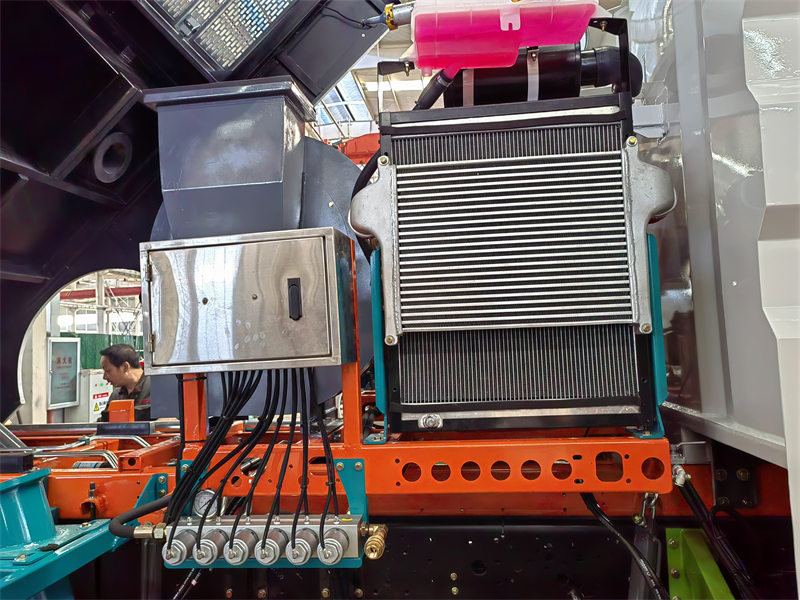

♦ Cummins 140HP auxiliary engine designed for auxiliary sweeping operations. Ensuring that key components such as the sweeping system, sprinkler system and dust collection device can operate stably and efficiently.

2. Water tank and dusty tank
♦ The Howo road sweeper is equipped with a spacious 4 CBM water tank to ensure continuous water supply to suppress dust during sweeping operations.
♦ It is also equipped with 6CBM stainless steel duty tank,the inner layer of the dustbin is made of stainless steel and the outer layer of carbon steel.With excellent corrosion resistance and wear resistance.
♦ The inside of the dustbin is smooth and flat, and it is not easy to leave garbage and dirt. Keep clean and hygienic for a long time.
♦ The 6 CBM capacity design can meet the needs of long-term cleaning operations and reduce the number of frequent dumping of garbage.

3.Cleaning system
♦ The cleaning system is the core part of the vehicle, mainly composed of cleaning brushes, high-pressure water pumps, negative pressure dust suction devices, etc.
♦ The arrangement of four central sweeping brushes and rear suction ports is adopted, which makes the cleaning width large and the efficiency high.
♦ The cleaning brush is made of wear-resistant material and can effectively remove stains and dust on the road.
♦ The high-pressure water pump provides strong water pressure to spray the cleaning water onto the ground.
♦ The entire cleaning system works in tandem, utilizing a powerful suction cup mechanism to achieve efficient and rapid cleaning results.
