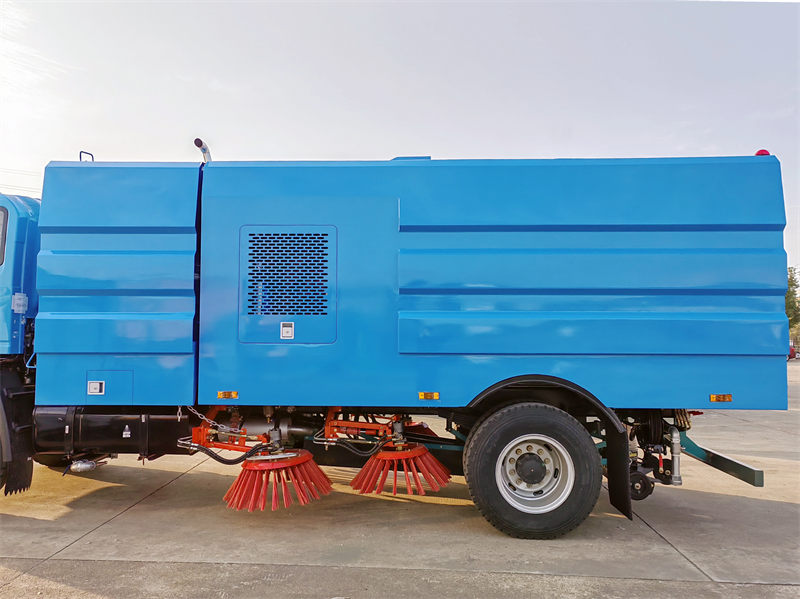

Africa HOWO light truck mounted street sweeper

Africa HOWO light truck mounted street sweeper

The Howo 4x2 road sweeper truck is a machine with powerful sweeping performance and efficient operation, suitable for cleaning urban streets, industrial parks, and administrative buildings. Its 6CBM dust collection tank and 2CBM water tank, combined with a 4mm stainless steel sweeper body, ensure durability and efficient cleaning. Equipped with a 160HP diesel engine and WLY 6-speed transmission, it delivers a powerful and smooth ride.

  • Working capacity :

    2+6CBM
  • Cabin type :

    HOWO 1880 flat roof cabin, with half sleeper
  • Drive system :

    4x2
  • Wheelbase ( mm) :

    3815 mm
  • Engine specific :

    YC4E160-33
  • Gear box :

    WLY 6 shift manual model
  • Front axle ( Kg ) :

    3800
  • Rear axle ( Kg ) :

    7200
New Products

The Howo 4x2 road sweeper truck is a machine with powerful sweeping performance and efficient operation, suitable for cleaning urban streets, industrial parks, and administrative buildings. Its 6CBM dust collection tank and 2CBM water tank, combined with a 4mm stainless steel sweeper body, ensure durability and efficient cleaning. Equipped with a 160HP diesel engine and WLY 6-speed transmission, it delivers a powerful and smooth ride.

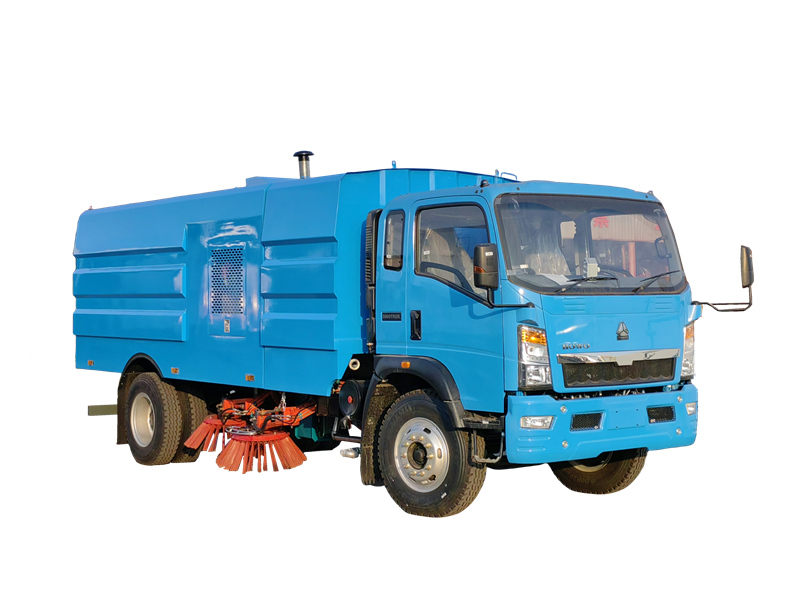

HOWO RHD 5cbm road sweeper truck



The Howo sweeper's optional rear alert and camera, Italian/American hydraulic motor, and front snowplow further enhance its safety and versatility. Furthermore, the factory-installed hydraulic system, safety guards, rotating lights, and working lights ensure convenient and safe operation. The Howo Sweeper Cleaning Truck also comes with an English operator's manual, spare parts list, and all necessary export documentation, providing comprehensive customer support and assurance.

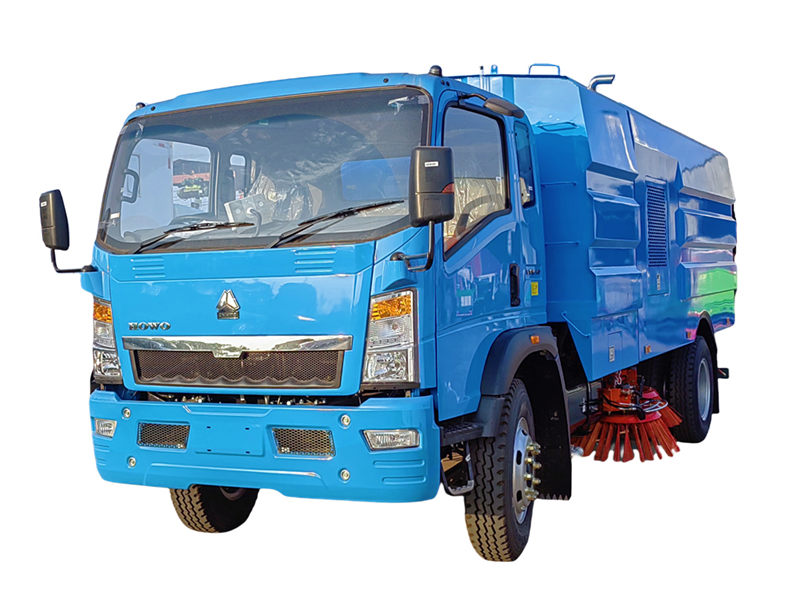

HOWO 5cbm road cleaning truck



*SINOTRUK HOWO 4x2 Road Sweeper Truck
6+2CBM Street Sweeping Truck
HOWO RHD truck mounted road sweeper*
-----------------------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



Product Introduction

Manufacturer: CS TRUCKS

Features:
1. Truck Chassis: SINOTRUK HOWO heavy truck chassis, 6x4 and 6x6 model
                              WEICHAI model with 102HP, 116HP, 140HP or 160HP
                              Optional EURO 2/3/4/5 emission for different market


2. Tank material: Both Water tanker and Dust tanker stainless Steel material, 3mm thick for durable service


3. Tanker body: Customized for 2CBM water tanker and 6CBM dust tanker


4. Control Box: SIMENS PLC electric control box with in cabin and rear hopper, convenient operation
                           Also matched hydraulic pump for tanker lifting for emergency usage


5. Working Environment: Super designed working temperature -22℃ to +48℃ day and night, with efficiently working height over 4000m

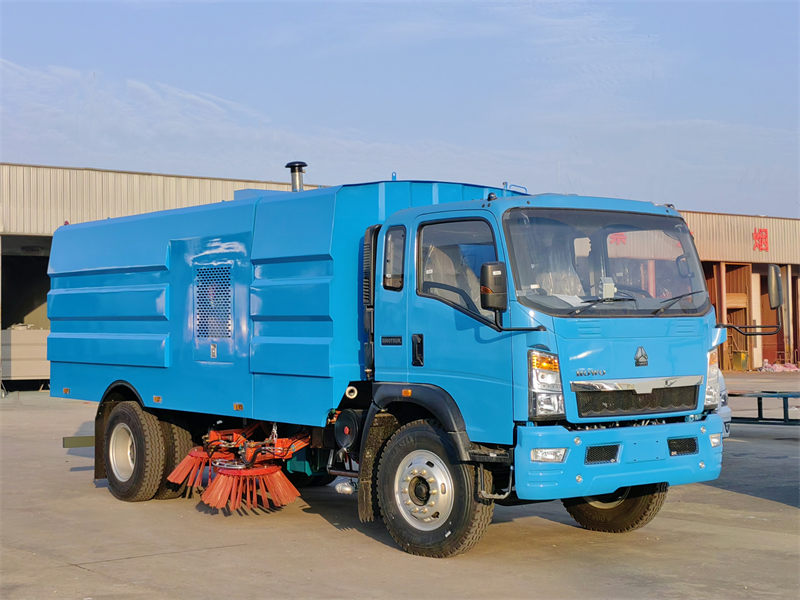

HOWO RHD 5cbm road sweeper



HOWO Road Sweeper, Your Best Choose

ISUZU technology auxiliary engine matched with 4 brushes and rear suction plate, convenient and reliable

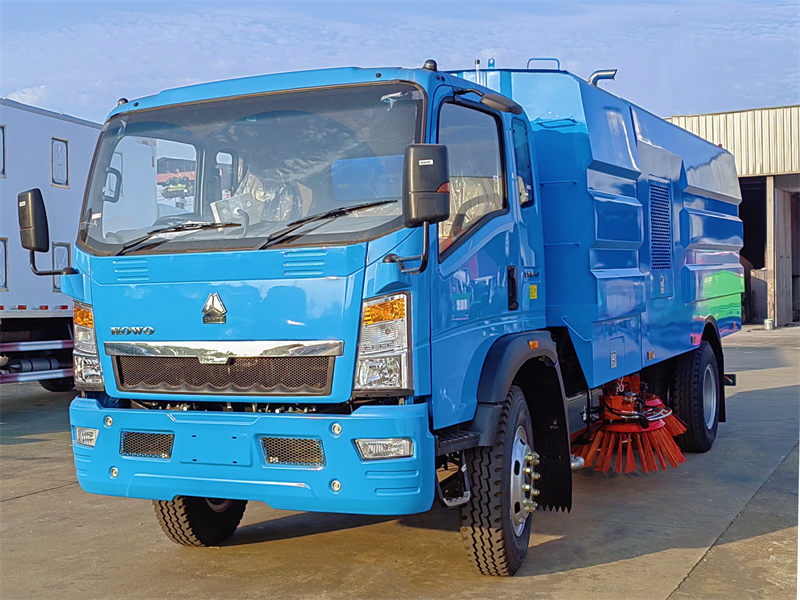

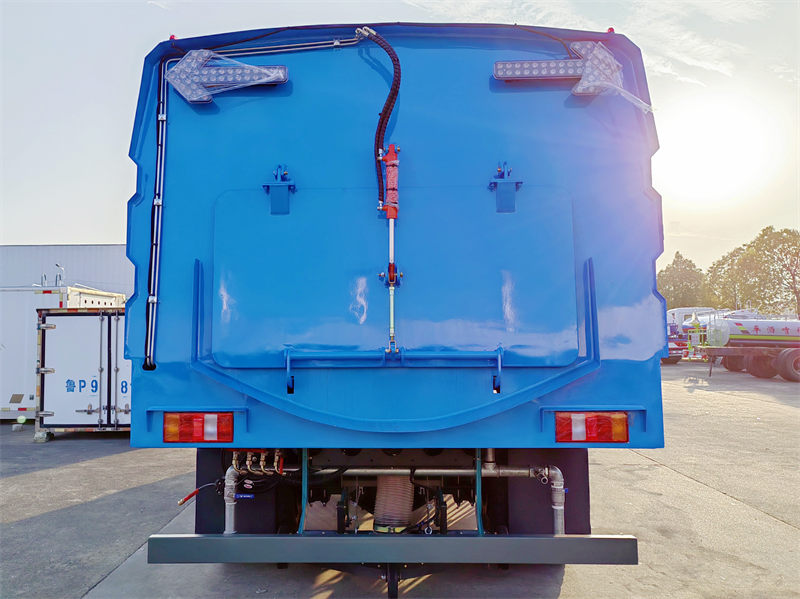

  • HOWO 5cbm road sweeper vehicle

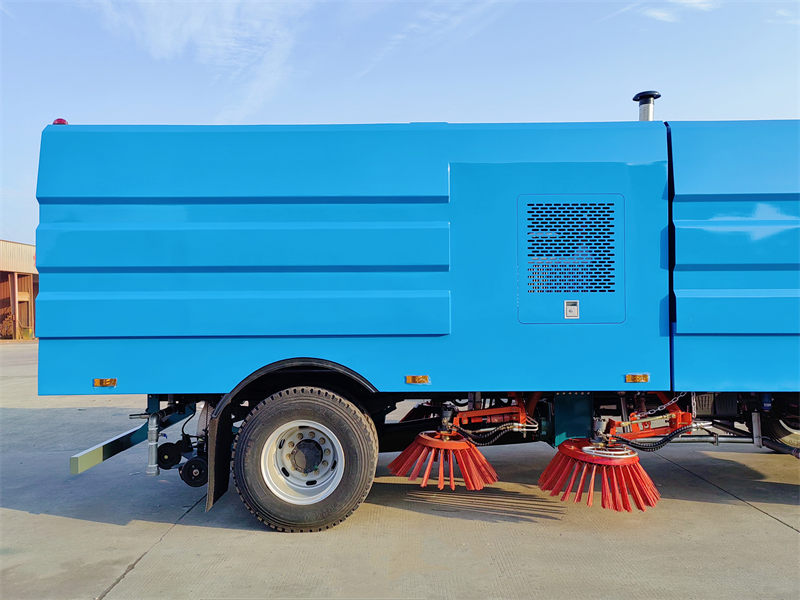

  • HOWO 5cbm road sweeper truck
  • HOWO 5cbm road sweeper truck


Product Parameter for Howo 2+6CBM Truck Mounted Road Sweeper

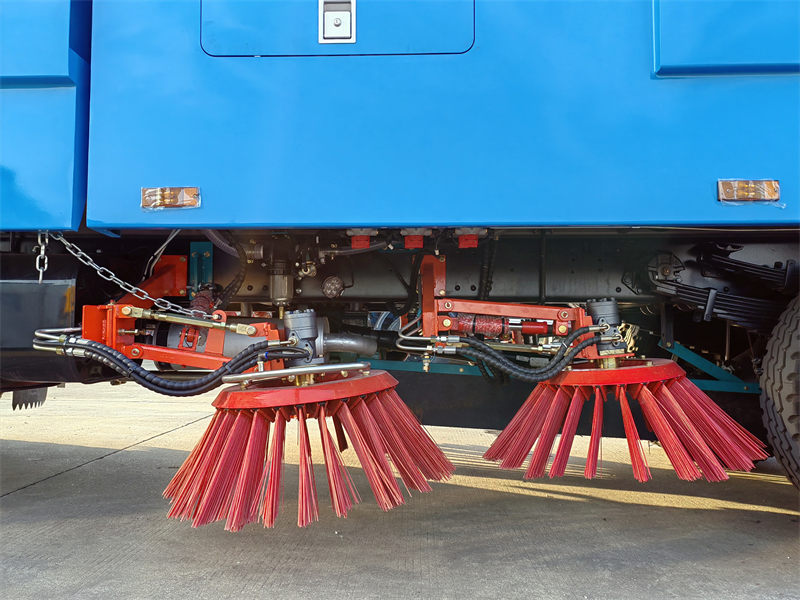

Road sweeper truck detailed component



Howo Middle Duty Street Sweeping Tuck

Main Specification

Vehicle Brand

CS Trucks Group

Chassis Brand

Howo light duty

Overall dimensions (L x W x H)

7360x2380x2850 mm

Drive Type

4x2 Left/Right hand drive

Wheelbase

3800 mm

Cabin

Howo luxury cab, with A/C and 2 seats, Forward control, all steel welded construction. Manual tilt,Mechanical suspension

Weight

GVW

10300kg

Kerb weight

5630kg

Engine

Model

YC4E160-33

Type

Inline 4-cylinder diesel engine

Power

160HP

Displacement

4.26L

Emission standard

Euro 3

Transmission

Manual

WLY6TS55 6 forward and 1 reverse speeds

Tyre

8.25R16

6+1 spare tyre

Upper Structure Parameter

Volume of water tank

2000L

Volume of Dustbin

6000L

Material

water tank

Carbon steel

garbage tank

Inner stainless steel, outer carbon steel

Hydraulic valve

China famous brand

Hydraulic motor

China top brand

Switch

Schneider control switch

Auxiliary Motor

Brand

Cummins

Horsepower

141 HP









Sweeping Technical

Max sweeping width (mm)

3.5m

Max. sweeping capacity

70000m3/h

Sweeping speed

3-20km/h

Cleaning efficiency

≥95%

Max. particle inhalation

110mm

Disc plate brush extension size

>400mm

Garbage tank door max.discharge angle

>50°



Sweeping system



Type

Total 4 pcs mechanical brushes with 4pcs water spray boom and 1 sucking discmounted in the middle, it is driven by the hyraulic motoispeed is adjustable, can be independently controlled,has automatic avoidance function

Sweeping brush diameter

ф 850mm

Sweeping disk speed

1 10r/min high-speed,80r/min medium speed50r/min low-speed

Sweeping disk dip angle adjust

forward 4 ° ~ 6 ° extroversion 4 °~ 7 °

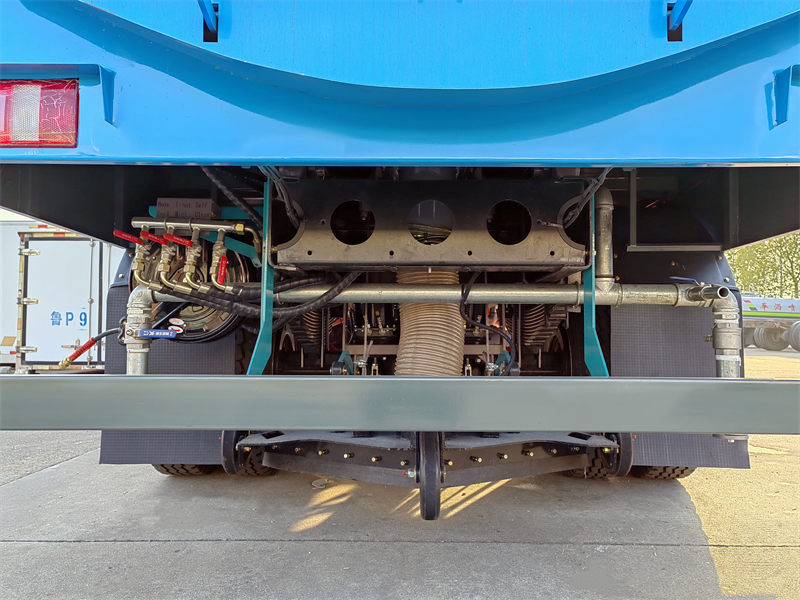

Sucking disc

Type

Double suction hole, hydraulic control, spring suspension

Suction hole diameter

180mm

Suction performance

Delivers air blast and suction





Hydraulic system

Type

Open type, electrical

Main components

Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve

Pressure

16Mpa

Hydraulic oil volume

60L

Oil temperature

60°C

Water spraying system

Components

Pump, nozzle, water filter, etc.



Low pressure water system

Model

Hangzhou Weilong 60/90

Flow rate

60m3/h

Water delivery distance

90m

Washing width

24m

Washing road

Type

Front washing bar



Electrical system

Type

DC24V, PLC control

Volts

24V

Battery

2x12V

Tools

2 pcs fire hose,1 pcs fire wrench,1pcs water filter wrench,1 set chassis tools,1 pcs manual hydraulic pump rocker

Spare parts

88 pcs sweep brush,1 pcs fan seal,1 pcs rear door seal,2 pcs suction tube seal

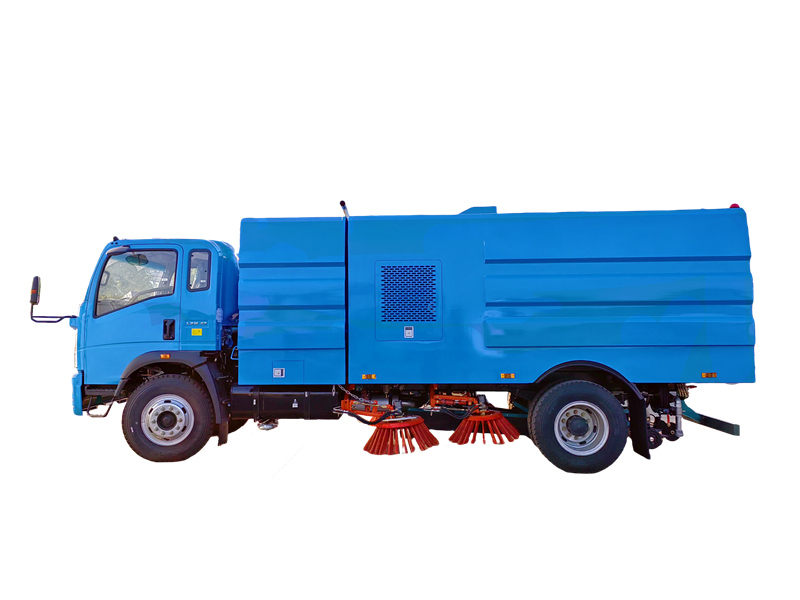

HOWO sweeper truck drawing

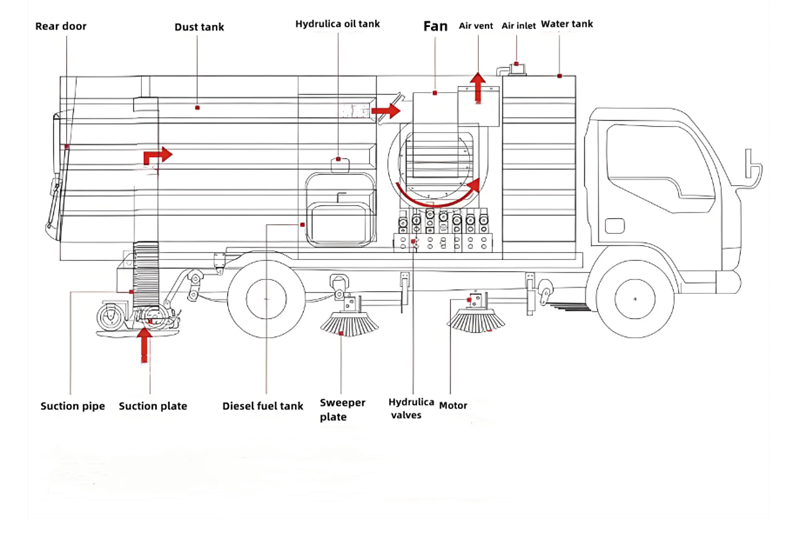

Working Principle Draw

Howo working principle draw

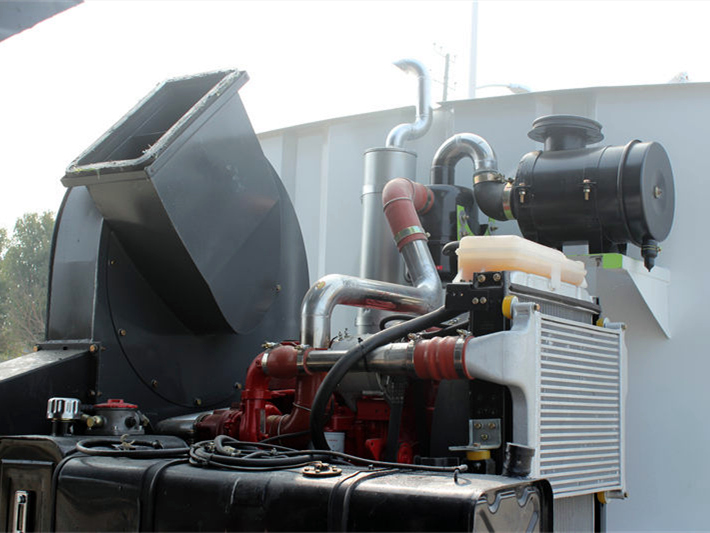

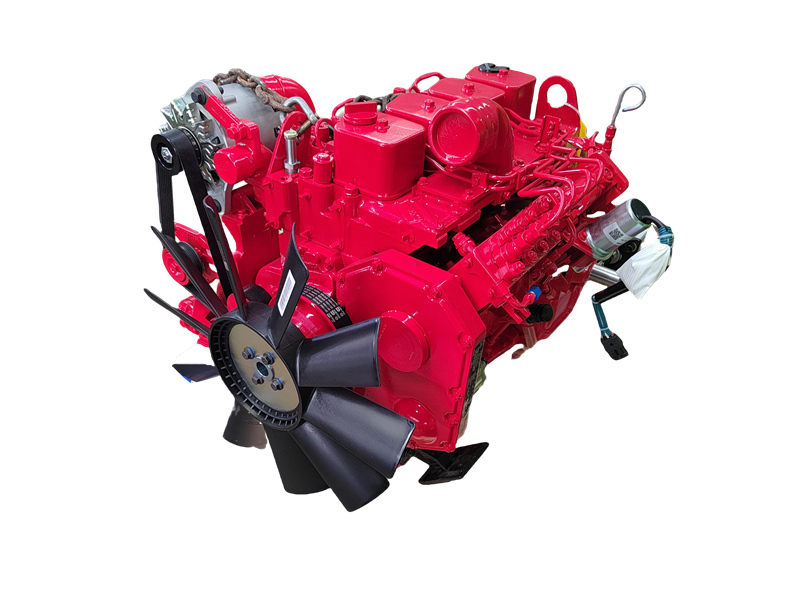

Working Power Auxiliary Eingine

Cummins 140HP auxiliary engine designed for auxiliary sweeping operations. Ensuring that key components such as the sweeping system, sprinkler system and dust collection device can operate stably and efficiently.

Howo road sweeper truck



Dongfeng Cummins Engine

Displacement

Net Weight

Idle Speed

Model

Supplier ID

3.9 L

343 kg

750 r/min

B140 33

Engine Serial NO.     93223524

Altitude Limit     3000  m

Shop Order

SO13889E

CPL

3411

Approval NO.

Family

OBD

Max Net Power KW  101  at   2500   r/min

Rated KW    103   at    2500 r/min

Licence NO.     XK06-002-00411

Fuel rate at rated HP     88    mm³/stroke

Engine ASSY. NO.

Executed Standard       Q/DCEC 1





Advantage

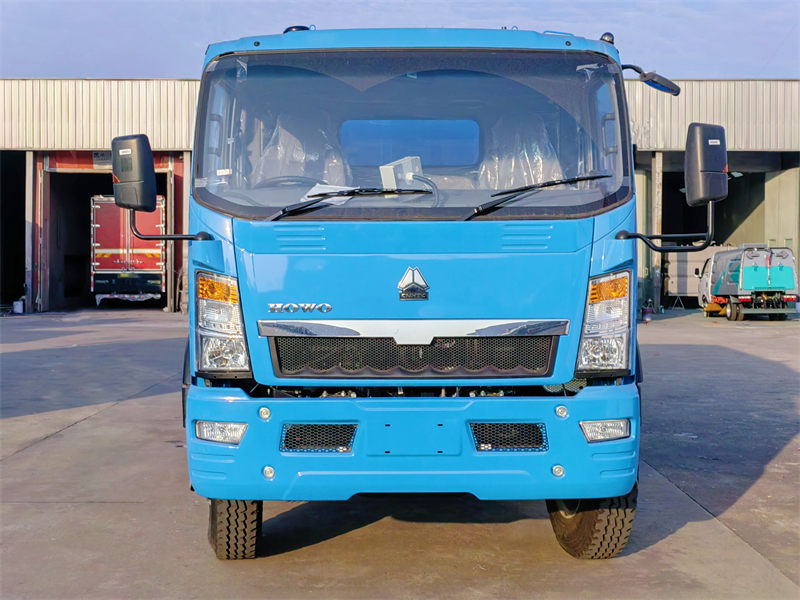

Howo road sweeper truck

★ Power system

The Howo sweeper is equipped with an advanced WP10.300E22 diesel engine, which is powerful, ensure the stability and reliability under various working conditions.

Intelligent transmission system and an advanced suspension system to further improve the stability and comfort of driving.



Howo road sweeper truck

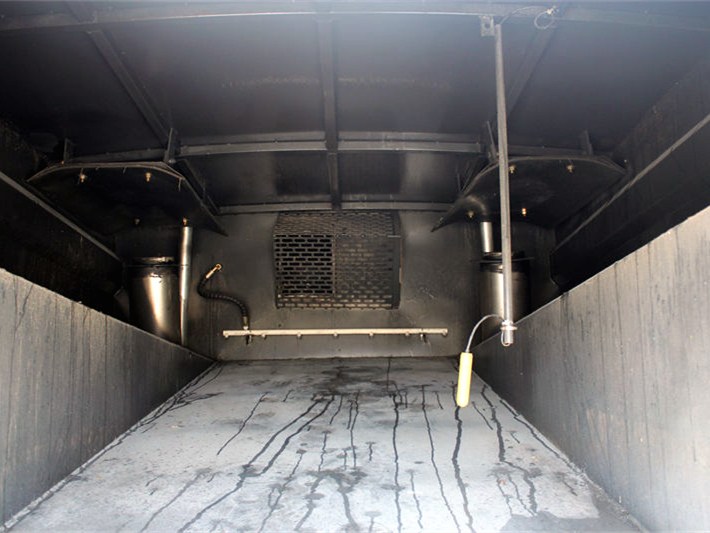

★ Water tank and dusty tank

The Howo road sweeper is equipped with a spacious 4 CBM water tank to ensure continuous water supply to suppress dust during sweeping operations.

It is also equipped with 5CBM stainless steel duty tank,the inner layer of the dustbin is made of stainless steel and the outer layer of carbon steel.With excellent corrosion resistance and wear resistance.



Howo road sweeper truck

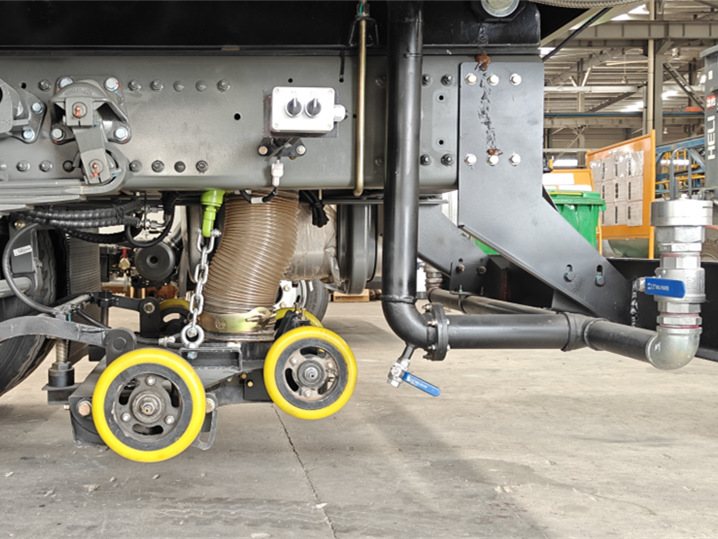

★ Cleaning system

The cleaning system is the core part of the vehicle, mainly composed of cleaning brushes, high-pressure water pumps, negative pressure dust suction devices, etc.

The arrangement of four central sweeping brushes and rear suction ports is adopted, which makes the cleaning width large and the efficiency high.

Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!


We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



HOWO sweeper truck for export



HOWO sweeper truck for export

HOWO RHD 5cbm road sweeper truck for export to Africa market
