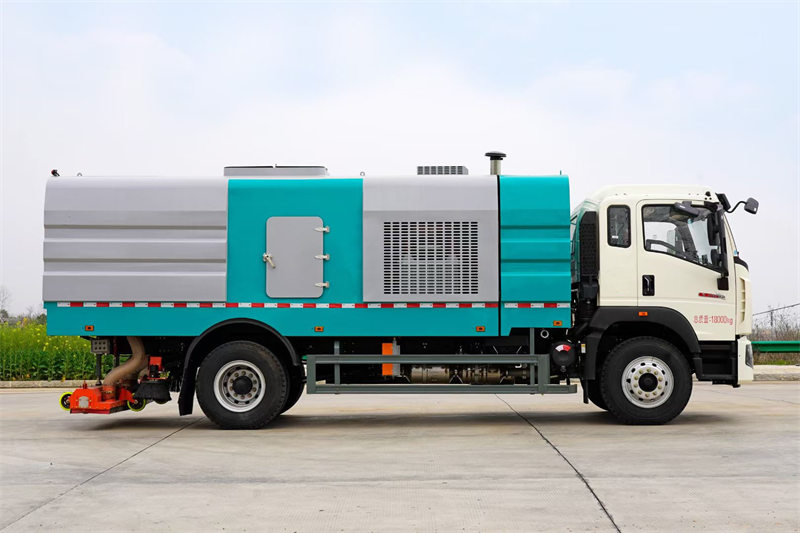

The Howo 4x2 sweeper jetting truck is a machine with powerful sweeping performance and efficient operation, suitable for cleaning urban streets, industrial parks, and administrative buildings. Its 5CBM dust collection tank and 4CBM water tank, combined with a 4mm stainless steel sweeper body, ensure durability and efficient cleaning. Equipped with a 300HP diesel engine and HW 10-speed transmission, it delivers a powerful and smooth ride.
Working capacity :
4+5CBMCabin type :
HOWO single cabin, with half sleeperDimension (mm ) :
8360x2380x2850 mmDrive system :
4x2Wheelbase ( mm) :
4600 mmEngine specific :
WP10.300E22Gear box :
Fast 8 forward and 2 reverse speedsFront axle ( Kg ) :
7300Rear axle ( Kg ) :
13000The Howo 4x2 Sweeper Cleaning Truck is a machine with powerful sweeping performance and efficient operation, suitable for cleaning urban streets, industrial parks, and administrative buildings. Its 6CBM dust collection tank and 4CBM water tank, combined with a 4mm stainless steel sweeper body, ensure durability and efficient cleaning. Equipped with a 300HP diesel engine and HW 10-speed transmission, it delivers a powerful and smooth ride.
The Howo sweeper's optional rear alert and camera, Italian/American hydraulic motor, and front snowplow further enhance its safety and versatility. Furthermore, the factory-installed hydraulic system, safety guards, rotating lights, and working lights ensure convenient and safe operation. The Howo Sweeper Cleaning Truck also comes with an English operator's manual, spare parts list, and all necessary export documentation, providing comprehensive customer support and assurance.The Howo sweeper's optional rear alert and camera, Italian/American hydraulic motor, and front snowplow further enhance its safety and versatility. Furthermore, the factory-installed hydraulic system, safety guards, rotating lights, and working lights ensure convenient and safe operation. The Howo Sweeper Cleaning Truck also comes with an English operator's manual, spare parts list, and all necessary export documentation, providing comprehensive customer support and assurance.

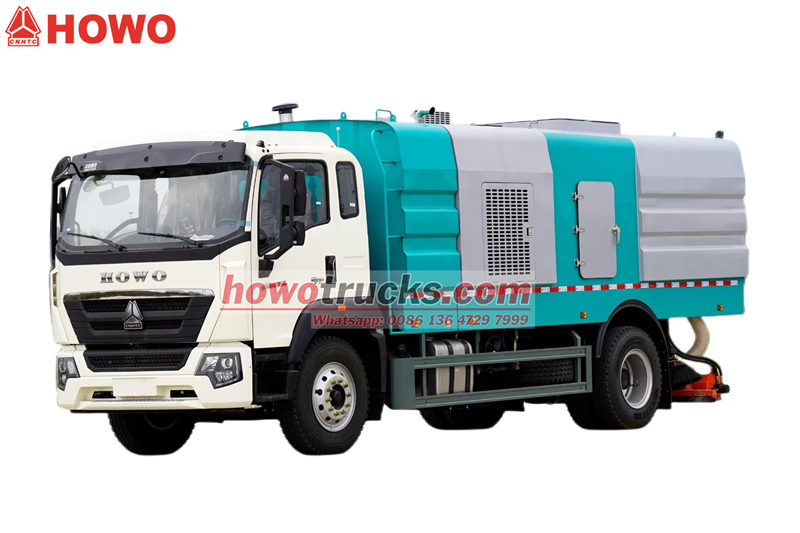

*HOWO heavy 4x2 Cleaning Sweeper Truck
4+5CBM Street Sweeper Jetting Truck
HOWO garbage truck mounted cleaning sweeper*
-----------------------------------------------------------------------------
Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Product Definition and Introduction
Features:
1. Truck Chassis: SINOTRUK HOWO heavy truck chassis, 4x2 and 4x4 model
WEICHAI model with 260HP, 280HP, 300HP or 340HP
Optional EURO 2/3/4/5 emission for different market
2. Tank material: Both Water tanker and Dust tanker stainless Steel material, 3mm thickness for durable service
3. Tanker body: Customized for 4CBM water tanker and 5CBM dust tanker
4. Control Box: SIMENS PLC electric control box with in cabin and rear hopper, convenient operation
Also matched hydraulic pump for tanker lifting for emergency usage
5. Working Environment: Super designed working temperature -22℃ to +48℃ day and night, with efficiently working height over 4000m
HOWO Cleaning Sweeper, Your Best Choose
ISUZU technology auxiliary engine matched with 2 brushes and middle suction plate, convenient and reliable
Product Parameter for HOWO Cleaning Sweeper Truck:

|
Howo Middle Duty Street Sweeping Tuck |
||
|
Main Specification |
||
|
Vehicle Brand |
CS Trucks Group |
|
|
Chassis Brand |
Howo heavy-duty |
|
|
Overall dimensions (L x W x H) |
8360x2380x2850 mm |
|
|
Drive Type |
4x2 Left/Right hand drive |
|
|
Wheelbase |
4600 mm |
|
|
Cabin |
Howo luxury cab, with A/C and 2 seats, Forward control, all steel welded construction. Manual tilt,Mechanical suspension |
|
|
Weight |
GVW |
16300kg |
|
Kerb weight |
9630kg |
|
|
Engine |
Model |
WP10.300E22 |
|
Type |
Inline 6-cylinder diesel engine |
|
|
Power |
300HP/221KW |
|
|
Displacement |
9.726L |
|
|
Emission standard |
Euro 3 |
|
|
Transmission |
Manual |
Fast 8 forward and 2 reverse speeds |
|
Tyre |
8.25R20 |
6+1 spare tyre |
|
Upper Structure Parameter |
||
|
Volume of water tank |
4000L |
|
|
Volume of Dustbin |
5000L |
|
|
Material |
water tank |
Carbon steel |
|
garbage tank |
Inner stainless steel, outer carbon steel |
|
|
Hydraulic valve |
China famous brand |
|
|
Hydraulic motor |
China top brand |
|
|
Switch |
Schneider control switch |
|
|

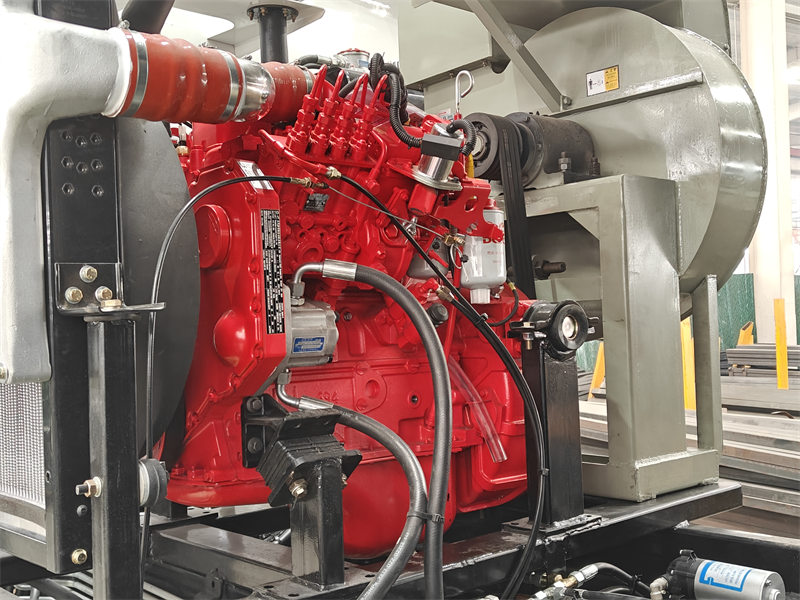

Auxiliary Motor |
Brand |
Cummins |
|
Horsepower |
141 HP |
|
|
Sweeping Technical |
Max sweeping width (mm) |
3.5m |
|
Max. sweeping capacity |
70000m3/h |
|
|
Sweeping speed |
3-20km/h |
|
|
Cleaning efficiency |
≥95% |
|
|
Max. particle inhalation |
110mm |
|
|
Disc plate brush extension size |
>400mm |
|
|
Garbage tank door max.discharge angle |
>50° |
|
|

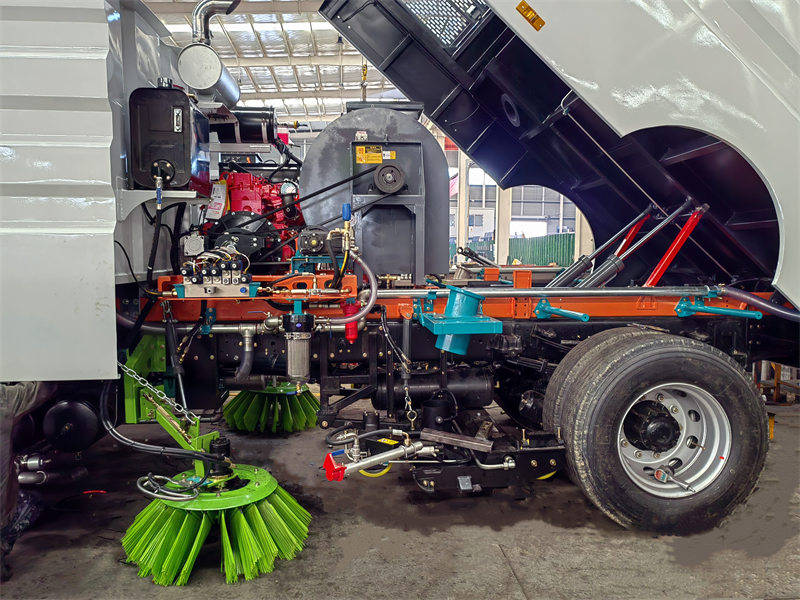

Sweeping system |
Type |
Total 2 pcs mechanical brushes with 2pcs high pressure water spray boom and 1 sucking discmounted in the middle, it is driven by the hyraulic motoispeed is adjustable, can be independently controlled,has automatic avoidance function |
|
Sweeping brush diameter |
ф 850mm |
|
|
Sweeping disk speed |
1 10r/min high-speed,80r/min medium speed50r/min low-speed |
|
|
Sweeping disk dip angle adjust |
forward 4 ° ~ 6 ° extroversion 4 °~ 7 ° |
|
|
Sucking disc |
Type |
Double suction hole, hydraulic control, spring suspension |
|
Suction hole diameter |
180mm |
|
|
Suction performance |
Delivers air blast and suction |
|
|

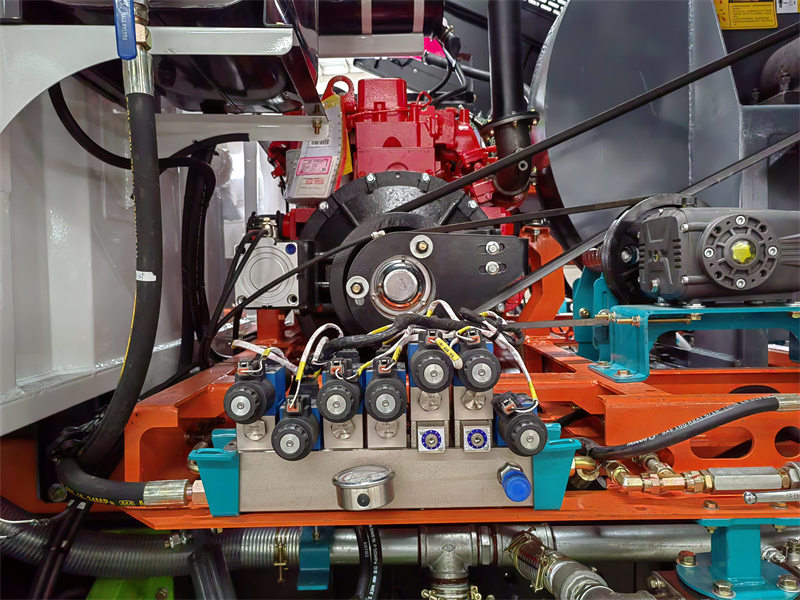

Hydraulic system |
Type |
Open type, electrical |
|
Main components |
Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve |
|
|
Pressure |
16Mpa |
|
|
Hydraulic oil volume |
60L |
|
|
Oil temperature |
60°C |
|
|
Water spraying system |
Components |
Pump, nozzle, water filter, etc. |
|
Low pressure water system |
Model |
Hangzhou Weilong 60/90 |
|
Flow rate |
60m3/h |
|
|
Water delivery distance |
90m |
|
|
Washing width |
24m |
|
|
Washing road |
Type |
Front washing bar |
|
Electrical system |
Type |
DC24V, PLC control |
|
Volts |
24V |
|
|
Battery |
2x12V |
|
|
Tools |
2 pcs fire hose,1 pcs fire wrench,1pcs water filter wrench,1 set chassis tools,1 pcs manual hydraulic pump rocker |
|
|
Spare parts |
88 pcs sweep brush,1 pcs fan seal,1 pcs rear door seal,2 pcs suction tube seal |
|


Advantage for HOWO 4x2 Garbage Sweeper Truck:

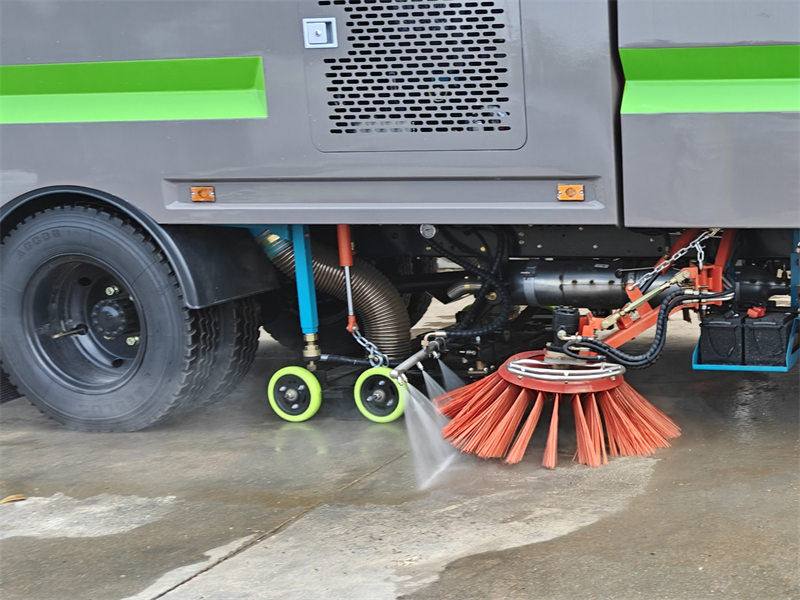

High efficiency disc and roller sweeping combined system:
♦ Independently hydraulically controlled sweeping brushes automatically rebound upon encountering obstacles, protecting the brushes and mechanism, and adapting to uneven terrain.
♦ An optional powerful roller sweeping system, located in front of the suction cup, is used to pick up stubborn debris from corners and throw it into the effective range of the suction cup.
♦ Features high speed and high torque, and can work in conjunction with the disc sweeper to form a seamless debris collection flow.

Super-strong negative pressure suction system:
♦ High-efficiency centrifugal fan, large air volume, high vacuum, low noise, and low energy consumption.
♦ Advanced aerodynamic design and wear-resistant materials ensure long service life and high efficiency.
♦ Optimized suction cup design features a fully sealed rubber skirt and adaptive floating function.
♦ Closely adheres to the road surface to reduce missed suction, internal guide vane design directs airflow and prevents debris blockage.

High Pressure Front Flush System:
♦ Multiple nozzles, fan-shaped water curtain: Multiple high-pressure nozzles are installed under the front of the vehicle, forming a fan-shaped water curtain covering the entire working width.
♦ Water pressure is adjustable from 60-80 Bar to adapt to different stains, allowing for pre-wetting and loosening of road surface dirt.
♦ Optional high-temperature, high-pressure cleaning is available, significantly improving oil and dirt removal capabilities for heavily soiled areas.
Side Flushing and Rear Spray System:
♦ High-precision side spray booms are used to flush curbs and corners, and should have automatic extension and obstacle avoidance functions.
♦ The rear spray boom creates a fine water mist behind the truck effectively suppressing secondary dust generated during cleaning.

Intelligent Unloading System: Lifting Self-Unloading:
♦ The garbage bin is hydraulically lifted for rapid unloading.
♦ For viscous sludge, a high-pressure spray bar assists in unloading within the bin, ensuring thorough and residue-free discharge.
Intelligent Integrated Electronic Control System:
♦ All functions can be controlled via a touchscreen in the cab. Preset modes such as "Powerful Sweeping Mode" and "Water-Saving Mode" can be selected and switched with a single button.
♦ Integrated intelligent control of the chassis and superstructure allows for real-time monitoring of vehicle status, operational data, and fault diagnosis.
♦ Equipped with multiple high-definition cameras covering blind spots such as the sweepers, suction nozzles, and rear of the vehicle, ensuring operational safety.
