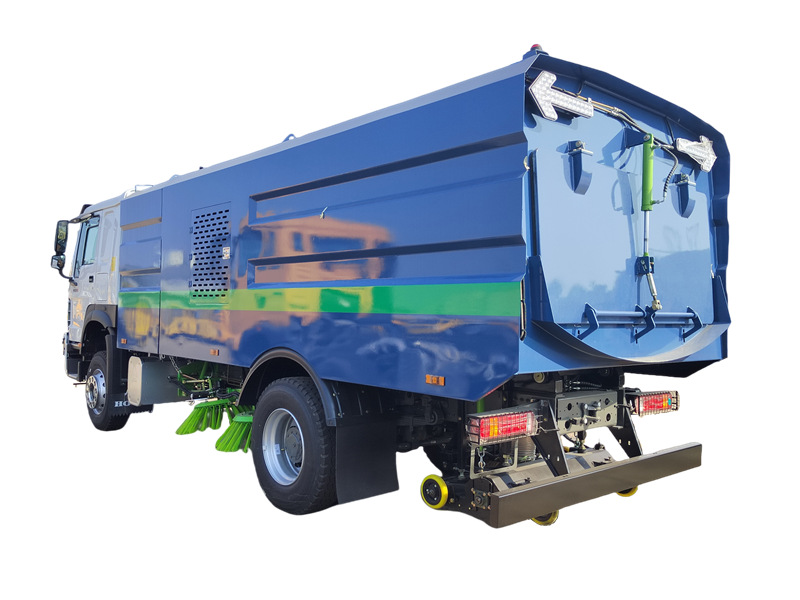

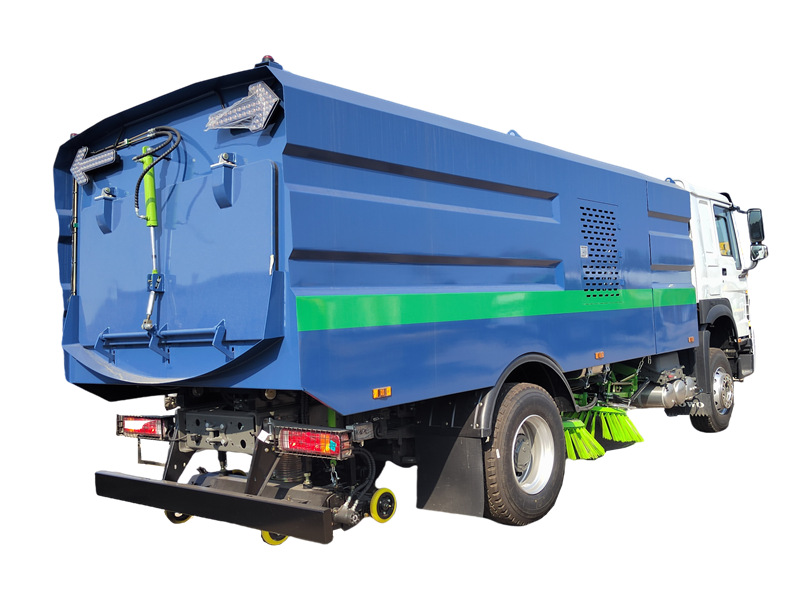

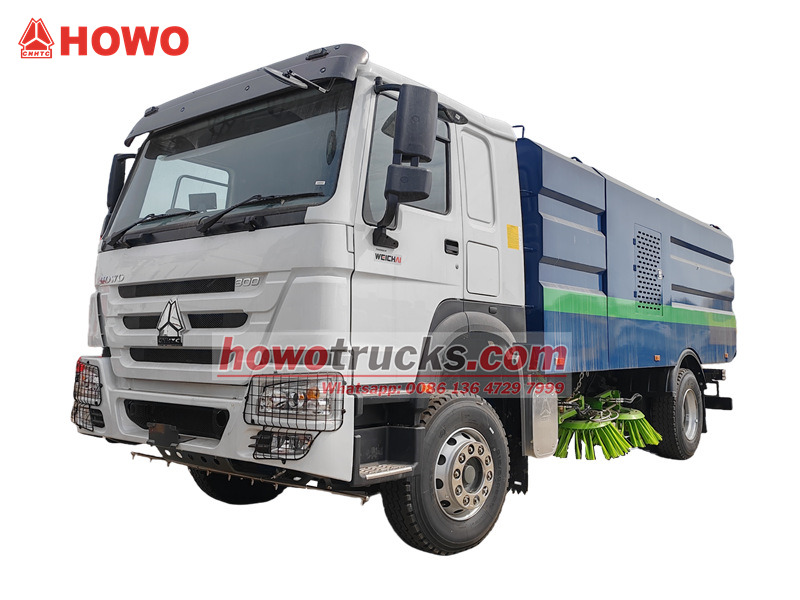

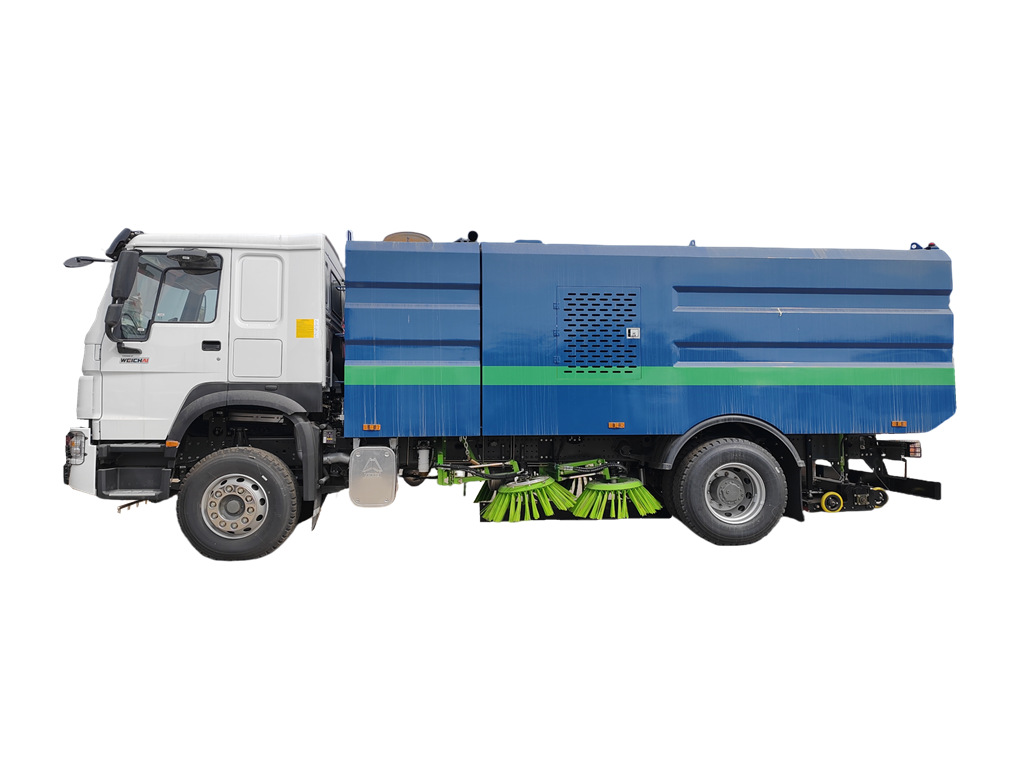

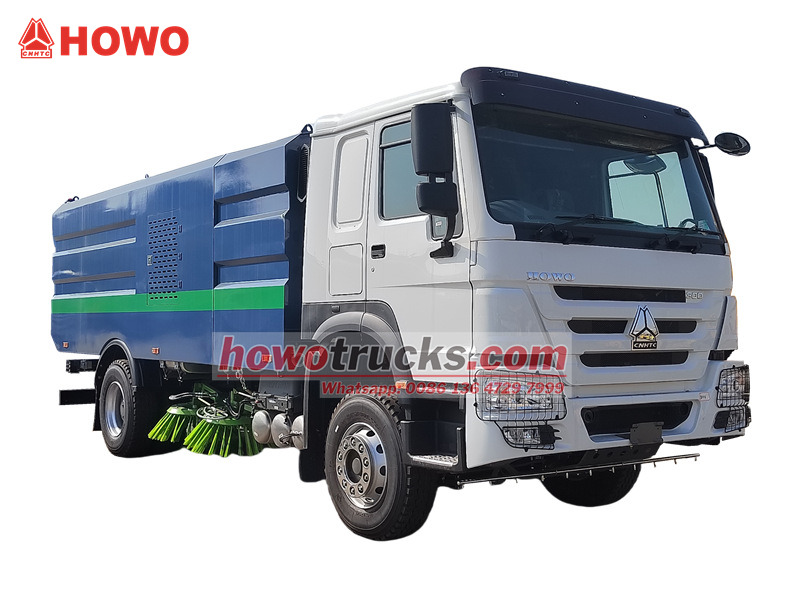

The HOWO 12CBM RHD Sweeper Truck is a high-efficiency specialized equipment designed for road cleaning. Built on the SINOTRUK HOWO heavy duty chassis, it integrates sweeping, dust absorption, and waste transportation functions. Utilizing four sweeping brushes and a rear suction nozzle working in coordination, it achieves a sweeping width of 3.2 meters and a total tank capacity of 12 cubic meters. With powerful performance and intelligent operation, this HOWO street sweeper is particularly suitable for large-scale, high-efficiency cleaning operations on trunk roads and municipal streets in left-hand traffic regions.
Working capacity :
12 CBMCabin type :
HOWO HW76Drive system :
4×2Wheelbase ( mm) :
5000Engine specific :
300HP/WP10.300E22Gear box :
HW13710Front axle ( Kg ) :
7000Rear axle ( Kg ) :
13000

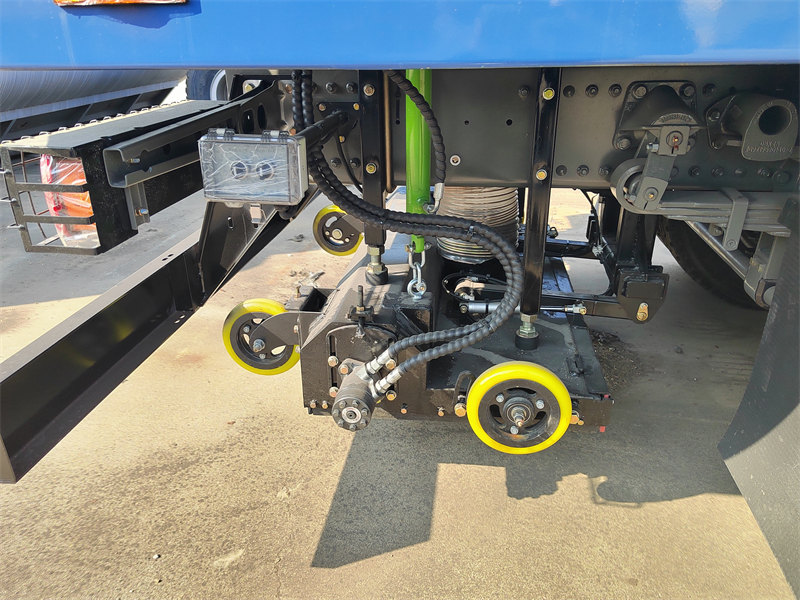

HOWO 12CBM RHD Road Sweeper is an efficient sanitation vehicle that combines road sweeping, garbage collection, and transportation functions. It is widely used for trunk highways and municipal road maintenance. Built on a Sinotruk HOWO 4×2 right-hand drive chassis, it is equipped with 300HP Weichai engine and HW13710 gearbox, ensuring robust operational power. Its core structure includes an 8-cubic-meter garbage tank, a 4-cubic-meter water tank, a 140-horsepower Cummins auxiliary engine, four sweeping brushes, and a rear suction nozzle. The brushes gather debris, which is then sucked into the garbage tank by a powerful negative pressure dust absorption system, effectively preventing secondary pollution.
This HOWO street sweeper truck offers a maximum sweeping width of 3.2 meters and can clean up to 60,000 square meters per hour. It features an advanced electronic automatic control system for user-friendly operation, along with a well-balanced ratio between the water and garbage tank capacities, enabling prolonged continuous operation. With excellent overall performance and strong adaptability, it is particularly suited for cleaning tasks in airports, ports, and various urban road environments, making it a highly efficient and reliable professional sweeping solution.

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
※ Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Product Features
● The WEICHAI engine delivers outstanding performance and robust power.
● The sweeping device is highly advanced, with a sweeping width of up to 3,200mm and a maximum cleaning capacity of 60,000㎡/h.
● The powerful dust absorption system prevents secondary pollution.
● The well-proportioned capacities of the water tank and garbage tank support extended cleaning operations.
● The design is user-friendly, with an intuitive and easy-to-understand operation interface.
※ Ⅱ. Product Parameter for HOWO sweeper truck:
|
HOWO RHD 12CBM Street Sweeper Truck Specifications |
||
|
Basic specification |
Chassis brand |
SINOTRUK |
|
Chassis model |
ZZ1167M50 |
|
|
Overall dimension(L*W*H) |
8800×2500×3150 mm |
|
|
Gross vehicle weight |
16000 kg |
|
|
Curb weight |
11200 kg |
|
|
Dust tank |
8 CBM |
|
|
Water tank |
4 CBM |
|
|
Chassis |
Drive model |
4×2, right hand drive |
|
Cabin |
HOWO HW76, 2 seats with one sleeping berth |
|
|
Front axle |
HF7,7000kg loading capacity |
|
|
Rear axle |
ST16,13000kg loading capacity |
|
|
Wheelbase |
5000mm |
|
|
Front/rear wheel track |
2022/1830 mm |
|
|
Front/rear overhang |
1430/2670 mm |
|
|
Approach/departure angle |
16/23(°) |
|
|
Gearbox |
HW13710, 10-speed forwards and 2 reverse |
|
|
Tyre size & number |
315/80R22.5, 6 pcs with one spare tyre |
|
|
Max driving speed |
90 km/h |
|
|
Engine |
Brand |
WEICHAI |
|
Model |
WP10.300E22 |
|
|
Type |
Diesel, vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail |
|
|
Power |
300HP/220KW |
|
|
Displacement |
9726 ml |
|
|
Emission standard |
Euro 2 |
|
|
Max. torque |
1390 N.m |
|
|
Rated speed |
2200 rpm |
|
|
Fuel consumption |
10 L/100km |
|
|
Sweeper tank |
Dust tank |
8 CBM |
|
Water tank |
4 CBM |
|
|
Tank material |
Stainless steel |
|
|
Tank thickness |
4 mm |
|
|
Sweeping brush |
4 pcs |
|
|
Max cleaning width |
2800mm-3200mm |
|
|
Max cleaning capacity |
60000 m2/H |
|
|
Cleaning degree |
≥95% |
|
|
Max cleaning speed |
3-25 km/h |
|
|
Max diameter of the suction |
120mm |
|
|
Auxiliary engine |
CUMMINS |
|
|
Auxiliary engine horsepower |
140HP |
|
|
Max discharge angle of the dust tank |
45 degrees |
|
|
Operation |
Electronic automatic operation |
|

※ Ⅲ. Product Advantages:

Stainless steel sweeper tank
The entire tank is divided into two sections: the front part is the water tank, and the rear section is the dust tank. The water tank supplies water for road flushing, while the dust tank is used for collecting debris from the ground. Constructed entirely of stainless steel, the tank is robust, durable, and easy to maintain.

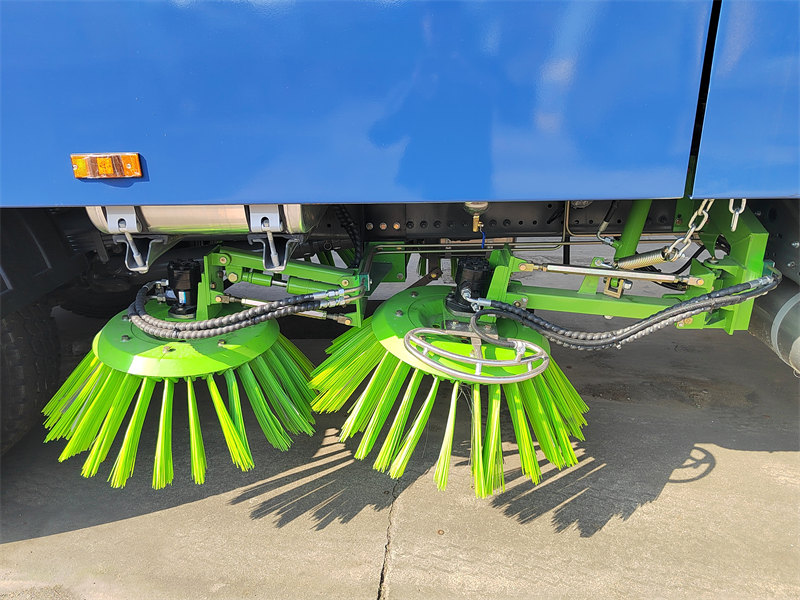

Centrally-mounted sweeping disc
The centrally-mounted sweeping system consists of four brush discs positioned under the tank body. Each disc is equipped with 24 durable polypropylene bristle bundles, delivering outstanding wear resistance and efficient sweeping performance. The system is also fitted with a spring-suspended obstacle avoidance mechanism, allowing the brushes to automatically lift and retract when encountering obstacles.

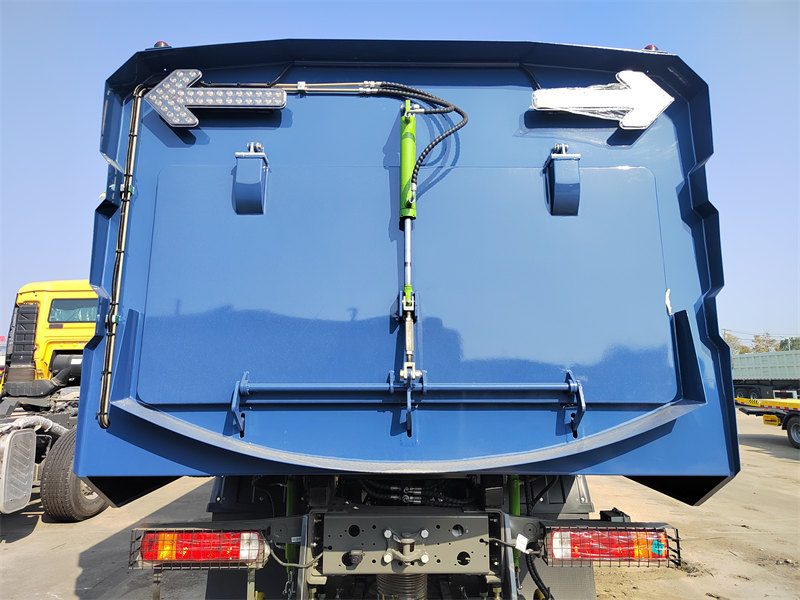

Locking mechanism

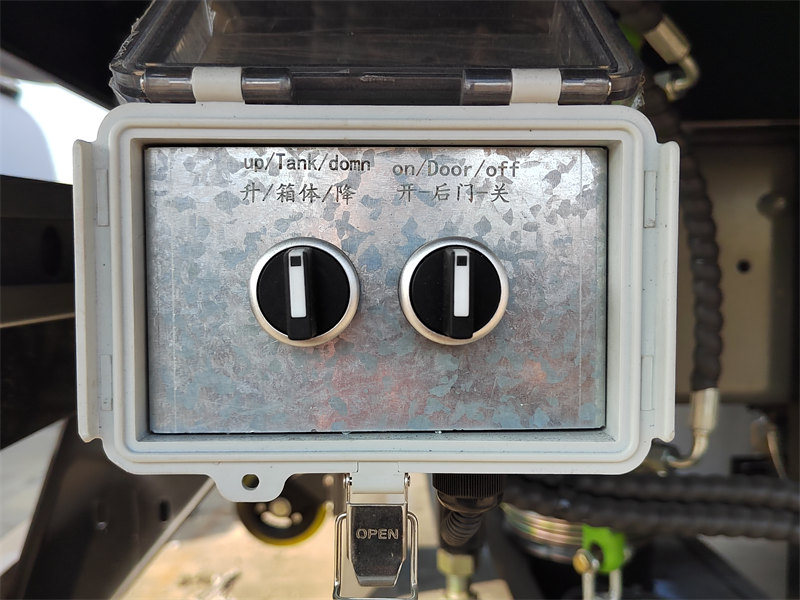

The tank's rear door is equipped with a hydraulic pin-type locking mechanism. This system enables one-touch automatic opening, closing, and locking of the door, ensuring a secure seal to effectively prevent leaks of waste and sewage.

Led warning light
The HOWO sweeper truck is equipped with a waterproof LED warning light at the rear. It generates minimal heat and provides high-visibility illumination detectable from over a hundred meters away, effectively ensuring the vehicle's safety during operation.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

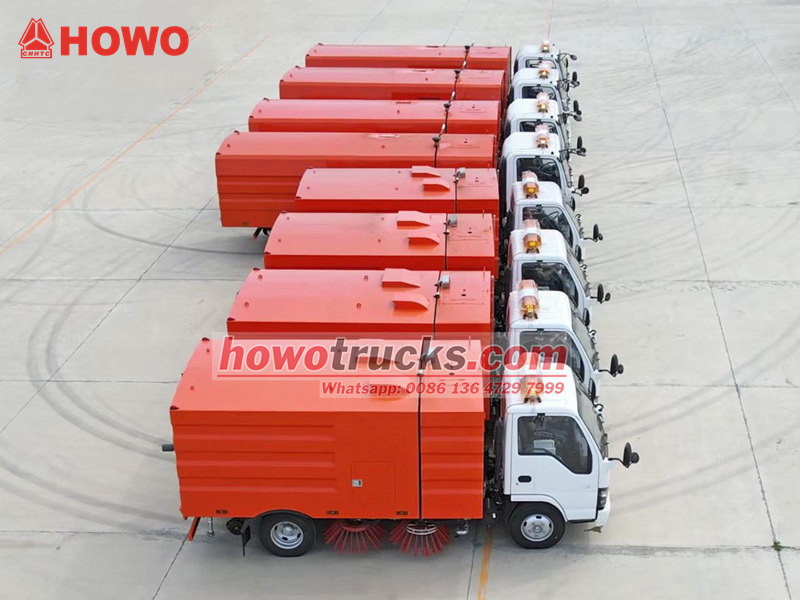

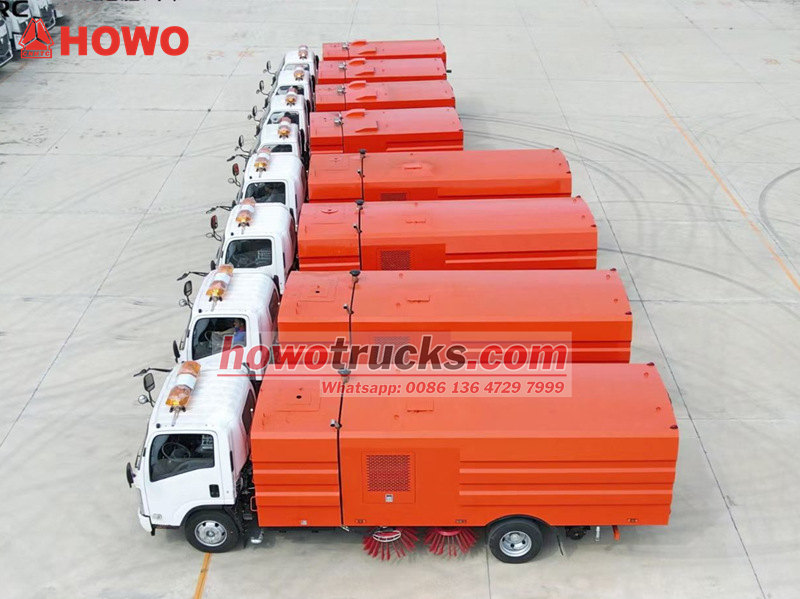

SINOTRUK HOWO road sweeping trucks for export

SINOTRUK HOWO street cleaning trucks ready for shipment
