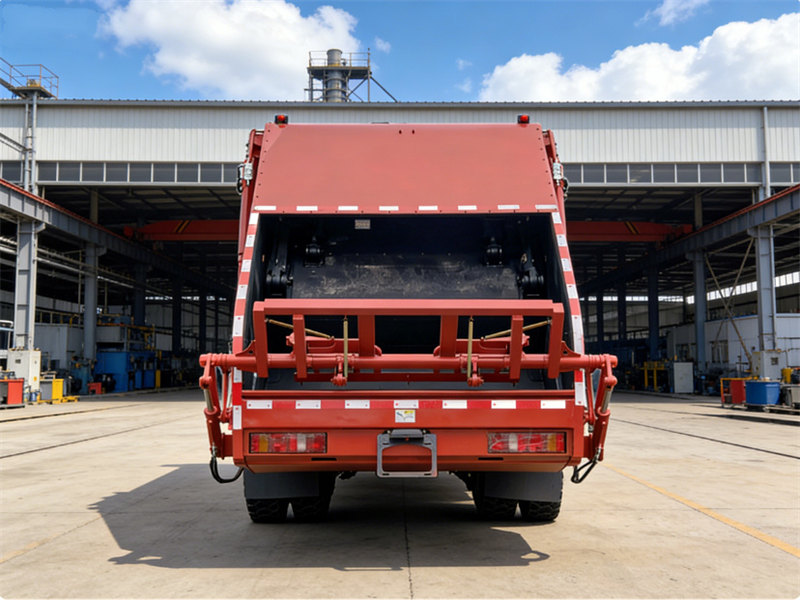

Djibouti HOWO NX heavy rear compactor truck

Djibouti HOWO NX heavy rear compactor truck

This Howo 6x4 heavy duty compactor garbage loader truck is an outstanding work in the field of urban cleaning. Equipped with a WD615.47 engine, it has a powerful output of 371HP, a displacement of 9.726L, and turbocharging and intercooling technology. It is not only powerful, but also meets the stringent Euro 6 emission standards. Its 33tons total weight configuration and 20tons load capacity can fully meet the daily garbage removal needs of large and medium sized cities.

  • Working capacity :

    20 CBM
  • Cabin type :

    HOWO NX
  • Dimension (mm ) :

    10300×2550×3150
  • Drive system :

    6×4
  • Wheelbase ( mm) :

    4600+1370
  • Engine specific :

    WD615.47
  • Gear box :

    HW19710
  • Front axle ( Kg ) :

    7500
  • Rear axle ( Kg ) :

    13000*2
  • Remark :

    6×6, RHD drive is optional
New Products

The Howo NX heavy garbage rear compactor truck is an outstanding work in the field of urban cleaning. Equipped with a WD615.47 engine, it has a powerful output of 371HP, a displacement of 9.726L, and turbocharging and intercooling technology. It is not only powerful, but also meets the stringent Euro 6 emission standards. Its 33tons total weight configuration and 20tons load capacity can fully meet the daily garbage removal needs of large and medium sized cities.

The Howo garbage trash compactor truck adopts an advanced HW19710 gearbox, combined with heavy 6*4 drive system to ensure stability and efficiency in complex road conditions. The 20CBM curved tank body is made of T420 special steel, with a tank body thickness of 5mm and an overall molding process. The compactor ratio is as high as 1:3.4, ensuring the ultimate garbage compactor efficiency.

The fully automatic control system has a single loading and unloading cycle time as short as 40-45 seconds, and is equipped with PLC intelligent control, which is easy and fast to operate. In manual mode, the operator can use the operating lever and electric control buttons to complete operations such as compactor and unloading of the garbage compartment.

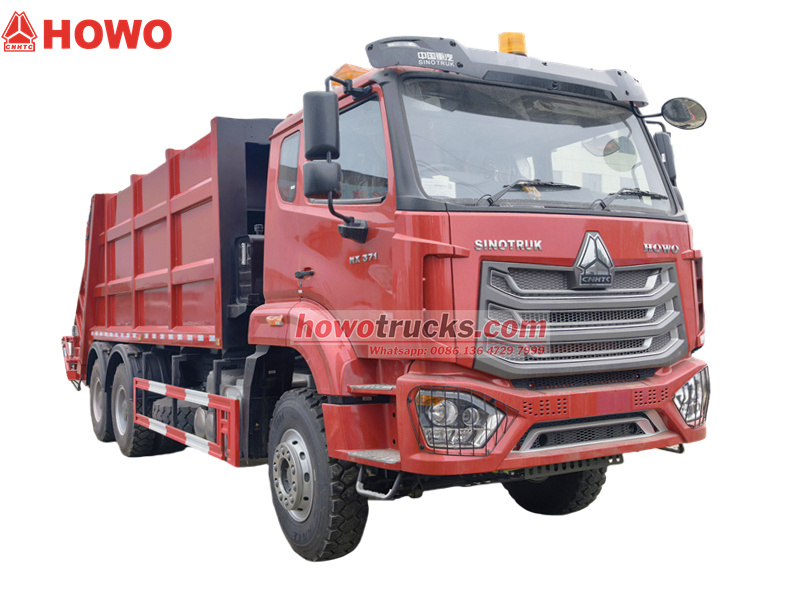

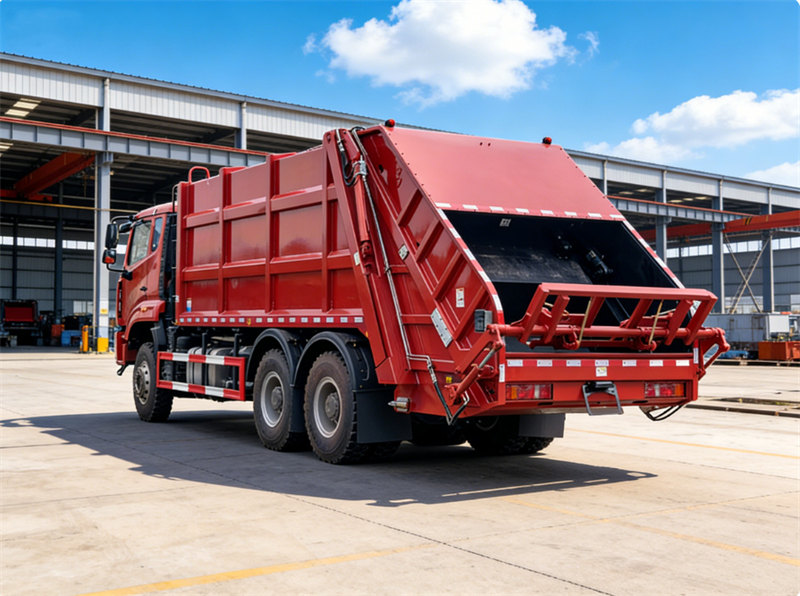

HOWO 6×4 garbage compactor truck



HOWO 6×4 garbage compactor truck



*HOWO NX 6×4 Trash Compactor Truck

HOWO 20CBM Rear Loader Garbage Truck*

-----------------------------------------------------------------

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



✦Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS Group
Features:
1. Truck Chassis: SINOTRUK HOWO light truck chassis, 6x4and 6x6 model
                               WD model with 300HP, 340HP, 371HP or 400HP
                               Optional EURO 2/3/4/5 emission for different market


2. Tank material: St52 material 5mm thick carbon steel for durable service Q355, T420, HARDOX material can be choose



3. High EfficiencyCompaction ratios of 5:1 to 6:1 for domestic waste, with cycle times of just 20-35 seconds for maximum productivity

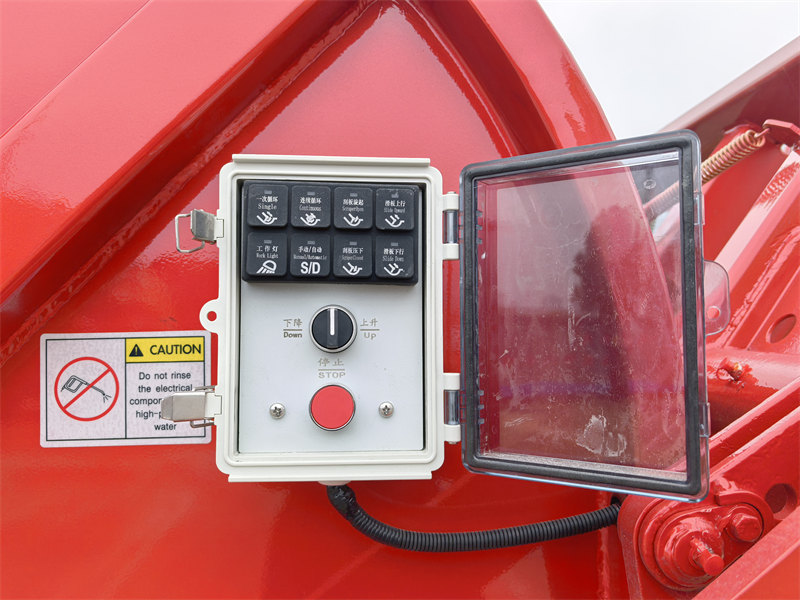

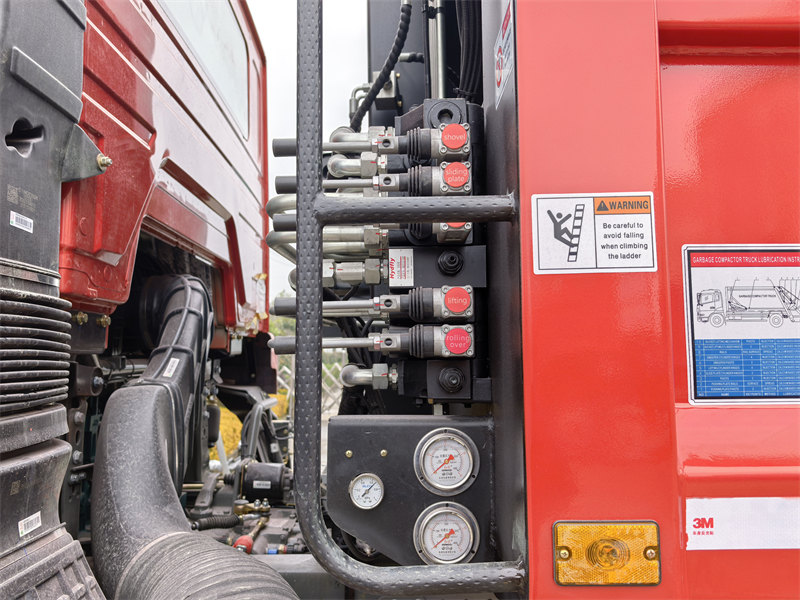

4. Control Box: CAN BUS control box with in cabin and rear hopper, convenient operation,also matched hydraulic control valve for emergency usage

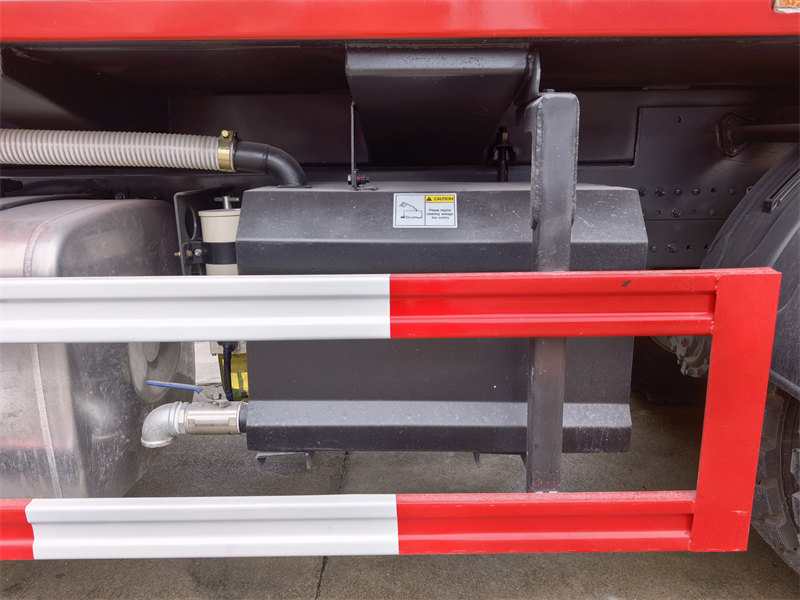

5. Leak-Proof DesignEnvironmentally responsible with leak-proof construction and optional 80-150L wastewater tanks for hygiene compliance


6. Working Environment: Super designed working temperature -22℃ to +48℃ day and night, with efficiently working height over 4000m

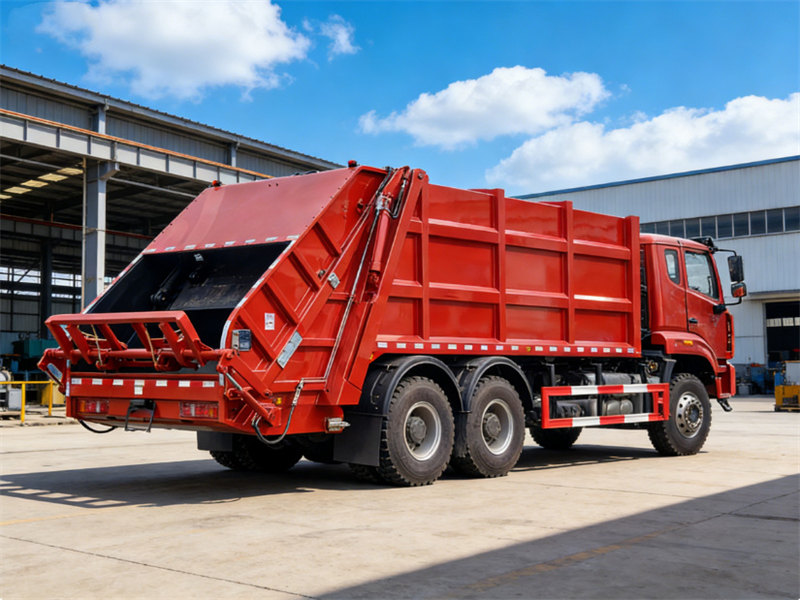

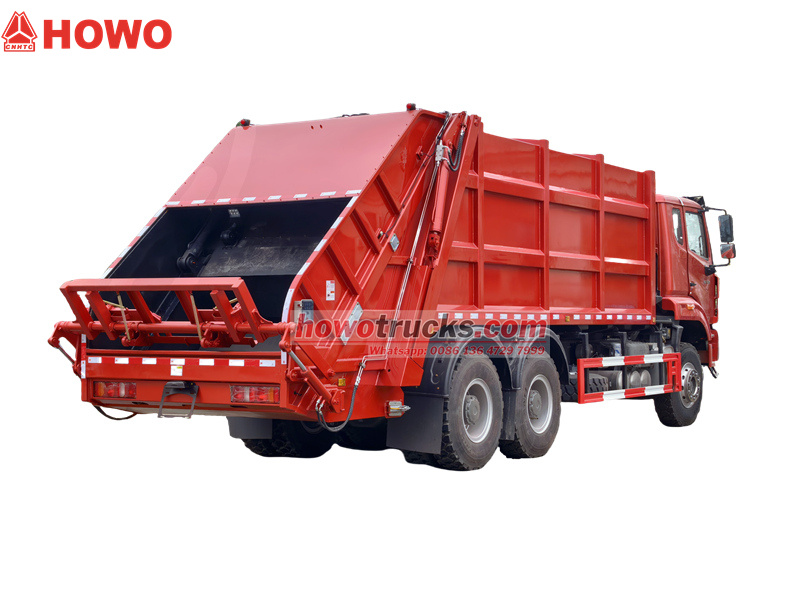

HOWO 20 CBM rear load garbage truck



✦Ⅱ.Product Parameter For Howo Heavy Refuse Compactor Truck:

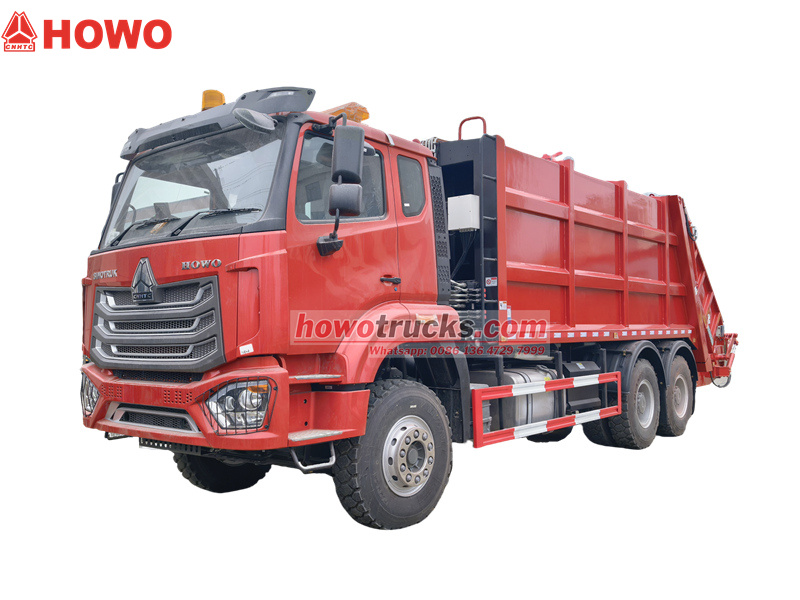

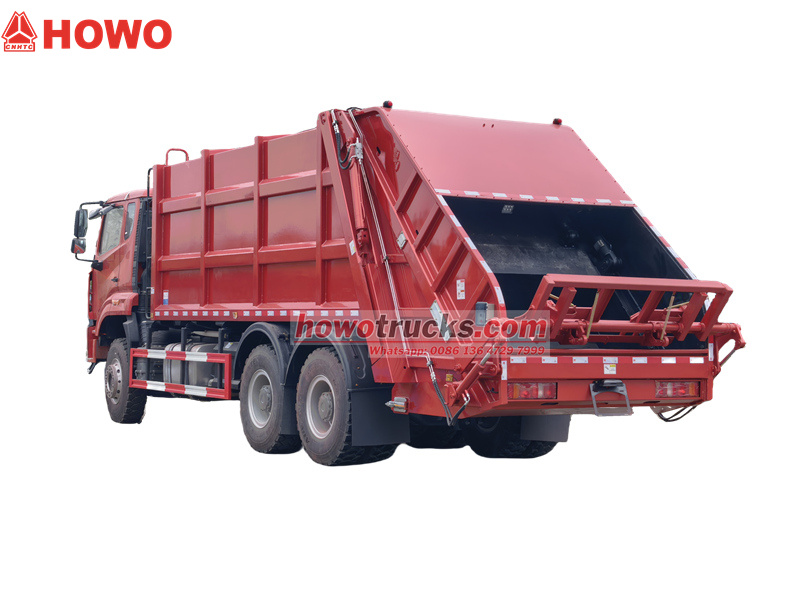

HOWO 6×4 back loader garbage truck




Basic Information

Chassis brand

HOWO Brand

Product

HOWO 6x4 heavy garbage compactor truck

Overall Dimension

Cab

Single Row

Driver position

Left hand drive

Drive Model

6X4

Overall Parameter: L×W×H

10300×2500×3160mm

Wheel Base

4600+1350mm

Curb Weight

13600 kg

Max Speed

95Km/h

Engine and Chassis

Engine manufacturer

Weichai

Engine type

Diesel

Model

WP10.340E201

Power

340HP

Displacement

9.7L

Emission Standard

Euro 2

Transmission

Fast, 12 forwards and 2 reverse, manual transmission

Front axle

7.5Tons

Rear axle

13Tons double axle

Suspension System

Leaf spring,10/12

Tyre

12.00R20 7 pcs

Usage Parameter

Container Volume

20m3

Sewage tanker

200L

Steel and thickness

5mm/Q345

Unloading Model

Push out

Feed in one cycle working time

≤10s

Feed out one cycle working time

≤35s

Hydraulic system pressure

18Mpa

Control method

Both manual and electric control

Color + customer logo

As requirement

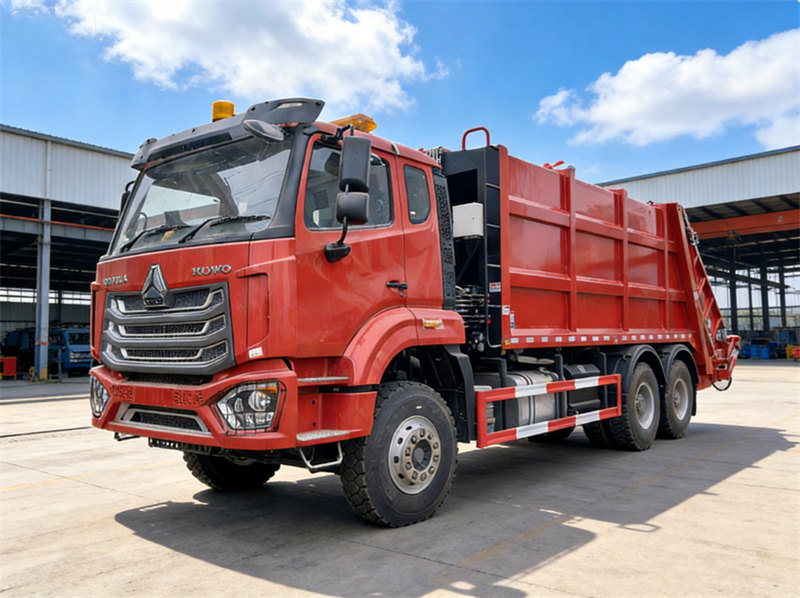

Howo 6x4 garbage compactor truck



Howo garbage compactor truck



✦Ⅲ.Product Details For Howo Heavy Rear Loader Truck:

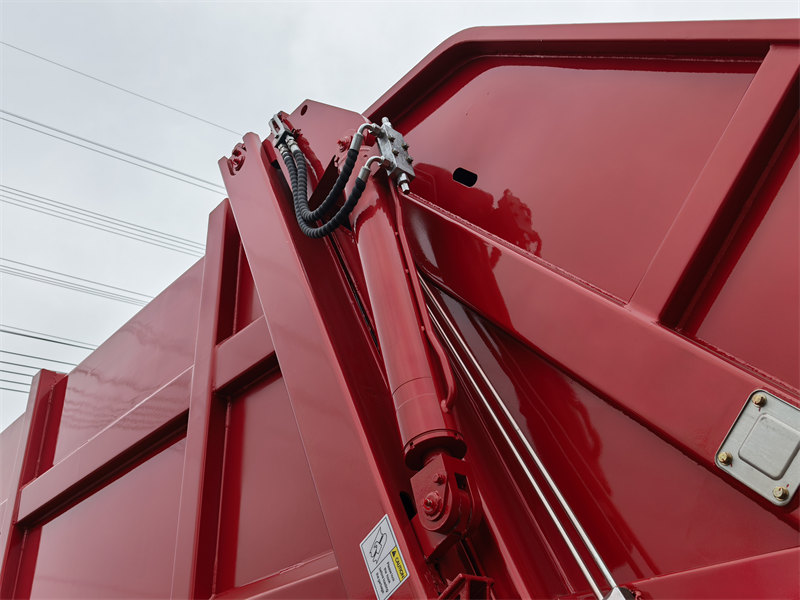

1. Tipping Bucket

►The tipping bucket is a key component of a garbage truck.

►It's the lifting mechanism responsible for raising the garbage bins and emptying the waste into the truck bed.

►This automated process minimizes manual intervention, making garbage collection safer and faster.

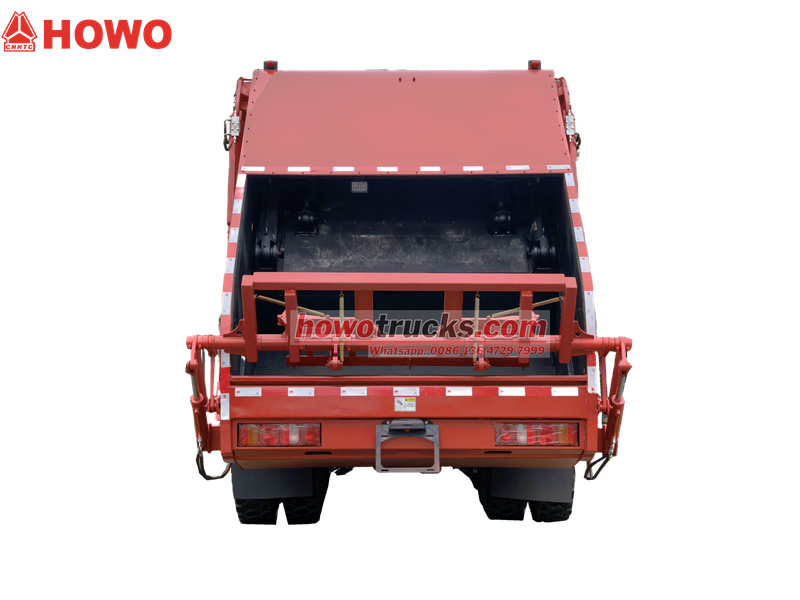

2. Hopper

►Located directly below the tipping bucket, the hopper is the initial receiving point for garbage.

►Like a funnel, it guides the garbage to the main storage area of the garbage truck. Its ingenious design ensures optimal utilization of storage space.

►Furthermore, it acts as a barrier, preventing garbage from falling during collection.

Howo 10CBM garbage compactor truck

3. Intelligent operation system

►CAN bus integrated control system (including load monitoring/fault self-diagnosis)

►Reversing radar + 360° surround image (IP69K protection level)

►Remote monitoring module (4G transmission + GPS trajectory tracking)



4. Enhanced scene adaptability

►Two-way side-mounted/rear-mounted compatible mechanism (adaptable to 240-1100L standard barrels)

►Wear-resistant composite steel plate carriage (HB400 hardness + anti-corrosion coating)

►Anti-slip working platform (friction coefficient ≥0.8) + LED warning light set



✦Ⅳ.Body Structure and Material Durability:

Finite Element Analysis (FEA) and Topology Optimization:

CS Trucks Group simulates the entire process of waste compactor and unloading, accurately identifying areas of concentrated stress.

Based on this, topology optimization is performed to achieve light weighting while maintaining strength.

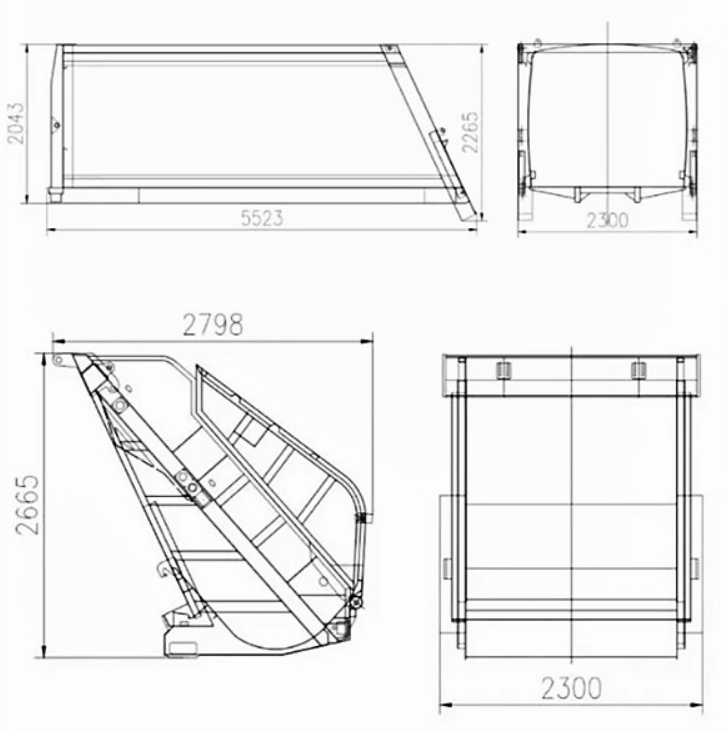

Howo garbage compactor truck HOWO 6×4 rubbish compactor truck drawing

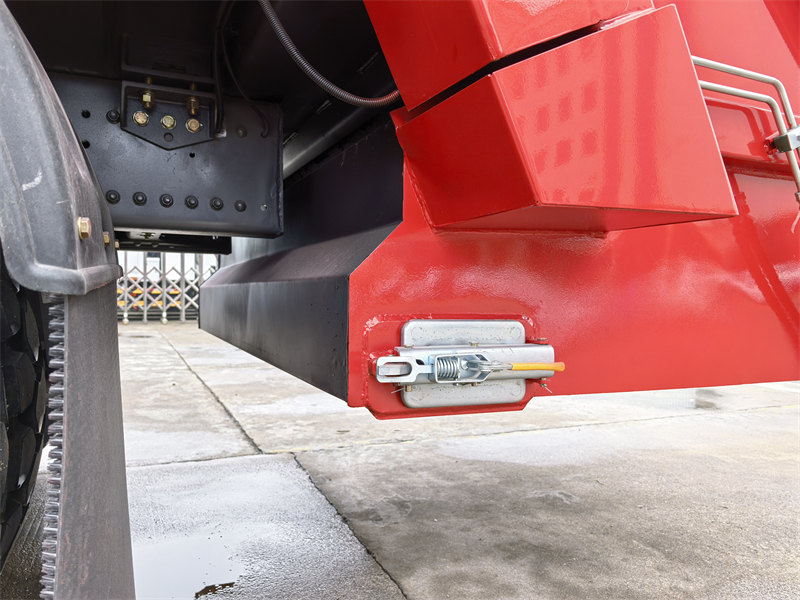

High-Strength Steel Plates and Wear-Resistant Materials:

High-strength wear-resistant steel plate T420 is used in key load-bearing areas, with a Brinell hardness (HB) of 400 or higher.

The main body plates should be made of high-strength weather-resistant steel or galvanized steel, and the design avoids areas prone to water accumulation.

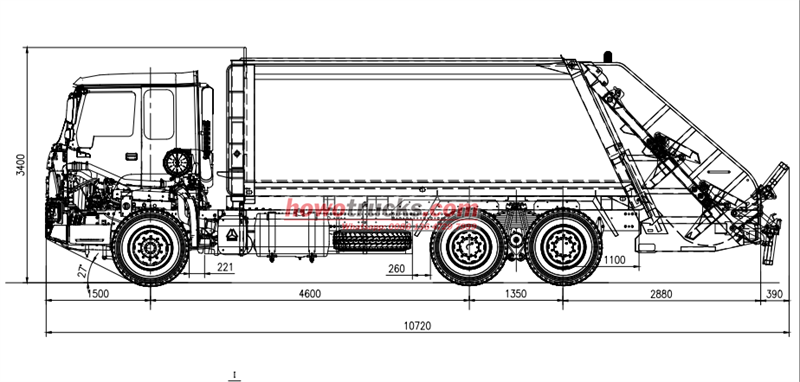

HOWO 6×4 garbage compactor truck drawing


⇒ Welding Process and Corrosion Protection:

Welding must be automated using robotic welding to ensure weld penetration, strength, and consistency.

Key load-bearing welds require non-destructive testing (e.g magnetic particle or ultrasonic testing).

CS Trucks Group uses cathodic electrophoretic primer to enhance corrosion resistance.



✦Ⅴ.Urban Sanitation Challenges:

delivering sustained and efficient performance for every route

Heavy daily loads and constant compaction stress

Wear-and-tear from frequent stops and rough terrain

High maintenance costs and downtime



? You need a rear loader that’s not only tough but also smart, efficient, and supported by a reliable manufactory

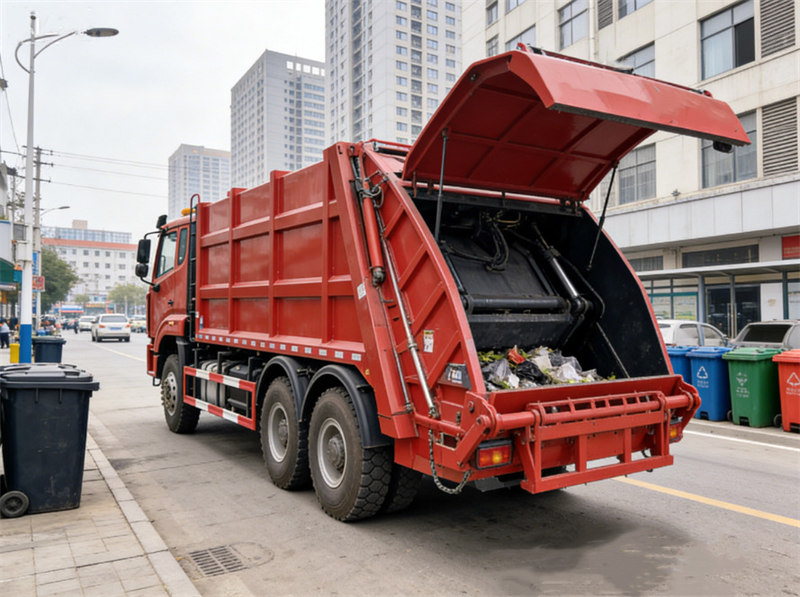

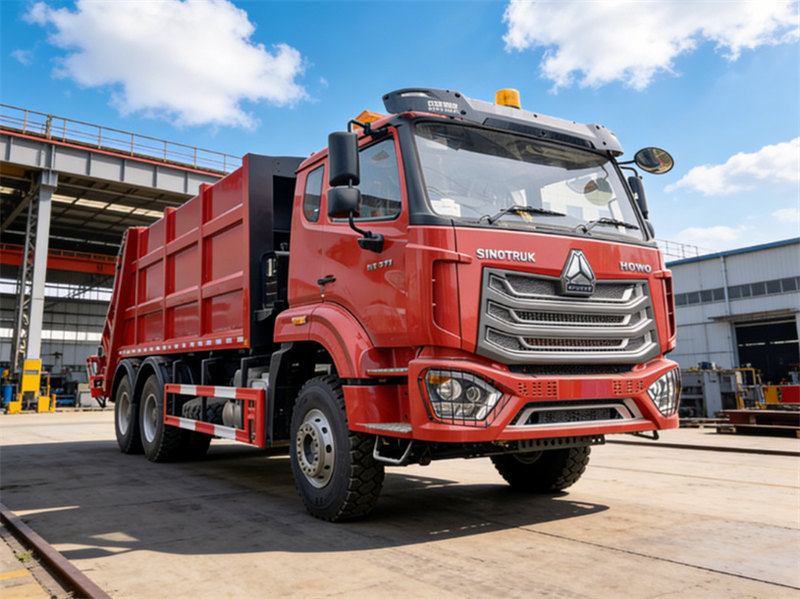

Howo NX 371HP garbage compactor truck



Howotrucks is a leading exporter of compactor garbage vehicle in China. We possess over 10-year export experience of compactor garbage vehicle. We can ensure the fast delivery time and 12 months guarantee for our compactor garbage vehicle. Our compactor garbage vehicle are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



---- Professional guidance on your importing documents.

---- Maximize save your sea freight.

---- Safety, Quickly, Timely



HOWO waste compactor trucks for export



SINOTRUK HOWO rear loader trucks for export
