HOWO mini 6CBM rear loader truck

HOWO mini 6CBM rear loader truck

The Howo 6CBM garbage rear loader truck is a high efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs.Built on the Howo 4x2 chassis, the garbage rear loader is equipped with a 116HP engine and a 5 speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the Howo light 8CBM hydraulic garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.



  • Working capacity :

    6CBM
  • Cabin type :

    HOWO 1810
  • Dimension (mm ) :

    5900×2350×2560
  • Drive system :

    4×2
  • Wheelbase ( mm) :

    3300
  • Engine specific :

    YN4102QBZL
  • Gear box :

    WLY6TS55C
  • Front axle ( Kg ) :

    4000
  • Rear axle ( Kg ) :

    6000
  • Remark :

    4×4, RHD drive is optional
New Products

The Howo light 6CBM garbage rear loader is a high efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Howo 4x2 chassis, the garbage rear loader is equipped with a 160HP engine and a 6 speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the Howo light 6CBM hydraulic garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.

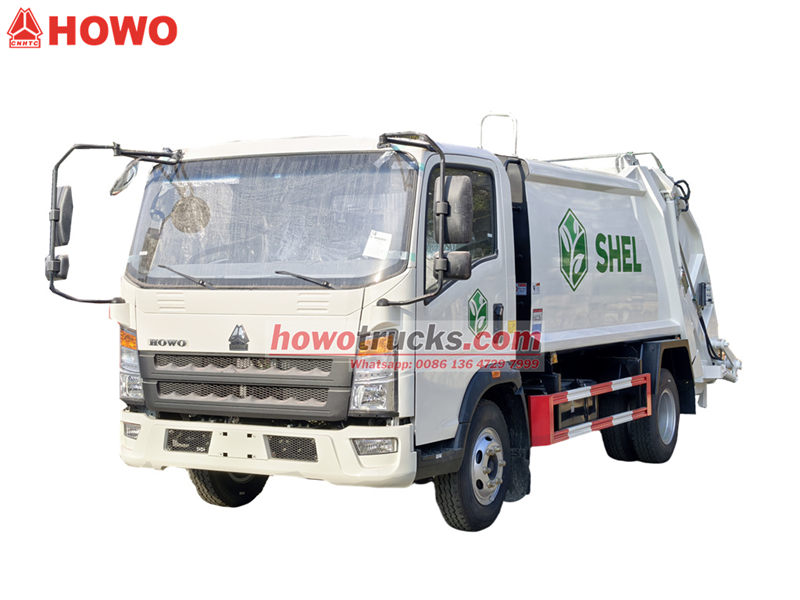

HOWO 4×2 garbage compactor truck



Howo 4x2 garbage compactor truck



*HOWO 4×2 Trash Compactor Truck

HOWO 6CBM Rear Loader Garbage Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



Product Defination and Introduction:

Manufacturer: CS TRUCKS Group
Features:
1. Truck Chassis: SINOTRUK HOWO light truck chassis, 4x2and 4x4 model
                              YUCHAI model with 116HP, 140HP, 160HP or 180HP
                              Optional EURO 2/3/4/5 emission for different market


2. Tank material: St52 material 5mm thick carbon steel for durable service
                            Q355, T420, HARDOX material can be choose


3. Tanker body: Customized for light duty 6-12CBM compactor body, curved shape, stronger

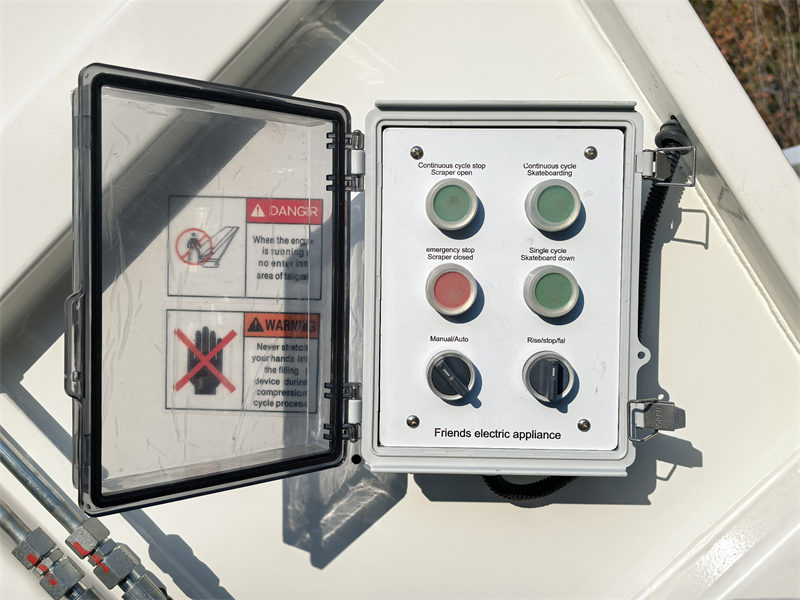

4. Control Box: CAN BUS control box with in cabin and rear hopper, convenient operation

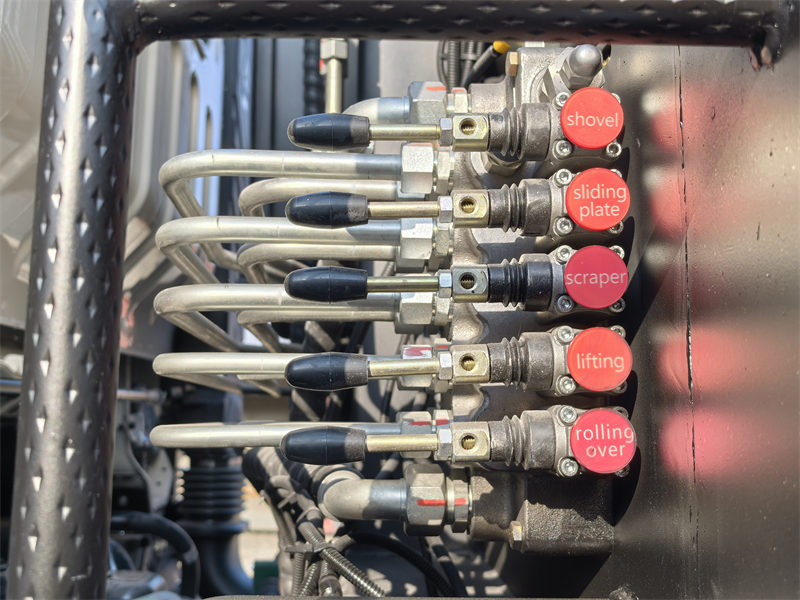

                           Also matched hydraulic control valve for emergency usage

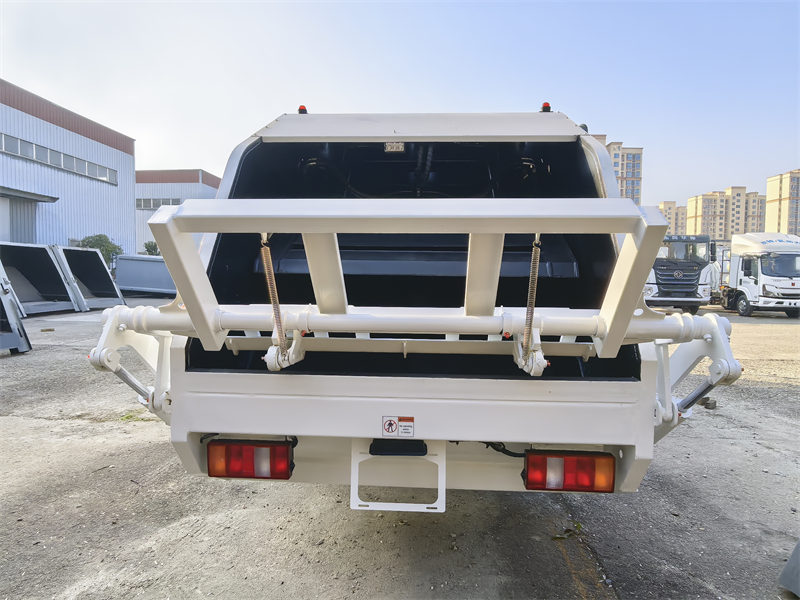

5. Rear Tilting Device: Standard 240L and 1100L bins, optional 360L, 660L, 770L, 1100L bins


6. Working Environment: Super designed working temperature -22℃ to +48℃ day and night, with efficiently working height over 4000m



HOWO 6 CBM rear load garbage truck



Product Parameter for HOWO 6CBM refuse compactor truck:

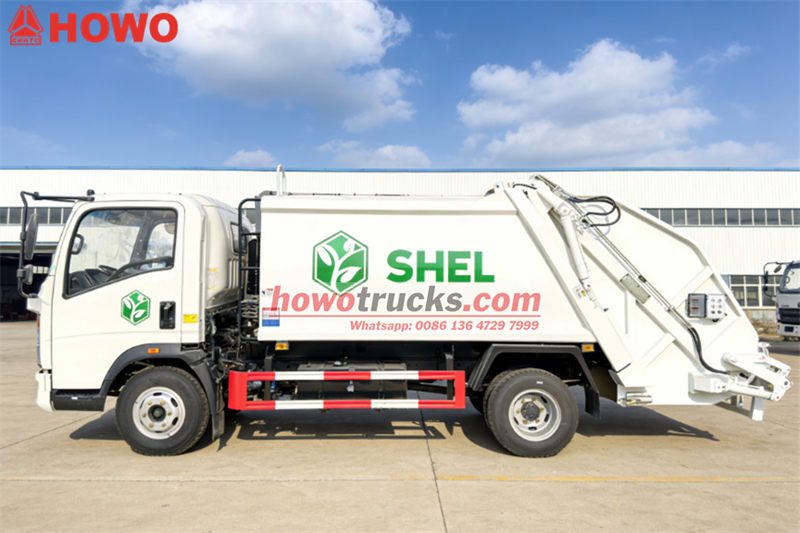

HOWO 4×2 back loader garbage truck



Howo 6CBM REAR LOAD GARBAGE TRUCK

Chassis Model

Howo light

Engine

Make: Howo

Diesel 4-stroke direct injection diesel engine

Engine model:YN4102QBZL, Euro 6 emission standard

4-cylinder in-line with water cooled, turbocharged and intercooler

Maximum output: 116HP/86KW

Maximum torque: 600 N.m

Displacement: 4.2 L

Transmission

WLY, 5 forwards and 1 reverse, manual

Drive system

Left/Right hand 4x2 drive

Chassis

Frame: U-profile parallel ladder frame and reinforced subframe

Front suspension:8 pcs semi-elliptic leaf spring

Rear suspension:10+6 pcs semi-elliptic lea spring

Fuel tank: 100 L capacity with locking fuel cap

Steering

Power steering, hydraulic steering with power assitance

Brakes

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

ABS

Wheels & Tyres

Tire: 7 pcs 7.00R16

Driver's Cab

Howo 1970 wide cab, with three seats, A/C, electric glass, central lock

Dimensions  mm

Wheel base

3300 MM

Overall length

5900 MM

Overall width

2300 MM

Overall height

2540 MM

Weight  kg

Curb weight

4500 KG

Rated Loading Capacity

4000 KG

Gross vehicle weight(GVW)

9000 KG

Front axle loading capacity

2600  KG

Rear axle loading capacity

6000 KG

Compactor Body


Volume of body(m3)

10

Volume of filler(m3)

2

Time of one filling cycle(s)

≤25

Lifting time of filler (s)

8-10

Time of discharge (s)

 ≤40

Pressure of hydraulic system (Mpa)

18

Front/rear sewage capacity (L)

250+150

Control system

 CAN-bus (electrical) and manual (hydraulic)

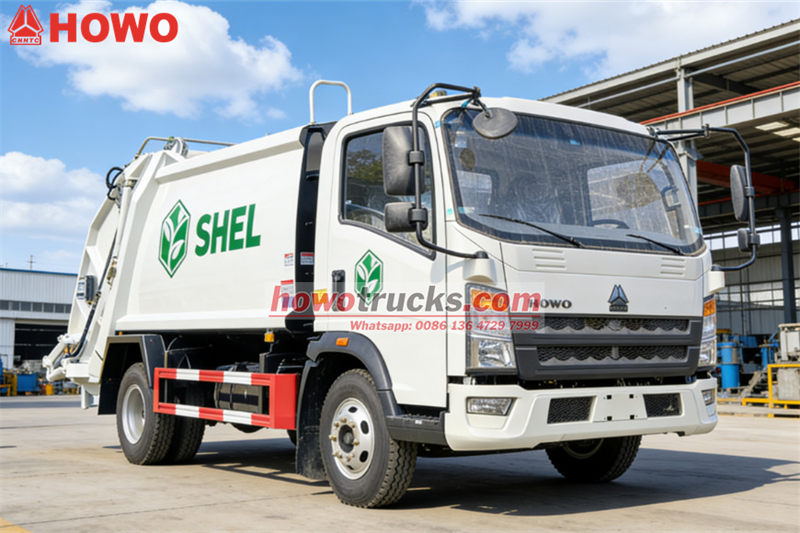

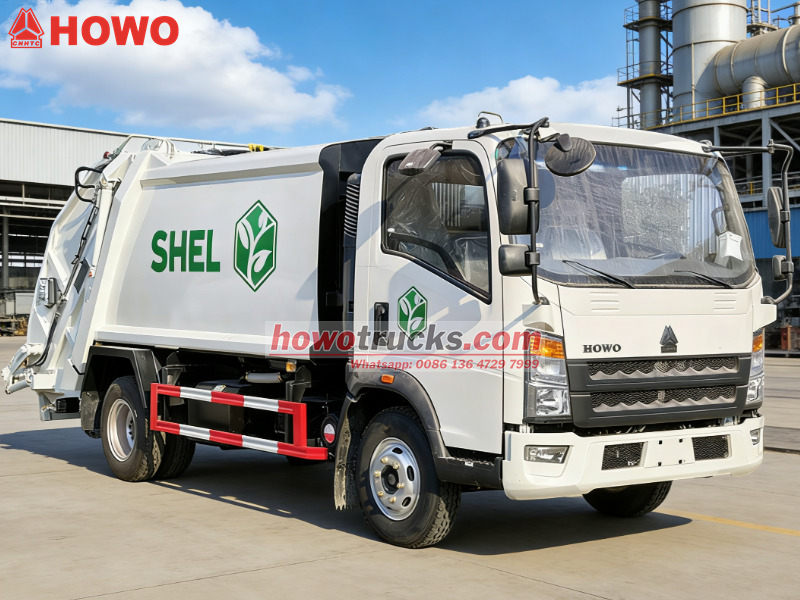

Howo 4x2 garbage compactor truck



Product Details

1. Compactness and maneuverability optimization

►Short wheelbase body design (wheelbase ≤3.8m) + rear wheel steering assist system, achieving ≤10m turning radius

Suitable ground clearance (285 mm) adapted to be driven easily on bumpy roads.

►Lightweight assembly (vehicle curb weight ≤5 tons) takes into account both load and flexibility



2. Efficient compactor system

►Two-stage spiral compactor mechanism (compression ratio ≥3:1) with intelligent pressure sensor

►Modular hydraulic power unit (working pressure ≥18MPa) + energy-saving start-stop control

►Sealed push plate structure (leakage rate ≤0.1%), standard sewage diversion trough

Howo 10CBM garbage compactor truck

3. Intelligent operation system

►CAN bus integrated control system (including load monitoring/fault self-diagnosis)

►Reversing radar + 360° surround image (IP69K protection level)

►Remote monitoring module (4G transmission + GPS trajectory tracking)



4. Enhanced scene adaptability

►Two-way side-mounted/rear-mounted compatible mechanism (adaptable to 240-660L standard barrels)

►Wear-resistant composite steel plate carriage (HB400 hardness + anti-corrosion coating)

►Anti-slip working platform (friction coefficient ≥0.8) + LED warning light set

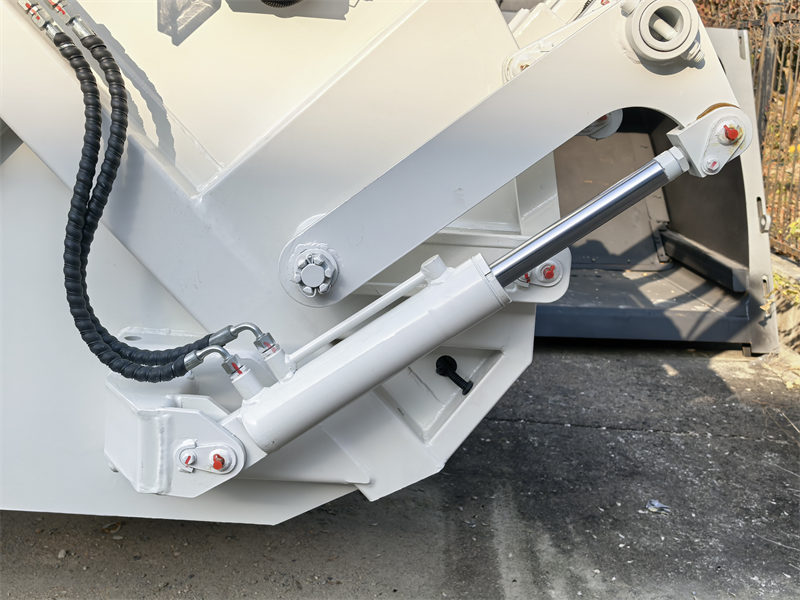

Highly Efficient and Reliable Hydraulic System Integration

CS Trucks Group requires equipment matching based on waste composition, compactor curve, and work cycle time.

Precise calculations are performed on pump displacement, cylinder size, valve assembly flow rate, and pipeline pressure loss.

This enables smooth switching between "low-speed, high-torque" and "high-speed, light-load" modes for the Howo rear loader truck, avoiding power waste and system shock.



Howo garbage compactor truck



Body Structure and Material Durability

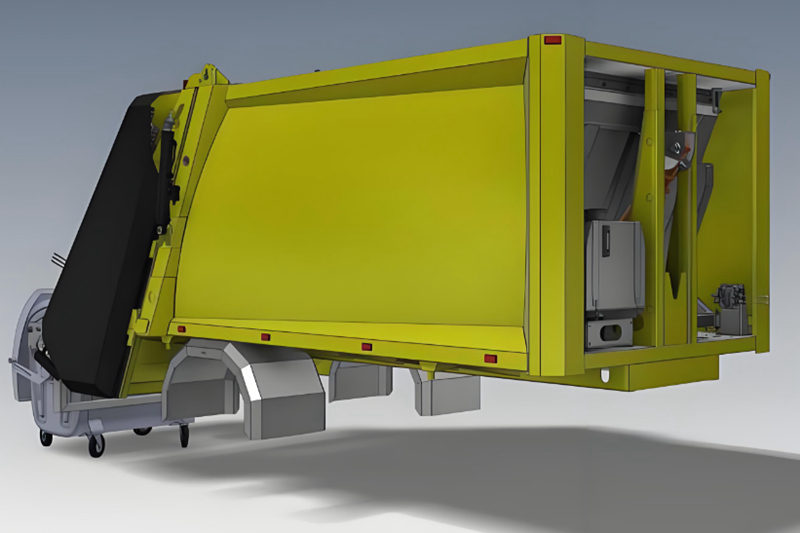

Finite Element Analysis (FEA) and Topology Optimization:

CS Trucks Group simulates the entire process of waste compression and unloading, accurately identifying areas of concentrated stress.

Based on this, topology optimization is performed to achieve light weighting while maintaining strength.

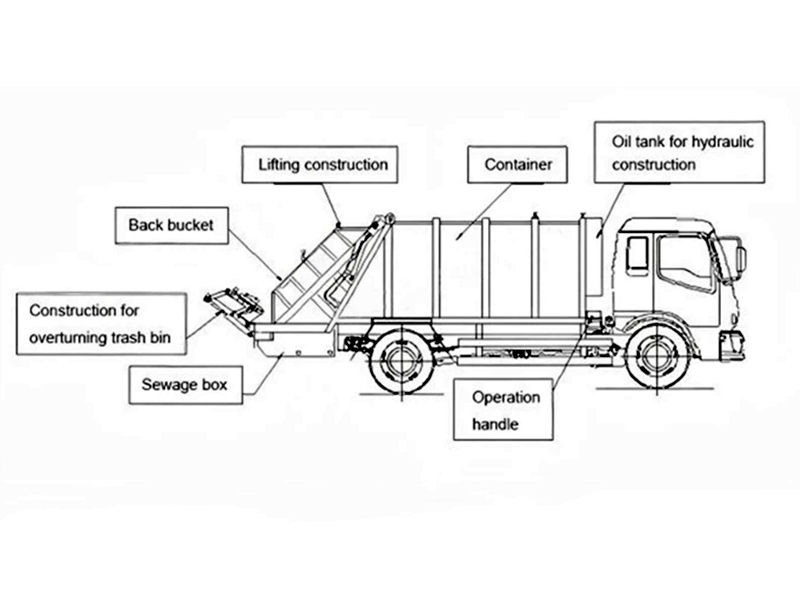

Howo garbage compactor truck HOWO 6×4 rubbish compactor truck drawing


High-Strength Steel Plates and Wear-Resistant Materials:

High-strength wear-resistant steel plate T420 is used in key load-bearing areas, with a Brinell hardness (HB) of 400 or higher.

The main body plates should be made of high-strength weather-resistant steel or galvanized steel, and the design avoids areas prone to water accumulation.

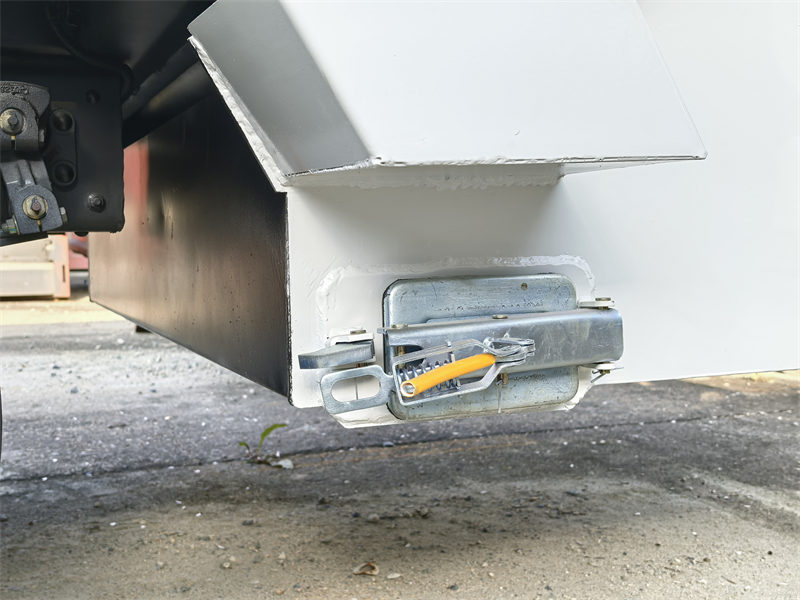

Howo garbage compactor truck


⇒ Welding Process and Corrosion Protection:

Welding must be automated using robotic welding to ensure weld penetration, strength, and consistency.

Key load-bearing welds require non-destructive testing (e.g magnetic particle or ultrasonic testing).

CS Trucks Group uses cathodic electrophoretic primer to enhance corrosion resistance.



Application:

1. Urban residential areaslarge garbage production and concentrated distribution require high-frequency collection.

2. Commercial areas and public placesshopping malls, office buildings, scenic spots and other places have complex types of garbage (such as packaging, kitchen waste), which need to be cleaned quickly.

3. Townships and rural areas: poor road conditions (dirt roads, steep slopes), and scattered garbage.



Howo garbage compactor truck





Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.



We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.





HOWO waste compactor trucks for export

SINOTRUK HOWO 6×4 garbage compactor trucks for export



SINOTRUK HOWO rear loader trucks for export

SINOTRUK HOWO rear load garbage trucks ready for delivery
