Home Howo Garbage Compactor Truck

HOWO heavy 20CBM refuse compactor truck

HOWO heavy 20CBM refuse compactor truck

This Howo 6x4 heavy duty compactor garbage loader truck is an outstanding work in the field of urban cleaning. Equipped with a WP10.340 engine, it has a powerful output of 340HP, a displacement of 9.726L, and turbocharging and intercooling technology. It is not only powerful, but also meets the stringent Euro 6 emission standards. Its 33tons total weight configuration and 20tons load capacity can fully meet the daily garbage removal needs of large and medium sized cities.

  • Working capacity :

    20CBM
  • Cabin type :

    HOWO HW76
  • Dimension (mm ) :

    10600×2500×3560
  • Drive system :

    6×4
  • Wheelbase ( mm) :

    4625+1350
  • Engine specific :

    WP10.340E32/340HP
  • Gear box :

    HW19710
  • Front axle ( Kg ) :

    9000
  • Rear axle ( Kg ) :

    16000
  • Remark :

    6×6, RHD drive is optional
New Products

This Howo 6x4 heavy duty compactor garbage loader truck is an outstanding work in the field of urban cleaning. Equipped with a WP10.340 engine, it has a powerful output of 340HP, a displacement of 9.726L, and turbocharging and intercooling technology. It is not only powerful, but also meets the stringent Euro 6 emission standards. Its 33tons total weight configuration and 20tons load capacity can fully meet the daily garbage removal needs of large and medium sized cities.

The Howo garbage trash compactor truck adopts an advanced HW19710 gearbox, combined with heavy 6*4 drive system to ensure stability and efficiency in complex road conditions. The 20CBM curved tank body is made of T420 special steel, with a tank body thickness of 5mm and an overall molding process. The compactor ratio is as high as 1:3.4, ensuring the ultimate garbage compactor efficiency.

The fully automatic control system has a single loading and unloading cycle time as short as 40-45 seconds, and is equipped with PLC intelligent control, which is easy and fast to operate. In manual mode, the operator can use the operating lever and electric control buttons to complete operations such as compactor and unloading of the garbage compartment.

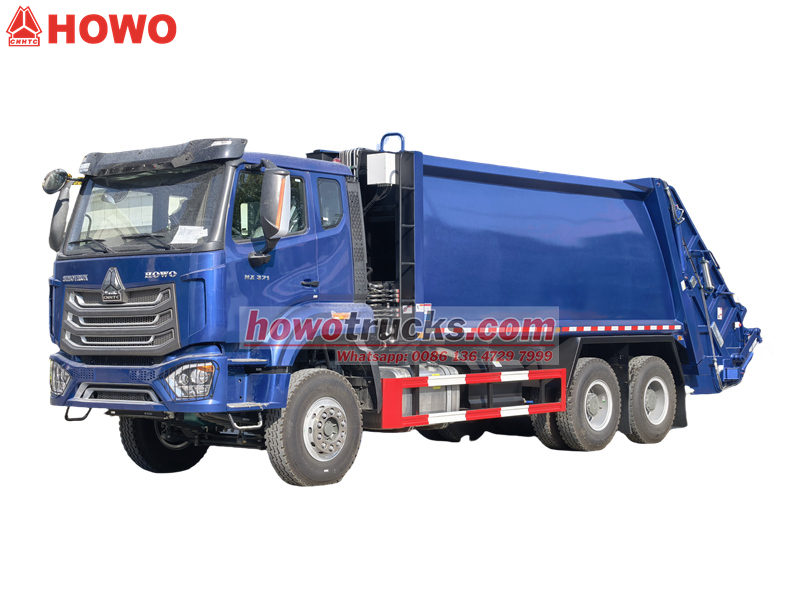

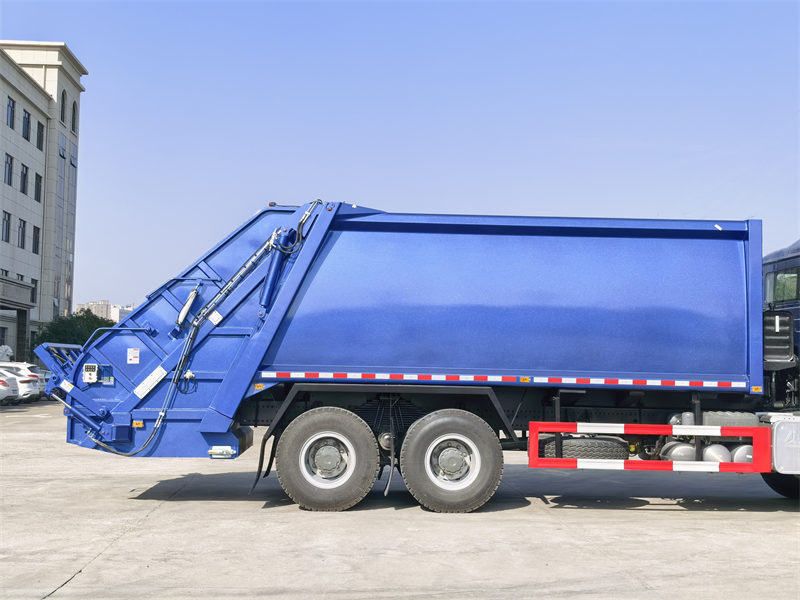

HOWO 6×4 garbage compactor truck

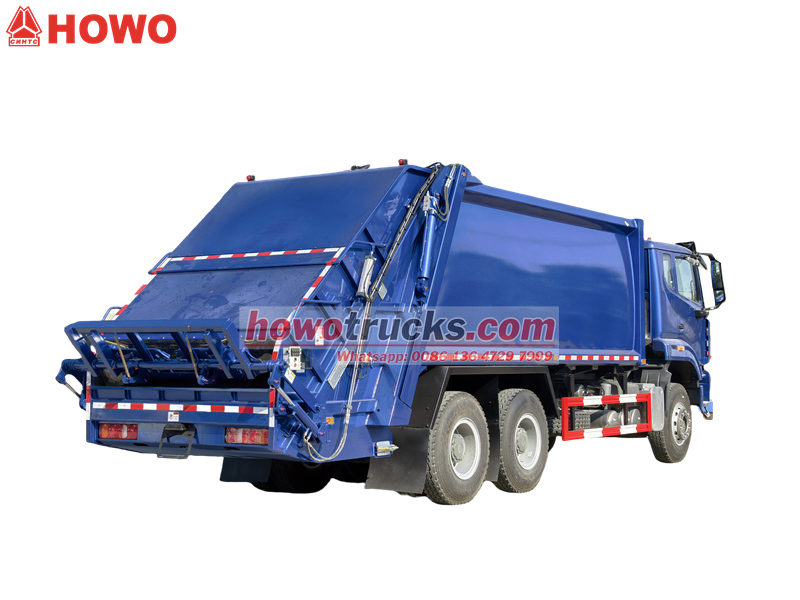

Howo 6x4 garbage compactor truck



*HOWO 6×4 Trash Compactor Truck

HOWO 20CBM Rear Loader Garbage Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



 Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS Group
Features:
1. Truck Chassis: SINOTRUK HOWO light truck chassis, 6x4and 6x6 model
                              WEICHAI model with 300HP, 340HP, 380HP or 400HP
                              Optional EURO 2/3/4/5 emission for different market


2. Tank material: St52 material 5mm thick carbon steel for durable service
                            Q355, T420, HARDOX material can be choose


3. Tanker body: Customized for light duty 14-20CBM compactor body, curved shape, stronger

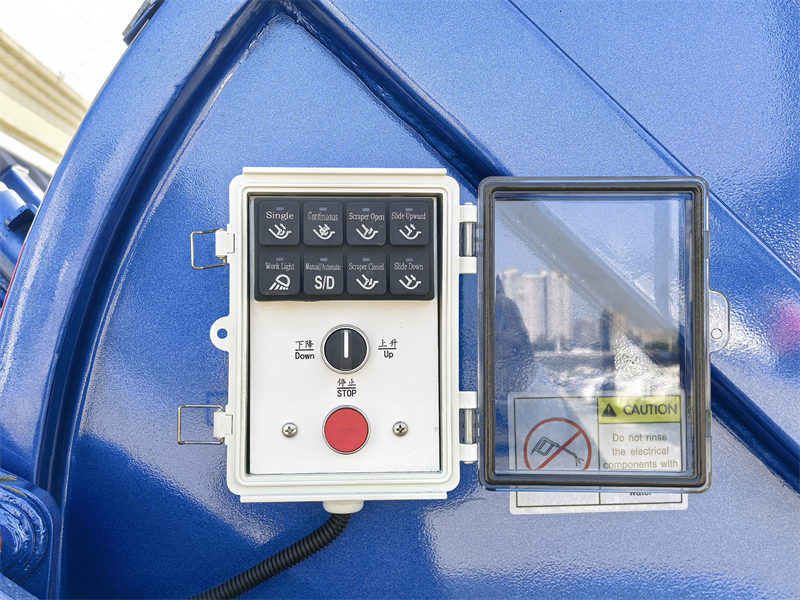

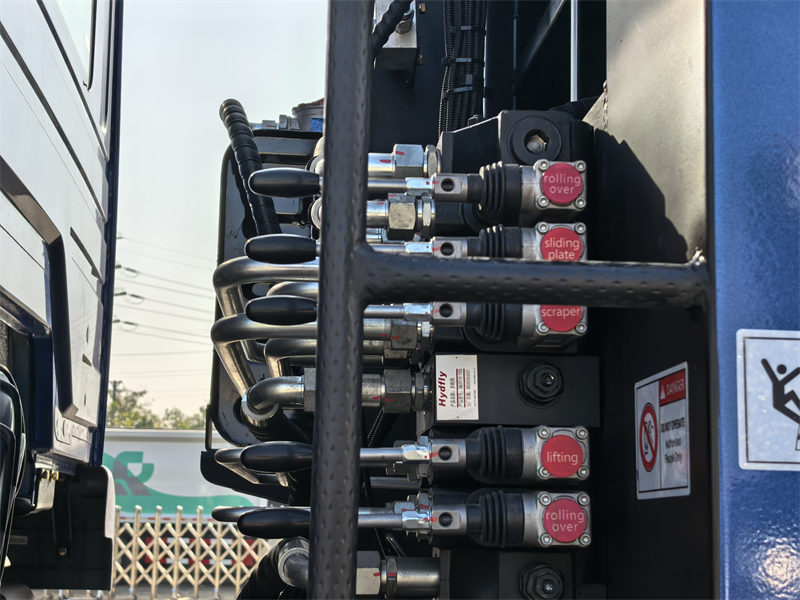

4. Control Box: CAN BUS control box with in cabin and rear hopper, convenient operation
                           Also matched hydraulic control valve for emergency usage



5. Rear Tilting Device: Standard 240L and 1100L bins, optional 360L, 660L, 770L, 1100L bins


6. Working Environment: Super designed working temperature -22℃ to +48℃ day and night, with efficiently working height over 4000m

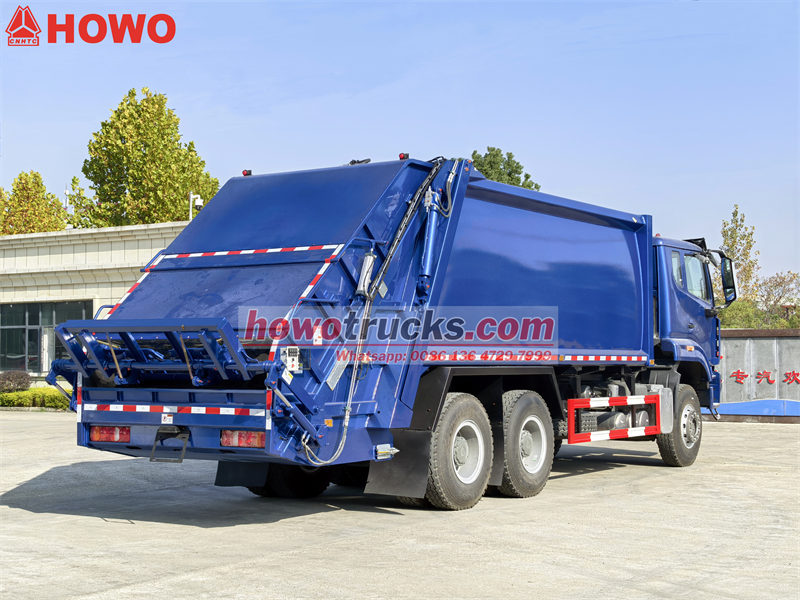

HOWO 20 CBM rear load garbage truck



Ⅱ. Product Parameter for HOWO 20CBM refuse compactor truck:

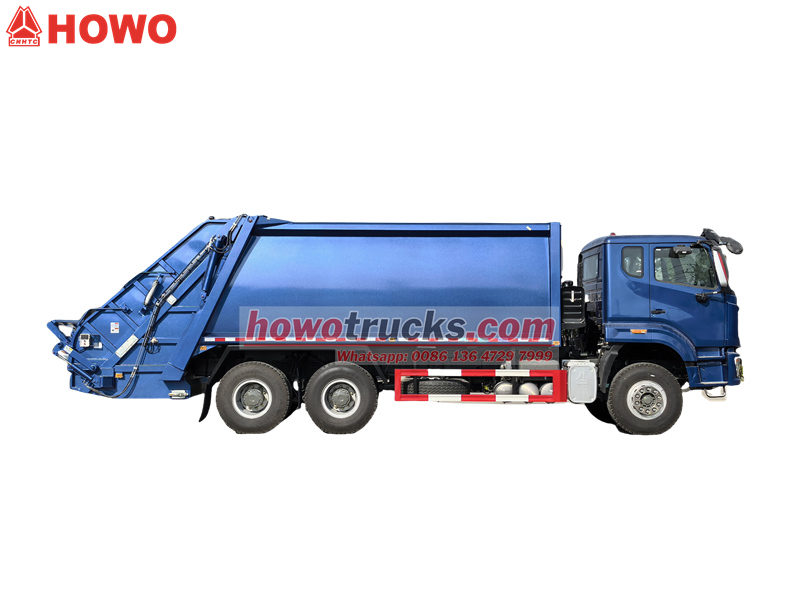

HOWO 6×4 back loader garbage truck



HOWO heavy duty 20CBM rear loader Truck

Model

CSC52506YSLJC

Driving Type

6*4

Gross Weight

25000kg

Related Loading Mass

12700kg

Curb Weight

11680kg

Dimension

10500*2380*3400mm

Wheelbase

4600+1350(mm)

Front Axle Loading Capacity

7000kg

Rear Axle Loading Capacity

13000kg x 2pcs

Approach angle

27°

Departure angle

14°

Front Suspension

1130mm

Rear Suspension

2140mm

Tire

12.00R20

Max Speed

90 (Km/h)

Fuel tank

400L

Engine Parameters

Model

WP10.340E32

Horse Power

340 hp

Displacement

9.726L

Emission Standard

Euro 3

Type

6-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling)

Gear Box

Gear Box

HW19710 transmission, Manual, 10-speed forward, 1 reverse gears

Superstructure Parameter

Tank Volume

20 CBM

Tank Shape

Arc-shape

Tank Material thickness

Bottom:4mm Side:4mm

Tank manufacturing process

Whole board manufacturing

Tank Material

Q235 (Special Steel)

Compression Ratio

1 : 3.4

The effective volume of the bucket

≥0.8m³

Loading cycle time

≤40 s

unload garbage time

≤45s

control method

Automatic,Manual

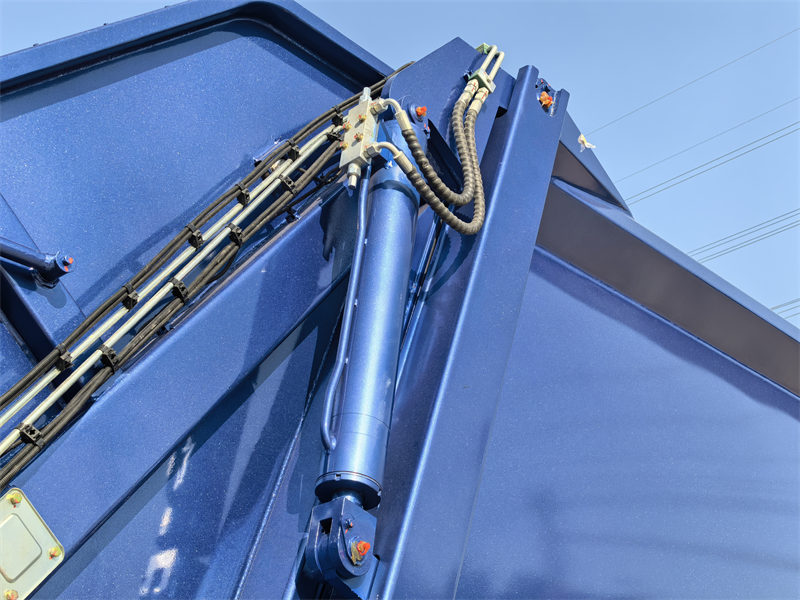

Maximum pressure of hydraulic system

20MPa

Control System

PLC

Control panel

English or Your language

Engine power control

Fully automatic control

standard accessories

Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.



Howo 6x4 garbage compactor truck

Howo garbage compactor truck

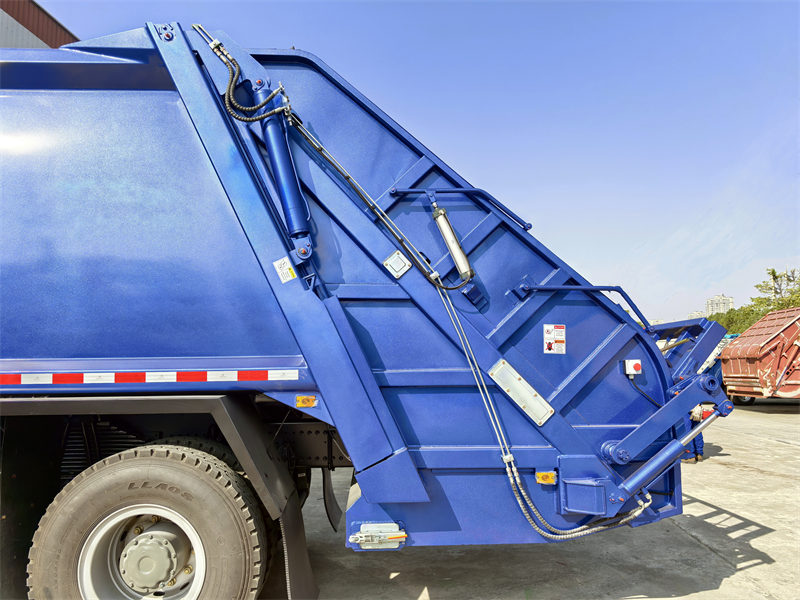

Ⅲ. Product Details

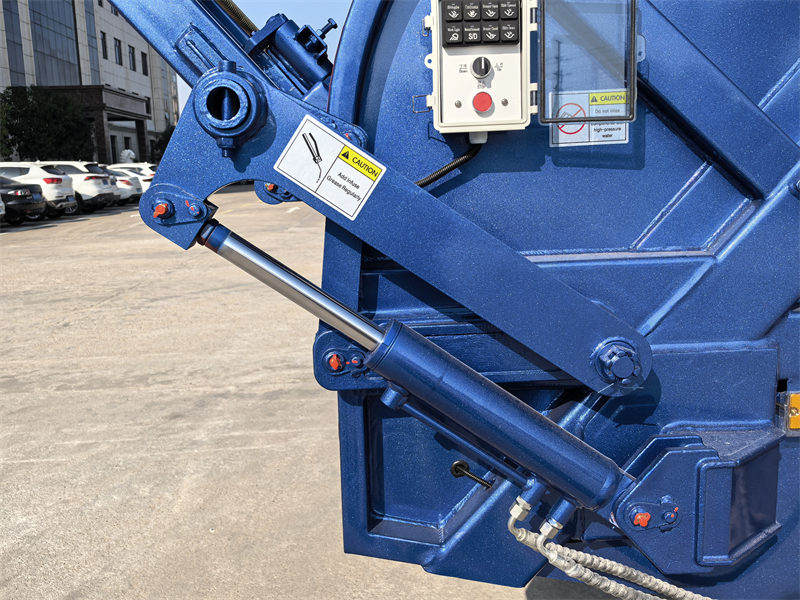

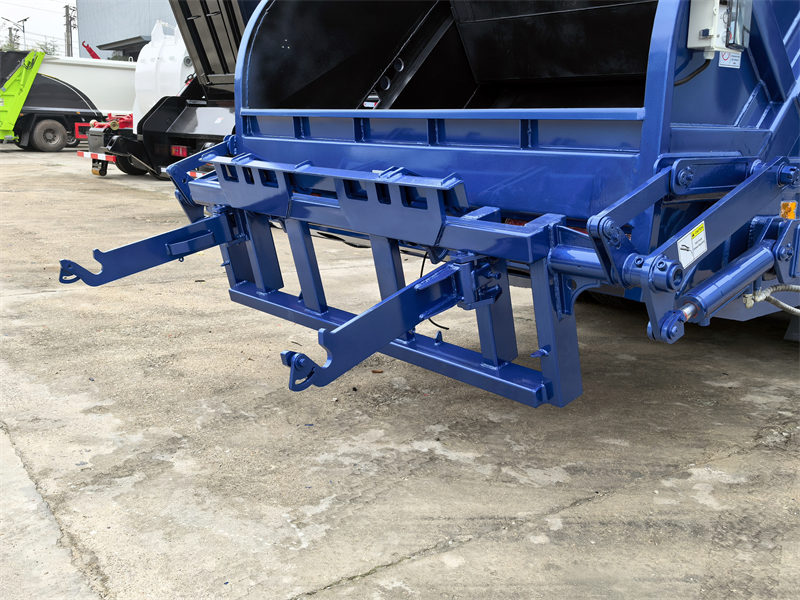

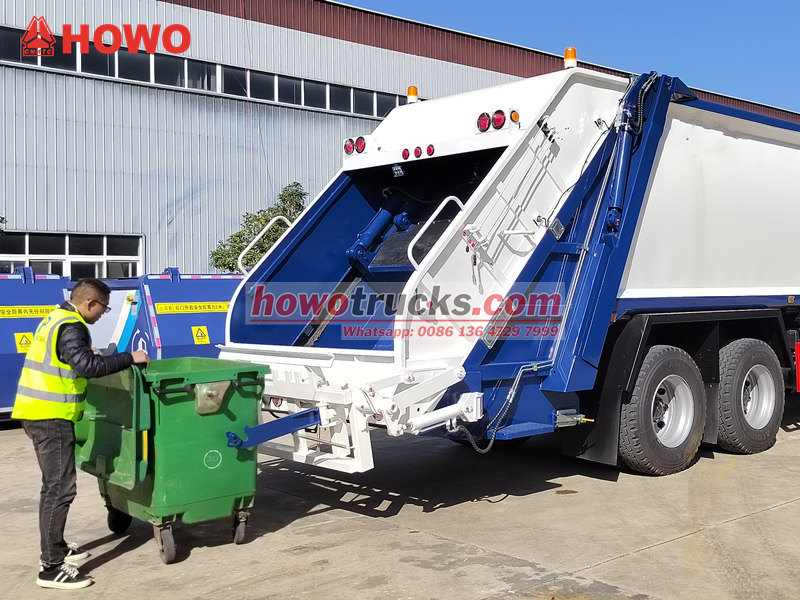

Ⅳ. Bin lifter of HOWO waste compactor truck:



Bin lifter of HOWO garbage compactor is suitable for different sizes of garbage bins

HOWO 20 cubic refuse compactor HOWO 20 cubic refuse compactor

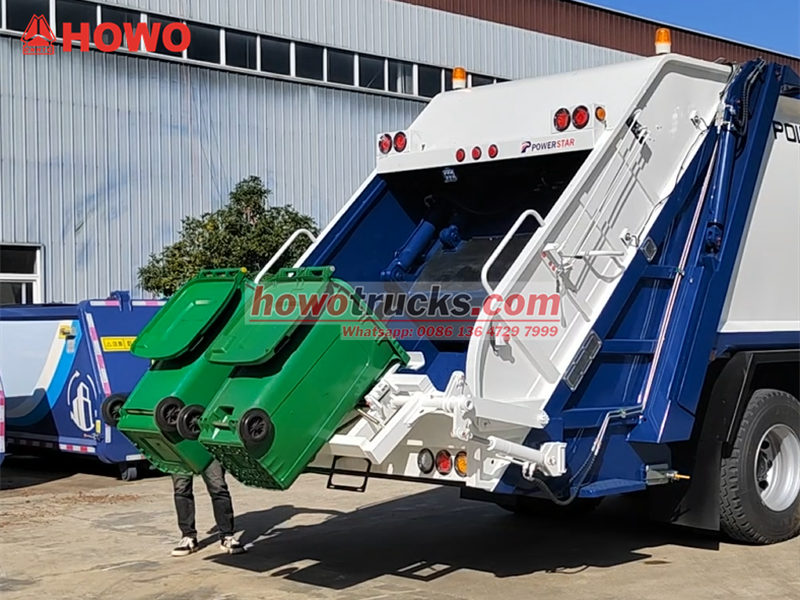

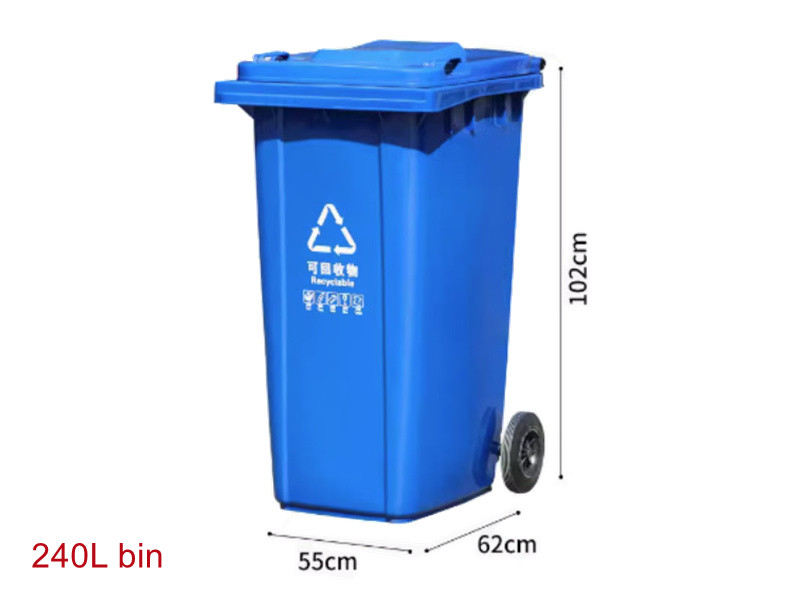

Size of 240 liters garbage bin Lifting 2 pcs 240L bins
HOWO 20 cubic refuse compactor HOWO 20 cubic refuse compactor

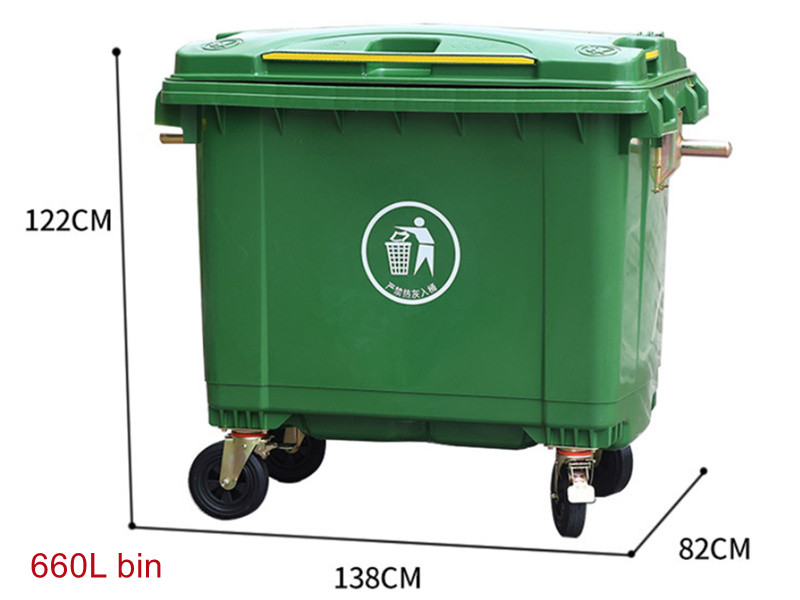

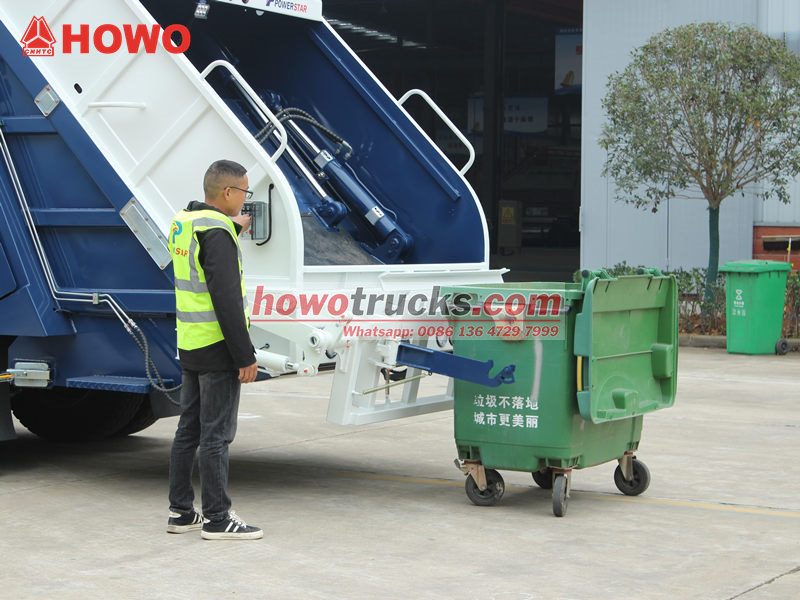

Size of 660 liters garbage bin Lifting one 660L bin
HOWO 20 cubic refuse compactor HOWO 20 cubic refuse compactor

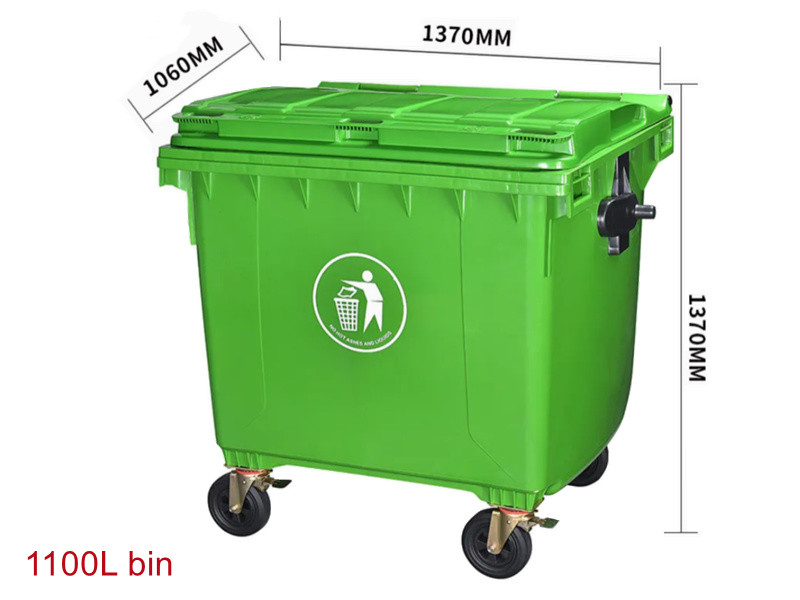

Size of 1110 liters garbage bin Lifting one 1110L bin

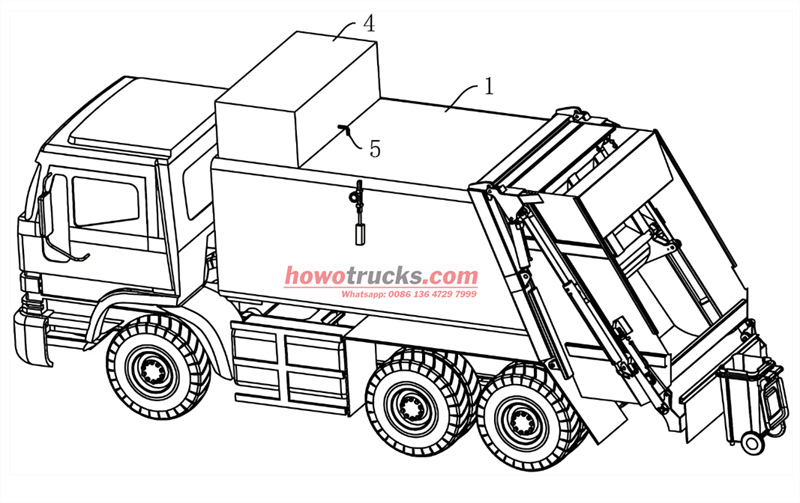

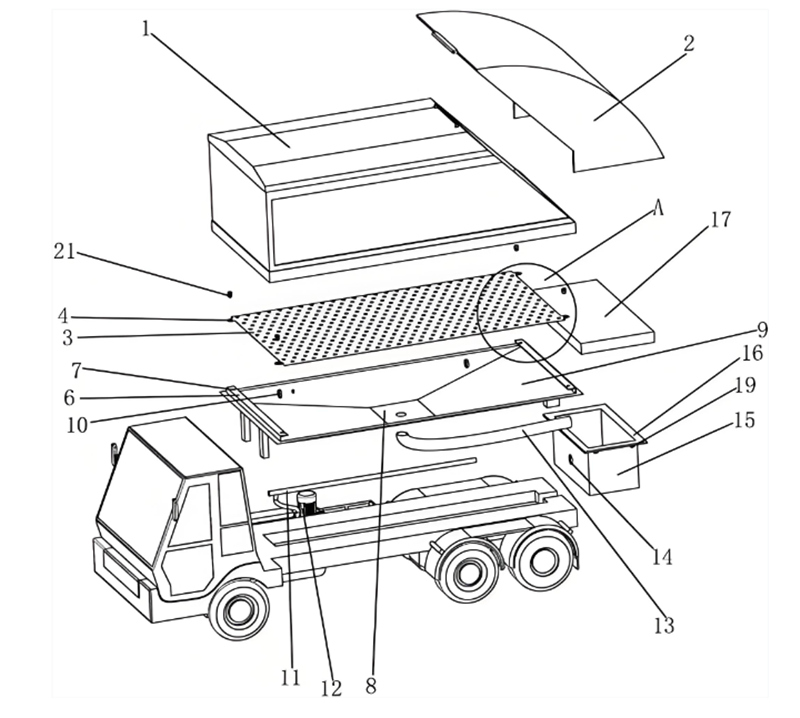

Ⅴ. Product Drawing:

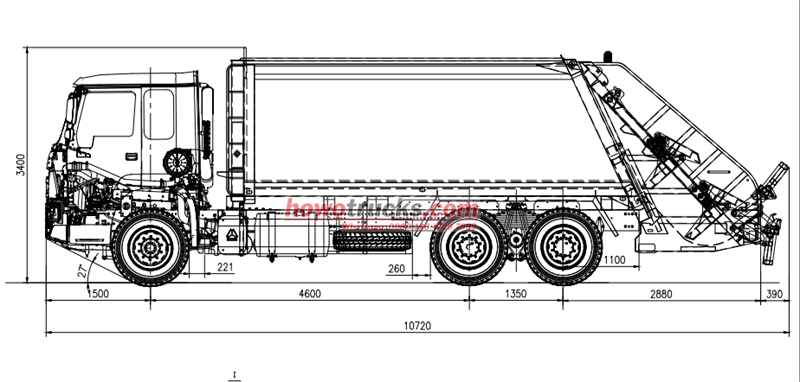

HOWO 6×4 garbage compactor truck drawing

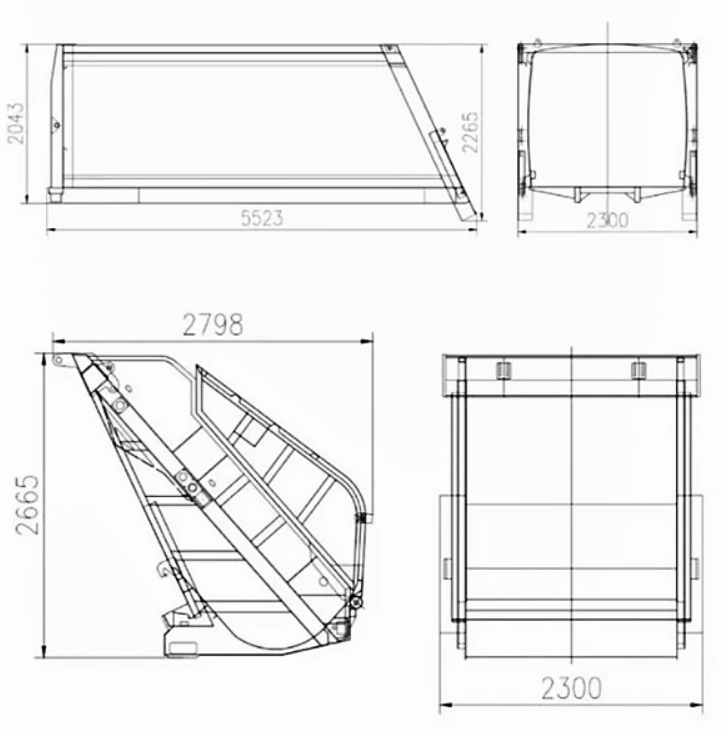

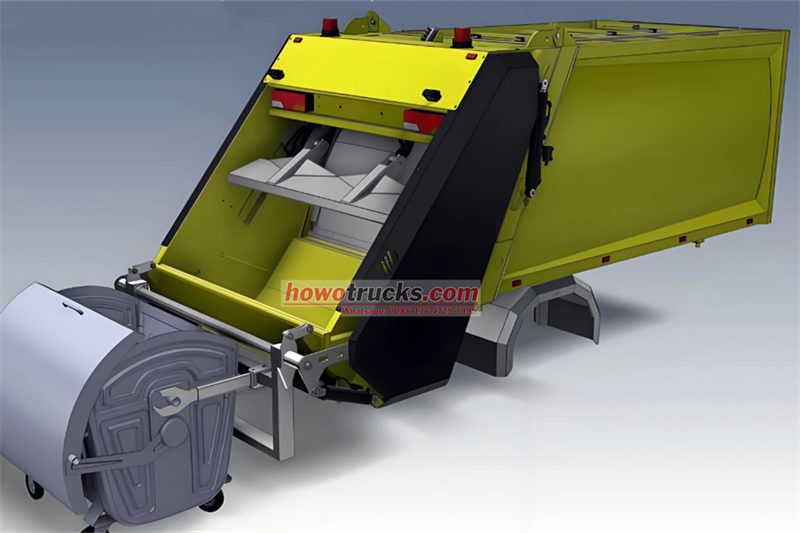

HOWO 6×4 refuse compactor truck drawing HOWO 6×4 rubbish compactor truck drawing

Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.



We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.





HOWO waste compactor trucks for export

SINOTRUK HOWO 6×4 garbage compactor trucks for export



SINOTRUK HOWO rear loader trucks for export

SINOTRUK HOWO rear load garbage trucks ready for delivery
