HOWO light 10CBM rear compactor truck

HOWO light 10CBM rear compactor truck

The Howo 10CBM garbage compactor truck is a high efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs.Built on the Howo 4x2 chassis, the garbage rear loader is equipped with a 160HP engine and a 6 speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the Howo light 8CBM hydraulic garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.



  • Working capacity :

    10CBM
  • Cabin type :

    HOWO 1810
  • Dimension (mm ) :

    6300×2350×2560
  • Drive system :

    4×2
  • Wheelbase ( mm) :

    3800
  • Engine specific :

    YC4E160-33
  • Gear box :

    WLY 6 speed
  • Front axle ( Kg ) :

    4000
  • Rear axle ( Kg ) :

    6000
  • Remark :

    4×4, RHD drive is optional
New Products

The Howo 160HP garbage compactor truck is a versatile, light-duty vehicle designed for residential and commercial waste collection due to its agile and easy handling. It features a rear-mounted hopper, a hydraulic compaction shovel, and an optional tipping device for lifting garbage containers. Equipped with a PLC can bus system, it is simple to operate. The Howo light rear load is ideal for manual collection, bulk or mixed waste, with capacities ranging from 5 to 13 cubic yards.HOWO 4×2 garbage compactor truck



Howo 4x2 garbage compactor truck



*HOWO 4×2 Trash Compactor Truck

HOWO 10CBM Rear Loader Garbage Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



✦Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS Group
Features:
1. Truck Chassis: SINOTRUK HOWO light truck chassis, 4x2and 4x4 model
                               YUCHAI model with 116HP, 140HP, 160HP or 180HP
                               Optional EURO 2/3/4/5 emission for different market


2. Superior ConstructionBuilt with high-strength ST-52 steel, featuring 5mm floor plates and 4-6mm side walls for exceptional durability and longevity



3. High EfficiencyCompaction ratios of 5:1 to 6:1 for domestic waste, with cycle times of just 20-35 seconds for maximum productivity



4. Control Box: CAN BUS control box with in cabin and rear hopper, convenient operation,also matched hydraulic control valve for emergency usage



5. Leak-Proof DesignEnvironmentally responsible with leak-proof construction and optional 80-150L wastewater tanks for hygiene compliance



6. Strong After-Sales SupportIndustry-leading service network with comprehensive maintenance support and genuine spare parts availability



HOWO 10 CBM rear load garbage truck



✦Ⅱ.Product Parameter For Howo 10CBM Refuse Compactor Truck:

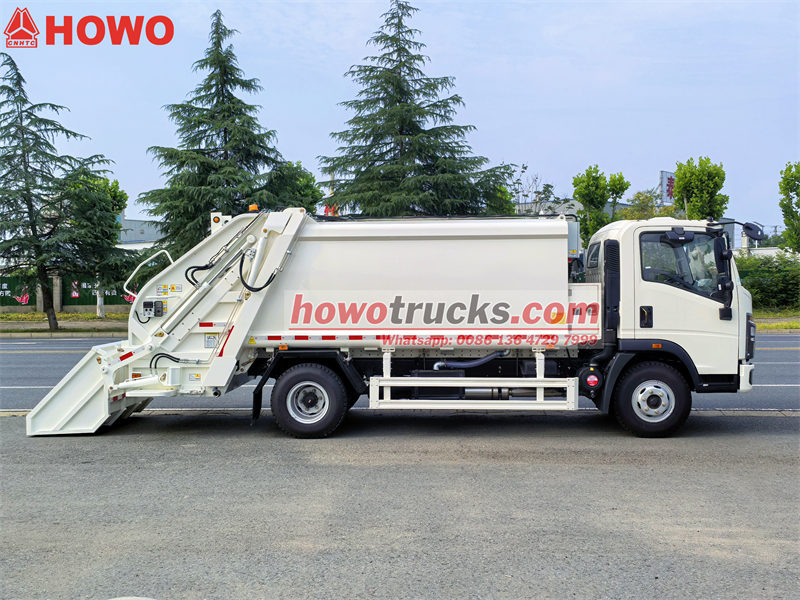

HOWO 4×2 back loader garbage truck



Basic Information For Howo Garbage Rear Loader Truck

Chassis brand

HOWO Brand

Product

HOWO 4x2 10CBM garbage Compactor truck

Overall Dimension

Cab

Single Row

Driver position

Left hand drive

Drive Model

4X2

Overall Parameter: L×W×H

6800×2500×2560mm

Wheel Base

3800mm

Curb Weight

5356kg

Max Speed

95Km/h

Engine and Chassis

Engine manufacturer

Yuchai

Engine type

Diesel

Model

YC4E160-33

Power

160HP

Displacement

4.2L

Emission Standard

Euro 2

Transmission

WLY, 6 forwards and 1 reverse, manual transmission

Front axle

4Tons

Rear axle

7Tons

Suspension System

Leaf spring,10/12

Tyre

8.25R20  7 pcs

Usage Parameter

Container Volume

10m3

Sewage tanker

200L

Steel and thickness

5mm/Q345

Unloading Model

Push out

Feed in one cycle working time

≤10s

Feed out one cycle working time

≤35s

Hydraulic system pressure

18Mpa

Control method

Both manual and electric control

Color + customer logo

As requirement

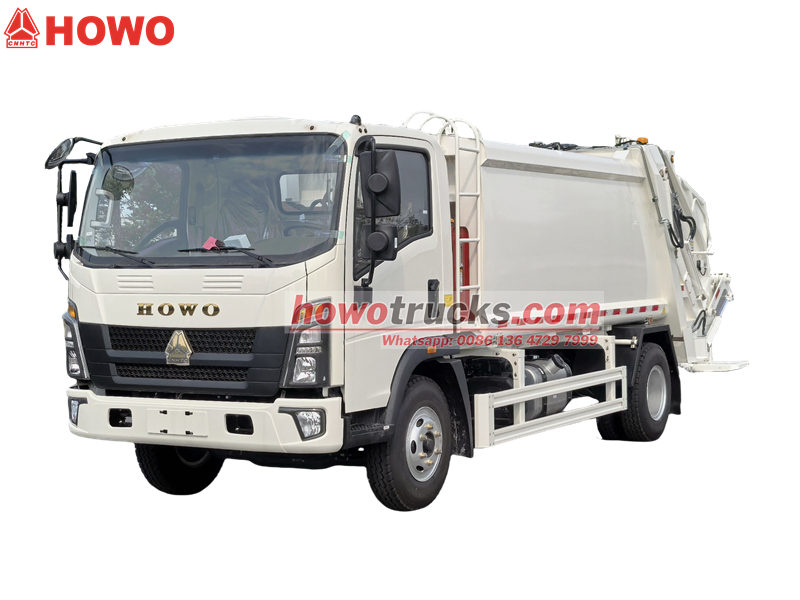

Howo 4x2 garbage compactor truck





✦Ⅲ.Product Parameter For Howo 10CBM Refuse Compactor Truck:

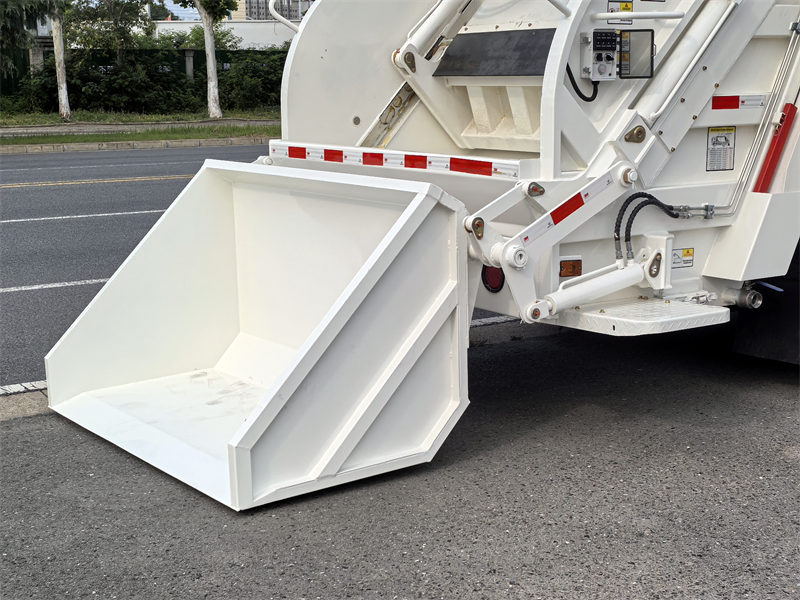

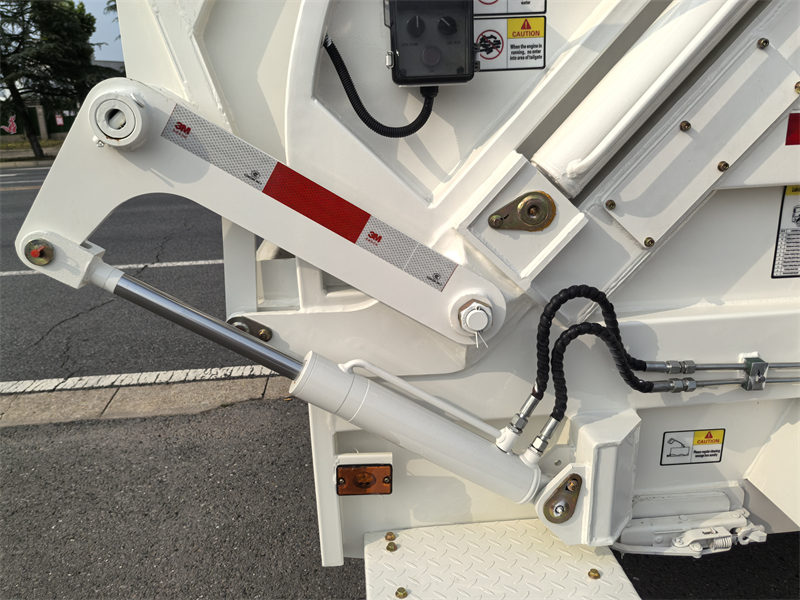

1. Tipping Bucket

►The tipping bucket is a key component of a garbage truck.

►It's the lifting mechanism responsible for raising the garbage bins and emptying the waste into the truck bed.

►This automated process minimizes manual intervention, making garbage collection safer and faster.



2. Hopper

►Located directly below the tipping bucket, the hopper is the initial receiving point for garbage.

►Like a funnel, it guides the garbage to the main storage area of the garbage truck. Its ingenious design ensures optimal utilization of storage space.

►Furthermore, it acts as a barrier, preventing garbage from falling during collection.

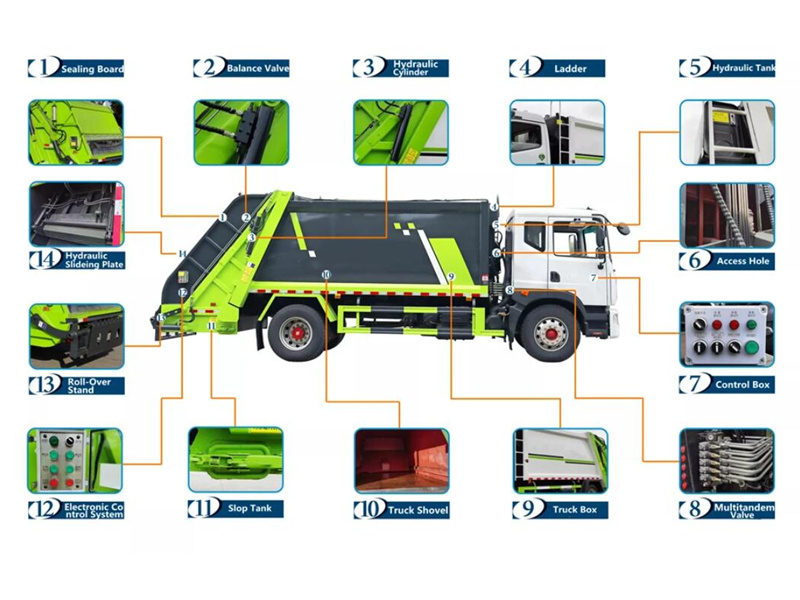

Howo 10CBM garbage compactor truck

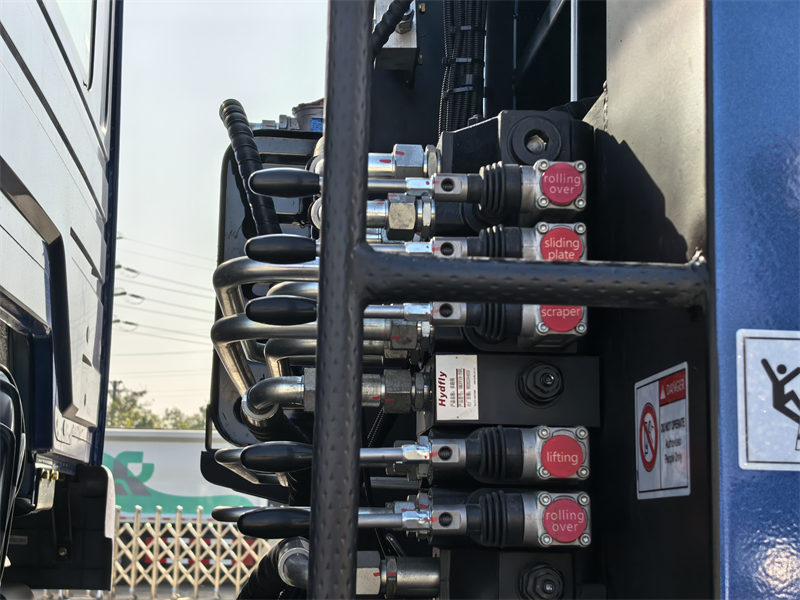

3. Hydraulic System

The hydraulic system is the core component of a garbage truck.

It uses pressurized fluid to drive the tipping bucket and compression mechanism.

This system ensures efficient compression of garbage, allowing the garbage truck to collect more garbage at once.

Its smooth operation ensures timely and orderly garbage collection.

  • Tipper
  • rear loader truck
  • rear loader truck




4. Intelligent operation system

►CAN bus integrated control system (including load monitoring/fault self-diagnosis)

►Reversing radar + 360° surround image (IP69K protection level)

►Remote monitoring module (4G transmission + GPS trajectory tracking)

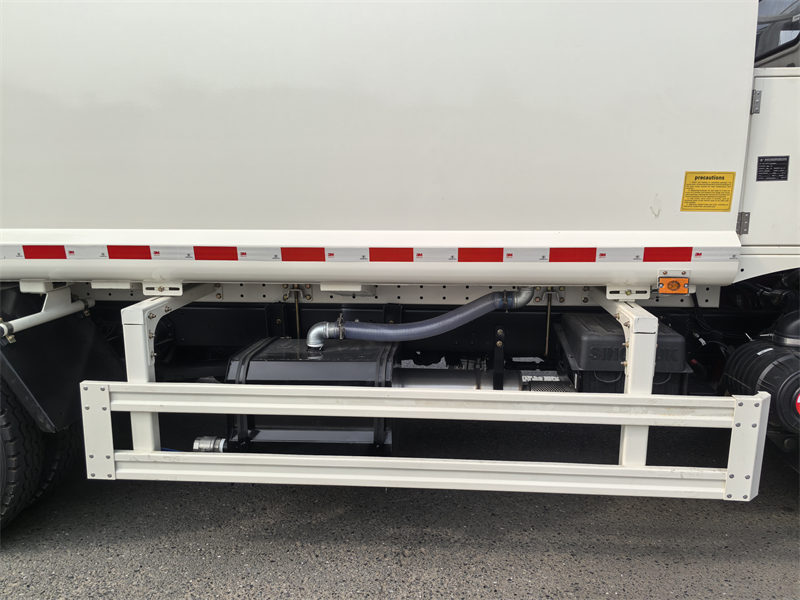

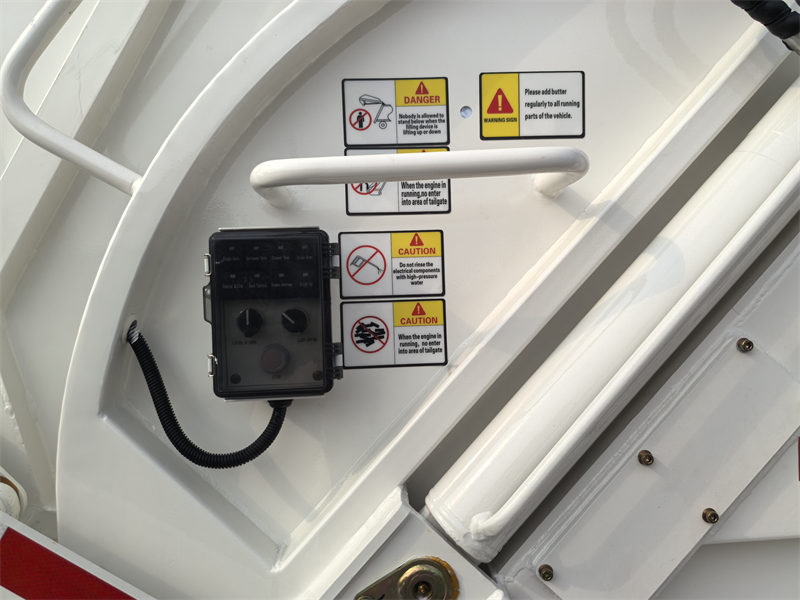

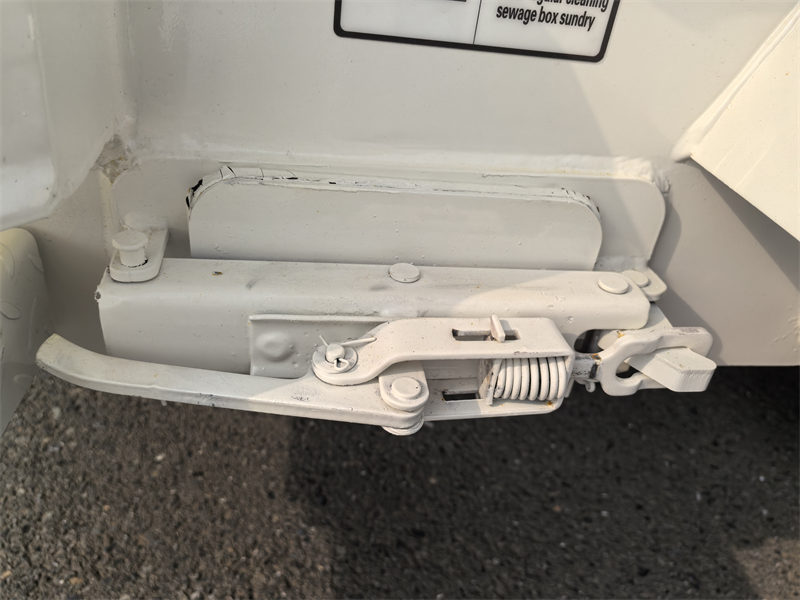

  • garbage compactor
  • garbage compactor
  • garbage compactor



✦Ⅳ.Highly Efficient and Reliable Hydraulic System Integration:

⇒ CS Trucks Group requires equipment matching based on waste composition, compactor curve, and work cycle time.

⇒ Precise calculations are performed on pump displacement, cylinder size, valve assembly flow rate, and pipeline pressure loss.

⇒ This enables smooth switching between "low-speed, high-torque" and "high-speed, light-load" modes for the Howo rear loader truck, avoiding power waste and system shock.

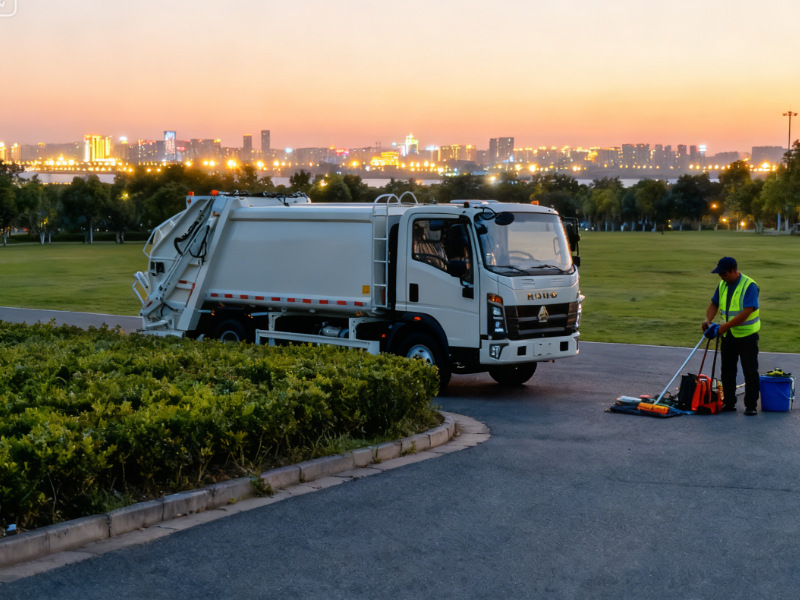

Howo garbage compactor truck


✦Ⅳ.Howo Light 10CBM Rear Loader Truck Application:
1. Urban residential areas:large garbage production and concentrated distribution require high-frequency collection.
2. Commercial areas and public places:shopping malls, office buildings, scenic spots and other places have complex types of garbage (such as packaging, kitchen waste), which need to be cleaned quickly.
3. Townships and rural areas: poor road conditions (dirt roads, steep slopes), and scattered garbage.


Howo garbage compactor truck





Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.



We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

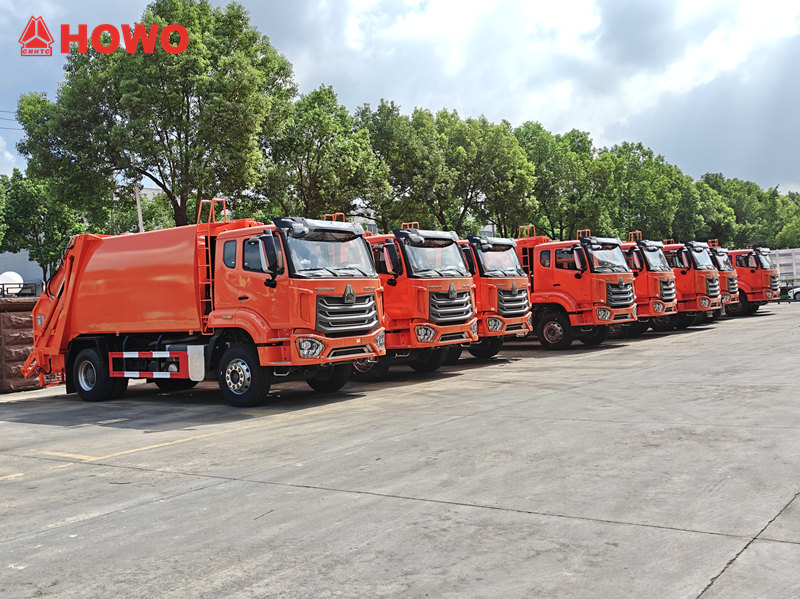

HOWO waste compactor trucks for export

SINOTRUK HOWO 6×4 garbage compactor trucks for export

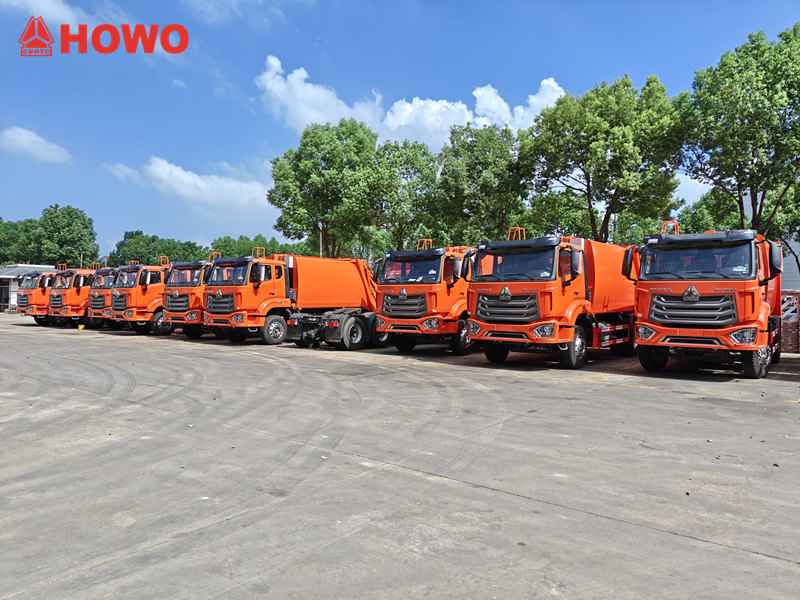

SINOTRUK HOWO rear loader trucks for export

SINOTRUK HOWO rear load garbage trucks ready for delivery
