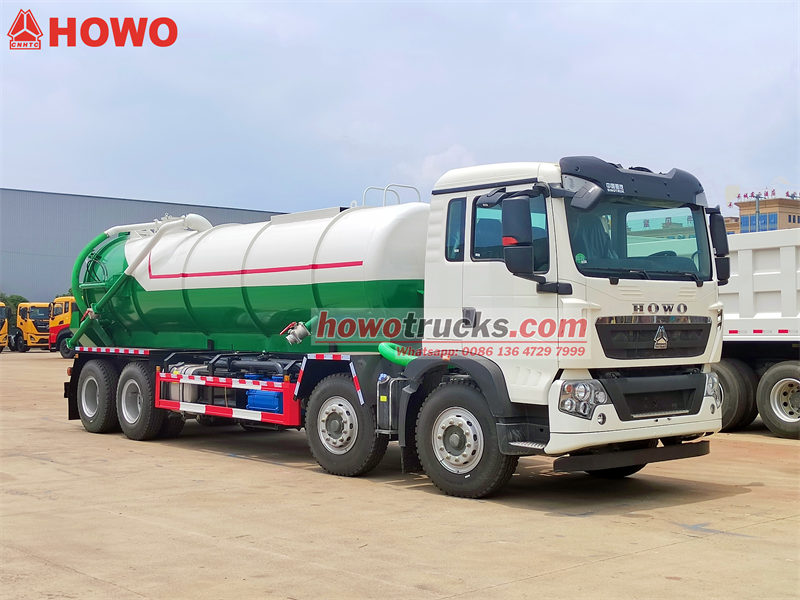

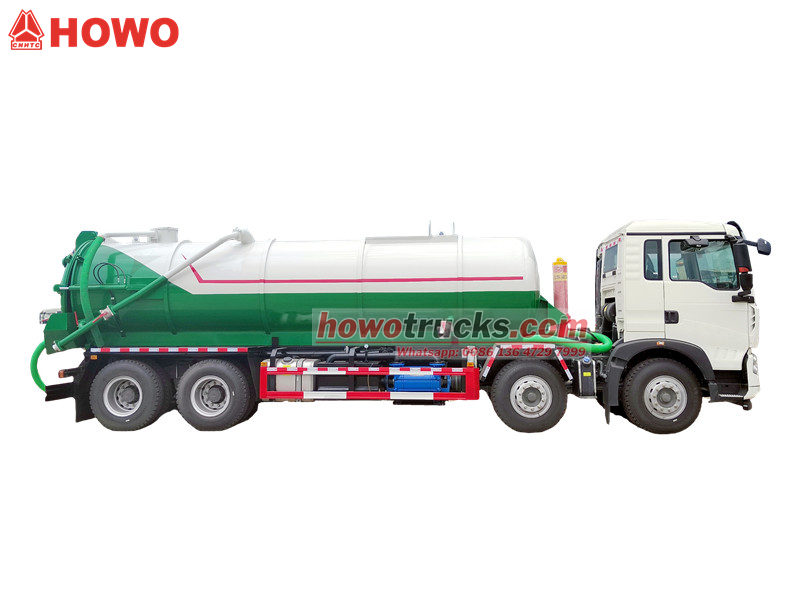

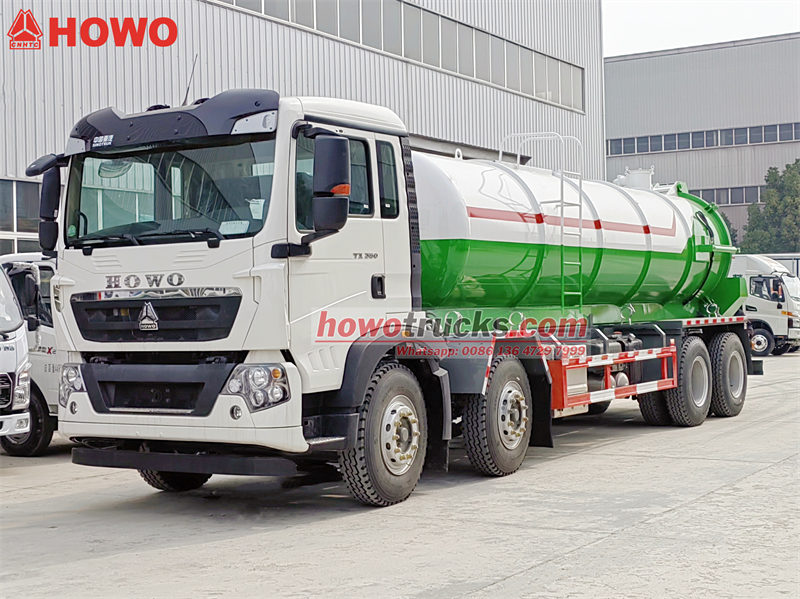

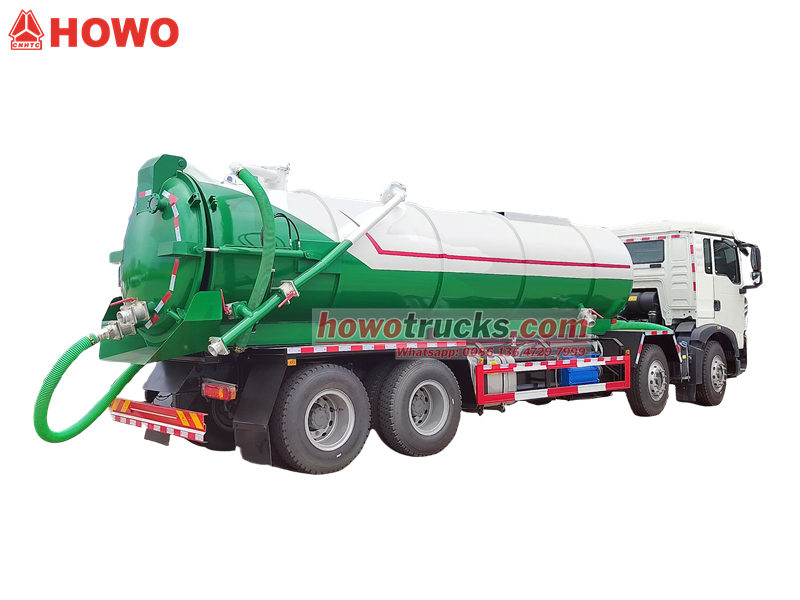

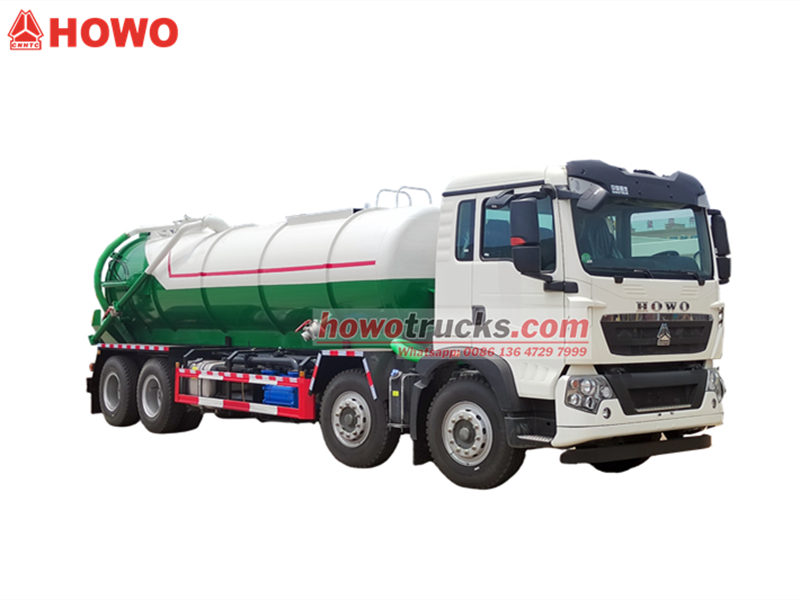

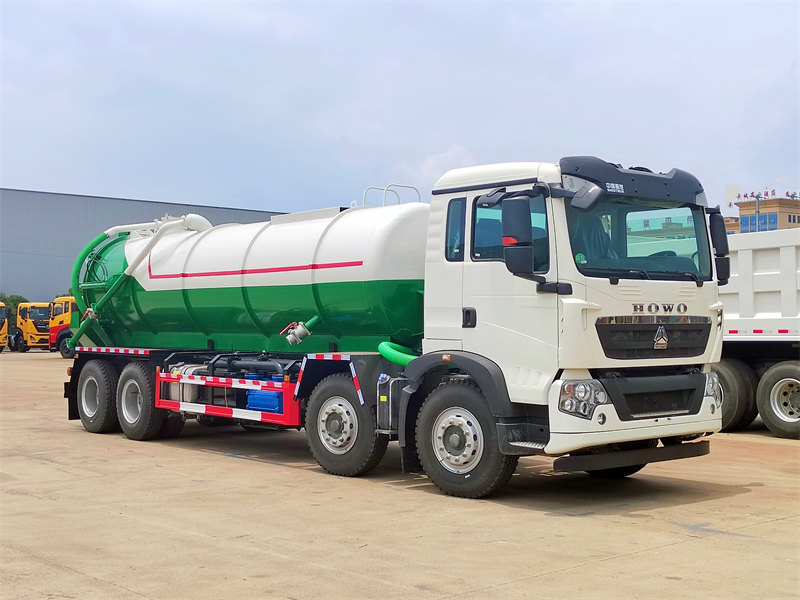

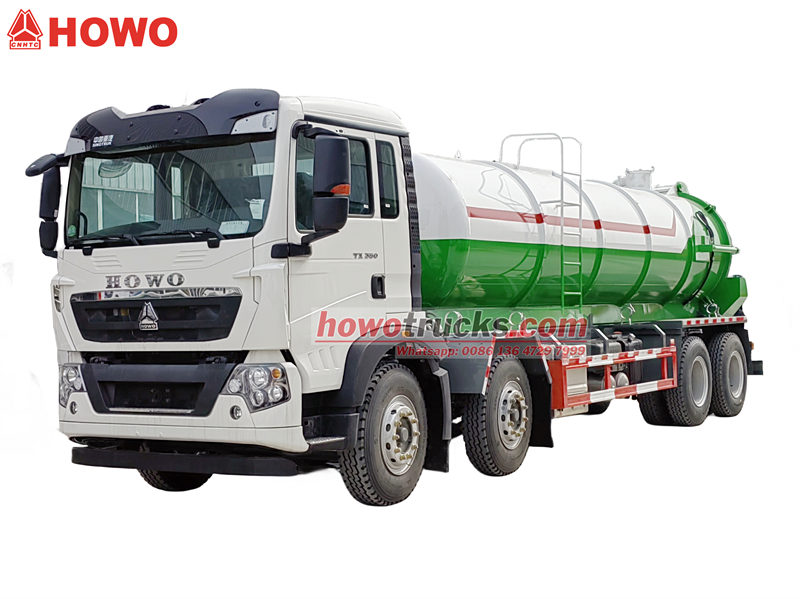

The Howo Heavy 8x4 Vacuum Sewer Truck is a high-performance, multi-functional special-purpose vehicle designed specifically for heavy-duty operations. Built on Sinotruk's mature HOWO heavy-duty truck technology platform, it balances power, durability, and operational efficiency, with a core focus on large-scale liquid waste treatment equipment for municipal, sanitation, and industrial sectors. The Howo Heavy 30000L Vacuum Tank Truck is equipped with an MC07H.35-60 model 350hp engine with a displacement of 7360ml and an output power of 257kW.
Working capacity :
20000 litersCabin type :
HOWO HW76Dimension (mm ) :
13300×2550×3450Drive system :
8×4Wheelbase ( mm) :
1750+4600+1350Engine specific :
400HP/WP12S400E201Gear box :
HW19710Front axle ( Kg ) :
9000*2Rear axle ( Kg ) :
16000*2Remark :
Jurop pump, 6×6, 8×8, RHD drive is optionalThe Howo Heavy 8x4 Vacuum Sewer Truck is a high-performance, multi-functional special-purpose vehicle designed specifically for heavy-duty operations. Built on Sinotruk's mature HOWO heavy-duty truck technology platform, it balances power, durability, and operational efficiency, with a core focus on large-scale liquid waste treatment equipment for municipal, sanitation, and industrial sectors. The Howo Heavy 30000L Vacuum Tank Truck is equipped with an MC07H.35-60 model 350hp engine with a displacement of 7360ml and an output power of 257kW.
It is matched with a SINOTRUK HW series 10-speed gearbox (main and auxiliary gearbox structure, dual intermediate shafts in the main gearbox, and a planetary reducer in the auxiliary gearbox), featuring 10 forward gears and 2 reverse gears. This provides high transmission efficiency, smooth shifting, and suitability for heavy-duty operations and frequent start-stop requirements. The core component of the sludge suction system is a 20-cubic-meter vacuum tank made of 6mm thick high-quality carbon steel (stainless steel is optional). It is equipped with a large water circulation pump from a well-known Chinese brand to form a high-efficiency suction and discharge system. It is also equipped with complete safety, operation and user-friendly configurations, making it a heavy-duty special sludge suction equipment that can meet the needs of high-intensity operations in multiple fields.

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS TRUCKS
Product Features:
☛ Howo heavy 8x4 chassis with stronger power WP12S400E201 400HP engine.
☛ Suctioning,displacing(option),transporting and dischargeing dry,wet and hazardous substsnces, such as sluge sand,(roof) gravel, fly ash, powders and various types of liquids.
☛ The powerful tri-lobe blower gives the vacuum tanker with cyclone separator a very high suction and displacement capacity.
☛ Self-cleaning cyclone separation keeps the cyclones dust free at all times.

|
Howo heavy 20000L septic tanker truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
13300*2530*3150mm |
|
|
GVW |
33000kg |
|
|
Curb weight |
12350kg |
|
|
Sewage tank (m3) |
20 |
|
|
Drive system |
8*4 |
|
|
Chassis Description |
||
|
Chassis brand |
Howo |
|
|
Steering |
LHD |
|
|
Cab |
Howo,single row, 2 seats,with A/C |
|
|
Wheelbase |
1750+4600+1350 mm |
|
|
Tire specification |
12.00 R 20 |
|
|
Tire quantity |
10 tires and 1 spare tire |
|
|
Engine |
Engine model |
WP12S400E201 |
|
Emission level |
EURO 3 |
|
|
Displacement |
9.85L |
|
|
Horse power |
400HP |
|
|
Weight |
1360Kg |
|
|
Fuel |
Diesel |
|
|
Gear box |
Model |
HW19710 |
|
Number of gears |
10-speed |
|
|
Brake system |
Air break |
|
|
Axle |
Front |
7.5T*2 |
|
Rear |
16T*2 |
|
|
Fuel tanker |
Type |
Stainless steel |
|
Capacity |
400L |
|
|

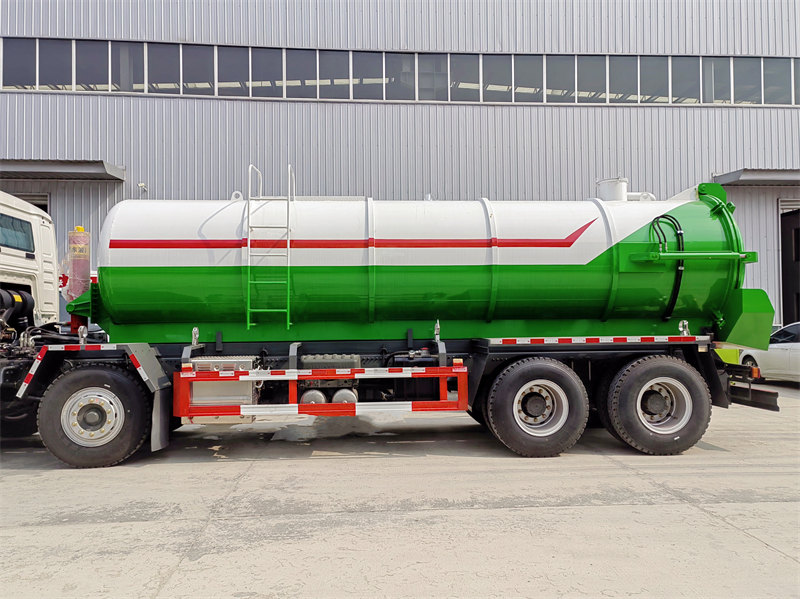

Tanker Description |
||
|
Tanker
|
Capacity |
20000 Liters |
|
Material |
6mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|

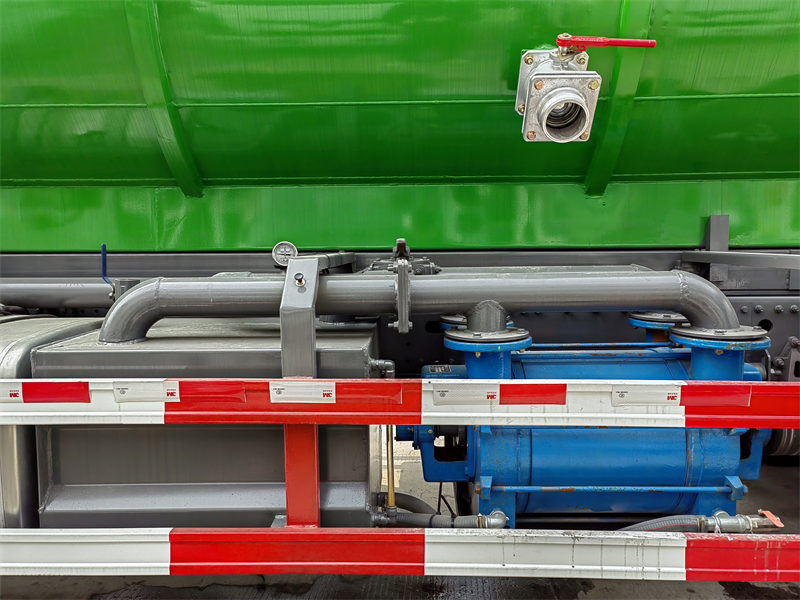

Pump
|
Type |
Water circulation pump |
|
Flux |
68(L/S) |
|
|
Rating speed |
800~1000(r/min) |
|
|
Shaft power |
5(kw) |
|
|
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
|
|
Pipe |
Suction and discharge pipe |
|
|
Special function |
Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45° |
|
|
Standard configuration |

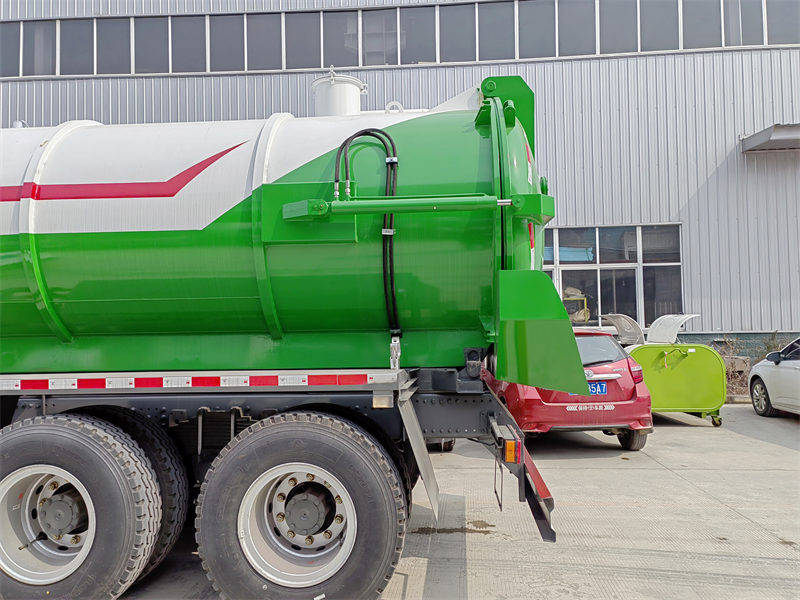

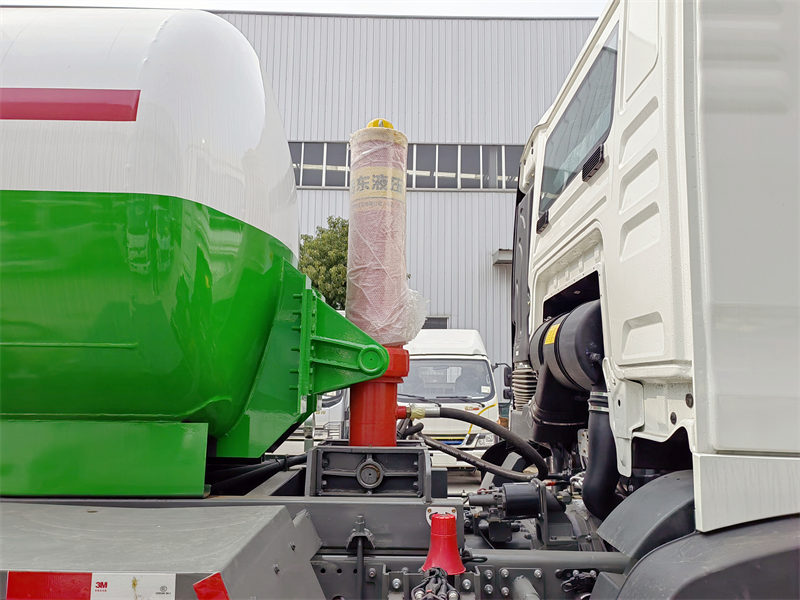

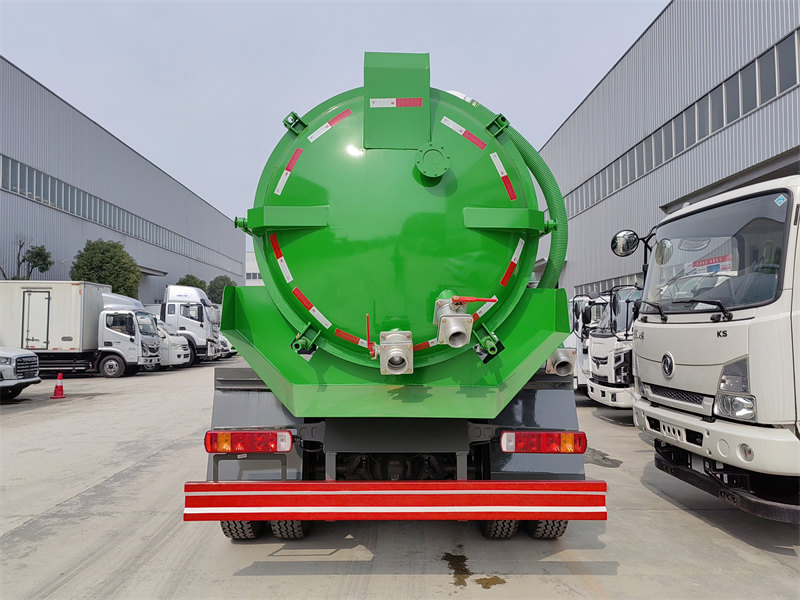

Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. |
|
|
Optional configuration |
Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank |
|

1.SK pumps utilize optimized flow path design and precision rotor machining technology to establish extremely high vacuum levels.
2.Key components of SK pumps, are made of high-strength, wear-resistant alloys or treated with special coatings, providing exceptional resistance to wear and corrosion.
3.SK pumps are designed with thermal management in mind. An optimized structure promotes heat dissipation, preventing performance degradation or damage due to excessive temperatures.

|
Specification |
Unit |
Value |
|
Free air capacity |
cfm |
489 |
|
Air capacity at 15" Hg/50% vacuum |
cfm |
512 |
|
Max. Vacuum |
Hg (in.) |
28 |
|
Max. Pressure |
psig |
29 |
|
Power required at 15" of vacuum |
hp |
20 |
|
Power required at max. pressure |
hpa |
38 |
|
Max. speed |
rpm |
1400 |
|
Working speed |
rpm |
1200 |
|
Oil tank capacity |
lt |
4.8 |
|
Oil consumption |
Gr/h |
210 |
|
Sound pressure at 7 meters (23 ft) 60% vacuum |
dB |
80 |
|
Hose |
in |
3/4 |
|
Flange |
in |
- |
|
Weight |
lbs |
585 |


1. High-quality chassis and powertrain:
♦ The Howo heavy 8x4 chassis, including its frame, axles, and suspension, undergoes rigorous strength and fatigue testing to ensure load-bearing capacity and driving stability, capable of withstanding the long-term wear and tear of heavy-duty operations.
♦ The MC engine provides stable power output, meets fuel consumption and emission standards, and possesses excellent heat dissipation and durability, suitable for prolonged high-intensity operation.
♦ The engine and transmission are rigorously matched to ensure smooth shifting, efficient power transmission, and reduced power loss during operation.
♦ The braking system must meet special vehicle safety standards; dual-circuit pneumatic braking, parking brake, and auxiliary braking must all meet standards simultaneously, with good braking sensitivity, load-bearing capacity, and wear resistance.

2. High-Quality Tank Body:
♦ The main body of the tank must be made of high-quality carbon steel (thickness not less than 6mm) or stainless steel, possessing excellent pressure resistance, corrosion resistance, and sealing properties, capable of withstanding high vacuum pressure to prevent leakage of contaminants.
♦ Stainless steel tanks must be made of high-quality industrial-grade stainless steel to prevent material oxidation and corrosion, extending service life.
♦ The optional anti-rust coating inside carbon steel tanks must meet environmental standards, be free of harmful substances, and possess excellent rust and corrosion resistance.
♦ The tank body employs professional welding techniques; welds must be smooth, strong, and free of incomplete or false welds, and undergo rigorous airtightness and water pressure testing.

3. Operating System Production Standards:
♦ Core operating components such as water circulation pumps and vacuum pumps are selected from high-quality Chinese brands, with vacuum pumps imported from Italy/Spain.
♦ They boast stable performance, meeting standards for suction and discharge efficiency, vacuum level, and flow rate, and are characterized by low noise, low oil consumption, and high efficiency.
♦ The pump body undergoes rigorous sealing and durability testing to ensure long-term trouble-free operation.

♦ The suction pipe must possess good flexibility and corrosion resistance, with its length and diameter adapted to operational requirements.
♦ Valve sealing performance is excellent, with flexible opening and closing and no leakage. The oil-water separator must have efficient separation capabilities to ensure compliant wastewater discharge and minimize environmental pollution.
♦ The hydraulic lifting and rear door opening/closing systems must be flexible and stable, with no leakage in hydraulic components, and the lifting angle and opening/closing speed must meet design requirements.

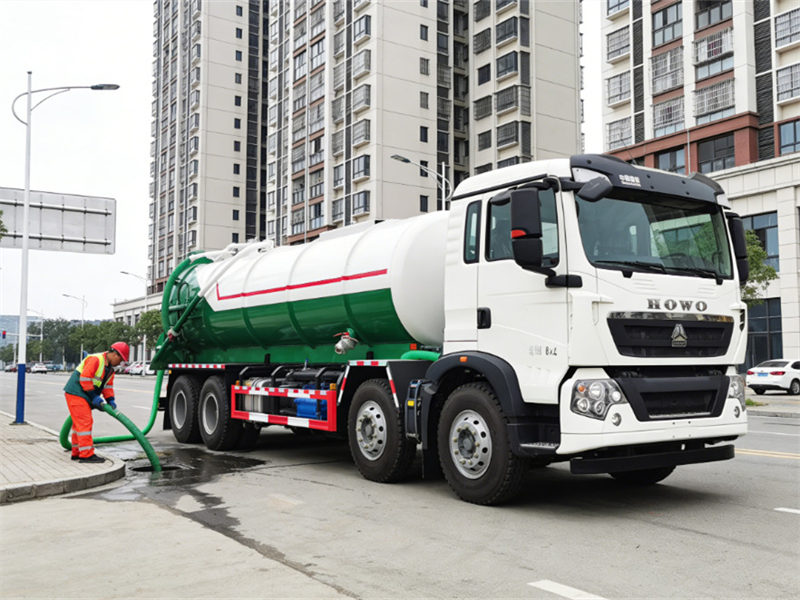

1. Ensuring Public Health and Safety:

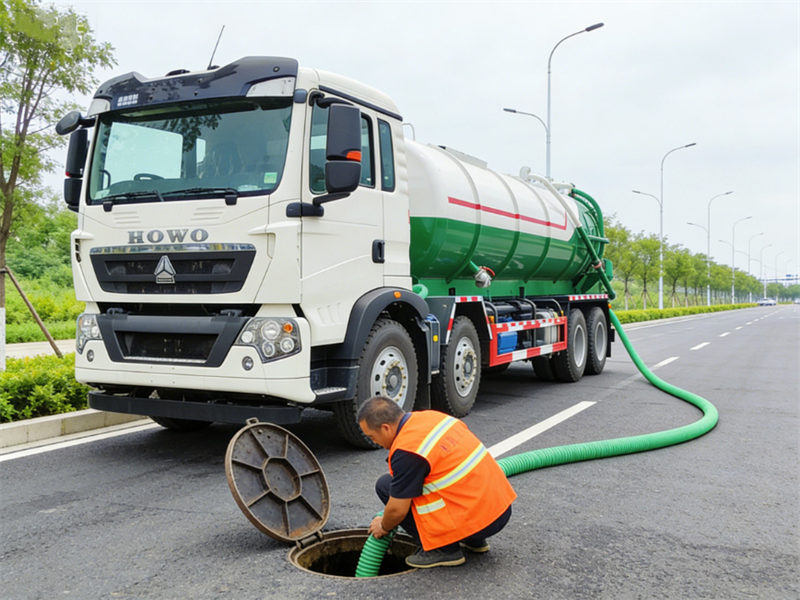

Timely cleaning of septic tanks, sewers, public toilets, and other areas effectively reduces the growth and spread of bacteria and viruses, preventing public health hazards caused by sewage accumulation and leakage.
2. Purifying the Ecological Environment:
For pollutants such as industrial wastewater, urban sewage, and landfill leachate, efficient suction and discharge, and oil-water separation functions enable centralized collection and standardized treatment of pollutants, preventing them from seeping into soil, groundwater, or flowing into rivers and lakes, thus reducing soil and water pollution.

3. Emergency Response and Livelihood Protection:
In sudden scenarios such as urban flooding and natural disasters, rapid response and efficient operation are possible, quickly draining water and clearing silt, restoring normal urban transportation and infrastructure operations, and ensuring the normal lives of citizens.
4. Supporting Industrial Production and Urban Operation:
In the industrial sector, providing pollutant cleanup support for production processes ensures the safe and orderly conduct of production activities, reduces production interruptions caused by pollutant accumulation, and lowers environmental risks for enterprises.
