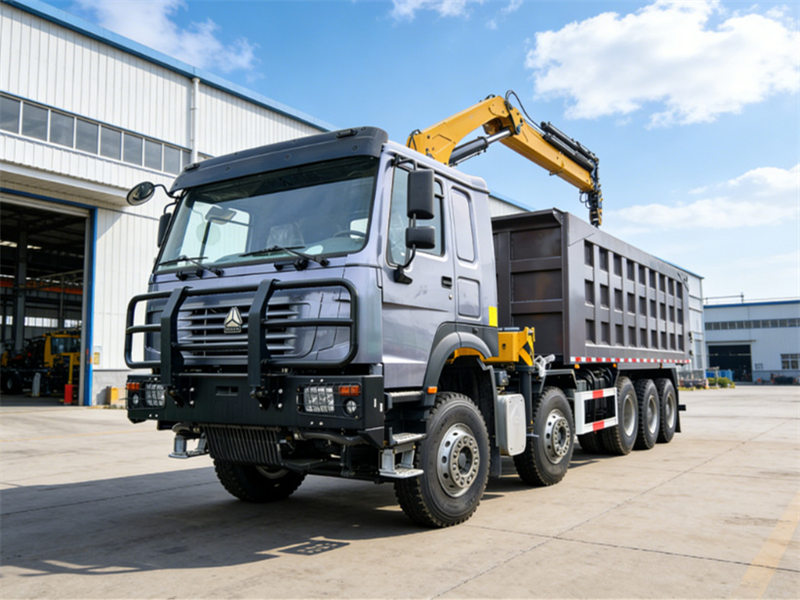

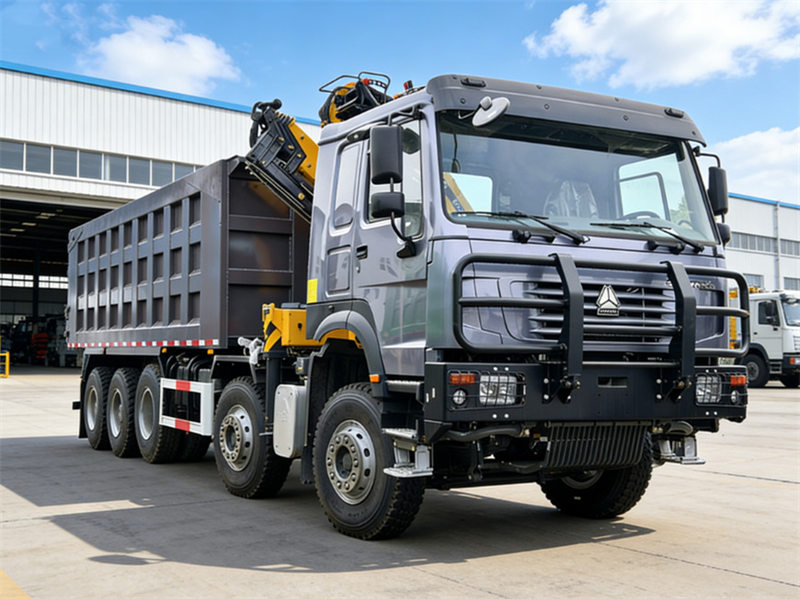

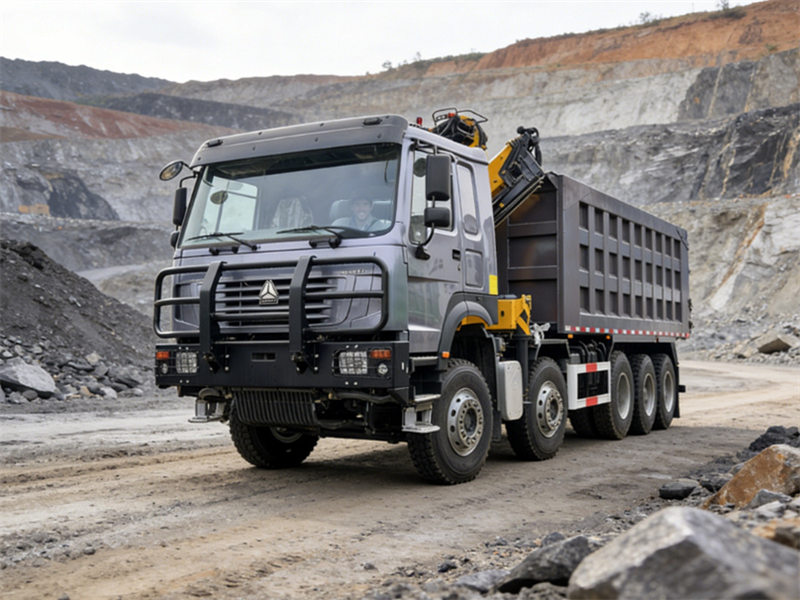

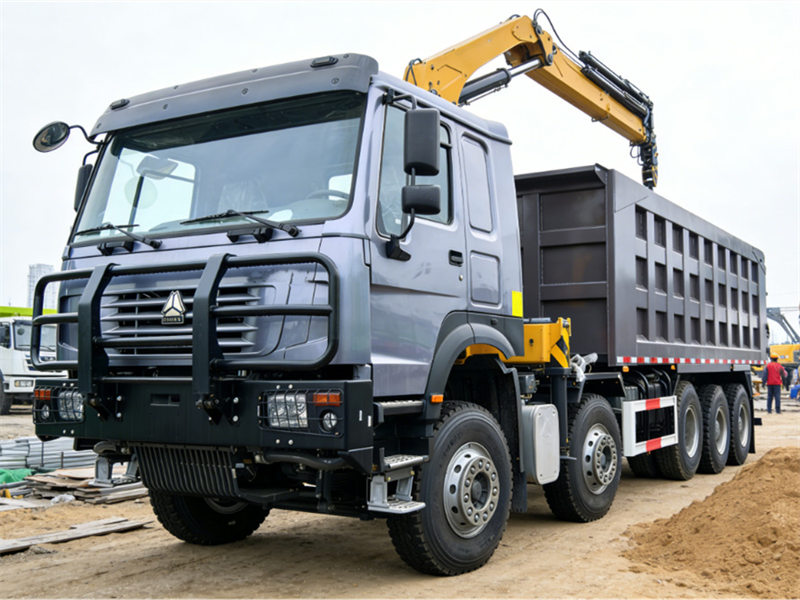

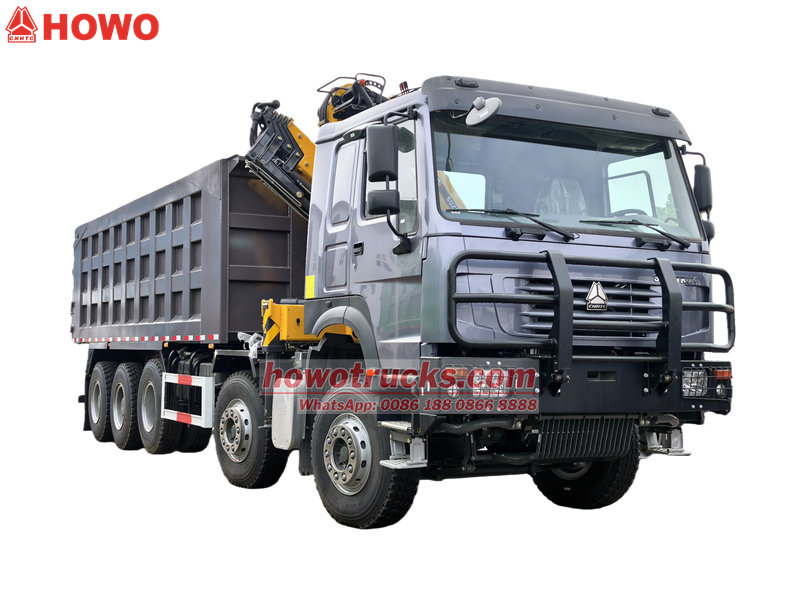

The Howo mining dumper with crane is built on the Howo heavy 10x4 drive chassis, equipped with WP12S400E201 diesel engine and a HW19710 10-speed gearbox. It has strong power performance and can adapt to complex working conditions. It is equipped the CS knuckle crane with a maximum lifting capacity of 8 tons.The self-unloading cargo box adopts a hook-arm detachable design Q235 carbon steel material, which has both high load-bearing capacity and durability. The dumper structure supports rapid loading and unloading of cargo boxes, greatly improving transportation flexibility, and is suitable for short- and medium-distance transportation scenarios of bulk materials such as construction waste, sand and gravel.
Working capacity :
8 tonsCabin type :
Howo single cabin, with one sleeperDrive system :
10x4Wheelbase ( mm) :
1750+4600+1350+1350Engine specific :
WP12S400E201Gear box :
HW19710, 10 forwards & 2 reversesFront axle ( Kg ) :
7500*2Rear axle ( Kg ) :
13000*3The Howo mining dumper with crane is built on the Howo heavy 10x4 drive chassis, equipped with WP12S400E201 diesel engine and a HW19710 10-speed gearbox. It has strong power performance and can adapt to complex working conditions. It is equipped the CS knuckle crane with a maximum lifting capacity of 8 tons.

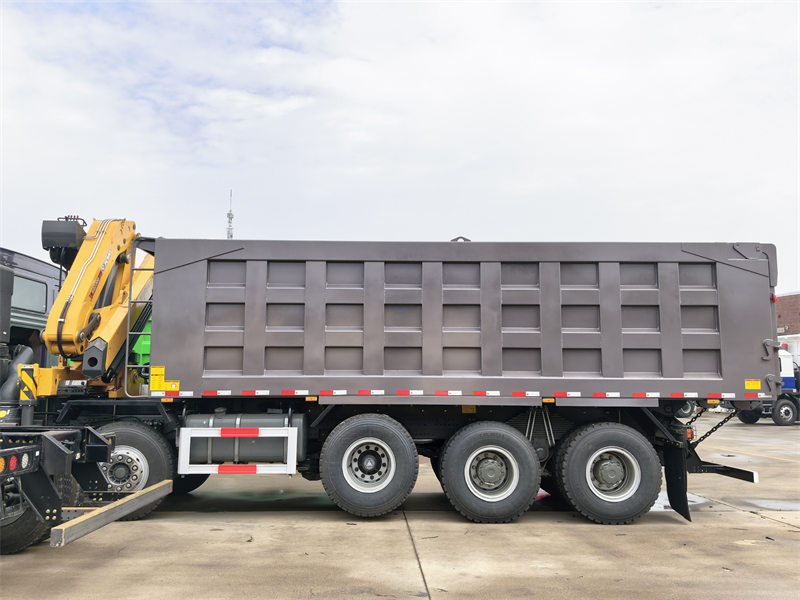

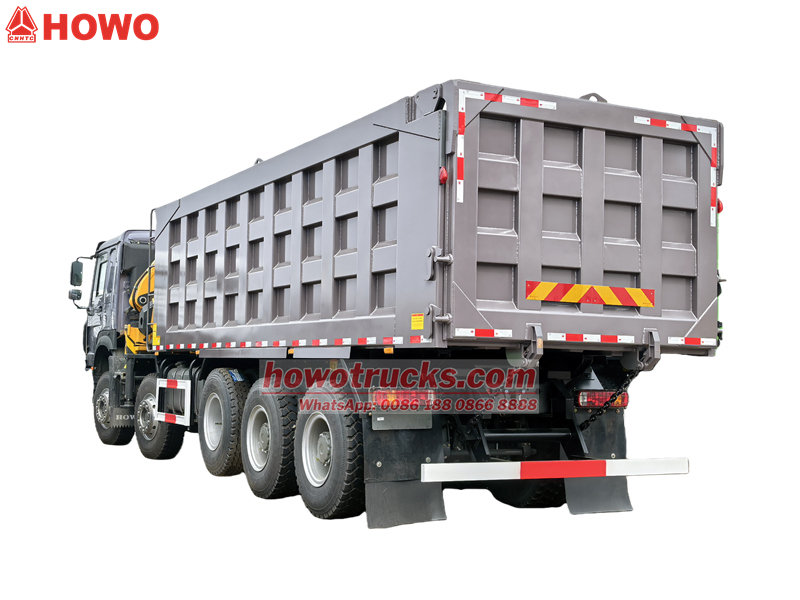

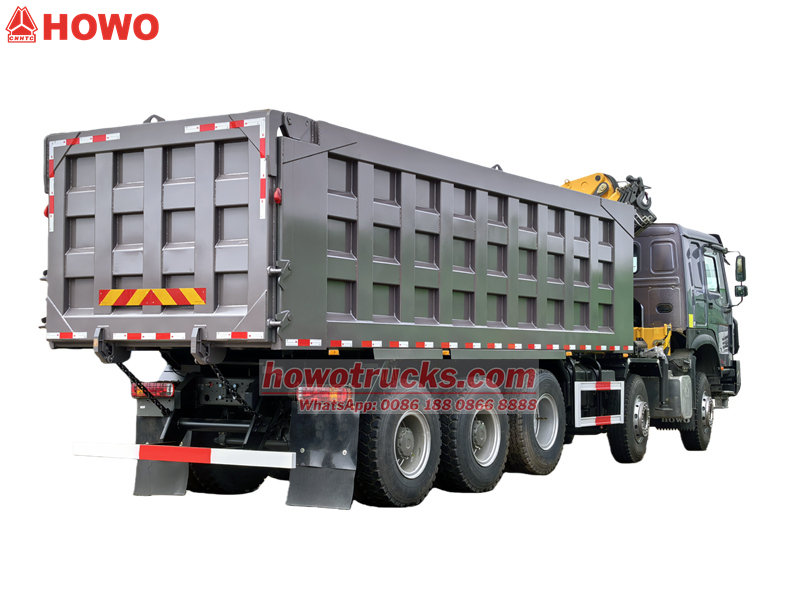

The self-unloading cargo box adopts a hook-arm detachable design Q235 carbon steel material, which has both high load-bearing capacity and durability. The dumper structure supports rapid loading and unloading of cargo boxes, greatly improving transportation flexibility, and is suitable for short- and medium-distance transportation scenarios of bulk materials such as construction waste, sand and gravel. The vehicle design focuses on functionality, and the collaborative operation capabilities of the crane and the self-unloading system can meet the efficient operation needs in the fields of engineering, municipal administration and logistics.

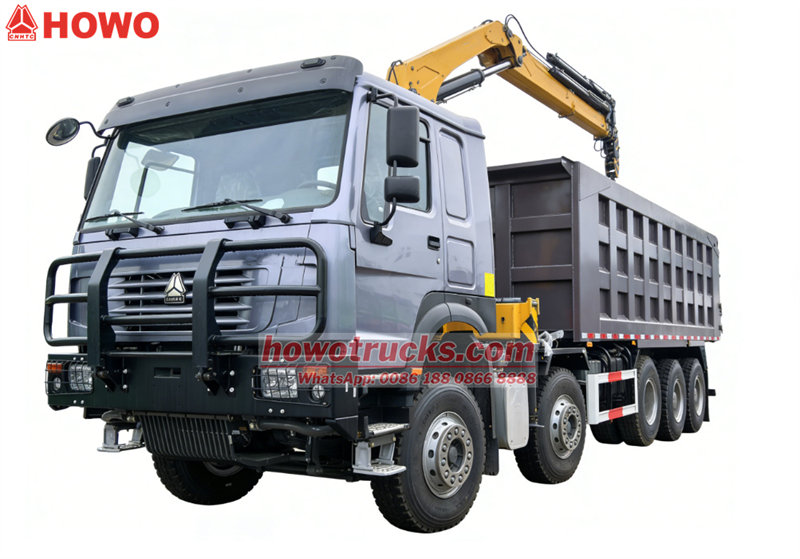

*Howo 10x4 Dumper Truck Mounted 8T Crane*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
▶ Adopt Howo heavy mining 10X4 Chassis, High power and Fuel efficiency, Reliability, Uptime
▶ All Structural made of High Strength Steel
▶ Easy to mount and Minimum space required for Mounting
▶ Optional Chassis 4x2, 6x4,8x4 and engine power
▶ Optional Crane brand: XCMG, UNIC, PALFINGER, Chusheng...
▶ Optional Crane type: Telescopic boom crane or knuckled boom crane
✦ Ⅱ.Parameter For Howo 10x4 Dumper Truck With Crane « « «
|
Howo mining dumper truck with 8T crane |
|||
|
General Technical Parameters |
|||
|
Overall Dimension |
11600×2500×3850 (mm) |
||
|
Gross Vehicle Weight |
28000(Kg) |
||
|
Curb Weight |
13500(Kg) |
||
|
Chassis Specification |
|||
|
Chassis Brand |
Howo |
||
|
Drive model |
4X4 |
||
|
Cabin |
Howo cabin, one and half row,Left-Hand Driving, with air conditional,direction assistance |
||
|
Number of Passengers |
3 |
||
|
Engine |
Model |
WP12S400E201 |
|
|
Type |
4-stroke direct injection, 6-cylinder in-line, turbocharged, water-cooled, intercooler, EGR |
||
|
Power |
400HP |
||
|
Emission standard |
EURO 2 |
||
|
Displacement |
12L |
||
|
Max torque |
1460 N.m |
||
|
Fuel type |
Diesel |
||
|
Fuel tank capacity |
400L |
||
|
Gearbox |
HW 10 Forwards & 2 Reverse |
||
|
Brake System |
Air brake |
||
|
Wheel Base |
1750+4600+1350+1350 mm |
||
|
Front/Rear Axle Loading |
7500*2 /13000*3(Kg) |
||
|
Tire |
12.00R20 ,16+1 tires |
||
|
Max Driving Speed |
95 km/h |
||
|
Upper Structure Specification |
|||
|
Dumper Body |
Dimension |
8,300×2,400×1600(mm) |
|
|
Material |
Q235 carbon steel |
||
|
Cargo Thickness |
Side 6mm, Bottom 8mm |
||
|
Working System |
Boom Type |
Knuckle boom |
|
|
Crane
|
Brand |
Chusheng |
|
|
Model |
CSC1320 |
||
|
Max Lifting Moment |
12(T.M) |
||
|
Max lifting weigh |
8 Tons |
||
|
Max Lifting Capacity |
120 (kN·m) |
||
|
Maximum arm length |
8.12(m) |
||
|
Rotation torque |
29(kN·m) |
||
|
Rotation angle |
420° |
||
|
Outrigger span |
3.8m |
||
|
Outrigger type |
Форма-A |
||
|
Recommended power |
52(Kw) |
||
|
Maximum working pressure |
25(Mpa) |
||
|
Max Flow |
50+50 (L/min) |
||
|
Crane weight |
2250(kg) |
||
|
Oil tank capacity |
200(L) |
||
✦ Ⅲ.Boom Lifting System For Howo Dumper Truck « « «

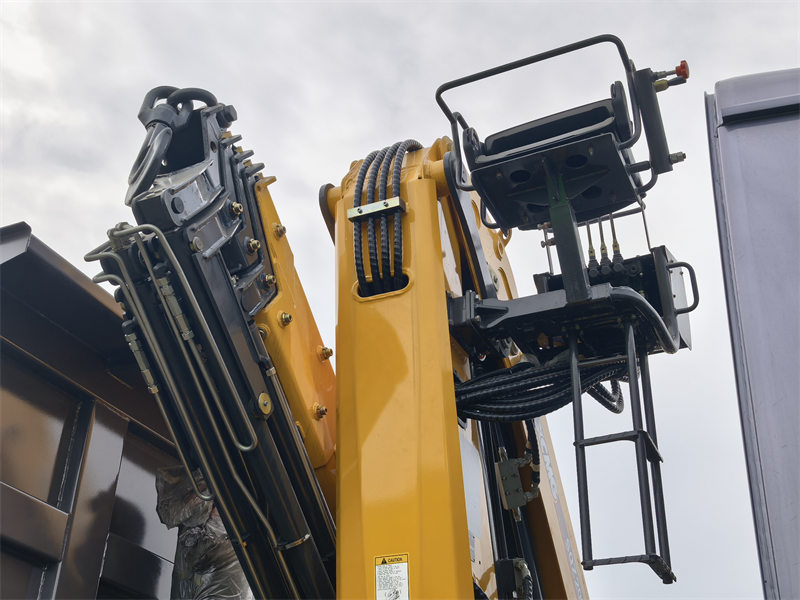

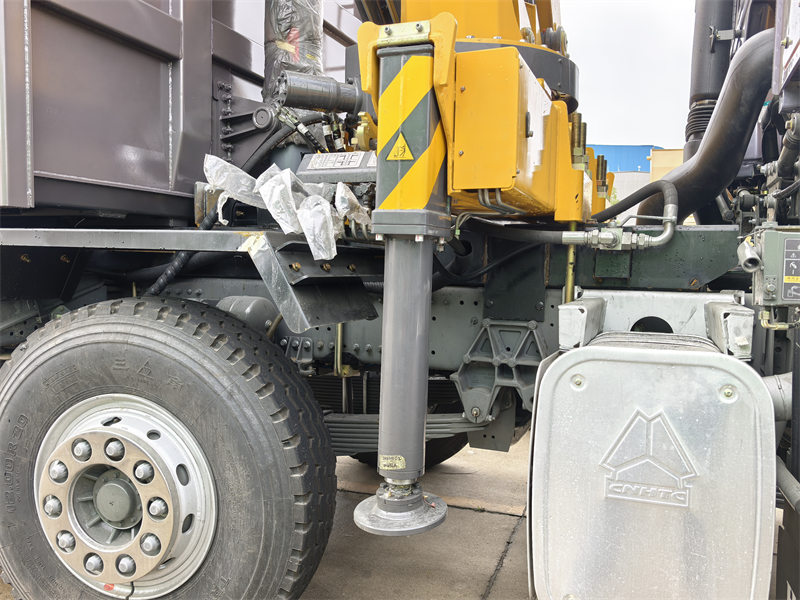

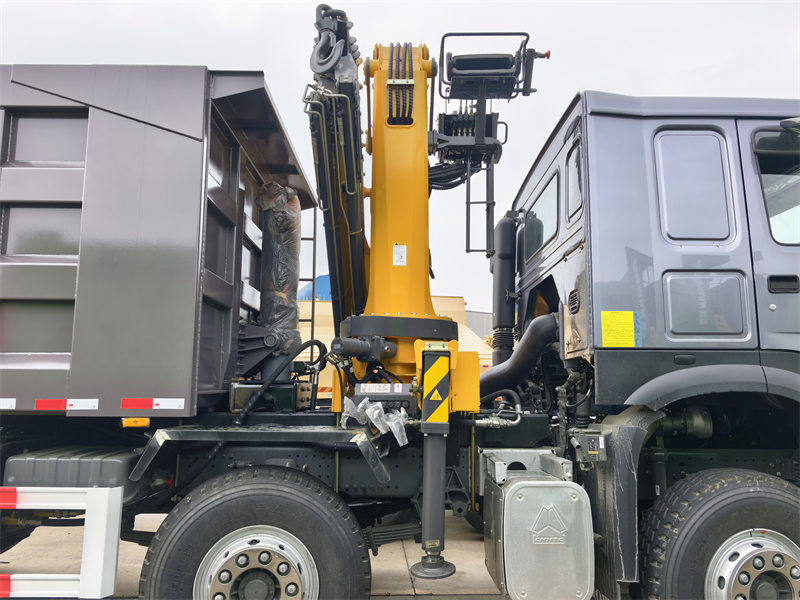

The truck is equipped with an CSC1320 crane, featuring a boom made of high-strength steel that extends outward from the truck chassis and can be articulated to reach different heights and angles. The winch, located at the base of the boom, is driven by a hydraulic motor for raising and lowering loads.
|
Crane Rated Lifting Capacity (Kg) |
8000 |
|
Max Lifting Moment(T.M) |
16 |
|
Max Lifting Height (mm) |
9775 |
|
Number of Crane Boom Sections |
4 |
|
Basic Arm Cross-Section |
Hexagon |
|
Slewing Angle (°) |
360° |
|
Slewing Torque（T.M） |
3.56 |
|
Stabilizer spread (mm) |
5210 |
|
Fitting space required (mm) |
1150 |
|
Max. operating pressure (MPa) |
28 |
|
Recommended pump capacity (l/min) |
40 |
1. Chassis and Drive Advantages：
♦ 10x4 All-Wheel Drive Layout: The 2-axle front and 3-axle rear drive configuration offers significantly superior grip and load-bearing capacity compared to ordinary 8x4 models, enabling it to carry heavier loads and ensuring stability during dump truck lifting.
♦ Reinforced Mining Chassis: The frame is constructed from high-strength alloy steel, and the suspension system (multi-leaf spring/hydro-pneumatic suspension) is specifically designed for heavy-duty, bumpy conditions, exhibiting outstanding torsional and impact resistance, and capable of withstanding long-term, high-intensity operations on unpaved mine roads.
♦ Protective Features: The front bumper is equipped with crash barriers and underbody protection plates, and the cab features an anti-rollover design, enhancing safety in mining operations.
2. Combined Superstructure and Functions:
♦ Integrated Self-Unloading and Truck-Mounted Crane: The cargo box features a high-strength, wear-resistant steel self-unloading structure, while also being equipped with a folding boom truck-mounted crane, enabling one-stop "transportation + lifting" operations without the need for additional crane equipment.
♦ Flexible Lifting Capacity: The folding boom can be deployed in confined spaces, suitable for lifting mining equipment, pipes, ore blocks, etc., with lifting capacities typically ranging from 5 to 20 tons, suitable for loading and unloading mining materials and emergency equipment repair.

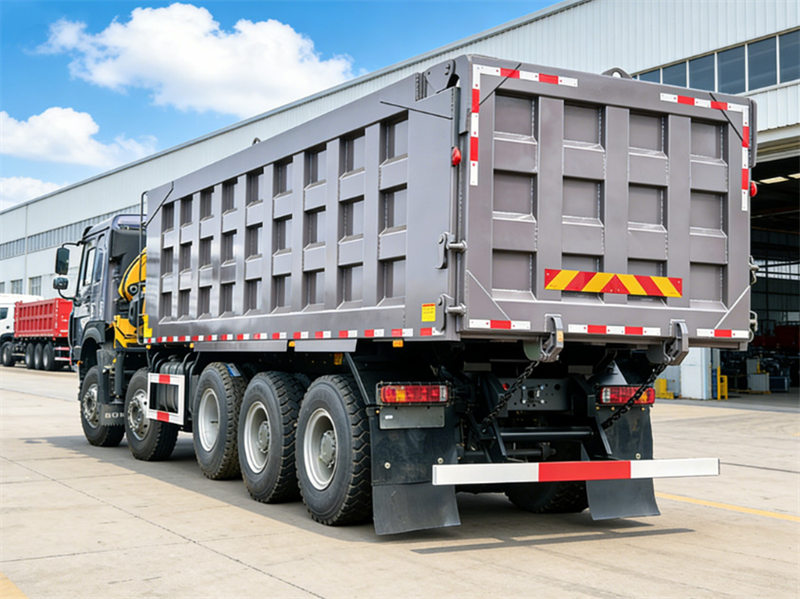

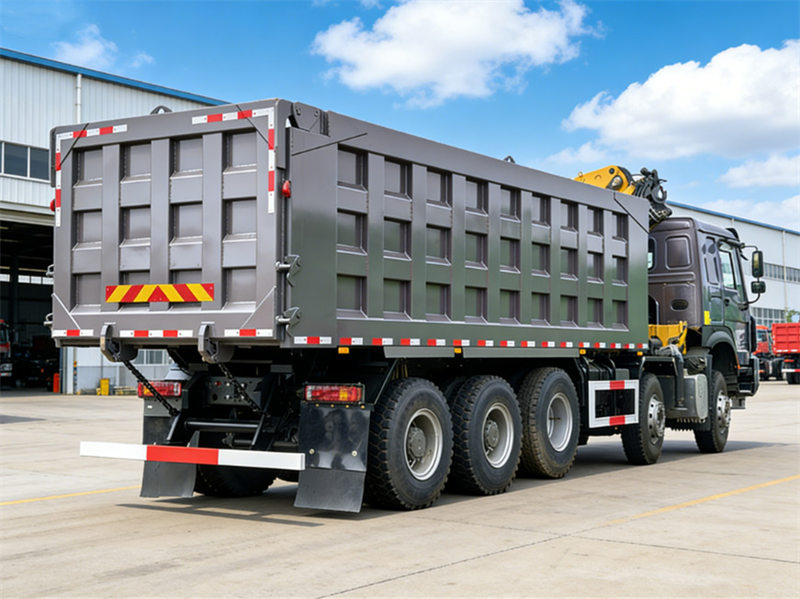

♦ Heavy-Duty Cargo Box: The cargo box has a large volume and a thickened bottom plate, resistant to ore impact and abrasion. The rear-tipping/side-tipping unloading design is suitable for mining unloading scenarios.
3. Power and Reliability:
♦ High-horsepower diesel engine: Equipped with a Sinotruk-exclusive high-torque 400hp engine, paired with an HW multi-speed transmission. Its low-speed, high-torque characteristics are suitable for heavy-load starts and hill climbing.
♦ Long oil change intervals and easy maintenance: The engine and transmission feature a long-life design, with modular layouts for key components, reducing maintenance costs and downtime in mining environments.
✦ Ⅴ.Core Advantage Of Application of Howo Mining Dumper « « «
1. Extremely adaptable to various working conditions:
♦ Suitable for complex environments such as open-pit mines, sand and gravel mines, and non-metallic mines. It can travel stably on muddy slopes and complete hoisting and unloading operations in narrow working areas without the need to disassemble multiple units.
♦ The large size tire design provides significantly higher efficiency on rainy, snowy, and gravel roads compared to ordinary highway dump trucks, reducing transportation interruptions caused by poor road conditions.
2. Operational Efficiency and Cost Optimization:
♦ Multi-purpose vehicle: Replacing the traditional "dump truck + crane" combination, reducing equipment procurement and scheduling costs. A single operation can complete the entire "loading-transporting-unloading/lifting" process, shortening the operation cycle.
♦ Heavy-duty and efficient: The 10x4 configuration offers stronger load-bearing capacity and larger single-trip transport volume. Combined with the rapid loading and unloading capabilities of the truck-mounted crane, it improves the turnover efficiency of mining materials.
3. Safety and Reliability Assurance:
The reinforced chassis and cab protection design for mining operations reduce injuries to personnel and equipment from rockfalls, collisions, and other accidents in the mining area.
The truck-mounted crane's precise lifting capabilities allow for the safe transport of heavy equipment (such as drilling rigs and crushers), avoiding the safety risks associated with manual handling.
