The Howo 4x2 truck with 6T knuckle crane is a powerful and well-designed truck. It is equipped with Weichai brand diesel engine with a strong power of 280HP, which can meet various work needs. The TX cabin can accommodate three people and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper body of the Howo cargo truck is equipped with a folding boom crane with a maximum lifting capacity of 6tons and a full 520° rotation. The crane weight is 1700kg and the installation space is 750mm. The control panel can be selected in English or other languages to facilitate users with different needs.
Working capacity :
6.3 tonsCabin type :
Howo TX cabin, with one sleeperDrive system :
4x2Wheelbase ( mm) :
4600Engine specific :
MC07.28-50Gear box :
HW19710C,10 forwards & 2 reversesFront axle ( Kg ) :
7500*2Rear axle ( Kg ) :
13000*2The Howo 4x2 truck with 6T knuckle crane is a powerful and well-designed truck. It is equipped with Weichai brand diesel engine with a strong power of 280HP, which can meet various work needs. The TX cabin can accommodate three people and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment.
The upper body of the Howo cargo truck is equipped with a folding boom crane with a maximum lifting capacity of 6tons and a full 520° rotation. The crane weight is 1700kg and the installation space is 750mm. The control panel can be selected in English or other languages to facilitate users with different needs.

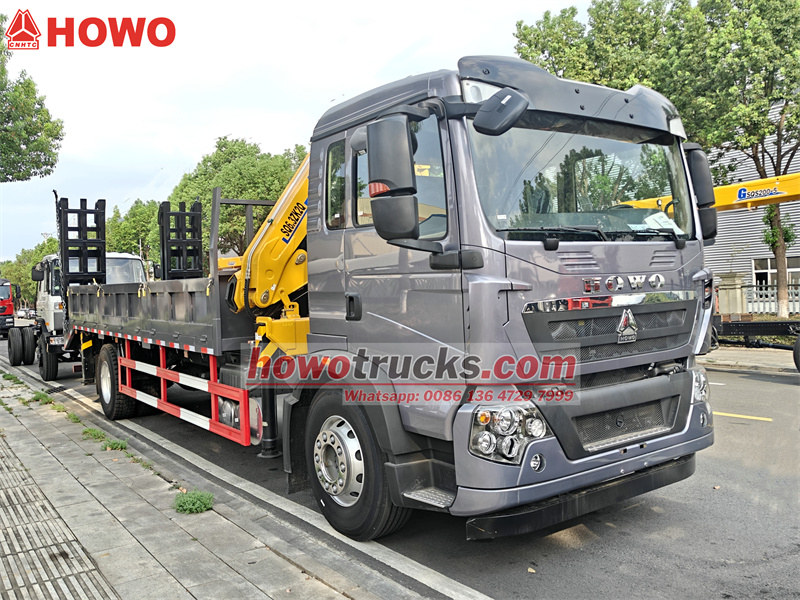

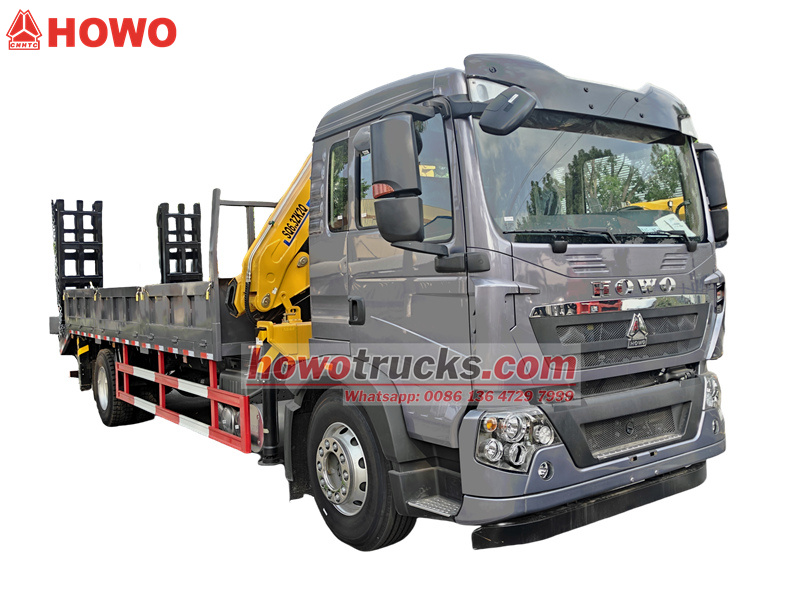

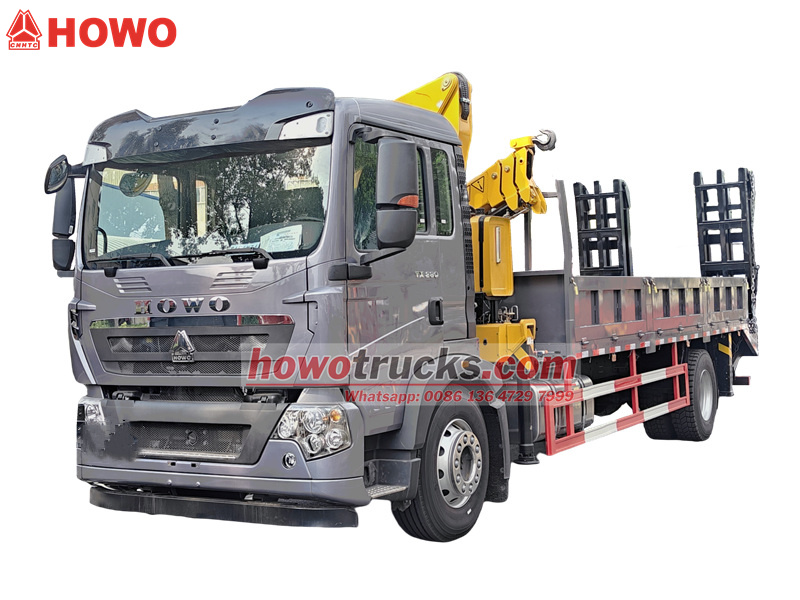

*Howo 4x2 CargoTruck Mounted 6T Knuckle Crane*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
1. Truck Chassis: Sinotruk Howo truck chassis, 4X2,4x4 model
MC model with 280HP and Euro 2,3
2. Cargo material: 6mm thick high-quality steel for prolonged service lier
carbon steel, aluminum alloy or stainless steel can be choose.
3. Crane Brand: XCMG, Palfinger, HIAB, Chusheng, etc.
4. Optional design: such as telescopic kunckle boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.

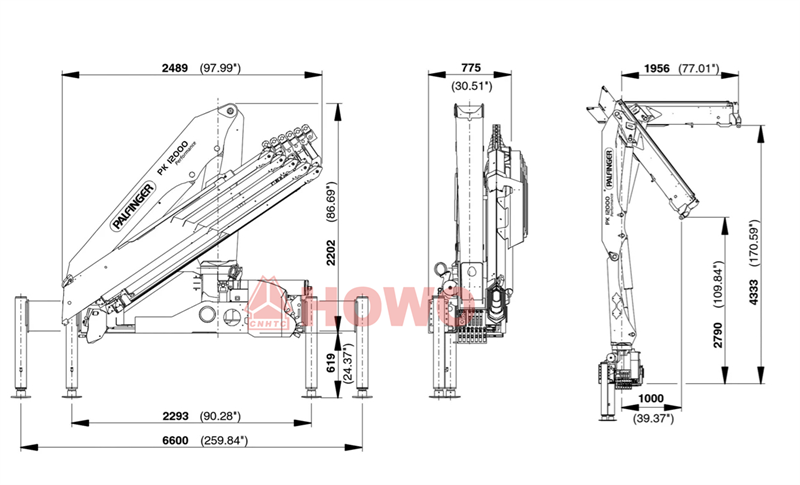

Product Parameter For Howo 4x2 Cargo Truck mounted 6 tons crane « « «
Best Choice,Howo Trucks
|
Howo cargo truck with knuckle crane |
|||
|
Overall dimensions |
7300×2500×3250(mm) |
Cargo box dimensions |
5300x2500x550(mm) |
|
Gross vehicle weight |
22,000 kg |
Rated Load capacity |
11000 kg |
|
Chassis specifications |
|||
|
Chassis Brand |
Howo |
Color |
According to wish |
|
Engine |
Fuel Type |
Diesel |
|
|
Model |
MC07.28-50 |
||
|
Horse power |
280 HP |
||
|
Displacement |
6.87 L |
||
|
Engine Type |
6 cylinders in line, water cooling, intercooled, turbocharged |
||
|
Emission Standard |
Euro 3 |
||
|
Wheel Base(mm) |
4600 |
Driving type |
4x2 |
|
Type & Size of Tyre |
275/80R22.5 (6+1pcs) |
Air Conditional |
Heating and cooling air conditioning |
|
Cab |
Single-row tilted cab |
Gear Box |
HW13709XSTCL 9 speed forward with 1 reverse, manual |
|
Brake |
Air brake |
Steering Wheel |
Left Hand Drive with power-assisted |
|
Crane specifications |
|||
|
Crane brand |
Chusheng Group |
Crane weight |
1300 kg |
|
Max. lifting weight |
6300 kg |
Max. working height |
9.5 m |
|
Max oil flow of hydraulic system |
25 L/min |
Rated pressure of hydraulic system |
20 Mpa |
|
Oil tank capacity |
100 L |
Installation space |
750 mm |
|
Max. working radius |
7.92 m |
Max lifting Moment |
10 T.M |
|
Rotation angle |
520°, all rotation |
Boom |
3 sections |
|
Others |
|||
|
Cargo body |
High-quality steel |
Payload |
10 tons |
|
Operation Type |

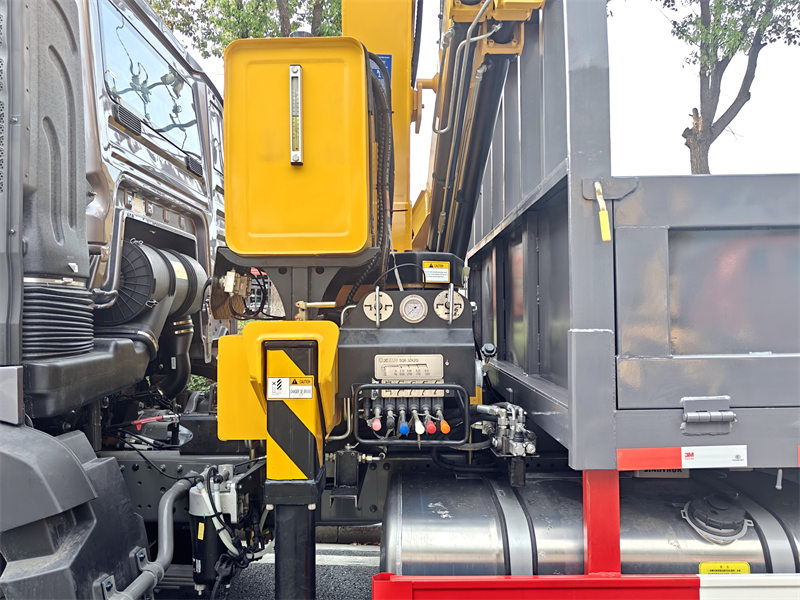

Manually operated hydraulic valve |
Type |
Mechanical |
Main Advantage Of The Howo Boom Folding crane Truck « « «
1. Outstanding power advantages
♦ The Howo 4x2 chassis is equipped with a 280HP HW13709XSTCL diesel engine.
♦ Equipped with turbocharging and intercooling technology. Its low-speed, high-torque characteristics (estimated peak torque of 1100 Nm @ 2300 rpm) .
♦ With mature HW transmission combination (market-proven with a service life of over 500,000 kilometers) make it particularly suitable for construction site operations.
2. Multifunctional integrated design innovation
♦ The Howo 4x2 cargo truck is equipped with a 6-ton knuckle boom crane (10 ton torque/8.6m height) and a 20-ton flatbed transport function.
♦ Enabling the full "lifting-transportation-unloading" process. This saves 30% of operating time compared to traditional split equipment.

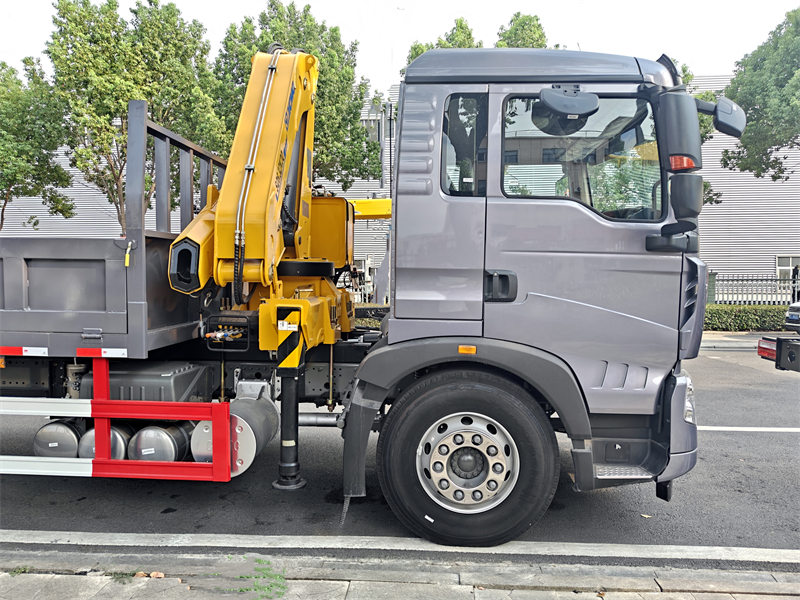

♦ The 3-section boom folding structure can be folded and placed behind the cab, complementing the cargo box with a flatbed.
♦ Achieving a compact layout with a total length of 7.3m, a large load space, and complete functions.
♦ The durability of the engine has been verified for millions of kilometers and is suitable for high-load conditions.
3.Structural strength and stability
♦ The boom is made of high-strength steel with excellent bending and torsion resistance, which reduces its own weight while improving its carrying capacity.

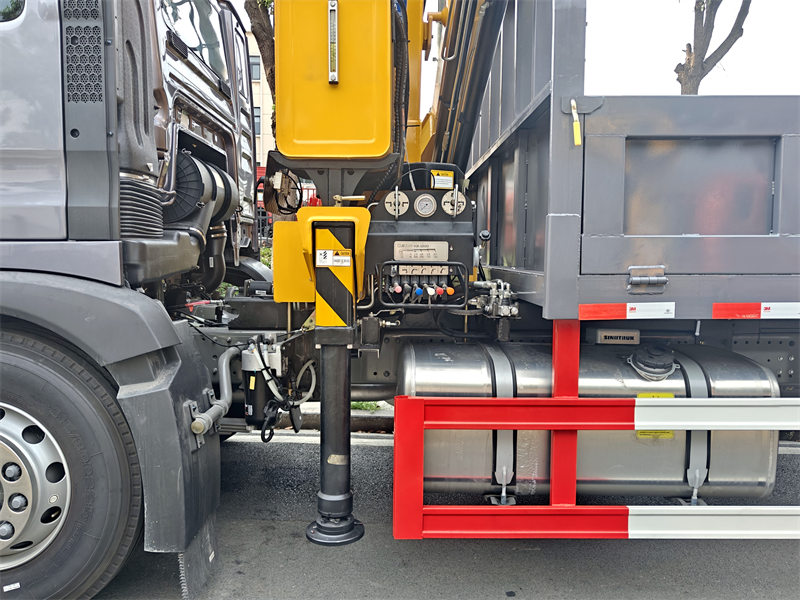

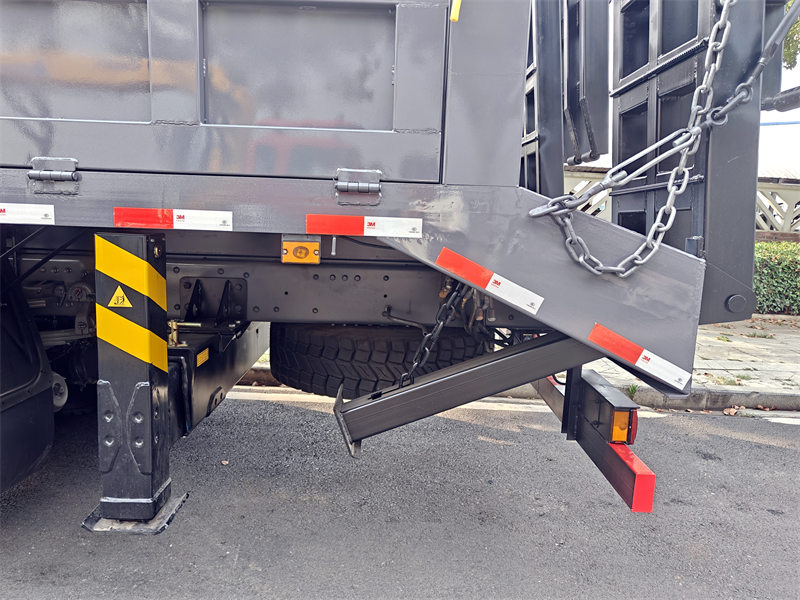

♦ The H-shaped outriggers are horizontally unfolded and the width is adjustable. The larger the support area, the stronger the anti-overturning ability.
♦ The multi-pump confluence technology enables the boom to move synchronously and smoothly, without jamming or shaking, in telescopic, slewing and amplitude adjustment.
♦ The hydraulic oil tank is equipped with an independent radiator to ensure that the oil temperature is ≤65℃ after continuous operation (such as 8 hours) to avoid efficiency loss due to overheating.
♦ Key valve groups (such as balancing valves and overflow valves) use high-quality domestic and foreign brands to reduce the risk of internal leakage.
♦ The surface of the boom is sandblasted + epoxy zinc-rich primer + polyurethane topcoat to adapt to salt spray and humid environments (such as coastal areas).
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely

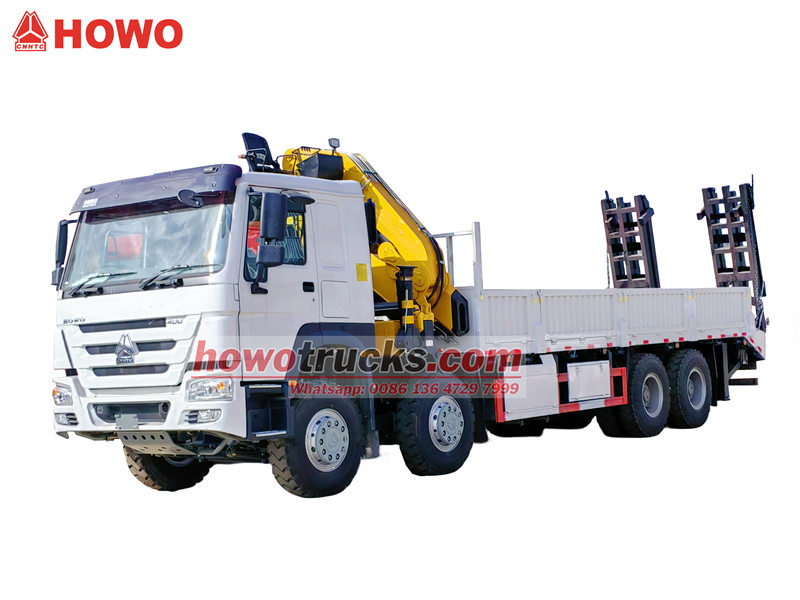

The Howo 8x4 truck with 16T knuckle crane is a powerful and well-designed truck. It is equipped with Weichai brand diesel engine with a strong power of 400HP, which can meet various work needs. The cab can accommodate three people and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper body of the Howo cargo truck is equipped with a folding boom crane with a maximum lifting capacity of 16tons and a full 520° rotation. The crane weight is 4200kg and the installation space is 1350mm. The control panel can be selected in English or other languages to facilitate users with different needs.
Read More

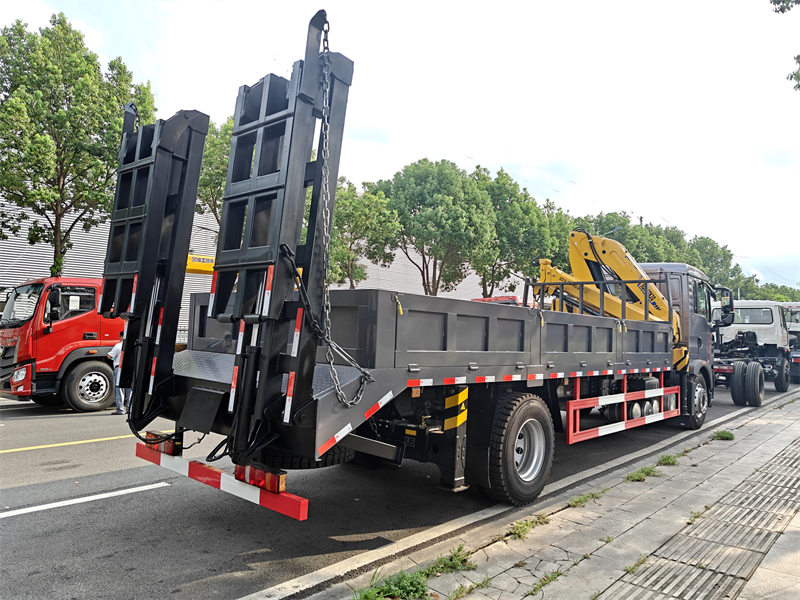

The Howo 4x2 truck with 6T knuckle crane is a powerful and well-designed truck. It is equipped with Weichai brand diesel engine with a strong power of 280HP, which can meet various work needs. The TX cabin can accommodate three people and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper body of the Howo cargo truck is equipped with a folding boom crane with a maximum lifting capacity of 6tons and a full 520° rotation. The crane weight is 1700kg and the installation space is 750mm. The control panel can be selected in English or other languages to facilitate users with different needs.
