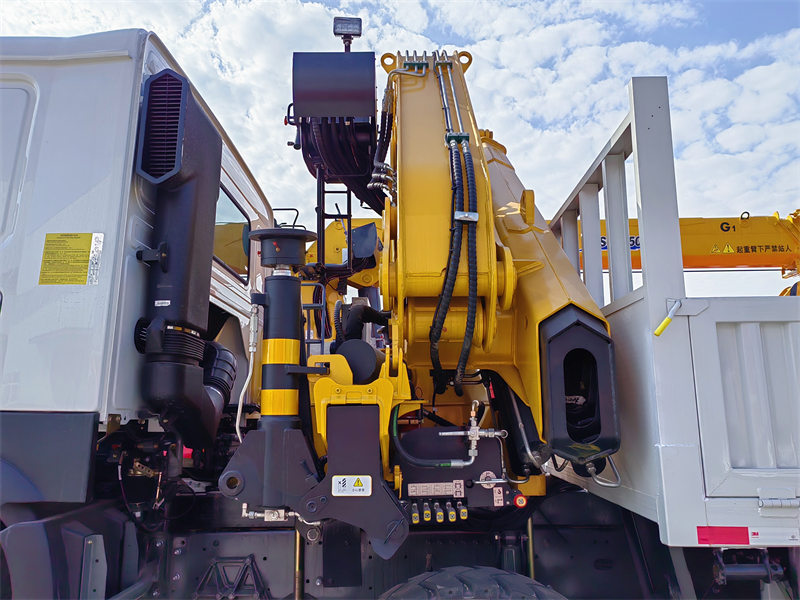

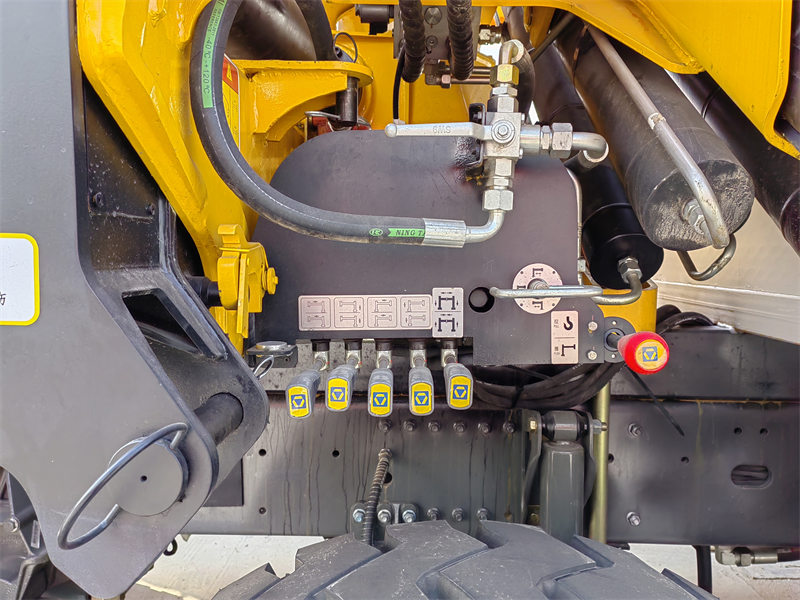

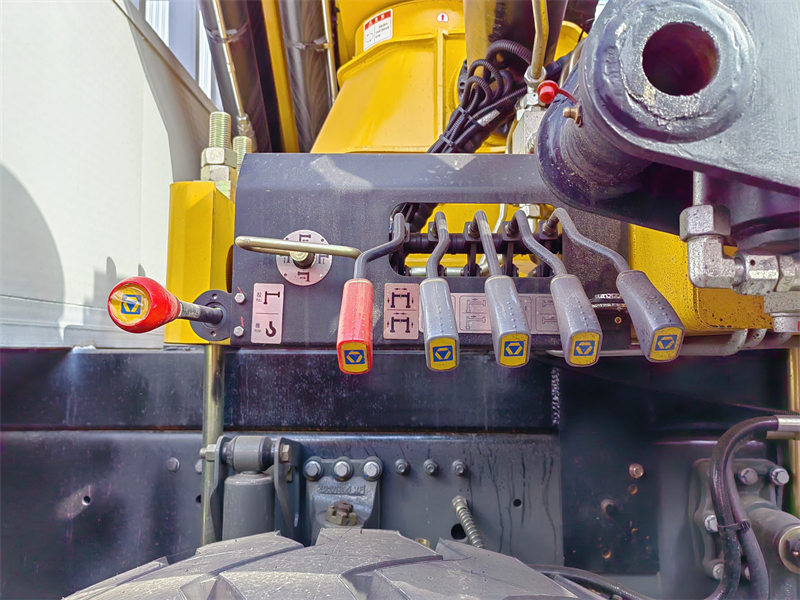

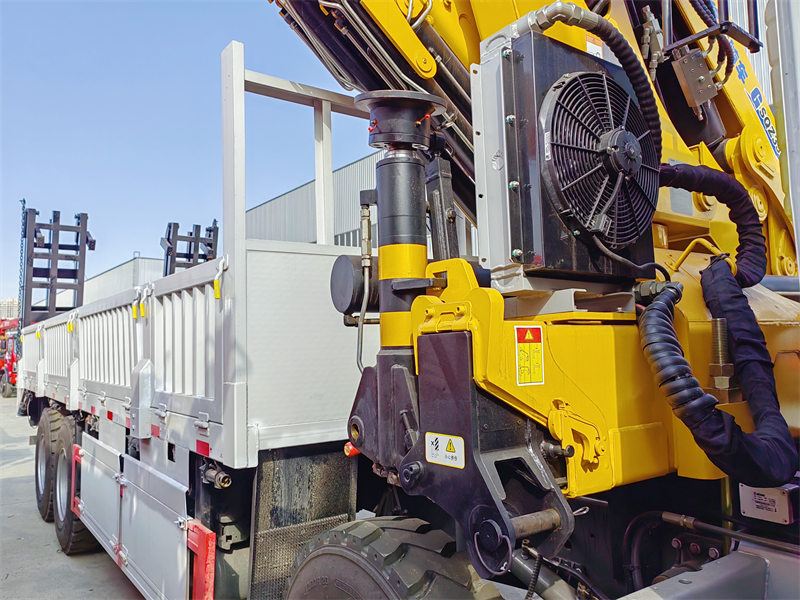

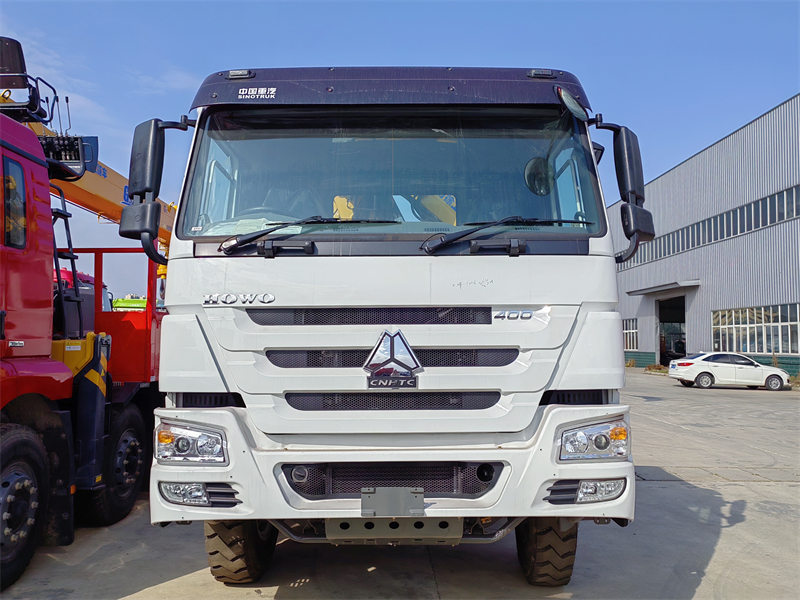

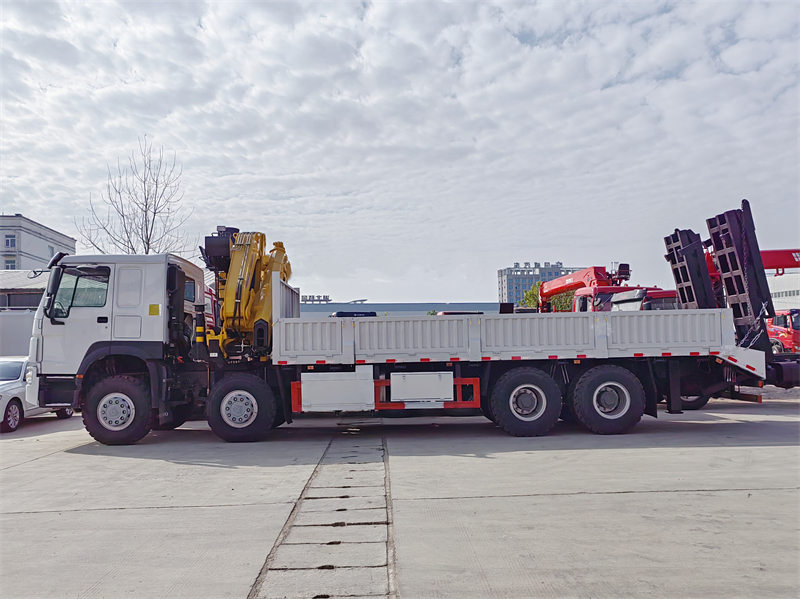

The Howo 8x4 truck with 16T knuckle crane is a powerful and well-designed truck. It is equipped with Weichai brand diesel engine with a strong power of 400HP, which can meet various work needs. The cab can accommodate three people and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper body of the Howo cargo truck is equipped with a folding boom crane with a maximum lifting capacity of 16tons and a full 520° rotation. The crane weight is 4200kg and the installation space is 1350mm. The control panel can be selected in English or other languages to facilitate users with different needs.
Working capacity :
16 tonsCabin type :
Howo single cabin, with one sleeperDrive system :
8x4Wheelbase ( mm) :
1750+4600+1350Engine specific :
WP12.400E40Gear box :
HW19710C,10 forwards & 2 reversesFront axle ( Kg ) :
7500*2Rear axle ( Kg ) :
13000*2The Howo 8x4 truck with 16T knuckle crane is a powerful and well-designed truck. It is equipped with Weichai brand diesel engine with a strong power of 400HP, which can meet various work needs. The cab can accommodate three people and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment.
The upper body of the Howo cargo truck is equipped with a folding boom crane with a maximum lifting capacity of 16tons and a full 520° rotation. The crane weight is 4200kg and the installation space is 1350mm. The control panel can be selected in English or other languages to facilitate users with different needs.

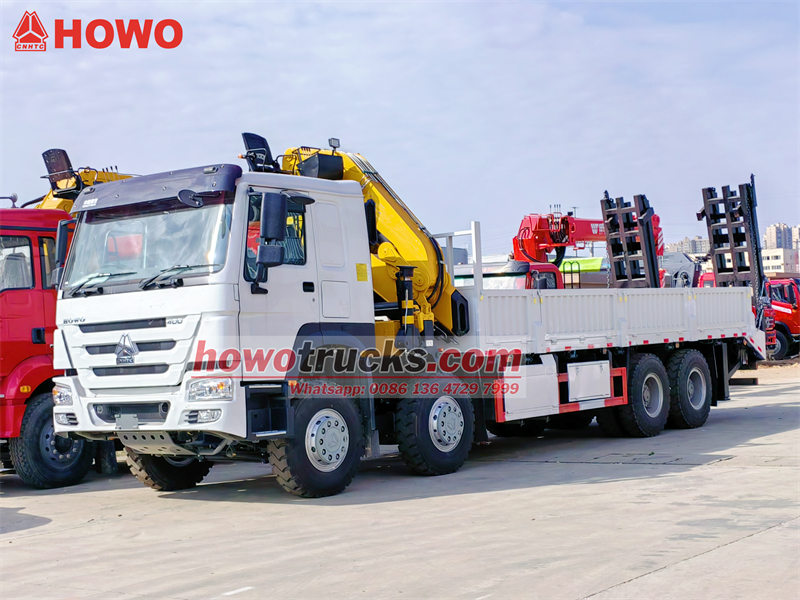

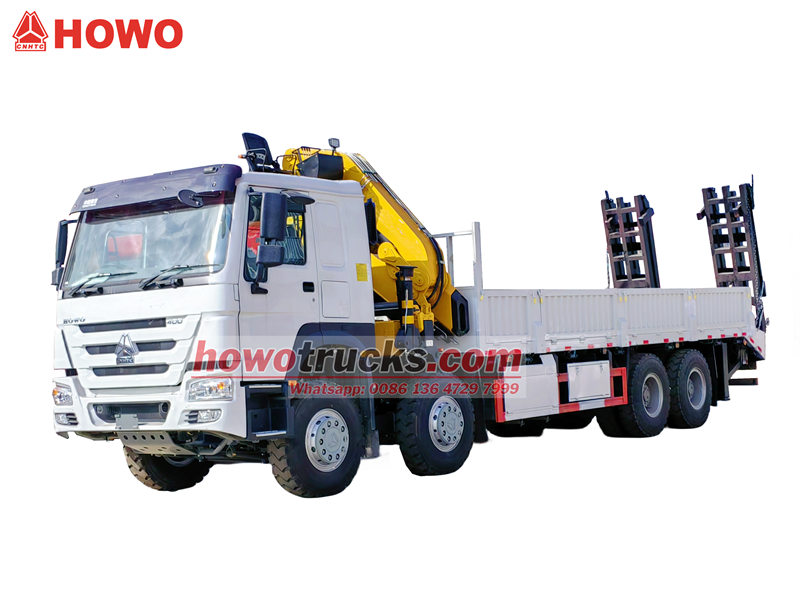

*Howo 8x4 CargoTruck Mounted 16T Knuckle Crane*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
1. Truck Chassis: Sinotruk Howo truck chassis, 8X4,8x8 model
WP model with 400HP and Euro 2,3
2. Cargo material: 6mm thick high-quality steel for prolonged service lier
carbon steel, aluminum alloy or stainless steel can be choose.
3. Crane Brand: XCMG, Palfinger, HIAB, Chusheng, etc.
4. Optional design: such as telescopic kunckle boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.
Product Parameter For Howo 8x4 Cargo Truck mounted 16 tons crane « « «
Best Choice,Howo Trucks
|
Howo cargo truck with knuckle crane |
|||
|
Overall dimensions |
11300×2500×3250(mm) |
Dump box dimensions |
7600x2500x550(mm) |
|
Gross vehicle weight |
33,000 kg |
Rated Load capacity |
20000 kg |
|
Chassis specifications |
|||
|
Chassis Brand |
Howo |
Color |
White or optional |
|
Engine |
Fuel Type |
Diesel |
|
|
Model |
WP12.400E40 |
||
|
Horse power |
294kw/400HP |
||
|
Displacement |
12 L |
||
|
Engine Type |
6 cylinders in line, water cooling, intercooled, turbocharged |
||
|
Emission Standard |
Euro 3 |
||
|
Wheel Base(mm) |
1750+4600+1350 |
Driving type |
8x4 |
|
Type & Size of Tyre |
12.00R20 (12+1pcs) |
Air Conditional |
Heating and cooling air conditioning |
|
Cab |
Single-row tilted cab |
Gear Box |
HW 10 speed forward with 1 reverse, manual |
|
Brake |
Air brake |
Steering Wheel |
Left / Right Hand Drive with power-assisted |
|

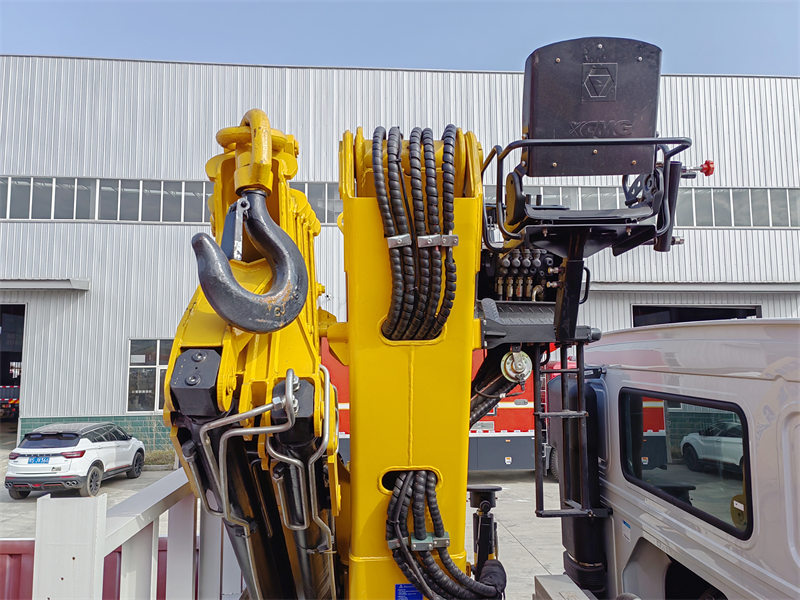

Crane specifications |
|||
|
Crane brand |
Chusheng Group |
Crane weight |
4200 kg |
|
Max. lifting weight |
16000 kg |
Max. working height |
15.5 m |
|
Max oil flow of hydraulic system |
25 L/min |
Rated pressure of hydraulic system |
20 Mpa |
|
Oil tank capacity |
200 L |
Installation space |
1350 mm |
|
Max. working radius |
12.92 m |
Max lifting Moment |
10 T.M |
|
Rotation angle |
520°, all rotation |
Boom |
4 sections |
|
Others |
|||
|
Cargo body |
High-quality steel |
Payload |
20 tons |
|
Operation Type |
Manually operated hydraulic valve |
Type |
Mechanical |
Main Advantage Of The Howo Boom Folding crane Truck « « «
1. Outstanding power advantages
♦ The Howo 8x4 chassis is equipped with a 400HP WP12.400E40 diesel engine.
♦ Equipped with turbocharging and intercooling technology. Its low-speed, high-torque characteristics (estimated peak torque of 1920 Nm @ 1920 rpm) .
♦ With mature HW transmission combination (market-proven with a service life of over 500,000 kilometers) make it particularly suitable for construction site operations.
2. Multifunctional integrated design innovation
♦ The Howo 8x4 cargo truck is equipped with a 16-ton knuckle boom crane (10 ton torque/8.6m height) and a 20-ton flatbed transport function.
♦ Enabling the full "lifting-transportation-unloading" process. This saves 30% of operating time compared to traditional split equipment.
♦ The 4-section boom folding structure can be folded and placed behind the cab, complementing the cargo box with a flatbed.
♦ Achieving a compact layout with a total length of 11.8m, a large load space, and complete functions.
♦ The durability of the engine has been verified for millions of kilometers and is suitable for high-load conditions.
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
The Howo 8x4 truck with 16T knuckle crane is a powerful and well-designed truck. It is equipped with Weichai brand diesel engine with a strong power of 400HP, which can meet various work needs. The cab can accommodate three people and is equipped with heating and cooling air conditioning, providing the driver with a comfortable driving environment. The upper body of the Howo cargo truck is equipped with a folding boom crane with a maximum lifting capacity of 16tons and a full 520° rotation. The crane weight is 4200kg and the installation space is 1350mm. The control panel can be selected in English or other languages to facilitate users with different needs.
