The HOWO 8×4 knuckle boom crane truck is a heavy-duty engineering vehicle that integrates transportation and lifting functions. It is based on HOWO 8×4 heavy-duty chassis and equipped with a XCMG GSQZ560 seven-section knuckle boom crane. The chassis is powered by a Weichai 380 HP diesel engine, paired with a 10-speed transmission and a four-axle air braking system, delivering strong power and stable control. The crane has a maximum lifting capacity of 28 tons, and the fully extended seven-section boom reaches 20.8 meters, supporting 360° full rotation. Combined with the new octagonal cross-section boom design, it offers superior bending and torsional resistance.

The cargo box features a 4mm thick carbon steel floor and 3mm side plates, with internal dimensions of 7800 × 2450 × 550 mm, providing outstanding load-bearing capacity. This HOWO 12 wheeler truck mounted crane is suitable for material lifting and transportation in complex scenarios such as narrow alleys and construction sites. It boasts advantages such as a low-speed high-torque engine, small-radius steering, and smooth extension and retraction of buffer cylinders, ensuring both efficient operation and durability. It is a reliable choice for heavy-duty engineering operations.

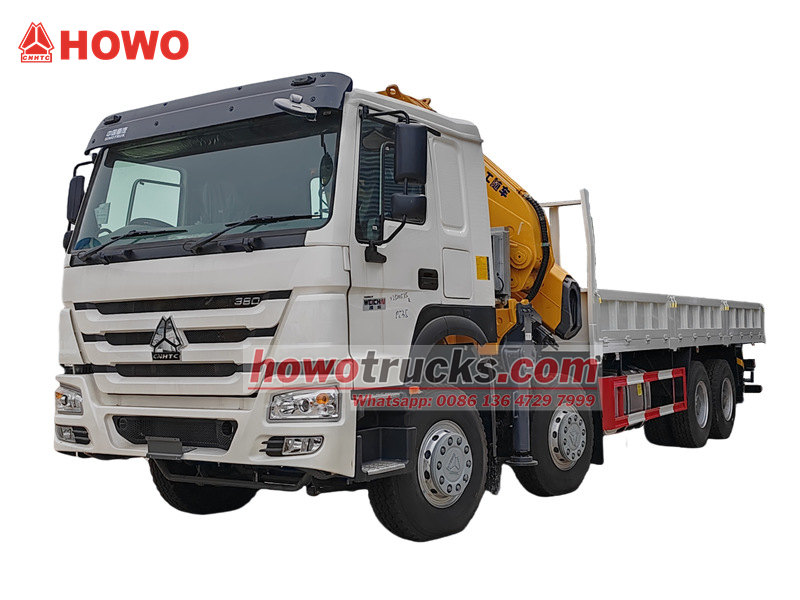

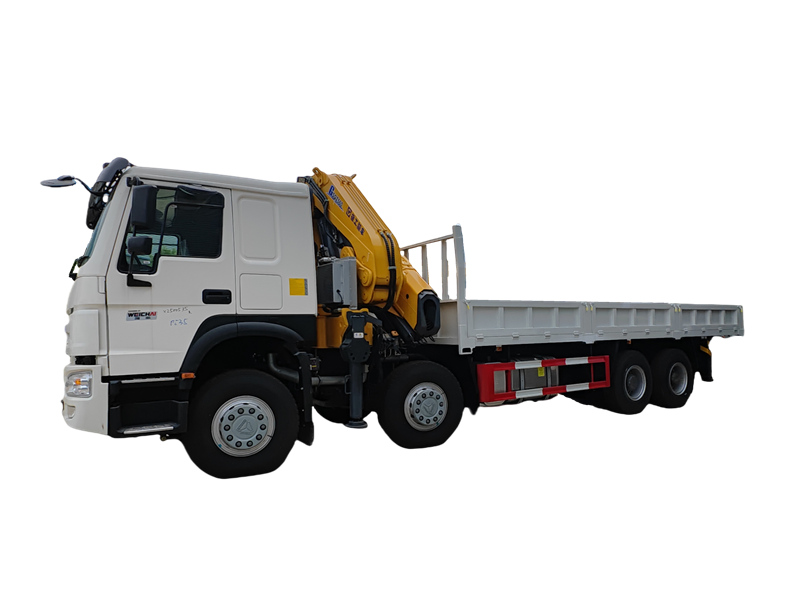

*HOWO 8×4 Knuckle Boom Crane Truck

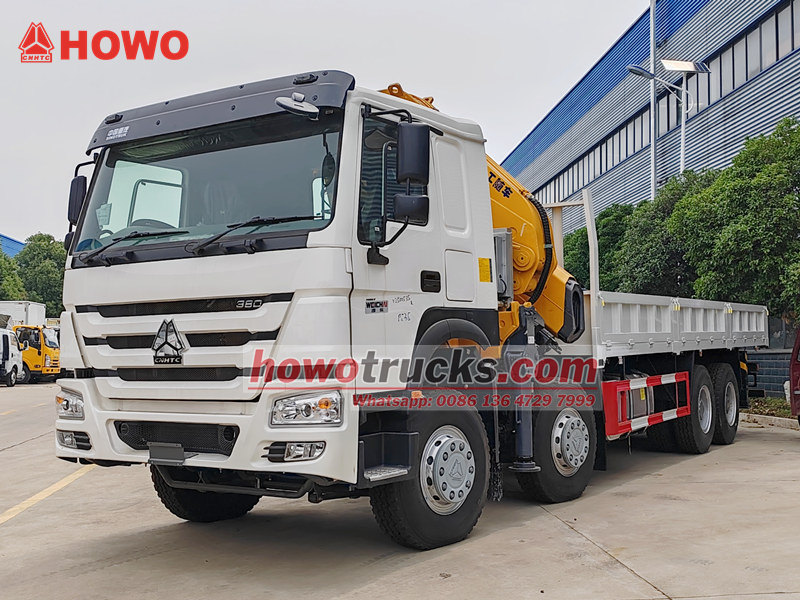

HOWO 12 Wheeler Truck Mounted Crane XCMG*

CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

※ Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS

Product Features

★ Strong Lifting Capacity – With a maximum lifting capacity of 28 tons, it's suitable for a variety of material handling tasks.★ Durable Chassis – The HOWO 8x4 reinforced chassis ensures stability and load-bearing capacity.
★ High-Performance Engine – Powerful, reliable, and durable WEICHA 380HP engine.

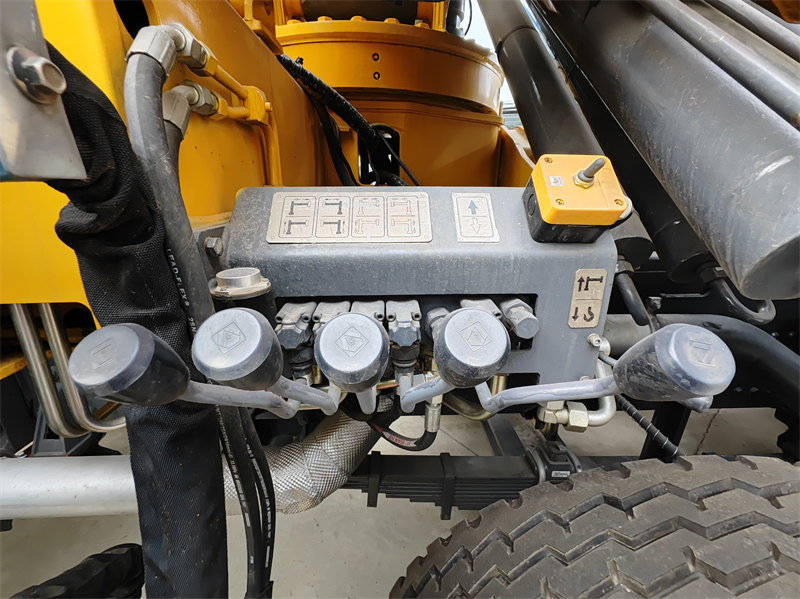

★ Efficient Hydraulic System – The variable displacement pump and hydraulic motor operate smoothly, ensuring precise load control.
★ Safe and Stable – Equipped with front and rear outriggers, a load moment indicator (LMI), and an overload protection system, it ensures safe operation.
★ Versatile – Suitable for construction sites, warehouses, ports, and emergency rescue operations.

※ Ⅱ. Product Parameter for HOWO 28 ton knuckle boom crane truck:

※ Ⅲ. Product Details & Fucntions:

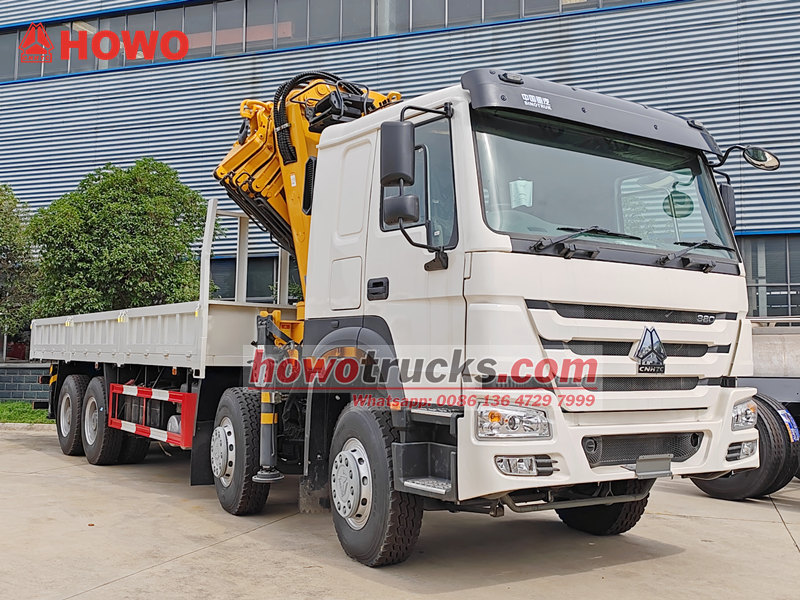

HOWO Chassis

● HW76 Cab: HOWO HW76 cab with 2 seats and one sleeper berth, with A/C.

● Powerful Engine: Weichai 380HP diesel engine, it features high torque and sufficient power reserve.

● Gear box: HW19710 gear box, 10 forward speed and 2 reverses.

● Reliable Chassis: The chassis is designed to be sturdy, and key parts such as the frame and axles are made of high-strength steel, with strong load-bearing capacity.

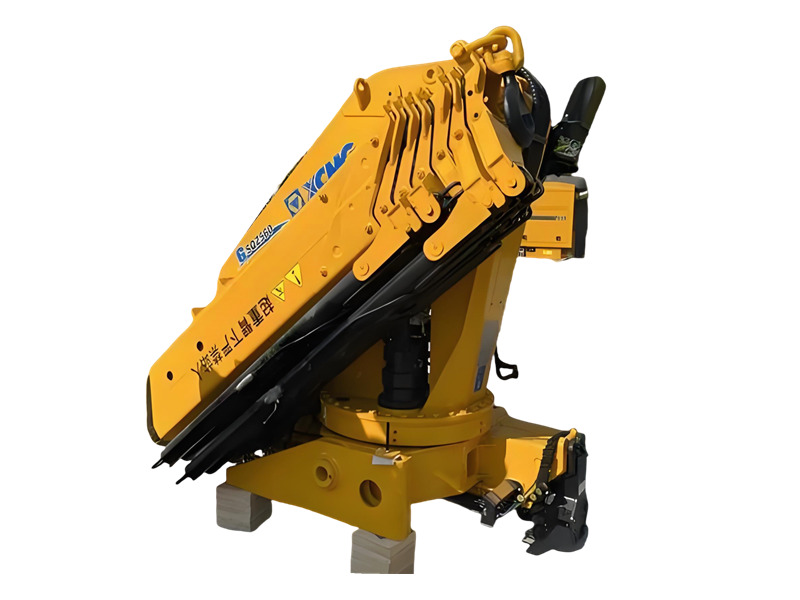

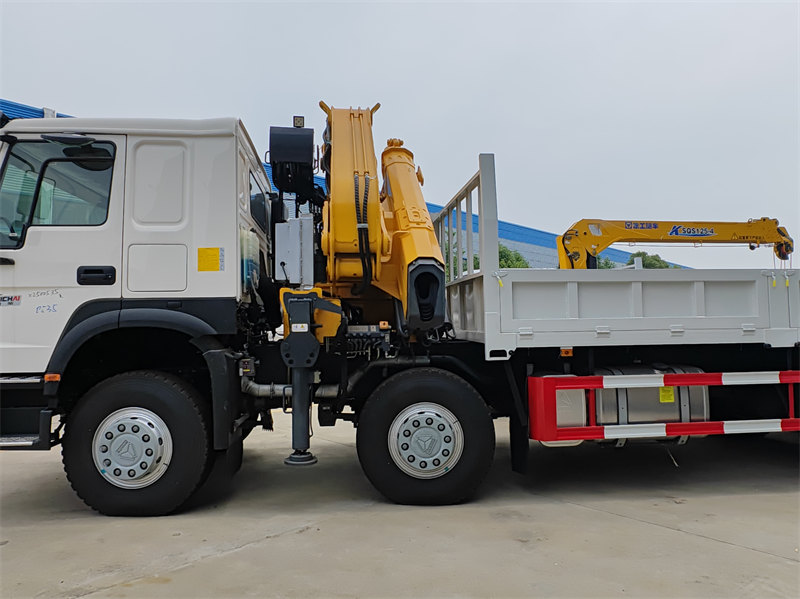

XCMG 28 ton crane

● Model: GSQZ560

● Type: knuckle boom, 7 sections

● Max. lifting weight: 28000kg

● Boom length: 20.8 m

● Outriggers: 2 front and 2 rear

● Aerial work seat: standard

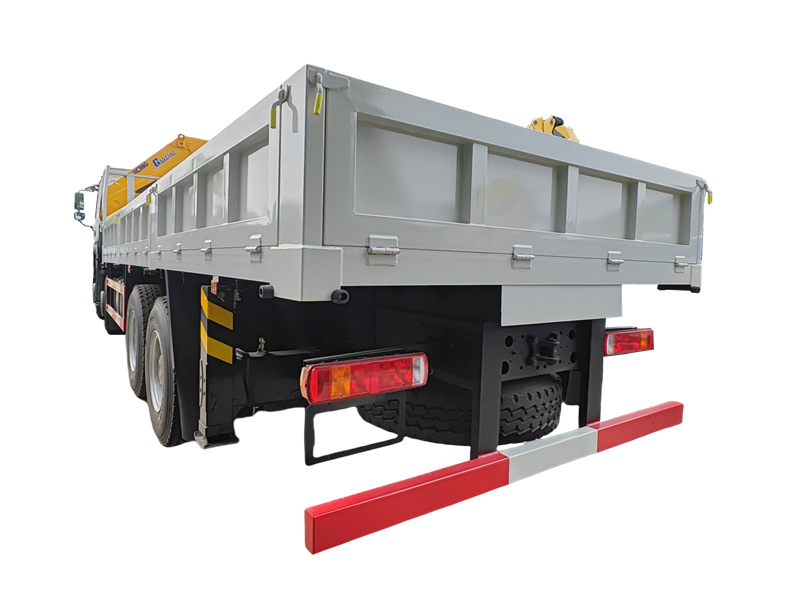

Cargo box

● Made of high quality carbon steel, side walls 3mm thick, floor 5mm thick.

● Movable sideboard: easy to disassemble and adapt to different cargo transportation needs.

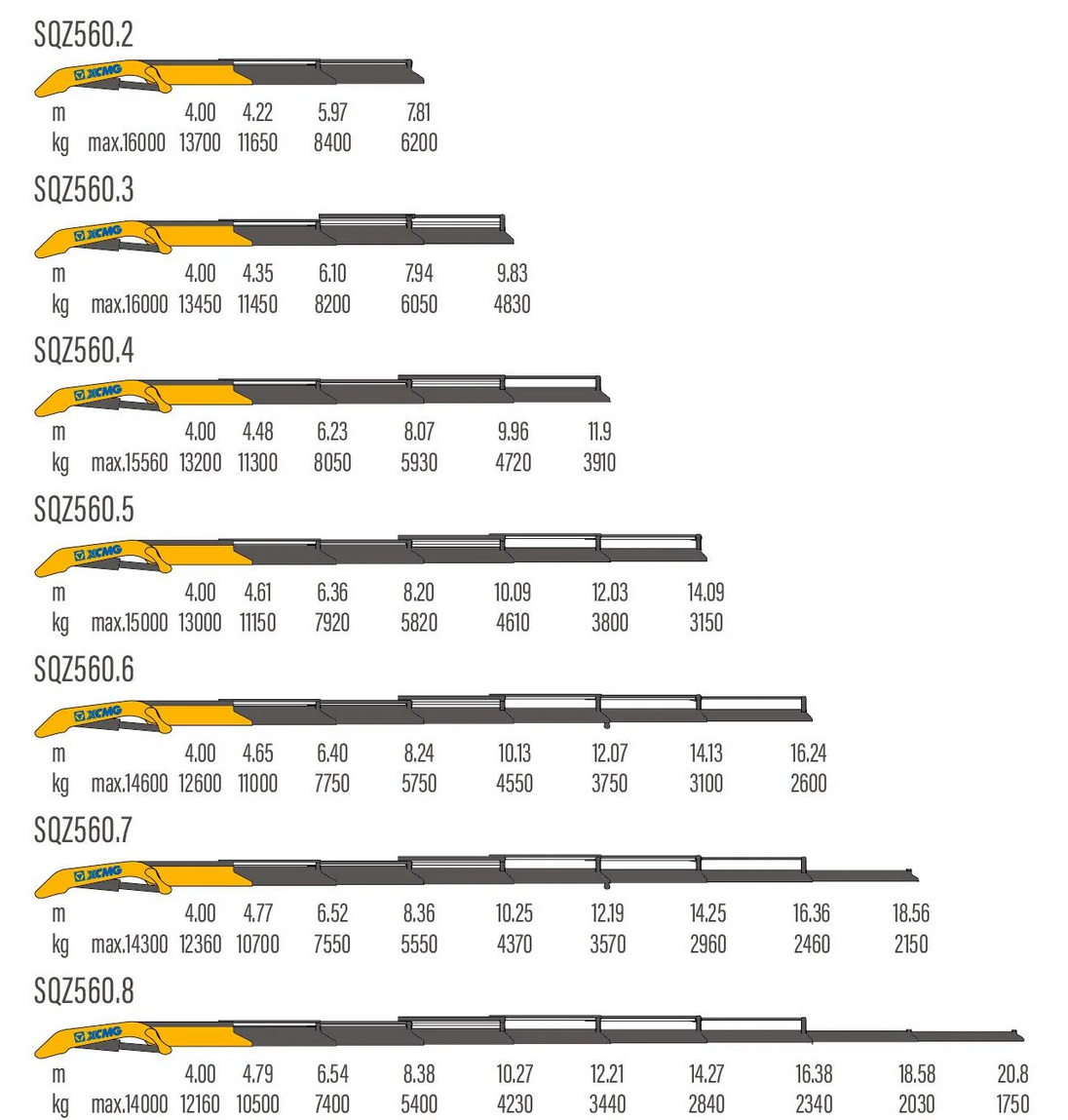

※ Ⅳ. XCMG GSQZ560 crane specifications:





         XCMG GSQZ560 crane specifications

Crane	XCMG   Knuckle boom: GSQZ560.6	XCMG   Knuckle boom: GSQZ560.7	XCMG   Knuckle boom: GSQZ560.8
Max. lifting moment（kN.m）	519	503	490
Max. lifting capacity(kg)	28000kgs	28000kgs	28000kgs
Max. hydraulic outreach(m)	16.24	18.56	20.80
slewing angle (°)	360   continuous	360   continuous	360   continuous
Stabilizer spread(mm)	8216	8216	8216
Max. operating pressure(Mpa)	32	32	32
Recommended Pump capacity (L/min)	80	80	80
Oil tank capacity(L)	300	300	300
Crane weight	6900kgs	7150kgs	7350kgs

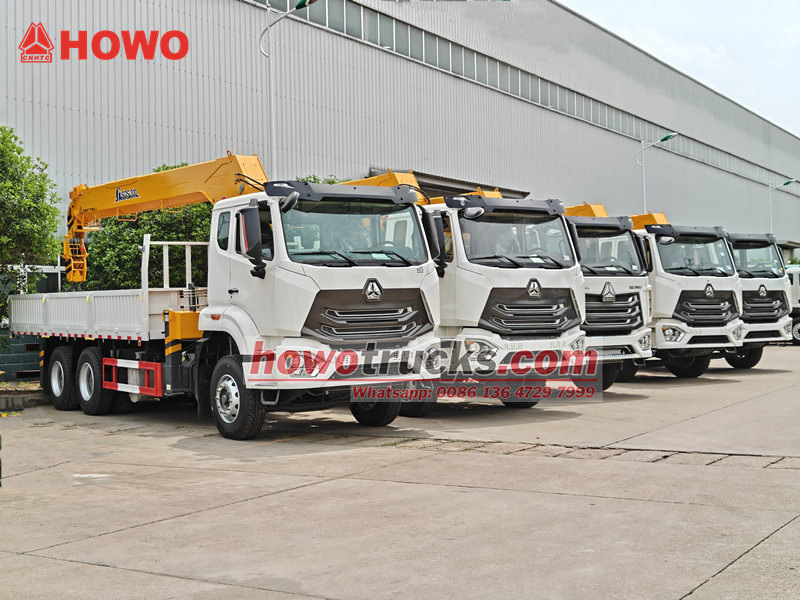

※Ⅴ. Why Choose HOWO boom crane truck?:



1. Stable Performance

Excellent accessories, low-speed, high torque, and stable operation.

2. Excellent Load Capacity

The chassis has a strong load capacity, adaptable to larger cranes and meeting diverse lifting needs.

3. High Efficiency

The high-strength engine ensures high efficiency and low labor intensity.

4. High-quality Materials

Selected high-quality materials ensure reliable quality and long service life.
