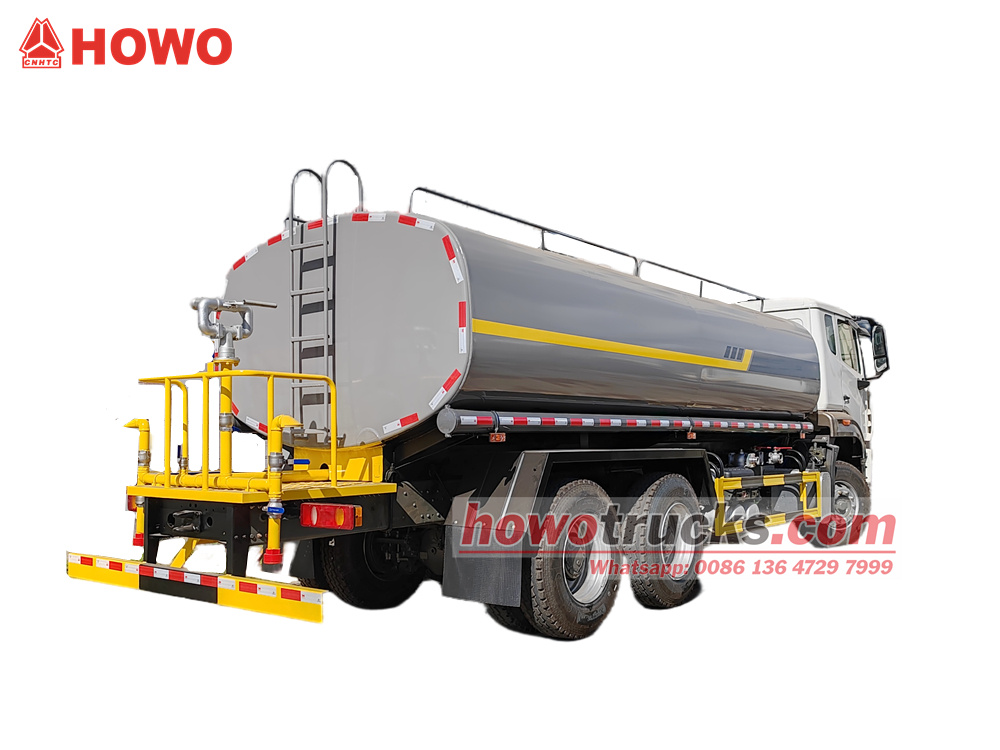

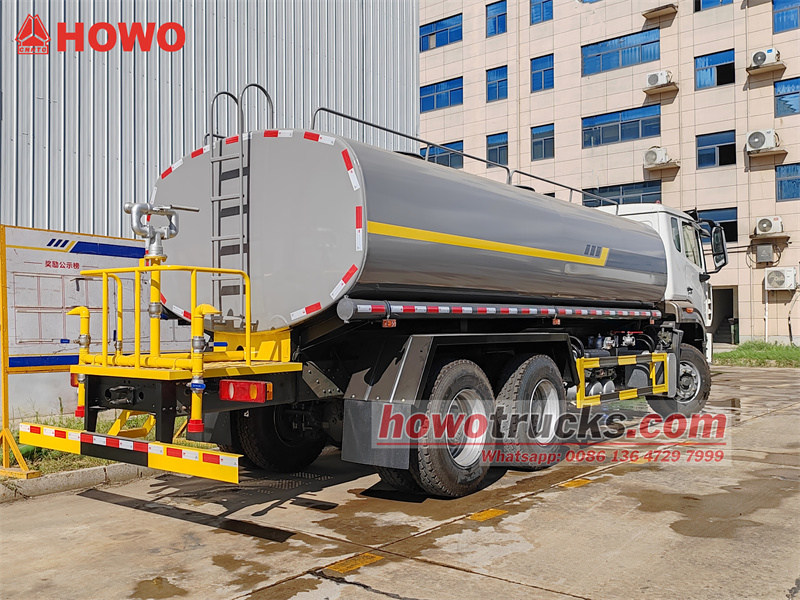

HOWO 18000 liters stainless water tanker truck

HOWO 18000 liters stainless water tanker truck

The Howo 18 cubic meter water sprinkler truck uses a Sinotruk Howo NX 6X4 chassis with a 4600+1400mm wheelbase. It is equipped with a Weichai WP10.380E22 380hp engine and an HW19710 10-speed gearbox. The upper structure consists of an 18 cubic meter arc-shaped carbon steel water tank, equipped with front spray, rear side spray, and rear water cannon devices. It features a Weilong 80QZB(F) 60/90N(S) centrifugal water pump with a flow rate of 60 m³/h and a head of 90 m. Other features include pump inlet and outlet pipes, a rear platform ladder, guardrails, a non-slip walkway and guardrail on the tank top, and two manholes.

  • Working capacity :

    18000L
  • Cabin type :

    HOWO NX cabin,with one bed, A/C
  • Dimension (mm ) :

    9850x2500x3150mm
  • Drive system :

    6x4,LHD
  • Wheelbase ( mm) :

    4600+1400mm
  • Engine specific :

    380HP/ WP10.380E22
  • Gear box :

    HW19710 10-speed,manual
  • Front axle ( Kg ) :

    7000
  • Rear axle ( Kg ) :

    18000(2 axles)
  • Remark :

    Tank capacity can be customized
New Products

The HOWO 18000 liters stainless water tanker truck is based on the Sinotruk Howo NX 6X4 chassis and is equipped with a Weichai 380 horsepower engine and a 10-speed gearbox, providing strong power. Its 18 cubic meter arc-shaped carbon steel water tank has a large capacity and is corrosion-resistant. Combined with the Weilong centrifugal water pump (flow rate 60m³/h, head 90m), it can efficiently complete multi-functional watering operations such as front spraying, side spraying, and rear water cannon, covering scenarios such as road cleaning, greening irrigation, and construction site dust suppression.



HOWO 18000 liters stainless water tanker truck

*HOWO 6X4 Towable Water Bowser With Sprinkler

NX 18cbm Water Tanker Truck

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.



Product Definition and Introduction

Manufacturer: CS Trucks Group



Features

1. Robust Chassis: Utilizes a Sinotruk Howo NX 6X4 chassis, powered by a Weichai 380hp engine paired with a 10-speed gearbox, ensuring reliable power and strong load-bearing capacity.



2. Large-Capacity Tank: Equipped with an 18-cubic-meter arc-shaped carbon steel water tank, maximizing both capacity and structural stability.



3. High-Efficiency Operation: Utilizes a Weilong centrifugal water pump, offering high flow rate and head to ensure efficient water spraying operations.



4. Comprehensive Functions: Standard configuration includes front spray, rear side spray, and rear water cannon, meeting various needs such as washing, dust suppression, and irrigation.



5. Safety Design: Features include an anti-slip walkway on the tank top, guardrails, and a rear safety railing, providing comprehensive protection for operator safety.



Product Parameter For Howo NX 6X4 380HP water sprinkler truck





Product name

HOWO 6X4 18CBM water tanker truck

Vehicle Dimensions, Weights & Capacities

Chassis brand

HOWO NX

Overall dimension (L*W*H)

9850x2500x3150mm

Wheelbase

4600+1400mm

Curb weight

11250kg

Gross weight

25000kg

Axles loading

7000/18000(2 axles)kg

Max speed

82 km/h

Chassis

Drive mode

6x4

Cabin type

HOWO NX cabin,with one bed, A/C

Steering

LHD

Tires

10+1

Tires specification

12.00R20

Gear box

HW19710 10-speed,manual

Fuel tank

300L

Engine

Engine model

 WP10.380E22

Fuel and engine Type

Inline 6-cylinder, water-cooled, four-stroke, with exhaust valve braking, direct injection, turbocharged and intercooled.

Horse power

380HP/278kW

Displacement

9.726L

Max torque

1600N.m

Rated speed

2200rpm

Max torque speed

1500-1800rpm

Emission standard

Euro 2

Other Standard Configurations

1

Power Steering System

2

Air Conditioning

3

ABS, Automatically Air-cut Brake

4

Retro-Reflective Marking

5

Central Lock

6

Power Window

7

USB, Radio

8

Widened Bumper

Tops Parameters

Volume of Water Tank

18,000 Liters

Tanker material

Carbon steel, Tanker thinckness : 5mm.

Loading System

Top loading

Body material

High performance wear-resisting carbon steel with anti-corrosion treatment paint, SS304 stainless steel for option

Compartment

4 with internal anti-wave baffles

Manhole

4, European Standards

Spray

Front and rear side spray nozzle, rear water cannon

The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze

Sprinkling width

≥14m

Water cannon spray width

28m

Equipment

Ladder,tool box,side pipe storage, Pump in and out valve

Artesian valve,flter, distribution valve, sprinklerhead, with self-suction and discharge function

Water pump

Model

WEILONG 80QZB(F) 60/90N(S) centrifugal pump

Flow rate

60 m3/h

Lift

90 m

Head

6.5 m

Input speed

1180 r/min

Self-priming performance

1.0 min/5m

Equipped power

22.5 kW

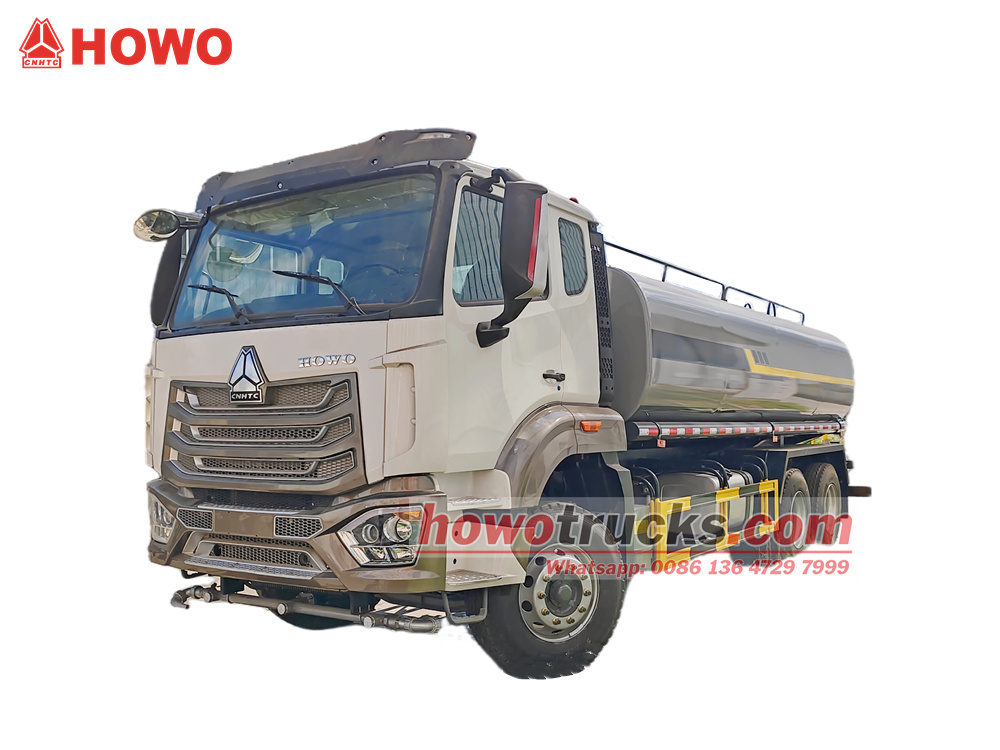

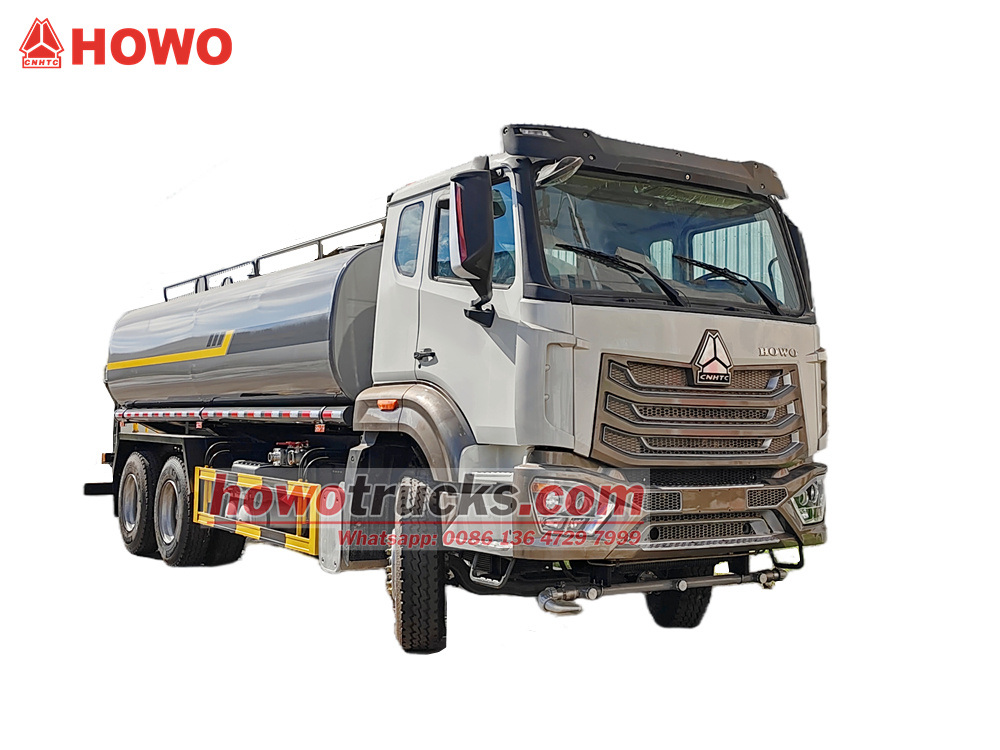

HOWO 6X4 18CBM water tanker truck

Main Advantage Of HOWO 6X4 18CBM water tanker truck

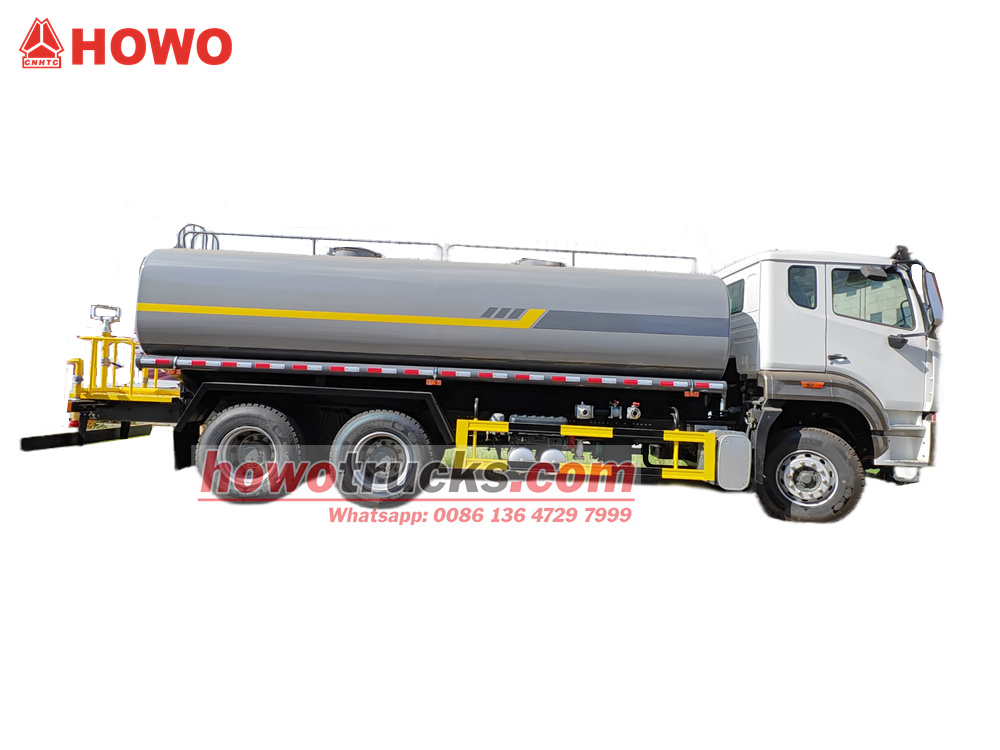

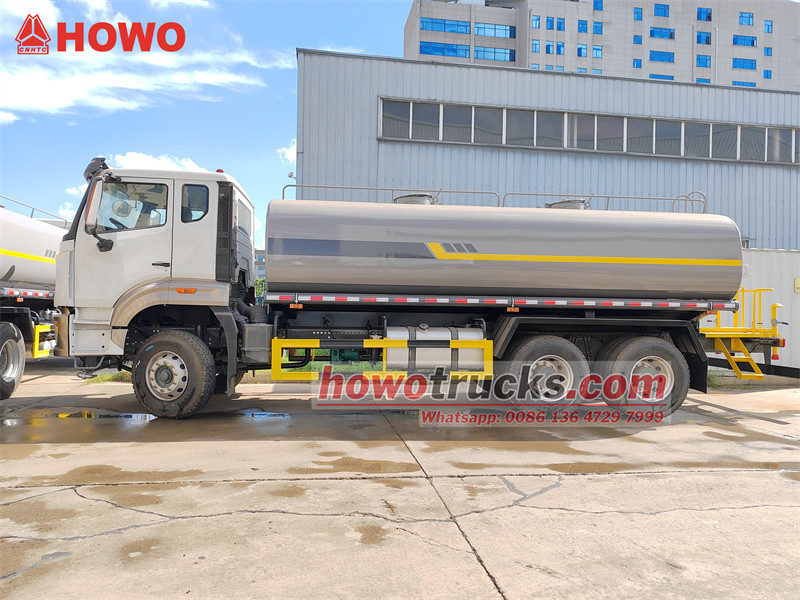

HOWO 6X4 towable water bowser with sprinkler

Chassis

The Howo 18 cubic meter water sprinkler truck uses the Sinotruk Howo NX 6X4 chassis, which is specially designed for heavy-duty sanitation vehicles. The wheelbase is 4600+1400mm. The power system is equipped with a Weichai WP10.380E22 380 horsepower engine. This engine is known for its low-speed, high-torque characteristics, providing strong power output and excellent fuel economy. It is matched with an HW19710 10-speed gearbox with 10 forward gears and 2 reverse gears, providing smooth shifting and further optimizing power transmission efficiency.

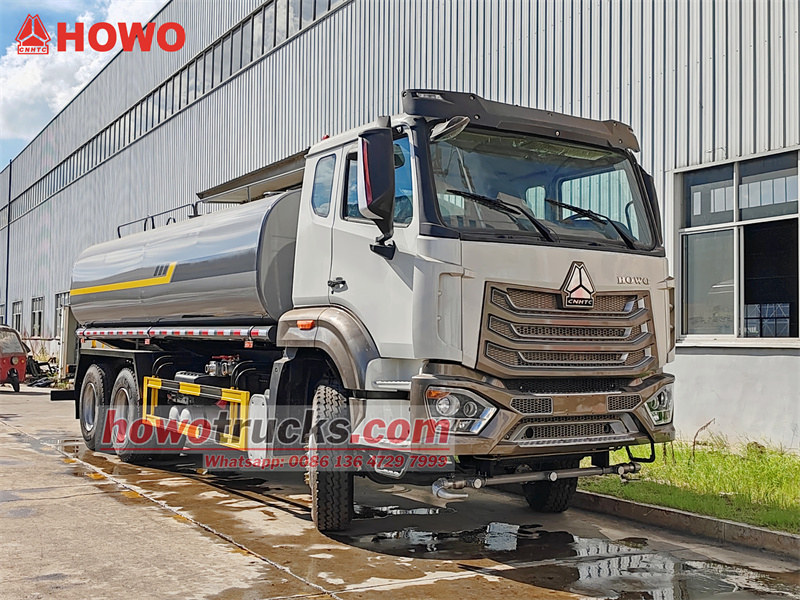

HOWO NX 18 CBM bulk water carrier truck

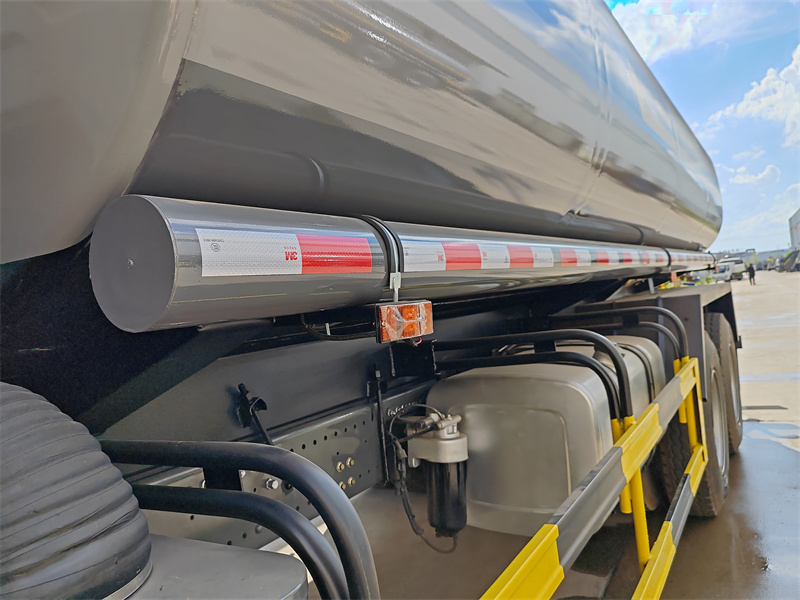

Upper Structure Design:

• Tank Capacity: 18 cubic meters



• Tank Material: Made of high-quality carbon steel with an arc-shaped cross-section and anti-corrosion and rust-proof treatment.



• Anti-slip walkway and guardrail on top of the tank: Ensures the safety of workers operating on top of the tank.



• Two manholes: Facilitate cleaning, inspection, and maintenance of the tank interior.



• Rear platform ladder and guardrail: Facilitates access to and from the work platform and ensures operational safety.

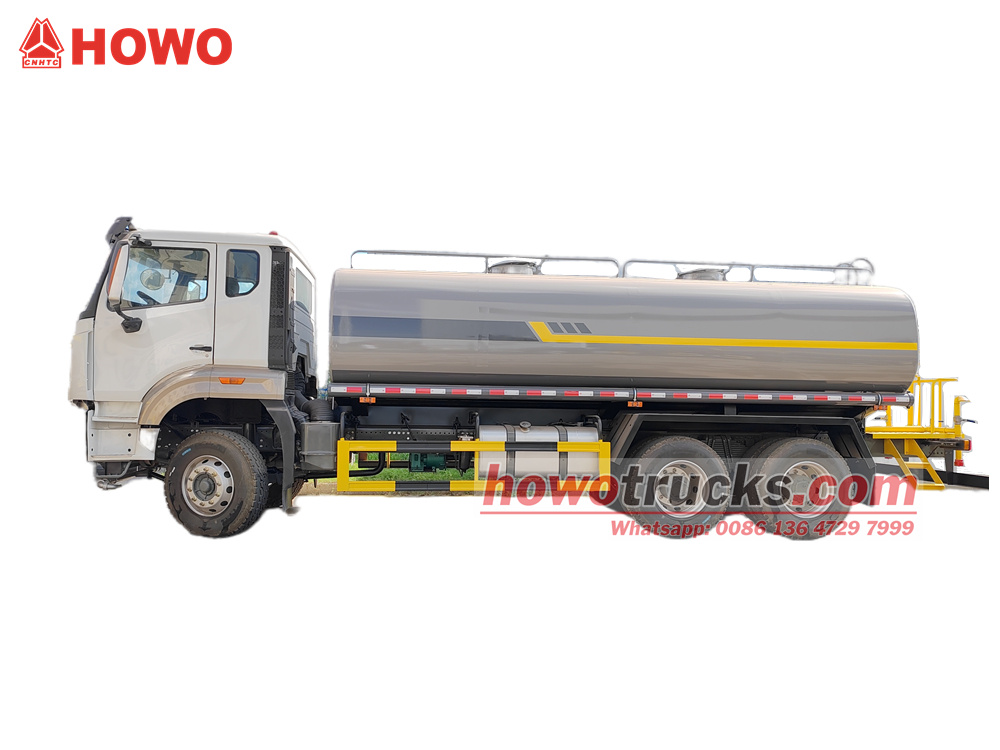

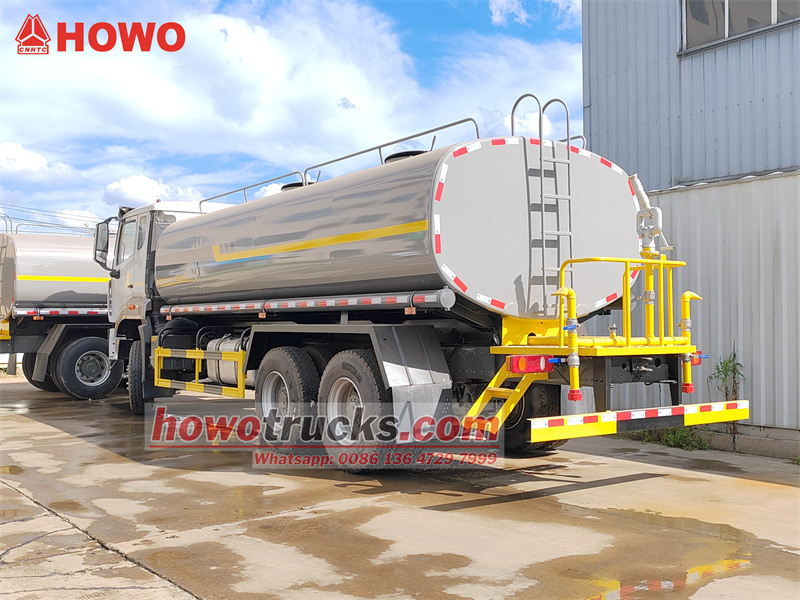

SINOTRUK HOWO 18CBM water tank truck

Water Pump System:

Equipped with a Weilong 80QZB(F) 60/90N(S) self-priming centrifugal water pump, with a flow rate of 60 m³/h and a head of 90 meters, meeting the needs of efficient water pumping and long-distance spraying. The pump body adopts a dual-inlet, dual-outlet pipe design, supporting "pump-in, pump-out" function, which can quickly draw water from the source and complete pressurized spraying, improving operational efficiency.

HOWO NX 6X4 380HP water sprinkler truck

Sprinkling Devices:

Front Spray Device: Installed at the front of the vehicle for powerful road washing.



Rear Side Sprinkler Device: Installed on both sides of the rear of the vehicle for wide-area water spraying to suppress dust.

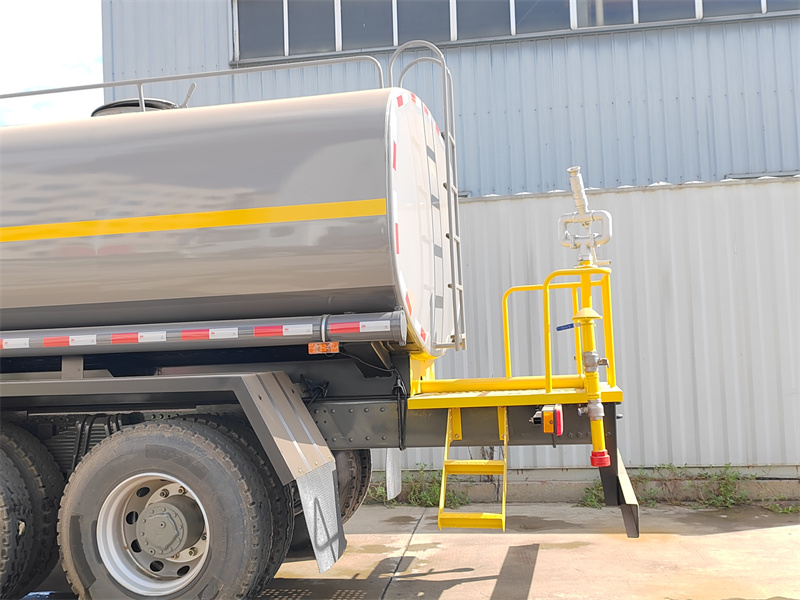

Rear Water Cannon: Installed on the rear platform of the vehicle, adjustable for direct current/spray, used for long-distance watering, greening irrigation, or auxiliary fire fighting.



-------------------------------------------------------------------------------------------------------

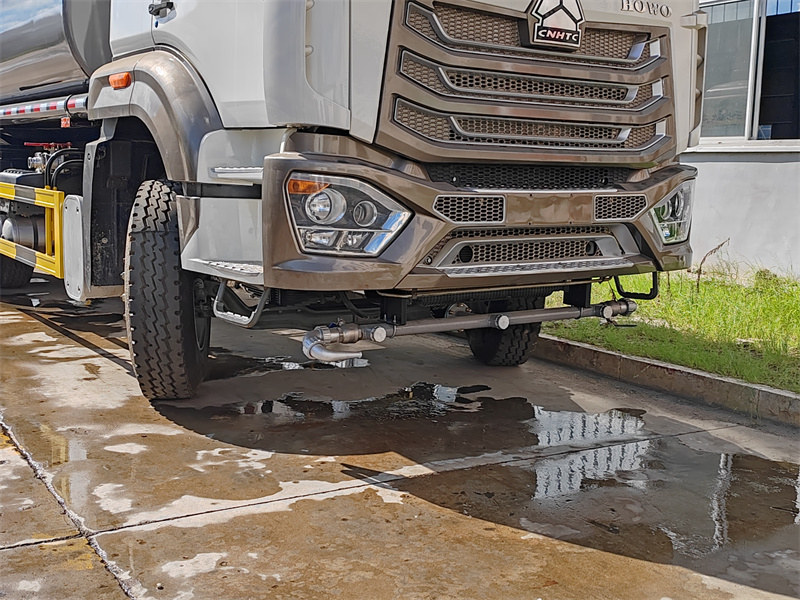

  • front spray

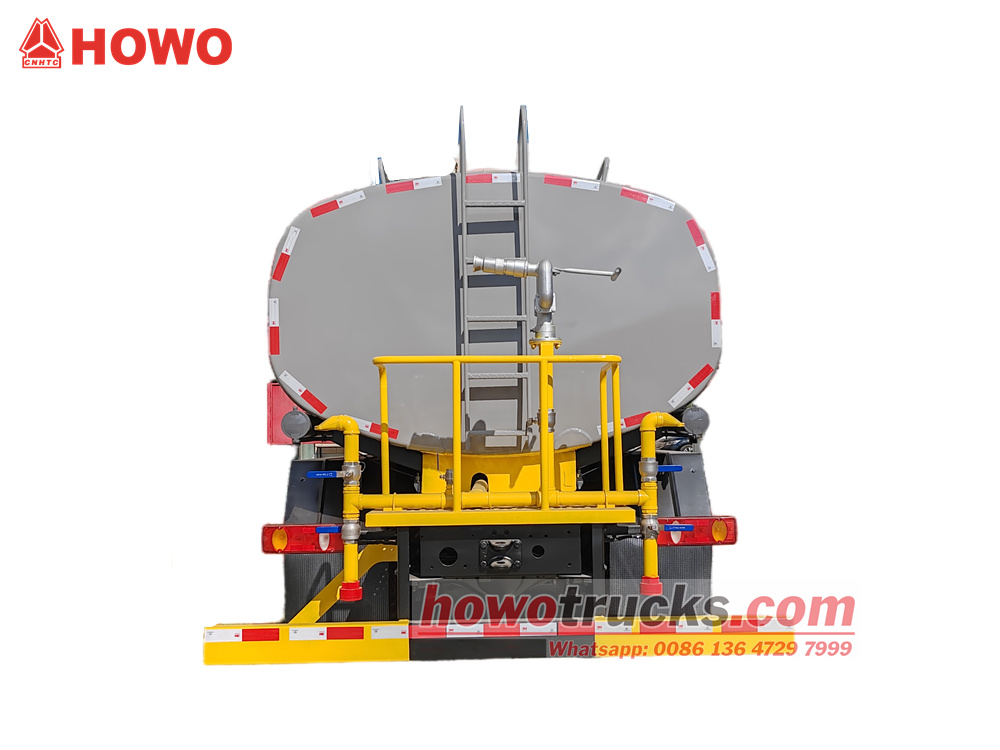

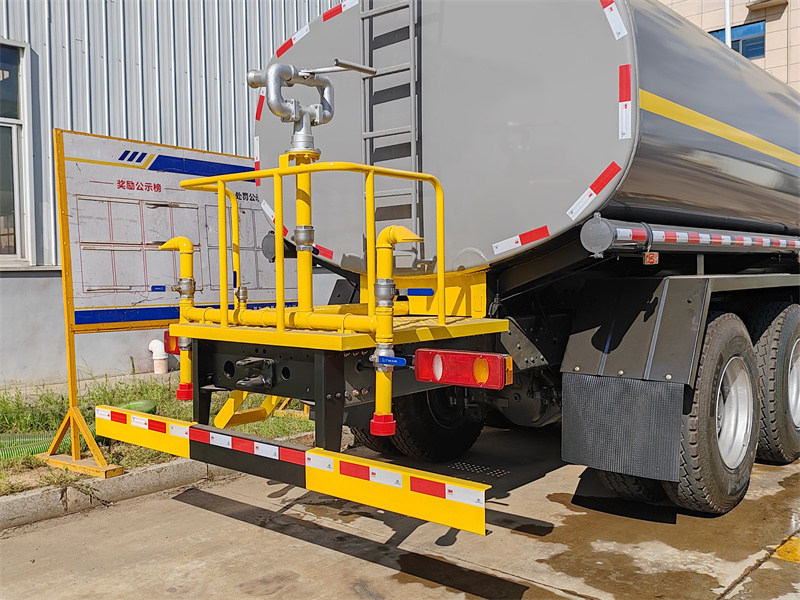

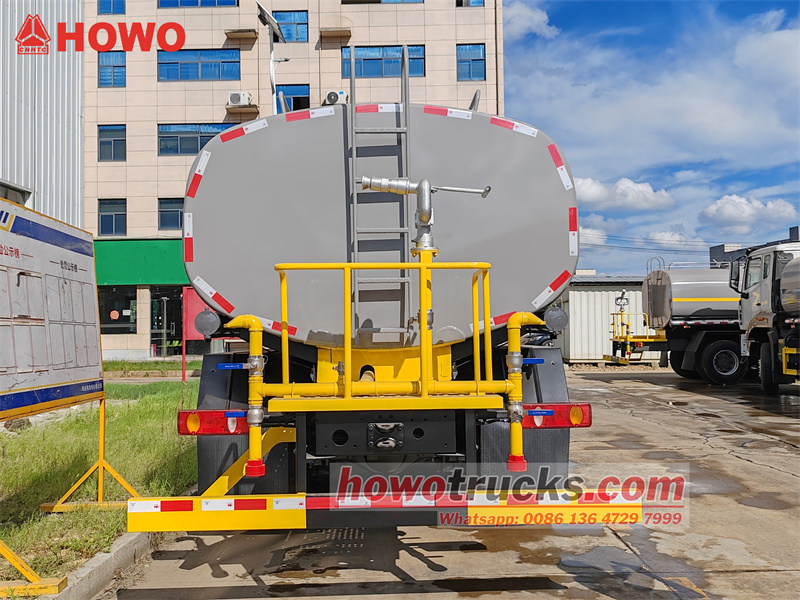

  • rear spray,rear water cannon

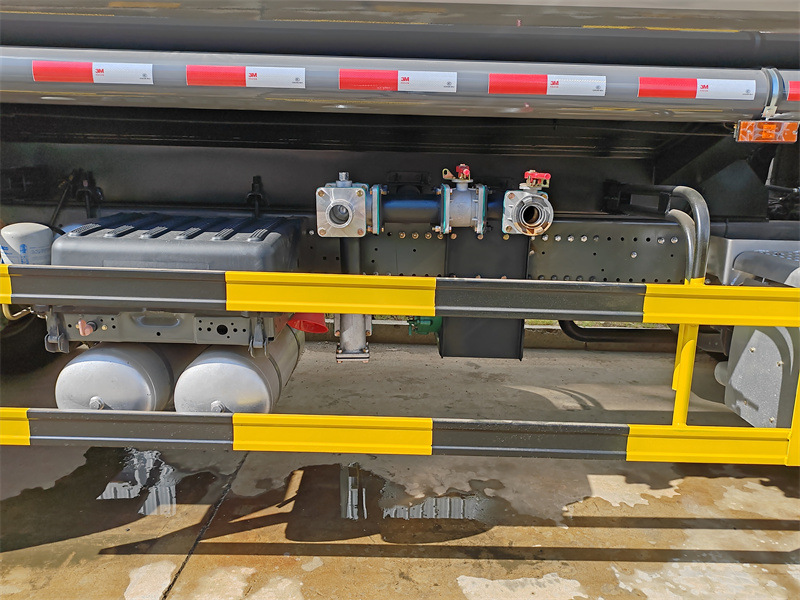

  • Pump in and out


 Working Principle of Weilong Sprinkler Pumps







The Weilong 80QZB(F) 60/90N(S) centrifugal water pump operates on the principle of centrifugal force driving fluid motion. When the engine drives the pump shaft to rotate, the impeller rotates synchronously at high speed. Water gains kinetic energy under the push of the impeller blades and is thrown out radially along the impeller, forming a high-speed water flow. At this time, a negative pressure is generated in the central area of ​​the impeller due to the outward movement of water flow. External water is drawn in through the pump inlet under atmospheric pressure, forming a continuous pumping process. When the water flows through the pump body channel, the pressure energy is further converted into kinetic energy, and finally sprayed out through the outlet at high pressure (90 meters head) and high flow rate (60 m³/h), achieving long-distance, high-efficiency sprinkling operations.

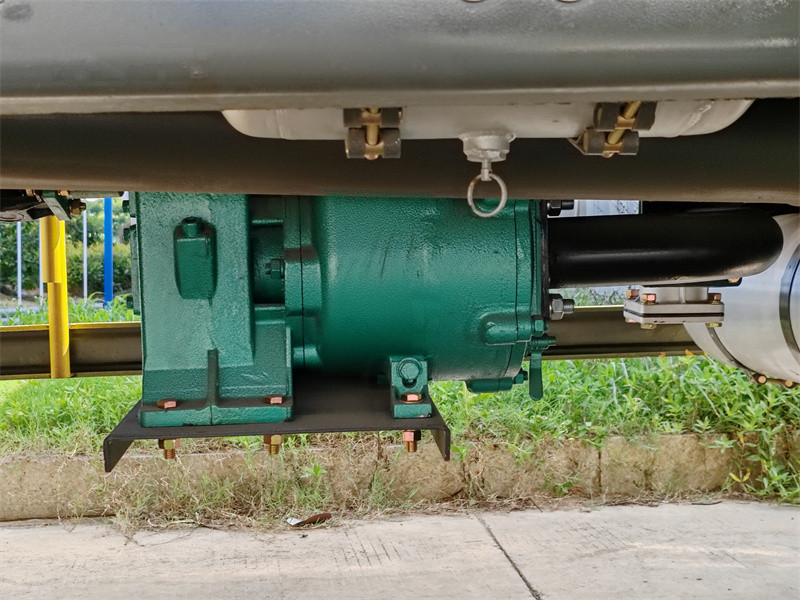

Weilong 80QZB(F) 60/90N(S) centrifugal water pump



 Application Scenarios

• Urban Road Cleaning: Front spray + side spray combination quickly removes dust and cools road surfaces.



• Landscaping Maintenance: Rear water cannon provides precise irrigation, protecting vegetation.



• Road Dust Suppression: Rear spray platform effectively suppresses dust.



• Emergency Firefighting: Direct water cannon mode assists in firefighting, enhancing safety.

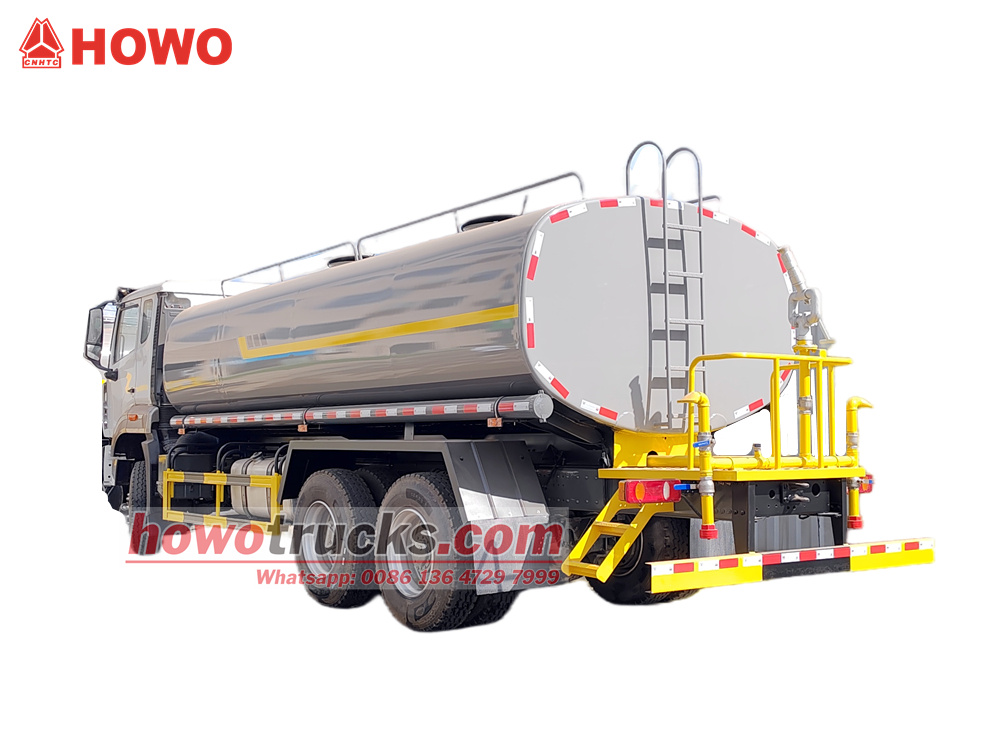

HOWO 18000 liters water spray truck

China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our water spray trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely



SINOTRUK HOWO 18CBM water tank truck
