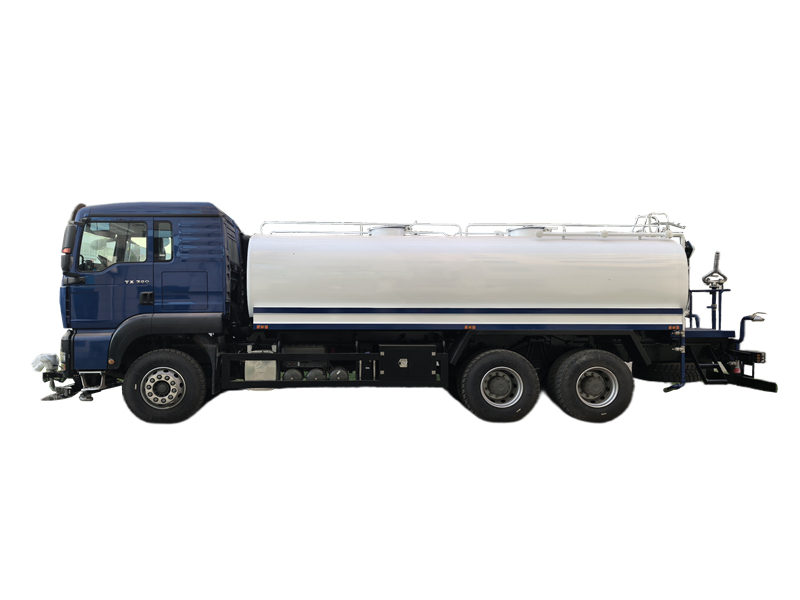

HOWO TX 18000L water tank lorry

HOWO TX 18000L water tank lorry

The HOWO TX 18000L Water Truck is a high-capacity, multi-functional sanitation vehicle built on the HOWO TX 6×4 chassis. With a water tank volume of 18,000 liters, it is equipped with a Weilong centrifugal pump and a multi-mode spraying system. It can efficiently perform tasks such as urban greening, road dust suppression, and emergency firefighting, making it a powerful and versatile professional sanitation equipment.

  • Working capacity :

    18000 liters
  • Cabin type :

    HOWO TX
  • Dimension (mm ) :

    10100×2550×3150
  • Drive system :

    6×4
  • Wheelbase ( mm) :

    4300+1350
  • Engine specific :

    380HP/WP10.380E32
  • Gear box :

    HW19710 10-speed
  • Front axle ( Kg ) :

    7000
  • Rear axle ( Kg ) :

    18000
  • Remark :

    stainless steel tank, 6×6, RHD is optional
New Products

The HOWO TX 18000L Water Sprinkler Truck is a high-capacity, multi-functional sanitation vehicle built on the HOWO TX heavy duty chassis, featuring a core water tank volume of 18,000 liters. It is powered by a Weichai 380-horsepower diesel engine and a 10-speed manual transmission, delivering robust performance and high load-bearing capacity. The tank is constructed with 5mm carbon steel and coated with an anti-corrosion layer, while its internal structure includes four compartments and anti-surge baffles to enhance driving stability. The vehicle integrates a Weilong centrifugal pump system, supporting self-priming drainage and operation with a flow rate of 60 m³/h. It also features a multi-mode spraying system, including front flushing, rear sprinkling, side spraying, and a high-pressure water cannon with a 28-meter range, making it suitable for diverse applications such as urban greening, dust suppression, cooling, and emergency firefighting.

As a specialized sanitation vehicle, the HOWO TX Water Bowser Truck is equipped with multi-position ball valves and filtration devices in its pipeline system, enabling flexible switching between front flushing, rear sprinkling, and greening/high-pressure water cannon functions. Its spray system allows adjustment of the rain curtain pattern and coverage area, achieving a maximum sprinkling width of over 14 meters. The vehicle excels in load-bearing capacity, operational efficiency, and functional expandability, making it an essential tool for municipal maintenance and landscaping projects.

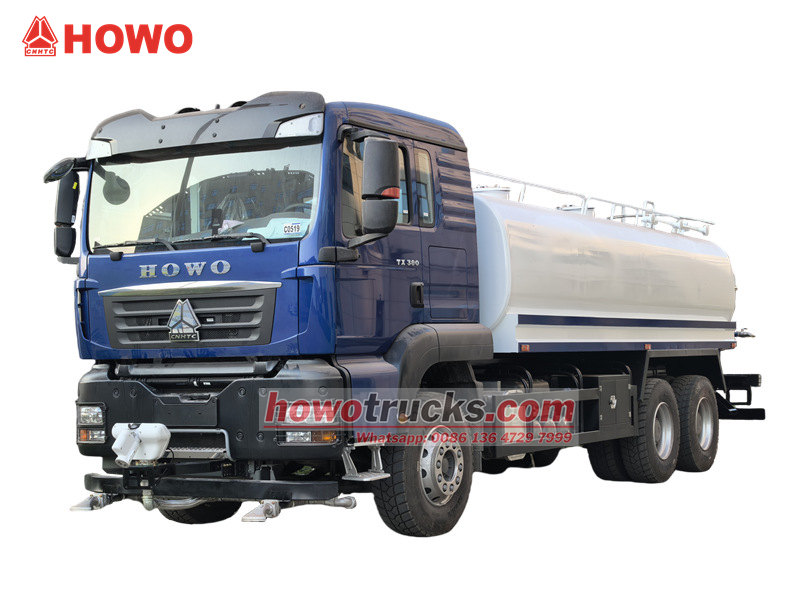

HOWO TX 18000 liters water truck

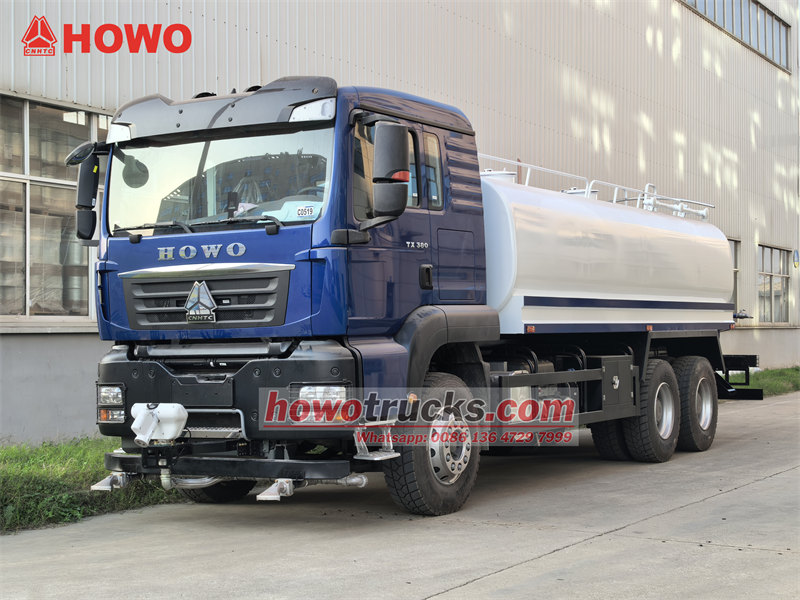

*HOWO TX 10-Wheeler Water Bowser

HOWO 6×4 18000 Liters Water Spray Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



 Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS



Product Features

1. Robust Chassis: Built on the HOWO TX 6x4 chassis, offering strong load-bearing capacity and excellent stability.
2. Powerful Engine: Equipped with a Weichai 380 HP diesel engine, delivering ample power for demanding operations.
3. Large-Capacity Water Tank: With an 18,000-liter carbon steel water tank, ensuring extended operation time and high work efficiency.

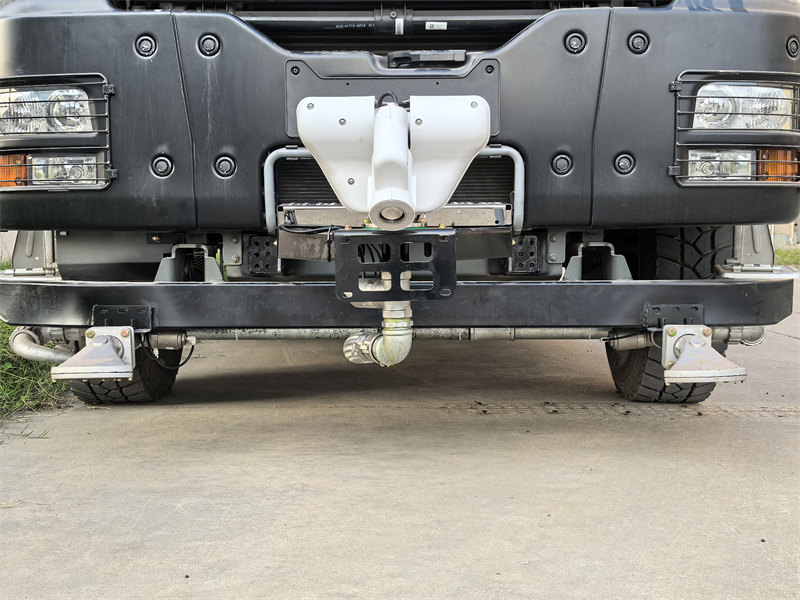

4. Multi-Functional Spraying System: Integrates various operation modes including front flushing, rear sprinkling, side spraying, and a high-pressure water cannon.
5. High-Efficiency Water Pump: Utilizes a Weilong centrifugal pump with self-priming capability and a flow rate of up to 60m³/h.



Ⅱ. Product Parameter for HOWO TX water tanker truck:



Product name

HOWO TX 18000L water sprinkler truck

Vehicle Basic Parameters

Chassis brand

HOWO TX

Overall dimension (L*W*H)

10010x2550x3150mm

Wheelbase

4300+1350mm

Curb weight

11800kg

Gross weight

25000kg

Axles loading

7000/18000(2 axles)kg

Max speed

102km/h

Chassis

Drive mode

6x4

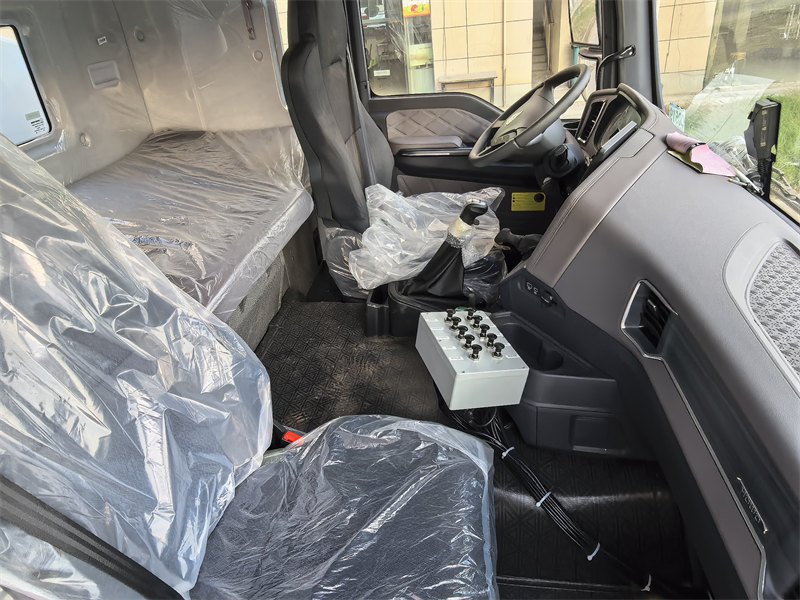

Cabin type

HOWO TX 6x4 cabin

Seats

3 seats

Steering

LHD

Tires

10+1

Tires specification

12.00R20

A/C

Air conditioning

Gear box

HW19710 10-speed, manual

Engine

Engine model

WEICHAI WP10.380E32

Fuel and engine Type

Diesel, 6 cylinders in-line

Horse power

380HP/280kW

Displacement

9726ml

Max torque

1600 N.m

Rated speed

2200rpm

Max torque speed

1500-1800rpm

Emission standard

Euro 3

Fuel tank

400L

Tanker

Volume of Water Tank

20,000 Liters

Tanker material

Carbon steel, Tanker thickness: 5mm.

Body material

High performance wear-resisting carbon steel with anti-corrosion treatment paint, SS304 stainless steel is optional

Compartment

4 with internal anti-wave baffles

Manhole

DN500

Spray

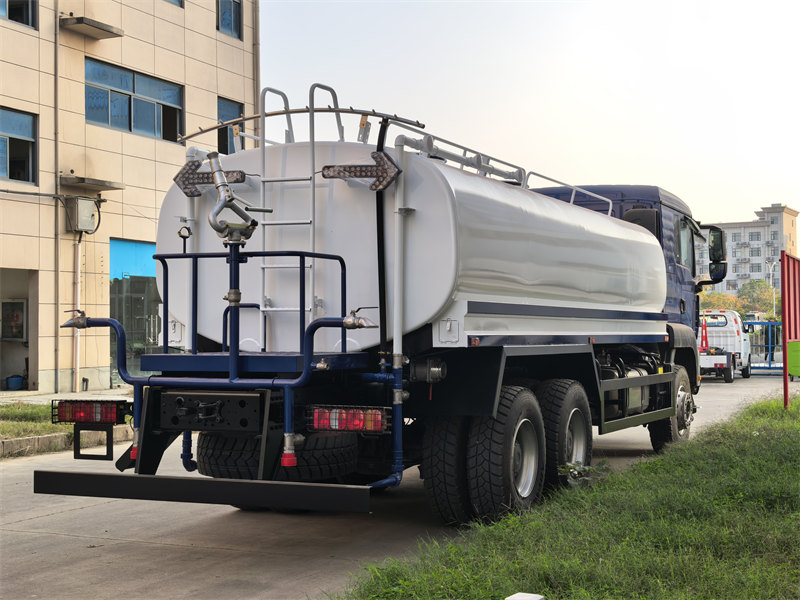

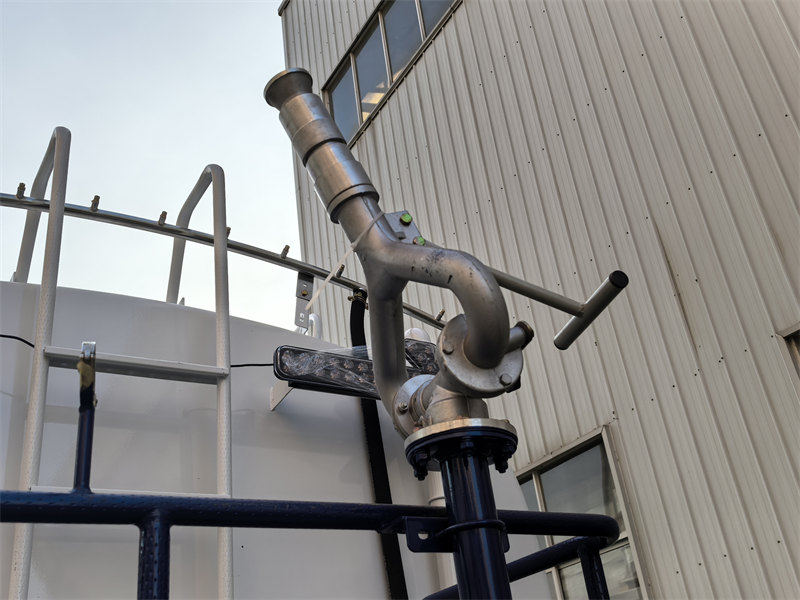

Front and rear side spray nozzle, rear water cannon

The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze

Sprinkling width

≥14m

Water cannon spray width

28m

Fittings

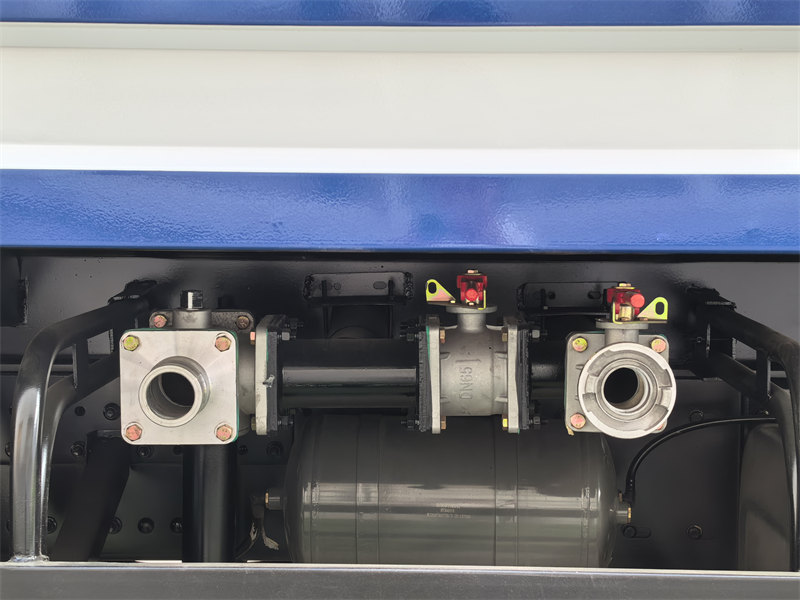

Ladder, toolbox, side pipe storage, Pump in and out valve

Artesian valve, filter, distribution valve, sprinkler nozzles, with self-suction and discharge function

Water pump

Model

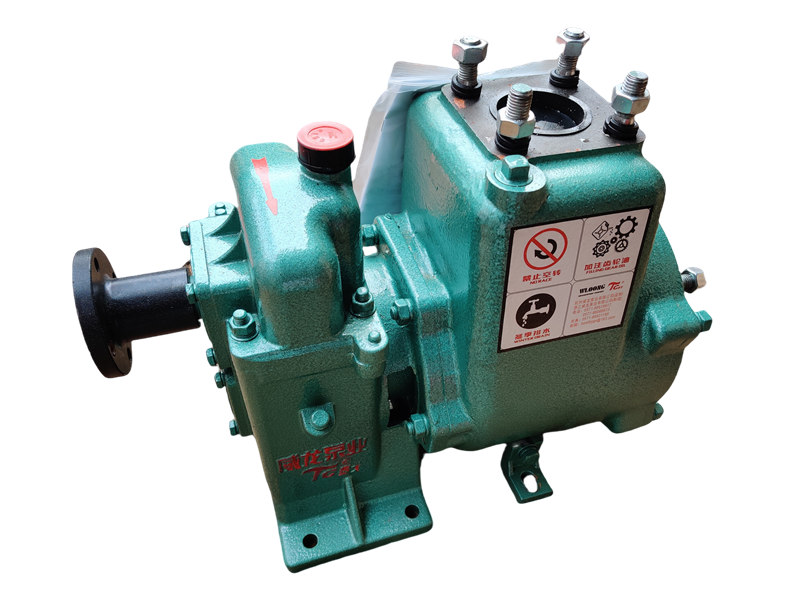

WEILONG 80QZBF-60/90 centrifugal pump

Flow rate

60 m3/h

Lift

90 m

Head

6.5 m

Input speed

1180 r/min

Self-priming performance

1.5 min/4m

Equipped power

22.5 kW





HOWO TX 10 wheeler water bowser





Ⅲ. Product Details & Features:







※Ⅵ. Water Pump Specifications:

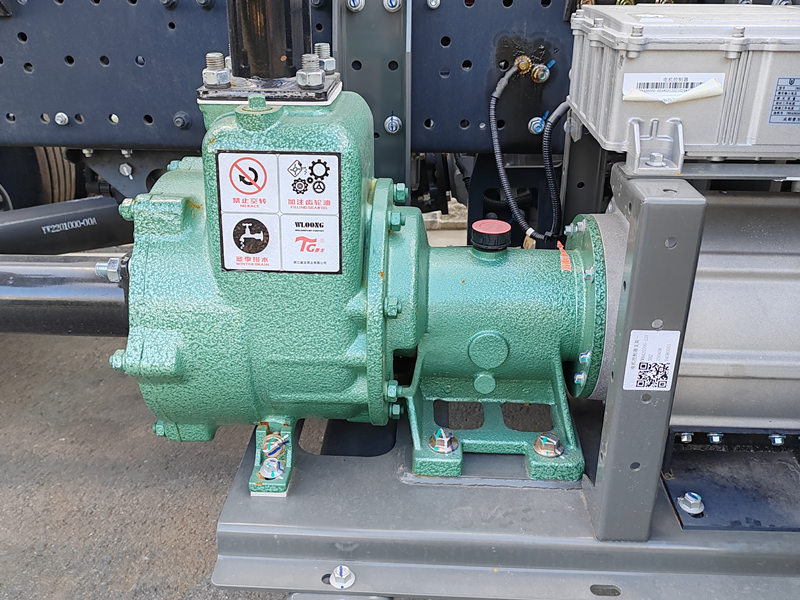

HOWO water tanker truck for sale HOWO 18 cubic water spray truck


Model

Flow rate (m³/h)

Head (m)

Speed (r/min)

Shaft power (KW)

NPSHr (m)

Self-priming time (min/4m)

Efficiency (%)

80QZBF-60/90N(S)

60

90

1180

22.5

4.5

1.5

70

65QZ-40/45N(S)

40

45

1450

9.25

4.5

1.5

72

65QZ-50/50N

50

50

1180

10.5

4.5

1.5

70

65QZBF-50/110N(S)

50

110

1450

24

-

-

70



※ Ⅴ. Product Drawing:

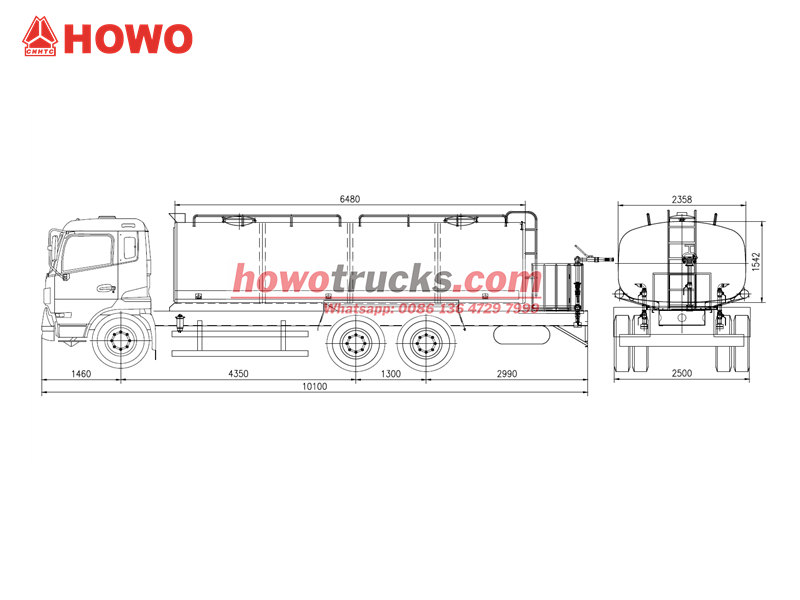

HOWO 6×4 water tanker truck drawing
HOWO water tanker truck drawing

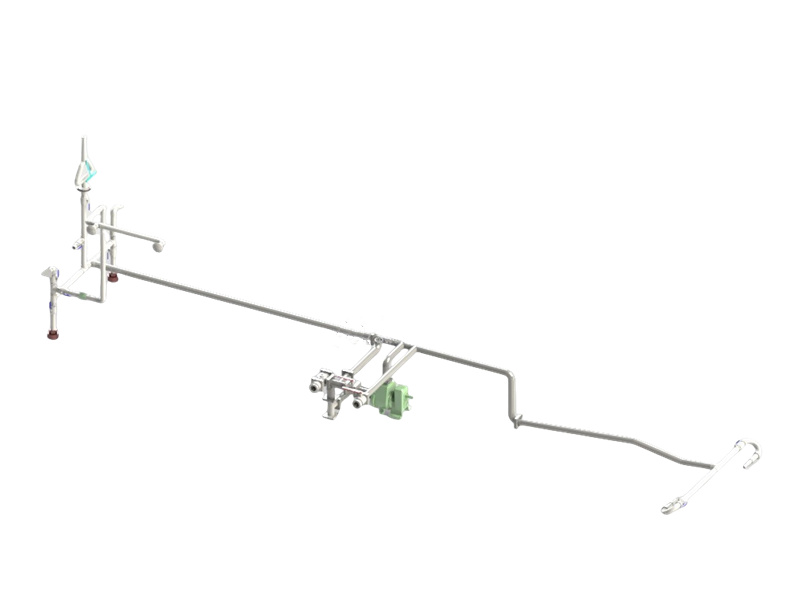

HOWO 10 wheeler water truck pipeline system
HOWO water spray truck pipeline system






Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

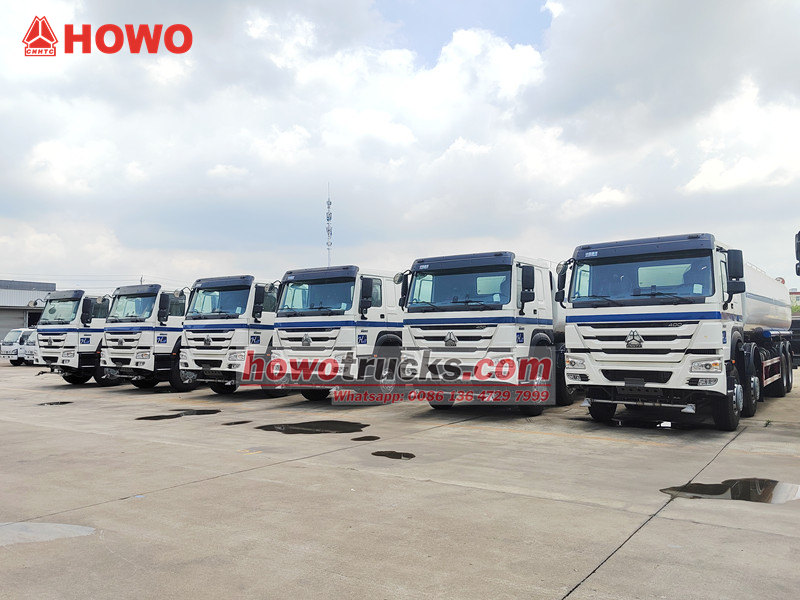

HOWO heavy duty water tank trucks for export

SINOTRUK HOWO 20000 liters water tanker trucks for export

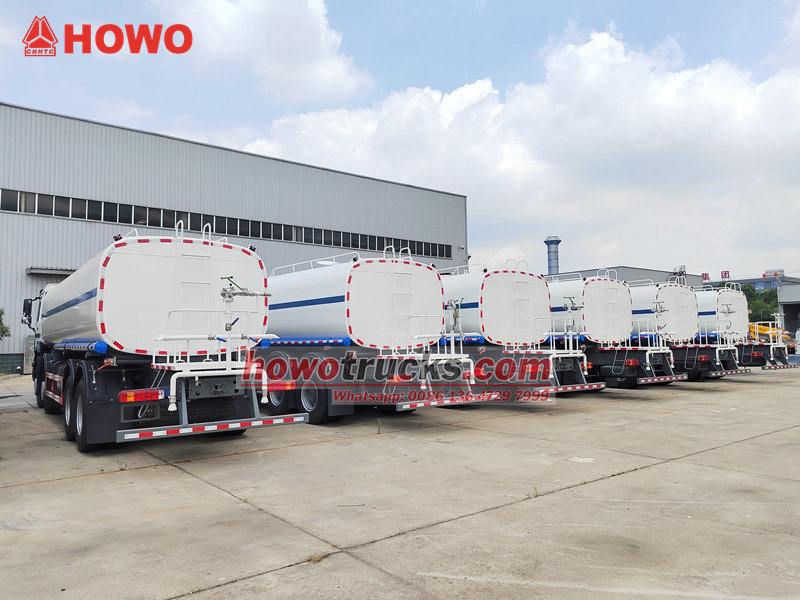

HOWO 10 wheeler water bowser for export

SINOTRUK HOWO 10 wheeler water tanker trucks ready for delivery
