Howo 4CBM snow removal truck

Howo 4CBM snow removal truck

Moldova customer request and purchased HOWO 4x2 multi-function snowplow truck is based on light duty Sinotruk chassis with a 3360mm wheelbase. Equipped with an American CUMMINS diesel engine  ISF3.8s3141 model 141HP and emission 3800cc, matched with 6 shift manual gearbox, 6 forward and 1 reverse, very low fuel consumption. Customized 4200x2200x500mm full dropside cargo truck with thickness for side 3.2mm and floor 5mm, super stronger for carrying CS-SJ4000 model snow melting spreading equipment, with working wide 2-10m, spreading speed 5-20km/h. very suitable for agent spraying and snow carrying. Making the truck an ideal vehicle for snowplow.

  • Working capacity :

    4cbm
  • Cabin type :

    Howo light duty one and single row
  • Dimension (mm ) :

    6700×2250×2550 mm
  • Drive system :

    4x2
  • Wheelbase ( mm) :

    3360mm
  • Engine specific :

    CUMMINS ISF3.8s3141
  • Gear box :

    6-speed , manual
  • Front axle ( Kg ) :

    2400
  • Rear axle ( Kg ) :

    4200
  • Remark :

    Optional front snow removal shovel and plow
New Products

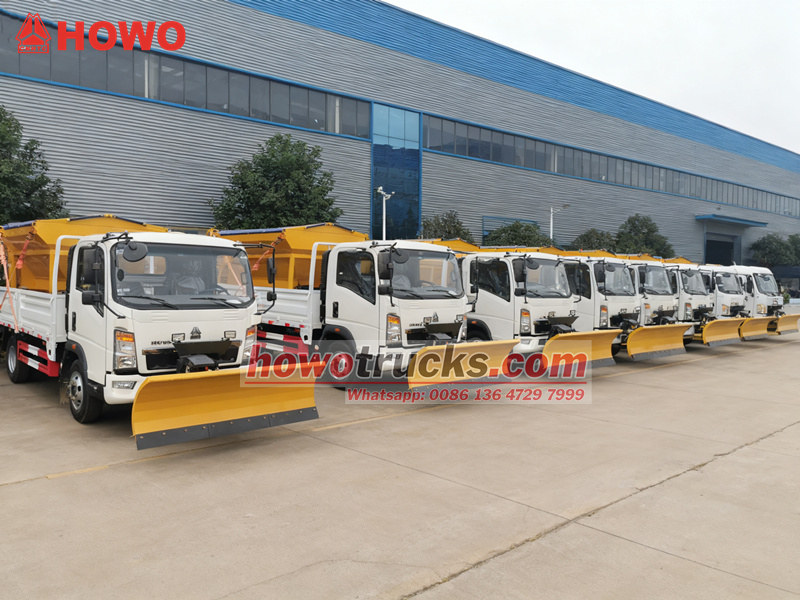

Eastern European Moldova clients purchased 9 units HOWO 4CBM Snow Melting Trucks are a specialized customized snow clearing equipment mounted on HOWO light duty truck chassis. Built with full dropside cargo body with size 4200x2200x500mm, matched with full necessary snow melting equipment, details as below:



4CBM snow melting agent spreader machine CS-SJ4000 installed on the full dropside cargo body, full capacity 4000L based on high quality stainless steel Q235 material, motor matched with chain system for efficiently working, available spread width can be 2-10m and salt agent spread capacity 20-150g/m2, fully adjustable type. Spread plate diameter 550mm with working speed 5-20km/h, in cabin Germany PLC control model for safety working.

Snow removal shovel equipment CS-C3000 installed in front of the HOWO light duty truck cabinet, efficiently clean width 3000mm, adjustable angle for left and right is ±30 degree, full hydraulic control system with efficiently overcome height 300mm, working speed ≥30km/h, in cabin Germany PLC control model for safety working.



HOWO snowplow truck also can be customized to equip with front LED light for safety night working. The front shovel and rear salt spreading equipment can working together to efficiently clear snow and ice on the road to make driving more safety.

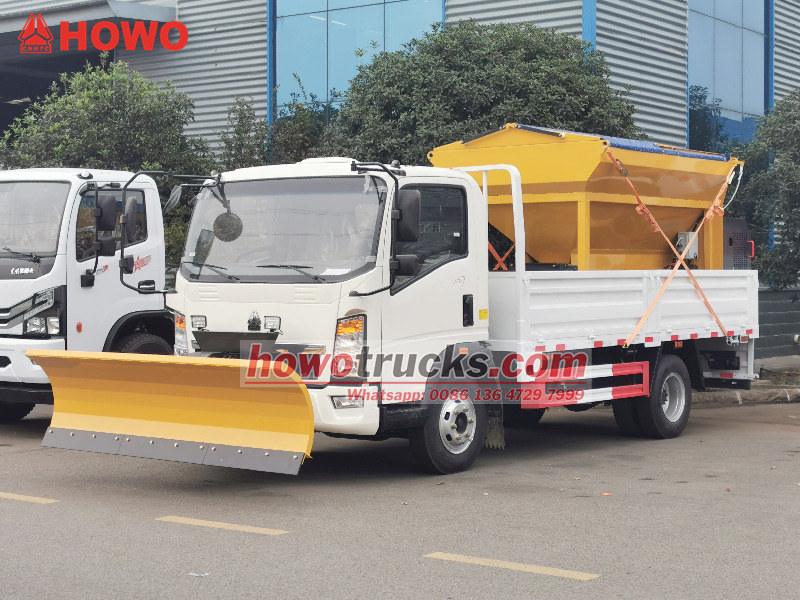

Howo truck mounted snow removal truck



*HOWO light duty 4CBM Snow Melt Spreader Truck

Howo snow removal vehicle*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.

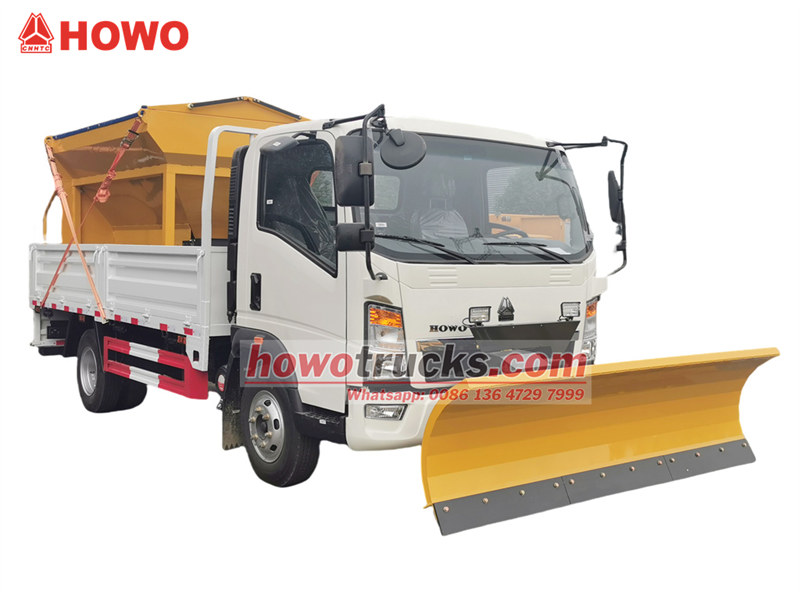

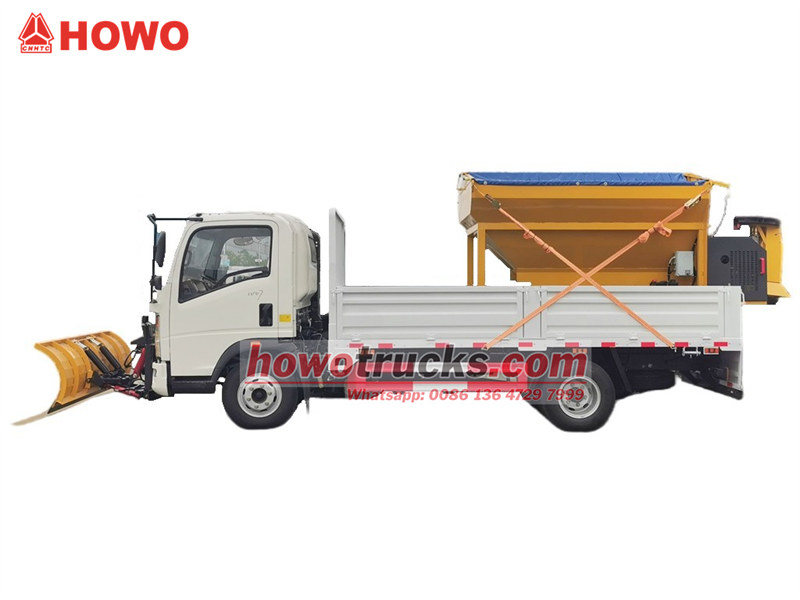

HOWO 4cbm snow shovel truck

Product Key Points and Introduction « « «

Manufacturer: CS Trucks Group



1. Build on HOWO 4x2 light duty truck chassis, equipped with CUMMINS ISF3.8s3141 diesel engine with 3800cc and 141HP hose power

2. Sinotruk HOWO truck mounted Snow Removal Equipment is using front mounted shovel blade to push snow to the side to clear it from the road

3. Full dropside cargo body with size 4200x2200x500mm, durable material with thickness for side 3.2mm and floor 5mm

4. Howo snow blower salt spreader truck matched with 4cbm salt spreader equipment on the cargo body, with efficiently rear spraying ability

5. In cabin Germany PLC electric control box with English guidance for safety and durable usage

Howo truck mounted snow removal equipment

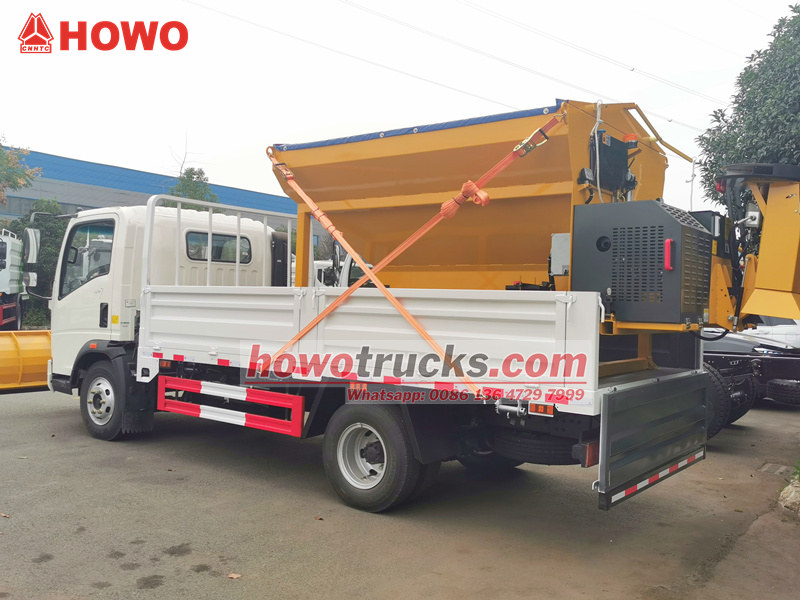

Snow plow removal truck



Product Parameter For Howo 6x4 10000L Snow Removal Vehicle « « «


HOWO 4CBM Snow Removal Truck

General

Vehicle Brand

CS TRUCKS

Vehicle Model

CS5070GXH

Chassis Brand

SINOTRUK HOWO Light Duty

Overall Dimension

6700×2250×2550 mm

GVW / Kerb Weight

7300 /5000 kg

Axle loads

2400/4200 kg

Cab

Cab Capacity

HOWO Light duty cabin, one and half row, with A/C,USB, direction assistance

Engine

Fuel Type

Diesel, 4 cylinders in-line, 4-stroke, supercharged, intercooled, water-cooled

Brand

Americal CUMMINS

Model

ISF3.8s3141

Power

141 HP/ 103 kW

Rated speed

2600rpm

Max torque

450N.m

Max torque speed

1200-2200rpm

Displacement

3.8L

Emission Standard

Euro 3

Chassis

Drive Type

4x2, left hand drive

Transmission

6-speed transmission, manual

Wheelbase

3360mm

Number of axle

2

Tyre Specification

7.00R16

Tyre Number

6 tyres and 1 spare tyre

Max Speed

110km/h

Fuel tank

120L

Paint

Metallic paint

Superstructure

Dump body

Body Capacity

4200*2200*500mm based on Q235 material

Thickness

Side 3.2mm

Floor 5mm

Salt Spreader Snow Melting Machine



Overall Dimensions

4200x2200x500mm

Snow melting spreader capacity

4cbm

Snow melting agent delivery form

CS-SJ4000, Crawler conveyor or screw conveyor

Spreader Disc Diameter

500 mm

Spreading Width

Adjustable from 2 to 10 m

Snow melting spreader control

Electronic Control

Spreading Rate (Density)

20150 g/m²

Spreading accuracy

±3%

Operating Speed

520 km/h adjustable

Allowed granularity

3-20mm

Front snow removal brush

CS-C3000,Optional front snow removal shovel

Snow removal brush sweeping width

3000 mm

Adjustable angle

±30

Roller brush diameter

800mm

Drive type

Hydraulic drive

Hopper Top Filter Screen

Yes

Energy-Dissipating Cone in Hopper

Yes

Conveyor Chain /Discharge Hopper Material

High strength carbon steel

Discharge Outlet Adjustment

Manual

Low Material Alarm

Yes

Warning Light Type

Arrow guidance light

Work Lights

Yes

Ladder

Yes


Howo 4cbm snow clearing truck


3D drawing for HOWO snow removal spreader truck component

« « «



Snow melting spreader equipment drawing



Snow melting spreader equipment drawing



HOWO snow removal truck equipped with full dropside cargo body, with size 4200x2200x500mm, thickness for side 3.2mm and floor 5mm, durable for long life service. Cusotmized 4CBM snow melting agent spreader machine CS-SJ4000 installed on the cargo body, full capacity 4000L based on high quality stainless steel Q235 material, motor matched with chain system for efficiently working, available spread width can be 2-10m and salt agent spread capacity 20-150g/m2, fully adjustable type. Spread plate diameter 550mm with working speed 5-20km/h, in cabin Germany PLC control model for safety working.

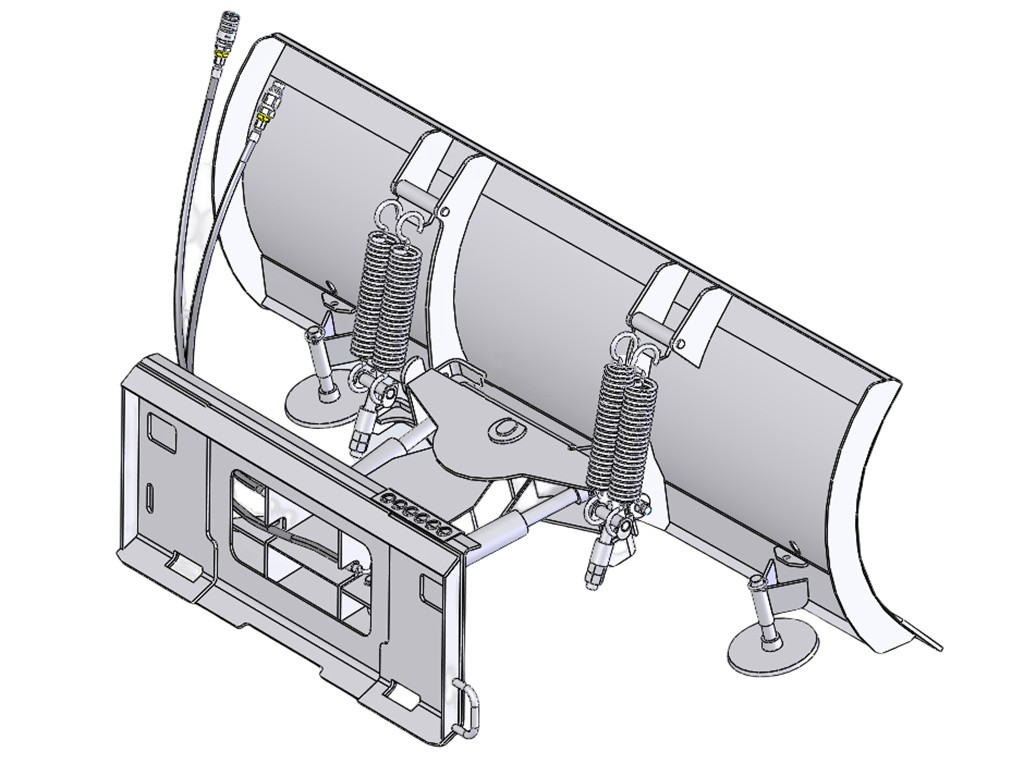

Front mounted snowing removal shovel

Front mounted snowing removal shovel



Snow removal shovel equipment CS-C3000 installed in front of the HOWO light duty snowplow truck cabinet, efficiently clean width 3000mm, adjustable angle for left and right is ±30 degree, full hydraulic control system with efficiently overcome height 300mm, working speed ≥30km/h, in cabin Germany PLC control model for safety working.

Also can be customized to installed roller brush in the front of cabin for snow clearing.



Main Advantages Of HOWO 4CBM Road Salt Spreader Truck « « «

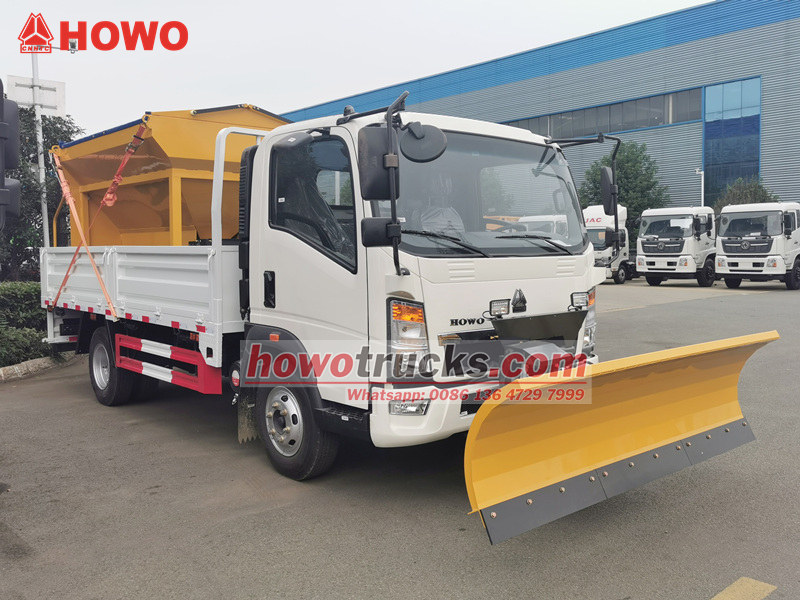

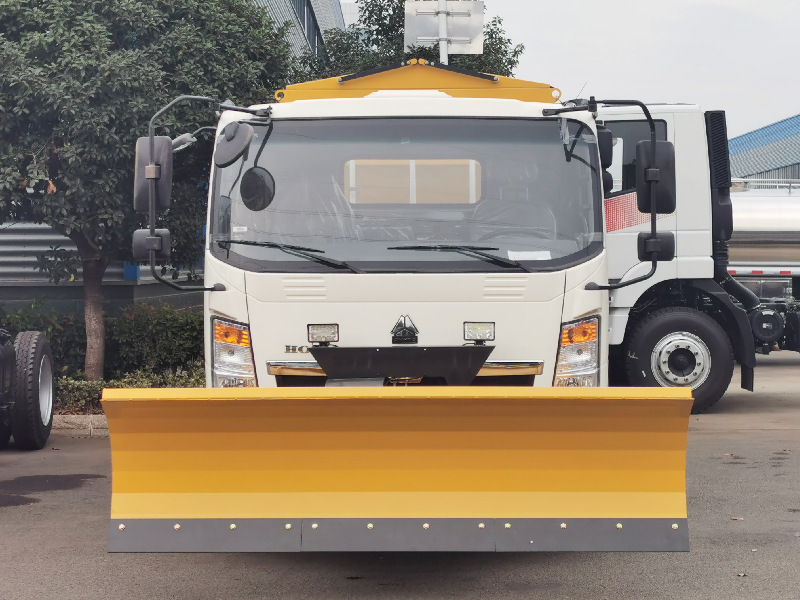

  • HOWO truck mounted front snow removal shovel
    HOWO truck mounted front snow removal shovel

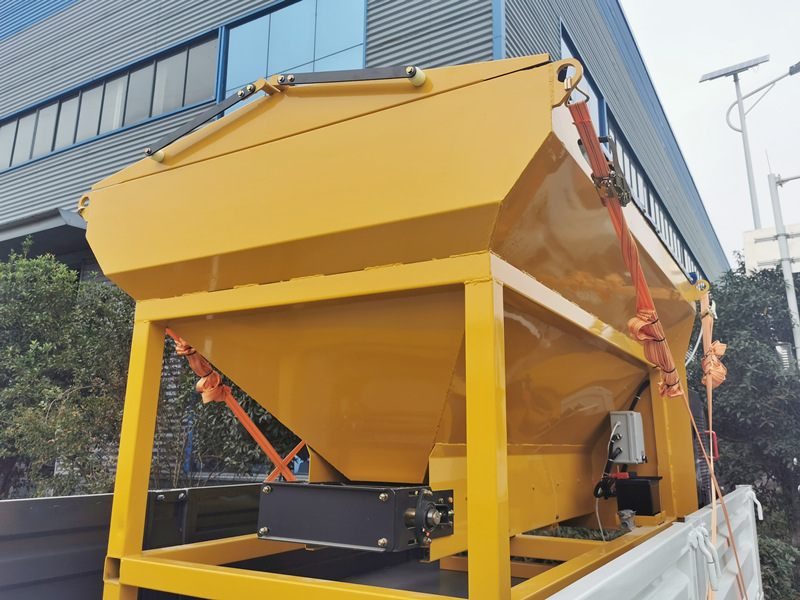

  • Customized 4000L snow melting spreader
    Customized 4000L snow melting spreader

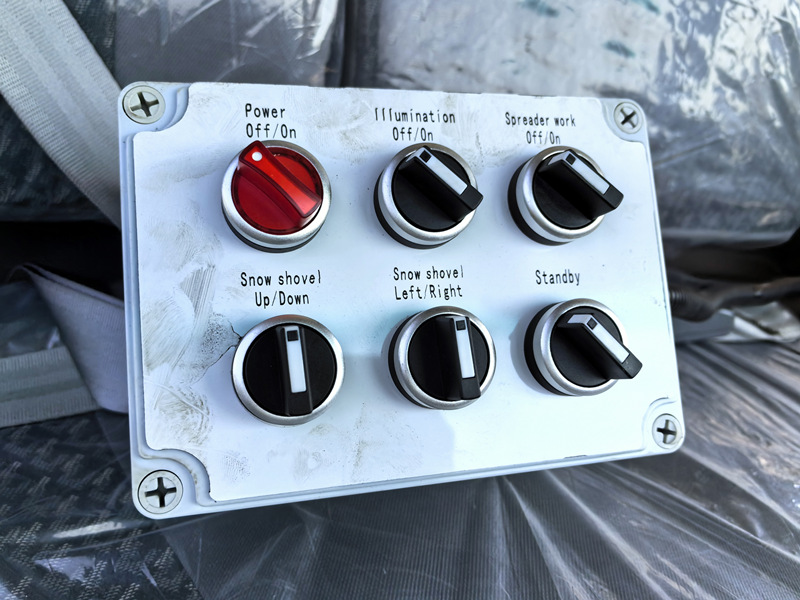

  • In cabin PLC electric control box
    In cabin PLC electric control box

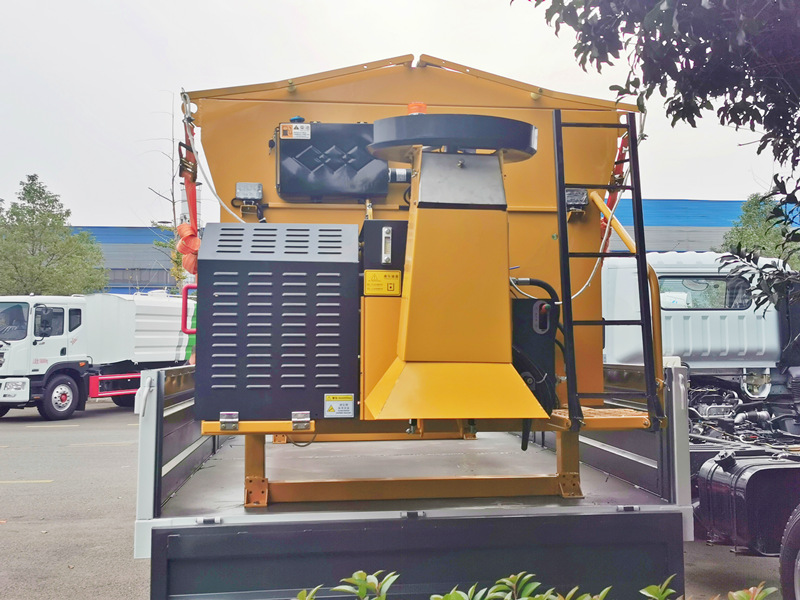

  • Snow melting spreader rear view
    Snow melting spreader rear view

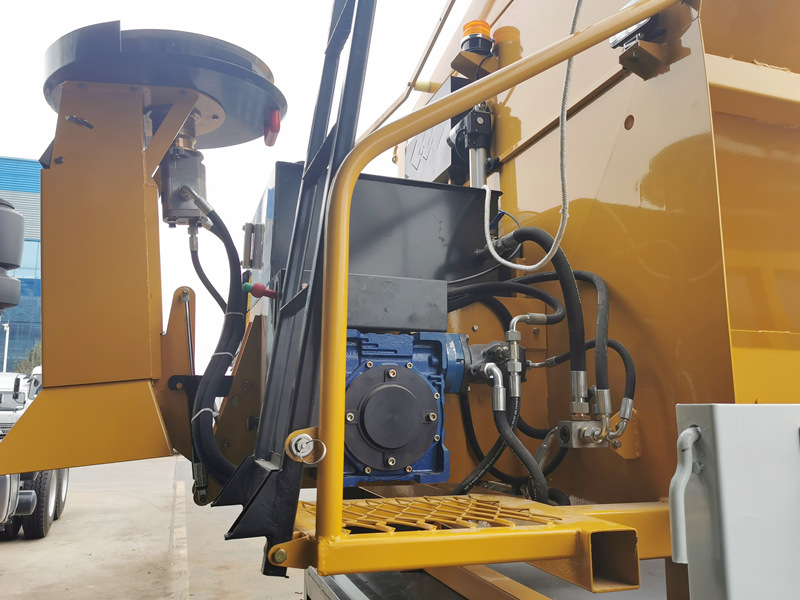

  • Spreader motor for working
    Spreader motor for working
  • Spreader motor for working

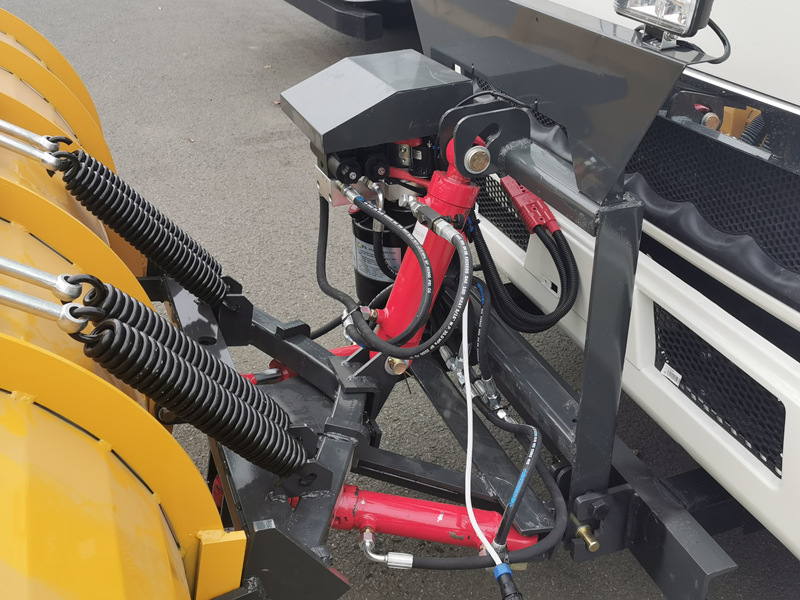

    Hydraulic control device for convenient working

● China best Snow melting agent spreader truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service

⇒ Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!


»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

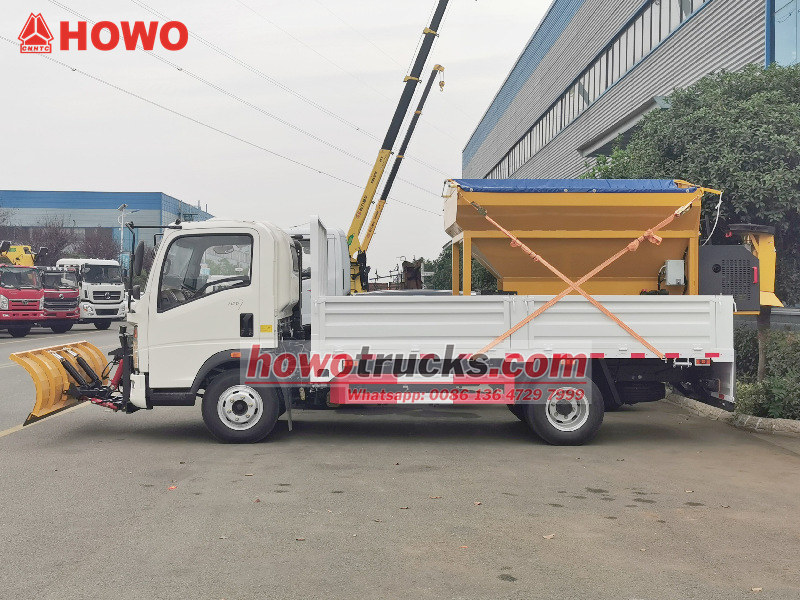

Snow sweeper removal truck HOWO



China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely



Howo 4000L Snow Sweeper Truck
