The HOWO TX350 6x4 multi-function snowplow is based on a modified Sinotruk HOWO TX350 6x4 chassis with a 4625+1350mm wheelbase. It's equipped with a Sinotruk MC07H.35-60 engine and HW13709XST gearbox. The front of the vehicle features an MT80-330XSA snowplow brush with a sweeping width of 3-3.3 meters. The brush has an 800mm diameter and is driven by a hydraulic motor. A 10-cubic-meter snowmelt spreader is placed in the rear carbon steel dump compartment, and a screw conveyor delivers the snowmelt. The spreading width is adjustable from 2 to 12 meters, and the spreading rate (density) is 20 to 150 g/m². The hopper also has a filter screen on top, an energy-dissipating cone inside the hopper, a low-material alarm, a work light, an arrow indicator light and a ladder at the rear.
Working capacity :
10cbmCabin type :
Howo TX350 one and single rowDimension (mm ) :
10550×2550×3700 mmDrive system :
6x4Wheelbase ( mm) :
4625+1350mmEngine specific :
350HP/ MC07H.35-60Gear box :
SINOTRUK HW13709XST 9-speed , manualFront axle ( Kg ) :
7000Rear axle ( Kg ) :
18000(2 axles)Remark :
Optional front snow removal shovelThe HOWO TX Snow Melt Spreader with Sand Salt is a snow-clearing vehicle featuring a snowmelt spreader installed within a complete dump truck and a front-mounted snowplow brush. Built on the powerful Sinotruk HOWO chassis, it features a large, hydraulically driven snow-clearing roller brush at the front, quickly clearing snow from the road. The rear dump truck houses a 10-cubic-meter snowmelt spreading system, utilizing a spiral conveyor system with an adjustable spreading width of 2-12 meters and controllable spread with up to ±3% accuracy. This multi-functional vehicle combines snow clearing and snowmelt spreading capabilities, significantly improving the efficiency and overall effectiveness of snow removal operations on urban arterial roads and highways.

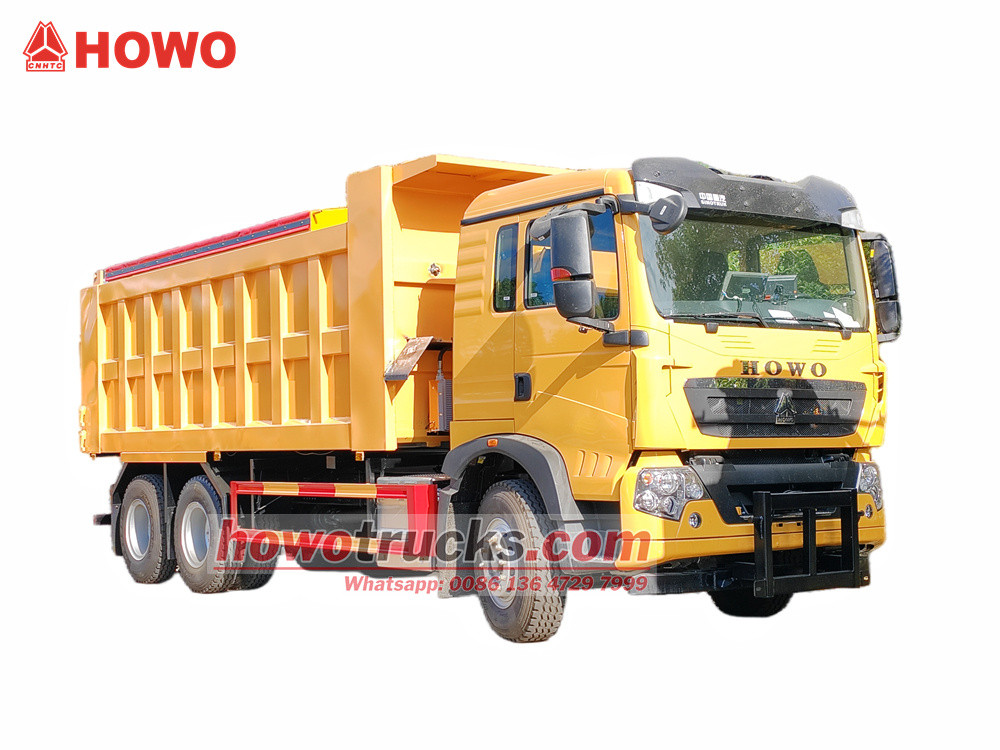

*HOWO TX Snow Melt Spreader With Sand Salt*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Multi-purpose snowplows are typically constructed by adding a snowplow or roller brush to various vehicles. These can be installed on common vehicles such as dump trucks, trucks, truck-mounted cranes, flatbed trucks, and pickup trucks. They can also be installed on construction machinery such as forklifts and loaders. The tail spreader consists of a silo, filter screen cover, chain scraper conveyor, centrifugal spreading device, hydraulic drive system, and operation control system. This spreader is compact and easy to use, and the chain scraper conveyor is equipped with a dedicated reducer for durability and reliability.
Product Parameter For Howo 6x4 10000L Snow Removal Vehicle « « «
| HOWO TX Snow Melt Spreader With Sand Salt | |||
|
General |
Vehicle Brand |
CS TRUCKS |
|
|
Vehicle Model |
CS5250GXH |
||
|
Chassis Brand |
SINOTRUK HOWO |
||
|
Overall Dimension |
10550×2550×3700 mm |
||
|
GVW / Kerb Weight |
25000 /14550 kg |
||
|
Axle loads |
7000/18000(2 axles) kg |
||
|
Cab |
Cab Capacity |
HOWO TX350 cabin, one and half row, with A/C,USB, direction assistance |
|
|
Engine |
Fuel Type |
Diesel, 6 cylinders in-line, 4-stroke, supercharged, intercooled, water-cooled |
|
|
Brand |
SINOTRUK |
||
|
Model |
MC07H.35-60 |
||
|
Power |
350 HP/ 257kW |
||
|
Rated speed |
2200rpm |
||
|
Max torque |
1400N.m |
||
|
Max torque speed |
1200-1600rpm |
||
|
Displacement |
7.36L |
||
|
Emission Standard |
Euro 6 |
||
|
Chassis |
Drive Type |
6x4, left hand drive |
|
|
Transmission |
SINOTRUK HW13709XST 9-speed transmission, manual |
||
|
Wheelbase |
4625+1350mm |
||
|
Number of axle |
3 |
||
|
Tyre Specification |
295/80R22.5 |
||
|
Tyre Number |
10 tyres and 1 spare tyre |
||
|
Max Speed |
110km/h |
||
|
Fuel tank |
200L |
||
|
Paint |
Metallic paint |
||
|
Superstructure |
Dump body |
Body Capacity |
6500*2350*1500mm |
|
Material |
6mm carbon steel |
||
|
Salt Spreader Snow Melting Machine
|
Overall Dimensions |
6200x2050x1550mm |
|
|
Snow melting spreader capacity |
10cbm |
||
|
Snow melting agent delivery form |
Crawler conveyor or screw conveyor |
||
|
Spreader Disc Diameter |
480 mm |
||
|
Spreading Width |
Adjustable from 2 to 12 m |
||
|
Snow melting spreader control |
Electronic Control |
||
|
Spreading Rate (Density) |
20～150 g/m² |
||
|
Spreading accuracy |
±3% |
||
|
Operating Speed |
5～40 km/h adjustable |
||
|
Allowed granularity |
3-20mm |
||
|
Front snow removal brush |
MT80-330XSA,Optional front snow removal shovel |
||
|
Snow removal brush sweeping width |
3-3.3m |
||
|
Roller brush diameter |
800mm |
||
|
Drive type |
Hydraulic drive |
||
|
Hopper Top Filter Screen |
Yes |
||
|
Energy-Dissipating Cone in Hopper |
Yes |
||
|
Conveyor Chain /Discharge Hopper Material |
Stainless steel |
||
|
Discharge Outlet Adjustment |
Manual |
||
|
Low Material Alarm |
Yes |
||
|
Warning Light Type |
Arrow guidance light |
||
|
Work Lights |
Yes |
||
|
Ladder |
Yes |
||

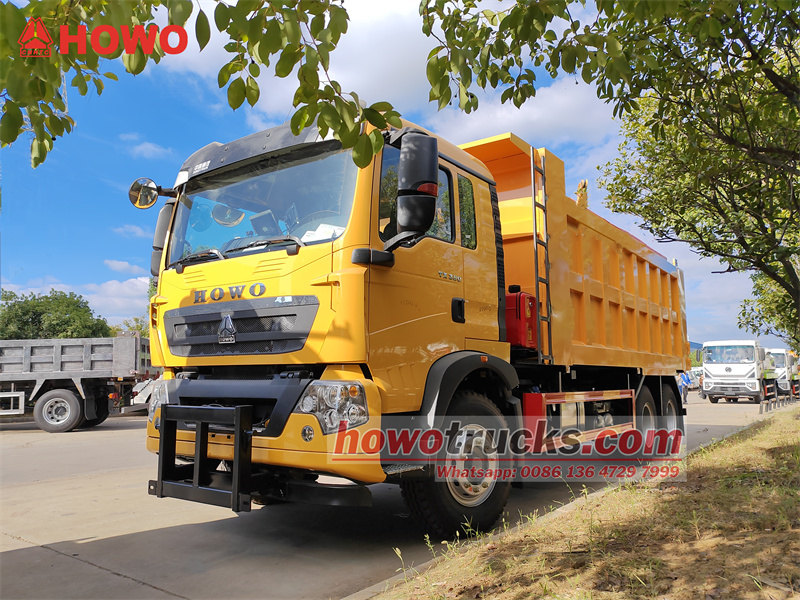

Main Advantage Of HOWO TX Road Salt Spreader Truck « « «
Chassis
• Brand and Model: Sinotruk HOWO TX350 6x4
• Wheelbase: 4625+1350 mm
• Engine: Sinotruk MC07H.35-60, 350 horsepower, 257 kW, meets China VI emission standards, offering ample power, environmental friendliness, and high efficiency.
• Transmission: HW13709XST
Sinotruk's 9-speed manual transmission with overdrive ensures optimal speed matching in various operating conditions.

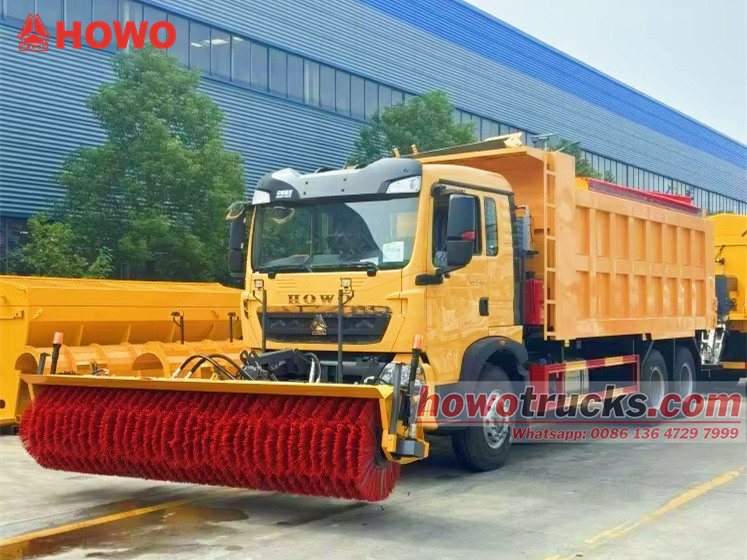

Snow Removal Module (Front)
• Equipment Type: Front Snow Brush
• Model: MT80-330XSA
• Cleaning Width: 3 - 3.3 m (Adjustable or Optional)
• Brush Diameter: 800 mm. The larger diameter enhances cleaning performance and effectively removes stubborn snow from the road.

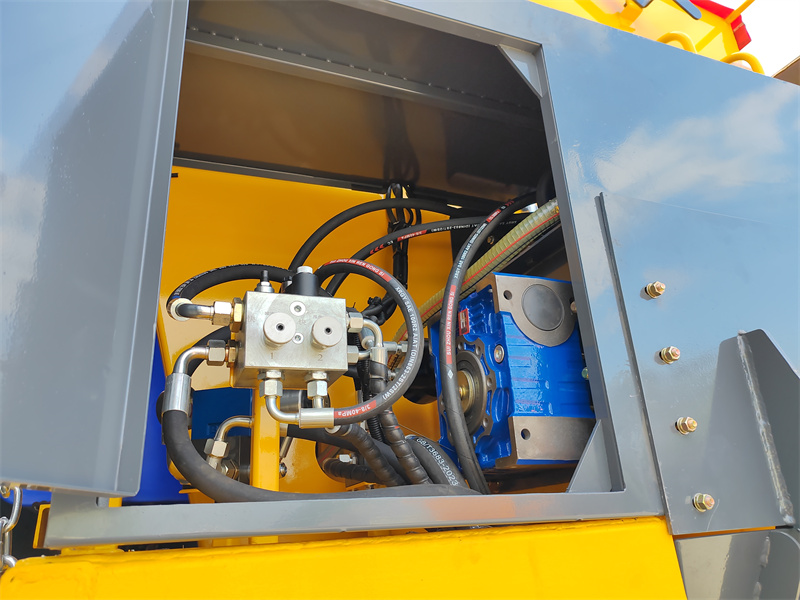

• Drive Method: Hydraulic Motor. Smooth operation and high torque. The brush speed and start/stop function can be easily controlled via the hydraulic system.
• Function: Primarily used to remove fresh snow and thin layers of ice from the road, creating conditions for subsequent work or vehicle traffic.

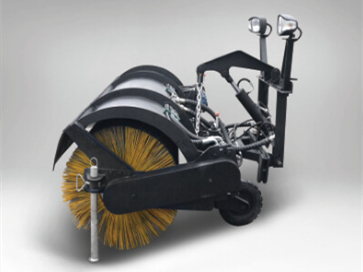

Snowplow Brush Features:
1. Compatible with a variety of vehicle chassis, the snowplow utilizes a standard quick-connect mechanism that allows interchangeable snow shovels and brushes. Installation and removal of the brush from the vehicle is simple and convenient, ensuring safe and reliable operation.
2. The driver can quickly and easily operate the snowplow brush from the cab.
3. Special material bristles ensure clean sweeping and a long service life.
4. Solid, high-load-bearing, wear-resistant support wheels significantly enhance the snowplow's reliability. Adjustable ground clearance and contact point allow for improved efficiency and results.
5. The operating mechanism offers flexible and safe deflection and lifting, with manual adjustment, without affecting the original vehicle's function or performance.
6. A refueling anti-snow backflow device prevents snow from blowing back, ensuring a clean sweep.

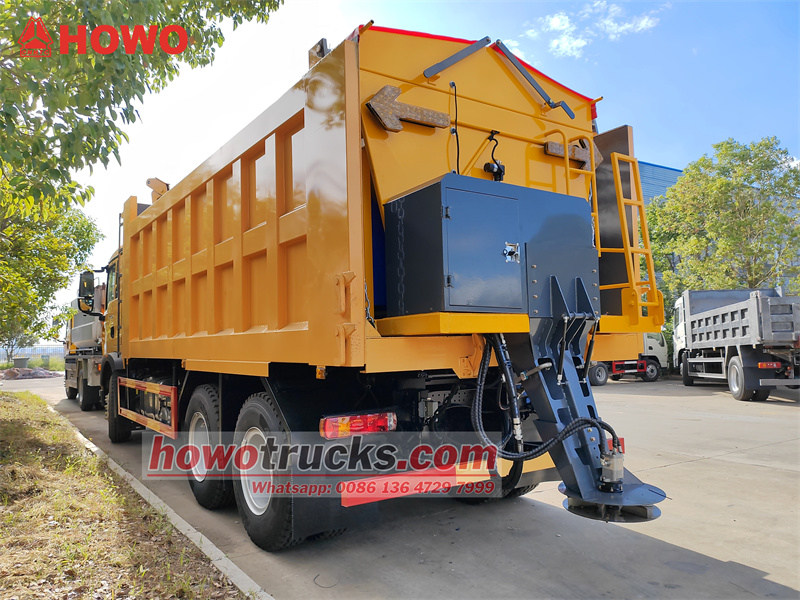

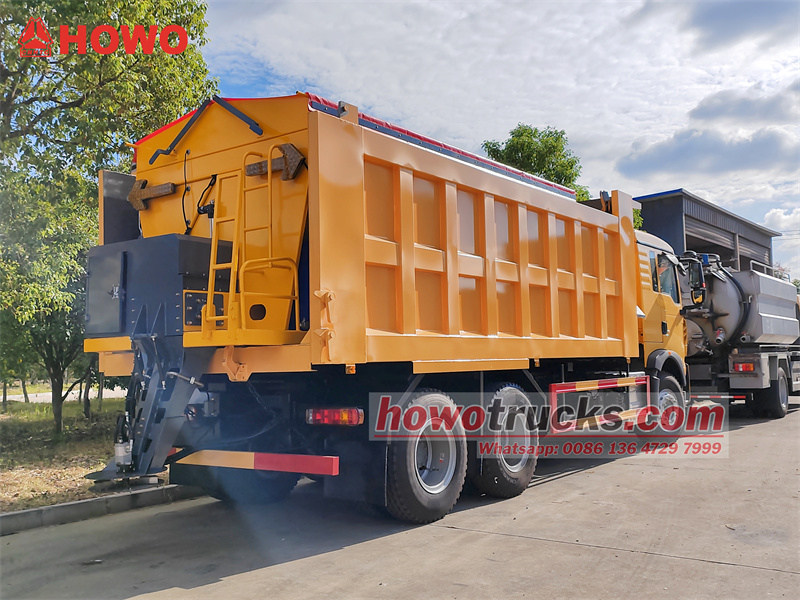

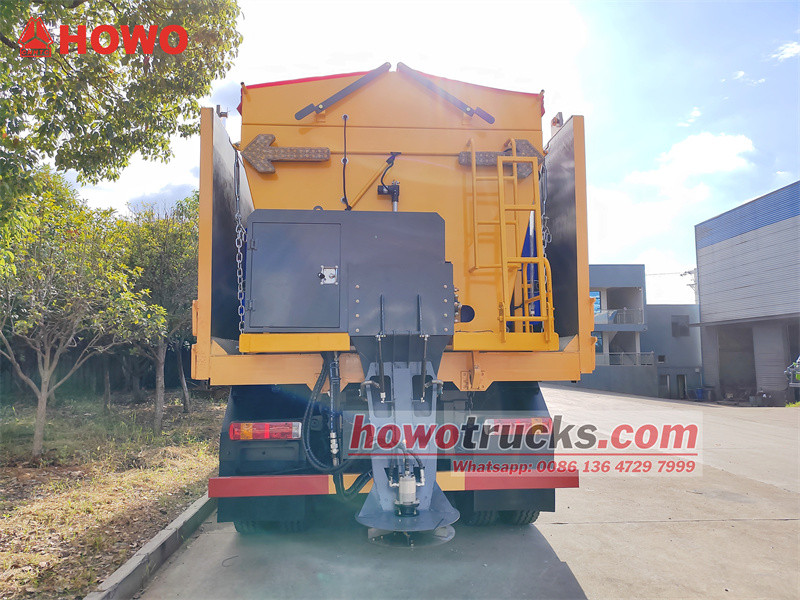

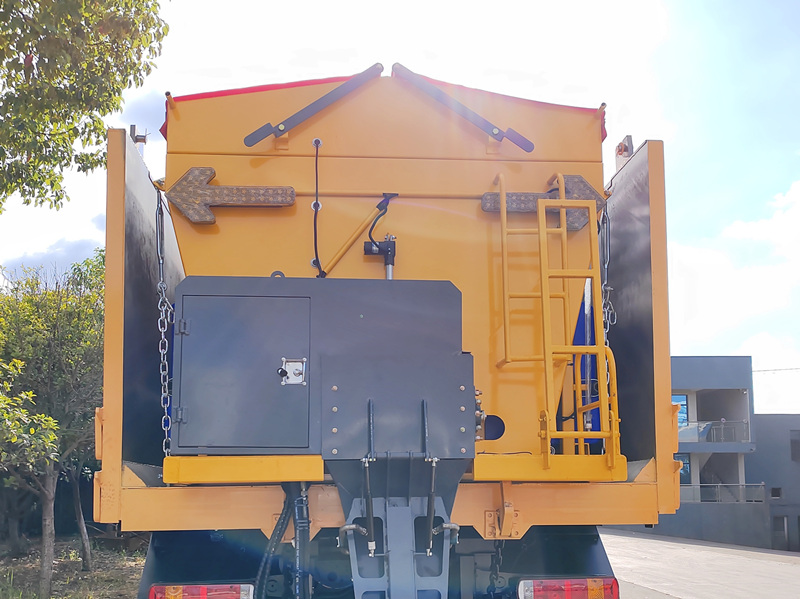

De-icing Agent Spreading Module (Rear)
This is another core function of the equipment, integrated into the dump truck bed.
• Spreader Capacity: 10 cubic meters
• Installation: Placed in the dump truck bed
• Overall Dimensions: 6200 x 2050 x 1550 mm
• Conveyor Method: Screw Conveyor
o Stable, uniform conveyance, non-clogging, particularly suitable for wet or easily caking de-icing agents.
• Spreading Width: Adjustable from 2 to 12 meters
o Widely applicable, flexible adjustment based on actual road width and snow removal requirements to maximize de-icing agent application efficiency.

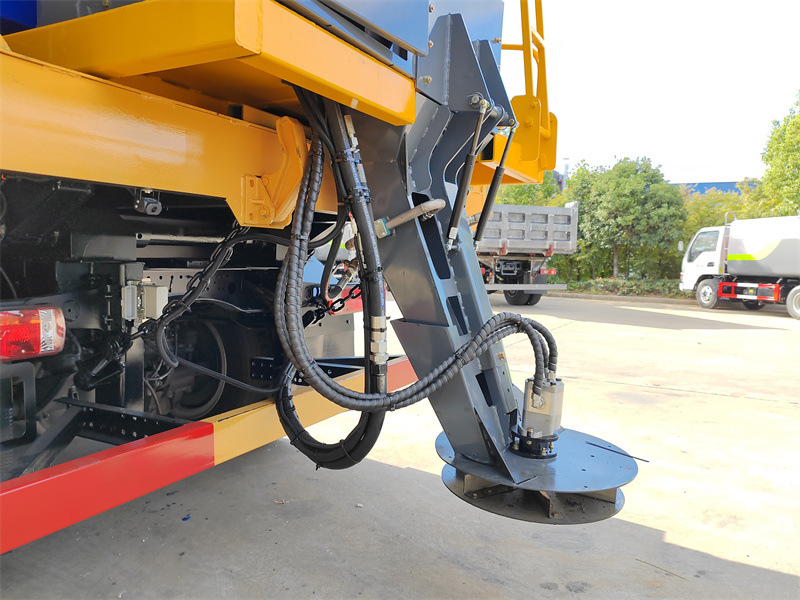

• Spreading Disc Diameter: 480 mm
• Control Method: Electronically controlled, precisely controlling the de-icing agent application rate to ensure uniform distribution.
• Spreading Rate (Density): Adjustable from 20 to 150 g/m²
o De-icing agent dosage can be precisely controlled based on snow severity, ensuring both effectiveness and cost savings.
• Spreading Accuracy: ±3%
Extremely high precision ensures uniform spreading, avoiding waste and overspray.
• Operating Speed: 5 to 40 km/h
Optimally matches vehicle speed for improved operating efficiency.
Snowmelt Spreader Features:
1. Multiple functions for spreading salt and snowmelt;
2. Intelligent electronic control of spreading width, spreading volume, and travel speed, ensuring stable, accurate, and reliable metering;
3. Made of carbon steel or stainless steel with a three-level corrosion protection treatment;
4. Powered by a renowned domestic engine;
5. Spreading volume and width settings can be adjusted directly from the operator's cab;
6. The spreader features either a screw or belt conveyor for easy operation and reliable performance;
7. A removable filter is installed on the upper portion of the spreader housing to prevent large particles and debris from entering the machine, ensuring safety;
8. A rain shield on the hopper ensures normal operation in rainy and snowy conditions.
Hopper-Related Features
• Hopper Top Filter: Yes, filters large impurities and prevents them from entering the conveying system and impacting equipment operation.
• Hopper Internal Energy Dissipation Cone: Yes, effectively reduces the impact of falling materials, protecting the hopper and conveying equipment.
• Conveyor Chain/Discharge Hopper Material: Stainless steel, corrosion-resistant, extending equipment life and ensuring normal operation in harsh environments.
• Discharge Port Adjustment: Manual adjustment is convenient, allowing for flexible control of discharge speed and flow rate based on actual needs.
• Low Material Alarm: Yes, an alarm is issued when the hopper is low on material, prompting the operator to add material to ensure continuous operation.
Safety and Lighting Features
1. Warning Light Type: Rear arrow indicator light effectively warns vehicles behind during operation, ensuring safety.
2. Work Light: providing ample illumination for nighttime or low-light operations, ensuring safe and high-quality operations.

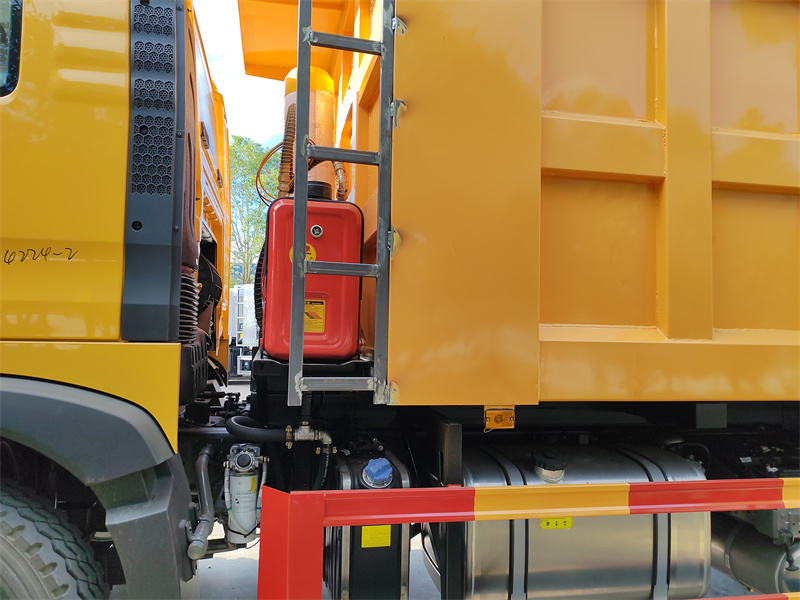

3. Rear Ladder: convenient for operators to access the vehicle for equipment inspection, maintenance, and other operations.
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

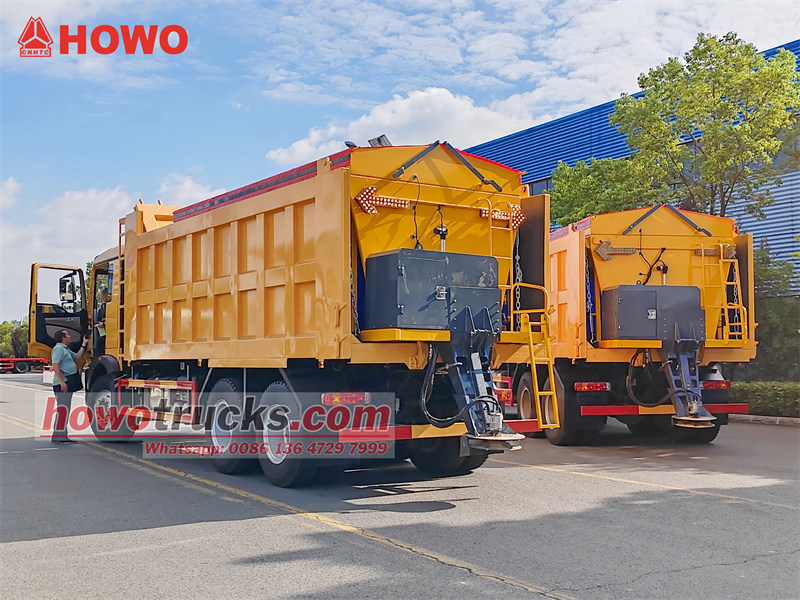

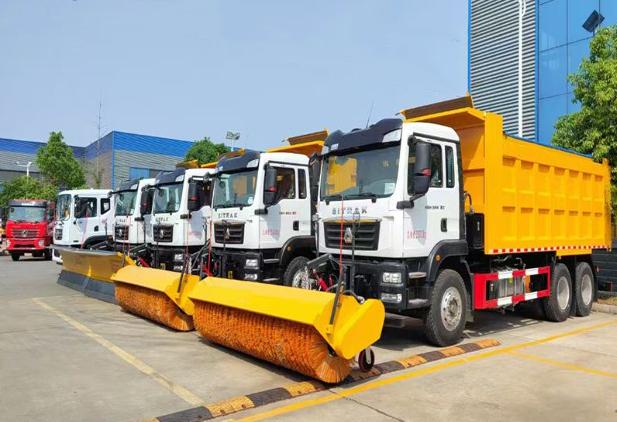

Mass Production « « «

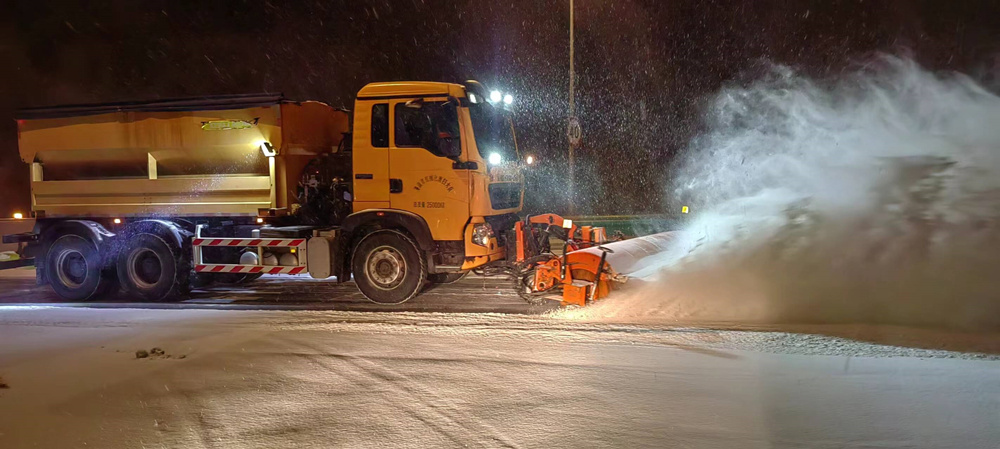

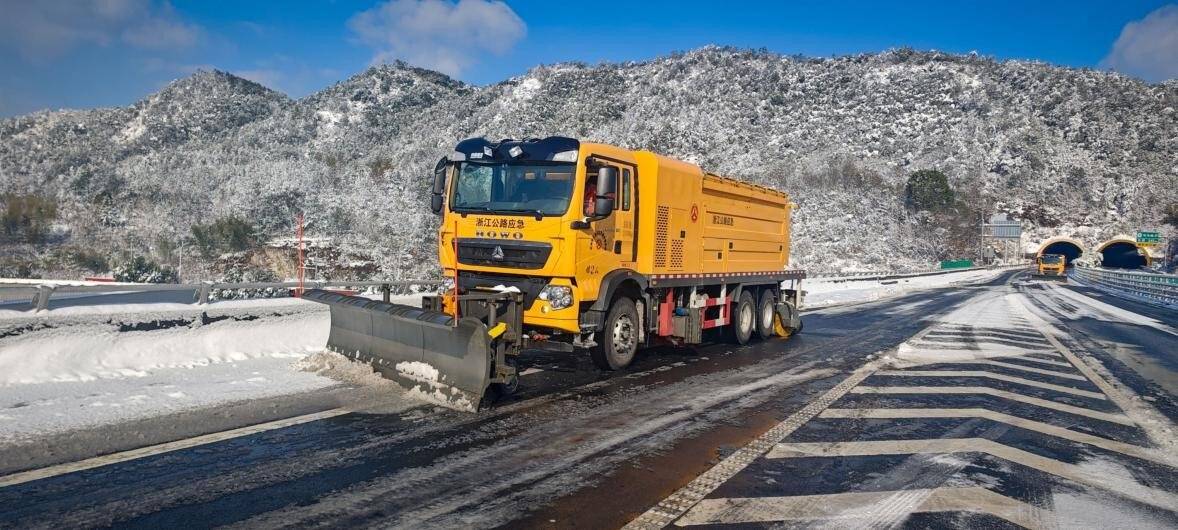

Snow Removal Applications: « « «
