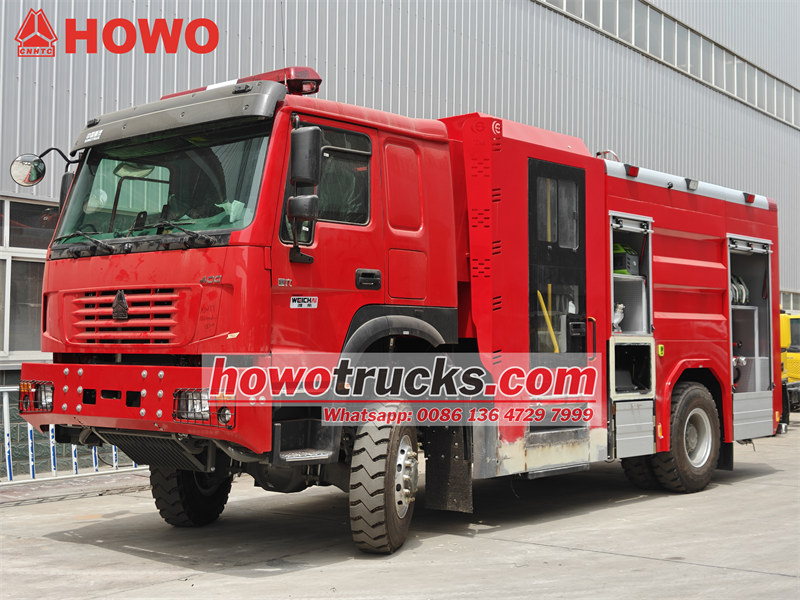

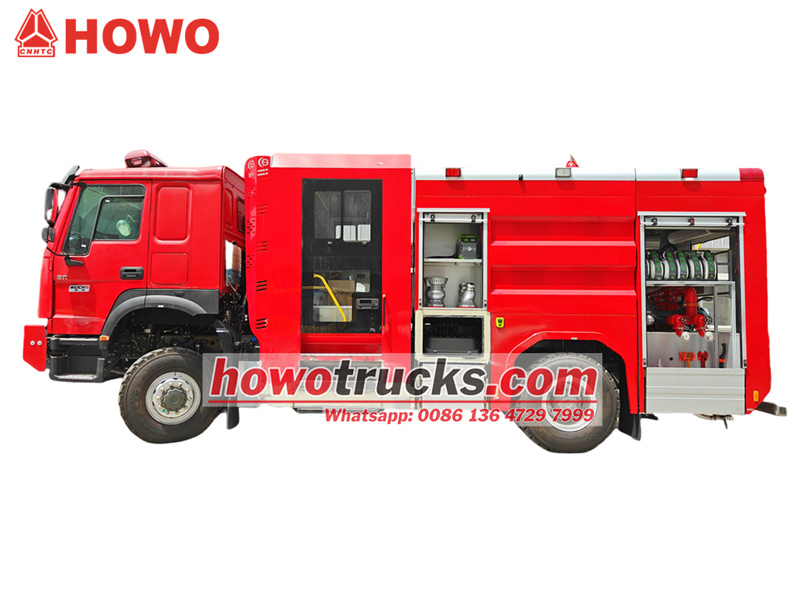

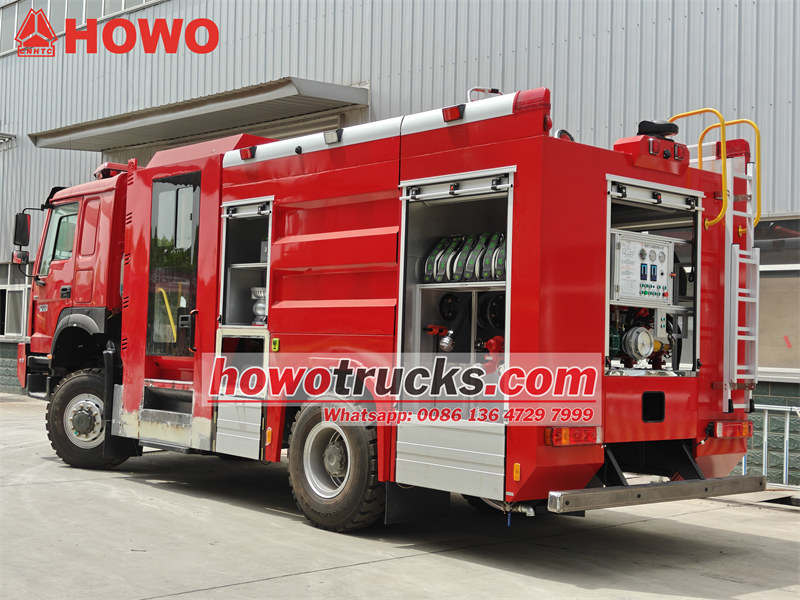

Name: HOWO 4x4 foam tanker fire truck
Availability: InStock

Top Chinese brand Sinotruk HOWO Water Foam Fire Truck is a professional firefighting vehicle built on HOWO 4×4 offroad truck chassis, powered by a WEICHAI 400HP diesel engine and HW19710 manual gearbox. HOWO fire engine equipped with 6000L water tank and a 2000L foam tank, all based on stainless steel #304 material. Mounted with CB10/60 fire pump and PL8/48 water foam fire monitor, with efficiently jetting distance over 65m. The customized double-row cabin accommodates six personnel and includes air conditioning and electronic devices, balancing firefighting efficiency with operational comfort, making it an ideal choice for tackling various urban fire scenarios.

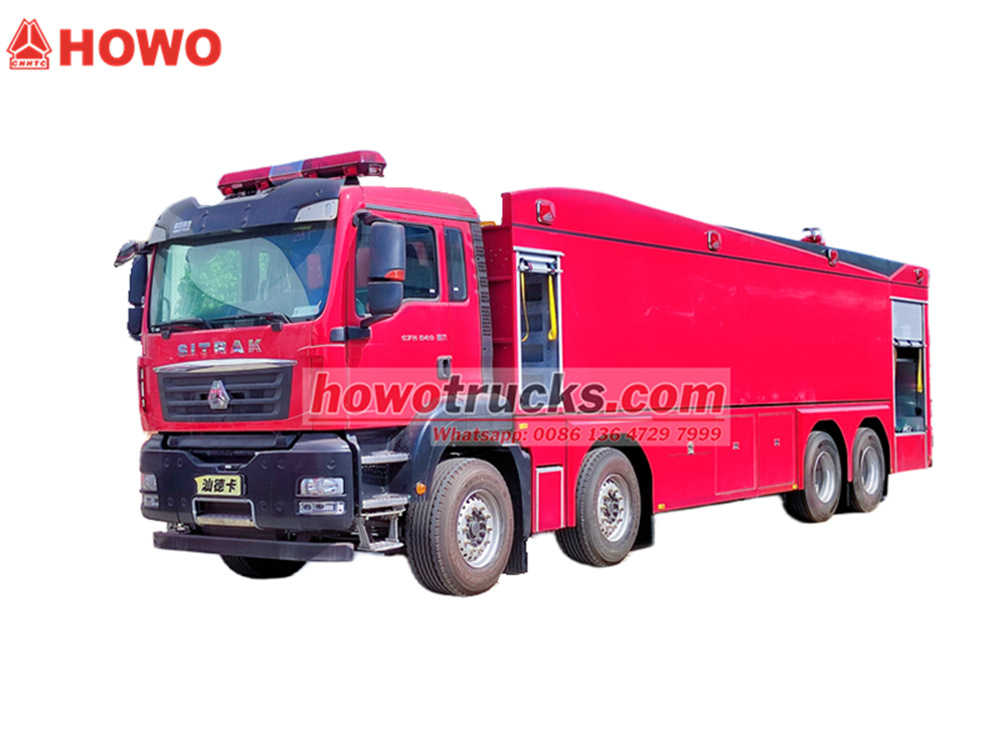

Howo 8x4 fire foam pumper truck

The Howo 8x4 fire water pumper truck is built on the sturdy Howo TX cabin 8x4 chassis and integrates an excellent power system. The MC13.54-50 engine with 540 horsepower can challenge all kinds of difficult roads while being overloaded. It is equipped with a 12,000-liter large-capacity water tank and a 3,000-liter foam tank, and a rear-mounted 100L/s large-flow fire pump with a spray distance of up to 65m. The control panel language is optional, and a variety of optional configurations are provided to meet different needs. This Howo middle-duty 540HP fire water truck provides solid protection for fire safety and demonstrates outstanding performance and flexibility.

Howo 8x4 heavy foam firefighting vehicle

HOWO 8x4 foam water fire truck adopts HOWO TX 8x4 460 horsepower chassis, 1800+3050+1350mm wheelbase, equipped with SINOTRUK MC11.46-61 engine, HW15710L gearbox, the front of the upper body is a storage box, the middle is the tank body, 16 cubic carbon steel water tank, 4 cubic stainless steel foam tank, the equipment box under the tank body is used to place auxiliary firefighting equipment; including fire axes, hammers, shovels, fire extinguishers, fire suits, etc. The tail is the pump room, equipped with CB10/100-XZ fire pump with a flow rate of 100L/s. The pump room is equipped with firefighting equipment, including water collector, water distributor, reducer, fire hose, foam gun, and the top of the tank body is equipped with PL8/64 foam water dual-purpose fire monitor.

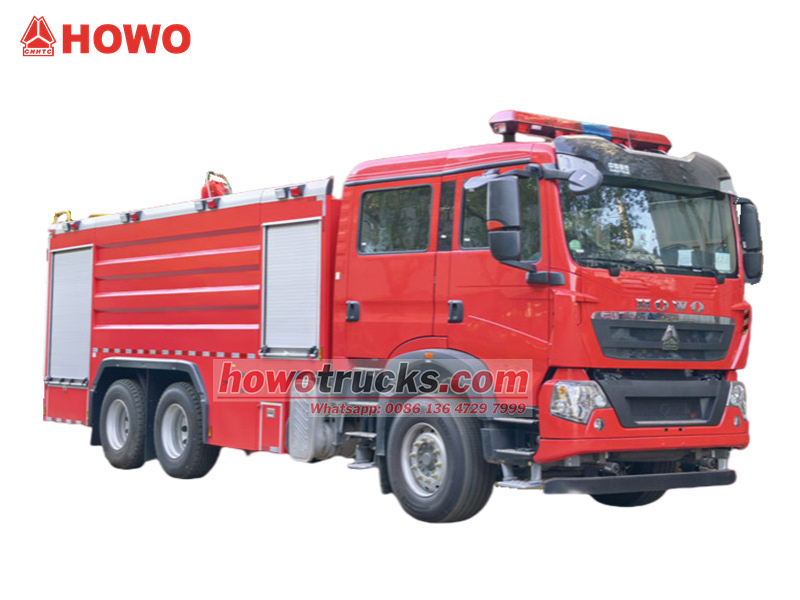

HOWO TX 15000L foam fire engine

The HOWO Foam Fire Truck is a heavy-duty firefighting apparatus built on a durable HOWO 6×4 chassis, combining powerful fire suppression capabilities with excellent mobility. It is equipped with a 460-horsepower engine, and the total capacity of its water tank and foam tank reaches 15 cubic meters. Paired with a high-flow fire pump and monitor, it achieves a water jet range of over 60 meters, making it specifically designed for combating large-scale fires. The vehicle features a durable carbon steel water tank and a stainless steel foam tank, along with a double-row cabin that can accommodate six personnel and a full-power PTO system, ensuring rapid deployment and sustained operation. Its outstanding performance and reliability make it an effective tool for tackling oil-based and industrial fires.

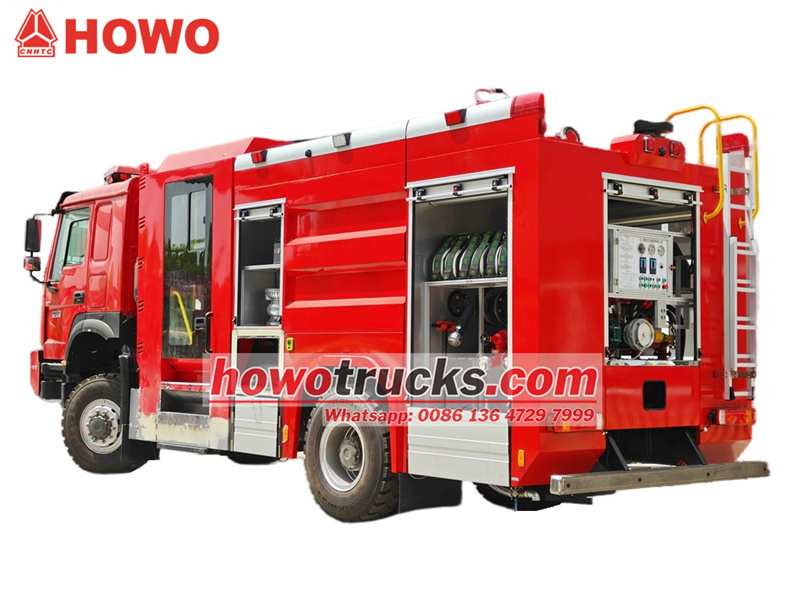

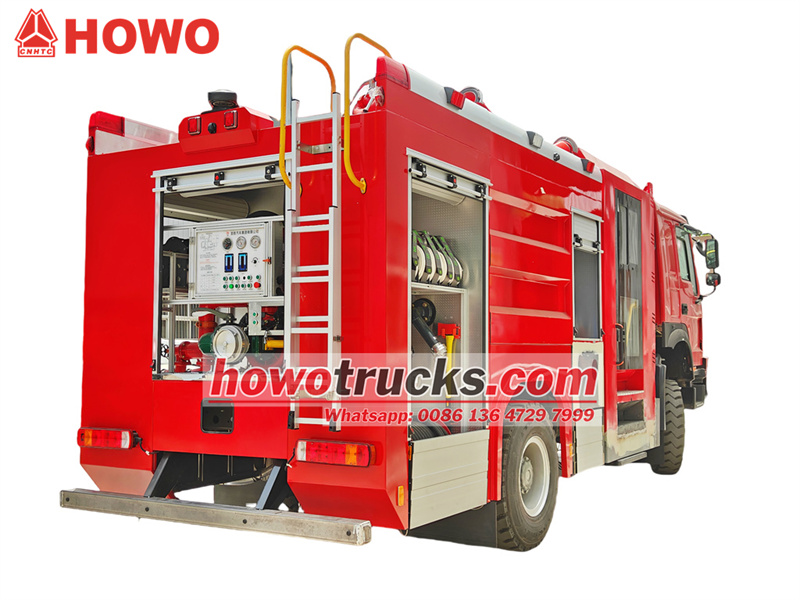

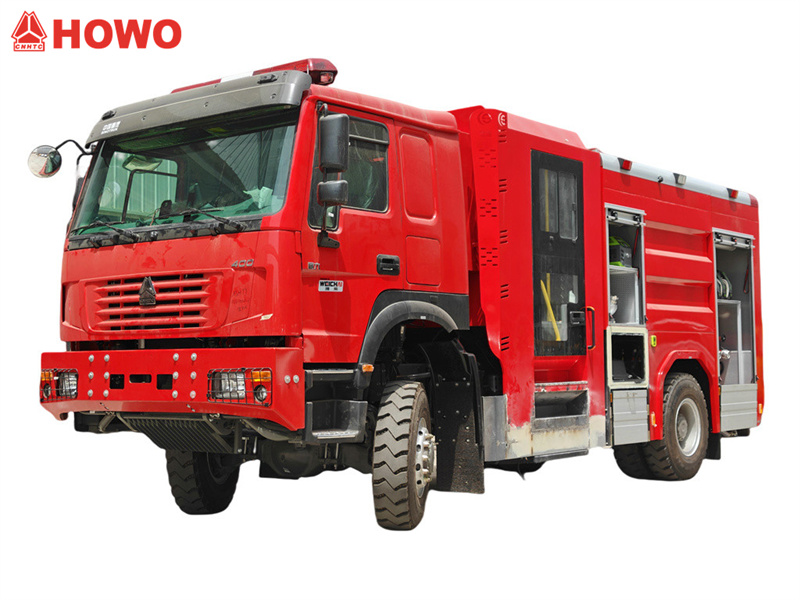

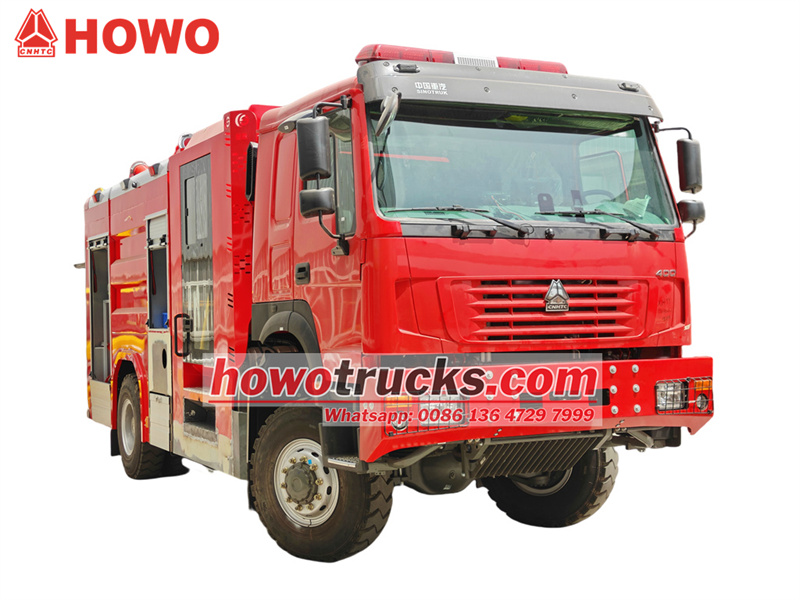

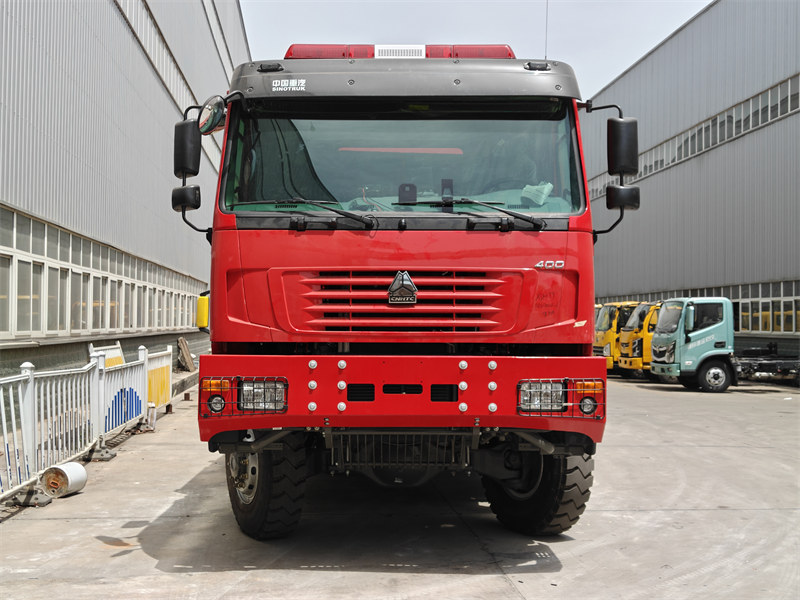

HOWO 4x4 offroad Fire Truck vehicle description
Overall dimension	8620×2550×3620(mm)
GVW	22000kg
Curb weight	10650kg
Chassis brand	SINOTRUK HOWO
Traction type	4×4, left hand drive
Chassis description
Chassis model	ZZ2167
Cab	Structure: flat-head, single-row; Seat setting: 2 people
Wheelbase	4600mm
Tire specification	12.00R20 18PR
Tire quantity	6+1
Engine	Engine model	WP10.400E32
	Emission level	Euro 3
	Displacement/output	9726ml/280kw
	Horse power	380hp
Gear box	Model	HW19710
Gear box	Number of gears	10 forward gears& 2 reverse
Brake system	Type	Drum
	Service brake	Dual-circuit compressed air brake
	Park brake	Power spring brake acting on rear wheel
	Auxiliary brake	WEBCO
Axle	Front	HF-7T
Axle	Rear	ST-16T
Suspension	Front	Semi-elliptic leaf spring
Suspension	Rear	Trapezoidal leaf spring
Fuel tanker	Type	Steel fuel tanker
Fuel tanker	Capacity	400L

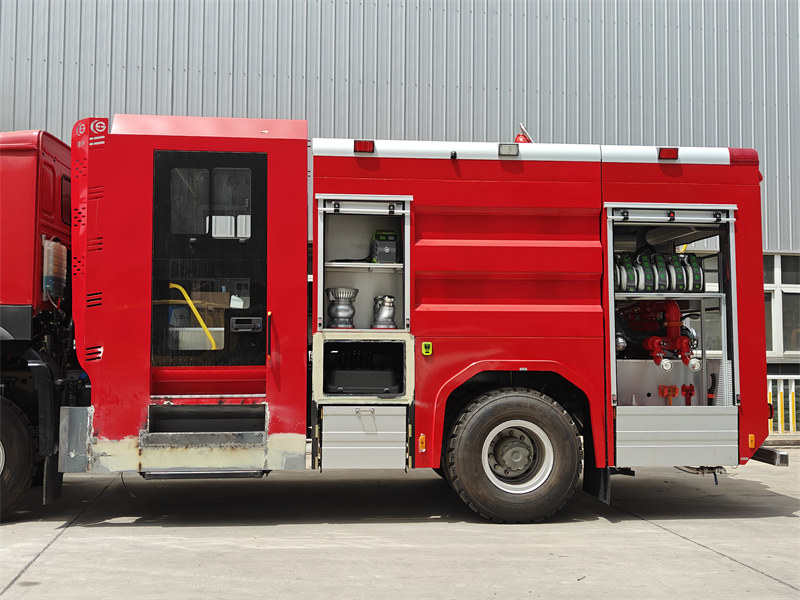

8000L Fire Tanker Upper-body description

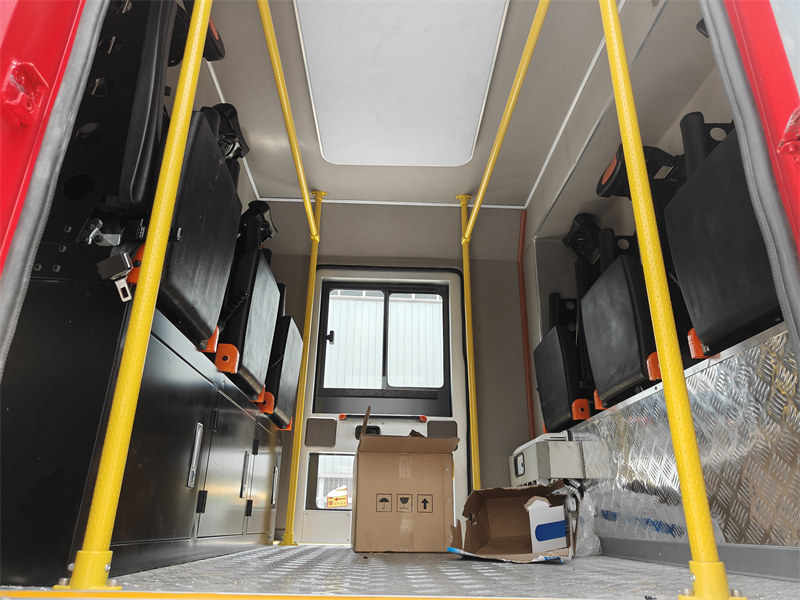

Crew cabin	Type	Independent crew cabin at rear
Crew cabin	Number of seats	8
Tanker capacity	Water tanker	6 CBM (6000 liters), carbon steel
Tanker capacity	Foam tanker	2 CBM (2000 liters), stainless steel
Standard configuration	1 set manhole with quick lock and open device; 1 set overflow device; 1 set fluid level gauge; 1 set drain outlet with manual controlled.

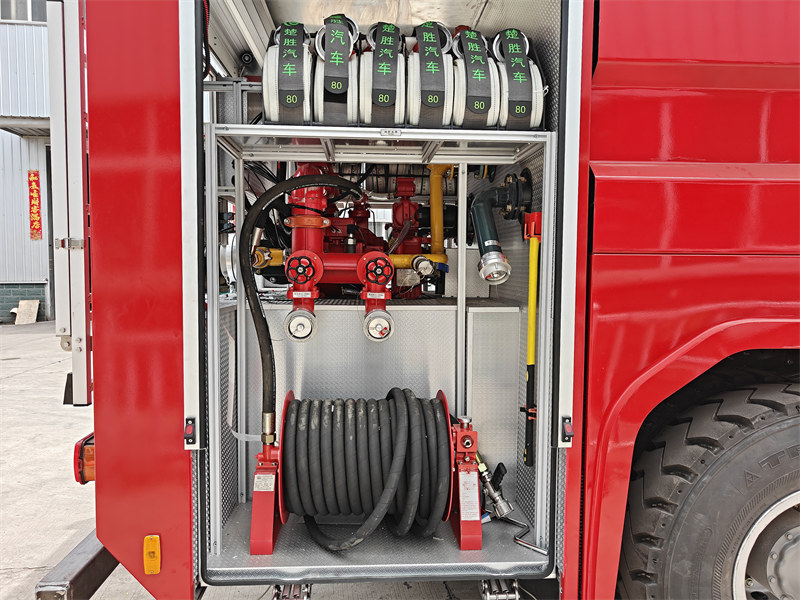

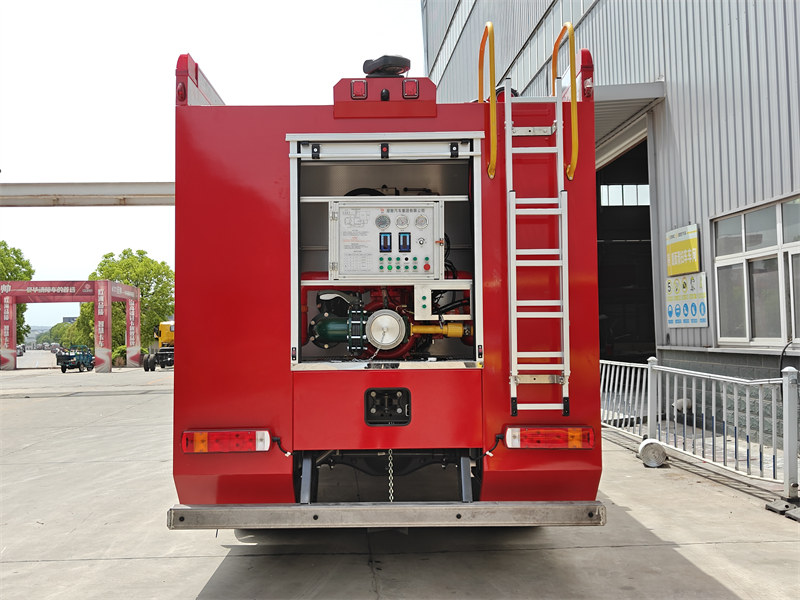

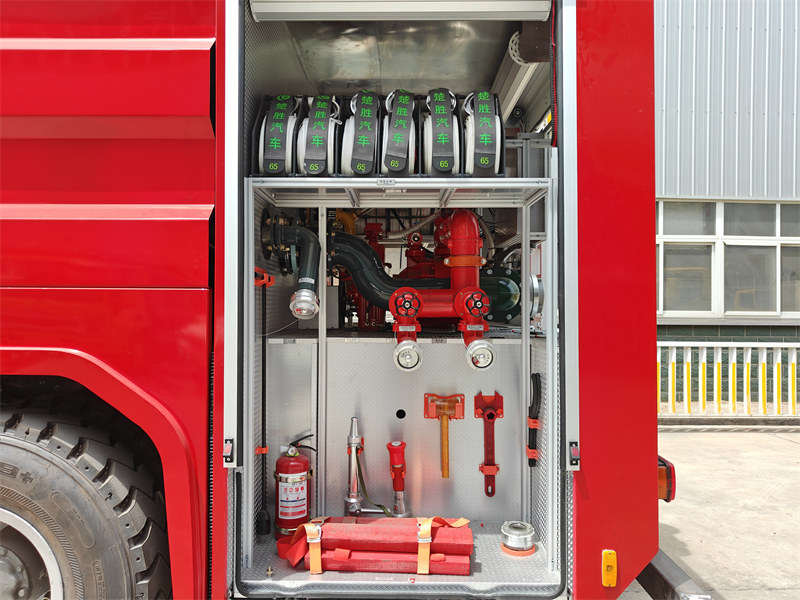

Fire pump	Model	CB10/60, normal pressure pump
	Flow	60L/S
	Pressure	1.0Mpa
	Suction depth	7m
Fire monitor	Model	PL8/48
	Flow	48L/S
	Pressure	0.8Mpa
	Range	Water ≥65m; Foam ≥55m
	Rotation angle	Horizontal 360° Pitch -35°~70°
Hose reel	Model	JPSC1.6
	Inner diameter	32mm
	Hose length	30m
	Inlet pressure	1.6Mpa
	Flow of gun	≥120 L/min
Other configurations	Equipped with sandwich PTO, pipeline system; Equipped with equipment compartment and pump room; Equipped with flip pedal and electric system. Other fire equipment.
