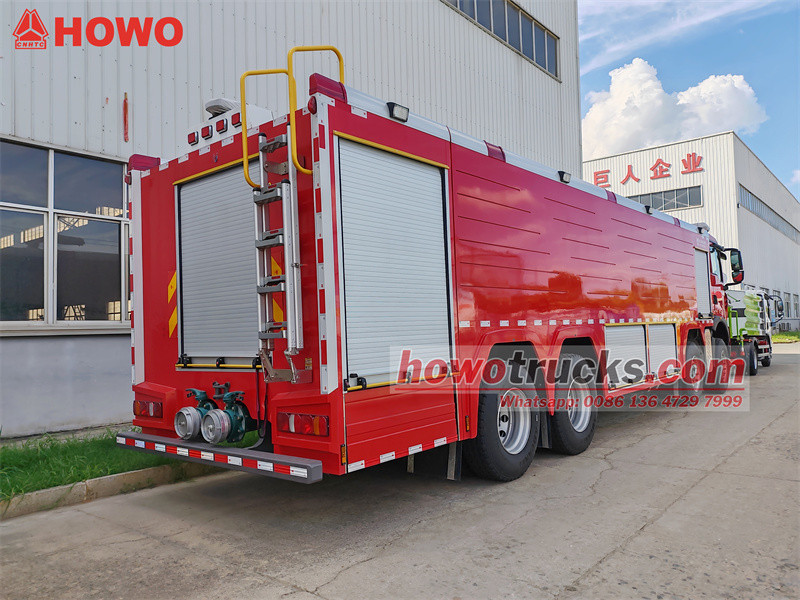

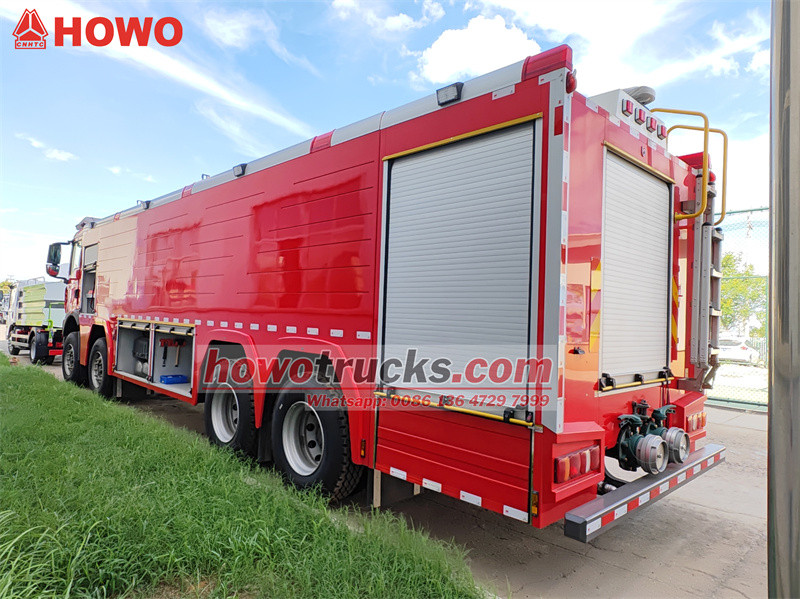

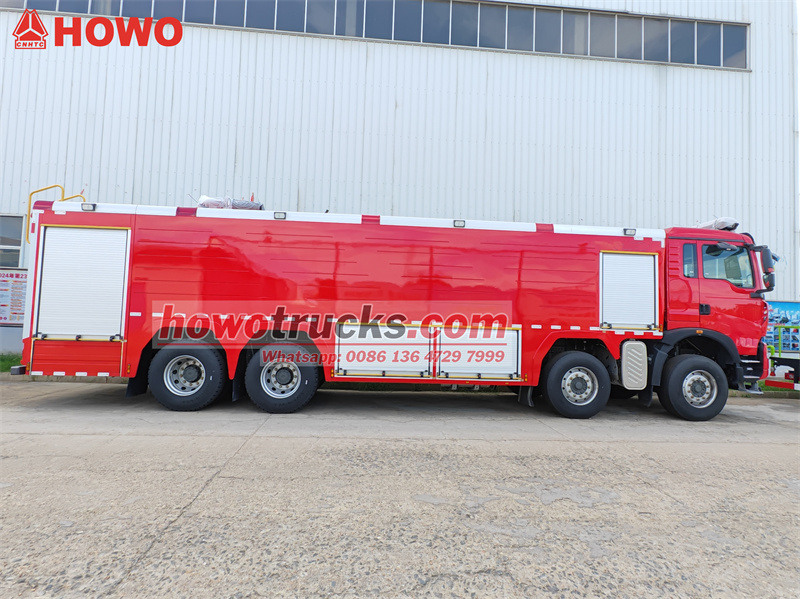

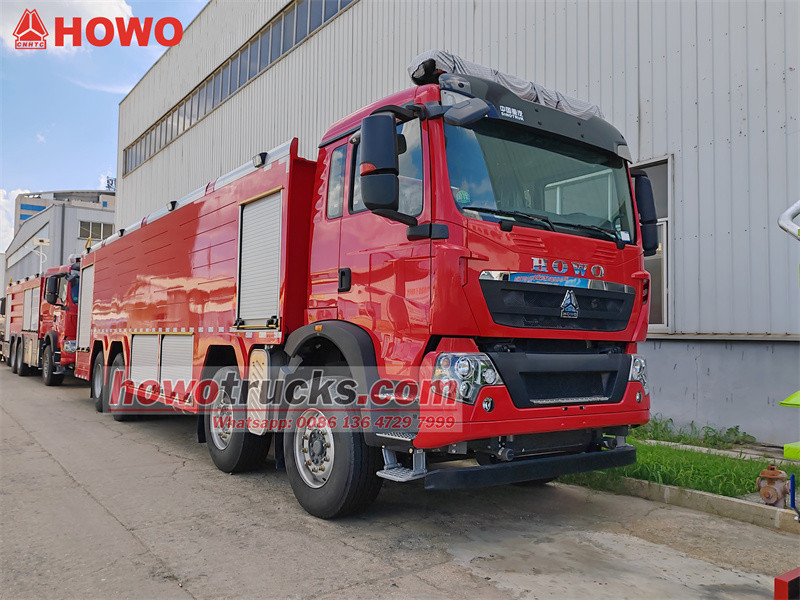

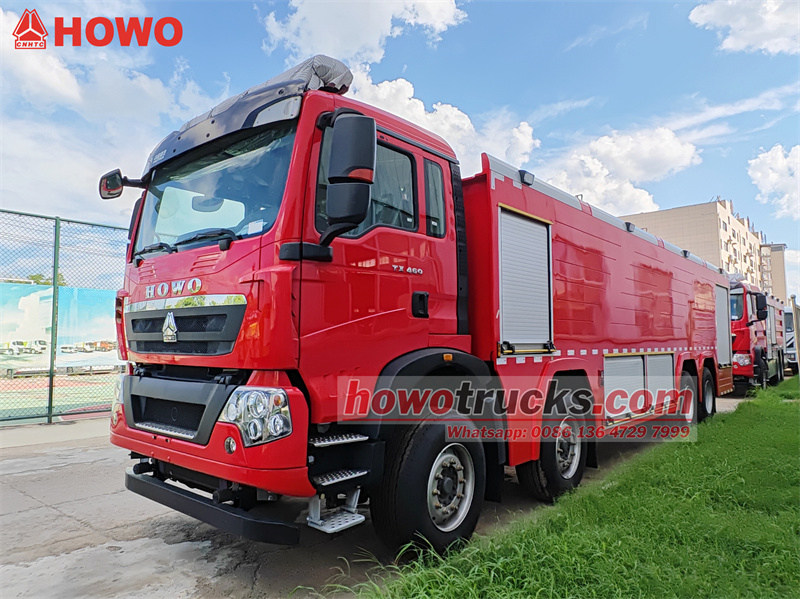

HOWO 8x4 foam water fire truck adopts HOWO TX 8x4 460 horsepower chassis, 1800+3050+1350mm wheelbase, equipped with SINOTRUK MC11.46-61 engine, HW15710L gearbox, the front of the upper body is a storage box, the middle is the tank body, 16 cubic carbon steel water tank, 4 cubic stainless steel foam tank, the equipment box under the tank body is used to place auxiliary firefighting equipment; including fire axes, hammers, shovels, fire extinguishers, fire suits, etc. The tail is the pump room, equipped with CB10/100-XZ fire pump with a flow rate of 100L/s. The pump room is equipped with firefighting equipment, including water collector, water distributor, reducer, fire hose, foam gun, and the top of the tank body is equipped with PL8/64 foam water dual-purpose fire monitor.
Working capacity :
16000L + 4000 LCabin type :
HOWO TX460 luxury cab with sleep berthDrive system :
8x4Wheelbase ( mm) :
1800+3050+1350Engine specific :
460 HP / MC11.46-61Gear box :
HW15710L, manual, 10 forwards & 2 reversesFront axle ( Kg ) :
6500x2Rear axle ( Kg ) :

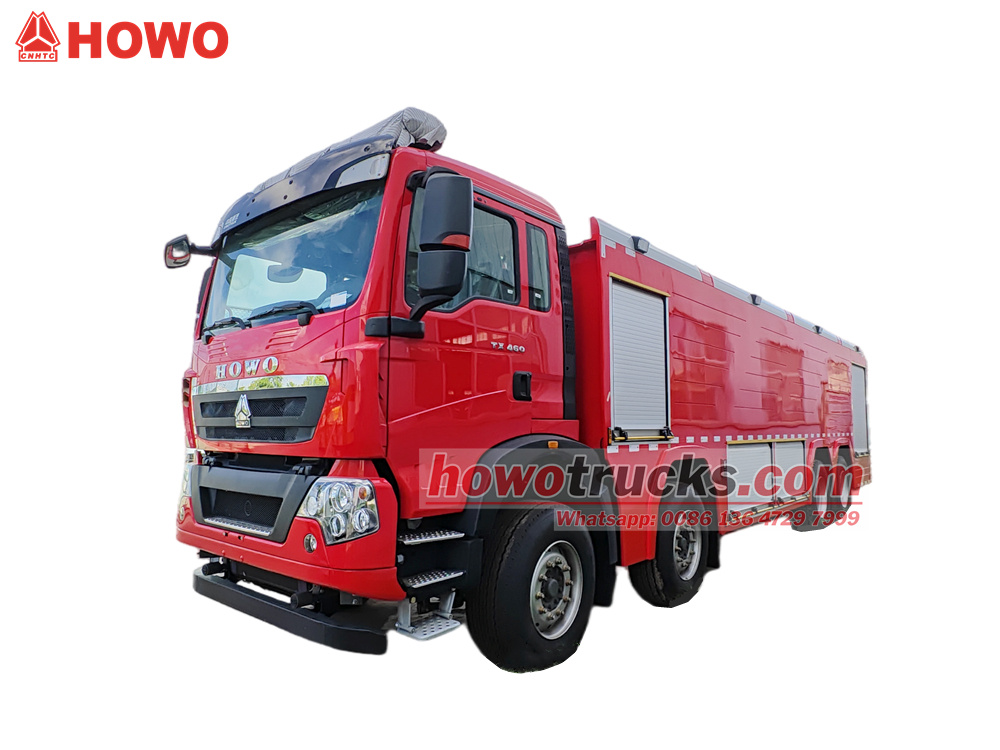

9000x2The Howo 8x4 heavy foam firefighting vehicle is a large-scale, main firefighting equipment that combines the functions of a water tank fire truck and a foam fire truck. It uses the Howo 8x4 heavy-duty chassis and is equipped with a high-horsepower MC11.46-61 Sinotruk engine. The upper water tank has a large loading capacity, and the foam tank has a large capacity. Combined with the powerful CB10/100 fire pump and PL8/48 fire monitor with high flow rate and long range, as well as a complete set of auxiliary firefighting equipment, the overall structure forms a powerful force to conquer fire sources. It is widely used in various large-scale fire fighting work in cities, industrial and mining enterprises, petrochemical enterprises, and other fields.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Features
• Powerful: A 460-horsepower engine paired with a proven chassis ensures rapid response times.
• Large Liquid Capacity: A total capacity of 20CBM(16CBM of water + 4CBM of foam) ensures sustained operational capability.
• Comprehensive Functionality: Combined water and foam extinguishing capabilities are suitable for a wide range of fire types.
• Efficient Operation: A high-flow water pump and long-range fire monitors enable rapid suppression and control of large fires.
• Well-Equipped: Equipment is categorized and easily accessible, meeting the needs of various firefighting and emergency rescue missions.
» Ⅱ. Product Parameter for HOWO 8x4 foam water truck:
| HOWO TX 8x4 foam water fire truck | |||
|
Main specification |
Truck brand |
POWERSTAR |
|
|
Overall dimension(L*W*H) |
9825*2550*3640mm |
||
|
Cabin |
HOWO TX460 cab, one and half row, with air conditioner, electronic windows, USB |
||
|
GVW/Curb weight |
31000/13200kg |
||
|
Chassis |
Chassis model |
HOWO TX |
|
|
Drive model |
8X4,left hand drive |
||
|
Front/rear axle loading |
13000/18000kg(both 2 axles) |
||
|
Wheel Base |
1800+3050+1350mm |
||
|
Tyre size & number |
12.00R20,12+1wheel |
||
|
Transmission |
SINOTRUK HW15710L gearbox, manual, 10 gears forwards with 2 reverse |
||
|
Color |
Red, standard. |
||
|
Max speed |
82km/h |
||
|
Engine |
Engine type |
Inline six-cylinder, water-cooled, four-stroke, supercharged and intercooled, high-pressure common rail |
|
|
Engine model |
SINOTRUK MC11.46-61 |
||
|
Horse power |
460 HP/ 338kW |
||
|
Displacement |
10.518L |
||
|
Max torque |
2200N·m |
||
|
Rated speed |
1900rpm |
||
|
Emission |
EURO 6 |
||
|
WATER TANK AND FOAM TANK SPECIFICATION |
|||
|
Tank |
Capacity |
16,000L water tank and 4000L foam tank |
|
|
Material |
Water tank carbon steel,foam tank stainless steel |
||
|
Fire pump |
Model |
CB10/100-XZ |
|
|
Pressure |
1MPa |
||
|
Max working pressure |
1.56MPa |
||
|
Flux |
100L/s |
||
|
Max suction height |
7m |
||
|
Rated speed |
2320±50r/min |
||
|
Speed Ratio |
1:1.03 |
||
|
Fire monitor |
Model |
PL8/64 |
|
|
Flow |
64L/s |
||
|
Rated working pressure |
0.8MPa |
||
|
Range |
Water |
≥75m |
|
|
Foam |
≥70m |
||
|
Standard configuration |
An alarm rotating light installed on the top of the cab, have ladde, have manhole |
||
» Ⅲ. Product Details

Powerful and Reliable Chassis System
This fire truck utilizes the Sinotruk HOWO TX series 8x4 heavy-duty, specialized chassis, providing a solid foundation and powerful maneuverability.
• Drivetrain: 8x4 (four front and eight rear), 1800mm, 3050mm, and 1350mm wheelbase, offering strong load capacity and excellent driving performance, adaptable to a variety of complex road conditions.
• Engine: Equipped with the Sinotruk MC11.46-61 diesel engine, with a displacement of 10.52 liters and a maximum power of 460 horsepower. This engine is powerful, highly reliable, and meets Euro VI emission standards.
• Transmission: Equipped with the Sinotruk HW15710L manual transmission. This transmission is proven in operation, has a high torque capacity, and is a perfect match for the engine, providing stable and efficient power output.

Fully Functional Superstructure
The superstructure adopts a classic three-section "front-center-rear" design, resulting in a compact structure and clearly defined functional areas.

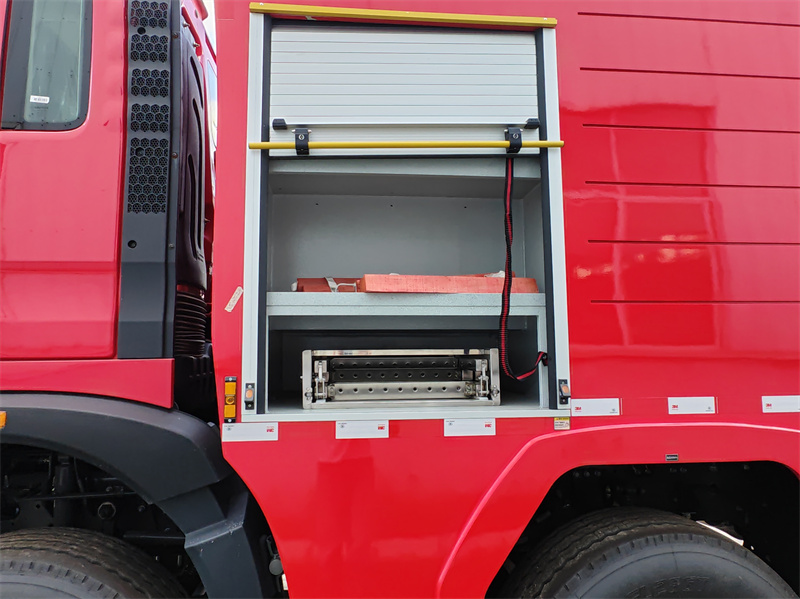

1. Front Equipment Box: Located behind the cab, it provides ample storage space for various onboard firefighting tools.
2. Center Tank: The core liquid storage area.
◇ Water Tank: Made of carbon steel, with a capacity of 16 cubic meters, it provides an ample water supply for long-term firefighting.
◇ Foam Tank: Made of stainless steel, with a capacity of 4 cubic meters, it is used to extinguish fires involving flammable liquids such as oils and chemicals.

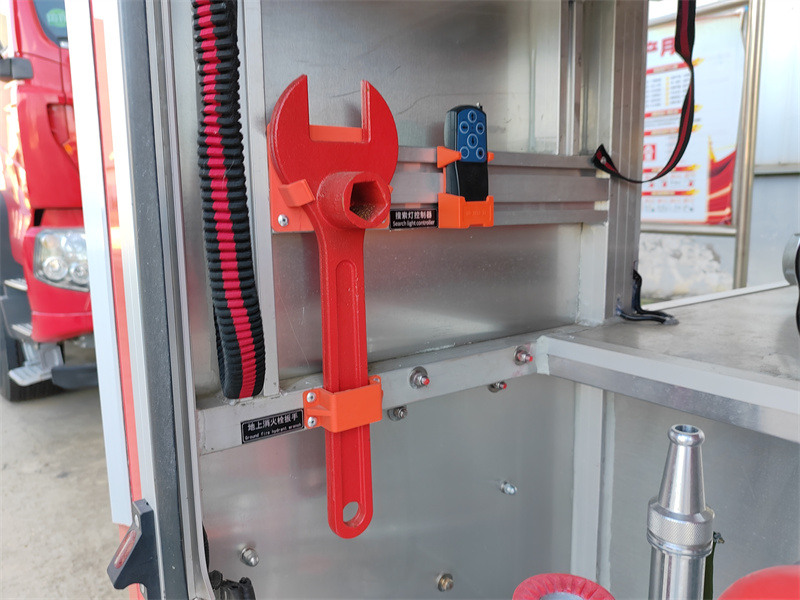

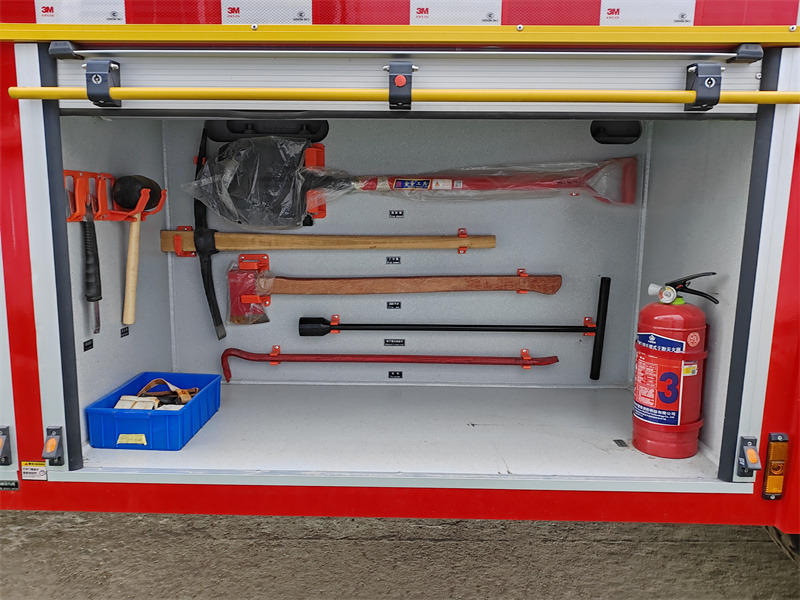

3. Lower Equipment Box: Located underneath the tank, it offers high space utilization. It features an aluminum alloy rolling door that is easy to open and waterproof and dustproof. It houses various firefighting equipment:
◇ Demolition Tools: Fire Axe, Fire Hammer, Iron Collar, and Fire Shears.
◇ Emergency Tools: Fire Shovel, Fire Pickaxe, and Multi-Function Wrench. o Protective Equipment: Firefighting uniforms, air breathing apparatus.
◇ Auxiliary Equipment: Fire extinguishers, hose bridge guards, hose wraps, reducers, etc.

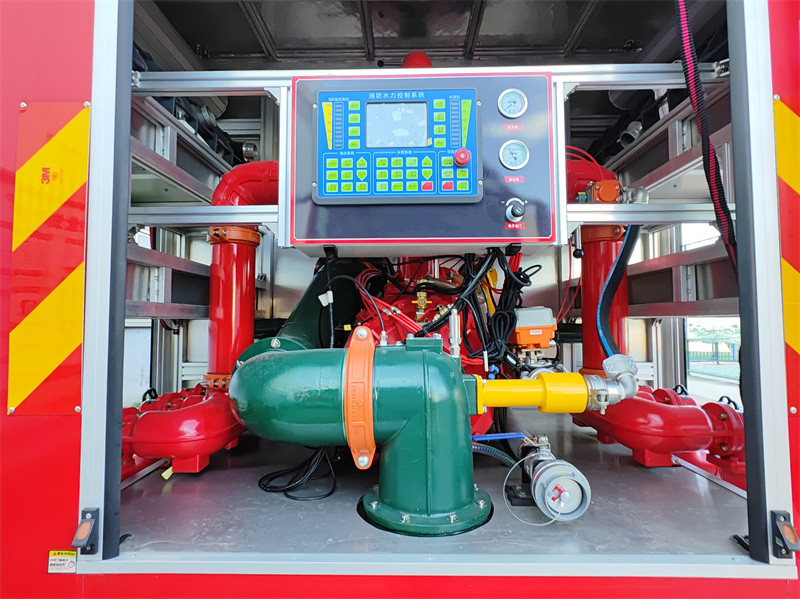

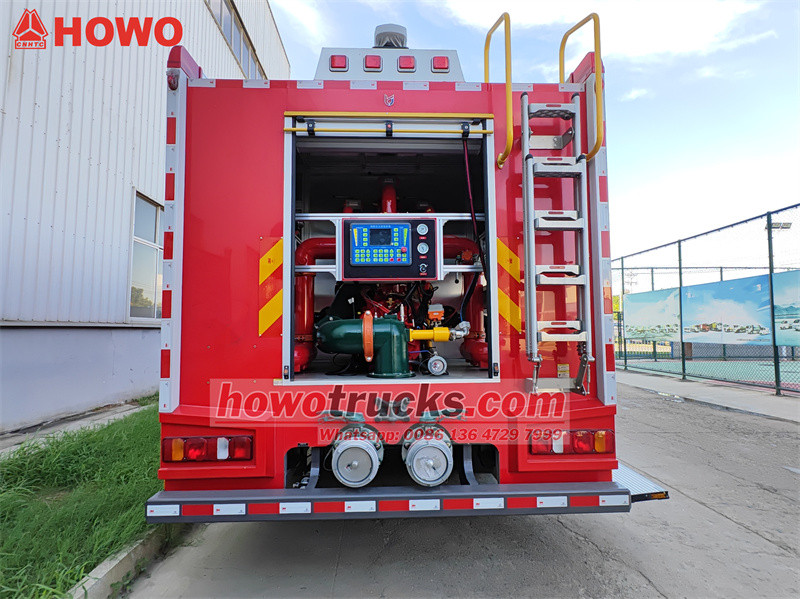

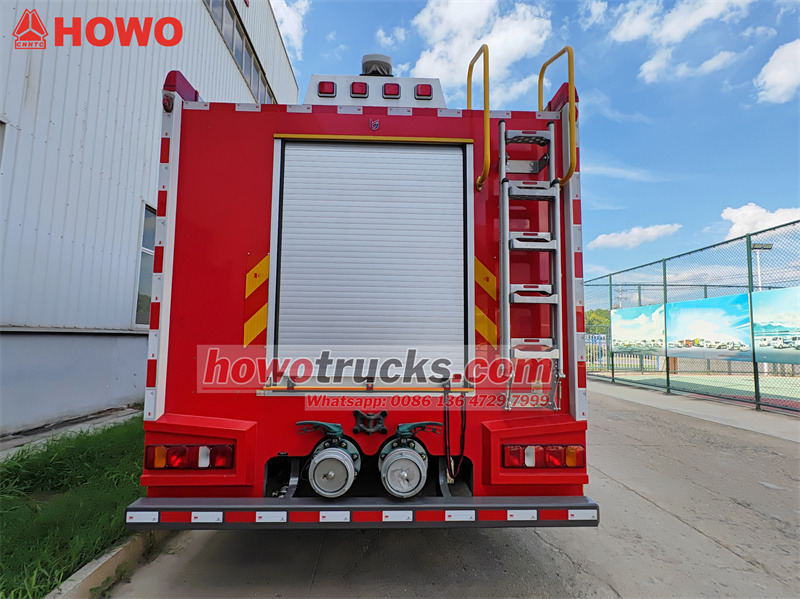

4. Aft Pump Room: Houses the "heart" of the fire truck—the CB10/100-XZ fire pump system.

Highly Efficient Core Fire Extinguishing System
The fire extinguishing system offers superior performance, capable of spraying both pure water and air foam, enabling a variety of firefighting tactics.
• Fire Pump: Equipped with a CB10/100-XZ vehicle-mounted fire pump, rated at 100 L/s @ 1.0 MPa, it features high outlet pressure and robust water supply capacity.
• Fire Monitor: A PL8/64 dual-purpose foam/water monitor is installed on the top of the tank.
◇ It can spray both powerful water jets and liquid foam. It offers a high flow rate (64 L/s), a long range (≥75 m for water, ≥70 m for foam), a concentrated jet, a high foaming ratio, and a large coverage area. It also features both blooming and direct flow capabilities. Pan and tilt locks ensure flexible operation, and the monitor can rotate horizontally and vertically.

• Foam Proportioning System: A built-in mechanical foam proportioning mixer allows for mixing foam in 3% or 6% proportions, ensuring easy operation and rapid response.

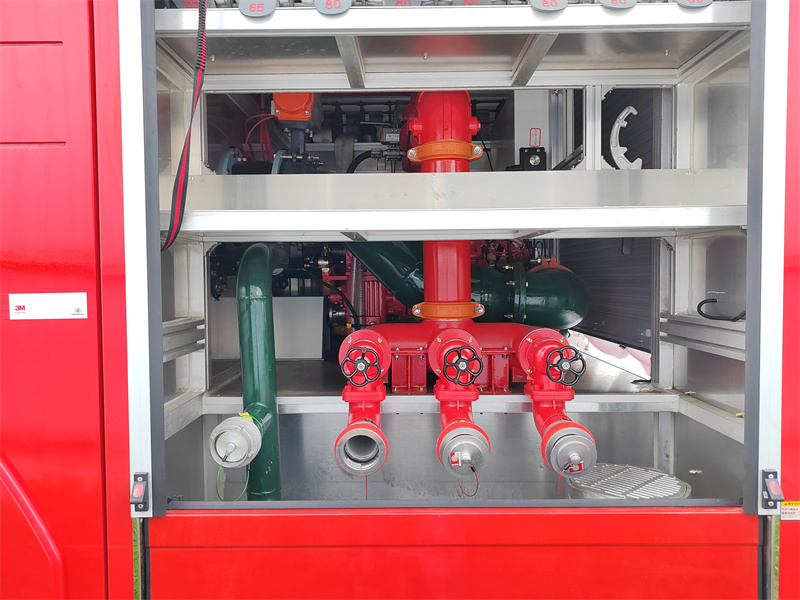

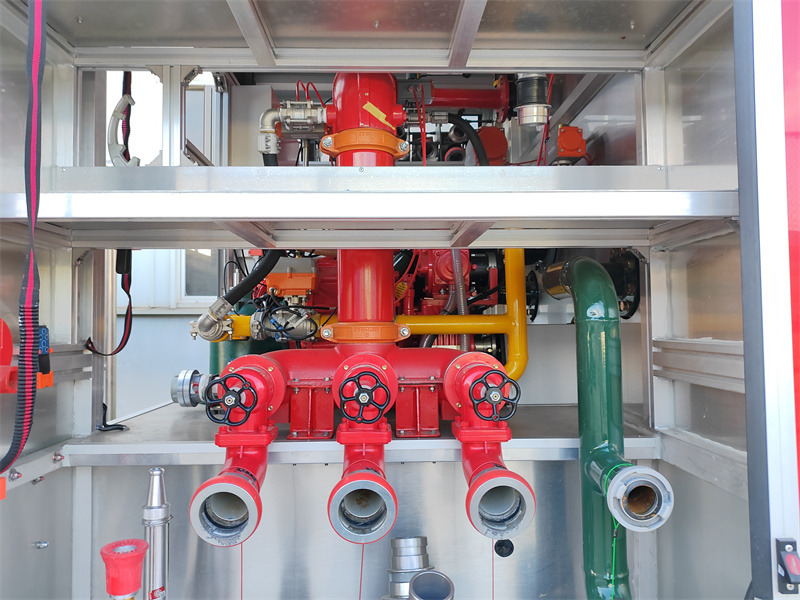

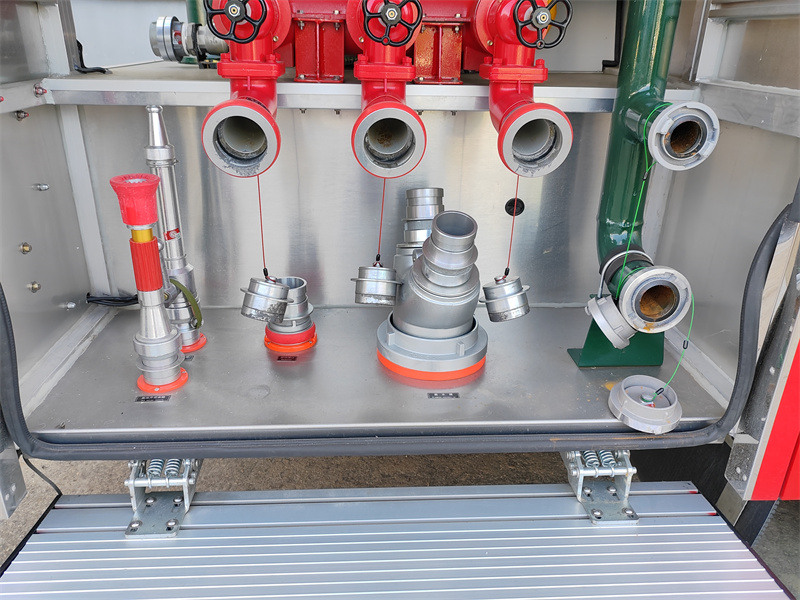

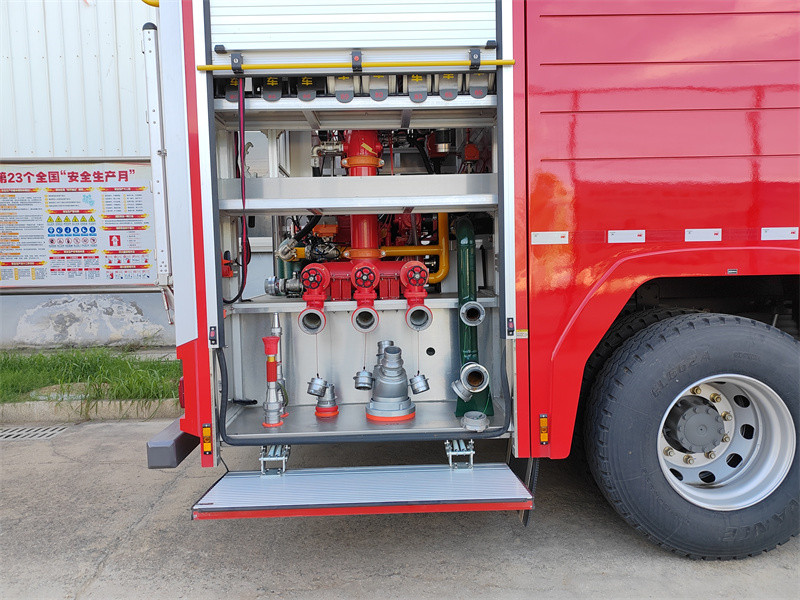

• Ffirefighting equipment (pump room):

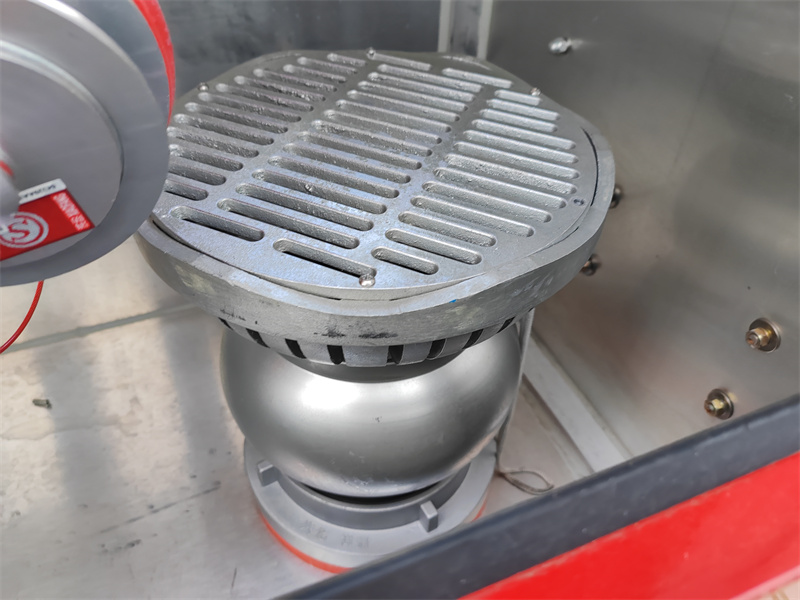

◇ Water suction equipment: Water collector, water filter, water distributor.
◇ Water supply equipment: Water distributor, reducer.
◇ Spraying equipment: Multi-function fire hose, foam gun, water hose, etc.
» Ⅳ. Fire extinguishing principle:
● The HOWO 8x4 foam water fire truck's fire extinguishing principle is based on a dual mechanism of "cooling suppression + suffocation isolation." When dealing with solid fires, its CB10/100-XZ fire pump draws water from a 16-cubic-meter carbon steel water tank. A large stream of water is then sprayed through a PL8/64 fire monitor or water nozzle, rapidly absorbing heat and lowering the temperature of the burning material to below its ignition point, effectively cooling the fire.
● For liquid fires (such as oil), the foam liquid in a 4-cubic-meter stainless steel foam tank is mixed with water in a proportional ratio (3% or 6%) and sprayed through a fire monitor or foam nozzle, forming a foam layer that covers the burning surface. The water in the foam further cools the fire while simultaneously sealing off the air and oxygen supply, achieving a dual effect of suppressing the fire.
● The vehicle is also equipped with a water distributor and water collector, enabling flexible switching of water sources and multi-channel water supply, enhancing sustained firefighting capabilities and adapting to the demands of complex fire scenes.
|
Specifications |
Working Condition |
Flow |
Exit Pressure |
Rated Speed |
Shaft Power |
Suction Depth |
|
CB10/100 |
1 |
100 |
1.0 |
2270±50 |
154 |
3 |
|
2 |
70 |
1.3 |
2320±50 |
140 |
3 |
|
|
3 |
50 |
1.0 |
2050±50 |
115 |
7 |
CB10/100 fire pump
|
Model |
Flow (L/s) |
Range(m) |
Rated working pressure(Mpa) |
Pitch rotation (°) |
Horizontal rotation (°) |
Length × Width × Height (mm) |
Weight (Kg) |
|
|
Water |
Foam |
|||||||
|
PL8/64 |
64 |
≥75 |
≥70 |
0.8 |
-45~+70 |
0~360 |
1440*425*600 |
27 |
PL8/64 fire monitor
