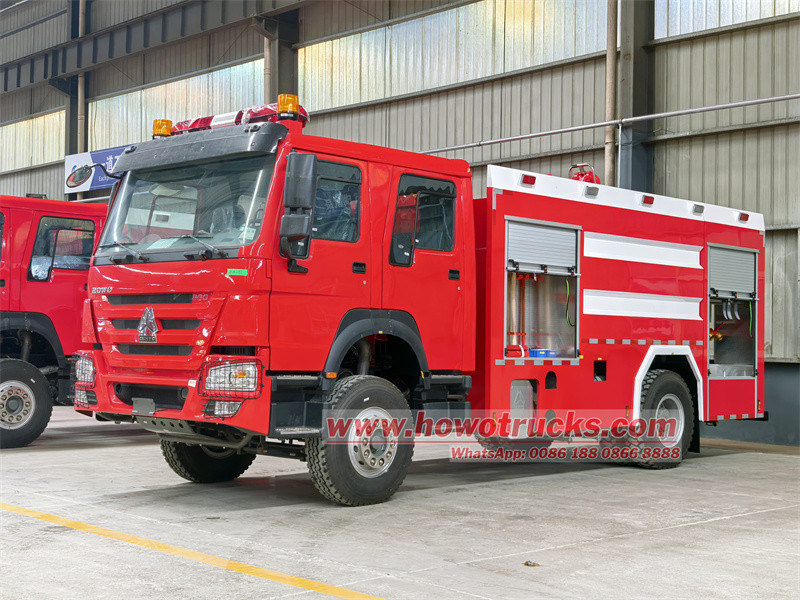

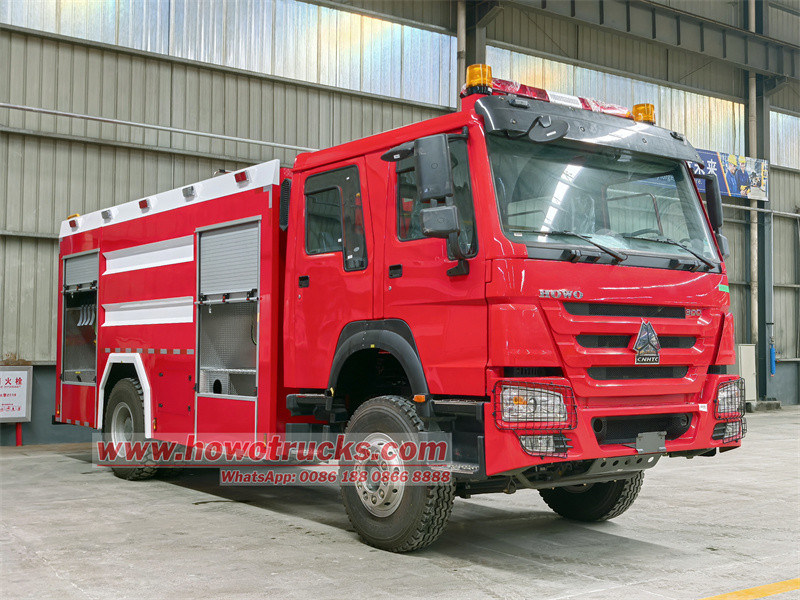

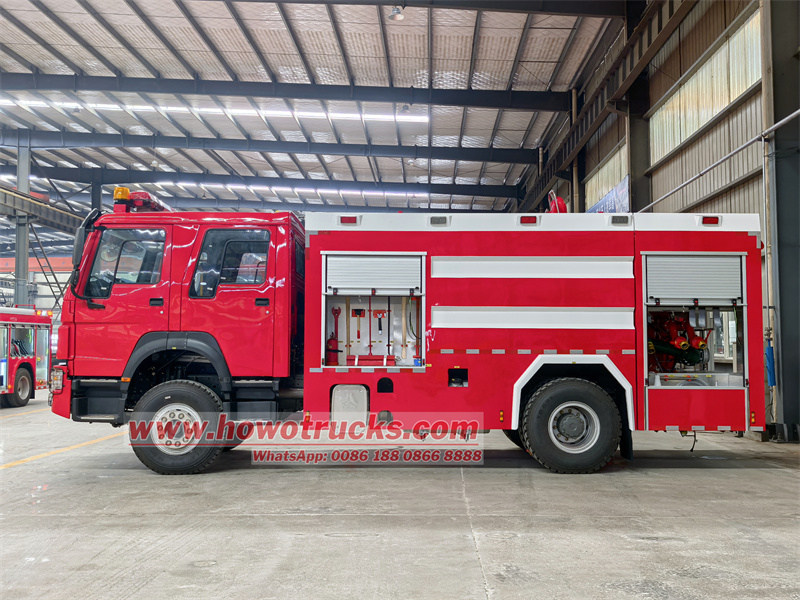

The Howo 5 cubic meter foam fire truck adopts a Sinotruk HW76 cab with a 4600mm wheelbase, equipped with a WEICHAI WP10.300E22 engine and an HW19710 gearbox. The front of the superstructure houses an equipment compartment storing various firefighting equipment, while the middle section contains a 4 cubic meter carbon steel water tank and a 1 cubic meter foam tank. The rear houses the pump room, equipped with a CB10/60-RS fire pump, control panel, and some firefighting equipment. A PL8/48 fire monitor is mounted on the roof.
Working capacity :
5000LCabin type :
HOWO HW76Drive system :
4X2Wheelbase ( mm) :
4600Engine specific :
300 HP / WEICHAI WP10.300E22Gear box :
HW19710 , manual, 10 forwards & 2 reversesFront axle ( Kg ) :
9500Rear axle ( Kg ) :

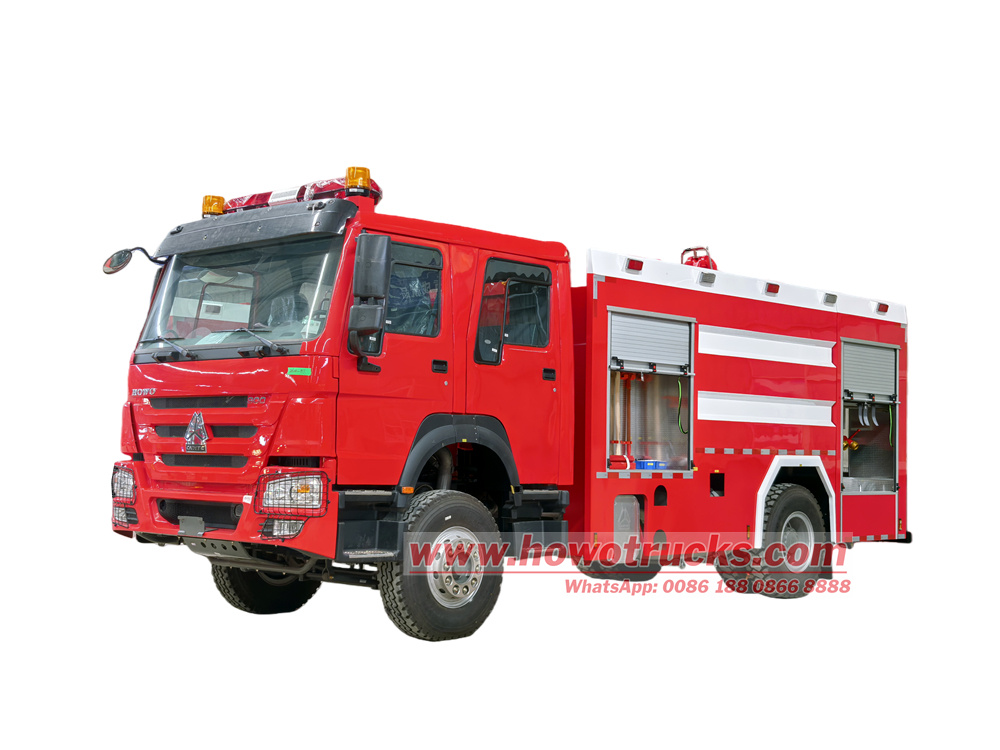

16000kgThe Sinotruk HOWO rescue pumper truck for police is a highly mobile, fast-responding, foam-spraying medium-sized fire truck suitable for fire and rescue missions in cities, towns, industrial and mining enterprises, and ports. Modified from the Sinotruk Howo HW76 chassis, equipped with a 300-horsepower engine, the vehicle features a rational layout, reliable performance, and a 5-cubic-meter water and foam system, along with a high-quality fire pump and monitor, giving it excellent fire-fighting capabilities.

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS GROUP LIMITED
Features
Reliable Chassis: Utilizes a Sinotruk HW76 chassis, a Weichai 300hp engine, and an HW19710 transmission, providing strong power and efficient transmission.
Practical Tank: A 4-cubic-meter water tank plus a 1-cubic-meter foam tank, suitable for combined water and foam operations in small to medium-sized fires.
Strong Firefighting Capacity: Equipped with a CB10/60-RS pump and a PL8/48 roof-mounted water cannon, offering high flow rate, rapid water intake, and long range.
Reasonable Structure: Clearly defined zones for front equipment, middle tank, and rear pump room, facilitating easy access to equipment.
Widely Applications: Suitable for initial fire suppression in urban areas, towns, industrial and mining facilities, oil depots, and chemical plants.
» Ⅱ. Product Parameter for HOWO 300HP foam fire rescue truck:
| HOWO 5cbm foam water fire truck | |||
|
Main specification |
Truck brand |
CS TRUCKS |
|
|
Overall dimension(L*W*H) |
8580×2540×3660mm |
||
|
Cabin |
HOWO HW76 cab, double row, with air conditioner, electronic windows, USB |
||
|
GVW/Curb weight |
16000/10500kg |
||
|
Drive model |
4x2,left hand drive |
||
|
Front/rear axle loading |
VGD95, 9500/MCX16, 16000kg |
||
|
Wheel Base |
4600mm |
||
|
Tyre size & number |
12.00R20,6+1wheel |
||
|
Transmission |
SINOTRUK HW19710, manual, 10 F & 2 R |
||
|
Color |
Red, standard. |
||
|
Engine |
Engine type |
Inline six-cylinder, water-cooled, four-stroke, supercharged and intercooled, high-pressure common rail |
|
|
Engine model |
WEICHAI WP10.300E22 |
||
|
Horse power |
300 HP/ 221kW |
||
|
Displacement |
9.726L |
||
|
Emission |
EURO 2 |
||
|
Upper body |
|||
|
Tank |
Capacity |
4000L water tank,1000L foam tank |
|
|
Material |
Water tank carbon steel,foam tank stainless steel |
||
|
Fire pump |
Model |
CB10/60-RS |
|
|
Pressure |
1MPa |
||
|
Max working pressure |
1.082MPa |
||
|
Max allowable inlet pressure |
0.4MPa |
||
|
Flux |
60L/s |
||
|
Max suction height |
7m |
||
|
Rated speed |
3200±50r/min |
||
|
Speed Ratio |
1:1.44 |
||
|
Fire monitor |
Model |
PL8/48 |
|
|
Flow |
48L/s |
||
|
Rated working pressure |
0.8MPa |
||
|
Range |
Water |
≥70 m |
|
|
Foam |
≥60m |
||
|
Pitch rotation |
- 45~+70° |
||
|
Horizontal rotation |
0~360° |
||


» Ⅲ. Chassis Configuration

• Cab: Sinotruk HW76 extended cab, offering excellent visibility and comfortable ride.
• Wheelbase: 4600mm
• Engine: Weichai WP10.300E22 diesel engine, 9.726L displacement, maximum power 220kW/300hp.
• Transmission: Sinotruk HW19710 series 10-speed manual transmission, offering clear gear positions, high transmission efficiency, and adaptability to complex road conditions.

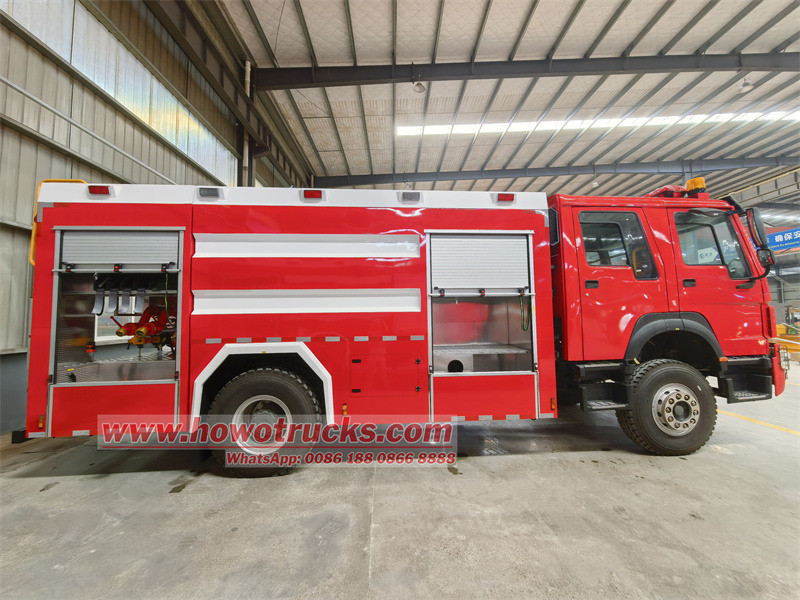

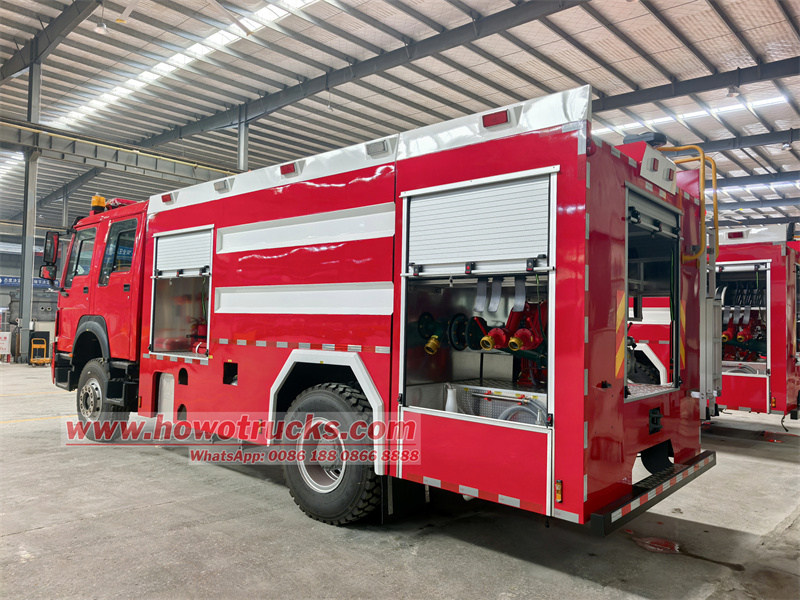

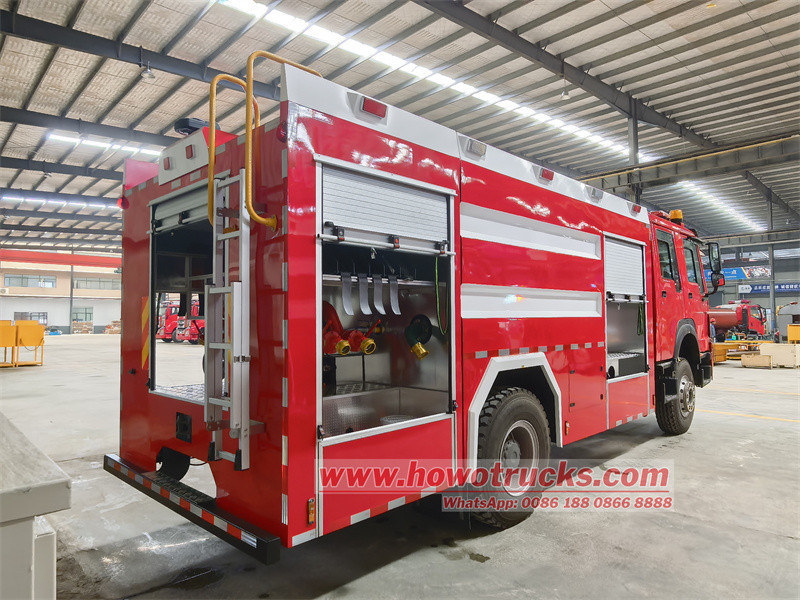

The upper structure adopts a modular design, divided into four main areas: equipment room, water tank, foam tank, and pump room.

1. Equipment Room (Front)
• Located behind the driver's cab, it offers ample space, fully clad in bright aluminum alloy patterned panels, and features an aluminum alloy roller shutter door.
• It can store commonly used firefighting equipment such as fire shovels, axes, picks, above-ground and underground fire hydrant wrenches, crowbars, waist axes, rubber hammers, hose bridges, hose covers, fire extinguishers, etc. These equipment items are stored in fixed locations, clearly labeled, and easily accessible.

2. Liquid Tanks (Middle Section)
• Water Tank Capacity: 4 cubic meters, carbon steel, with internal baffles to reduce swaying during driving.
• Foam Tank Capacity: 1 cubic meter, separate from the water compartment, stainless steel.

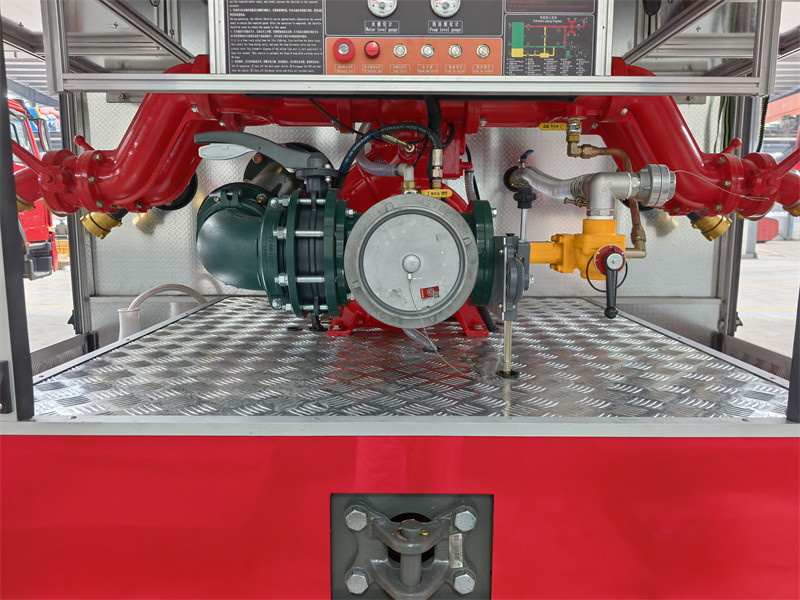

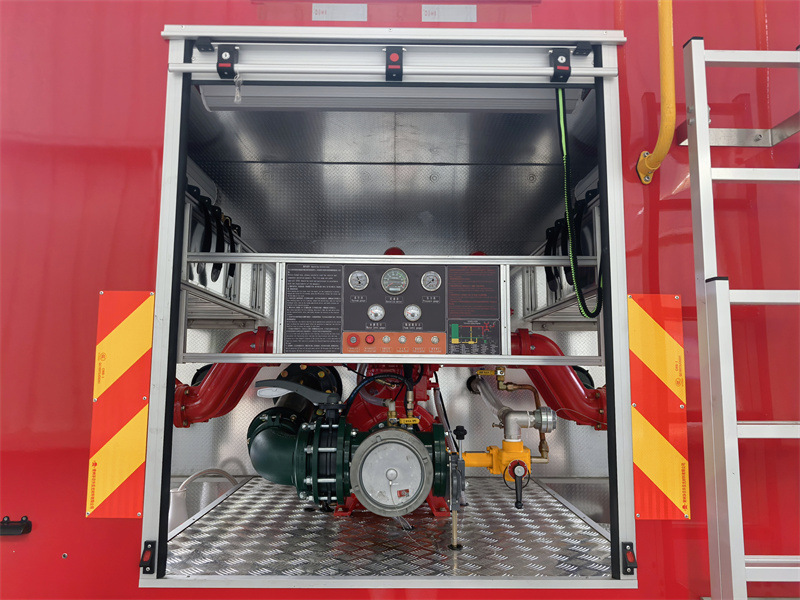

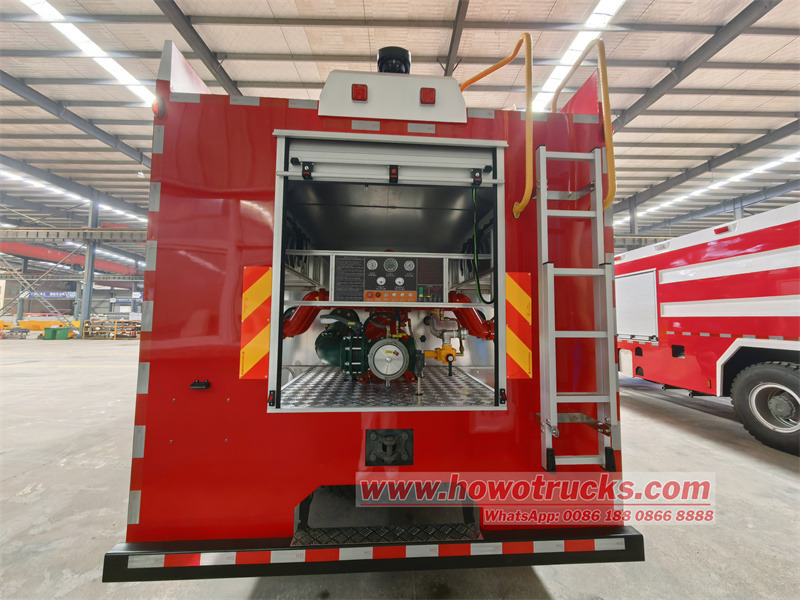

3. Pump Room (Rear End)
The rear pump room is the core of the vehicle's power output; all firefighting operations rely on the pump room system.
• Features an aluminum alloy roller shutter door and aluminum alloy frame.

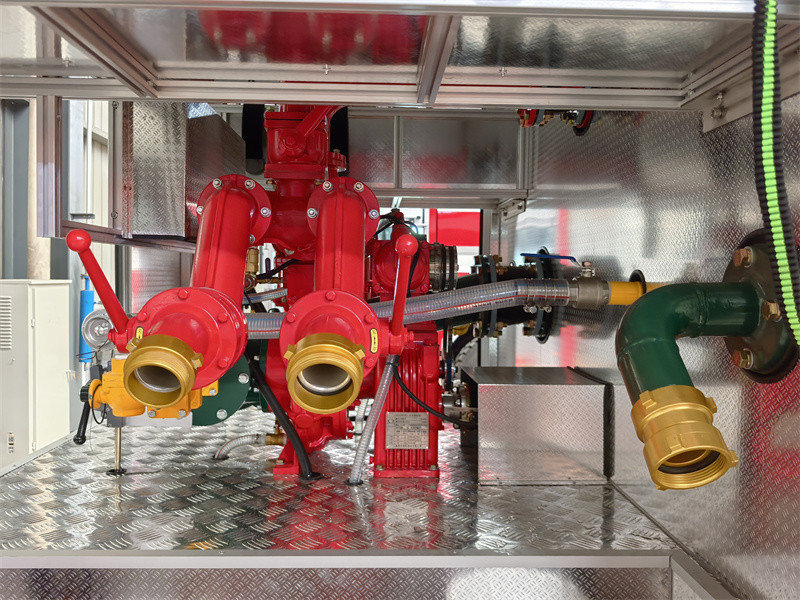

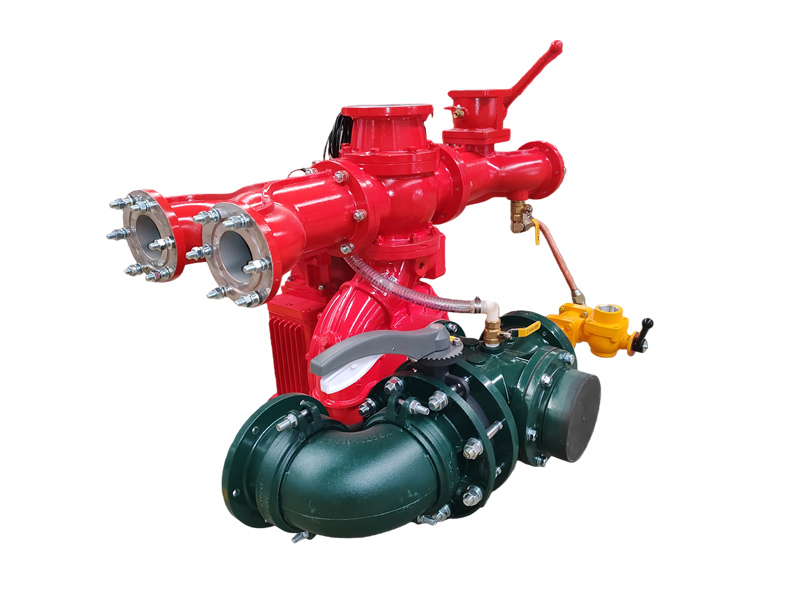

• Fire Pump: Equipped with a CB10/60-RS low-pressure fire pump,
Rated flow rate 60L/s @ 1.0MPa,
Maximum suction depth 7m,
Priming time ≤50s,
Maximum vacuum ≥85kPa
|
Fire pump Model |
Flux(L/s) |
Pressure(MPa) |
Pump shaft speed(rpm) |
Power(kw) |
Suction depth(m) |
Max working pressure |
|
CB10/60-RS |
60 |
1.0 |
3200±50r/min |
99.71 |
3 |
1.082MPa |
|
42 |
1.3 |
3528±50r/min |
109.18 |
- |
||
|
30 |
1.0 |
3326±50r/min |
- |
7 |
- |

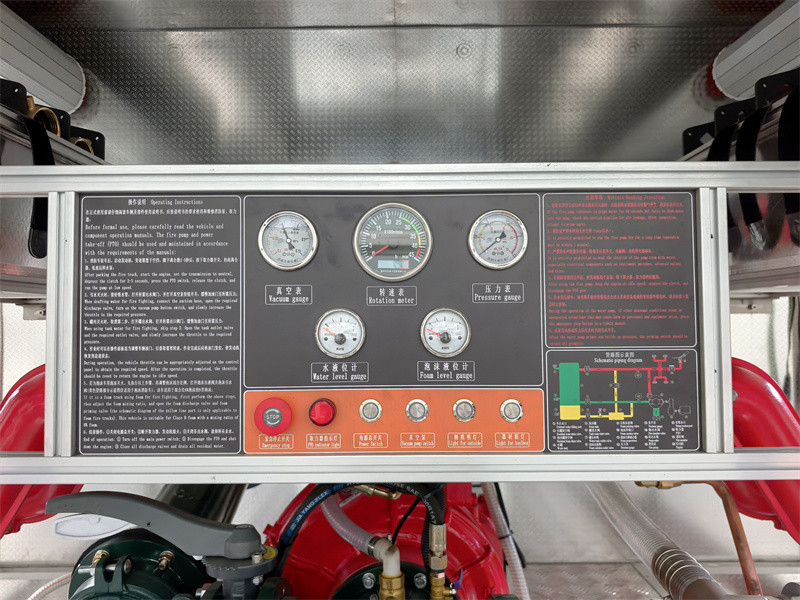

• Control Panel:
Integrated with operating instructions, precautions, piping diagram, and indicators for vacuum gauge, tachometer, pressure gauge, water level gauge, foam level gauge, etc.; buttons for emergency stop switch, PTO indicator, main power switch, vacuum pump, side lighting, and equipment box indicator; intuitive operation.

• Piping System:

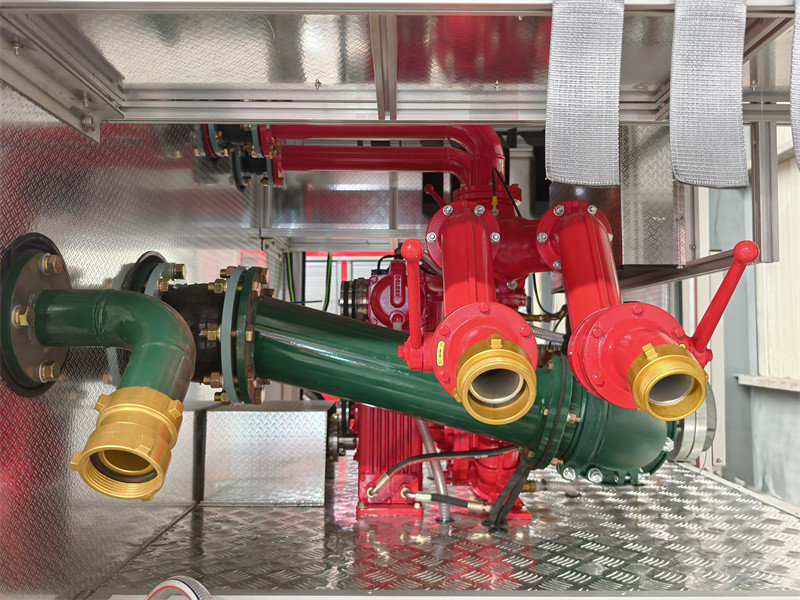

Includes a DN150 pump inlet, two DN100 external water inlets on either side of the tank, and one DN80 and one DN65 outlet on each side of the pump. Enables self-priming of the tank, external water supply, output of water or foam mixture from within the tank, and simultaneous operation of fire monitors/hose.

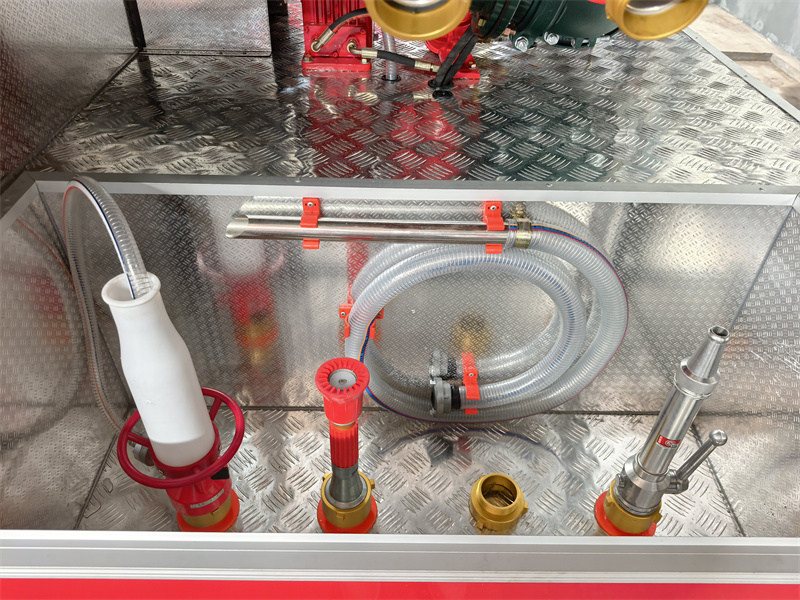

• Firefighting Equipment:

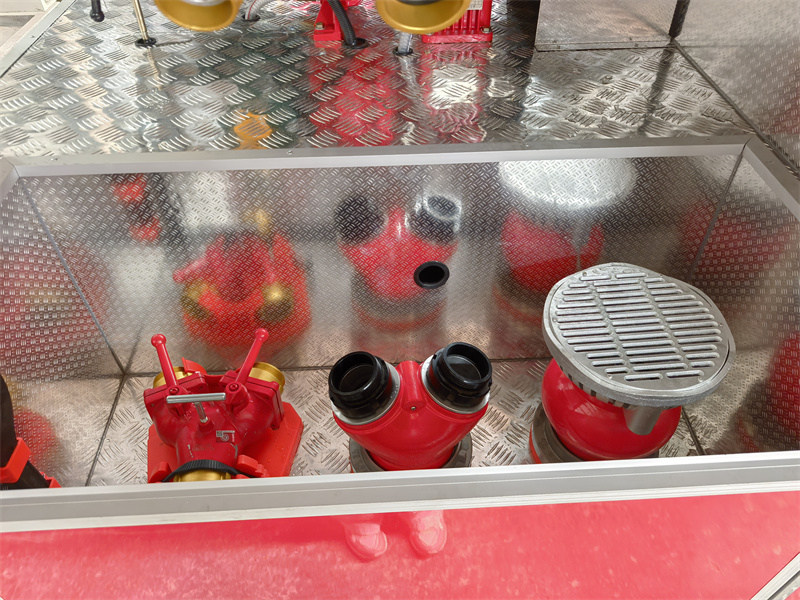

The pump room is equipped with fire hoses, foam guns, reducers, foam suction pipes, water collectors, filters, distributors, and fire hoses.

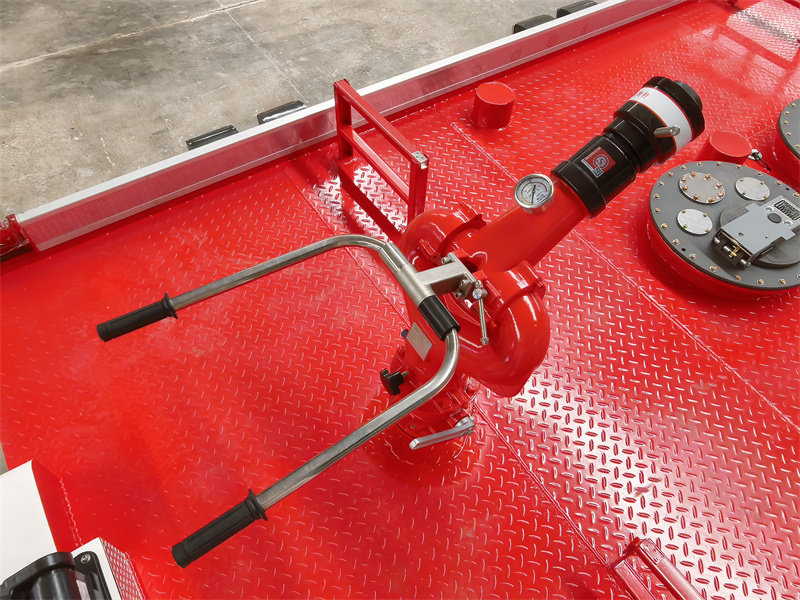

4. Tank-top fire monitor:

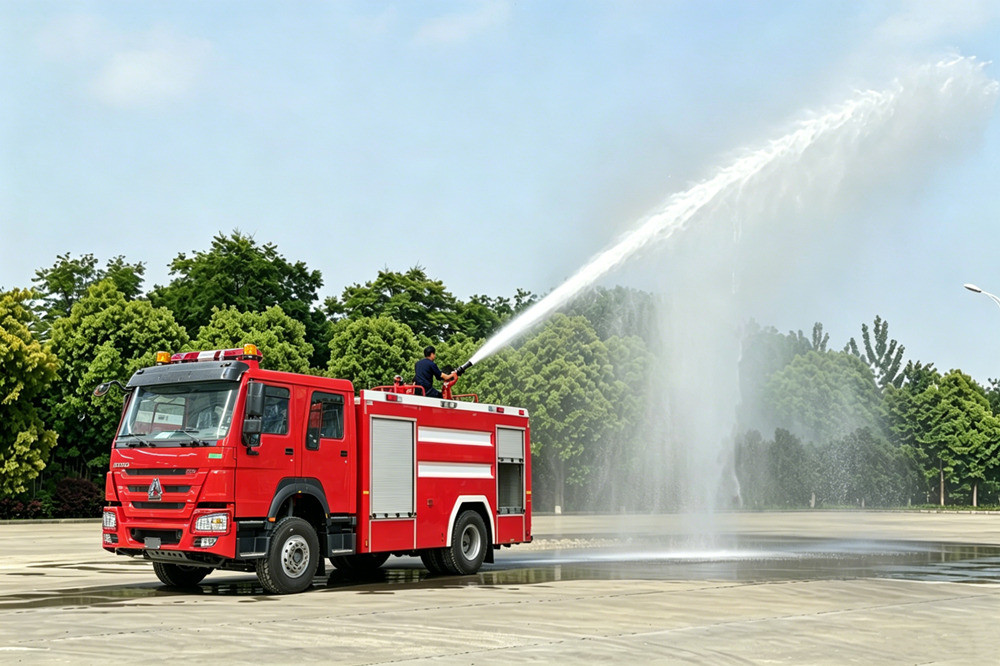

Model: PL8/48, flow rate 48L/s, range ≥70m for water, ≥60m for foam, 360° horizontal rotation, -45°~+70° elevation. Suitable for long-distance suppression of large-area fires, striking fire points at heights, and extinguishing fires in dangerous areas inaccessible to personnel. It is the most aggressive output end of the entire vehicle.
