HOWO TX 15000L foam fire engine

HOWO TX 15000L foam fire engine

The HOWO Foam Fire Truck is a heavy-duty firefighting apparatus built on a durable HOWO 6×4 chassis, combining powerful fire suppression capabilities with excellent mobility. It is equipped with a 460-horsepower engine, and the total capacity of its water tank and foam tank reaches 15 cubic meters. Paired with a high-flow fire pump and monitor, it achieves a water jet range of over 60 meters, making it specifically designed for combating large-scale fires. The vehicle features a durable carbon steel water tank and a stainless steel foam tank, along with a double-row cabin that can accommodate six personnel and a full-power PTO system, ensuring rapid deployment and sustained operation. Its outstanding performance and reliability make it an effective tool for tackling oil-based and industrial fires.

  • Working capacity :

    15000 liters
  • Cabin type :

    HOWO TX
  • Dimension (mm ) :

    9580×2540×3660
  • Drive system :

    6×4
  • Wheelbase ( mm) :

    4300+1400
  • Engine specific :

    460HP/MC11.46
  • Gear box :

    HW19710
  • Front axle ( Kg ) :

    7340
  • Rear axle ( Kg ) :

    10380/10380
  • Remark :

    Stainless steel tank, PP tank, 4×4, 6×6, 8×4, RHD drive is optional
New Products

The HOWO Foam Fire Truck is heavy-duty firefighting apparatus built on a Sinotruk HOWO 6×4 chassis, delivering exceptional fire suppression capabilities. It adopts a 6×4 drive configuration and is powered by a 460-horsepower MC11.46 engine paired with a 10-speed manual transmission, ensuring both power and reliability. A key feature of this vehicle is its large liquid capacity, with the water tank and foam tank totaling 15 cubic meters. Combined with the CB10/60 fire pump and PL8/48 fire monitor, it achieves an effective jet range of over 60 meters.

The structural design of this HOWO firefighting vehicle emphasizes practicality. The water tank is made of high quality carbon steel, while the foam tank is constructed from stainless steel, ensuring long-term durability. Its double-row cabin can accommodate six personnel, and together with the full-power PTO system, it enables rapid response to fire emergencies. The vehicle is easy to operate and maintain, making it suitable not only for urban firefighting but also particularly effective in specialized settings such as oil depots and ports for extinguishing oil-based fires. It serves as a reliable safeguard for tackling large-scale fires.

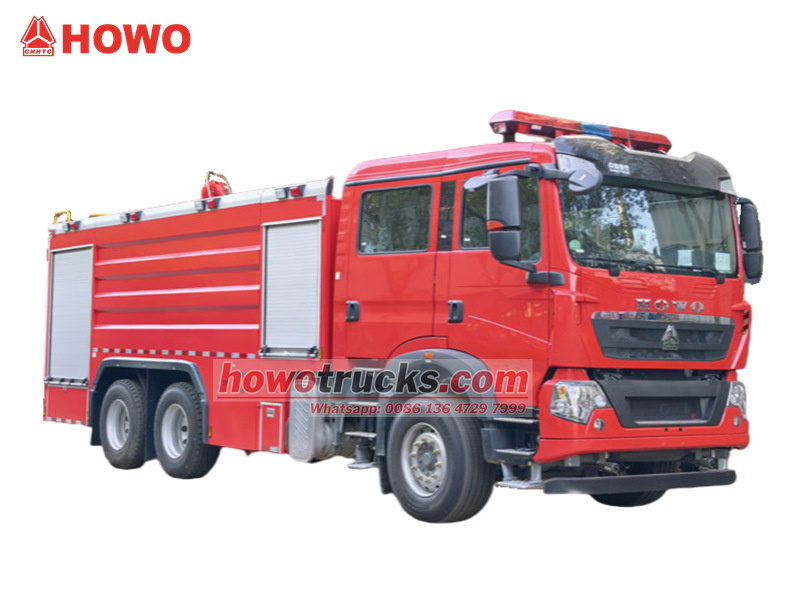

HOWO 6×4 foam fire truck



*HOWO Heavy-duty Fire Engine

HOWO 15000 liters Water Foam Fire Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



»» Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS



Product Features

Powerful Engine: Equipped with a 460-horsepower engine, providing strong traction and operational power.

Large Liquid Capacity: The total volume of the water tank and foam tank is 15 cubic meters, ensuring sustained firefighting capability.

Long Range: The fire monitor achieves a jet range of ≥60 meters, enabling efficient long-distance fire suppression.

Reliable Configuration: Features a conventional pressure fire pump and a full-power PTO system, ensuring high operational efficiency.

 Wide Applicability: Specifically designed for extinguishing oil-based and industrial fires, adaptable to various complex scenarios.

HOWO15000 ltr tanker firefighting truck



»» Ⅱ. Product Parameter for HOWO water foam fire truck:



HOWO water foam fire truck specifications

Chassis

Brand

SINOTRUK

Model

HOWO

Gross vehicle weight(kg)

281000

Curb weight (kg)

12400

Wheelbase(mm)

4300+1400 mm

Dimensions(mm)

9580*2540*3660 mm

Overhang (front/rear) (mm)

1500/2380 mm

Wheel track (front/rear) (mm)

2110; 1830/1830 mm

Approach/Departure angle(°)

15/12°

Front axle load (kg)

7340

Rear axle load (kg)

10380/10380

Max. driving speed(km/h)

100 km/h

Clutch

Reinforced diaphragm clutch

Brakes

Service brake: dual circuit compressed air brake
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

Number

10 pcs with one spare tire

Specifications

315/80R22.5

Gear box

HW19710, Manual type, 10 Forwards & 2 Reverses

Cabin

Four doors with 2+4 seats. With Air conditioner

Engine

Brand

SINOTRUK

Model

MC11.46

Fuel type

Diesel

Type

4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Displacement(ml)

10518 ml

Power(kw)

338 kw

Horsepower(HP)

460 HP

Rated speed (rpm)

1900 rpm

Max Torque (N.m)

2200 N.m

Upper body

Water tank

Volume(CBM)

13000 liters

Tank Material

Q235 Carbon steel

Foam tank

Volume(CBM)

2000 liters

Tank Material

Stainless steel

Proportion control system

Foam vessel, proportioned equipment, water - entering pipe and liquid - out pipe etc

Fire pump

Type

Centrifugal pump

Model

CB10/60

Flow(L/s)

60

Pressure(Mpa)

1

Fire fighting pump Suction depth

≥ 7 m

Fire fighting pump Suction Time

≤45 s

Fire monitor

Model

PL8/48

Flow(L/s)

48 L/s

Water Range(m)

≥60 m

Foam Range(m)

≥55 m

Rotation angle

Horizontal

360 °

Pitch angle

-15°~70°





HOWO 6×4 foam tender fire truck





»» Ⅲ. Product Advantages



HOWO TX firefighting truck

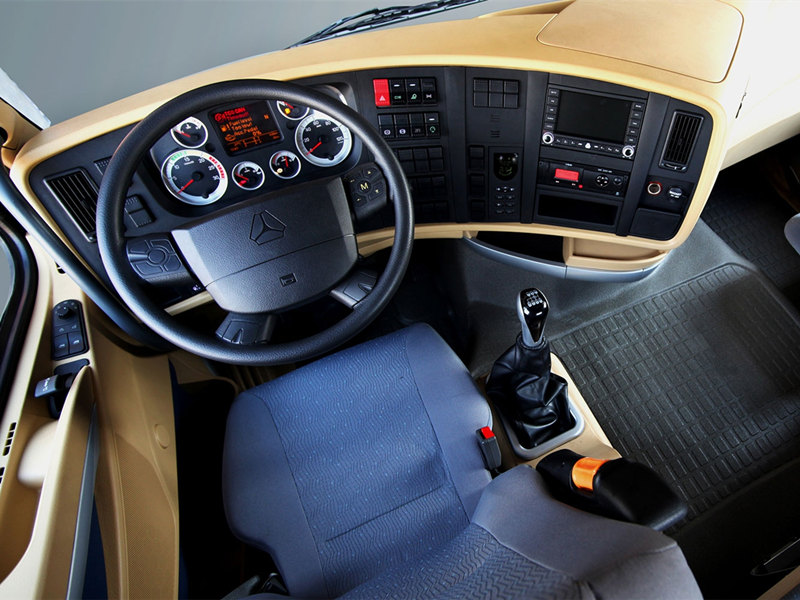

HOWO TX cabin

★ High Comfort

The well-designed instrument panel and door switches, an optimized four-point suspension cab, air-suspended seats with lumbar support, and a slatted bunk design provide users with a driving experience comparable to that of international high-end heavy-duty trucks.

★ High Safety
The vehicle's body stiffness and strength meet international standards, complying with the European ECE R29 cab safety regulations.

★ Spacious Interior
Ample storage space is available for easy organization of various toolboxes and supplies.





HOWO 10 wheeler heavy fire truck

SINOTRUK MC11.46 engine

★ Power Performance

Maximum net power: 460 PS
Maximum torque: 2200 Nm
Engine speed at maximum torque: 1000–1400 rpm

★ Fuel Economy

Lowest specific fuel consumption: below 183 g/kWh
Wide range of economical operating areas in the fuel consumption map

★ Reliability

Rigorous bench and vehicle durability testing
Oil change interval: 100,000 km



HOWO 6×4 foam tender

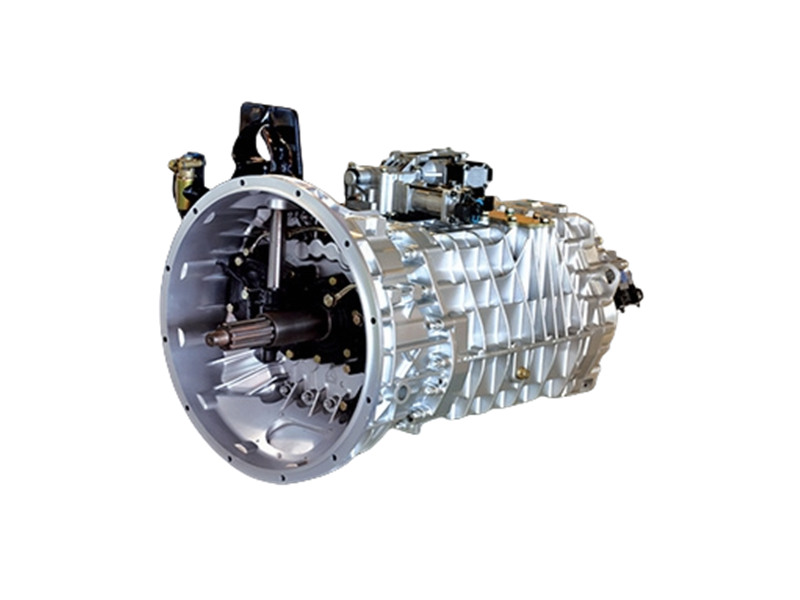

SINOTRUK HW19710 gearbox

★ Reliable Drive

The main gearbox utilizes a dual-countershaft design, while the auxiliary section employs a planetary gear mechanism, significantly enhancing the overall reliability of the assembly.

★ Easy Maintenance
The housing features an advanced vertically-split structure, facilitating easier assembly and maintenance.

★ All-Condition Lubrication
It incorporates an active lubrication system, ensuring reliable operation even on steep slopes.





HOWO water foam firefighting truck

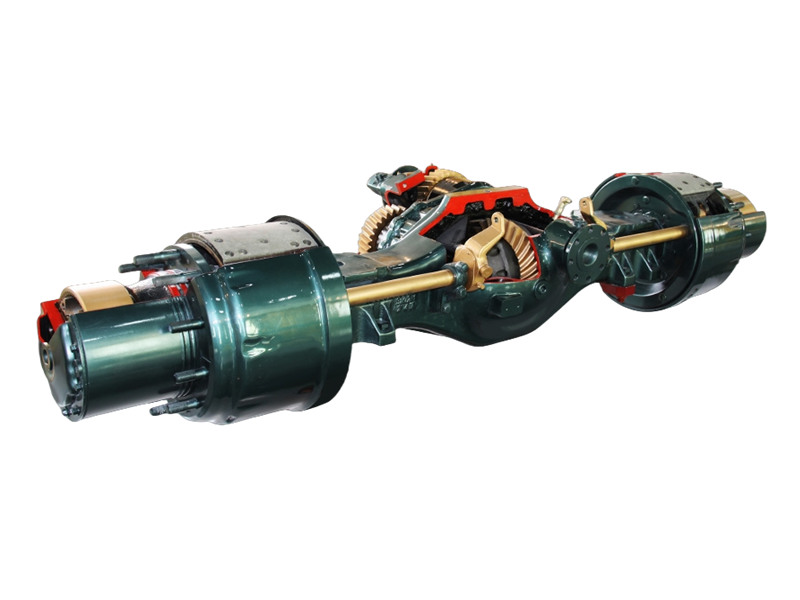

SINOTRUK axles

★ Rugged & Durable

Utilizing innovative engineering, the axle structure is robust, delivering exceptional durability and reliability.

★ Efficient & Economical

The optimized design significantly improves transmission efficiency, effectively reduces fuel consumption, and achieves superior fuel economy.

★ Low-Noise

Advanced manufacturing and processing techniques minimize driving noise, enhancing the driving and riding comfort.





HOWO foam tanker fire engine

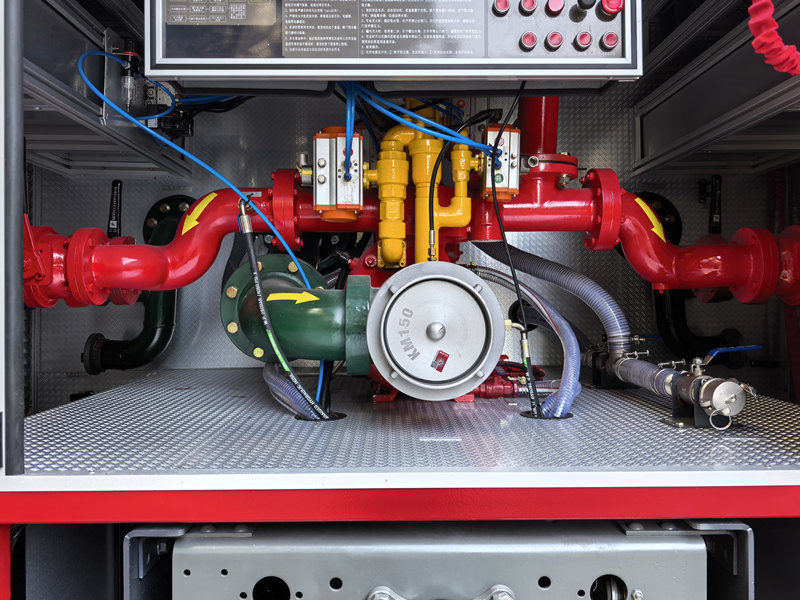

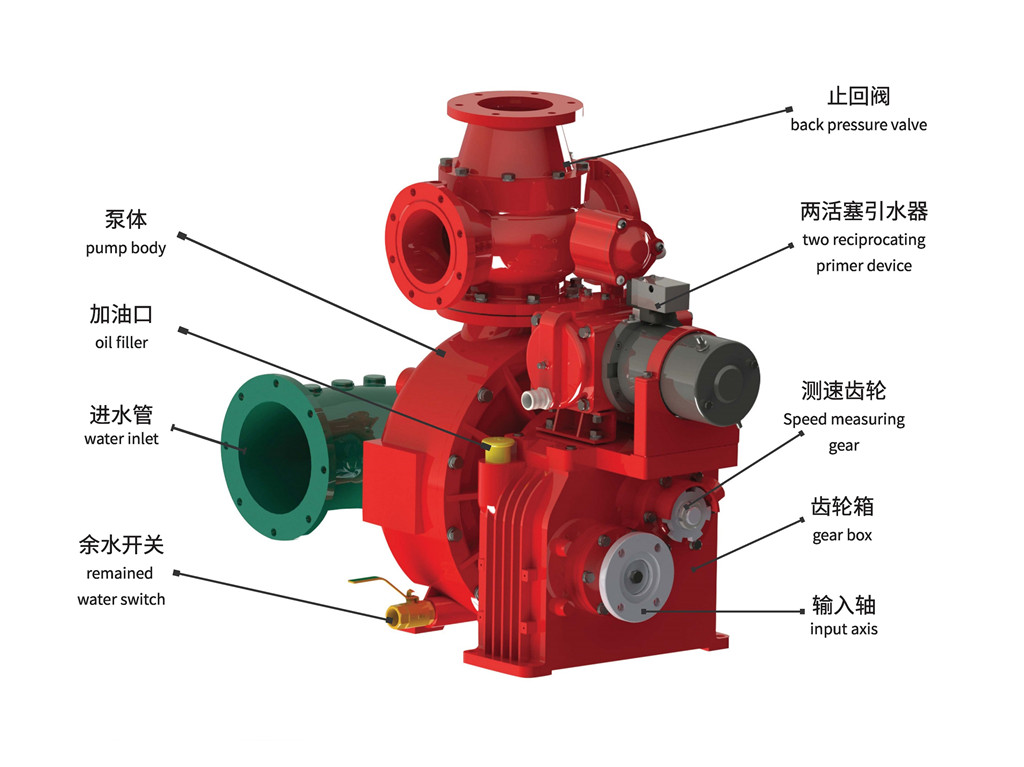

CB10/60 fire pump

★ High Flow Rate

With a rated flow of up to 60 L/s, it can rapidly meet the high water supply demands of firefighting operations.


★ Reliable and Durable

Featuring a centrifugal design and a balanced impeller structure, it effectively reduces wear. Its wear-resistant corrosion-proof vacuum pump and sealing system ensure a long service life.

★ Easy Maintenance

The pipeline system is constructed with seamless steel pipes, providing robust structure and minimal leakage, making daily maintenance and inspection highly convenient.









HOWO 6×4 TX foam fire vehicle

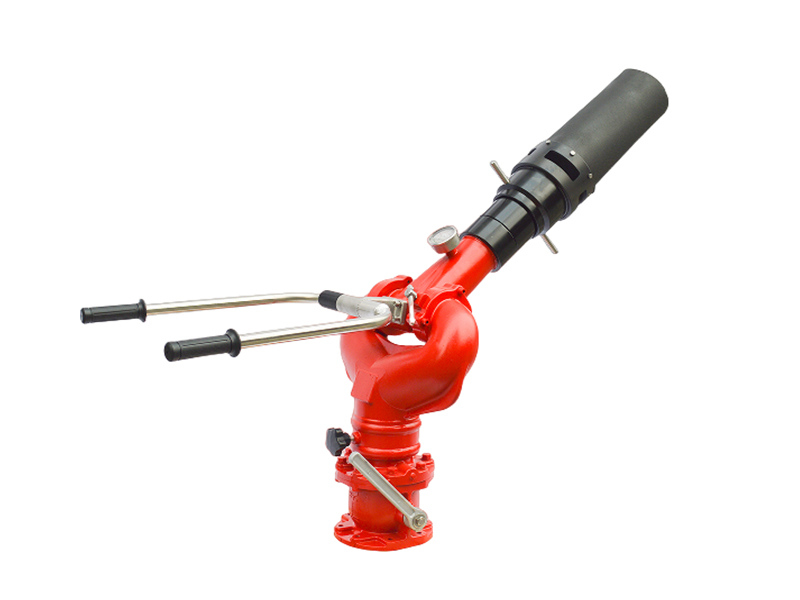

PL8/48 fire monitor

★ Lightweight and Durable Material

Made of precision-cast aluminum, it significantly reduces the cannon's weight while maintaining structural strength, facilitating easy movement and installation.


★ Multi-Function Jet Modes

Equipped with both spray and straight stream patterns, it can project water or foam liquid. The foam barrel can be detached to function as a water cannon, meeting diverse firefighting needs.

★ Flexible and Precise Operation

The cannon allows horizontal and vertical rotation with a locking function. The concentrated jet stream offers long-range coverage, enabling precise and efficient firefighting.

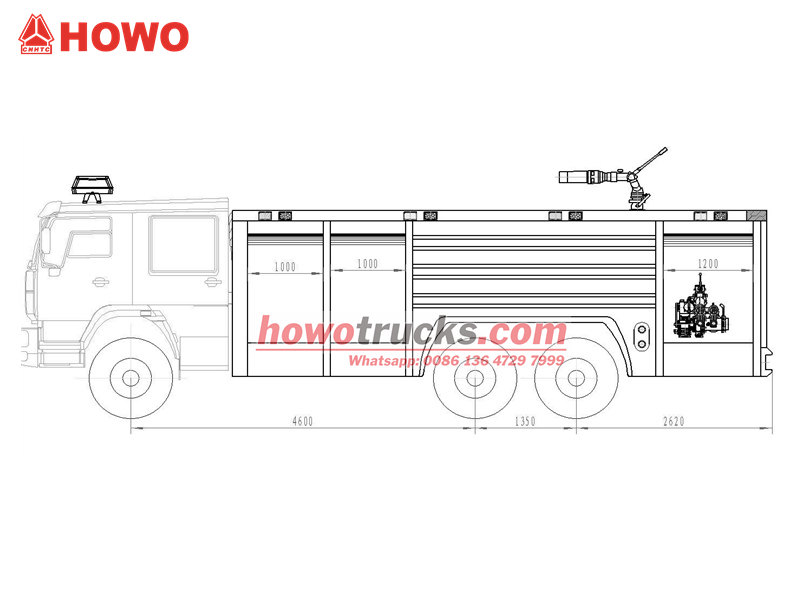

»» Ⅵ. Product Drawing:



HOWO 6×4 firefighting truck drawing





Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

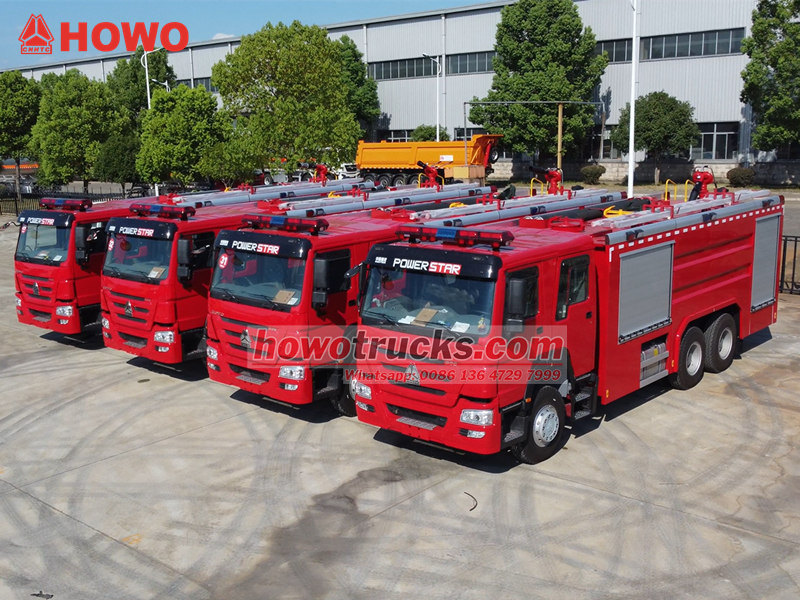

HOWO firefighting trucks for export

SINOTRUK HOWO 6×4 firefighting trucks for export

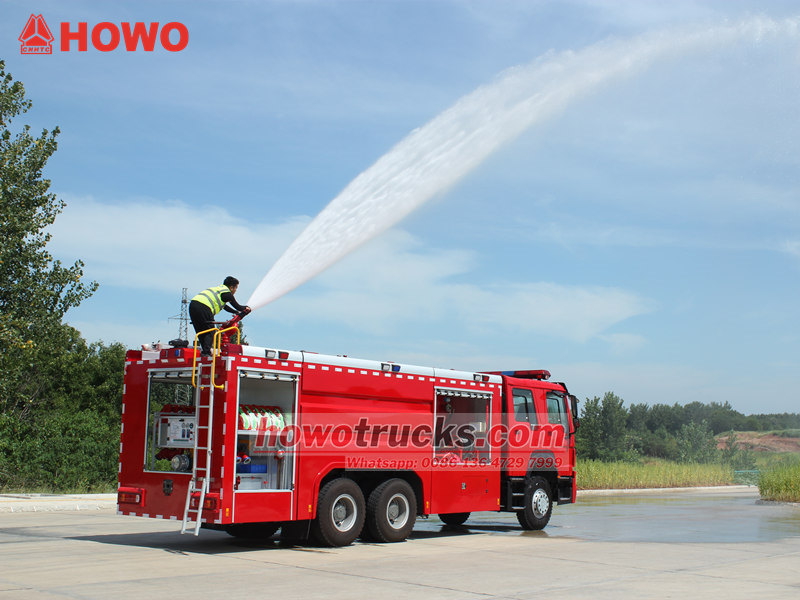

SINOTRUK HOWO fire trucks for export

SINOTRUK HOWO heavy duty fire trucks testing before delivery
