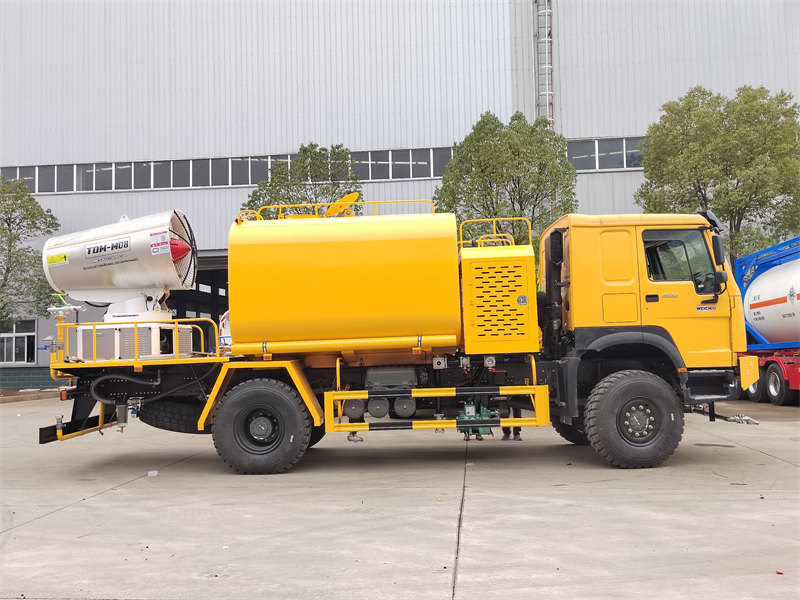

HOWO 4x4 off road water cannon truck

HOWO 4x4 off road water cannon truck

HOWO 4×4 water cannon truck is built on the HOWO all-wheel-drive chassis, equipped with a 300HP engine and a 4×4 drive system, delivering outstanding performance in complex terrains. Featuring an ultra-long-range 80-meter water cannon with 90 nozzles, it can spray fine water mist (20-200μm) with a maximum coverage area of 20,000㎡. Combined with a 10,000L large-capacity water tank and a high-pressure spraying system, it efficiently performs tasks such as road dust reduction, construction site dust suppression, and agricultural spraying. It is particularly suitable for dust control in mining areas, ports, urban environmental protection, and other fields.

  • Working capacity :

    10000 liters
  • Cabin type :

    HW76 cabin, with A/C
  • Drive system :

    4×4
  • Wheelbase ( mm) :

    4600
  • Engine specific :

    300HP/WD615.97C
  • Gear box :

    HW15710, 10 Forward & 2 Reverse
  • Front axle ( Kg ) :

    6500
  • Rear axle ( Kg ) :

    13000
New Products

HOWO 4×4 water tanker truck is a high-performance, multi-functional dust suppression vehicle built on the robust HOWO 4×4 all-wheel-drive off-road chassis, with exceptional off-road capabilities. It is equipped with an STR cast front steering drive axle and an ST16 rear drive axle, along with a wide wheelbase design (2022/1830mm), ensuring excellent stability in complex terrains. The 4×4 drive system, paired with a 300-horsepower WD615.97C engine, delivers a massive torque of 1,340N·m, enabling it to easily handle extreme environments such as mountains and deserts.

The HOWO 4×4 water cannon truck integrates an 80-meter ultra-long-range water cannon and a high-pressure water spraying system. The cannon is equipped with 90 nozzles, capable of spraying fine water mist (20-200μm) with a coverage area of up to 20,000㎡, effectively suppressing dust. The 10,000L large-capacity carbon steel water tank, combined with a 60m³/h flow pump, supports multi-scenario applications such as street cleaning, road dust reduction, and agricultural spraying. With both wireless remote control and touchscreen operation systems, it offers flexible handling, making it an all-around solution for mining areas, ports, urban emergencies, and other fields.

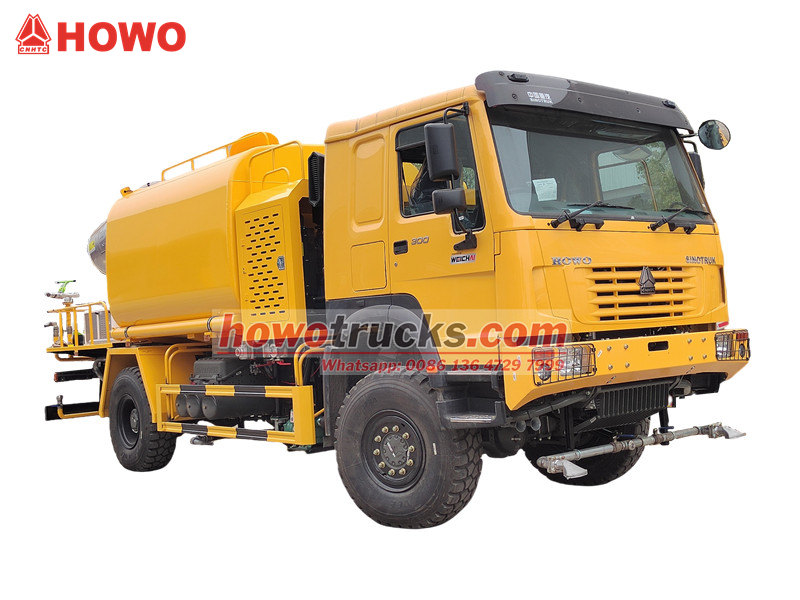

HOWO 4×4 water spraying truck



*HOWO All-wheel-drive Water Tanker Truck

 SINOTRUK HOWO 4×4 Water bowser truck*

-----------------------------------------------------------------



Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



 Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS



Product Features

Water Tank:  manufactured using an automated production line, including processes such as material cutting, automatic panel welding,

and head spinning forming, ensuring structural strength and sealing performance.

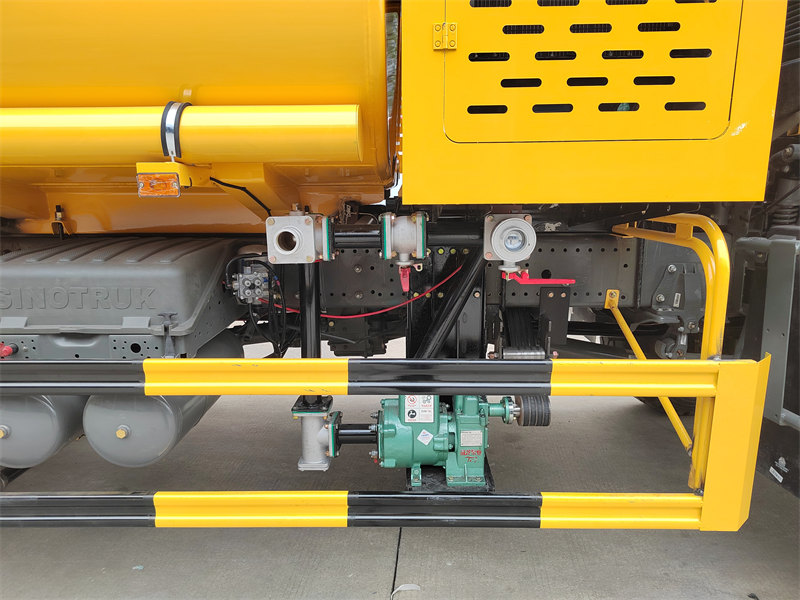

Water Pump: Equipped with China famous brand Wloong water pump, with flow rate 60m3/h.
                          Has the function of
pump in and pump out


Water cannon: Rear-mounted water cannon, can spray fine water mist with particle diameter of 20~200μm

      The water spray range is up to 80 meters





 Ⅱ. Product Parameter for HOWO 4×4 water cannon truck:



Vehicle information

Overall dimensions (mm)

9200*2500*3180

Wheelbase (mm)

4600

Gross vehicle weight (kg)

16000

Curb weight (kg)

9200

Chassis information

Manufacturer

HOWO

Drive type

4×4

Cabin

HW76, with A/C

Front axle

STR casting front steering drive axle

Rear axle

ST16 rear drive axle

Front/rear wheel track (mm)

2022/1830

Tyre

12.00R20, 6+1 pcs

Gearbox

HW15710C, 10-speed forward and 2-speed reverse

Engine information

Brand

SINOTRUK

Model

WD615.97C

Power

300HP/221KW

Displacement

9726 ml

Emission standard

Euro 3

Rated speed

1900 rpm

Max. torque

1340 N.m

Tank information

Capacity

10000 L

Material

Carbon steel

Thickness

4 mm

Wave-proof plate

2pcs

Manhole

1pcs

Water cannon range

28m

Flushing width

≥14m

Watering width

≥12m

Water pump

Brand

Wloong

Model

80QZF-60/90S

Flow rate

60 m3/h

Head

90 m

Input speed

1160 rpm

High-pressure sprinkler working device

Side spray/control

Central right duckbill / single cylinder control

Rear sprinkling/control

Rear sprinkler/central control on both sides

Platform high gun

Adjustable spray shape

Horizontal 360 degree optional

Maximum range 35 meters

Water Mist Cannon

Type

TDM-M08

Max. spray range

80m

Max. coverage area

13400/20000 m2

Fan power

22kw

Water pump power

7.5kw

Main power

31kw

Number of Fan

2

Number of nozzles

90

Water consumption

7 m3/h

Water mist particle diameter

20~200μm

Rotation angle

±120°/±180°

Pitch angle

 -10-55°

Control mode

Wireless remote control and touch screen

IP Rating

IP55





 Ⅲ. Product Details & Fucntions:

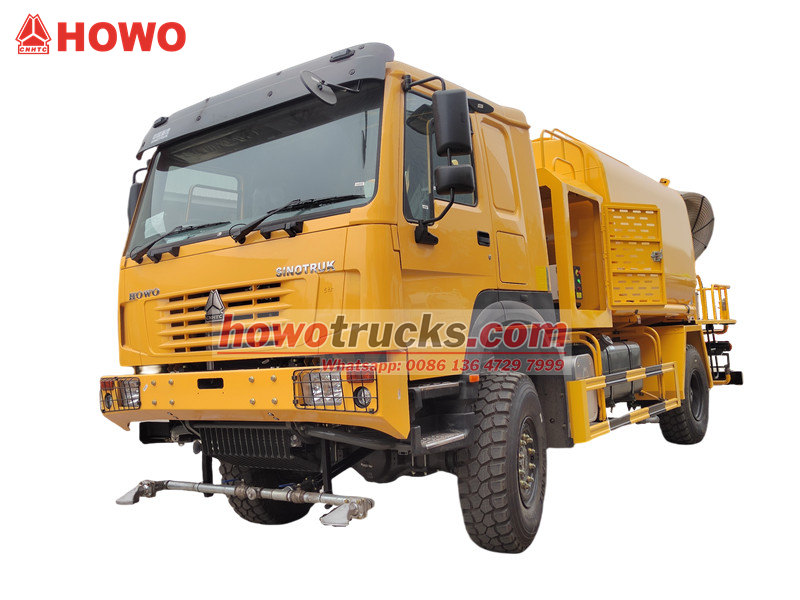

HOWO 4×4 water tanker truck

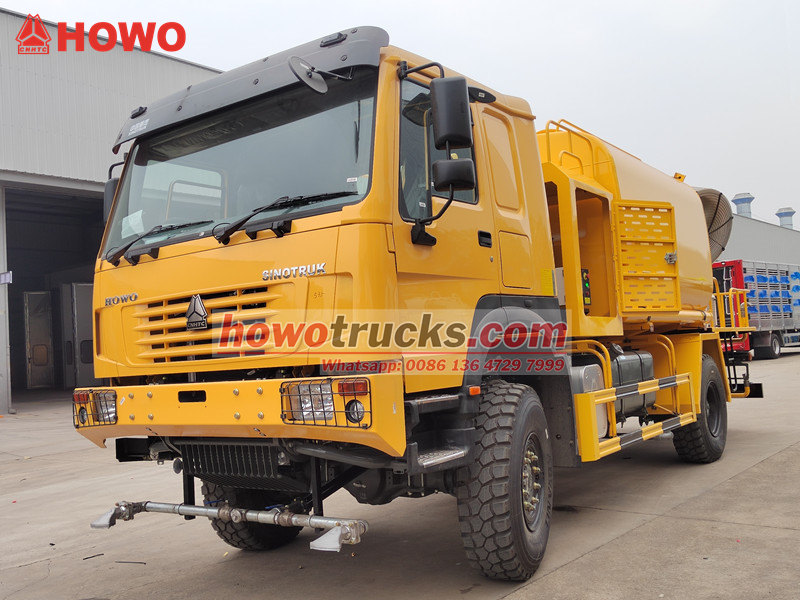

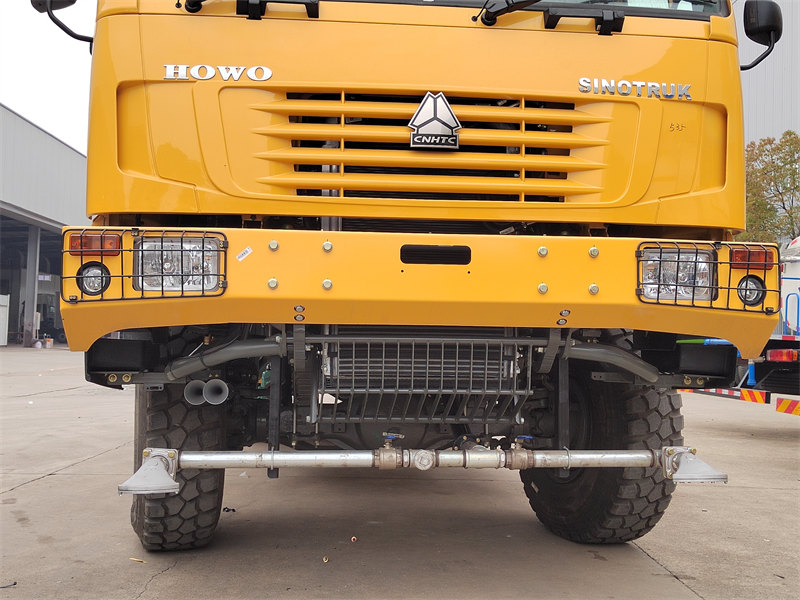

Front Spray Nozzles



Nozzles: Two nozzles mounted under the front of the cabin

Function: Flush road dirt to the roadside by high-pressure water





HOWO 4×4 off-road water truck

Rear Sprinkler

Duckbill sprinkler: 2 duckbill sprinklers installed at rear of the vehicle

Function: Used for road construction watering, featuring a wide spray coverage ideal for large-scale pavement wetting applications.

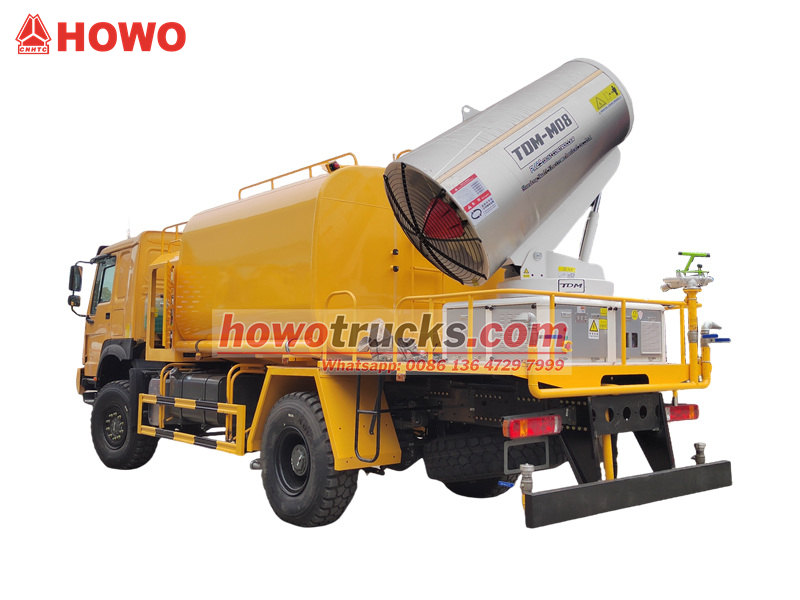

HOWO 4×4 water bowser truck

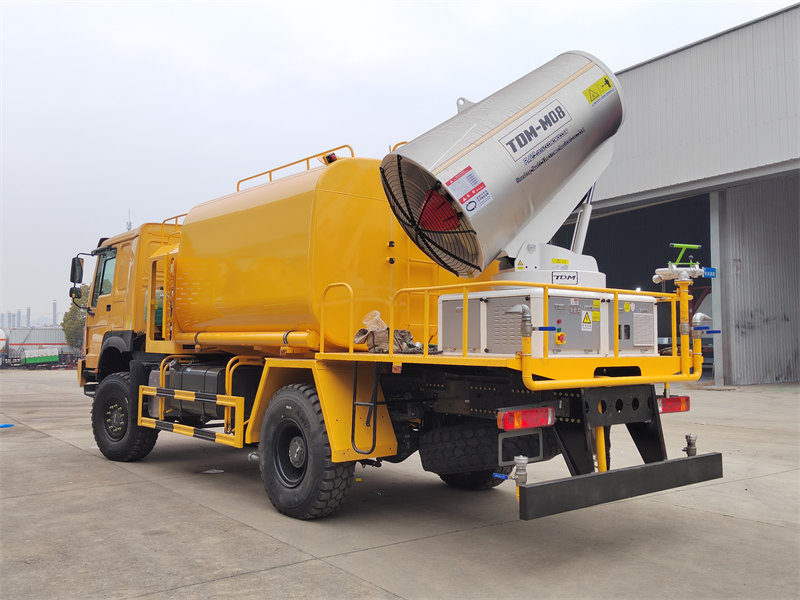

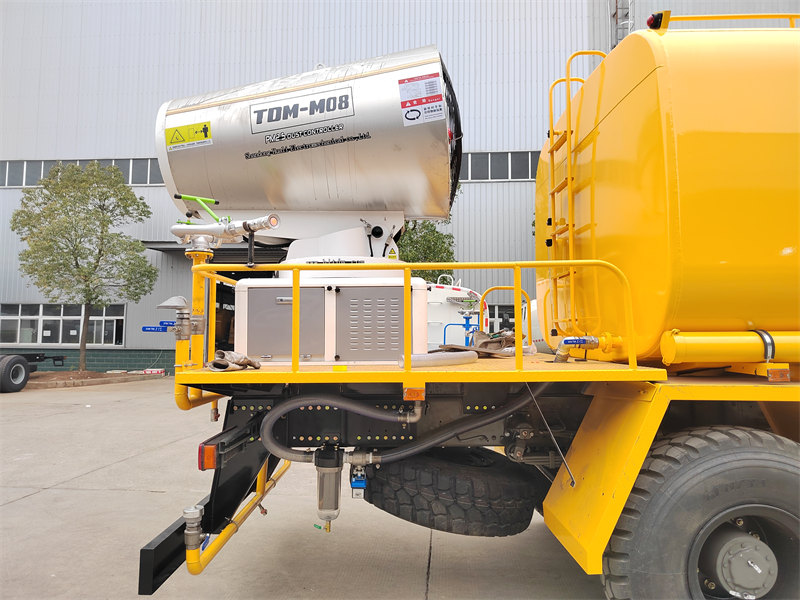

Water Cannon

Fog cannon: Intelligent environmentally friendly fog cannon, mounted at rear platform of the vehicle

Function: Used to spray water mist tens or even hundreds of meters away by high-pressure atomization system, achieving the purpose of dust reduction and suppressing dust pollution.










Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

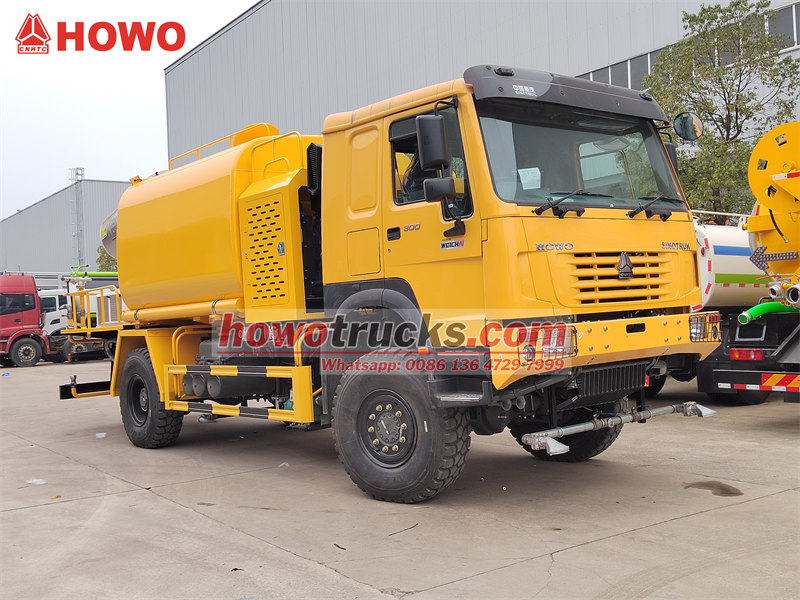

HOWO 4×4 off-road water sprinkler truck

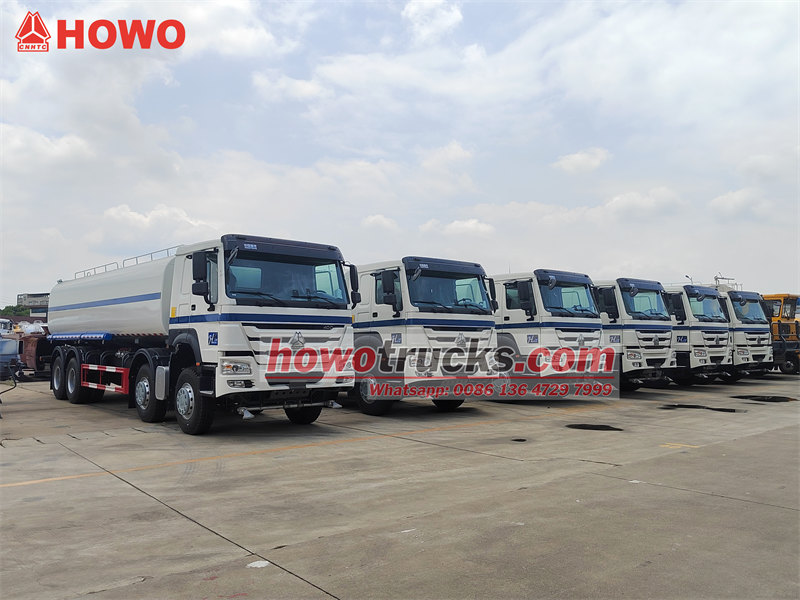

HOWO 4×4 water tanker truck for export

SINOTRUK HOWO water tanker trucks exported from CS TRUCKS
