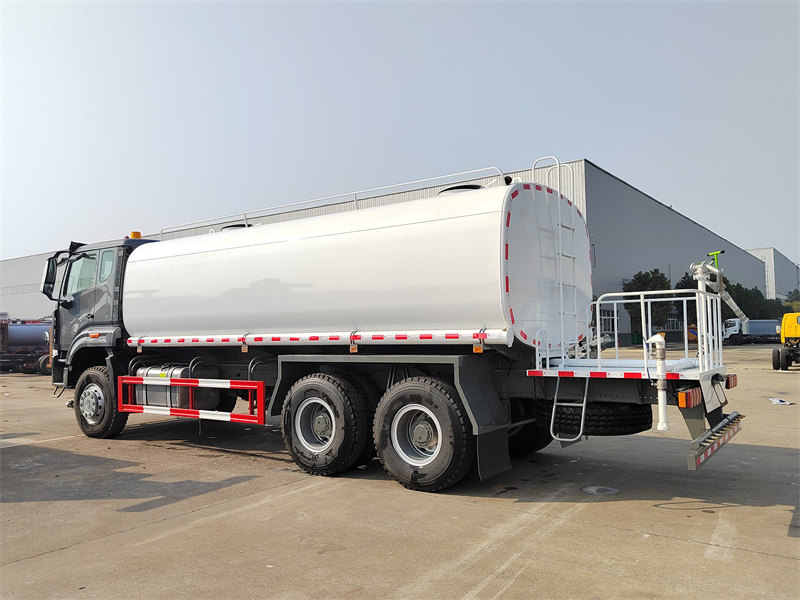

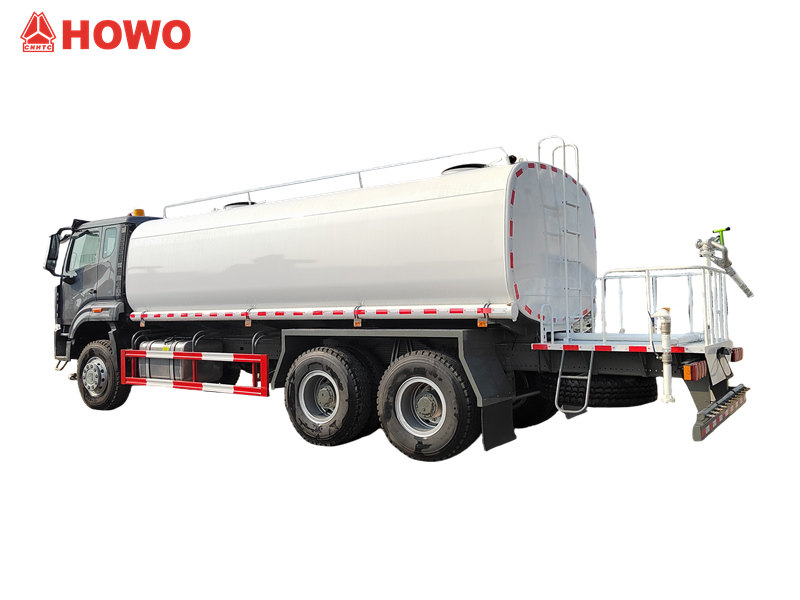

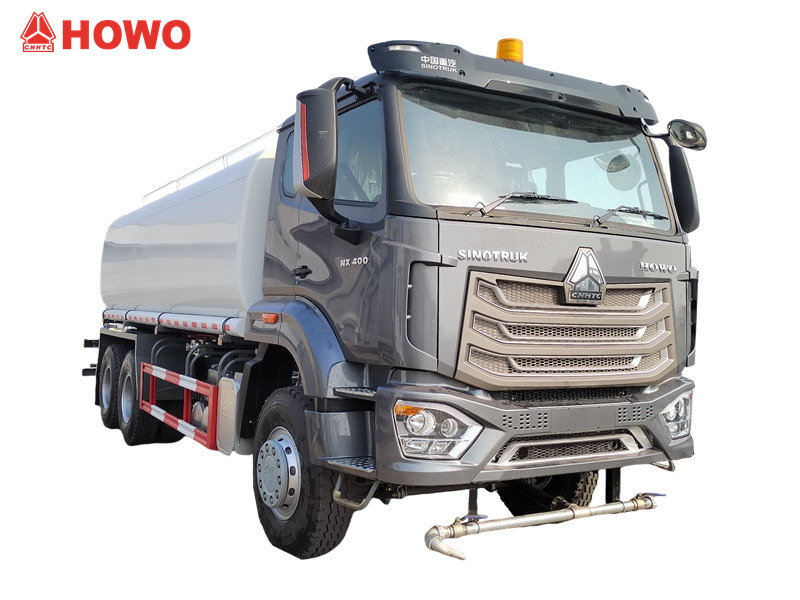

HOWO NX RHD water bowser truck

HOWO NX RHD water bowser truck

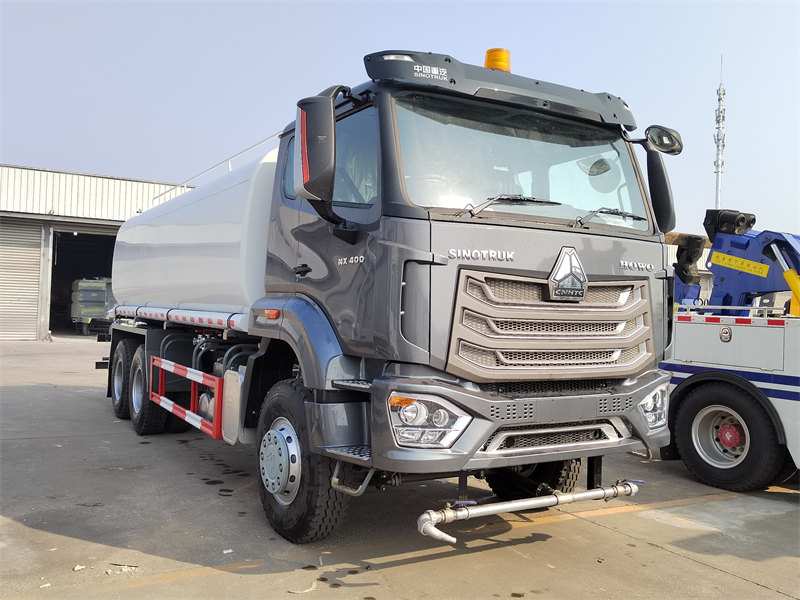

HOWO NX RHD Water Truck is a specialized sanitation vehicle made by CS TRUCKS based on the HOWO NX heavy chassis. It is equipped with a 400-horsepower Weichai engine, a 20 m³ carbon steel water tank, and a high-efficiency water pump (60 m³/h). Its sprinkler system includes multi-directional nozzles (spray width of 14 meters) and a high-pressure water cannon (range of 28 meters). Suitable for road cleaning, greenbelt irrigation, and other tasks, it offers strong power and high load capacity, making it an ideal choice for urban sanitation.

  • Working capacity :

    20000 liters
  • Cabin type :

    NX cabin, with A/C
  • Drive system :

    6×4
  • Wheelbase ( mm) :

    4575+1400
  • Engine specific :

    400HP/WP12.400E32
  • Gear box :

    HW19710, 10 Forward & 2 Reverse
  • Front axle ( Kg ) :

    9000
  • Rear axle ( Kg ) :

    16000
New Products

HOWO NX RHD Water Tanker Truck is a professional sanitation vehicle based on the SINOTRUK HOWO NX right-hand drive chassis, primarily used for road cleaning, dust suppression, and greenbelt irrigation. Its core structure consists of the chassis, water tank, water pump, and sprinkler system. The chassis is powered by a Weichai WP12.400E32 engine, paired with an HW19710 10-speed transmission, and features a dual-axle drive (front axle 9 tons, rear axle 2×16 tons), ensuring strong load-bearing capacity and adaptability to various complex road conditions.

The HOWO NX Water Bowser is equipped with a 20 m³ carbon steel water tank, meeting large-capacity water storage needs. The water pump is the 80QZ60/90S model, has a flow rate of 60 m³/h and a head of 90 meters, with fast self-priming for efficient water supply. The sprinkler system includes front, rear, and side spray nozzles (spray width ≥14 meters) and a high-pressure water cannon (range ≥28 meters), supporting various operation modes such as road washing and long-distance spraying. It is suitable for urban sanitation and environmental engineering requirements.

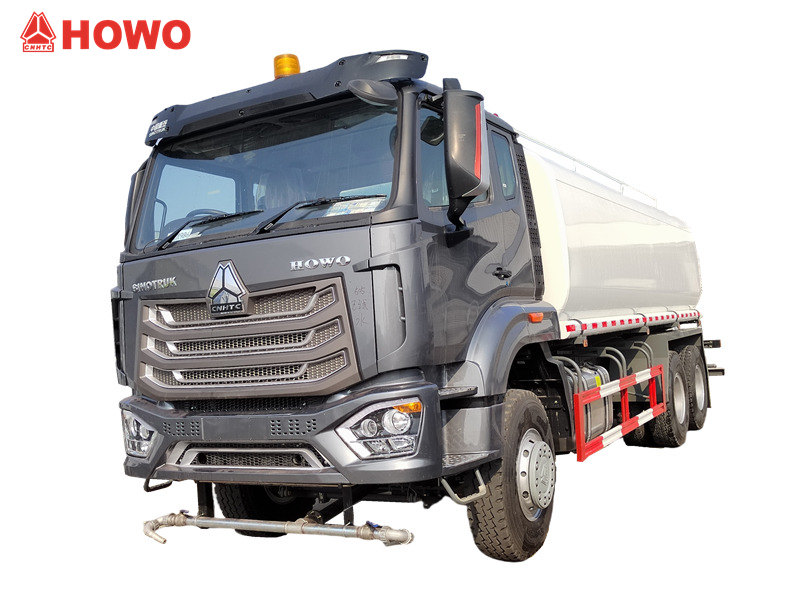

HOWO NX RHD water spraying truck



*HOWO NX Heavy-duty Water Spray Truck

 SINOTRUK HOWO 10 wheeler Water Tanker truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



 Ⅰ.Product Defination and Introduction:



Manufacturer: CS TRUCKS



Product Features

1. The water tank is treated with electrophoretic anti-corrosion coating, providing excellent corrosion resistance.

2. Equipped with a water-level sensor alarm system that triggers an automatic alert when water levels are insufficient. The water level gauge allows for intuitive monitoring of the tank's water volume.

3. The HOWO water bowser equipped a centrifugal water pump from a leading Chinese brand, ensuring reliable performance, long service life, and consistent cleaning effectiveness.

4. A high-pressure water cannon is installed on the rear platform, delivering stable jet flow with minimal pressure loss. It allows for flexible water spraying control and has a long lifespan.

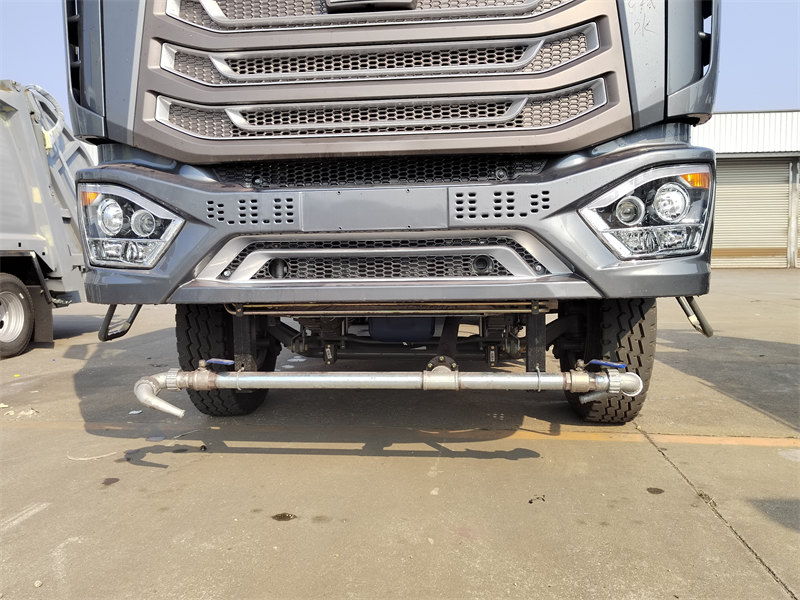

5. Features front opposing flush nozzles, rear duckbill nozzles, and a row of 12 nozzles mounted under the rear platform. All nozzles have independent valves for precise control.





 Ⅱ. Product Parameter for HOWO NX water spray truck:



Vehicle Model

CS5250GSS

Chassis Brand

SINOTRUK-HOWO

Dimension (LxWxH) mm

10650×2550×3650

Approaching angle/ Departure angel (°)

16/12

Overhang (front/rear) (mm)

1500/2420

Wheelbase (mm)

4575+1400

Max. Driving speed (km/h)

95

Front axle loading capacity (kg)

9000

Rear axle loading capacity(kg)

2*16000

Curb weight (kg)

11500

Gross vehicle weight

25000

Cab Model

SINOTRUK NX cab, 2 seats + one sleeper bed, all steel forward control, hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner, left hand driving.

Engine

Brand

WEICHAI

Model

WP12.400E32, 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

Rated Power(kw/rpm)

294/2100

Max. output (HP)

400

Displacement (ml)

11596

Emission standard

Euro 3

Clutch

SINOTRUK Φ430 diaphragm-spring clutch, hydraulically operating with air assistance

Transmission

Model

SINOTRUK HW19710 transmission ,10 forward and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking Brake

(emergency brake)

Spring energy, compressed

Steering system

Model

ZF8118 Steering Gear Box ,hydraulic steering with power assistance. (right hand driving)

Front axle

SINOTRUK 9000kg Front Axle, new 9-ton front axles with drum brakes.

Rear axle

SINOTRUK 2*16000 Heavy reduction drive axle, STR hub-reduction with differential locks between wheels and axles, enforced STR axle, ratio:4.42

Tires

12.00R20 radial tire, 10pcs with 1 Spare tire.

Electrical system

Electrics Operating voltage

24V

Starter

24V,7.5 Kw

Alternator

3-phase,28V,1500 W

Batteries

2x12 V,165 Ah

Water tank

Tank volume

20000 liters (20CBM)

Material

Carbon steel

Thickness

5mm

Water pump

Model

80QZ60/90S

Flow rate

60 m3/h

Head

90 m

Self-suction time

1.5 min/4m

Output speed

1180 r/min

Spraying system

Spray nozzles

Front, rear, side nozzles, with spray width≥14m

Water cannon

Mounted on rear platform, spray range≥28m





 Ⅲ. Product Details & Fucntions:

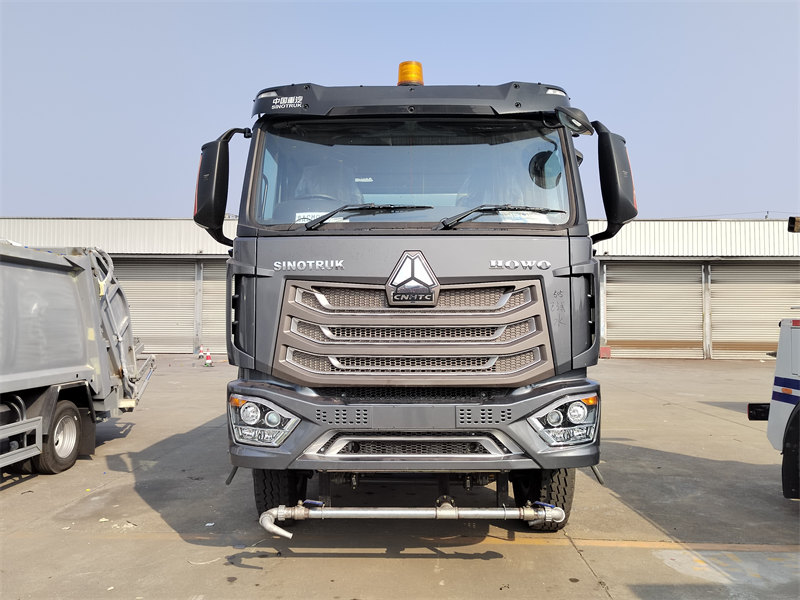

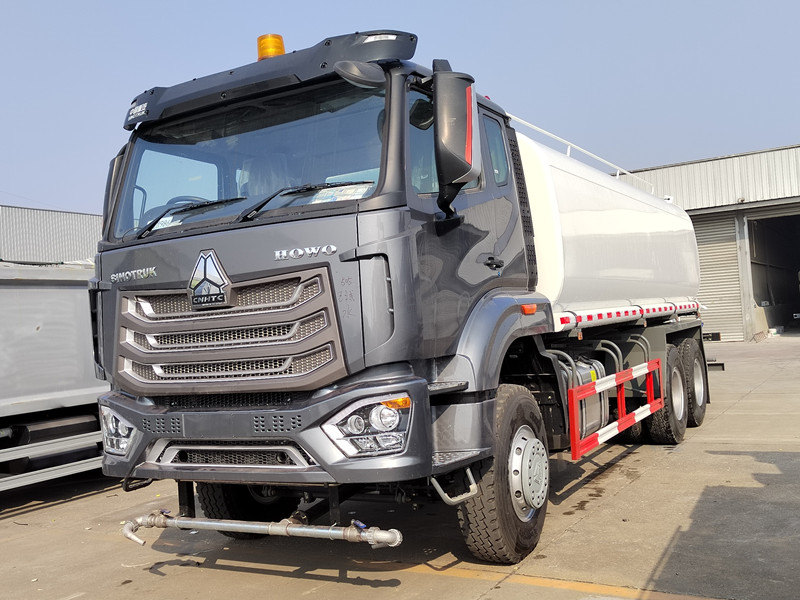

HOWO NX 20000L water bowser

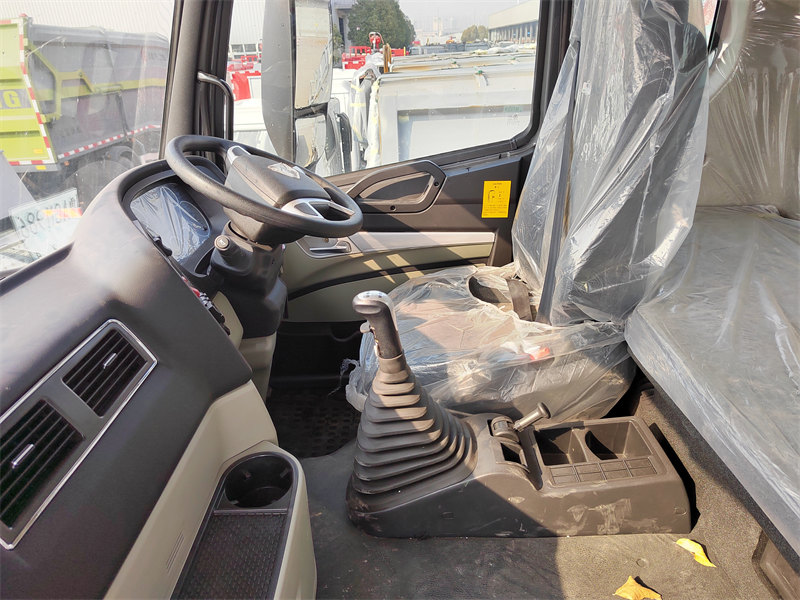

SINOTRUK HOWO Right-Hand Drive Heavy-Duty Chassis, HOWO NX cab with four-point suspension, air conditioning (heating & cooling), air-suspension seat, central locking, power windows, and remote key.

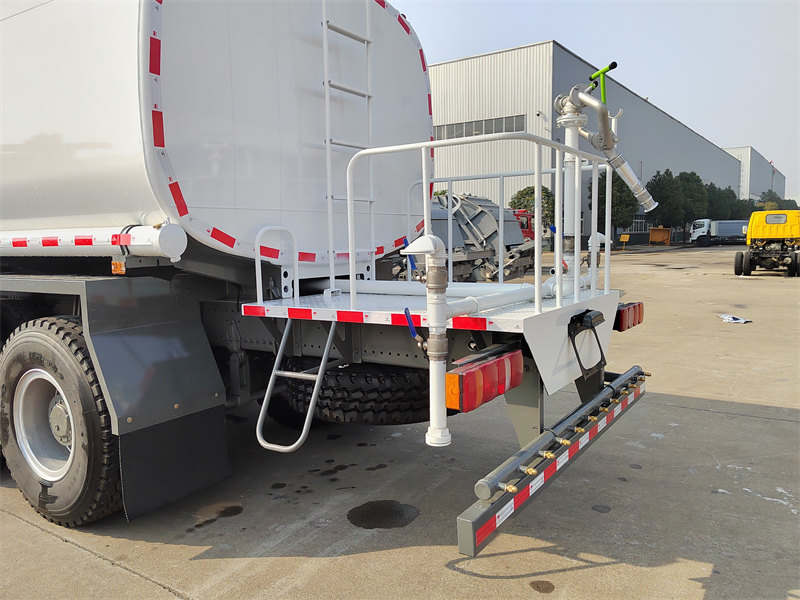

SINOTRUK HOWO NX water truck

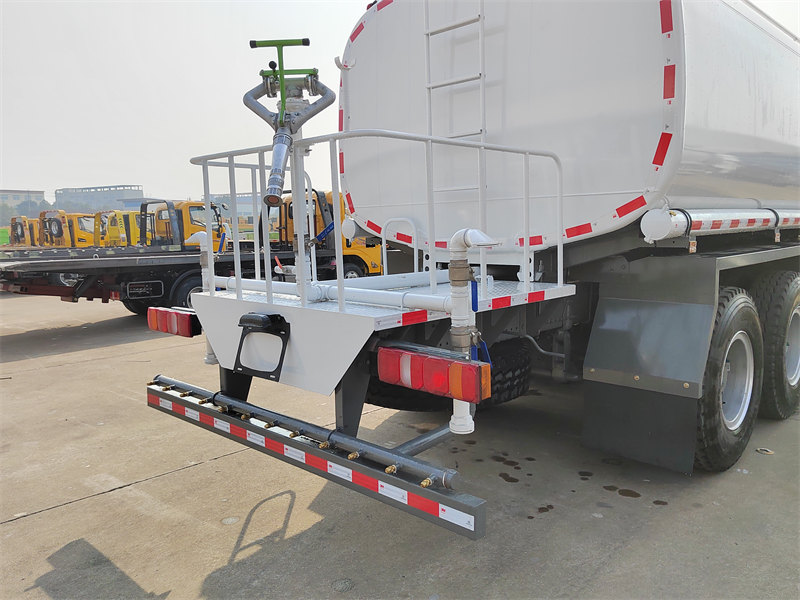

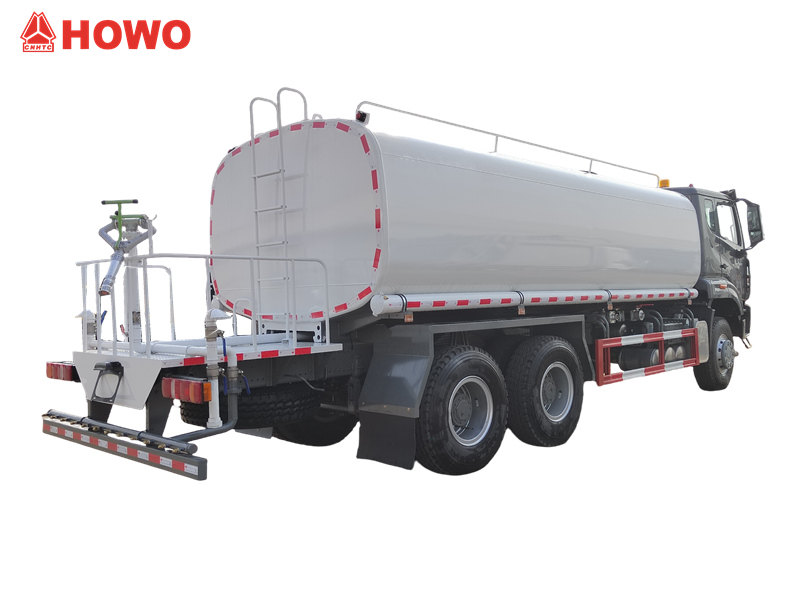

Perforated rear work platform with reinforced load-bearing capacity and safety guardrails to ensure operator safety.



HOWO NX 20CBM water sprinkler truck

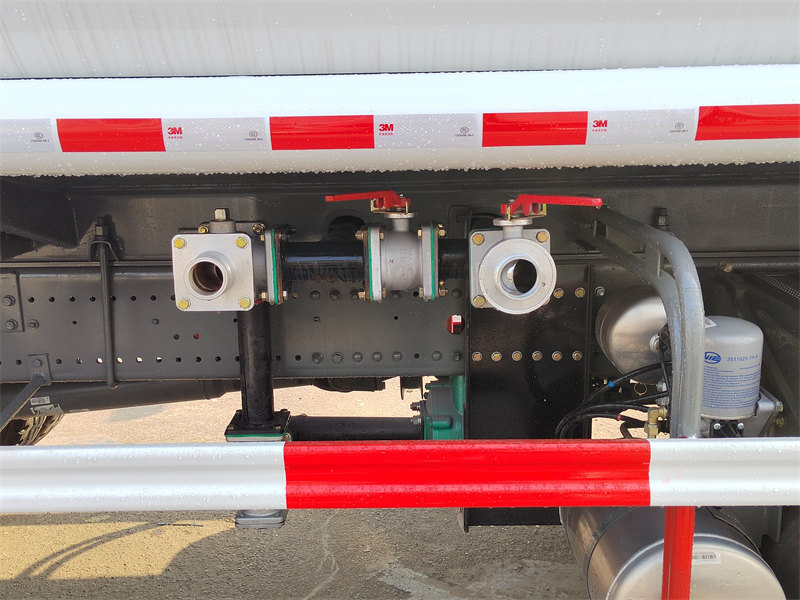

Equipped with China top brand water pump, flow rate 60m3/h, has function of pump in and pump out.



HOWO NX 20000L water cannon truck

The rear work platform is equipped with a high-pressure water cannon capable of 360° rotation, with adjustable spray patterns including jet stream (straight flush), fog mist, heavy rain, moderate rain, light rain, drizzle.




Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.



HOWO NX 10-wheeler water sprinkler truck

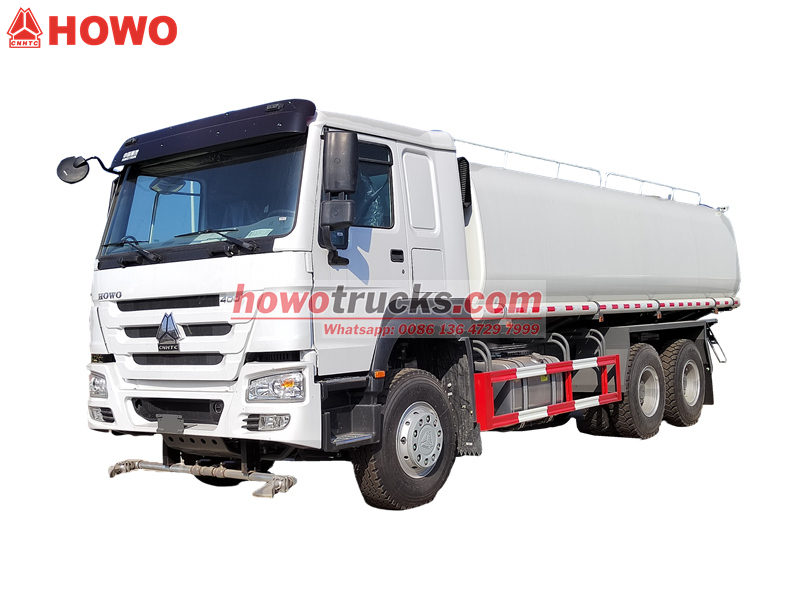

HOWO 6×4 water tanker truck for export

SINOTRUK HOWO 8×4 heavy-duty water trucks exported

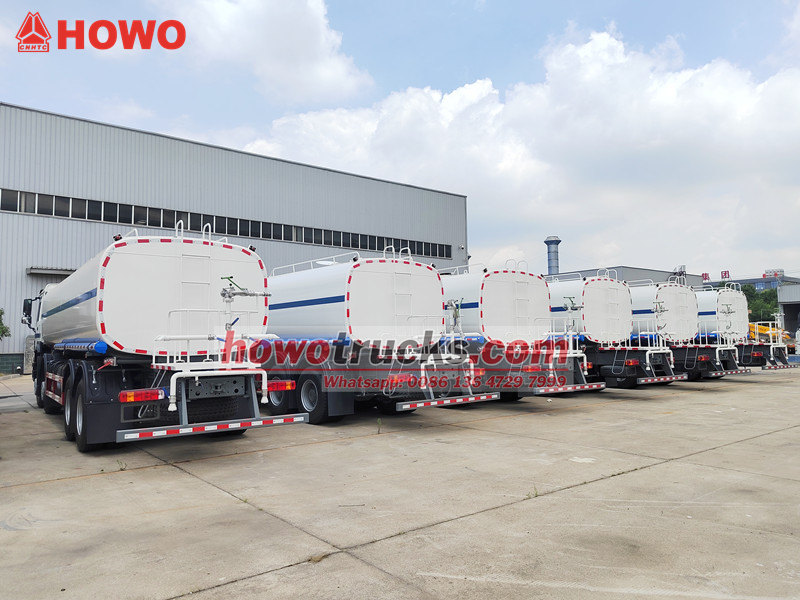

SINOTRUK water spray trucks for export

SINOTRUK HOWO 8×4 water spray trucks for export



Leave A Message
If you are interested in howo trucks and want to know more details,please leave a message here,we will reply you withine 8 hours.

Related Products

HOWO diesel delivery tanker truck for Congo
HOWO water delivery tanker truck for Congo

The HOWO 20cbm water sprayer truck, with 4600+1350mm wheelbase, Weichai WD615.47 engine and HW19710 gearbox. The upper includes a 20cbm curved carbon steel water tank, equipped with four devices: front flushing, rear side spraying, rear water sprinkling, and rear water cannon. It is fitted with an 80QZF-60/90 centrifugal water pump, with a flow rate of 60 m³/h and a lift of 90 m. The pump is equipped with inlet and outlet pipelines, a tail discharge valve, a platform ladder, a guardrail, a tank top guardrail, and a manhole.

Read More
HOWO 18000 liters stainless water tanker truck
HOWO 18000 liters stainless water tanker truck

The Howo 18 cubic meter water sprinkler truck uses a Sinotruk Howo NX 6X4 chassis with a 4600+1400mm wheelbase. It is equipped with a Weichai WP10.380E22 380hp engine and an HW19710 10-speed gearbox. The upper structure consists of an 18 cubic meter arc-shaped carbon steel water tank, equipped with front spray, rear side spray, and rear water cannon devices. It features a Weilong 80QZB(F) 60/90N(S) centrifugal water pump with a flow rate of 60 m³/h and a head of 90 m. Other features include pump inlet and outlet pipes, a rear platform ladder, guardrails, a non-slip walkway and guardrail on the tank top, and two manholes.

Read More

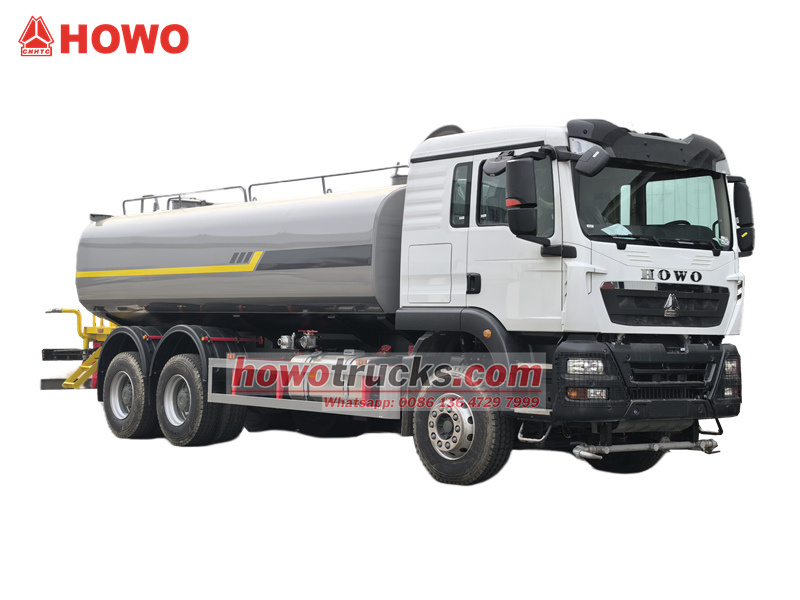

HOWO TX water tanker truck
HOWO TX 18000L water tank lorry

The HOWO TX 18000L Water Truck is a high-capacity, multi-functional sanitation vehicle built on the HOWO TX 6×4 chassis. With a water tank volume of 18,000 liters, it is equipped with a Weilong centrifugal pump and a multi-mode spraying system. It can efficiently perform tasks such as urban greening, road dust suppression, and emergency firefighting, making it a powerful and versatile professional sanitation equipment.

Read More

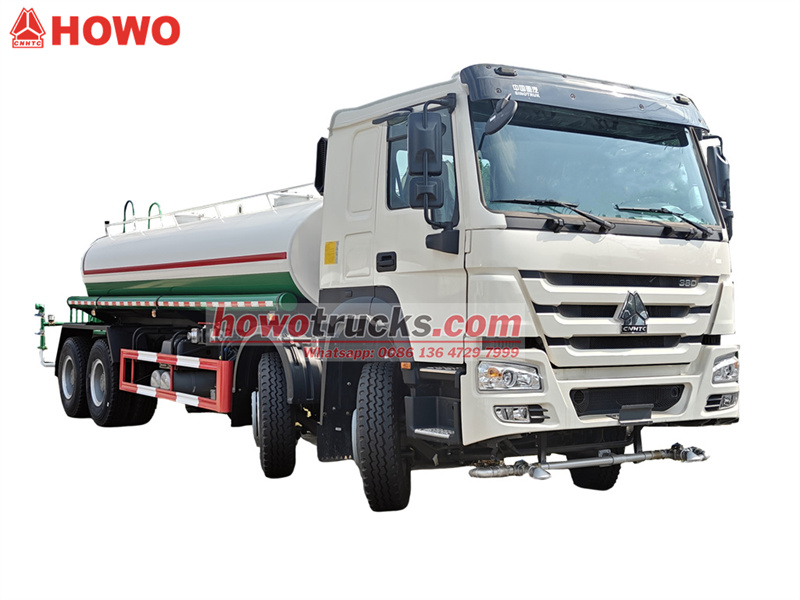

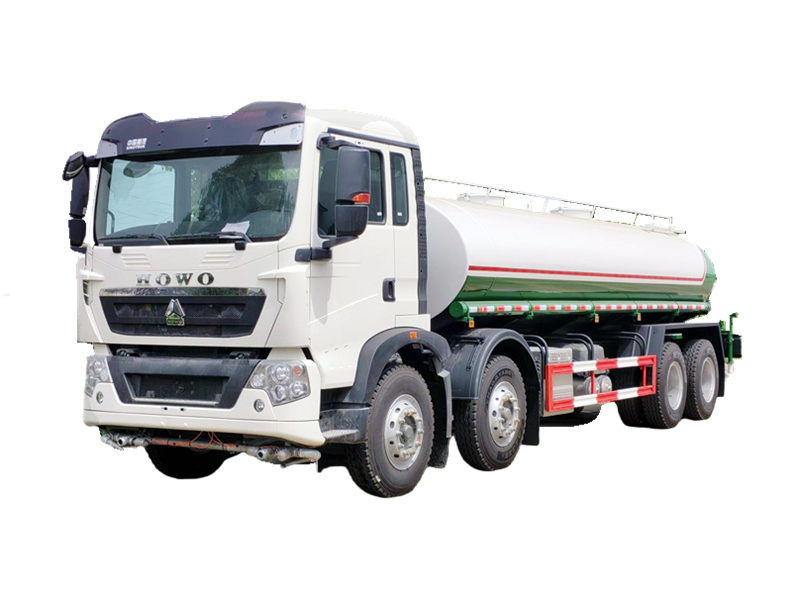

Howo heavy 30000L water tanker
