HOWO 6x6 all wheel drive fire truck

HOWO 6x6 all wheel drive fire truck

HOWO 6×6 Off-Road Fire Truck is a heavy-duty fire and rescue vehicle specifically designed for challenging fire environments. Built on the HOWO 6×6 off-road chassis and equipped with a 371-horsepower engine, it has exceptional mobility and traversing capability in complex terrains, making it suitable for rapid fire suppression in petrochemical, forest, and urban special fire scenarios. Integrating a large-capacity liquid tank (8,000L water + 2,000L foam), a high-flow fire pump (60L/s), and a long-range fire monitor (≥70 meters), it supports powerful operations while on the move. This vehicle is a comprehensive, highly reliable, and efficient modern firefighting apparatus.

  • Working capacity :

    10000 liters
  • Cabin type :

    HOWO HW76 cabin, with A/C, one sleeper bed
  • Drive system :

    6×6, left hand drive
  • Wheelbase ( mm) :

    4500+1400
  • Engine specific :

    371HP/WD615.47
  • Gear box :

    HW19710, 10 Forward & 2 Reverse
  • Front axle ( Kg ) :

    7000
  • Rear axle ( Kg ) :

    9000×2
New Products

HOWO 6×6 fire truck is an off-road heavy-duty fire and rescue vehicle based on SINOTRUK HOWO chassis. The truck has superior off-road performance and complex terrain adaptability, making it suitable for fire suppression and rescue tasks in petrochemical parks, forest mountain areas, and urban special disaster sites. The vehicle adopts a 6x6 drive form  and is equipped with a WD615.47 diesel engine with 371 horsepower. It is matched with a 10-speed manual transmission, and the maximum speed can reach 89 km/h. The chassis has strong load-bearing capacity and excellent passability.

The HOWO 6×6 fire engine has an 8000L water tank and a 2000L stainless steel foam tank. It is equipped with a CB10/60 normal pressure fire pump and a PL48 fire cannon, with a range exceeding 70 meters, allowing it fight fires while moving. The pump room layout is reasonable. The equipment compartment uses aluminum alloy roll-up doors and a modular fixed structure. This HOWO off-road firefighting truck integrates high-strength structure, efficient firefighting system, and user-friendly operation design. It performs outstandingly in reliability, operational efficiency, and environmental adaptability.

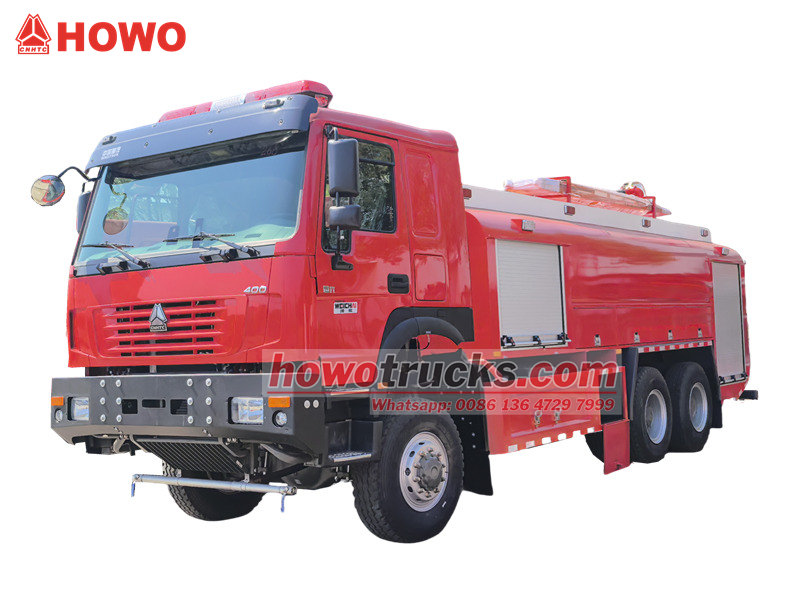

HOWO 6×6 AWD fire truck



*HOWO 6×6 Off-road Firefighting Truck

 SINOTRUK HOWO 6×6 AWD Tanker Fire Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in special truck area,
guarantee all products Brand-New and High-Quality.



»»Ⅰ Product Defination and Introduction



Manufacturer: CS TRUCKS



HOWO 6×6 Tanker Fire Truck Features:



1. High-Efficiency Fire Suppression System: Equipped with a CB10/60 normal-pressure fire pump delivering a flow rate of up to 60L/s, combined with a PL48 fire monitor capable of a water jet range ≥70 meters and a foam jet range ≥60 meters, high fire suppression efficiency and extensive coverage.
2. Excellent Low-Temperature Performance: Capable of working stably in ambient temperatures ranging from -40°C to 45°C.
3. Wide Range of Applications: Particularly suitable for firefighting and rescue operations in complex environments such as forests and grasslands.
4. Powerful Driving Capability: Features a 6×6 all-wheel-drive system, enabling easy handling of various complex terrains.
5. Intelligent Operation: The fire suppression system offers one-touch intelligent operation and supports wireless remote control for convenient and efficient use.



»» Ⅱ Product Parameters for HOWO self-loading truck


Chassis Specification

Truck Model

CS5320GXFPM

Chassis brand

SINOTRUCK HOWO

Cab

HOWO single row cabin, 2 seats

Driving Type

6×6 Left hand driving

Max Speed (km/h)

89

Overall Dimension (mm)

9900×2550×3600

GVW (kg)

25000

Curb Weight (kg)

14900

Wheelbase (mm)

4500+1400

Approach/departure angle °

34/11

Front/rear overhang (mm)

1600/2445

Tire

Type

12.00R20

Nos

Total 11 no, including 1 spare tire

Gear box

Model

HW19710

Type

Manual

Forward Speeds

10

Rear Speeds

2

Axle

Axle Nos

3

Front axle load

7000 kg

Rear axle load

9000×2

Engine

Brand

SINOTRUK

Model

WD615.47

Emission Standard

EURO 2

Fuel Type

Diesel fuel

Air Intake Form

In-line 6 cylinders, water cooling, turbocharging and intercooling, direct injection

Cylinder Nos

6

Max Output Power (kw)

273

Displacement (ml)

9726

Max output power (hp)

371

Max torque/max torque speed (N.M/rpm)

1500N.M@1100-1600rpm

Superstructure Specifications

Tank

Water Tank

Capacity

8000L

Material

Q235 Carbon steel

Configuration

  1. Welding, with anti-wave plates inside.
  2. Water level indicator
  3. One manhole, with quick locking and opening device
  4. One overflow valve device
  5. One drain outlet
  6. One air breather valve

Foam Tank

Capacity

2000L

Material

Stainless steel 304

Fire Pump

Type

Normal pressure fire pump

Model

CB10/60

Working Pressure

1.0 Mpa

Flow

60 L/s

Rated speed

3280±50 r/min

Water Intake Time

≤50s at 7m suction depth)

Fire Monitor

Model

PL48

Flow

48 L/S

Range

Water ≥70m ; Foam ≥60m

Pitching Rotation Angle

-35°~ 75°

Horizontal Swing Angle

0 ~360°

PTO

Sandwich PTO, splashing type lubricate, can put out fire when driving.

Carriage

Carriage is made of high-quality steel and Aluminum embossed sheet

Pump room

Located at rear or the truck, with pump system and pipeline, reasonable structure.

Rolling Shutter Door

Light and high-quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock.

Color

Fire red

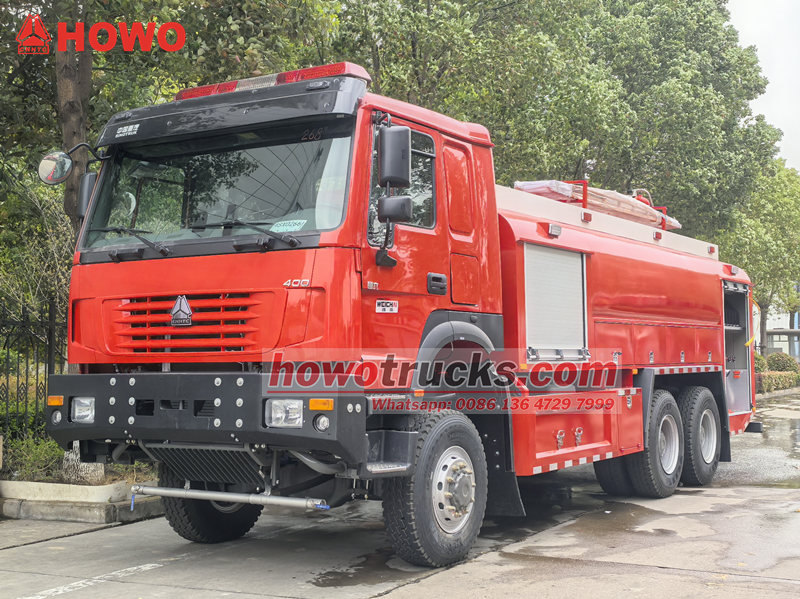

HOWO 6×6 off-road fire tender truck









»» Ⅲ Product Details



1. Fire Pump Details

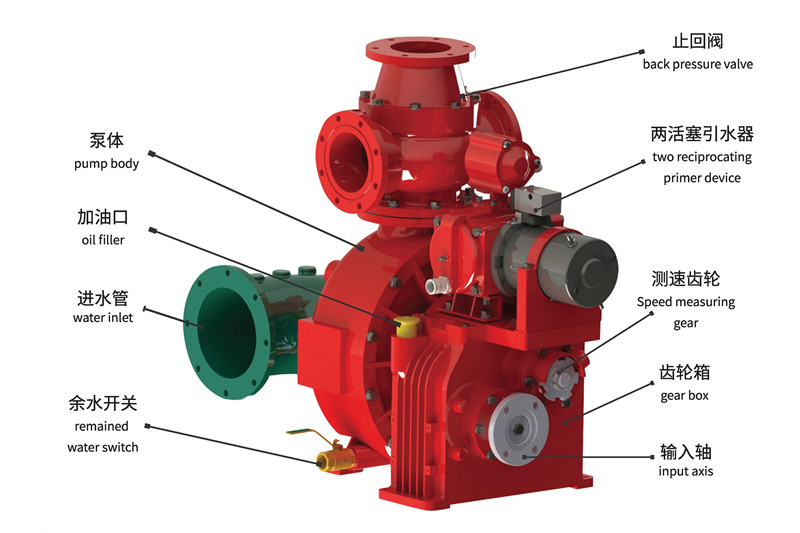

CB10/60 fire pump drawing

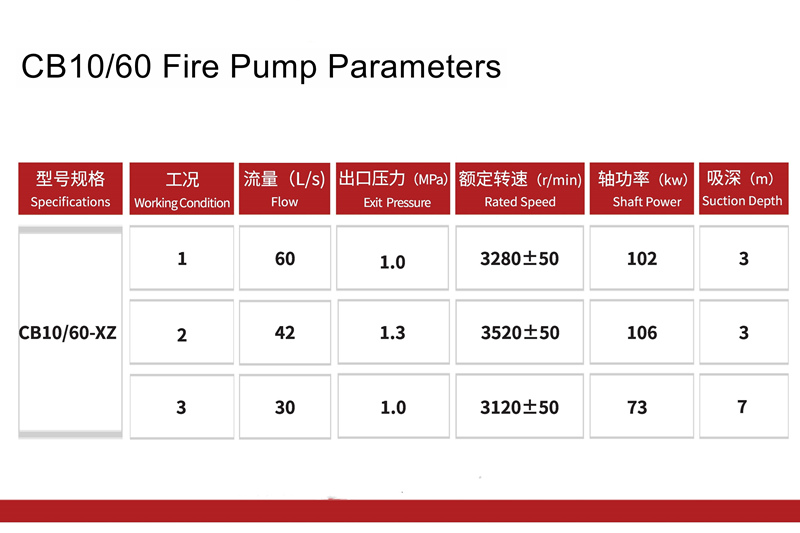

CB10/60 fire pump specifications

2. Fire Monitor Details



HOWO firefighting truck for sale

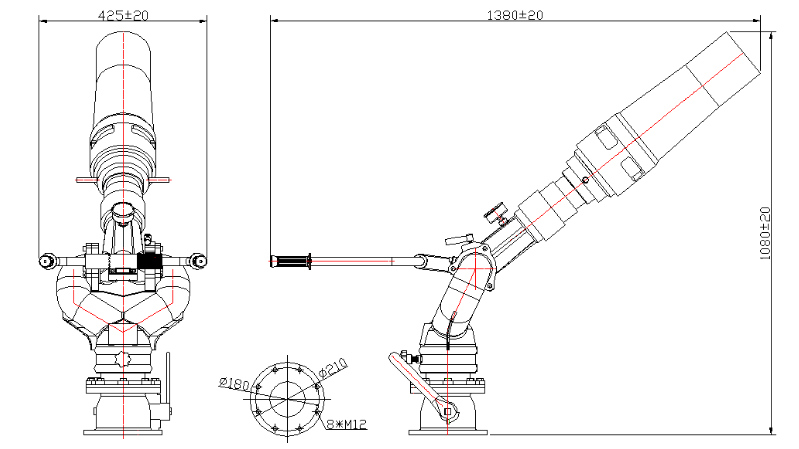

HOWO firefighting truck fire monitor drawing





»» Ⅳ Product Features




HOWO 6×6 firefighting truck for sale

The HOWO 6×6 tanker fire truck adopts an integrated structure, providing a broad field of vision and accommodating two personnel. It is capable of firefighting while on the move, featuring a long-range water jetting and strong firefighting capabilities.

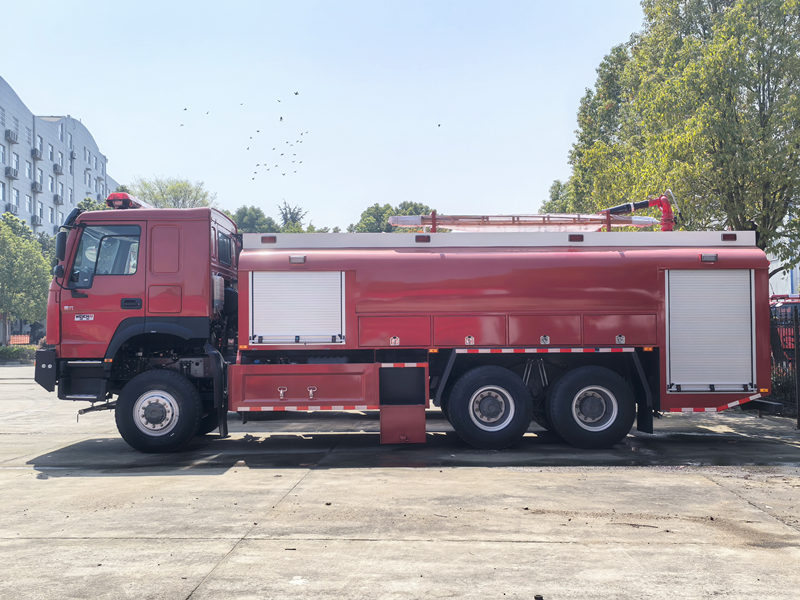

HOWO 6×6 fire tender truck

The external frame of the equipment room is made of high-quality carbon steel plates, while the internal frame is constructed from high-strength aluminum alloy profiles, featuring a hidden lap-joint structure. The interior panels are made of patterned aluminum sheets with an anodized surface, ensuring durability.

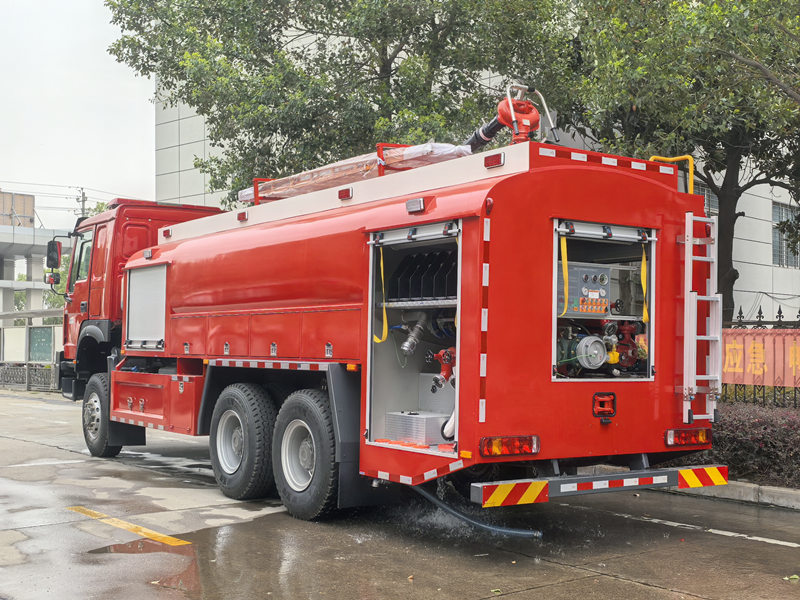

HOWO 6×6 pumper fire truck

The roll-up doors of the equipment and pump room are made of high-quality aluminum alloy, offering smooth operation, low noise, excellent sealing, and an aesthetically pleasing appearance.

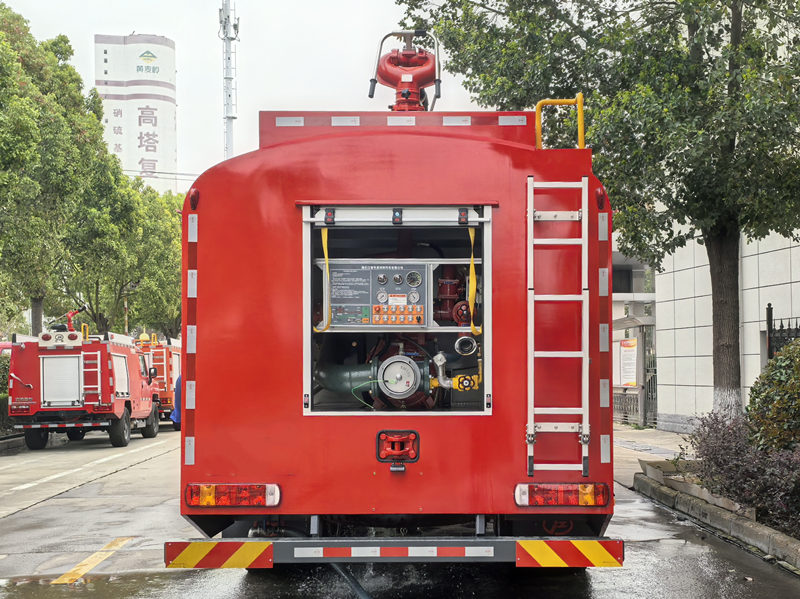

HOWO 6×6 all wheeler drive fire fighting vehicle

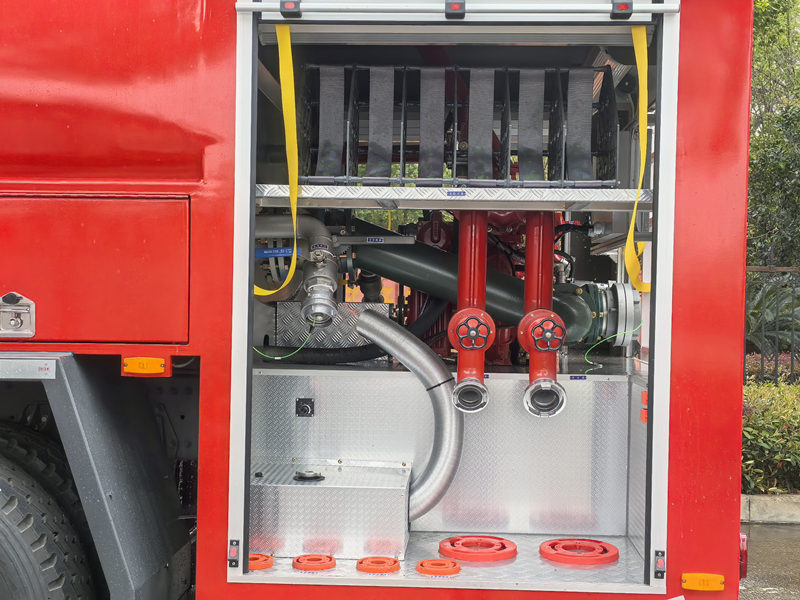

The pump room is equipped with a fire pump system, various gauges, indicator lights, liquid level meters, pressure gauges, vacuum gauges, and other devices.






Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.











HOWO 6×6 firefighting truck for export

HOWO firefighting trucks ready for shipment

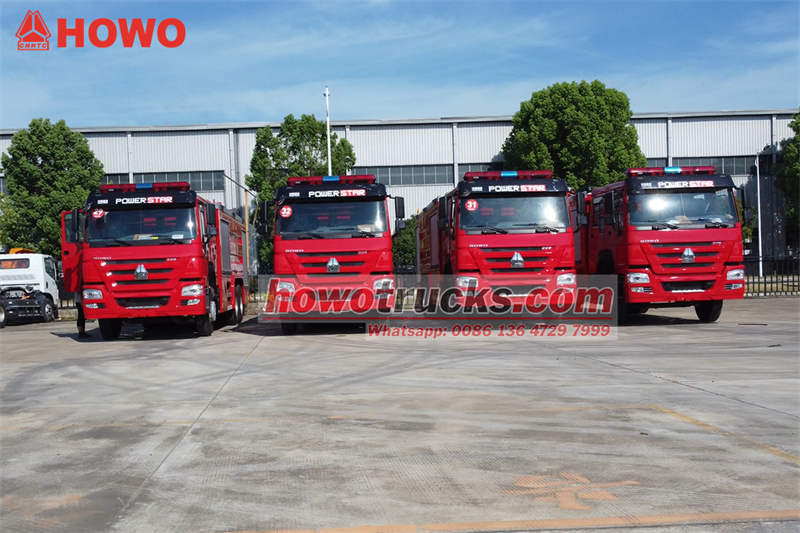

HOWO tanker fire trucks for sale

SINOTRUK HOWO tanker fire truck exported to Africa
