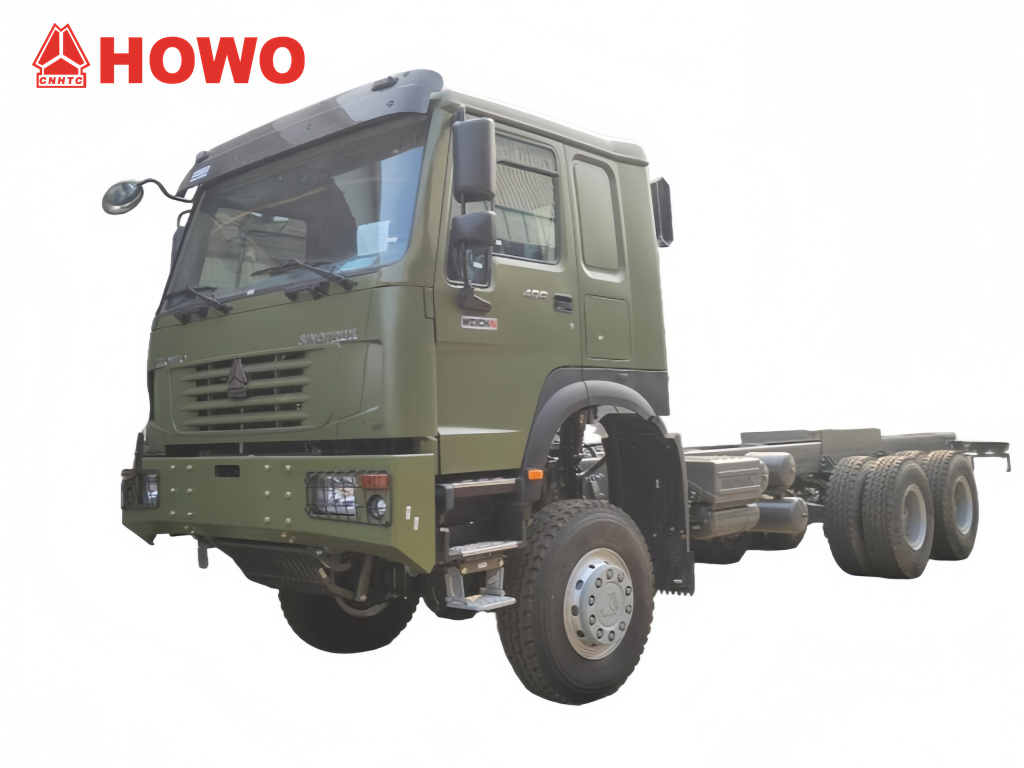

HOWO 6x6 Driving Cab Chassis Truck, also named HOWO all drive truck chassis or HOWO full drive cabin chassis. The HOWO 6x6 alll drive chassis includes a robust frame construction made from high-quality steel, making it strong enough to support the crane and the load it carries. The chassis is also designed to have sufficient ground clearance to operate in challenging terrains.The suspension system helps absorb the shocks and vibrations that occur during transport, preventing damage to the crane or the load. The use of high-quality shock absorbers and heavy-duty springs helps make the ride smoother and more comfortable while increasing the stability of the HOWO 6x6 Driving Cab Chassis Truck.
Working capacity :
15tonsCabin type :
HOWO HW76 cabin, with A/C, one sleeper bedDrive system :
6×6, left hand driveWheelbase ( mm) :
3200+1400Engine specific :
400HP/WP10.400Gear box :
HW19710, 10 Forward & 2 ReverseFront axle ( Kg ) :
7000Rear axle ( Kg ) :

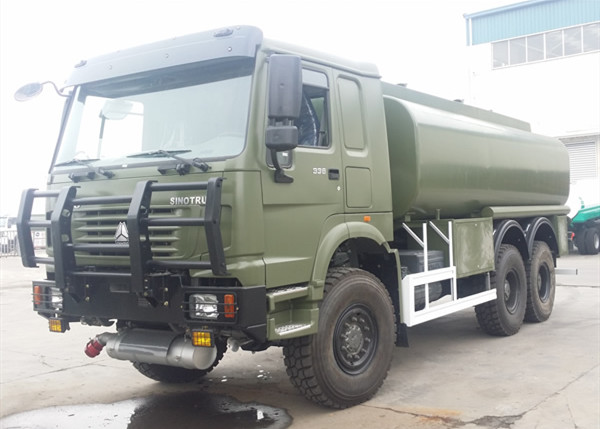

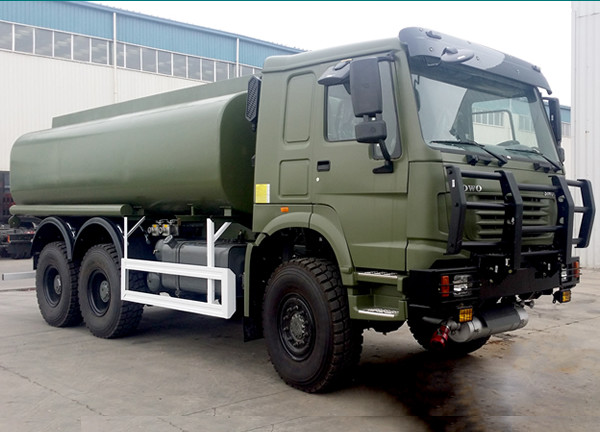

9000×2Congo customer contacted us through our company's official website, he works in a local construction company and needs to buy an all drive fuel truck for transporting diesel and other fuel material in the construction site. According to the customer's needs, we recommended 400HP SINOTRUK 6x6 cab chassis Truck and sent relevant pictures and videos, the customer was very satisfied after seeing it and immediately placed an order. Now the chassis of this truck has been completed and the production of the fuel tank body is in progress.
CS TRUCKS is professional manufacturer in special truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS TRUCKS
The HOWO 6x6 Driving Cab Chassis Truck, with a total mass of up to 25 tons, and six-wheel drive makes it possible to drive in mountain roads, forests and other areas, and is suitable for conversion into cargo trucks, dump trucks, concrete mixer trucks, and other special heavy duty vehicles.
The 6×6 HOWO cabin off-road chassis, with its all-wheel drive and excellent maneuverability, is widely used in the floating applications:
1, Industrial applications: aerial work platforms (such as 45-meter lifts) and heavy equipment transport (with load capacities exceeding 200 tons).
2, Military applications: tactical vehicles (such as mortar systems) and rapid deployment equipment.
3, Civilian applications: desert sightseeing vehicles and engineering dump trucks (such as the Dongfeng Tianjin chassis).
4, Core advantages: Six independent wheels enhance traction, and intelligent suspension adapts to complex terrain such as sand and mud, balancing load capacity and maneuverability.
|
SINOTRUK HOWO 6X6 Cab Chassis Truck |
||||||
|
SPECIFICATION |
||||||
|
Engine |
Model |
WD615.69 |
WD615.47 |
D12,42 |
||
|
Emission |
Euro 2 |
Euro3 |
Euro 3 |
|||
|
Displacement |
9.726L |
9.726L |
11.596L |
|||
|
Max Torque ( Nm/rpm) |
1350/1100-1600 |
1500/1100-1600 |
1820/1100-1600 |
|||
|
Type |
water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
|||
|
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance. |
|||||
|
Transmission |
SINOTRUK HW series 10/12 speed transmission, main and auxiliary transmission structure, main transmission with double countershaft, auxiliary transmission with planetary reducer. HW19712, 12 forward, 2 reverse HW19710, 10 forward, 2 reverse |
|||||
|
Chassis |

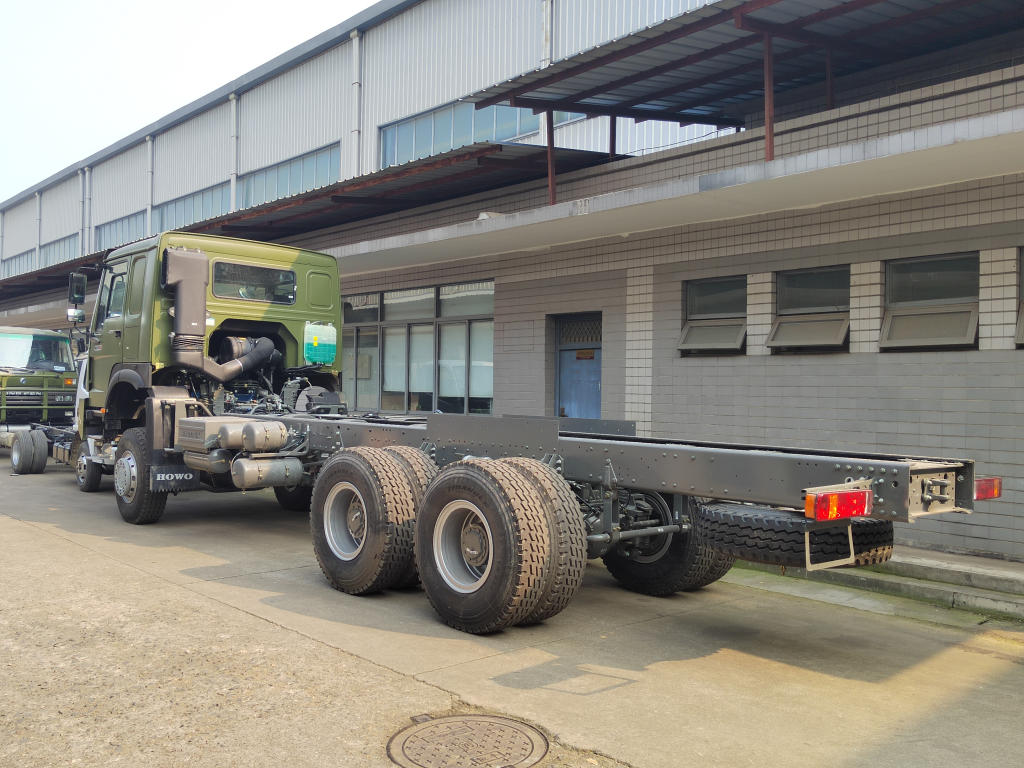

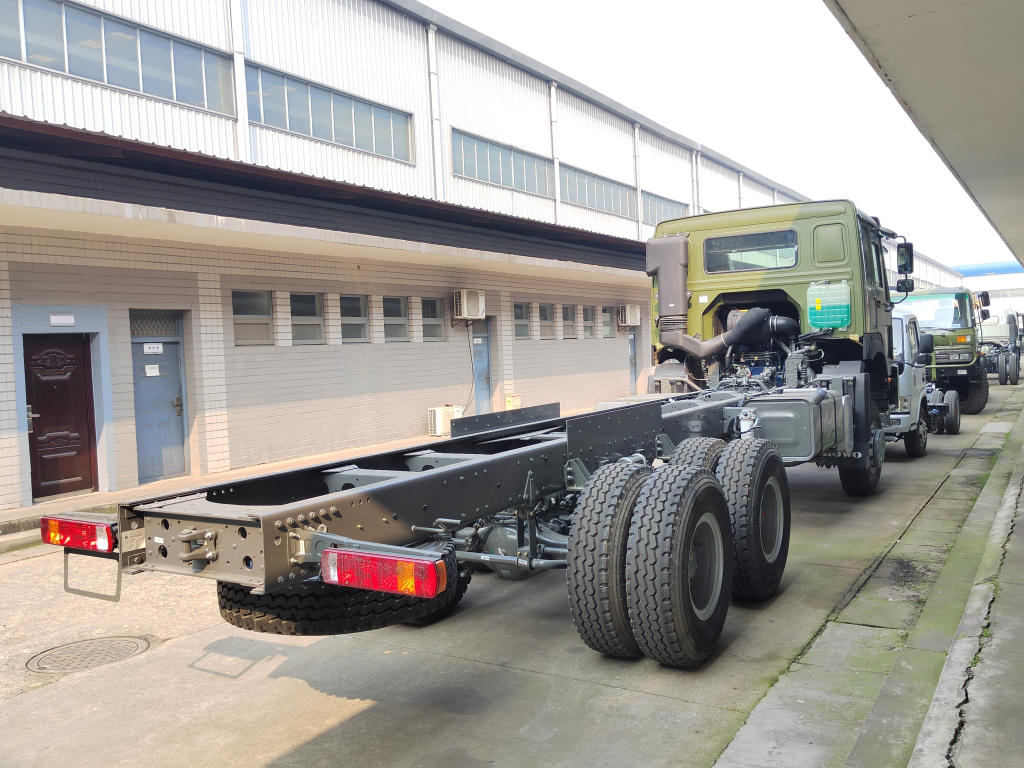

Three layers frame 8+8+8mm,U-profile parallel ladder frame and reinforced subframe, all cold riveted cross members |
|||||
|
Front Axle |
HF9 for heavy truck, rated load of 9t. drum-type |
|||||
|
Rear Axles |
HC16 with double reduction, central single reduction plus planetary wheel reduction and with differential lock |
|||||
|
Drive Shaft |
Double universal joint propeller shaft with gear-shaped coupling flange |
|||||
|
Fuel Tank |

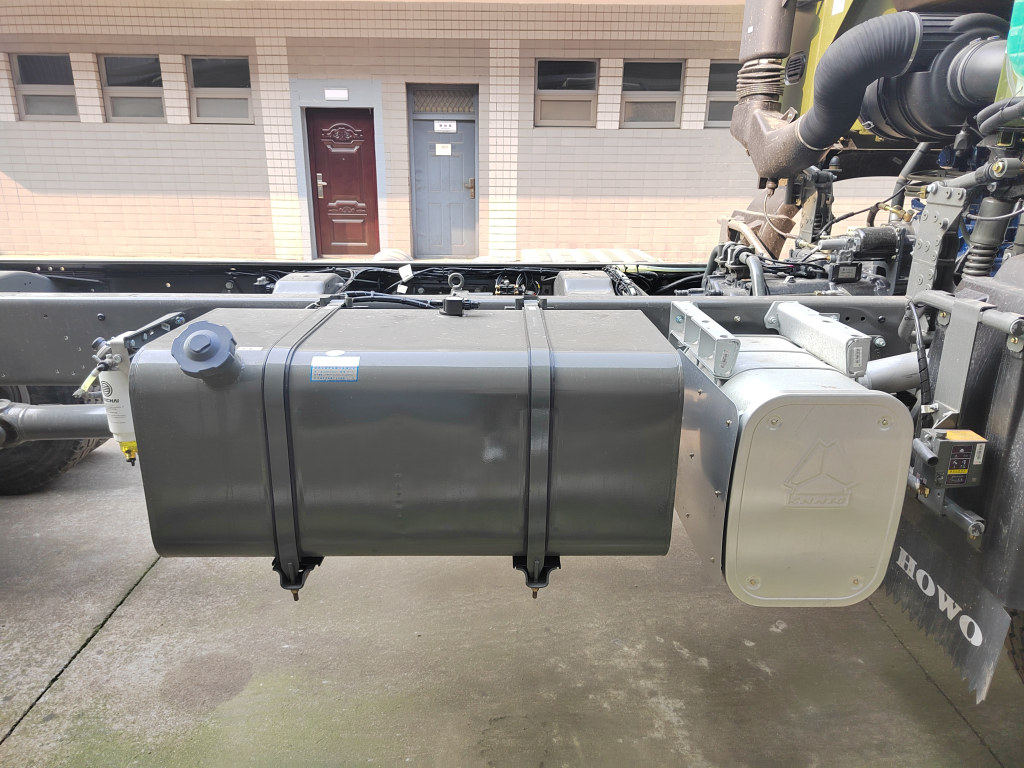

400 L Aluminum fuel tank with locking fuel cap, fitted to the off side of the chassis |
|||||
|
Steering |
Z F power steering, model Z F8118,hydraulic steering with power assistance. |
|||||
|
Braking System |
Service brake: dual circuit compressed air brake. Parking brake(emergency brake):spring energy, compressed air operating on rear wheels |
|||||
|
Auxiliary brake: engine exhaust brake |
||||||
|
Tyres |
Standard is 12.00R20 315/80R22.5, 295/80R22.5, 12R22.5 tubeless tire is optional |
|||||
|
Electrical System |
Operating voltage |
24V,negative grounded |
||||
|
Starter |
24V.7.5Kw |
|||||
|
Alternator |
3-phase,28V,1500W |
|||||
|
Batteries |
2*12V,165Ah/180Ah |
|||||
|
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
||||||
|
Instrument |
Active check central controller with indicators, with this integral instrument the daily manual checks on the vehicle |
|||||
|
combined indicators of compressed air pressure, coolant temperature, engine oil pressure |
||||||
|
battery charging |
||||||
|
Dimensions (mm) |
Bucket size |
5600+2500+1500mm |
||||
|
Front overhang |
1500 |
|||||
|
Rear overhang |
725 |
|||||
|
Approach angle(°) |
16 |
|||||
|
Departure angel(°) |
70 |
|||||
|
Overall (L*W*H) mm |
6800*2496*3835 |
|||||
|
Weight(kg) |
Curb weight |
8800 |
||||
|
Front axle loading capacity |
9000 |
|||||
|
Rear axle loading capacity |
18000/18000 |
|||||
|
Towable Total Mass(kg) |
40000 |
|||||
|
Performance Parameters |
Maximum driving speed(km/h) |
90-102 |
||||
|
Economic Speed(km/h) |
72-82 |
|||||
|
Maximum Gradability(%) |
35 |
|||||
|
Minimum Turning Diameter(m) |
15 |
|||||
|
Consumption(L/100km) |
30-40 |
|||||
|
Cab |
HOWO 76 New face cab(one bed, with air conditioner), all-steel forward control, 55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. HW 79 (two bed) HW70(No bed) |
|||||
 |
 |
 |
 |
»» Ⅲ Product Details
»» Ⅳ Product Features
Durability.The HOWO 6x6 Driving Cab Chassis Truck includes a robust frame construction made from high-quality steel, making it strong enough to support the crane and the load it carries. The chassis is also designed to have sufficient ground clearance to operate in challenging terrains.
Stability. Floor-mounted stabilizers play an essential role in providing stability to the chassis during crane operation. The stabilizers are designed to extend outward, increasing the crane's lifting capacity while providing stability to the crane mounted truck. The hydraulic power system of HOWO 6x6 Driving Cab Chassis Truck is used to extend and retract the stabilizer, ensuring the stability of the on-board crane during operation.
Suspension
The suspension system helps absorb the shocks and vibrations that occur during transport, preventing damage to the crane or the load. The use of high-quality shock absorbers and heavy-duty springs helps make the ride smoother and more comfortable while increasing the stability of HOWO 6x6 Driving Cab Chassis Truck.
Maneuverability
The chassis of the HOWO 6x6 Driving Cab Chassis Truck is designed to be highly maneuverable, making it an ideal solution for lifting and transporting heavy loads in tight spaces. Additionally, the hydraulic power steering system makes it easy for the operator to maneuver the crane mounted truck through tight spaces.
Equipped with drilling bit for tree planting, and digging holes for utility poles.
The diameter of the drilling bit can be 300mm, 400mm or 500mm.
The drilling depth is up to 3000mm.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.
