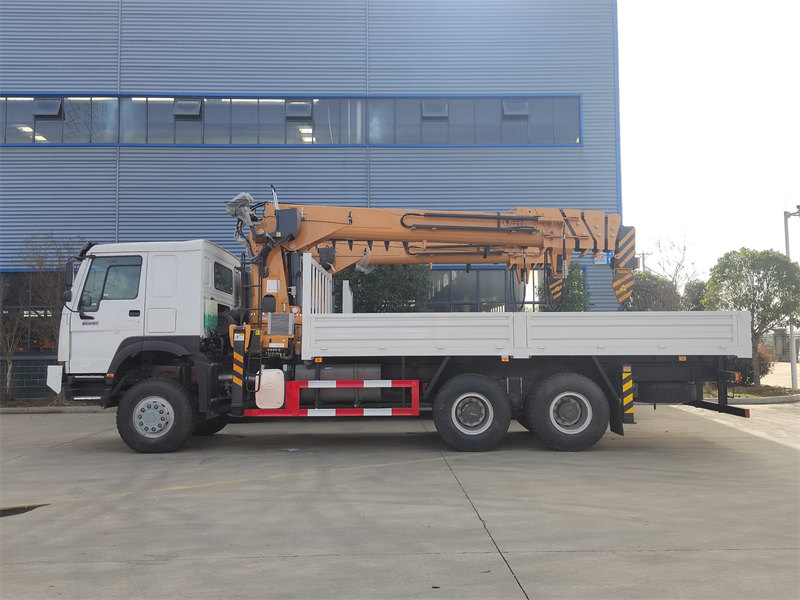

HOWO 6×6 truck-mounted crane is a multi-functional engineering vehicle built on the HOWO all-wheel-drive heavy-duty chassis. It integrates lifting, transportation, and drilling functions, featuring a hydraulic telescopic crane with a maximum lifting capacity of 12 tons and a 3-meter-deep drilling system. With powerful performance and strong off-road capability, it is specifically designed for complex outdoor engineering and landscaping applications.
Working capacity :
12 tonsCabin type :
HOWO HW76 cabin, with A/C, one sleeper bedDrive system :
6×6, left hand driveWheelbase ( mm) :
4450+1400Engine specific :
336HP/WP10.336Gear box :
HW19710, 10 Forward & 2 ReverseFront axle ( Kg ) :
7000Rear axle ( Kg ) :
9000×2HOWO 6×6 truck-mounted crane is a multi-functional engineering vehicle based on the SINOTRUK HOWO AWD heavy-duty truck chassis, combines lifting, transportation, and drilling functions. Equipped with a Weichai 336 HP turbocharged diesel engine, it delivers robust power. The vehicle is equipped with an SQS300 model four-section telescopic crane, which has a maximum lifting capacity of 12 tons and an operating height of 14 meters, with support for 360-degree full rotation. Additionally, it is customized with a 400mm diameter hydraulic drill bit for 3-meter-deep drilling operations, significantly enhancing efficiency in landscaping and infrastructure construction. Due to its all-wheel-drive chassis, dual-axle hydraulic outrigger system, and heat-adaptive cooling design, the HOWO 6×6 boom crane truck shows exceptional off-road capability and versatility in challenging terrains.

CS TRUCKS is professional manufacturer in special truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS TRUCKS
What is a truck mounted crane?
The truck-mounted crane, also known as a boom crane truck, is a type of equipment installed on a truck chassis that utilizes hydraulic lifting and telescopic systems to hoist, rotate, and transport goods. It generally consists of a truck chassis, cargo box, power take-off, and crane. Truck-mounted cranes offer high mobility, integrating lifting and transportation functions, and can be equipped with various grab attachments for multi-scenario operations.
|
HOWO 6×6 BOOM CRANE TRUCK TECHNICAL SPECIFICATIONS |
||
|
General |
Truck Name |
SINOTRUK HOWO truck with crane |
|
Drive Type |
6×6, left hand drive |
|
|
Gross Vehicle Weight(kg) |
25,000 |
|
|
Curb Weight (kg) |
14,955kg |
|
|
Overall Dimensions L*W*H(mm) |
11200×2500×3650mm |
|
|
Engine Brand |
WEICHAI |
|
|
Engine Model |
WP10.336 |
|
|
Engine Type |
Diesel, 6 cylinders in line, water cooling, turbocharged engine, inter-cooling |
|
|
Engine Power |
336 HP (247KW) |
|
|
Emission Standard |
Euro 3 |
|
|
Displacement |
9726 ml |
|
|
Rated speed |
2200 rpm |
|
|
Chassis |
Chassis Brand |
SINOTRUK HOWO |
|
Cab |
HW76, single and half row, with A/C |
|
|
Tire No. & Specification |
10 pcs+1pcs, 12.00R20 radial tire |
|
|
Wheelbase (mm) |
4450+1400mm |
|
|
Gear Box |
10 speed forward with 2 reverse, manual |
|
|
Brake |
Air brake |
|
|
Steering Wheel |
Left Hand Drive |
|
|
Radiator |
Suitable for tropical climate |
|
|
Crane Specifications |
Crane model |
SQS300 |
|
Max lifting weight |
12,000 kg |
|
|
Max lifting Moment |
25 TM |
|
|
Max lifting height |
14 m |
|
|
Max working radius |
12.3 m |
|
|
Number of sections |
4 |
|
|

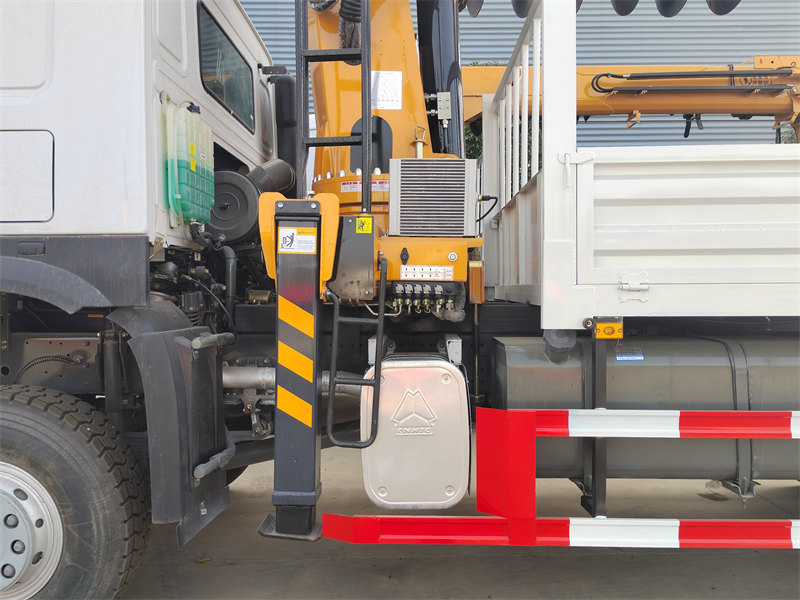

Outriggers |
2 pcs front outrigger and 2 pcs rear outriggers |
|
|
Rotation angle |
360 degree full rotation |
|
|

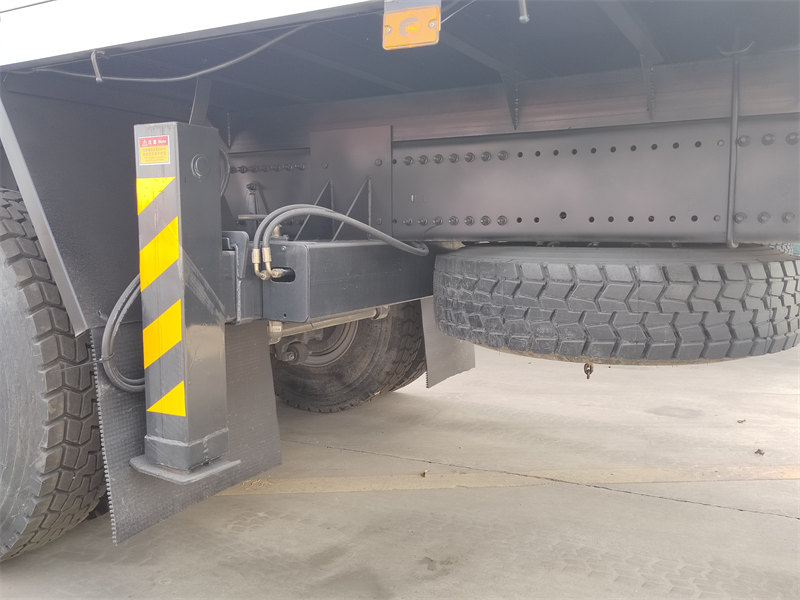

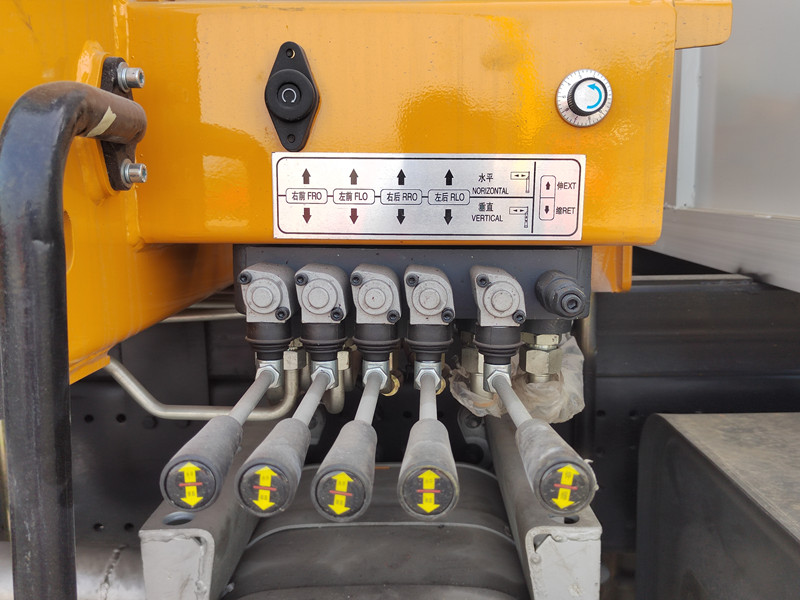

Rear outrigger |
Hydraulic rear outrigger |
|
|
Drill bit |
Diameter 40cm; drilling depth: 3m |
|
|

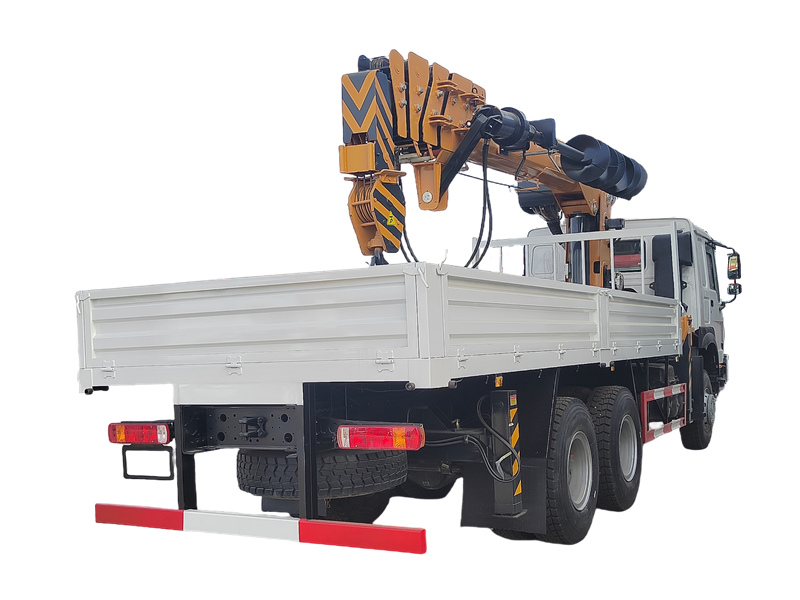

Cargo box |
Box inner dimension(mm) |
7000×2450×1500 mm |
|
Material |
Carbon steel |
|
|
Thickness |
Floor: 4mm; Walls: 3mm |
|

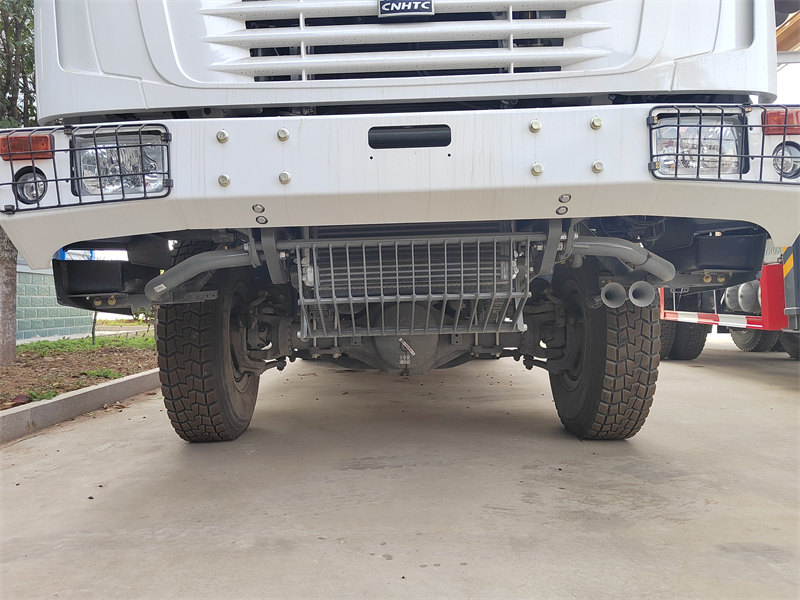

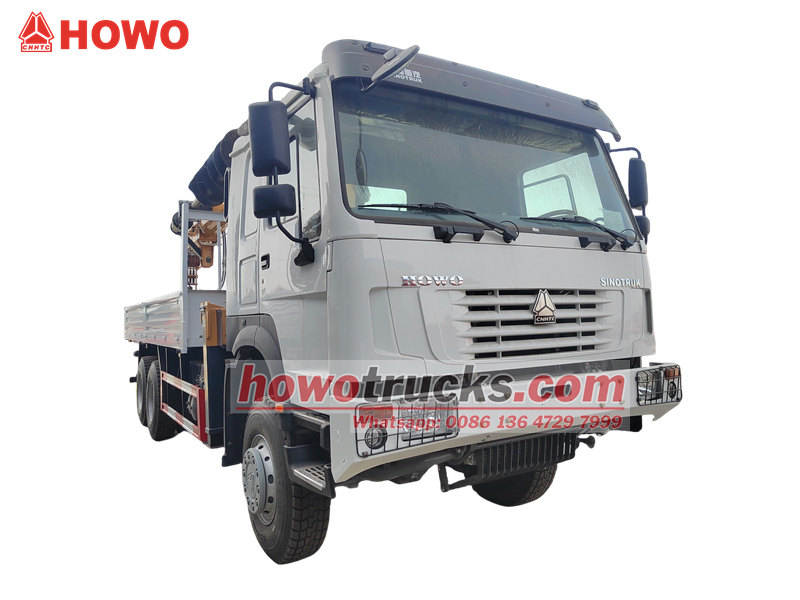

»» Ⅲ Product Details
»» Ⅳ Product Features

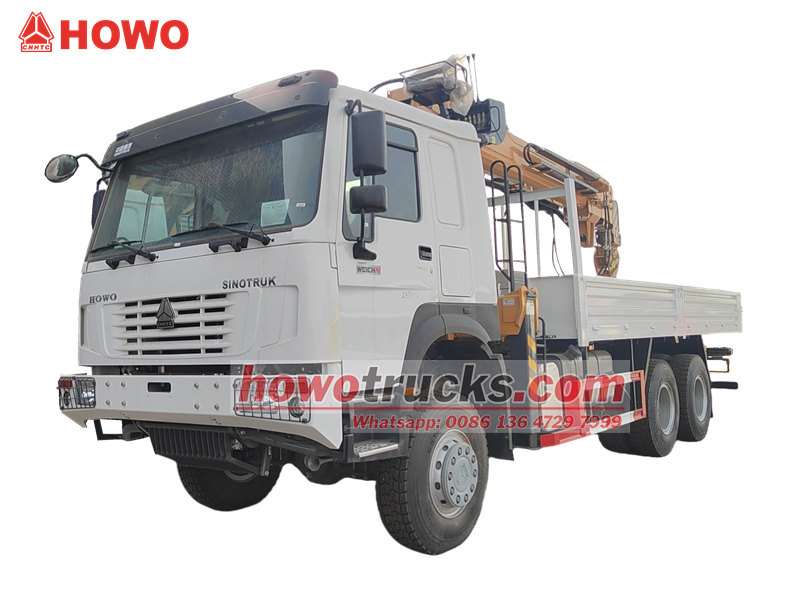

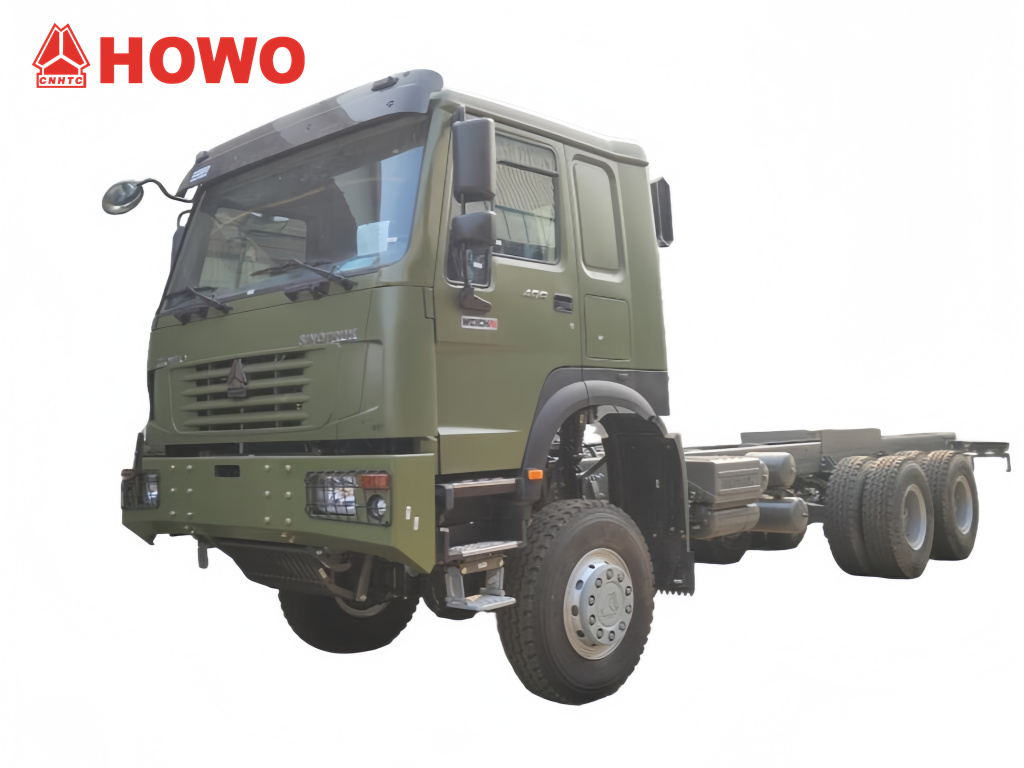

Based on SINOTRUK HOWO 6×6 all-wheel-drive chassis, with classic HOWO HW76 cabin, 2 seats, with A/C, Weichai diesel engine with 336HP, 380HP, 400HP for option.

Equipped with telescopic boom crane, 4 sections, the lifting capacity up to 12 tons.
XCMG, PALFINGER, UNIC brand is optional
The lifting capacity can be from 8~16 tons
Knuckle boom crane is optional

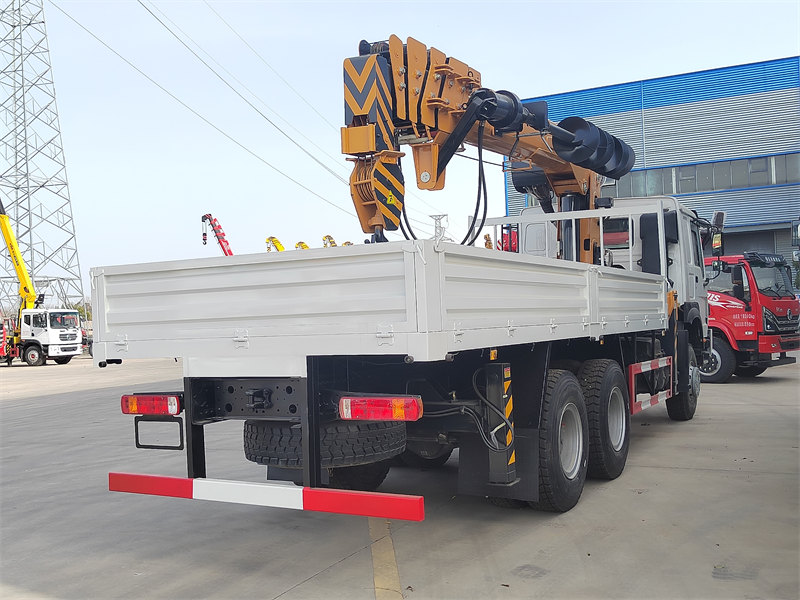

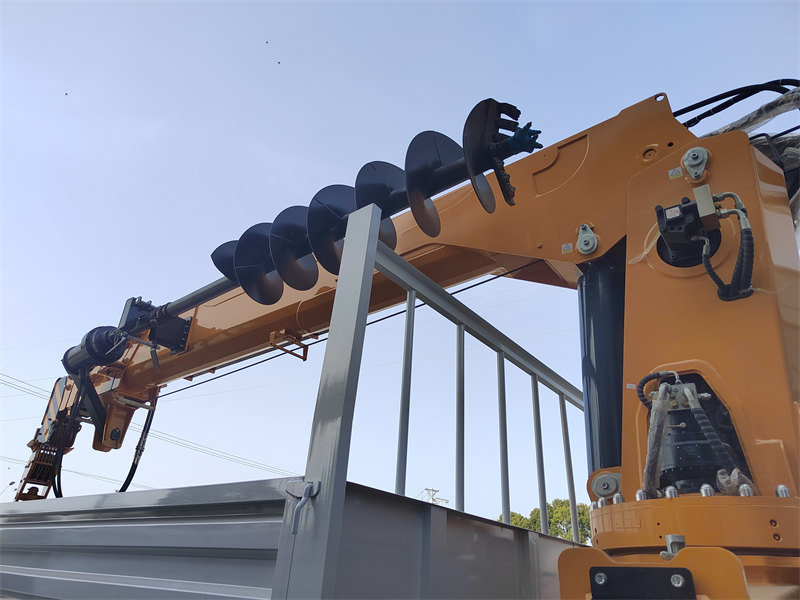

Equipped with drilling bit for tree planting, and digging holes for utility poles.
The diameter of the drilling bit can be 300mm, 400mm or 500mm.
The drilling depth is up to 3000mm.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasonable price
3.we can offer your a reliable after-sell service
4.we have skilled professional design team
5.promptly delivery. any order is welcome.
We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.

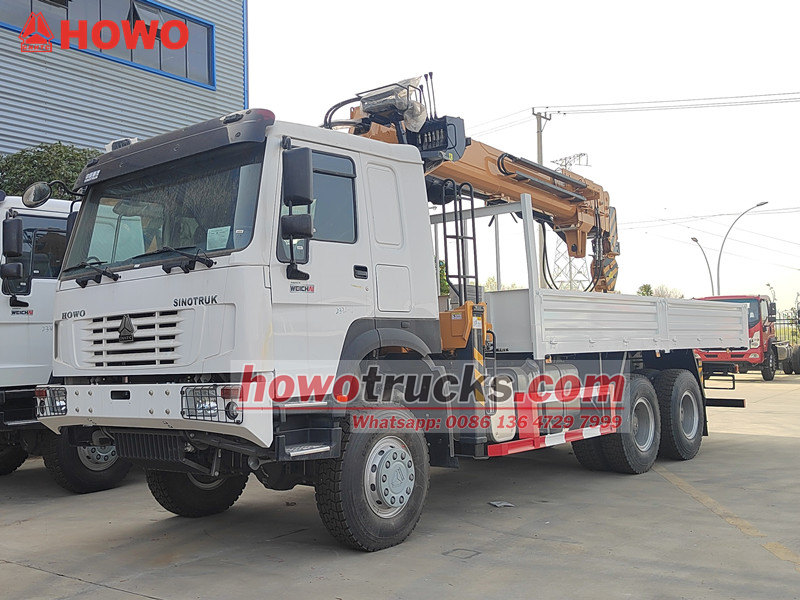

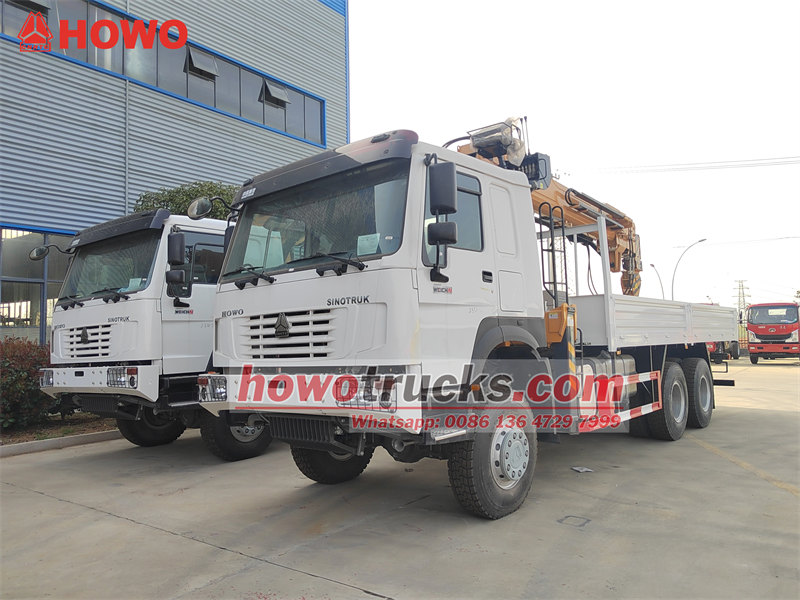

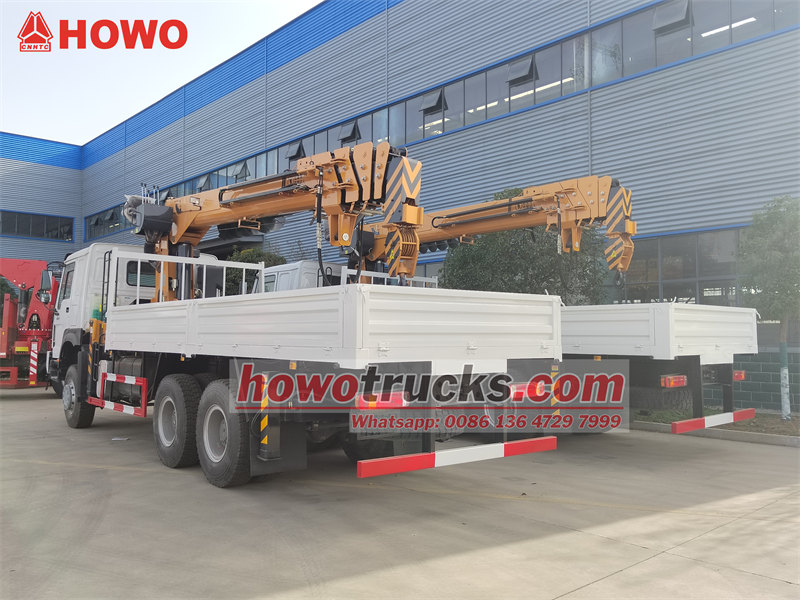

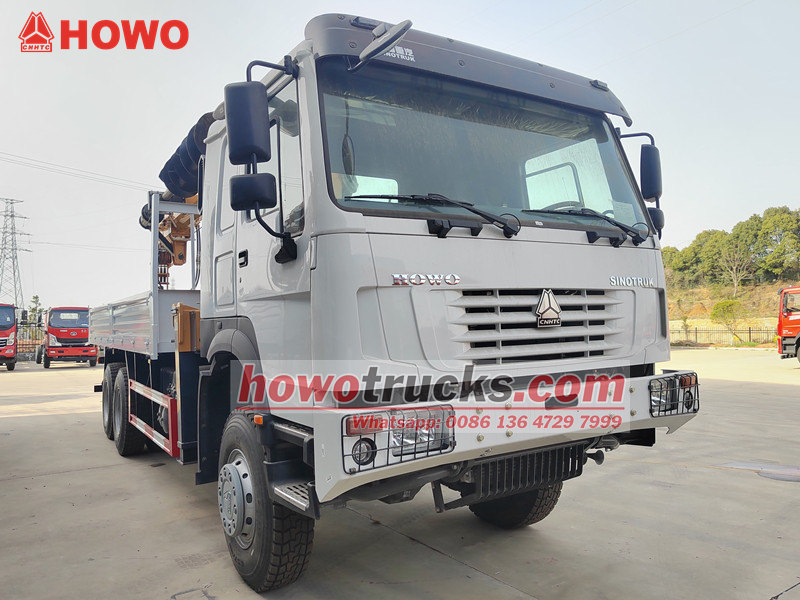

HOWO 6×6 boom crane trucks ready for shipment

SINOTRUK HOWO truck mounted crane exported to Africa
