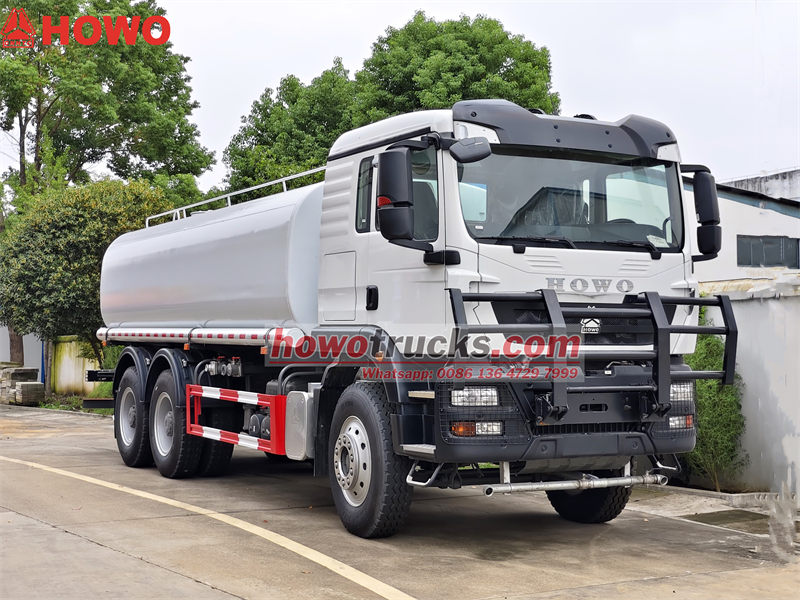

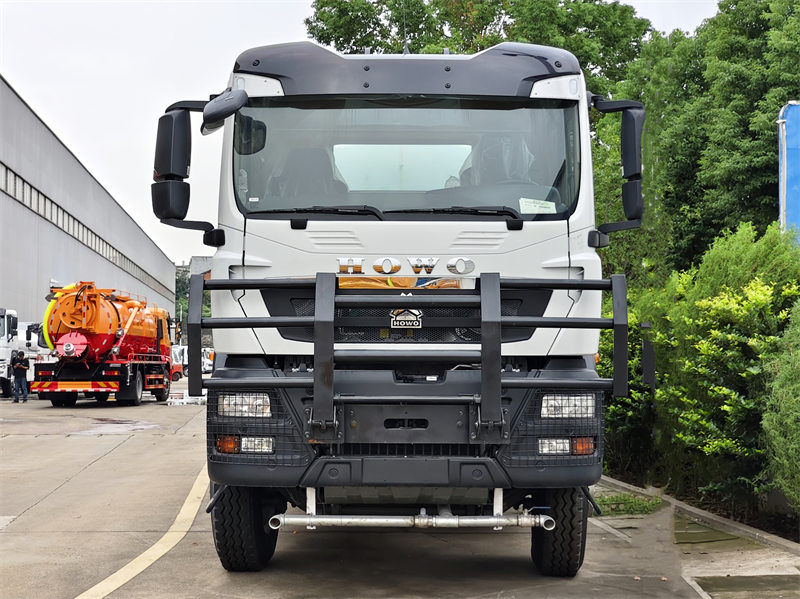

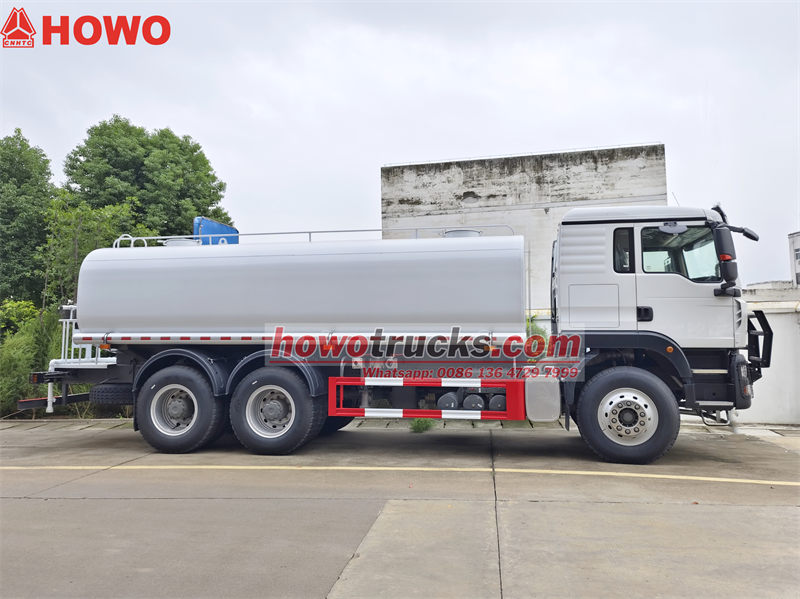

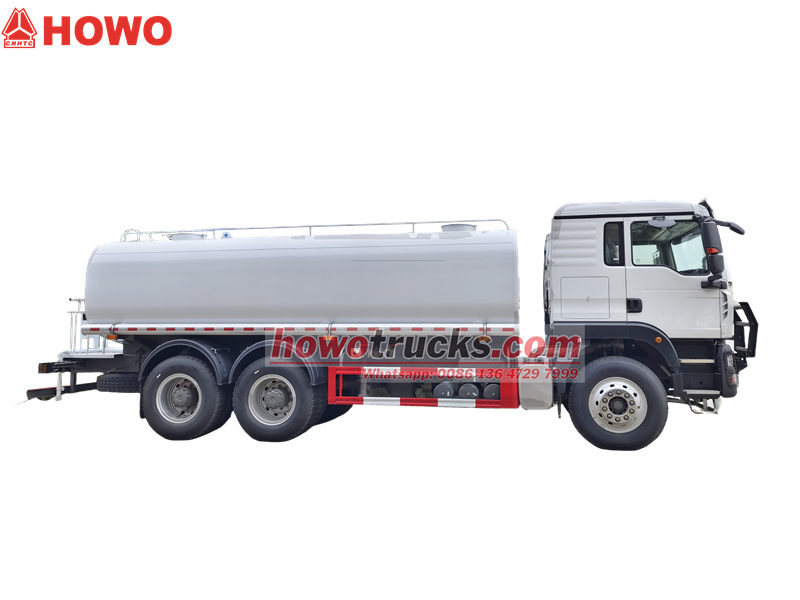

HOWO all drive 20000L water tanker truck

HOWO all drive 20000L water tanker truck

The Howo 6x6 water tanker is equipped with a WP10.340E32 inline 4 cylinder, 6 stroke engine featuring supercharged, intercooled, and water-cooled technology. It delivers 380 HP and a maximum torque of 1250 Nm, available at 1400 rpm and rated at 1600 rpm, ensuring the Howo heavy water tanker's powerful power for starting and climbing. The Howo cabin features a one and a half row design with two seats and a sleeper. Equipped with A/C and radio, it provides a comfortable driving environment while also supporting long-distance water transport missions.

  • Working capacity :

    20000 liters
  • Cabin type :

    HOWO single cabin with sleeper and A/C
  • Drive system :

    6×6
  • Wheelbase ( mm) :

    10300*2580*3250mm
  • Engine specific :

    340HP/WP10.340E23
  • Gear box :

    HW19710, 10 Forward & 2 Reverse
  • Front axle ( Kg ) :

    7.5T
  • Rear axle ( Kg ) :

    16 T*2
New Products

The Howo 6x6 water tanker is equipped with a WP10.340E32 inline 4 cylinder, 6 stroke engine featuring supercharged, intercooled, and water-cooled technology. It delivers 380 HP and a maximum torque of 1250 Nm, available at 1400 rpm and rated at 1600 rpm, ensuring the Howo heavy water tanker's powerful power for starting and climbing. The Howo cabin features a one and a half row design with two seats and a sleeper. Equipped with A/C and radio, it provides a comfortable driving environment while also supporting long-distance water transport missions.

With a large water tank and high-quality materials, the Howo water sprinkler truck boasts a tank capacity of over 20,000 liters, meeting the needs of large scale water spraying operations, reducing frequent refills and improving operational efficiency. The water tank is made of high quality carbon steel (Q235) and is made into an oval-shaped tank body. It has the advantages of high strength and corrosion resistance, ensuring the service life of the water tank.

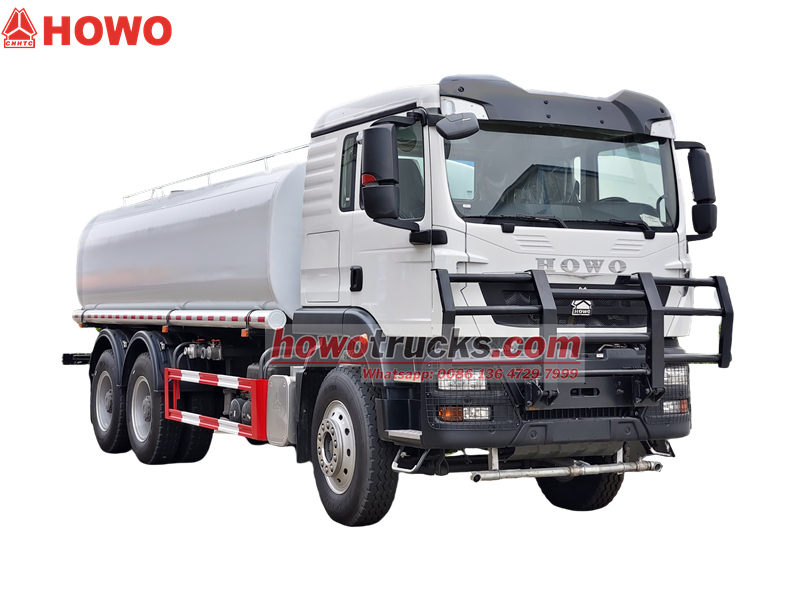

HOWO 6x6 water truck



*HOWO 6x6 Off Road Water Tanker Truck

HOWO 20000L Water Transport Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



Product Defination and Introduction:



Manufacturer: CS TRUCKS Group

Features:

1. Truck Chassis: Howo heavy truck chassis, 6X4 or 6x6 model

                              WP model with 340HP and Euro 2,3,4



2. Tank material: 6mm thick stainless steel for prolonged service lier
                             carbon steel, aluminum alloy can be choose



3. Water Pump: China TOP water pump, flow rate 60L/s, working distance over 38m
                           Optional famous Imported
pump

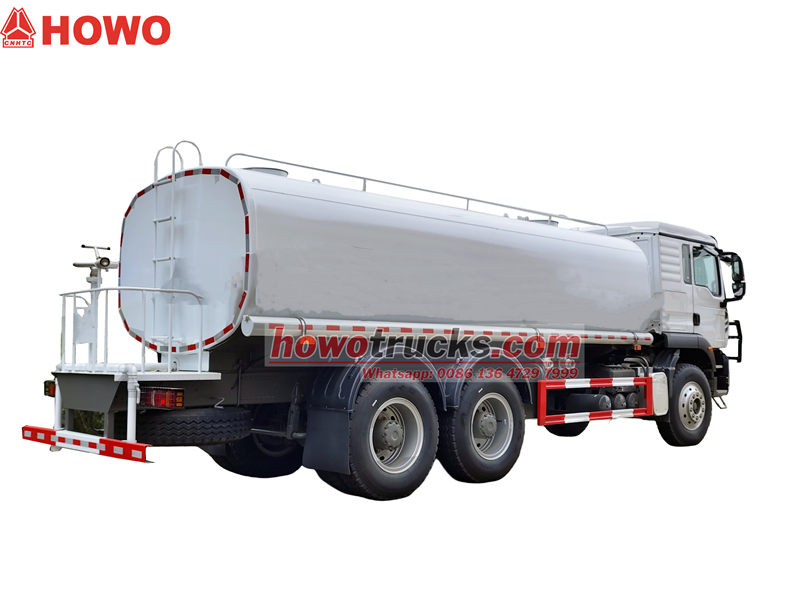

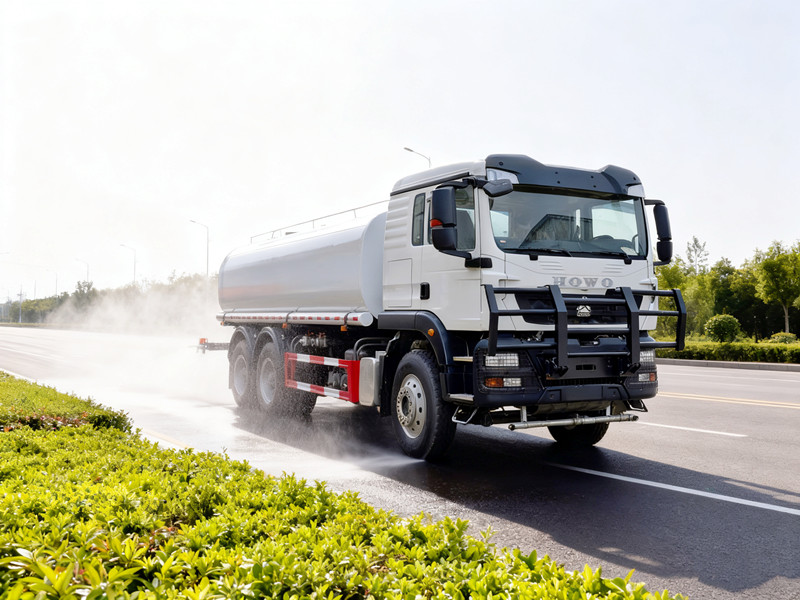

Howo 6x6 water tank truck

Howo 6x6 water tank truck



Product Parameter for Howo 20000L Water Sprinker Truck:



Howo 6x6 water tank truck



Howo all drive 20000L water tanker

Main parameter

Overall dimension(LxWxH)

10300*2580*3250mm

Wheel base(mm)

4325+1370mm

Driving Type

6×6,left hand drive

Color

White,blue,green,color can choose

Front/rear overhang

1535/2215

Max speed

100 km/h

Weight in KGS

GVW

30000 kg

Curb weight

12500 kg

Loading capacity

20000L

Front axles loading capacity

7.5T*2

Rear axles loading capacity

16 T*2

Engine

Engine model

WP10.340E23

Engine type

Inline 4-cylinder 6-stroke, supercharged, intercooled, water-cooled

Horsepower

340HP

Max. output (kw)

250Kw

Rated speed

1500rpm

Maximum Torque

1250N.m

Displacement(L)

9.72 L

Emission standard

Euro 6

Transmission

Gear box 10 forward ,2 reserve

Tire

295/80R22.5 standard tire,12 tires+1 spare tire

Brake

Air brake

Steering

Power steering

Body

Capacity

20000L

Structure

TANK MATERAIL

6mm,Q235 stee

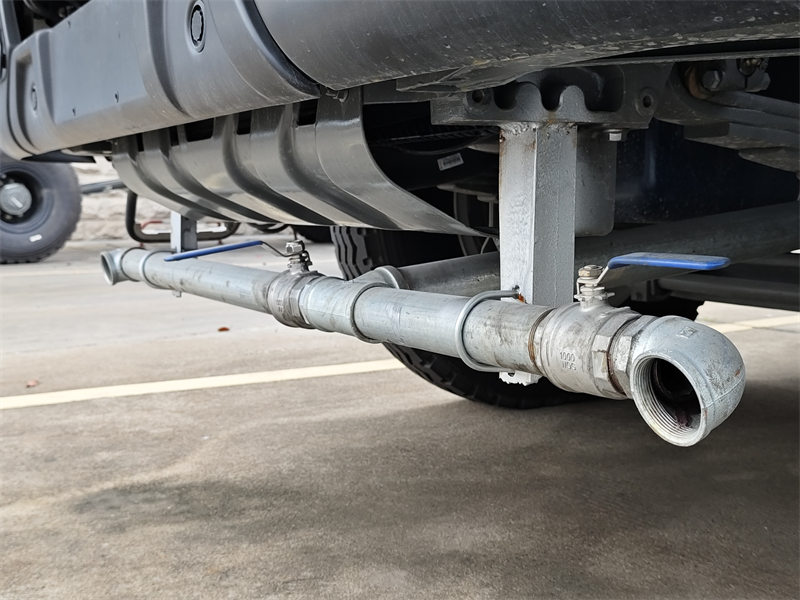

Pipe

Galvanized pipe

Discharge nozzle

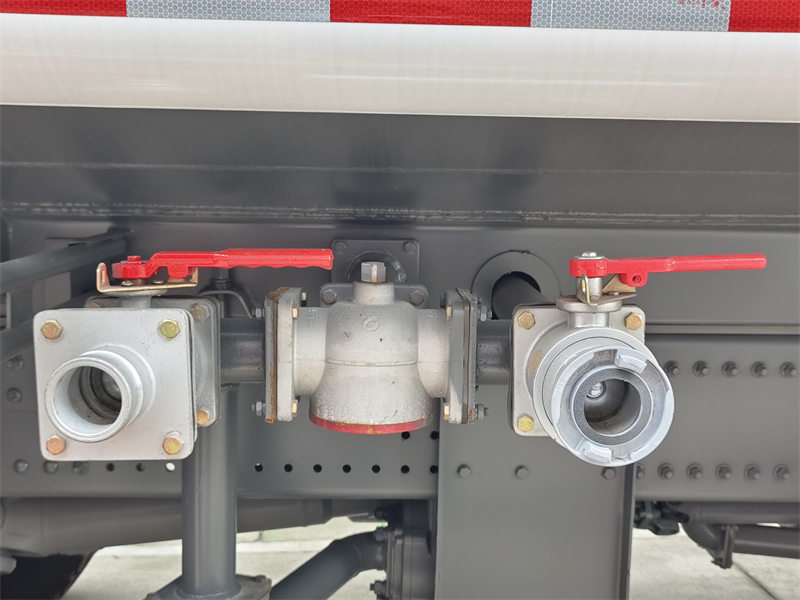

SS,at side bottom of tank,quick coupling

Discharge nozzle option

Stainless steel faucet

Water pump

Model

WEILONG 80QZF-60/90S pump

Flow rate(L/m):

60m3/h

Head of delivery(m)

90m

Self-priming function(min/4m)

1.5

Efficiency(%)

95%

Related rotate speed(r/min)

1180

Matched power(kw)

22

Water sprinkler system

Front sprinkler jet

14m

Rear sprinkler jet

13m

Rear sprinkler nozzle range

 12m

Water cannon range

45m

Water time

5 minutes

Working condition

Flow≥60L/m, 1.55Mpa

Max working pressure

≥0.9Mpa



Product Details & Fucntions:

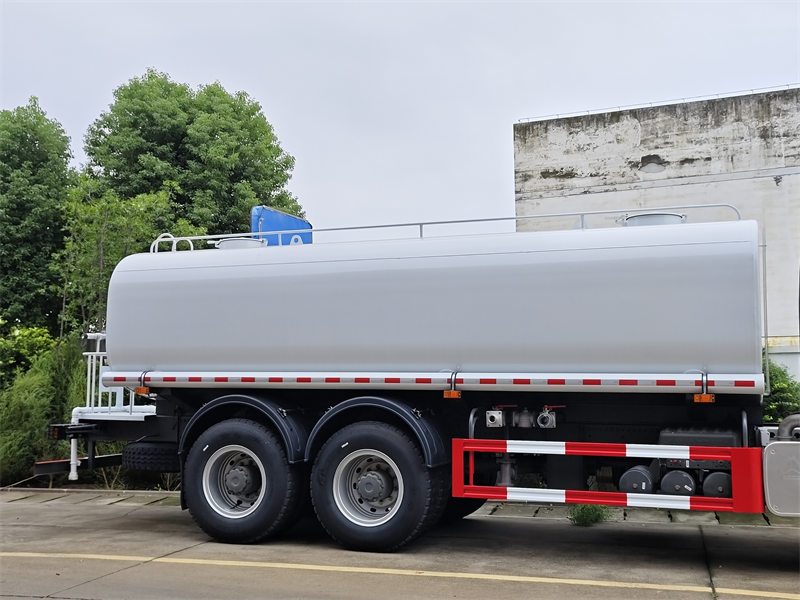

HOWO 20000L water tank truck

1. Production Advantages:

The production line utilizes cutting-edge robotic automated welding and laser precision cutting.

This ensures extremely high assembly accuracy and consistency, enabling customized customization.

For 20CBM tanks, high-strength, wear-resistant steel plates are used, utilizing CNC rolling and one-step spinning technology.

This ensures uniform roundness and optimal stress distribution within the tank, eliminating dead corners.

An advanced internal wave-shaped anti-wave plate design enhances structural strength while effectively reducing impact during liquid transportation.

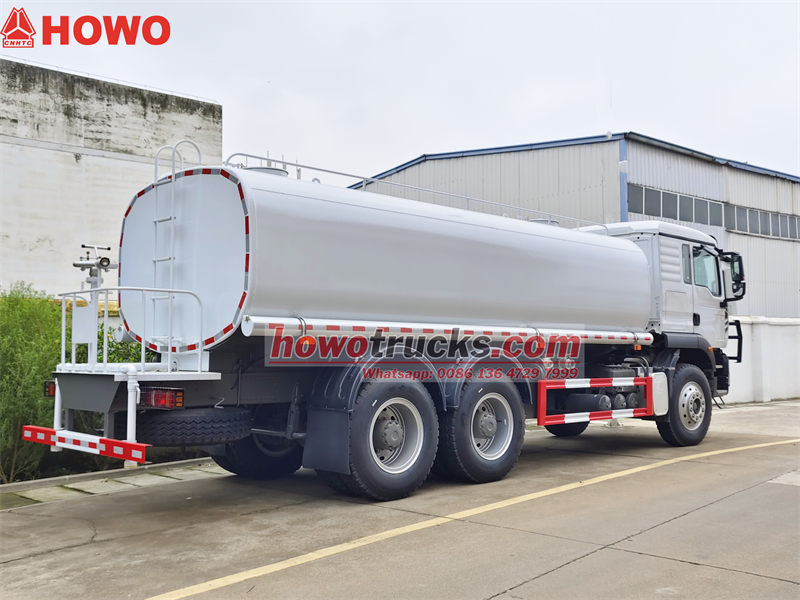

HOWO 20000L water tank truck

2. Technical Advantages:

Equipped with a high-horsepower engine, it forms a golden powertrain with an HW1910 transmission and a low-ratio drive axle.

It features an 6x6 drive system, high-strength frame materials, and a multi-leaf spring reinforced suspension system.

The dual front axle steering design ensures exceptional load-bearing capacity while enhancing steering flexibility.

The water pump, a renowned Chinese brand, boasts high flow, high head, and long service life, and is self-priming and self-discharging.

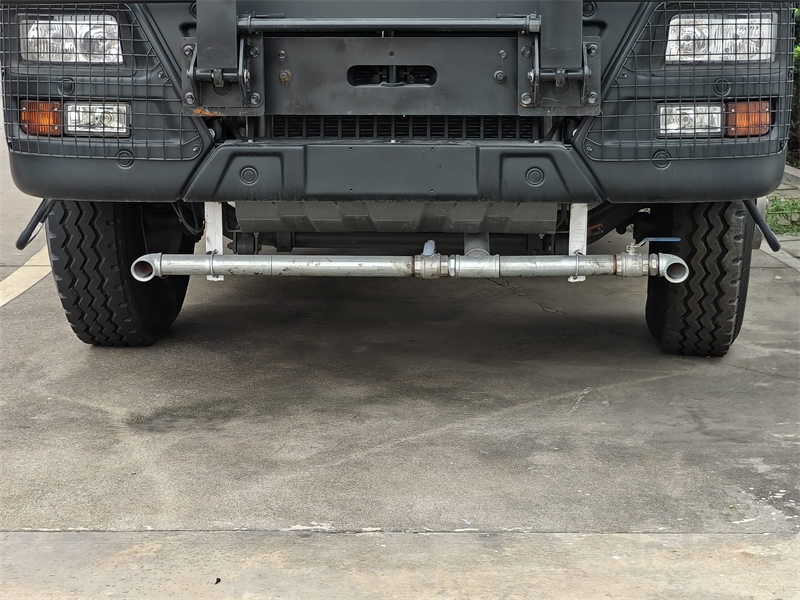

It features front-end flushing, side spraying, and a rear sprinkler—all in one.

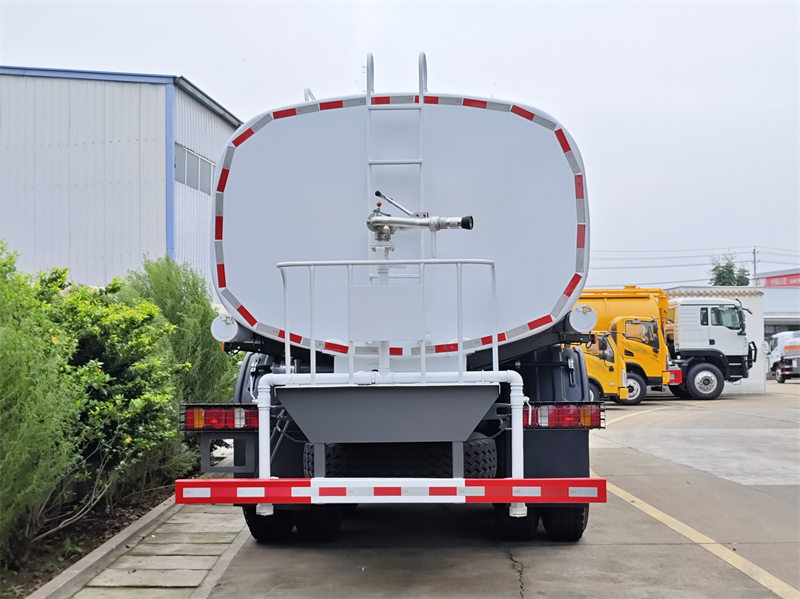

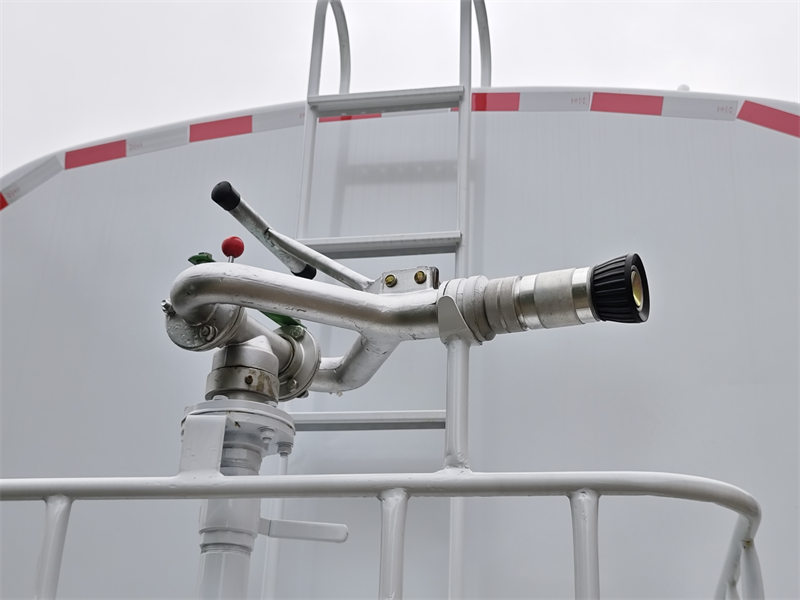

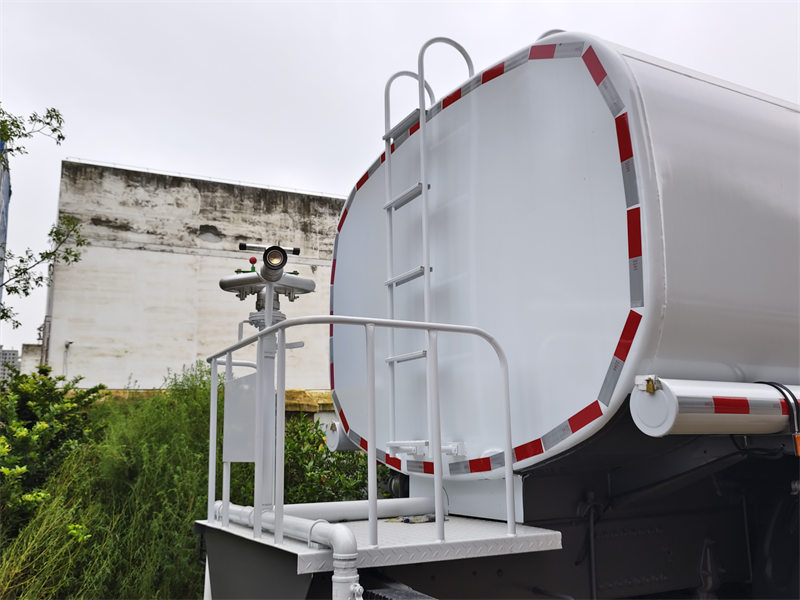

The high-pressure water canon rotates 360 degrees and can be adjusted to a columnar configuration for maximum range.





HOWO 20000L water tank truck



3. "One Vehicle, Multiple Uses" for Superior Functionality:

This vehicle perfectly meets the water supply and sprinkler needs of urban construction, road maintenance, and landscaping irrigation.

The large-capacity water tank and high-lift water cannon allow it to quickly transform into a "mini fire truck" in the event of an initial fire, reaching the scene and controlling the blaze as quickly as possible.

It is an effective dust suppression tool in dust-prone areas such as mines, steel mills, and thermal power plants, helping companies fulfill their environmental responsibilities.

 All wheel drive system, can overcome various bad road.It can be used for drought relief in farmland, emergency water supply.





Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.





China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely



Howo 30000L water tank truck



Howo 30000L water tank truck
