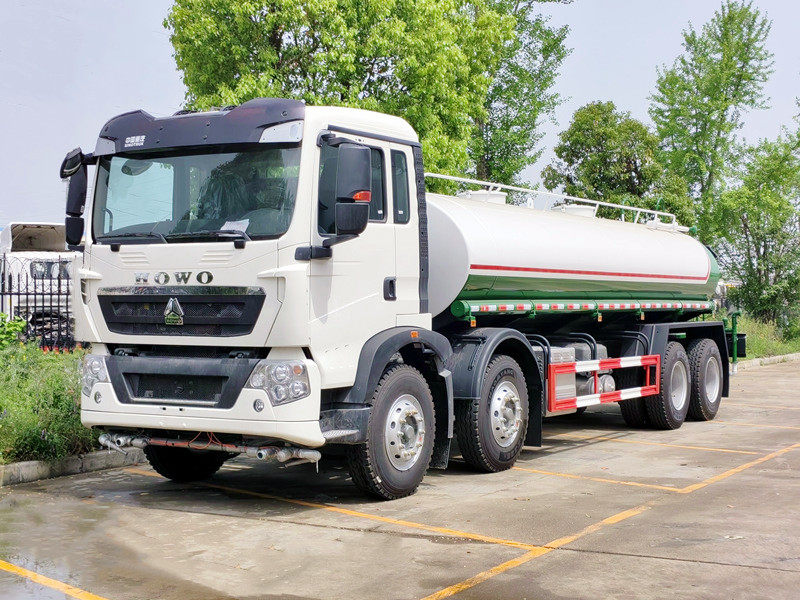

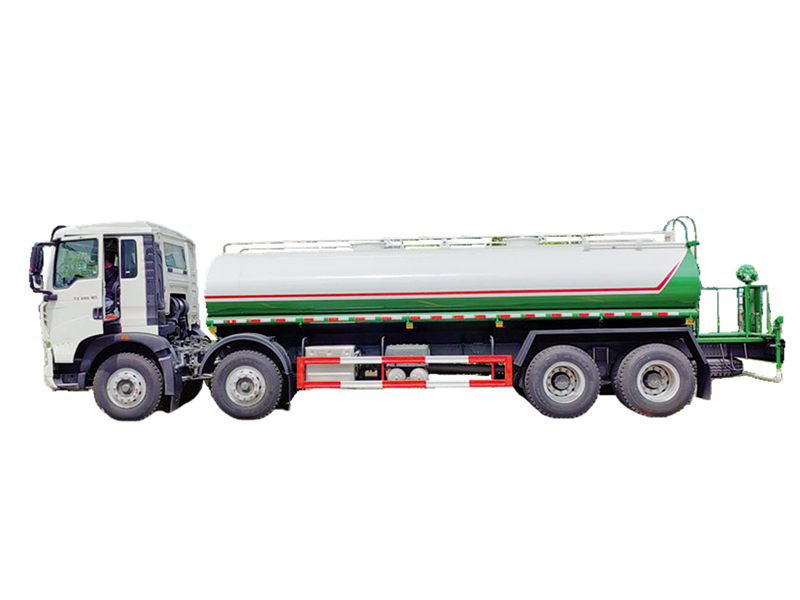

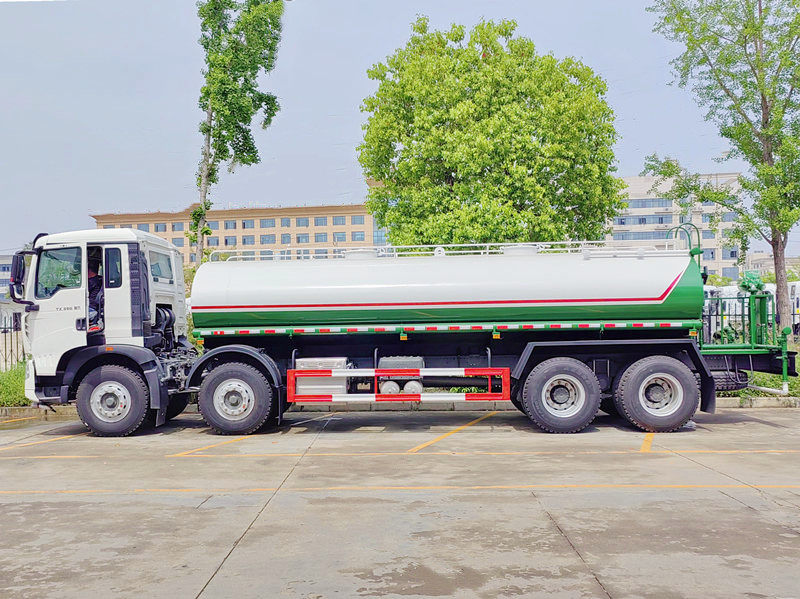

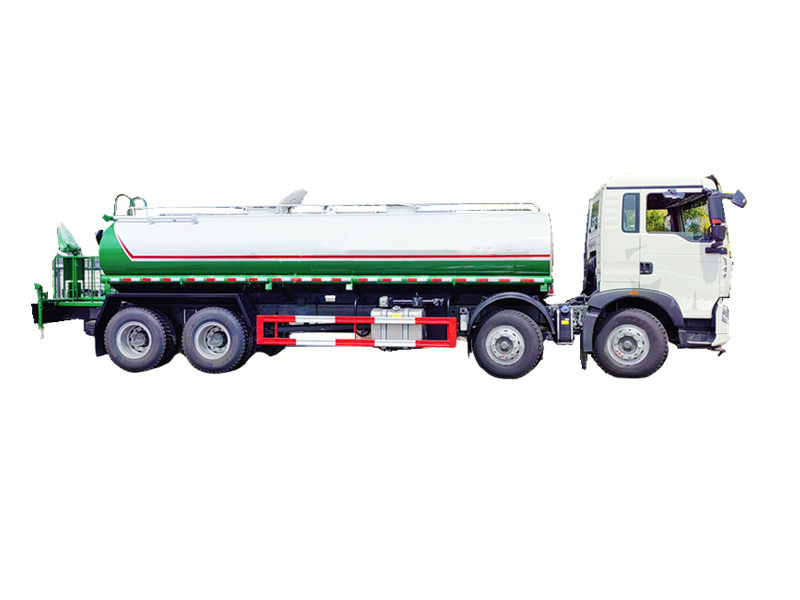

HOWO 8x4 TX 20000L water bowser truck

HOWO 8x4 TX 20000L water bowser truck

The Howo 8x4 water tanker is equipped with a WP12S400E201 inline 6 cylinder, 6 stroke engine featuring supercharged, intercooled, and water-cooled technology. It delivers 400 HP and a maximum torque of 1350 Nm, available at 1600 rpm and rated at 1800 rpm, ensuring the Howo heavy water tanker's powerful power for starting and climbing. The Howo cabin features a one and a half row design with two seats and a sleeper. Equipped with A/C and radio, it provides a comfortable driving environment while also supporting long-distance water transport missions.

  • Working capacity :

    20000 liters
  • Cabin type :

    HOWO TX
  • Dimension (mm ) :

    11300*2580*3250
  • Drive system :

    8×4
  • Wheelbase ( mm) :

    2100+4325+1370
  • Engine specific :

    400HP / WP12S400E201
  • Gear box :

    HW19710 10-speed
  • Front axle ( Kg ) :

    7000*2
  • Rear axle ( Kg ) :

    18000*2
  • Remark :

    stainless steel tank, 8×4, RHD is optional
New Products

The Howo 8x4 water tanker is equipped with a WP12S400E201 inline 6 cylinder, 6 stroke engine featuring supercharged, intercooled, and water-cooled technology. It delivers 400 HP and a maximum torque of 1350 Nm, available at 1600 rpm and rated at 1800 rpm, ensuring the Howo heavy water tanker's powerful power for starting and climbing. The Howo cabin features a one and a half row design with two seats and a sleeper. Equipped with A/C and radio, it provides a comfortable driving environment while also supporting long-distance water transport missions.

With a large water tank and high-quality materials, the Howo water sprinkler truck boasts a tank capacity of over 20,000 liters, meeting the needs of large scale water spraying operations, reducing frequent refills and improving operational efficiency. The water tank is made of high quality carbon steel (Q235) and is made into an oval-shaped tank body. It has the advantages of high strength and corrosion resistance, ensuring the service life of the water tank.

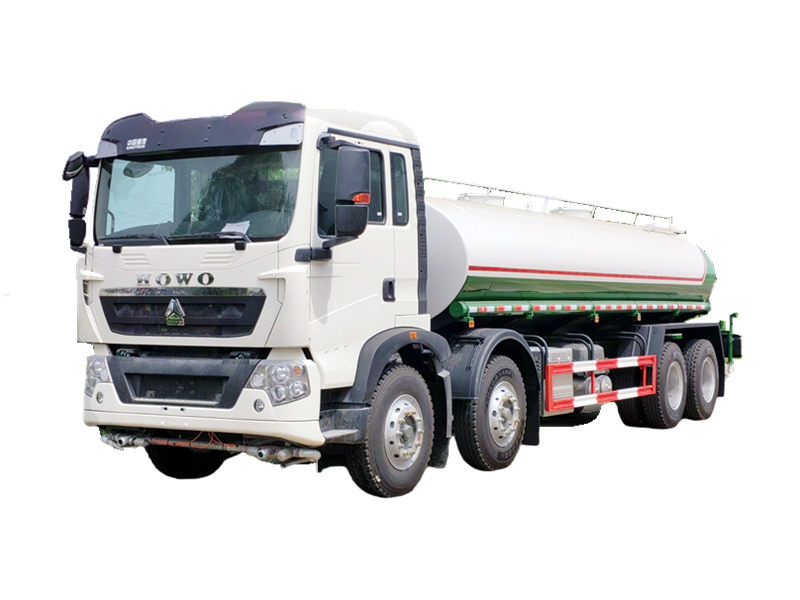

HOWO TX 20000 liters water truck



*HOWO TX 12-Wheeler Water Bowser

HOWO 8×4 Heavy 20000 Liters Water Spray Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.



 Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS



Product Features

1. Robust Chassis: Built on the HOWO TX 8x4 chassis, offering strong load-bearing capacity and excellent stability.
2. Powerful Engine: Equipped with a Weichai 400 HP diesel engine, delivering ample power for demanding operations.
3. Large-Capacity Water Tank: With an 20,000 liter carbon steel water tank, ensuring extended operation time and high work efficiency.
4. Multi-Functional Spraying System: Integrates various operation modes including front flushing, rear sprinkling, side spraying, and a high-pressure water cannon.
5. High-Efficiency Water Pump: Utilizes a Weilong centrifugal pump with self-priming capability and a flow rate of up to 60m³/h.



Howo heavy water tank lorry



Ⅱ. Product Parameter for HOWO TX water tanker truck:



Howo 8x4 heavy duty water tank truck



Howo heavy 20000L water tanker

Main parameter

Overall dimension(LxWxH)

11300*2580*3250mm

Wheel base(mm)

2100+4325+1370mm

Driving Type

8×4,left hand drive

Color

White,blue,green,color can choose

Front/rear overhang

1535/2215

Max speed

100 km/h

Weight in KGS

GVW

30000 kg

Curb weight

12500 kg

Loading capacity

20000L

Front axles loading capacity

7.5T*2

Rear axles loading capacity

16 T*2

Engine

Engine model

WP12S400E201

Engine type

Inline 4-cylinder 6-stroke, supercharged, intercooled, water-cooled

Horsepower

400HP

Max. output (kw)

293Kw

Rated speed

1800rpm

Maximum Torque

1550N.m

Displacement(L)

12.72 L

Emission standard

Euro 3

Transmission

Gear box 12 forward ,2 reserve

Tire

295/80R22.5 standard tire,12 tires+1 spare tire

Brake

Air brake

Steering

Power steering

Body

Capacity

20000L

Structure

TANK MATERAIL

6mm,Q235 stee

Pipe

Galvanized pipe

Discharge nozzle

SS,at side bottom of tank,quick coupling

Discharge nozzle option

Stainless steel faucet

Water pump

Model

WEILONG 80QZF-60/90S pump

Flow rate(L/m):

60m3/h

Head of delivery(m)

90m

Self-priming function(min/4m)

1.5

Efficiency(%)

95%

Related rotate speed(r/min)

1180

Matched power(kw)

22

Water sprinkler system

Front sprinkler jet

14m

Rear sprinkler jet

13m

Rear sprinkler nozzle range

12m

Water cannon range

45m

Water time

5 minutes

Working condition

Flow≥60L/m, 1.55Mpa

Max working pressure

0.9Mpa





Ⅲ. Product Details & Features:

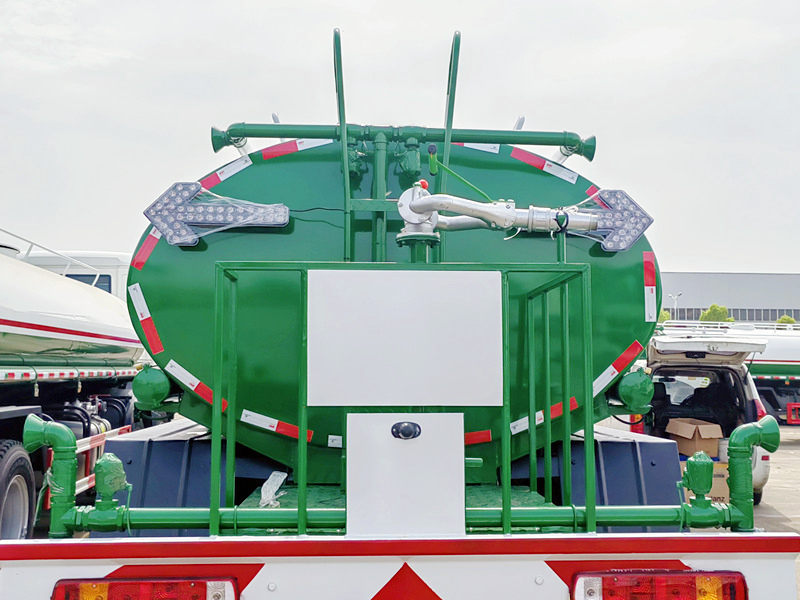

HOWO 10 wheeler water truck pipeline system
( HOWO water spray truck pipeline system )





※Ⅵ. Water Pump Specifications:



HOWO water tanker truck for sale HOWO 18 cubic water spray truck


Model

Flow rate (m³/h)

Head (m)

Speed (r/min)

Shaft power (KW)

NPSHr (m)

Self-priming time (min/4m)

Efficiency (%)

80QZBF-60/90N(S)

60

90

1180

22.5

4.5

1.5

70

65QZ-40/45N(S)

40

45

1450

9.25

4.5

1.5

72

65QZ-50/50N

50

50

1180

10.5

4.5

1.5

70

65QZBF-50/110N(S)

50

110

1450

24

-

-

70



※ Ⅴ. Product Advatange:

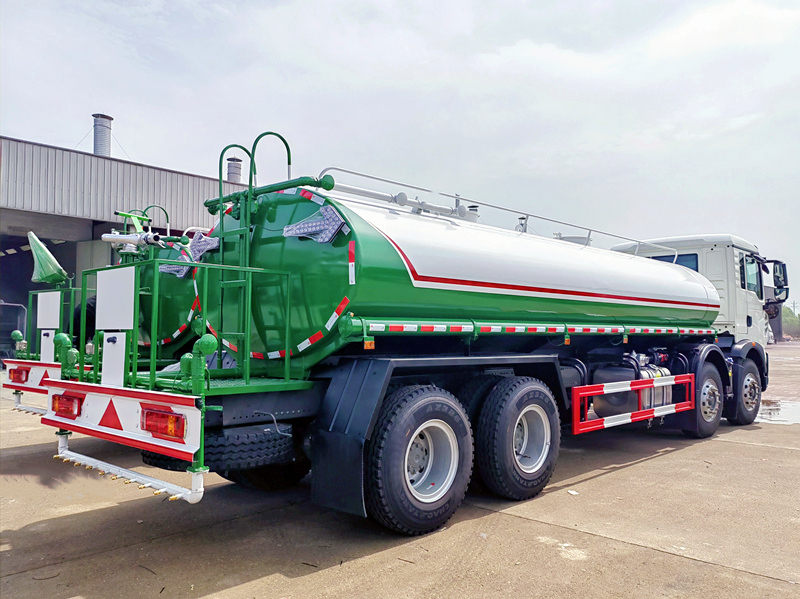

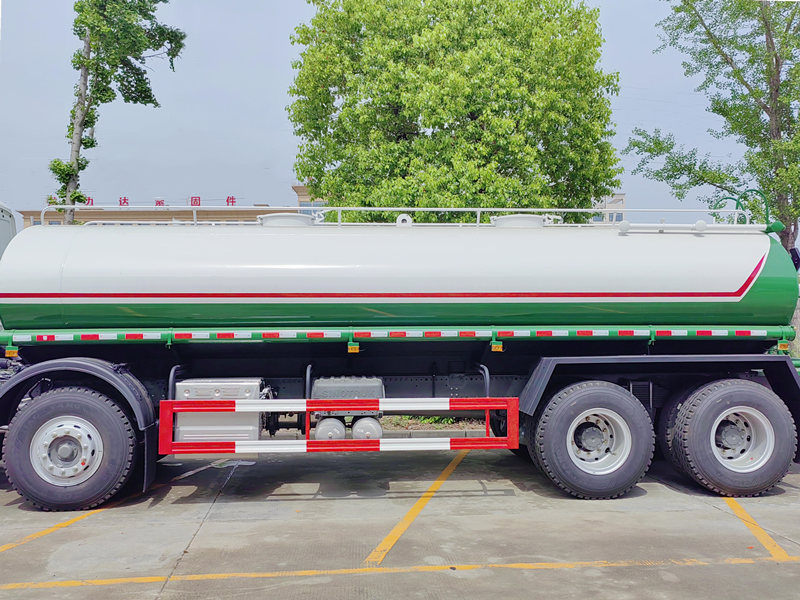

Howo 8x4 heavy 20000L water tanker

1. Production Advantages:

♦ The production line utilizes cutting-edge robotic automated welding and laser precision cutting.

 This ensures extremely high assembly accuracy and consistency, enabling customized customization.

 For 20CBM tanks, high-strength, wear-resistant steel plates are used, utilizing CNC rolling and one-step spinning technology.

 This ensures uniform roundness and optimal stress distribution within the tank, eliminating dead corners.

 An advanced internal wave-shaped anti-wave plate design enhances structural strength while effectively reducing impact during liquid transportation.

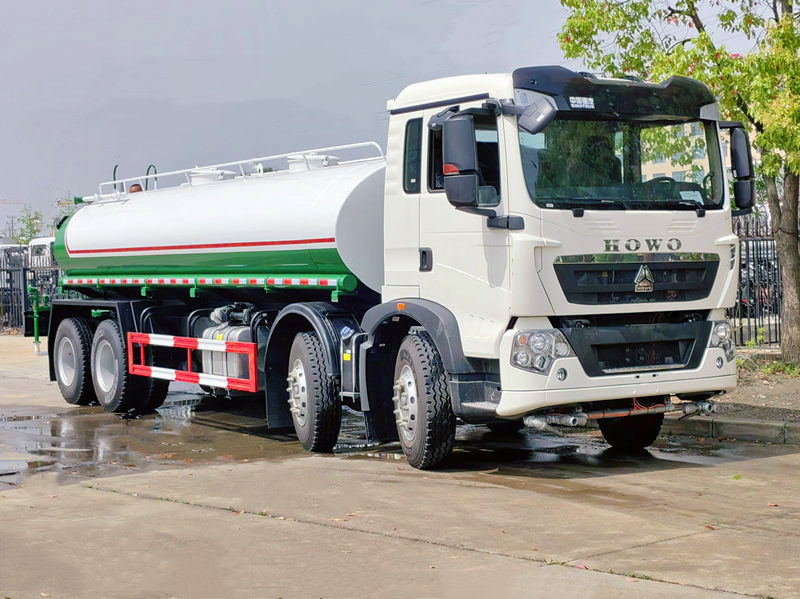

Howo 8x4 heavy 20000L water tanker

2. Technical Advantages:

 Equipped with a high-horsepower engine, it forms a golden powertrain with an HW1910 transmission and a low-ratio drive axle.

 It features an 8x4 drive system, high-strength frame materials, and a multi-leaf spring reinforced suspension system.

 The dual front axle steering design ensures exceptional load-bearing capacity while enhancing steering flexibility.

 The water pump, a renowned Chinese brand, boasts high flow, high head, and long service life, and is self-priming and self-discharging.

 It features front-end flushing, side spraying, and a rear sprinkler—all in one.

The high-pressure water canon rotates 360 degrees and can be adjusted to a columnar configuration for maximum range.



Howo 8x4 heavy 20000L water tanker

3. "One Vehicle, Multiple Uses" for Superior Functionality:

 This vehicle perfectly meets the water supply and sprinkler needs of urban construction, road maintenance, and landscaping irrigation.

 The large-capacity water tank and high-lift water cannon allow it to quickly transform into a "mini fire truck" in the event of an initial fire, reaching the scene and controlling the blaze as quickly as possible.

 It is an effective dust suppression tool in dust-prone areas such as mines, steel mills, and thermal power plants, helping companies fulfill their environmental responsibilities.

 With minimal modification, it can be used for drought relief in farmland, emergency water supply, and other applications, extending its reach to a wide range of scenarios.



Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasonable price

3.we can offer your a reliable after-sell service

4.we have skilled professional design team

5.promptly delivery. any order is welcome.





We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.





HOWO heavy duty water tank trucks for export

SINOTRUK HOWO 20000 liters water tanker trucks for export



HOWO 10 wheeler water bowser for export

SINOTRUK HOWO 10 wheeler water tanker trucks ready for delivery
