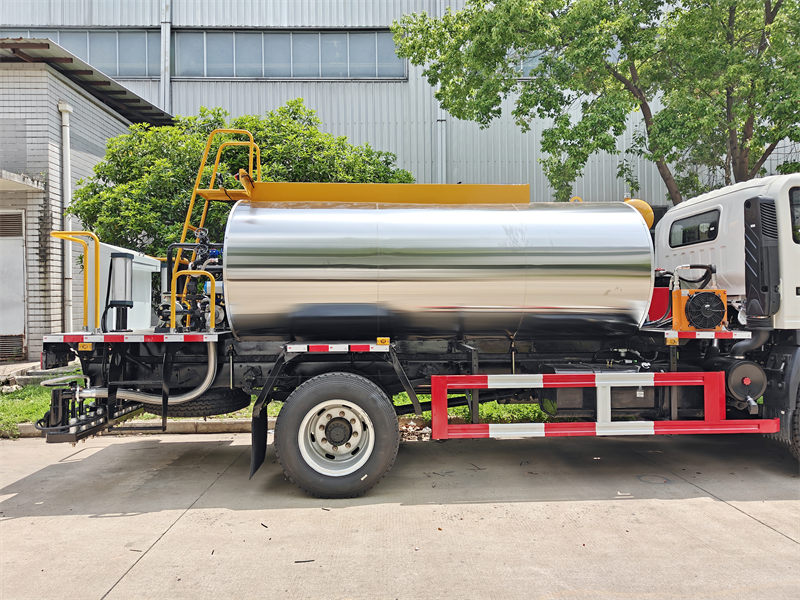

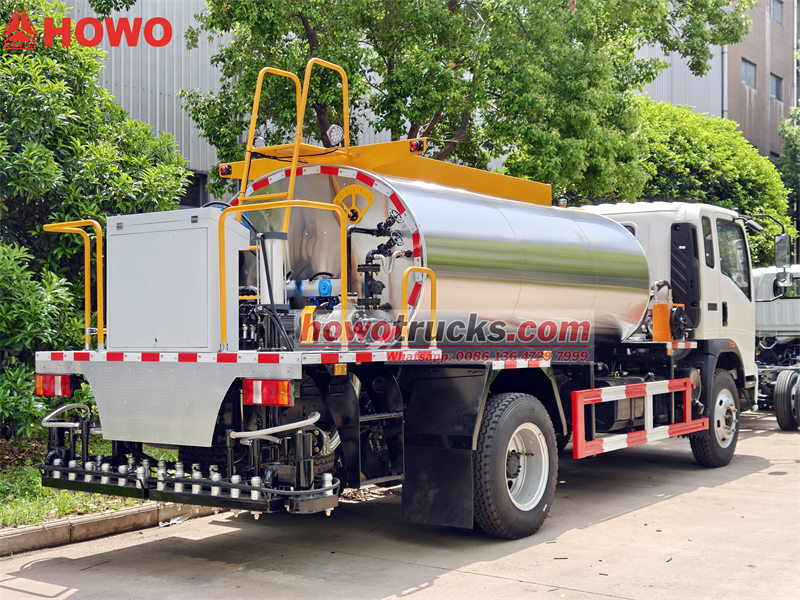

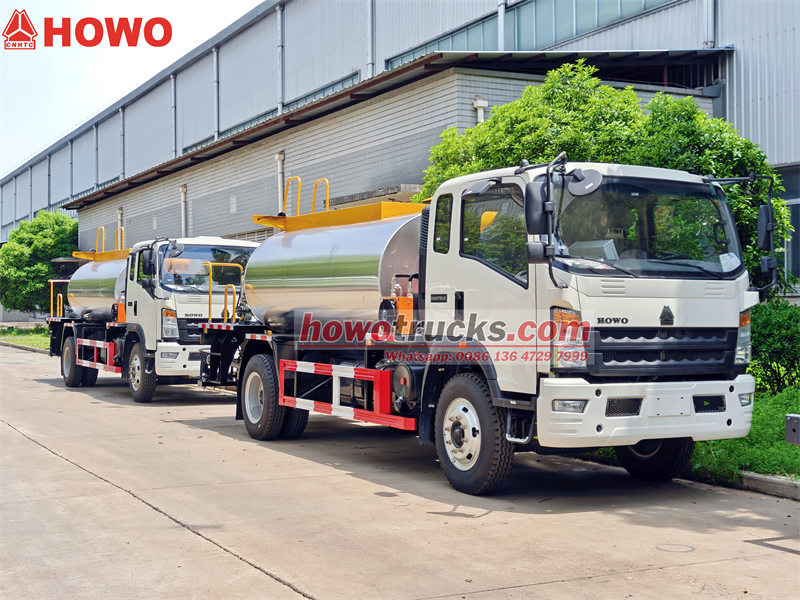

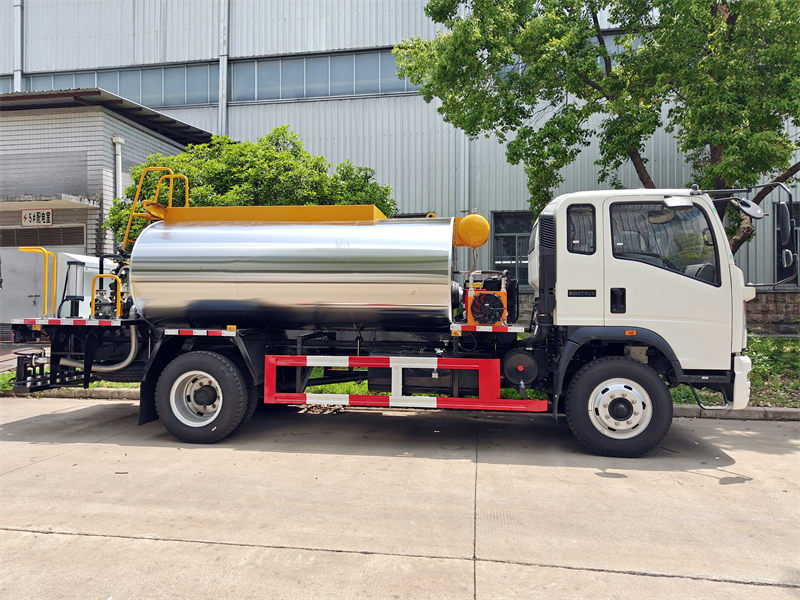

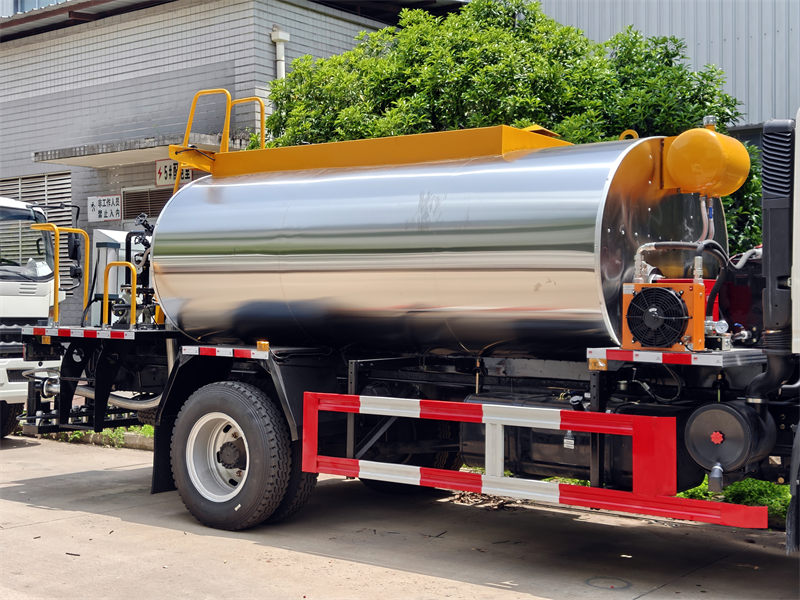

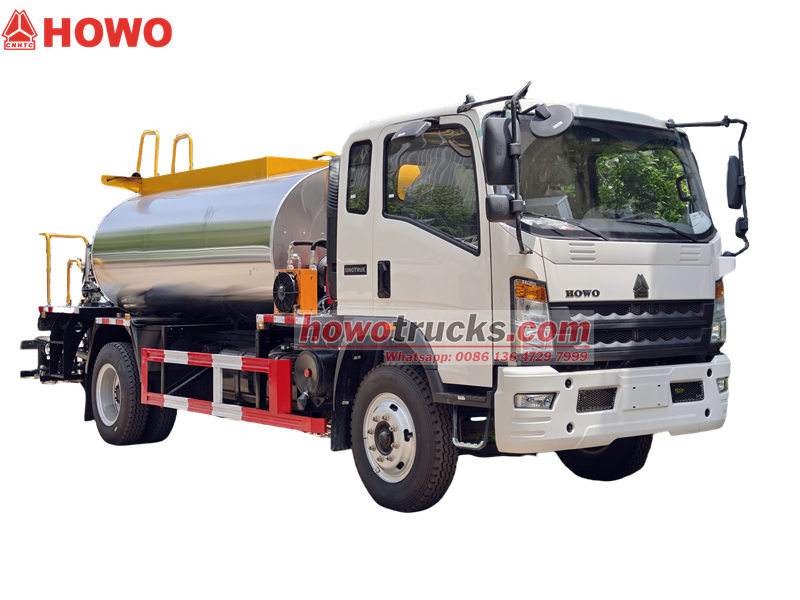

HOWO light 4x2 bitumen asphalt spreader

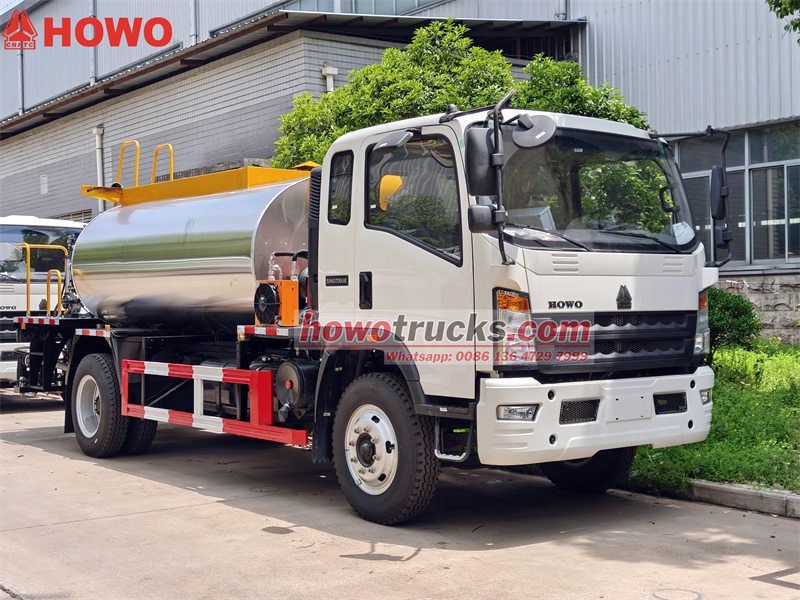

The core of the Howo light asphalt distributor truck is built on the proven HOWO heavy-duty truck chassis. The solid combination of 3.2 tons on the front axle + 8 tons on the rear axle, with 7.50R16 tires (6 tires + 1 spare tire as standard), ensures stable driving and excellent passability on various paved roads. Equipped with Yuchai YC4E140-33 engine, its iconic low-speed and high-torque characteristics are the perfect partner for the Howo asphalt distributor truck's frequent starts and stops and stable and uniform speed driving during operations.

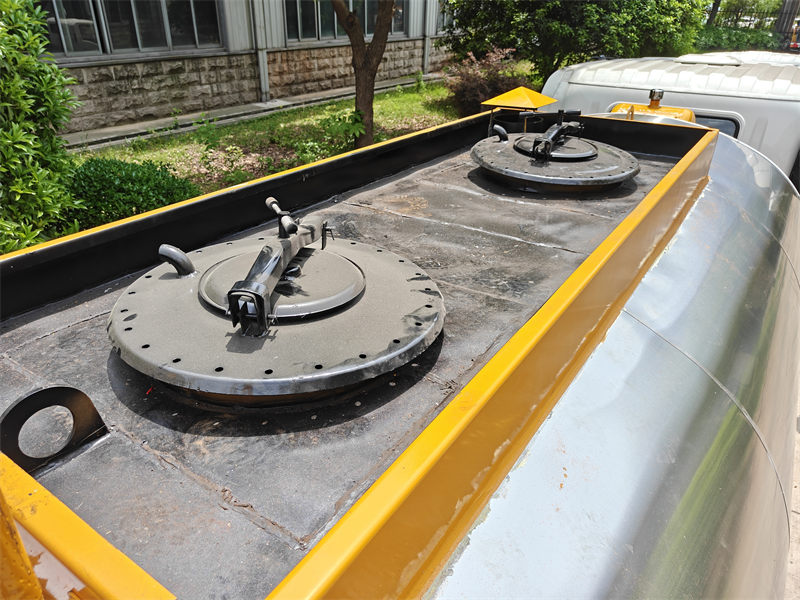

About the tank, our factory adopts an innovative three-layer composite structure, with a solid 4mm steel plate matrix to build the core, wrapped with a 50mm thick high-efficiency insulation layer, and finally sealed with a corrosion-resistant stainless steel shell. The cylindrical welded structure ensures uniform stress distribution, minimizes the risk of weld cracking, and provides long-lasting and reliable protection for road construction.

*SINOTRUK HOWO 6000L Asphalt Distributor Truck
Emulsion Asphalt Bitumen Distributor Truck*
-----------------------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

Product Definition and Introduction

Manufacturer: CS TRUCKS
Features:
1. Truck Chassis: SINOTRUK HOWO offroad truck chassis, 4x2, 4x4 and 6x6 model
                              YC model with 116HP, 140HP, 160HP or 180HP
                              Optional EURO 3/4/5 emission for different market

2. Tank material: Innovative three-layer composite structure

                             With a solid 4mm steel plate matrix to build the core

                             Wrapped with a 50mm thick high-efficiency insulation layer

3. Tanker Capacity: 4000L--20000L can be customized

4. Fire Pump: High viscosity insulation pump, flow rate 680L/min, working pressure 0.8MPa
                        Rated speed 584 r/min, viscosity 0.02-15 Pas

Product Parameter for HOWO 8000L foam tanker fire truck:

Product Details & Advantages:

1. Construction efficiency and precision

♦ Spraying width: 4.5 meters to cover the standard lane and reduce repeated operations.

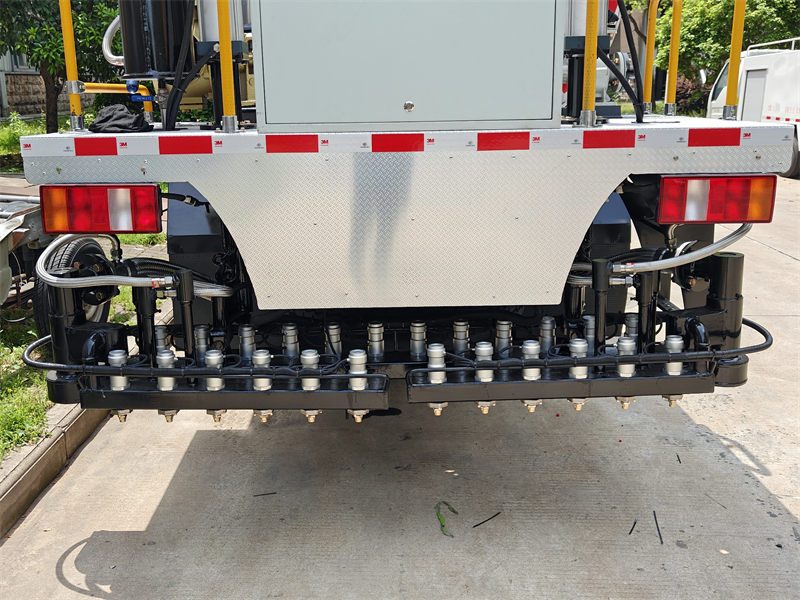

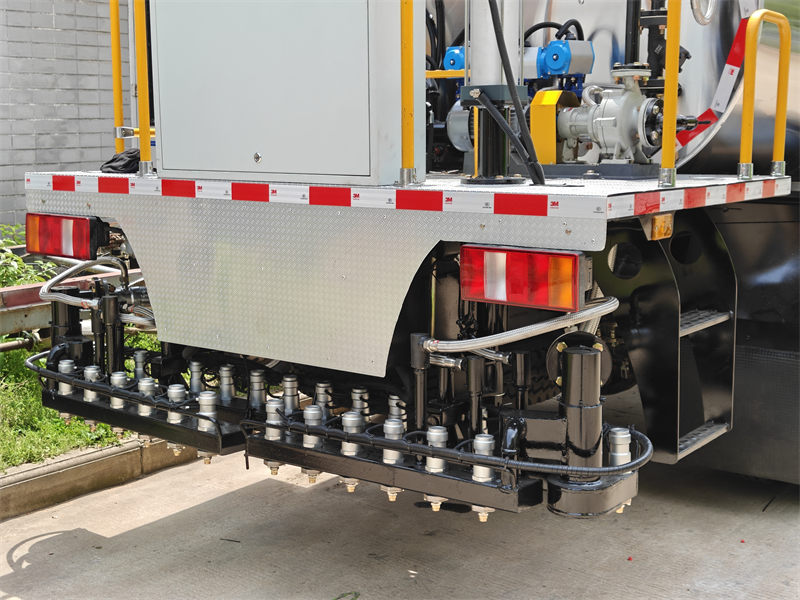

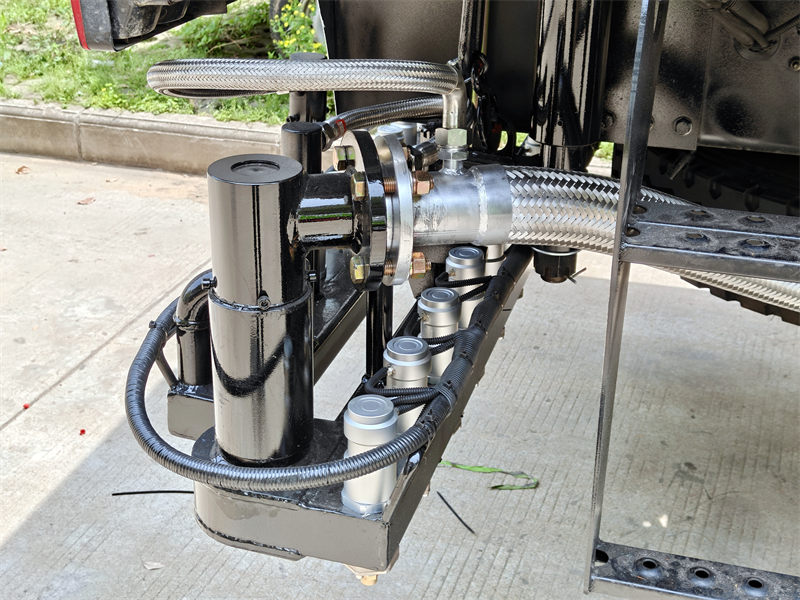

♦ Intelligent control: 36 nozzles are independently adjusted (0.3~3.5L/m²) to achieve precise flow control and adapt to asphalts of different viscosities (emulsified/modified asphalt).

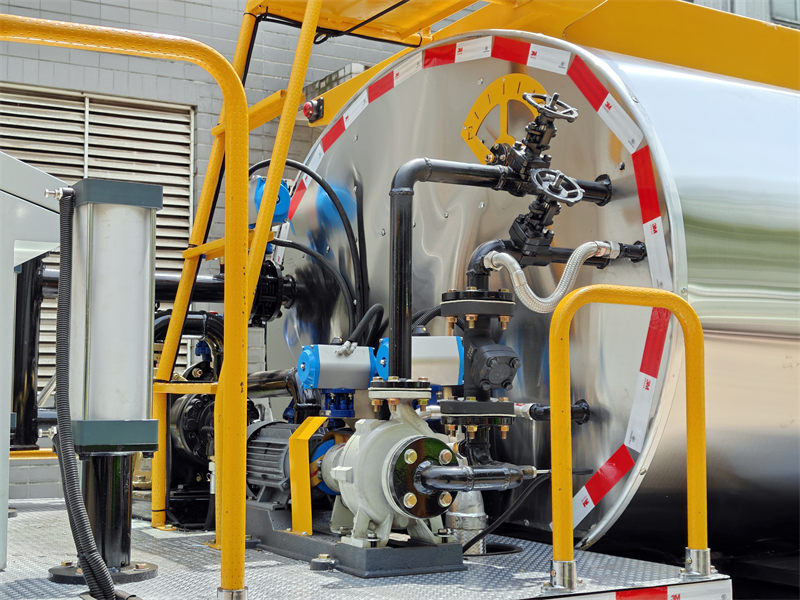

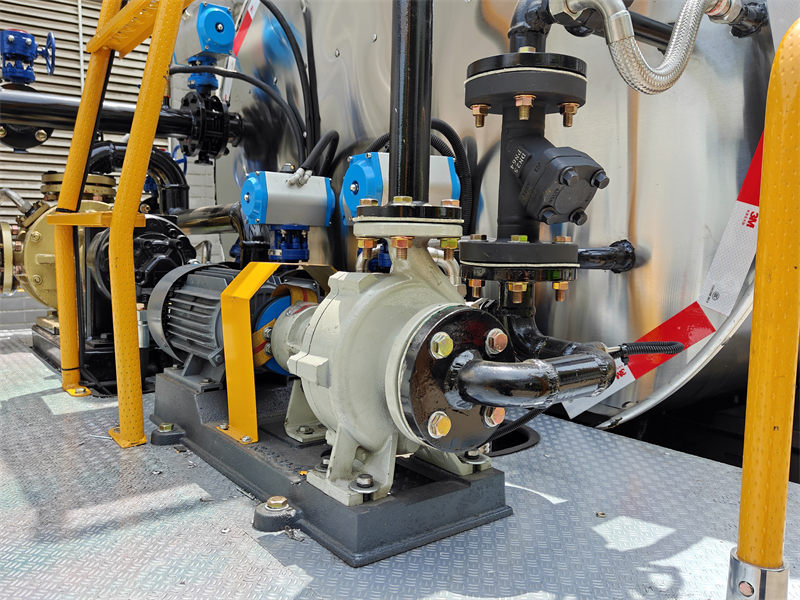

♦ QGB680 asphalt pump: 680L/min high flow, quickly complete large-area construction.



2. Asphalt insulation and heating capacity

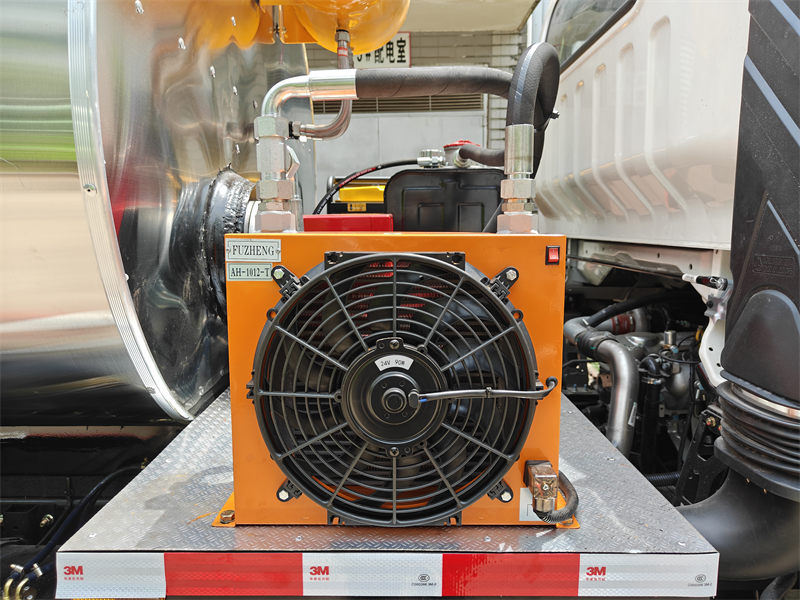

♦ Automatic heating of thermal oil: uniform heating to avoid local coking, safer than direct fire heating.

♦ Italy imported burner (G20 fuel): high thermal efficiency, low failure rate, and continuous operation.

♦ Insulation layer design: the temperature drop during construction intervals is ≤2℃/hour, reducing repeated heating energy consumption.



3. Ergonomics and safety

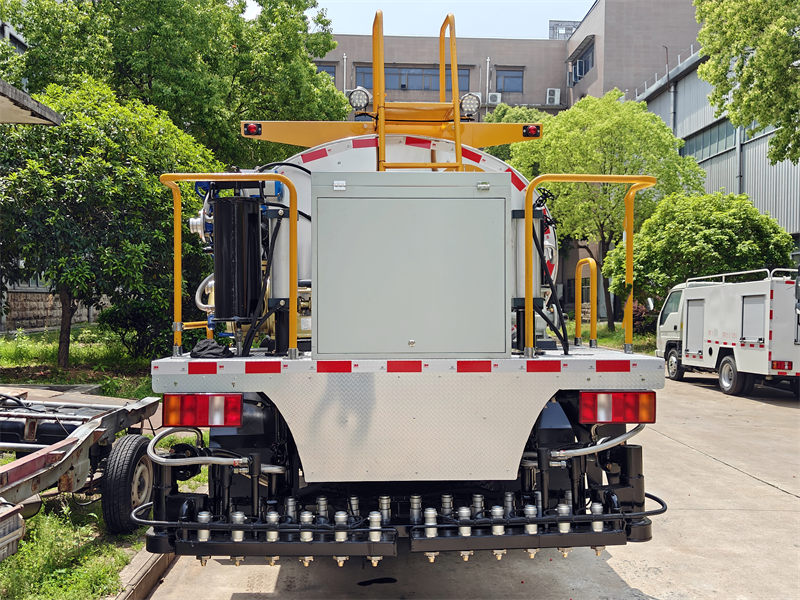

♦ Rear operating platform + control box: personnel stay away from high-temperature areas and remotely control spraying parameters.

♦ Air brake system: fast response speed, and the braking distance under full load conditions is shortened by 30%.

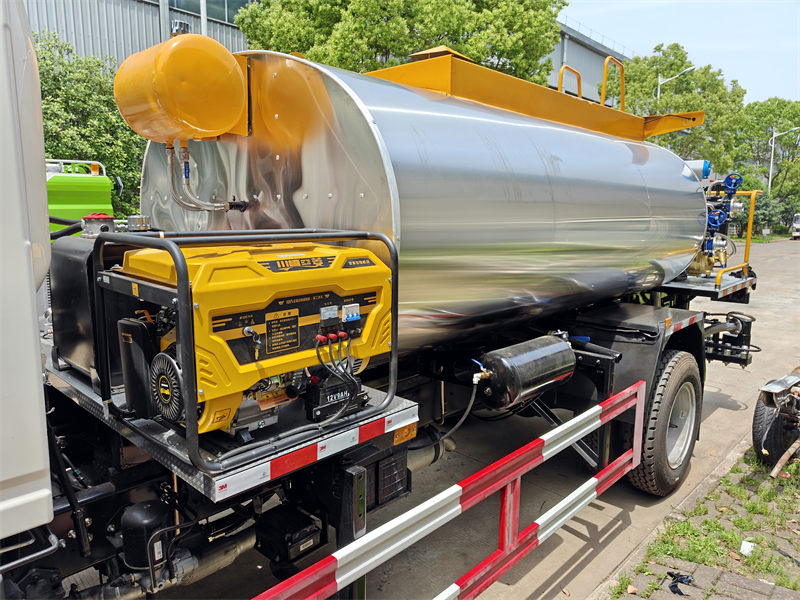

♦ 6KW generator: provides independent power for control system and lighting, avoiding chassis battery depletion.



4. Maintenance and economy

♦ Universal chassis accessories: HOWO chassis maintenance network covers a wide range, reducing downtime.

♦ Stainless steel tank + anti-corrosion design: anti-asphalt corrosion, life expectancy increased by more than 50%.

♦ Low maintenance design: Asphalt pump and burner use mature imported components, and the failure rate is controllable.



Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!

1.we can do the designs according to the your requirement

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome

We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
